Crestron AirMedia AM-USB-WIFI-I User manual

The AM-USB-WIFI and AM-USB-WIFI-I are USB dongles that enable the use of Miracast®
projection technology with the AM-200 and AM-300 presentation systems and the CCS-UC-1
Crestron Mercury® UC Tabletop Conferencing System. Miracast is built into the Microsoft®
Windows® 10 operating system, so no software installation is necessary.
NOTES:
• The AM-USB-WIFI and AM-USB-WIFI-I are functionally identical. The AM-USB-WIFI-I
model is sold outside of the United States. In this document, the term “AM-USB-WIFI”
denotes both versions of the product.
• When using the AM-USB-WIFI or the AM-USB-WIFI-I with the AM-200
or AM-300, the ZUMMESH-AVBRIDGE, ZUMMESH-KP10AMBATT, and
ZUMMESH-PIR-OCCUPANCY-BATT are not supported.
IMPORTANT NOTE: To comply with ISED CANADA and FCC RF Exposure compliance
requirements, the antenna used for this transmitter must be installed to provide separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
REMARQUE IMPORTANTE: Pour être conforme aux exigences de conformité d’ISED CANADA
de la FCC en matière d’exposition aux radiofréquences, l’antenne utilisée pour cet émetteur
do être installée de manière à assurer une distance de séparation d’au moins 20 cm de toutes l
personnes. toute autre antenne ou émetteur.
Check the Box
Item Qty
AM-USB-WIFI 1
AM-USB-WIFI-I 1
Required Firmware
The AM-USB-WIFI is compatible with the following firmware:
• CCS-UC-1 version 1.4095 or later
• AM-200 and AM-300 version 1.4213 or later
Scan or click the below QR codes for detailed firmware information:
CCS-UC-1 AM-200/AM-300
Installation
CAUTION: The AM-USB-WIFI module should not be shielded or covered when in operation.
Please refer to Best Practices for: Installation and Setup of Crestron RF Products at
crestron.com/manuals to avoid wireless interference when using the device.

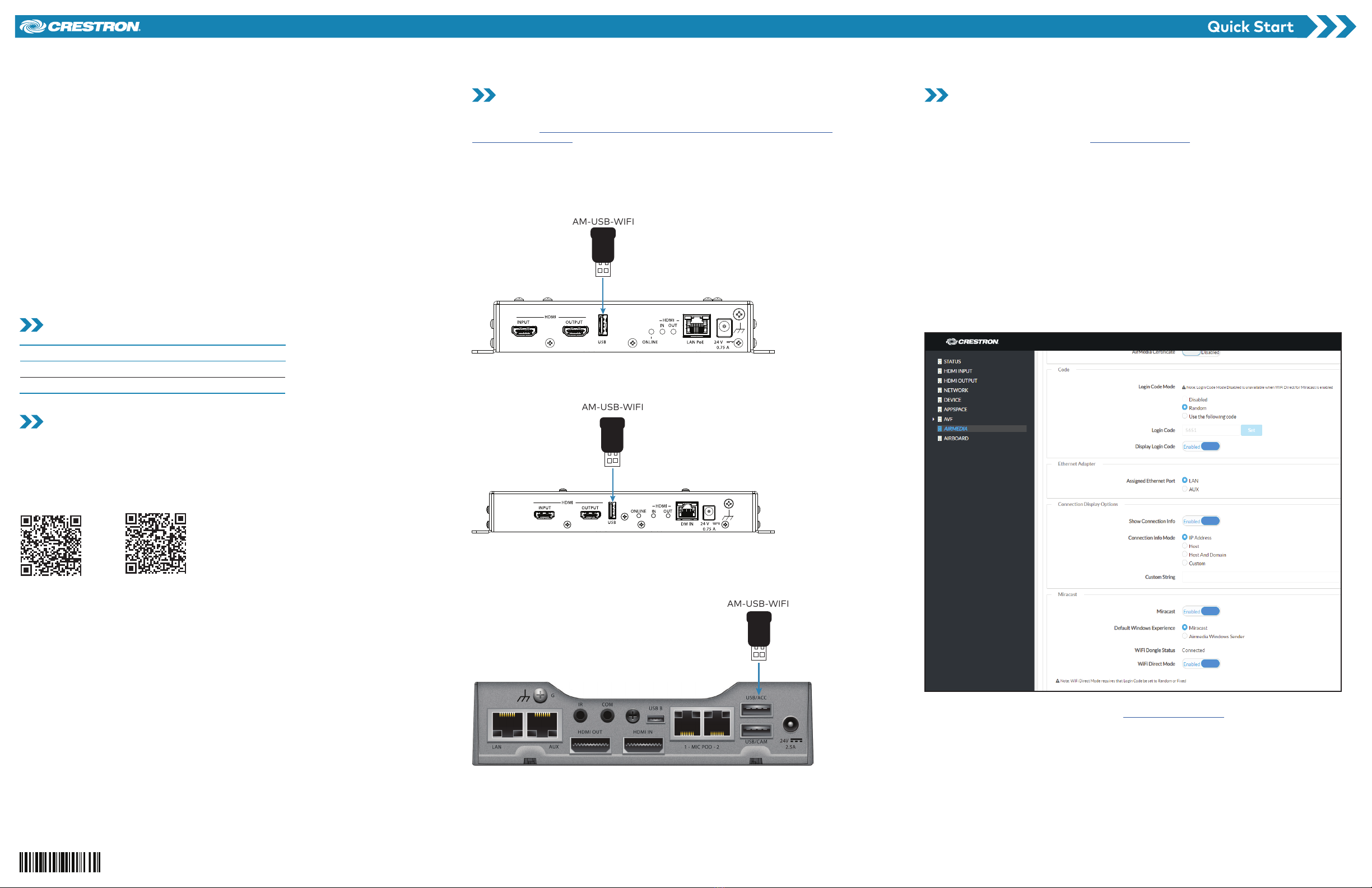

AM-200/AM-300 Installation
Insert the AM-USB-WIFI into the USB port on the AM-200 or AM-300.
AM-200 Installation
AM-USB-WIFI
AM-300 Installation
AM-USB-WIFI
CCS-UC-1 Installation
Insert the AM-USB-WIFI into the USB/ACC port on the CCS-UC-1.
AM-USB-WIFI
Configuration
NOTE: The configuration of this device requires a working knowledge of the AM-200, AM-300,
or the CCS-UC-1. Refer to the AM-200/-300 Product Manual (Doc. 8254F) or the CCS-UC-1
Supplemental Guide (Doc. 7844K) at crestron.com/manuals for further information regarding
each product.
Use a web browser to navigate to the IP address or host name of the host device.
1. After signing in, click on the AIRMEDIA link in the left-hand pane.
2. In the Miracast section, set Miracast to Enabled. A dialog box prompting a device reboot
will appear after Miracast is enabled. Select Yes.
3. Set the Default Windows Experience to Miracast so that instructions tailored to Miracast
will appear when starting the presentation. A dialog box prompting a device reboot will
appear after Miracast is set as the Default Windows Experience. Select Yes.
4. Set WiFi Direct Mode to Enabled so that if the initial LAN connection fails, a Wi-Fi point to
point connection will occur.
NOTES:
• If WiFi Direct Mode is enabled, Login Code Mode must be set to Random or to Use
the following code, where a fixed code is entered to login.
• For the best user experience, Crestron highly recommends setting WiFi Direct Mode
to enabled.
NOTE: For Miracast network requirements, best practices, and troubleshooting, refer to the
AirMedia Deployment Guide (Doc. 7693K) at crestron.com/manuals.
AM-USB-WIFI/AM-USB-WIFI-I
AirMedia® USB Adapter with Wi-Fi® Connectivity

Operation
Connect to the Device
To connect to an AM-200, AM-300, or CCS-UC-1 with a Windows 10 device, do the following:
1. On a Windows 10 device, use the Windows Logo Key +K keyboard shortcut to search for
Miracast capable receivers. A list of capable receivers will appear in a pop-up menu on the
right-hand side of the screen.
2. Click on the name of the desired receiver. In the image above, the Crestron Mercury UC
Tabletop Conferencing System (CCS-UC-1) is used as an example.
3. Enter the authentication code displayed on the CCS-UC-1 or the AM-200/-300 and connect
to the receiver. Content will be shown on the display device once connected.
NOTES:
• Crestron recommends Windows 10 version 1809 or newer for complete support of
Miracast. Windows 10 version 1703 is the minimum supported version for Miracast
capability. Previous versions may not ask for an authentication code when connecting.
• Miracast devices use Wi-Fi® based discovery. After discovering a device, Windows 10
will first attempt to connect to the Miracast receiver via any existing infrastructure. If
the connection over infrastructure fails, Windows 10 will then establish the Miracast
session using a standard Wi-Fi Direct® connection.
Configuration
Once connected, the user may alter the projection settings.
1. Click on Change Projection Mode. A list of different projection methods will appear in place
of the receiver list.
2. Click on the desired projection method from the list.
Disconnect the Device
The user can disconnect by clicking the Disconnect button.
Additional Information
Scan or click the QR code for detailed product information.
AM-USB-WIFI AM-USB-WIFI-I
Compliance and Legal
Original Instructions: The U.S. English version of this document is the original instructions. All other languages are a translation
of the original instructions.
Regulatory Model: M201926001
FCC ID: 2AKC6XHT-WF5E
As of the date of manufacture, the product has been tested and found to comply with specifications for CE marking.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not
cause harmful interference and (2) this device must accept any interference received, including interference that may cause
undesired operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Compliance Statement
CAN ICES-3 (B)/NMB-3(B)
ISED Canada
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, please
visit www.crestron.com/opensource.
Crestron, the Crestron logo, AirMedia, and Crestron Mercury are either trademarks or registered trademarks of Crestron
Electronics, Inc. in the United States and/or other countries. Microsoft and Windows are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries. Miracast, Wi-Fi, and Wi-Fi Direct are either
trademarks or registered trademarks of Wi-Fi Alliance in the United States and/or other countries. HDMI is either a trademark
or registered trademark of HDMI Licensing LLC in the United States and/or other countries. Other trademarks, registered
trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or
their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for
errors in typography or photography.
