Crime Guard 750i6 User manual

MORE Programmable Features Options! The Crime Guard 750i6is extremely versatile, due to an
incredible array of programmable features- 24,with many of the individual Features offering as many as four setting choices.
750i6
Omega part #

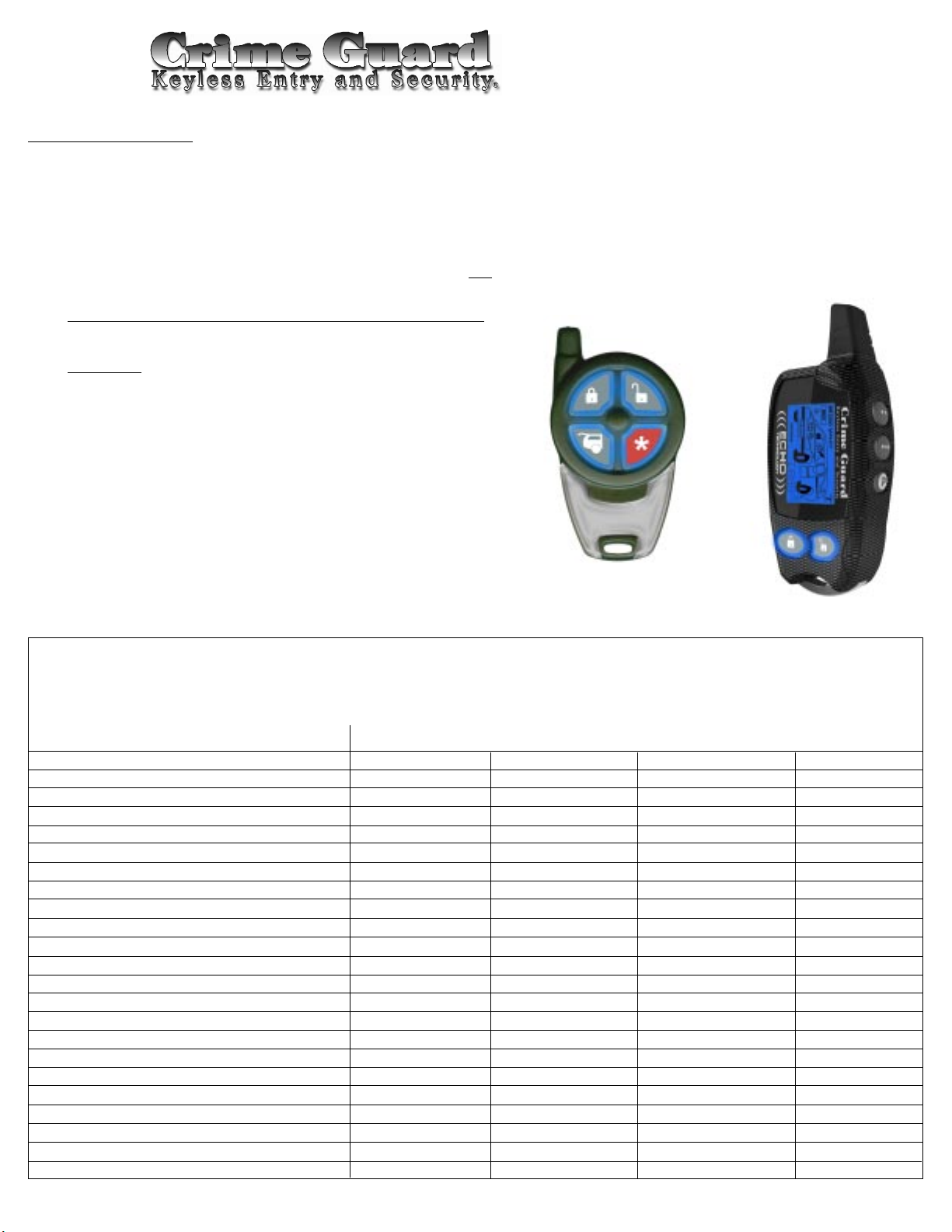

One Transmitter and one 2-way Controller included:
New! Carbon Fiber illuminated 2-way controller features the
unique and patented ability to customize the type of vehicle displayed.
Operations: Lock Button - Press and release to Arm/Lock. Press
and hold to activate Remote Panic with locking doors.
Unlock Button - Press and release to Disarm/Unlock. Press and hold
to activate Remote Panic with unlocking the doors.
3rd Channel - Press and hold Lock and Unlock together.
“II” Button - Press and hold to activate trunk release. Press and
release twice to arm/lock - disarm/unlock without confirmation chirps.
“III” - Press and hold to activate remote panic, or change to 3rd Channel.
New! Optional Additional Channels - 4th and 5th Channel outputs are
available, as an option of the programmable relays.
4th Channel - Press the Lock and “II” buttons together.
5th Channel - Press the Unlock and “III” buttons together.
CAR1 select - Press the Lock and “P” buttons together.
CAR2 select - Press the Unlock and “P” buttons together.
Standard Features:NEW! Multi-Car Operation (CAR 1 or CAR 2)! NEW! Parking Timer! NEW! Remote Valet!
NEW! 2 programmable-function onboard relays (lock, parking lights, channel 4, unlock, horn, channel 5)! NEW! Programmable
Features! NEW! 2 additional remote channel outputs! NEW! Data port for IntelliKit plug-in bypass kits and databus modules!
The Crime Guard 750i6offers serious No-Nonsense Security with 2-way operation, which includes an Echo 2-way controller, one transmitter,
and a window-mounted receive-and-transmit module to ensure great operating range, both ways. Other features include the amazing 2-in-1
Psycho Siren, reliable AU-85Tn magnetic dual-zone shock and glass-breakage sensor, Selectable Coded Override and Easy Valet operation.
Special installer features are the new plug-in IntelliKit data port, plug-in and internal doorlock capability, two plug-in sensor ports, plug-in backup
battery, and new programmable onboard relays, offering choices of lock, unlock, horn, lights, or 4th and 5th channel options.
2-Way Security System
Omega part #
# 149-05
# Feature Default Setting Option 2nd Option 3rd Option
1 SecureCode 1 & 0 Two stages, of up to 9 presses each. Total of 99 possible combinations.
2 Last Door Arming OFF (L) ON w/o door lock (U) ON with doors locking (2)
3 Automatic Rearming OFF (L) ON w/o door lock (U) ON with doors locking (2)
4 Starter Interrupt Functions Alarm only (L) Off (U) Automatic (2) Alarm+AntiGrind (3)
5 Ignition Activated Override OFF (U) ON (L)
6 Doors Lock With Ignition On ON (L) OFF (U)
7 Doors Unlock With Ignition Off ON all doors unlock (3) OFF (L) output 1 (dr. door) only (U) output 2 only (2)
8 Open Door Bypass To Previous Two Features ON (L) OFF (U)
9 Confirmation Chirps ON (L) OFF (U) except in Valet Mode (2) in Valet Mode only (3)
10 Confirmation Chirp Volume Medium Loud (2) Low (L) Med Lo (U) Loud (3)
11 Activated Alarm Cycle 30 Seconds (L) 60 Sec. (U) 90 Sec. (2) 120 Sec. (3)
12 Lights On Upon Disarm ON (L) OFF (U)
13 Disarm Alarm Upon Trunk Release ON (L) OFF (U)
14 Arming Delay 3 Seconds (L) 15 Seconds (U) 30 Seconds (2) 45 Seconds (3)
15 Steady Siren Output / Pulsed Horn Steady Siren (L) Pulsed Horn Lo (U) Pulsed Horn Med. (2) Pulsed Horn Hi (3)
16 Alarm Functions Bypass OFF (U) ON (L)
17 Ignition Activated Anti-Carjacking Protection OFF (U) ON (L)
18 Door Activated Anti-Carjacking Protection OFF (U) ON (L)
19 Remote Activated Anti-Carjacking Protection OFF (U) ON (L)
20 Open Door Warning Upon Arming OFF (U) ON (L)
21 III Button Operation 3rd Chan. (L) Panic (U) 4th Chan. (2) 5th Chan. (3)
22 Doorlocking Functions .8 Second Output (L) 3 Second output (U) Double Unlock output (2) Total Closure (3)
23 Lock Relay Functions Lock(L) Parking Light (U) Channel 4 Latched output (2) Ch 4 on-demand output (3)
24 Unlock Relay Functions Unlock (L) Med. Horn (U) Channel 5 Latched output (2) Ch 5 on-demand output (3)
How to program: Turn the ignition ON, then OFF. Press the Valet Swtch 5 times (the siren briefly
sounds; the Status LED lights red). Then select the desired feature by pressing the Valet Switch
the same number of times as the feature number. After the system chirps the same number back, choose
the feature’s setting by pressing the controller or transmitter buttons: the Lock button (L); Unlock button (U); II button (2) or III button (3).
Programmable Features
Specifications subject to change 07/09
#152-05CF

NEW! Programmable Relays
“Unlock” Relay (programmable) Ribbon Cable
(+) or (-) Input (N/O) - Violet/Black
Output (COM) - Blue/Black
Input (N/C) - Brown/Black
“Lock” Relay (programmable) Ribbon Cable
(+ or -) Input (N/O) - Black/Red
Output (COM) - Green/Violet
Input (N/C) - White/Red
Specifications subject to change 07/09
Gray: (-) Auxiliary Output #2
Crime Guard 750i6
Wiring Diagram Overview
Keyless Entry and Security
Crime Guard
750i6
Pink: (-) Auxiliary Output #3
Inside Control
Module:
Backup Battery
plugs in
and mounts
Yellow:
Ignition Input
$
White:
To Starter Red: To
Ignition
Switch
Relay
Orange: Armed (-) Output
Switch
Ignition
Socket & Relay
for
starter interrupt
Battery+
Black:
(-) Ground Red: (+) 12 Volts
10 Amp
(-) Door
Pin Switch
Hood /
Trunk
Switch
Or
Pin
Brown: (+)
Siren Output
(+) Door
Pin Switch
Light
Switch
White: (+) Parking Light Output
Blue: (-) Instant
Violet: (+) Door 10 Amp
15 Amp
Green:
(-) Door
Green/Violet: Dome
Light Output - connect to
vehicle’s dome light wire
see Installation Manual
Black/Red:
To (-) or (+) as needed
Siren
Orange
Gray
Yellow
Black
Red
Pink
Green
Blue
Violet
Brown
White
Grn/Vio
Blk/Red
Parking Lights
12345678901
12345678901
12345678901
12345678901
12345678901
12345678901
Siren
Red
wire
Siren Black wire
to Ground
Starter
How to program Controllers or Transmitters: Turn “on” the ignition, then press the Valet Switch 5 times and wait for siren confirmation of
entry into programming mode. Press and release the Lock transmitter button on each remote to be coded (one at a time). The system will
respond to each with an audible confirmation. New! Unauthorized Transmitter Alert (UTATM) is user-programmable; operation now optional.
System
Receive / Transmit
Module
( ( (ECHO
Status Lights
Valet
Switch
Auxiliary Sensor Port #1
Power Doorlock
Interface Port
NEW!
Data Port
Auxiliary Sensor Port #2
