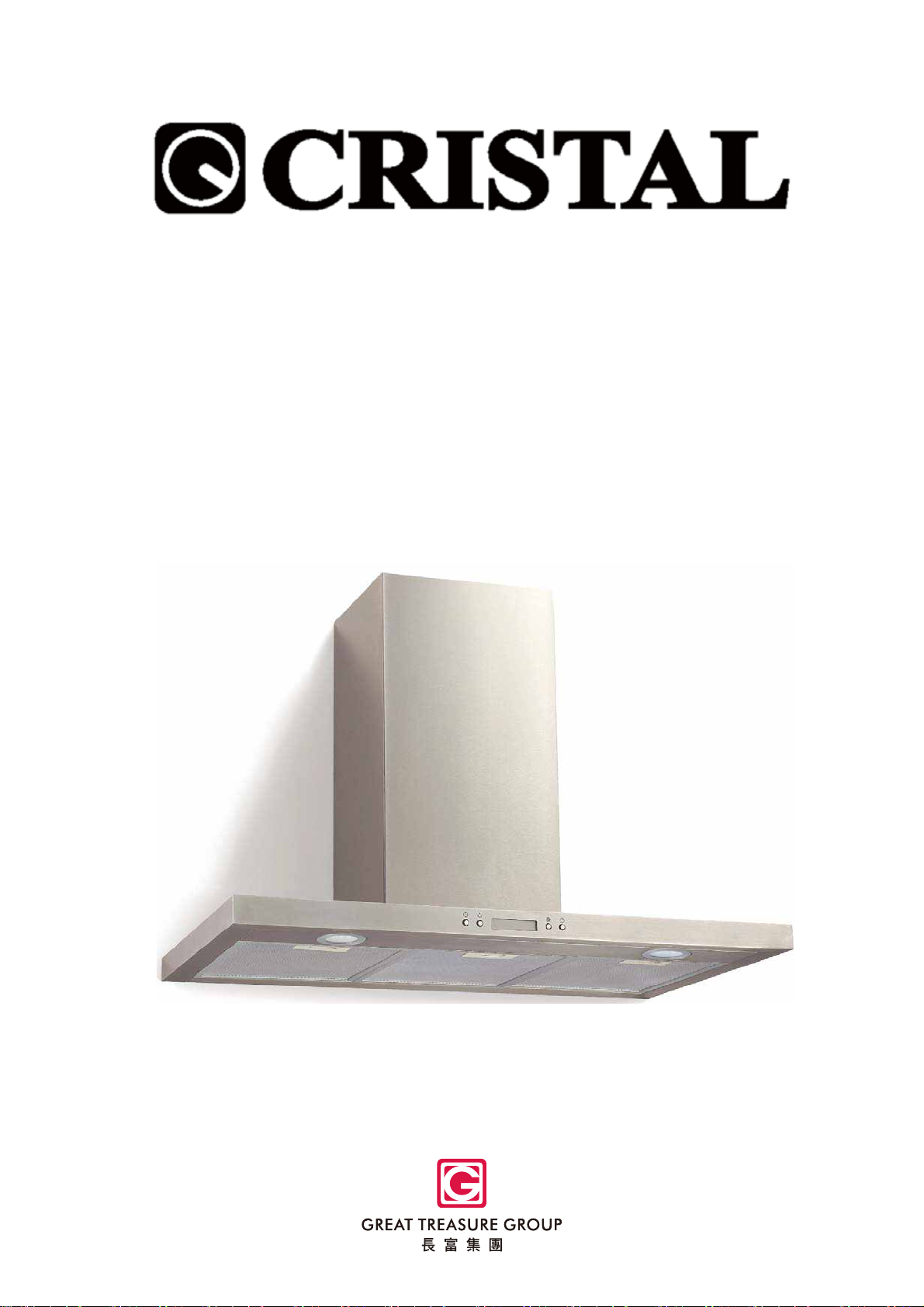

CRISTAL C903ASS User manual

1


)UUQKX.UUJ
/TYZX[IZOUT3GT[GR







2
)UTZKTZ


ȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜ9GLKZ_OTYZX[IZOUTY

ȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜ/TYZGRRGZOUT

ȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜ9ZGXZ[YOTM_U[XIUUQKXNUUJ

ȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜ:XU[HRKYNUUZOTM

ȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜ3GOTZKTGTIKGTJIRKGTOTM

ȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜȜ+T\OXUTSKTZVXUZKIZOUT

















3


9',+:?/49:8;):/549
:NOYSGT[GRK^VRGOTYZNKVXUVKXOTYZGRRGZOUTGTJ[YKUL_U[XIUUQKXNUUJ
VRKGYKXKGJOZIGXKL[RR_HKLUXK[YOTMK\KTOL_U[GXKLGSOROGX]OZNZNKVXUJ[IZ
:NKSGT[GRYNU[RJHKQKVZOTGYGLKVRGIKLUXL[Z[XKXKLKXKTIK
4K\KXZUJU 
ƽDo not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!
ƽDo not install above a cooker with a
high level grill.
ƽDo not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
ƽNever leave naked flames under the
cooker hood.
ƽIf the cooker hood is damaged, do not
attempt to use.
ƽDo not flambé under the cooker hood.
ƽCAUTION: Accessible parts may
become hot when used with cooking
appliances.
ƽThe minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas appliance,
this distance shall be at least 65 cm)
ƽThe air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels. Range hoods and other cooking
fume extractors may adversely affect
the safe operation of appliances
burning gas or other fuels (including
those in other rooms) due to back flow
of combustion gases. These gases
can potentially result in carbon
monoxide poisoning. After installation
of a range hood or other cooking fume
extractor, the operation of open flued
gas appliances should be tested by a
competent person to ensure that back
flow of combustion gases does not
occur.
'R]G_YZUJU 
ƽImportant! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
ƽThe cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
ƽAll installation work must be carried
out by a competent person or qualified
electrician.
ƽPlease dispose of the packing material
carefully. Children are vulnerable to it.
ƽPay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.

4
ƽMake sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
ƽWarning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards.
ƽWarning: Before obtaining access to
terminals, all supply circuits must be
disconnected.
'R]G_YZUJU
ƽAlways put lids on pots and pans
when cooking on a gas cooker.
ƽWhen in extraction mode, air in the
room is being removed by the cooker
hood. Please make sure that proper
ventilation measures are being
observed. The cooker hood removes
odours from room but not steam.
ƽThere shall be adequate ventilation of
the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
ƽCooker hood is for domestic use only.
ƽIf the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
ƽThis appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.



'R]G_YZUJU
ƽCaution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
ƽThere is a fire risk if cleaning is not
carried out in accordance with the
instructions.
ƽRegulations concerning the discharge
of air have to be fulfilled.
ƽClean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
ƽFor safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
ƽRegarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
ƽCleaning and user maintenance shall
not be made by children without
supervision.
ƽWhen the cooker hood and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa(4 x 10-
5bar).

5
ƽWARNING: Danger of fire: do not
store items on the cooking surfaces.
ƽAsteam cleaner is not to be used.
ƽNEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a
fire blanket.
/49:'22':/54<+4:5;:9/*+
35;4:/4-5,:.+<,2'6
If the cooker hood does not have an assembled V-flap 1, you should mount the half-
parts to its body.The images only show an example of how to mount the V-flap,
because the outlet may vary according to different models and configurations.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6;
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part.


/49:'22':/54
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 150mm)

6
1. Before installation, turn the unit off and unplug it from the outlet.

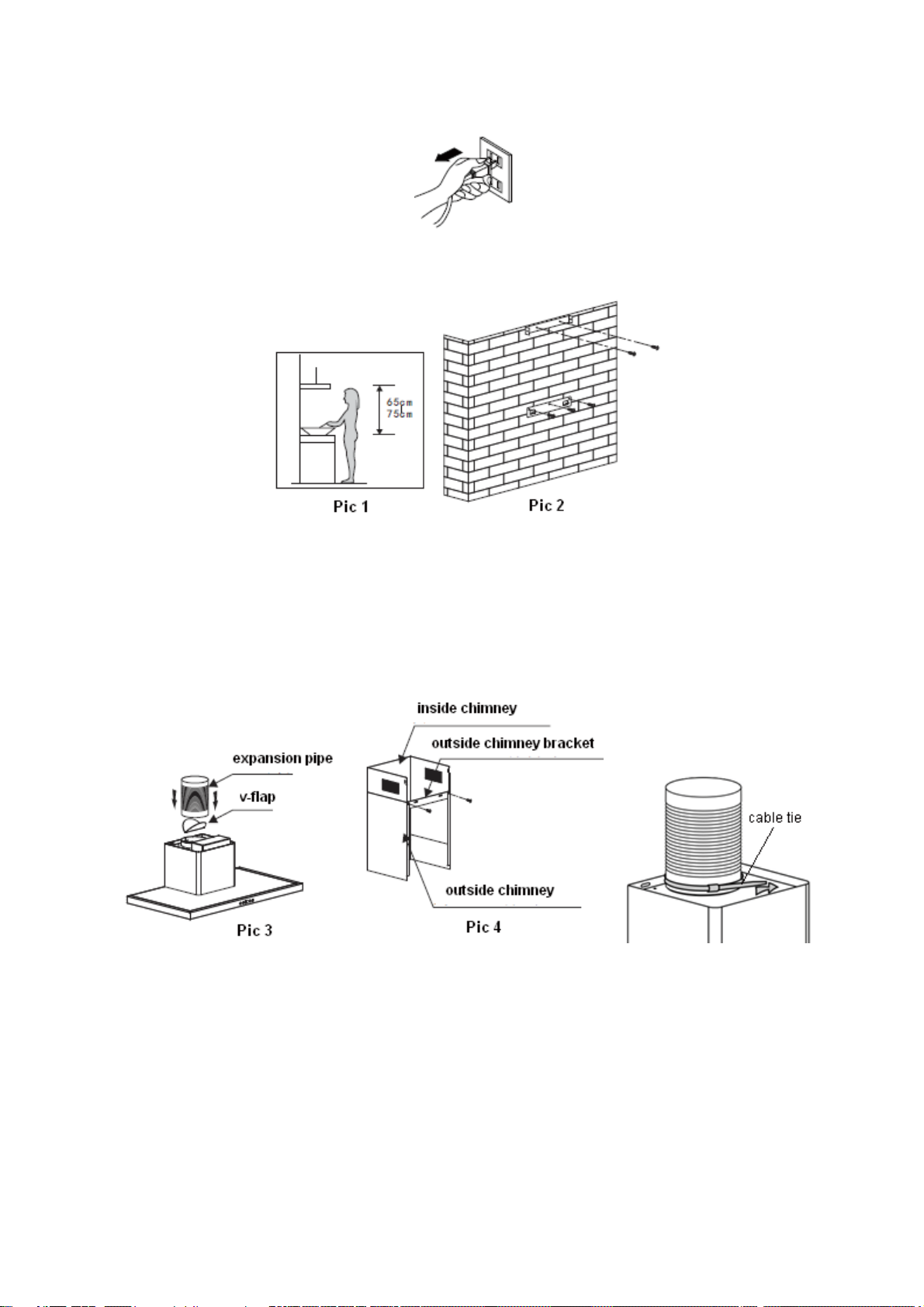

2. The cooker hood should be placed at a distance of 65~75cm above the cooking
surface for best effect. See pic 1.
3. Install the hook on a suitable place once the installation height is fixed, and keep it
in line. The fixed position of the inside chimney bracket is the place of chimney.
See pic 2.
4. Fix the outside chimney bracket on the outside chimney, and be sure that the
inside chimney can be adjusted the height in it freely as well as fixing the
expansion pipe. Afterwards, install the expansion pipe and chimney on the cooker
hood.Fix the expansion pipe with a cable tie on the outlet. See pic 3 & pic 4.
5. Put the cooker hood on the hook. See pic 5.

7
6. Adjust the height of the inside chimney to the position of the inside chimney bracket
and fix it by screws, after adjusting the position, fix the body with safety screws.

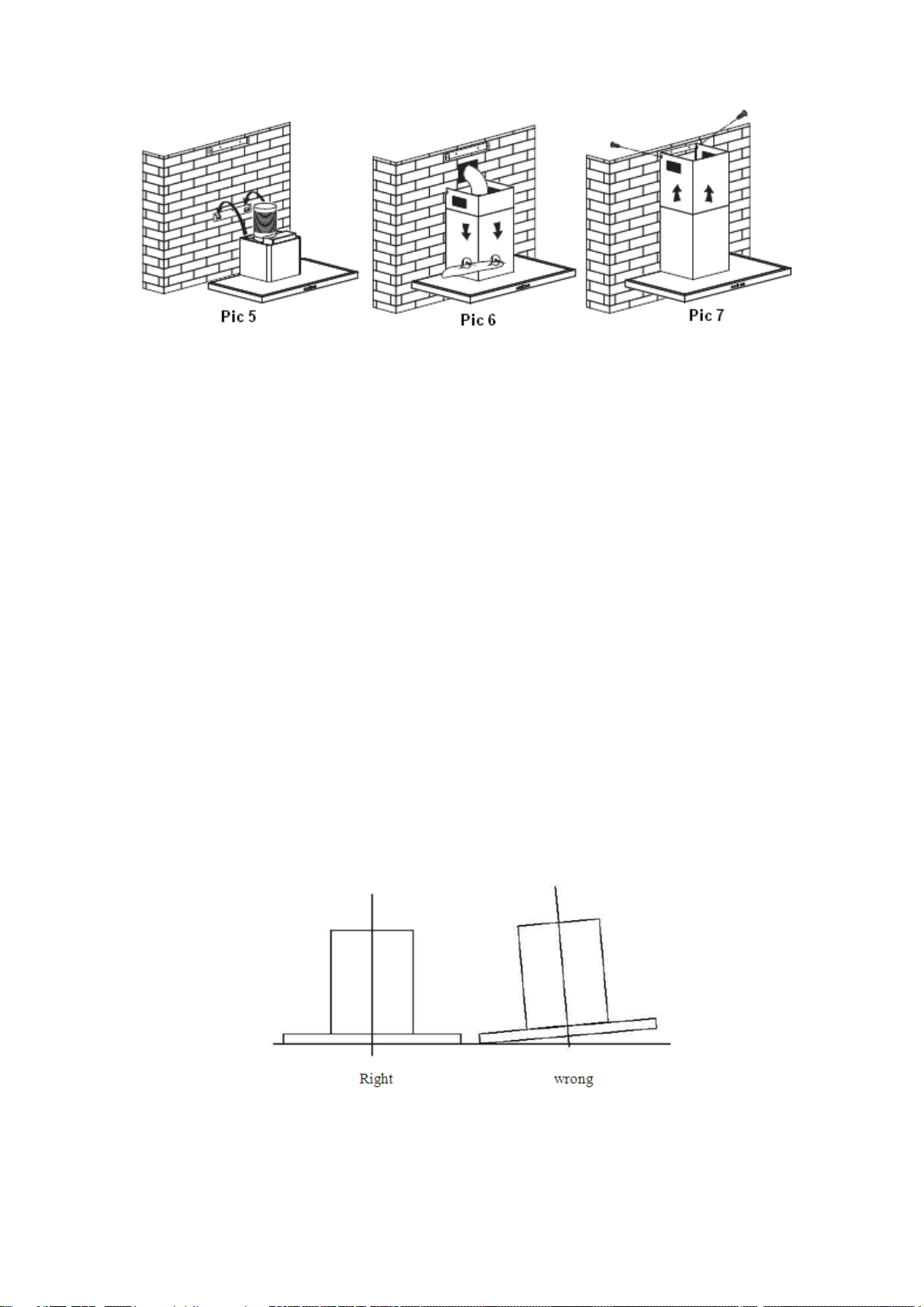

Note: The two safety vents are positioned on the back housing, with a diameter of
6mm. See pic 6 & pic 7.
./4:9,58+>.';9:*;):/49:'22':/54
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize
pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase
noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent
person.
•Do not connect the ducting system of the hood to any existing ventilation system
which is being used for any other appliance ,such as warmer tube, gas tube , hot wind
tube.
•The angle of the bend of the expansion pipe should not be less than 120º; you must
direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point
and should be led to an outer wall.
•After the installation ,make sure that the cooker hood is level to avoid grease
collection at on end.
•Ensure the expansion pipe selected for installation complies with relevant standards
and is fire retardant.

8
WARNING: ¾For safety reason, please use only the same
size of fixing or mounting screws which are
recommended in this instruction manual.
¾Failure to install the screws or fixing device in
accordance with these instructions may result in
electrical hazards.

9ZGXZ;YOTM?U[X)UUQKX.UUJ
LCD touch control
1. Plug the hood; LCD will display 24-hour system with blue backlight. Backlight will
be extinguished after 15 seconds without any operation.
2. Press “ ” button once; lights will be on and LCD will show “ ”. Press “ ”
button again; lights will be off and “ ” on LCD will disappear.
3. Press “ ” button once; the hood works at LOW speed and LCD will show “ ”
and “ ” button will be on. Press “ ” button again; the hood works at MEDIUM
speed. Press “ ” button one more time; the hood works at HIGH speed. Press
“” button again; the hood works at LOW speed again and it repeat. While
pressing “ ” button; the “ ” button is always on. If you want to stop the hood
now; press the “ ” button once.

9
4. When the hood is not working; press “ ” button once. The hood will work at the
speed it works last time and LCD will show “ ”. Press “ ” button again; the
hood stop working and “ ” will disappear from LCD.
5. When both “ ” button and “ ” button don’t work; “ ” button is used for time-
setting. Press “ ” button for 2 to 3 seconds; will be shown on LCD
and flashes; which represents hour. Press “ ” button once the number adds
by 01. Continue pressing “ ” button; it will display from 13;14… until 23. When
LCD shows 23; it doesn’t work by pressing “ ” button. Press “ ” button once;
the number reduces by 01. When LCD shows 00; it doesn’t work by pressing “ ”
button. After setting hour; you can start setting minute by pressing “ ” button
again. on LCD flashes; which represents minutes. Press “ ” button once the
number adds by 01. Continue pressing “ ” button; it will display from 01;02…
until 59. When LCD shows 59; it doesn’t work by pressing “ ” button. Press
“” button once; the number reduces by 01. When LCD shows 00; it doesn’t
work by pressing “ ” button. After setting hour and minute; press “ ” to confirm.
6. When “ ” button doesn’t work; “ ” button is used for delay timer function. Delay
timer function allows you to set the hoods automatically power off according to the
delay timer you set from 1 minute to 60 minutes. Press “ ” button once; it enters
for delay timer setting and LCD shows . Press “ ” button once the
number adds by 01. Continue pressing “ ” button; it will display from ;
;… until Press “ ” button once; the number
reduces by 01. After setting delay timer you want; press “ ” button to confirm. If
you set delay timer as 05:00; the LCD display will show from 05:00; 04:59… until
00:01 00:00. When LCD shows 00:00; the hood will automatically power off and
LCD display will only show 24-hour system with blue backlight. After 30 seconds
without operation; blue backlight will disappear. But please note the Lamp is not
under control of delay timer. Next time; if you want to use delay timer function and
you press “ ” button without any change on time. The hood will automatically
count time down from your previous setting after 5 seconds.

10

:85;(2+9.55:/4-
,G[RZ 6UYYOHRK)G[YK 9UR[ZOUT
Light on, but motor
does not work
Fan switch turned off Select a fan switch position.
Fan switch failed Contact service center.
Motor failed Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Mains power cable is loose or
disconnected
Refit mains power cable to
power outlet.
Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed
Take down the one way valve
and seal with sealant.
Leakage from the connection of
chimney and cover Take chimney down and seal.
Lights not working Broken or faulty bulbs Replace bulbs as per this
instruction.
Insufficient suction
The distance between the
cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines
The fixing screw is not tight
enough
Tighten the hanging screw and
make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws. Please contact the service centre if in any doubt before
undertaking any of the above. Always disconnect the unit from the power source when
opening the unit.
3'/4:+4'4)+'4*)2+'4/4-
Caution:
• Before maintenance or cleaning is carried out, the cooker
hood should be disconnected from the mains power supply.
Ensure that the cooker hood is switched off at the wall socket
and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so follow the cleaning
instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially
when cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on
the surfaces.

11
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life
expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives,as this will affect the appearance of the
appliance and potentially remove any printing of artwork on the control panel and will
void manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with
a mild detergent and then brush it gently with a soft brush. Do not apply too much
pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light)
Filters should be washed separately to crockery and kitchen utensils. It is advisable
not to use rinse aid.
INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps:
- Angle the filter into the slots at the back of the hood.
- Push the button on the handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed every 3 to 6 months according to your cooking habits. The
installation procedure of activated carbon filter is as below:
1. Before installing or replacing the carbon filters, disconnect the mains power to
the unit.
2. Press the filter lock and remove the mesh filter.

12
3. Turn the carbon filter on both sides of the motor anti-clockwise. Replace the
carbon filters with the new carbon filters.
4. Place the mesh filter.
5. Connect the power supply to the wall socket.
NOTE:
xMake sure the filter is securely locked. Otherwise, it would loosen and cause
danger.
xWhen activated carbon filter attached, the suction power will be lowered.
BULB REPLACEMENT
Important : The bulb must be replaced by the manufacturer, its
service agent or similarly qualified persons.
Always switch off the electricity supply before
carrying out any operations on the appliance. When
handling bulb, make sure it has completely cooled
down before any direct contact with hands.
When handling bulbs hold with a cloth or gloves to
ensure perspiration does not come in contact with
the bulb as this can reduce the life of the bulb.
Note:
zBefore changing the lights, make sure that the appliance is turned off and
unplugged.
zProtect against danger when changing lights, such as wearing gloves.

Changing the lights:
¾Remove the grease filter.
¾Use a tool or the hand to press the spring splinter of both sides of LED light to the
inside, until the light is pressed out, see pic 1.Then slightly pull the light connecting
wire out, and dismantle the terminal of the light connecting wire. See pic 2.
¾Apply the reverse procedure to install the light back.
– LED modules –round lamp
– Max wattage: 21.5 W
– Voltage range: DC 12V
– Dimensions:

13

+4</8543+4:'2685:+):/54 

This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2012/19/EU. It will then be recycled or dismantled to minimize
impacts on the environment, electrical and electronic products are
potentially dangerous for the environment and human health due to
the presence of hazardous substances.For more information, please
contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should
not be disposed of with household waste. Check with your Local Authority or retainer
for recycling advice.

Great Treasure (Building Supplies) Limited
Block E, 10/F, Mai Tak Industrial Building
221 Wai Yip Street, Kwun Tong
Kowloon, Hong Kong
Tel [phone]
Fax [phone]
WhatsApp [phone]
E-mail [e-mail]
Website www.gtgroup.com.hk
HONG KONG OFFICE
Em Macau,
Estrada De Coelho Do Amaral,
N 16-F SengFai Res-Do-Chao A,
Macau
Tel [phone]
Fax [phone]
E-mail [e-mail]
MACAU SHOWROOM
The pictures and products information are
for reference only.
There may be discrepancy between the
pictures /descriptions and the actual
products. All specifications of this catalogue
are subject to change without prior notice.
SOLE AGENT
