Cromemco CTD User manual

Ten Dollars
Cromemco®
-(--------------------
( .
crD
InstructionManual
. (

('
Cromemco
-,..---------------------------------------
{
ern
InstructionManual
June 1985
CROMEMCO, Inc.
P.O. Box 7400
280 Bernardo Avenue
Mountain View, CA 94039
023-6056
Rev. C
Copyright ©1984, 1985
CROMEMCO, Inc.
All Rights Reserved

This manual was produced using aCromemco System Three
computer running under
the Cromemco Cromix Operating System.
The
text was edited with the Cromemco Cromix Screen Editor.
The edited
text was proofread by the Cromemco SpellMaster
Program and formatted
by the Cromemco Word Processing
System Formatter II. Camera-ready copy was printed on a
Cromemco 3355B
printer.
The following are registered trademarks of Cromemco, Inc.
C-Net®
Cromemco®
Cromix®
FontMaster®
SlideMaster®
SpellMaster®
System
Zero®
System Two®
System Three®
WriteMaster®
The following
are trademarks of Cromemco, Inc.
C_IO™
CalcMaster™
DiskMaster™
Maximizer™
System One™
TeleMaster™
UNIX System V is a registered trademark of Bell Laboratories.

TABLE OF CONTENTS
Chapter 1: THE CARTRIDGE TAPE DRIVE
Installing the CTD
System
One and System 100
System
Two
System Three and System 300
Inserting aTape Cartridge
The Write-Protect Switch
Using
the 64F:CC wi th the CTD
Chapter 2: USING THE CTDSOFTWARE
Cromix-Plus Operating
Sy stem
Initializing a Tape Cartridge
Backing Up Files on Tape
Examples
Sample Backup Command File
Cromix
20-Series Operating System
Loading
the CTD Software
Initializing a Tape Cartridge
Backing Up Files on Tape
Examples
Moving
Data Between Hard Disks
LIST OF ILLUSTRATIONS
1
2
2
4
4
6
7
9
13
13
13
15
16
17
18
18
19
20
21
22
Figure 1-1:
Figure 1-2:
Figure 1-3:
Figure 1-4:
Figure 1-5:
Figure 1-6:
Figure 1-7:
Figure 1-8:
Figure 1-9:
The Cartridge Tape Drive
Drive Cable Adaptor
Installing the Adaptor
Removing
the Connector Panel
Installing the Adaptor
Inserting a
Tape Cartridge
The DC600A Cartridge
64FDC Solder Side
64FDC Component Side
iii
1
3
3
5
6
7
8
10
11

LIST OF APPENDICES
Appendix A: Rcopy Error Messages
Appendix B:
Ftinit and Ftback Error Messages
LIMITED WARRANTY
iv
25
27

J.
Cromemco CTD Instruction Manual
1. The Cartridge Tape Drive
Chapter 1
THE CARTRIOOE TAPE DRIVE
The Cromemco Cartridge Tape Drive (CTD) offers Cromemco system users a
convenient,
low-cost alternative to floppy disk drives for storing large amounts
of
data. With aformatted capacity of 26 megabytes per tape cartridge, and an
average
data-transfer rate of 1megabyte per minute, the CTD is particularly
useful for backing up hard disk drives.
The
CTD is compatible with all Cromemco S-100 bus systems having a64FLC
board,
512 Kbytes of RAM, and either the 68000 Crornix Operating System (Cromix
20-Series) or the Cromix-Plus Operating System (version 30.73 or higher). A
diskette with supplemental CTD software is included with each drive.
Figure 1-1: THE CARTRIOOE TAPE DRIVE
1

Cromemco CTD Instruction Manual
1. The Cartridge Tape Drive

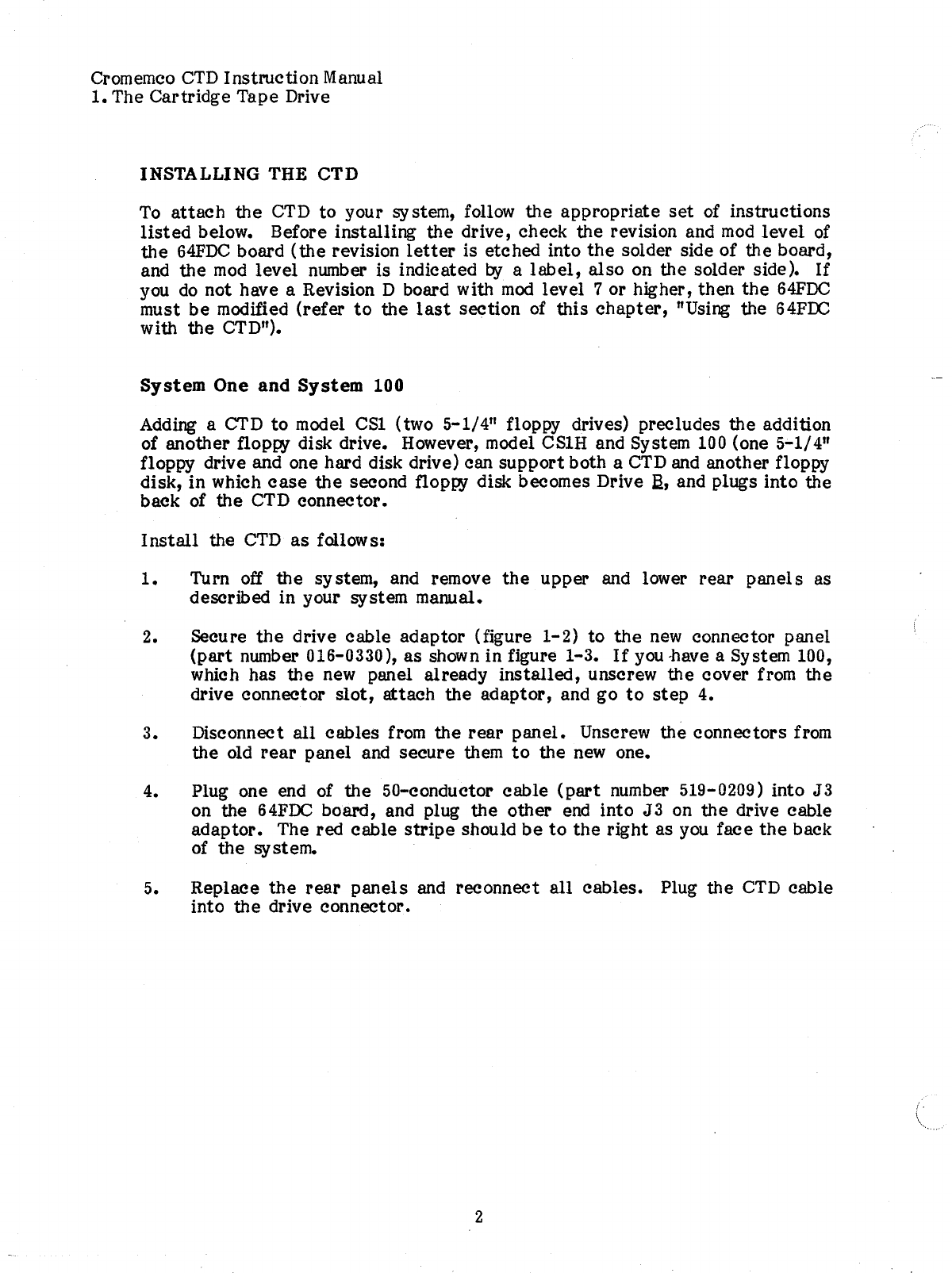

INSTALLING THE CTD
To attach the CTD to your sy stem, follow the appropriate set of instructions
listed below. Before installing the drive, check the revision and mod level of
the 64FDC board (the revision letter is etched into the solder side of the board,
and
the mod level number is indicated by a label, also on the solder side). If
you do not have aRevision Dboard with mod level 7or higher, then the 64FDC
must be modified (refer to the last section of this chapter, "Using the 64FOC
with the CTD").
System One and System 100
Adding aCTD to model CS1 (two 5-1/4" floppy drives) precludes the addition
of another floppy disk drive. However, model
CS1H and System 100 (one 5-1/4"
floppy drive and one hard disk drive) can
support both a CTD and another floppy
disk,
in which case the second floppy disk becomes Drive B, and plugs into the
back of the CTD connector.
Install the CTD as follows:
1. Turn off the system, and remove the upper and lower rear panelsas
described in your system manual.
2.
secure the drive cable adaptor (figure 1-2) to the new connector panel
(part number 016-0330), as shown in figure 1-3. If you -have aSystem 100,
which has
the new panel already installed, unscrew the cover from the
drive connector slot, attach the adaptor, and go to step 4.
3. Disconnect
all cables from the rear panel. Unscrew the connectors from
the old
rear panel and secure them to the new one.
4. Plug one end of
the 50-conductor cable (part number 519-0209) into J 3
on the
64FDC board, and plug the other end into J3 on the drive cable
adaptor. The red cable stripe should be to the right as you face the back
of
the sy stem.
5. Replace
the rear panels and reconnect all cables. Plug the CTD cable
into
the drive connector.
2

Cromemco CTD Instruction Manual
1. The Cartridge Tape Drive
Drive Cable Connector
J1
J4
@©0
0)
/
"-
(,v''''''''' .. ?????? ••
... 0
J2 "-Cable Stri e
J3
• A • A • A • A· • • A • p. A. • A • A•A • A. •
-A-A-
0
("v,."" .y .. y ... "'.V."'."'."'."'."'."'."'."'••"'."'."'.
Y'1
·:-::::S!9~~A~1rip'e. A' 'A' A' A'A' A' A'A' A'
'A'A'A'A')
-
50-Pin Connector -
34-Pin Connector
Figure 1-2: DRIVE CABLE ADAPTOR
Figure 1-3: INSTALLING THE ADAPTOR
3

Cromemco CTD Instruction Manual
1. The Cartridge Tape Drive
System Two
Adding a
CTD to any model of the System Two precludes the addition of another
floppy disk drive.
Install the CTD as follows:
1. Turn off the sy stem, open the front panel, and remove the top cover as
described in your system manual.
2. Plug one end of
the 50-conductor cable (part number 519-0210) into J3
on the 64FDC board, with the red cable stripe towards the bottom of the
system.
3. Feed
the cable through one of the connector cutouts on the rear panel,
and plug the cable into J3 on the drive cable adaptor. The cable stripe
should be to the left, as shown in figure 1-2.
4. Close the system, and plug the CTD cable into the drive cable adaptor.
System Three and System 300
.adding aCTD to model CS3 (two 8" floppy drives) precludes the addition of
another floppy disk drive. However, model
CS3H and System 300 (one 8" floppy
drive and one hard disk drive) can
support both aCTD and another floppy disk,
in which case the second floppy disk becomes Drive B, and plugs into the back
of the CTD connector.
Install the CTD as fallows:
1. Turn off the system, open the front panel, and remove the top cover as
described in your system manual. Pull out
the card cage and remove the
retaining
bar.
2. Plug one end of the 34-conductor cable (part number 519-0208) into J2
on the
64FDC board (with the red cable stripe towards the top of the
system), and run
the cable to the rear panel.
3. If your system has a rear connector panel (see figure 1-4), go to step 4;
otherwise, feed
the cable through one of the connector cutouts on the rear
panel, and go to step 8.
4.
secure the drive cable adaptor (figure 1-2) to the new connector panel
(part number 016-0327), as shown in figure 1-5. If you have aSystem 300,
which has
the new panel already installed, unscrew the cover from the
drive connector slot, insert the adaptor, and go to step 8.
4

Cromemco CTD Instruction Manual
1. The Cartridge Tape Drive
5. Disconnect
all cables from the rear panel, and unscrew the connector
panel as shown in figure
1-4.
6. Unscrew the connectors from the old rear panel and secure them to the
new one.
7. Replace
the connector panel and reconnect all cables.
8. Plug the 34-conductor cable from the 64FDC board into J2 on the drive
cable
adaptor. The cable stripe should be to the left, as shown in figure
1-2.
9. Close the system, and plug the CTD cable into the drive connector.
CAUTION. see MANUAL FOR PROPER IlOY OR 220V OPERATION.
[3 c-;:::~;:.c:o®
MOUNTAIN VIEW, C.....IFORHI ... 94043
COPYRIGHT@ 1982 BY CROMEMCO. INC.
All.. RIGHTS RESEtWED.
Screws
Securing
Panel
200220260 v
INPUT VOLTAGE CYCLES
100 110 130 V 60HZ
WARNING:
HAZAAOQUSVOL TAGE INSlOE.
DISCONNECT AC POWER COAO
BEFORE REMOVING
CABW!T PANELS.
i~w ..
0,"
~LINEFUSE
•
Figure 1-4: REMOVING THE CONNECTOR PANEL
5

Cromemco CTD Instruction Manual
1. The Cartridge Tape Drive

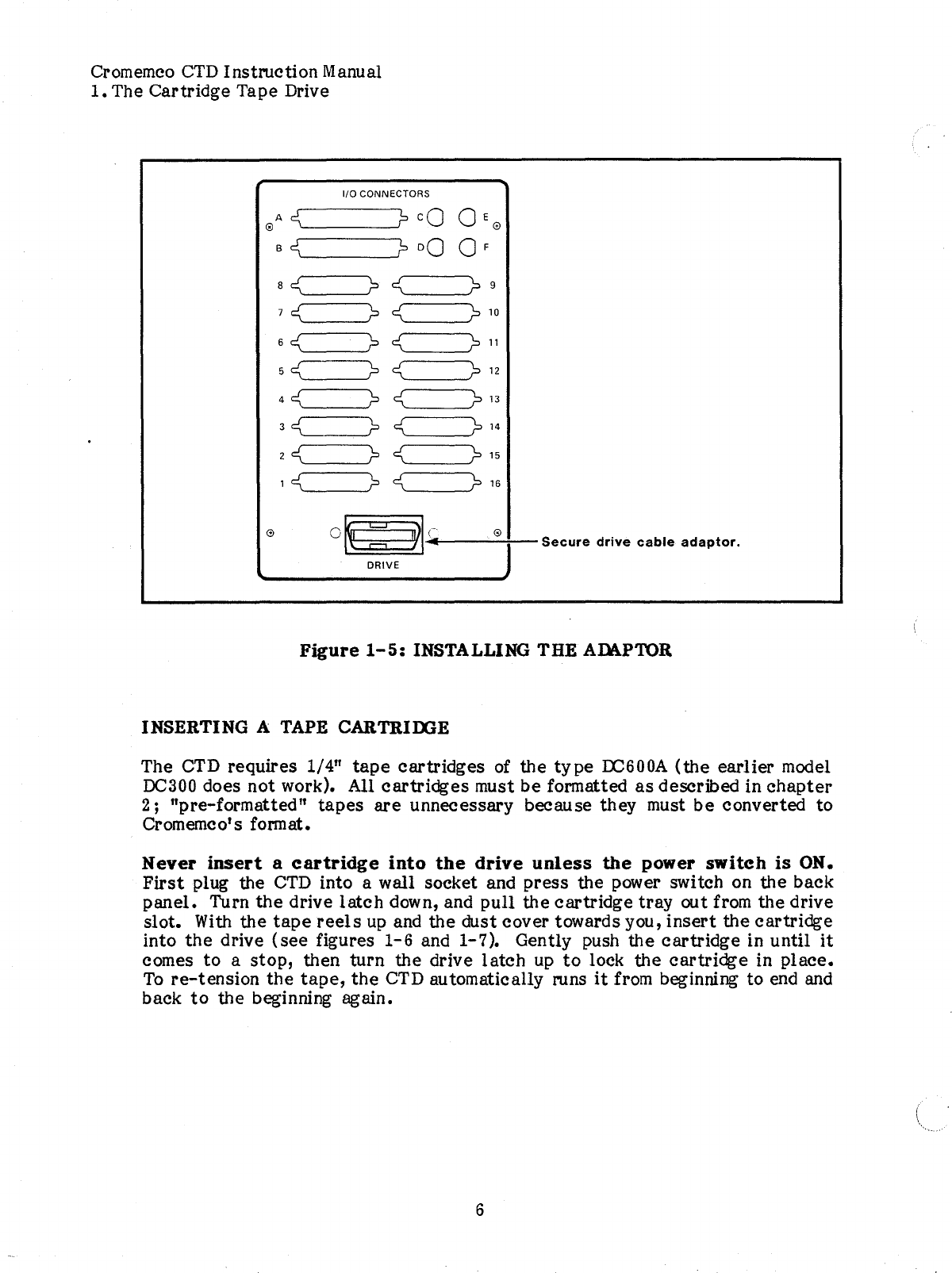

110 CONNECTORS
Ci/ S'- ? cOO E <;)
B c!\ ? DO 0F
ae:< ?e:< ?9
7 e:< ? e:< ? 10
6e:< ?e:< ?11
5 e:< ? e:< ? 12
4 e:< ? e:< ? 13
3C=---.? e:< ? 14
2 e:< ? e:< ? 15
1 e:< ? e:< ? 16
oo
~""'(~I-' -.....;.-@-:---SecuredrivecableadaPtor.
DRIVE
Figure 1-5: INSTALLING THE ADl\PTOR
INSERTING A TAPE CARTRIOOE
The CTD requires 1/4" tape cartridges of the type LC600A (the earlier model
DC300 does not work). All cartridges must be formatted as described in chapter
2; "pre-formatted" tapes are unnecessary because they must be converted to
Crom emc0'sformat.
Never insert a cartridge into the drive unless the power switch is ON.
First plug the CTD into awall socket and press the power switch on the back
panel. Turn the drive latch down, and pull the cartridge tray out from the drive
slot. With the tape reels up and the dust cover towards you, insert the cartridge
into the drive (see figures 1-6 and 1-7). Gently push the cartridge in until it
comes to a stop, then turn the drive latch up to lock the cartridge in place.
To re-tension the tape, the CTD automatically runs it from beginning to end and
back
to the beginning again.
6

Cromemco CTD Instmction Manual
1. The Cartridge Tape Drive
The Write-Protect Switch
The write-protect switch on the tape cartridge (see figure 1-7) can prevent
sensitive
data from being altered or destroyed. If the arrow on the switch points
to
SAFE, the tape can be read, but it cannot be written to or erased. If the
arrow points in the opposite direction, the tape can be read, written to, and
erased.
Figure 1-6: INSERTING ATAPE CARTRIDGE
7

Cromemco CTD Instruction Manual
1. The Cartridge Tape Drive

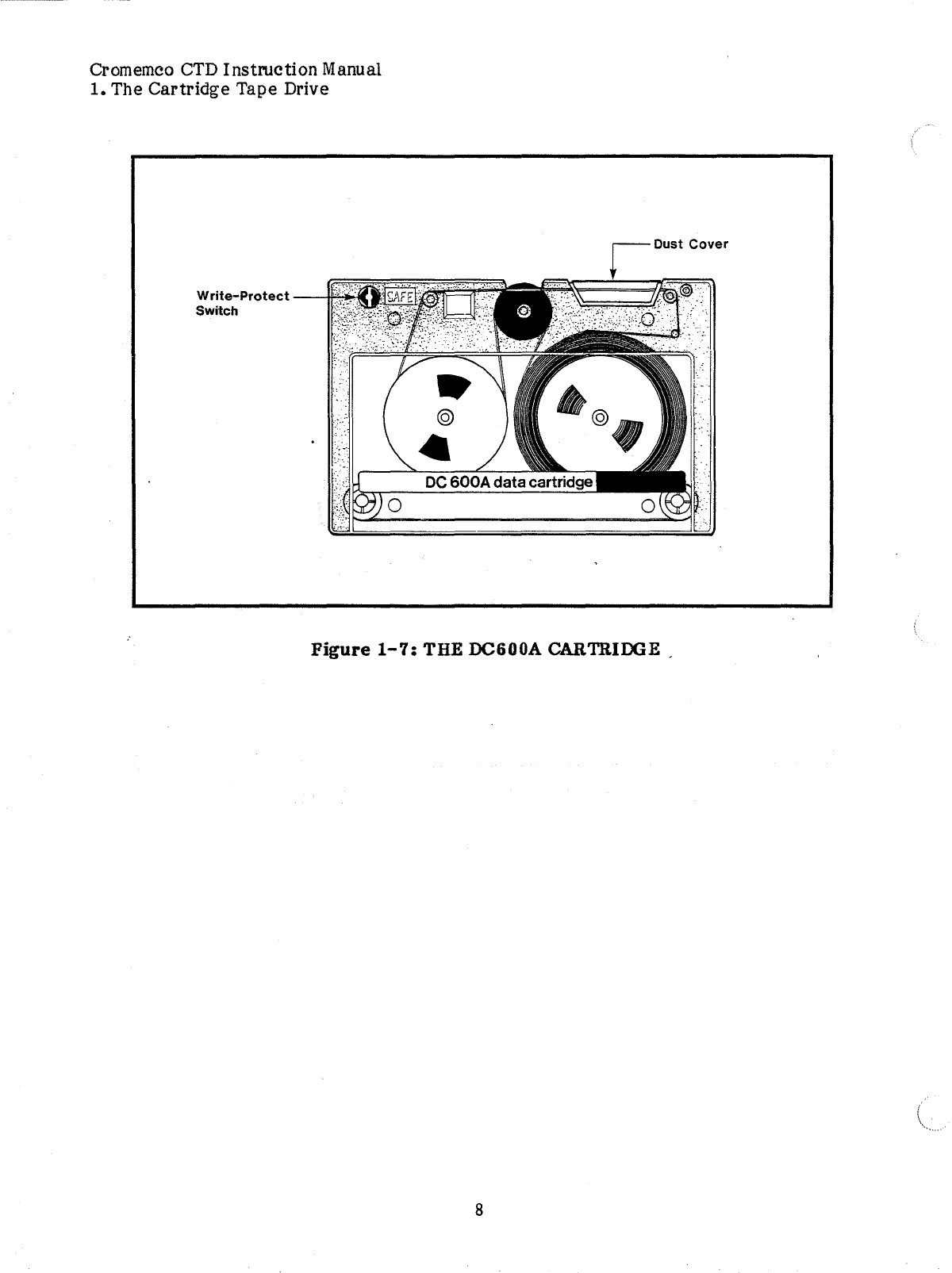

Write-Protect --ff'9i-i
Switch
r- Dust Cover
Figure 1-'1: THE DC600A CARTRIDGE _
8

Cromemco CTD Instroction Manual
1. The Cartridge Tape Drive
USING THE 64FOC WITH THE CTD
A 64FDC that is not arevision Dboard with mod level 7or higher must be
modified to support the CTD. For aRev. Bboard at mod level 9or higher, or
aRev. Dboard at
mod levels 3through 6, do only steps 12 and 13 of the
following procedure; for earlier revision/mod-level combinations, do the entire
modification.
Note: This modification should be done only by an authorized Cromemco dealer,
distributor or service facility.
Position the board with the solder side up and the edge connector towards you.
See figure
1-8 for the locations of all solder-side cuts and jumpers
1. Install Jumper Afrom J2 pin 2 to J3 pin 22.
2.
Install Jumper Bfrom J3 pin 8 to IC11 pin 5.
3. Install Jumper Cfrom RN12 pin 6 to IC52 pin 9.
4.
Install Jumper Dfrom RN12 Pin 5 to IC52 pin 14.
5. Cut trace at location Efrom IC40 pin 4 to the feed-through hole next to
IC40 pins 12 and 13.
Turn
the board over so that the component side is up and the edge connector
is towards you. See figure 1-9 for the locations of all component-side jumpers.
Next
to IC6, cut the trace between the feedthrough holes at jumper option
block "B".
Install Jumper Ffrom ICl1 pin 2 to ICll pin 4.
Install Jumper Gfrom IC15 pin 5 to IC27 pin 24.
Install Jumper Hfrom IC15 pin 6 to IC52 pin 9.
Install Jumper Ifrom IC15 pin 6 to IC20 pin 4.
Install Jumper Jfrom IC20 pin 3 to IC26 pin 29.
Install Jumper Kfrom IC52 pin 8 to the feed-through hole below IC30 pin
10.
Install Jumper Lfrom the top hole of jumper option block "B" to IC42 pin
2.
6.
f7.
,
8.
9.
10.
11.
12.
13.
This completes
the modifications to the 64FDC board. Follow normal installation
and checkout procedures to verify proper operation.
l9

Cromemco CTD Instruction Manual
1. The Cartridge Tape Drive
10
00
co
I
~
Go)
...
::s
bD
••
~

Cromemco CTD Instruction Manual
1. The Cartridge Tape Drive
11
••
=
I
1'"'4
QJ
...
::s
bD
...
Iil:oI

Cromemco CTD Instmction Manual
12

l
Cromemco CTD Instruction Manual
2. Using
the CTD Software
Chapter 2
USING THE CTD SOFTWARE
This chapter describes how to load the CTD software, initialize a tape cartridge,
and transfer files to and from the CTD. These procedures are different for the
Cromix-Plus and Cromix 20-Series Operating Systems, so follow the
appropriate
set of instruction listed below.
CROMIX-PLUS OPERATING SYSTEM
If you have the Cromix-Plus Operating System (version 30.73 or higher), do not
load the software from the CTD diskette (earlier versions of Cromix-Plus do
not support the CTD). If your current cromix.sysprogram does not include
the CTD driver, use the Screen editor to add tflop to line "BDEV 04
11
in the
Igen/sysdef file, and generate anew cromix.sys.
Initializing aTape Cartridge
Every
tape cartridge must be initialized with the Inittape utility (for privileged
users) before
it can be used to store data. The general command format is
inittape [[-vf] [-s #[,#] devname]
If the Inittape parameters are not placed in the command, you will be prompted
for them as the program executes.
Insert a cartridge into the drive, as described
in chapter 1, and enter (user entries are boldfaced):
• inittape
Inittape version 30.xx
Press:
RETURN to supply default answers
CTRL-C
to abort program
Warning:
inittape will destroy all disk data
Do you wish retension delay of 180 seconds (YIN) <N>? RETURN
Devicename? ftcd
13

Cromemco CTD Instmction Manual
2. Using
the CTD Software
Fonnatting
First stream (0-5.)? <0> RETURN
Last stream (0-5.)? <5.> RETURN
lnitializing stream 0
Initializing stream 5
The CTD retensions each
tape when it is first placed in the drive by mnning
it from beginning to end and back to the beginning. If the retension cycle is
over (the drive light is out), press RETURN for the first prompt.
Next,
Inittape asks for the device name of the tape drive. Use the device name
of any
tape drive connected to your system, such as fted or ftab. Entering a
device name while the
tape is being retensioned results in adevice open error
and arepeated prompt for the device name.
lnittape prompts for the first and last stream to be fonnatted. On occasion, you
may want to format aportion of a tape (e.g., when asingle stream has frequent
errors).
If Inittape is called with adevice name argument, the responses to the above
prompts
are taken from the command line. If no options are specified, all
streams are formatted. The available options are defined as follows:
-f This option defeats the tape retension delay, but using it While the tape
is being retensioned results in adevice open error.
-8 If asingle number (0 through 5) follows the -8 option, only the specified
stream is formatted; apair of numbers separated
by acomma specifies a
range of streams
to be fonnatted.
-y The "verbose" option provides progress reports as formatting proceeds.
For example,
to fonnat streams 1through 3in verbose mode, enter:
if inittape -y -8 1,3 fted
Please wait for tape retension time (180 seconds)
Device name:
ftcd
First stream: 1.
Last stream: 3.
Initializing stream 1
Initializing stream 2
Initializing stream 3
if
14
