USER’S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference.
For questions about features, operation/performance, parts or service,call:
1-800-356-5268
English
CFDNH2218AS

Important safety instructions...........................................................................................................................
Installing your new appliance...........................................................................................................................
Description of the appliance..............................................................................................................................
Display controls...........................................................................................................................................................
Using your appliance..............................................................................................................................................
Cleaning and care....................................................................................................................................................
Helpful hints and tips...............................................................................................................................................
Troubleshooting..........................................................................................................................................................
Disposal of the appliance....................................................................................................................................
03
07
16
17
24
30
32
34
38
Contents
Brief Introduction ...................................................................................................................................................... 01

Thank you for your choosing Crosley. We are sure you will find your new
refrigerator a pleasure to use. Before you use the appliance, we recommend
that you carefully read through these instructions, which provide details about
installing and using the product.
Brief introduction
Please ensure that everyone using this appliance is familiar with its
operation and safety features. It is important that you install the appliance
correctly and pay careful attention to the safety instructions.
We recommend that you keep this user's manual with the appliance for
future reference.
This appliance is intended to be used in households and similar
applications such as:
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have supervision or been given instruction
concerning use of the appliance. Children should be supervised to ensure
that they do not play with the appliance.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
1. Kitchen areas in shops, offices and other working environments;
2. Hotels, motels and other residential environments;
3. Bed and breakfast environments;
4. Catering and similar non-commercial applications.
Note
01

Connect to potable water supply only.
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the
manufacturer.
When disposing of the appliance do so only at an authorized waste disposal
center. Do not expose to flame.
If the power cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
Warning
Brief introduction
02

It is important to use your appliance safely. We recommend that you
follow the guidelines below.
Store any food in accordance with the storage instructions from the
manufacturer.
Don't try to repair the appliance yourself. It is dangerous to alter the
specifications or modify this product in any way. Any damage to the power
cord may cause a short circuit, fire or electric shock.
Don't place too much food directly against the air outlet on the rear wall of
both the refrigerator and freezer compartment, as it may affect important
air circulation.
Don't place hot items near the plastic components of this appliance.
Frozen food must not be refrozen once it has been thawed out.
Don't store bottled or canned drinks (especially carbonated drinks) in the
freezer compartment. Bottles and cans may explode.
Use caution consuming popsicles or ice cubes straight from the freezer as
this can cause freezer burn to the mouth and lips.
General safety and daily use
Keep all packaging away from children to avoid risk of suffocation.
Protect children from being scalded by touching the compressor at the rear
bottom of appliance
Don't place items on top of the appliance as this could cause injury should
they fall off.
Never allow children to play with the appliance by hanging or standing over
or on the doors, racks, shelves and drawers etc.
Safety for children and other persons
Important safety instructions
03
In order to sense the temperature and humidity near the appliance and
make the appliance run better, add temperature and humidity sensor
outside the box of appliance.

To avoid the risks that are always present when using an electric
appliance, we recommend that you pay attention to the instructions
about electricity below.
Unpack and check through the appliance. Should any damage be evident,
don't plug in the appliance but contact the shop immediately from which
you purchased it. Keep all packing materials in this case.
We recommend that you wait for 4 hours before connecting the appliance
to allow the refrigerant to flow back into the compressor.
The appliance must be applied with single phase alternating current of
110~115V/60Hz If the voltage fluctuates exceeding the upper limit, A.C.
automatic voltage regulator of more than 350W should be applied to the
refrigerator for safety use.
The power plug must be accessible when the appliance is installed.
This appliance must be grounded.
This appliance is fitted with a plug, in accordance with local standard. The
plug should be suitable for use in all houses fitted with sockets in
accordance with current specifications.
If the fitted plug is not suitable for your socket outlets, it should be cut off
and carefully disposed of. To avoid a possible shock hazard, do not insert
the discarded plug into a socket. If in doubt contact a qualified, registered
electrician.
Do not use extension cords or multiple sockets which could cause
overloading of wiring circuits and could cause a fire. Always plug your
appliance into its own individual electrical socket which has a voltage
rating that matched the rating plate.
Electrical safety
Important safety instructions
04

Make sure that the plug is not squashed or damaged. Otherwise, it may
cause short circuit, electric shock or overheat and even cause a fire.
Do not insert the power plug if the socket is loose, there is a risk of electric
shock or fire.
Do not insert the power plug if the socket is loose, there is a risk of electric
shock or fire.
Switch off the appliance and disconnect it from the main power before you
clean or move it.
Never unplug the appliance by pulling on the electrical cord. Always grip
the plug firmly and pull straight out from the socket to prevent damaging
the power cord.
Do not operate the appliance without the cover of interior lighting.
Any electrical component must be replaced or repaired by a qualified
electrician or authorized service engineer. Only genuine replacement parts
should be used.
Do not use electrical appliances such as ice cream makers inside the food
storage compartments of the appliance unless they are approved by the
manufacturer.
To avoid eye injury, do not look directly into the LED light located in the
refrigerator compartment. If it is not functioning correctly, consult a
qualified, registered electrician or replace it in accordance with the
"Cleaning and Care" chapter.
Electrical safety
Important safety instructions
05

06
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit
of the appliance. During transportation and installation of the appliance,
ensure that none of the components of the refrigerant circuit become
damaged.
The refrigerant (R600a) is flammable.
1.
2.
Don't store products which contain flammable propellants (e.g. spray cans)
or explosive substances in the appliances.
Should the refrigerant circuit be damaged:
Avoid open flames (candles, lamps etc.) and other sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.
Caution: Risk of Fire
Important safety instructions
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
FCC Caution

Installing your new appliance
Before using the appliance for the first
time, you should be aware of the
following tips.
07
For proper installation, this
refrigerator must be placed on a
level surface of hard material
that is the same height as the
rest of the flooring. This surface
should be strong enough to
support a fully loaded
refrigerator.
The rollers, which are not casters,
should be only used for forward
or backward movement. Moving
the refrigerator sideways may
damage your floor and the
rollers.
Warning
In order to improve efficiency of
the cooling system and save
energy, it is necessary to maintain
good ventilation around the
appliance for the dissipation of
heat. For this reason, sufficient
clear space should be available
around the refrigerator.
Suggest:
It is advisable for there to be at
least 2"(50mm) of clearance from
the back of the fridge to the wall,
at least 1/2"(12mm) of clearance
from its top, at least 1/2"(12mm)
from its side to the wall and a clear
space in front to allow the doors to
open 125°. As shown in the
following diagrams.
Ventilation of appliance

Installing your new appliance
Before using the appliance for the first
time, you should be aware of the
following tips.
Ambient temperature
+50°F to +90°F
+61°F to +90°F
+61°F to +100°F
+61°F to +109°F
Climate class
SN
N
ST
T
Stand your appliance in a dry place to
avoid high moisture damage. Keep
the appliance out of direct sunlight,
rain or frost. Stand the appliance away
from heat sources such as stoves, fires
or heaters.
This appliance performs well in
the climate class from SN to ST. It
may not work properly if being left
at a temperature above or below
the indicated range for a long
period.
Note
08

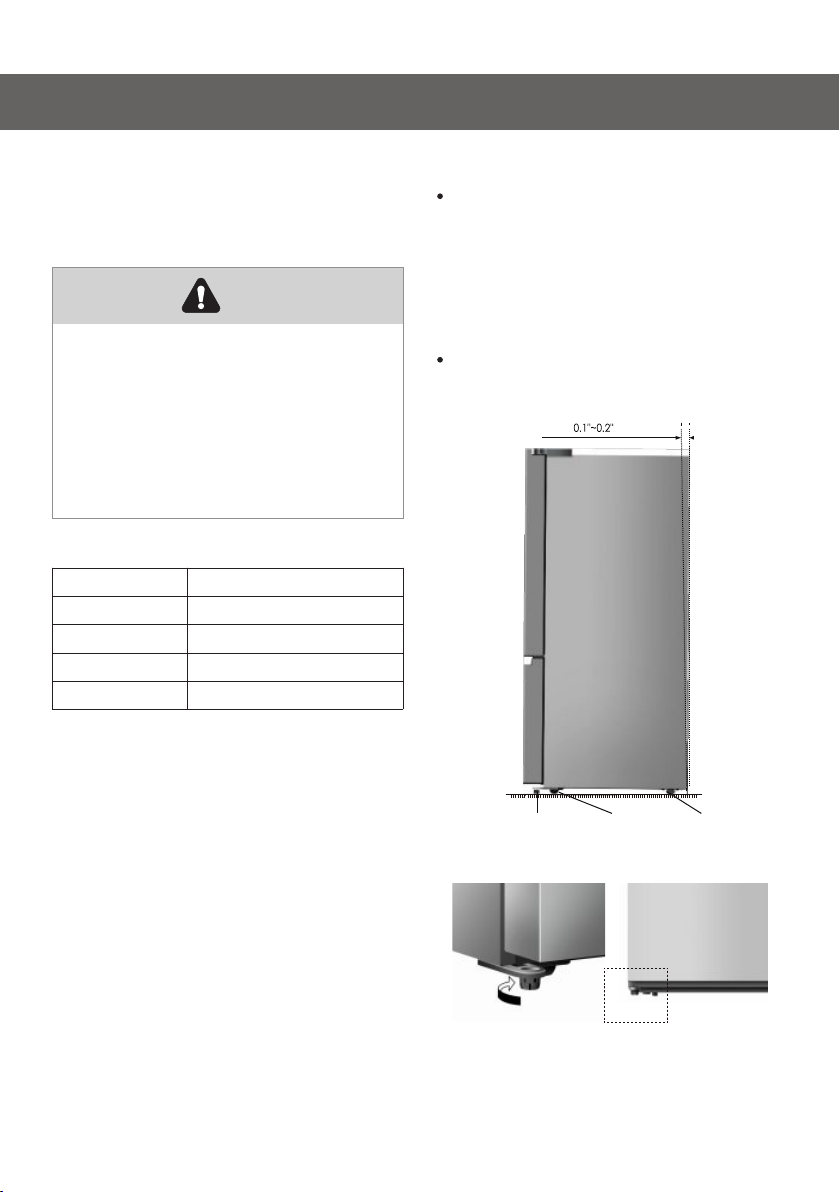

For sufficient leveling and air
circulating in the lower rear section of
the appliance, the bottom feet may
need to be adjusted. You can adjust
them manually by hand or by using a
suitable tool.
To allow the doors to self-close, tilt
the top backwards by 0.1" - 0.2".
(2.5-5mm)
Leveling of appliance
Adjustable
bottom feet Front roller Rear roller
Adjustable
bottom feet

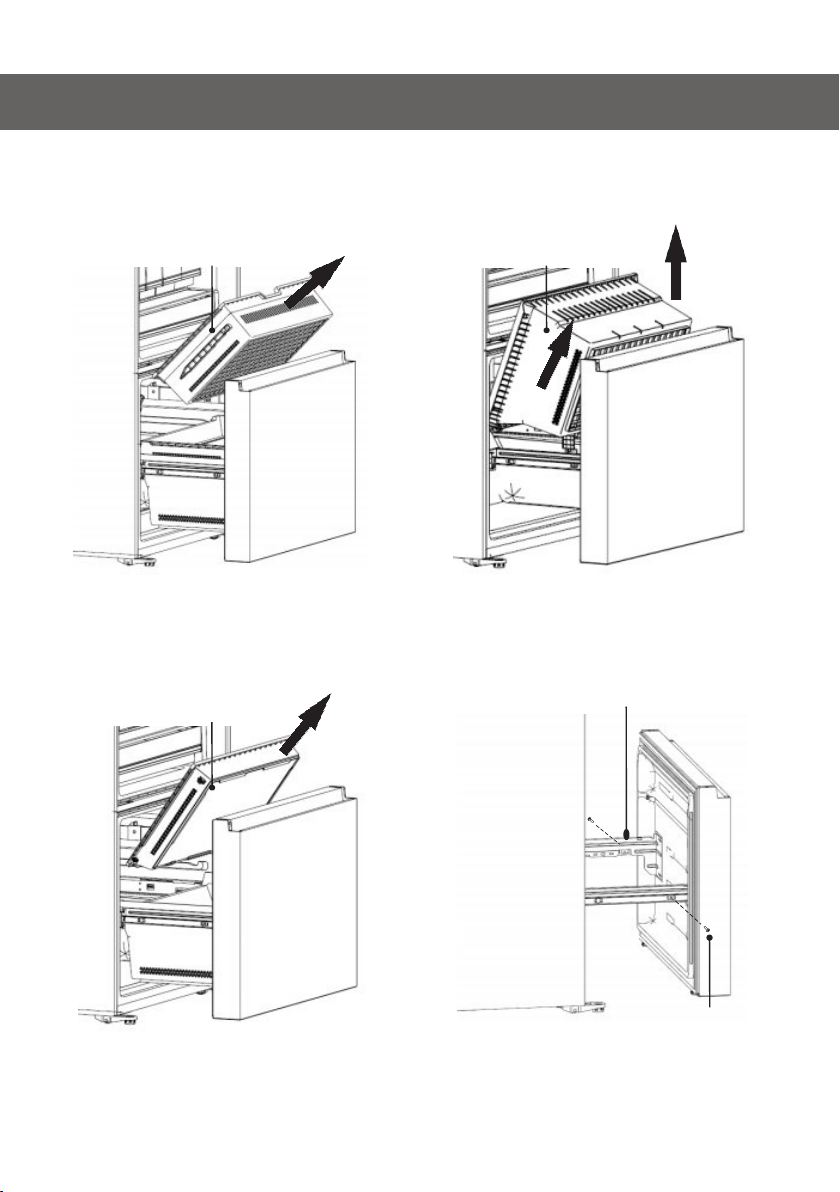

In case your home access door is too
narrow for the refrigerator to pass
through, remove the refrigerator
doors and drawers. If you do not
need to remove the appliance doors,
proceed to Installing Water Lines' on
page 12.

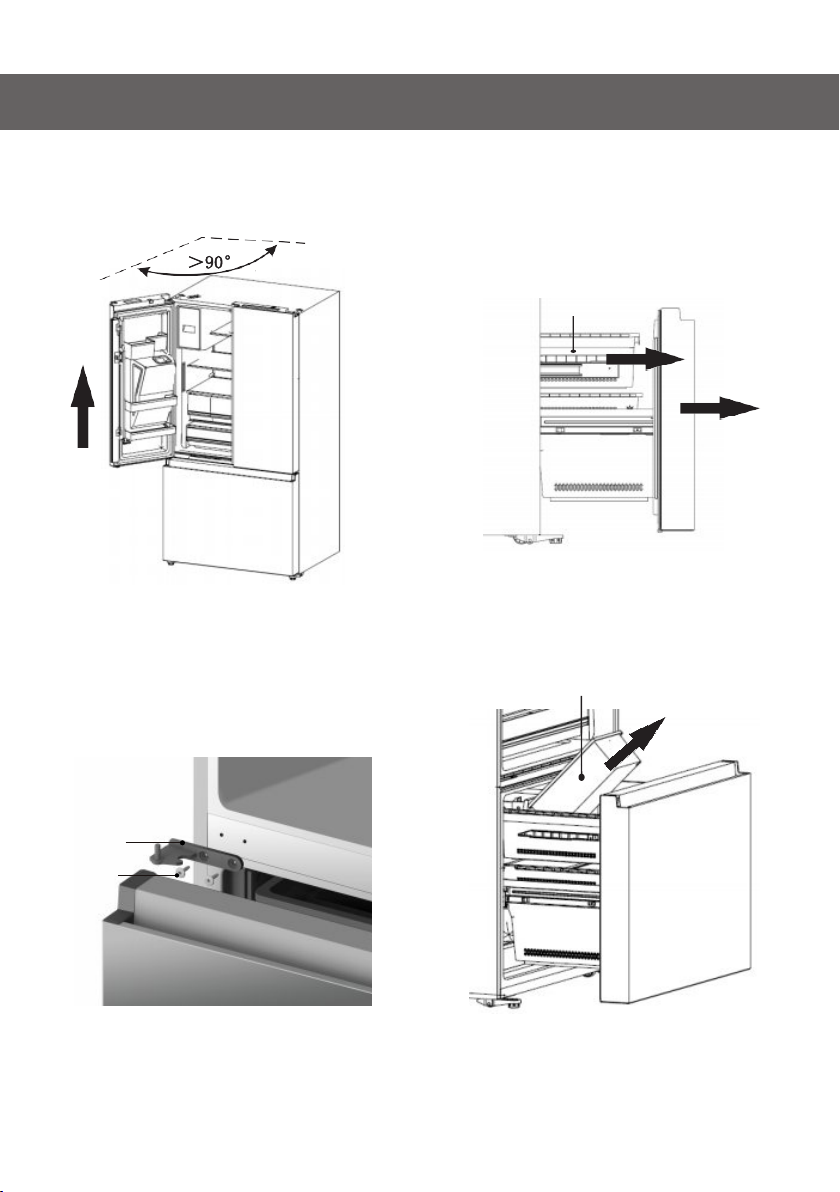

If you need to remove the doors,
continue below.

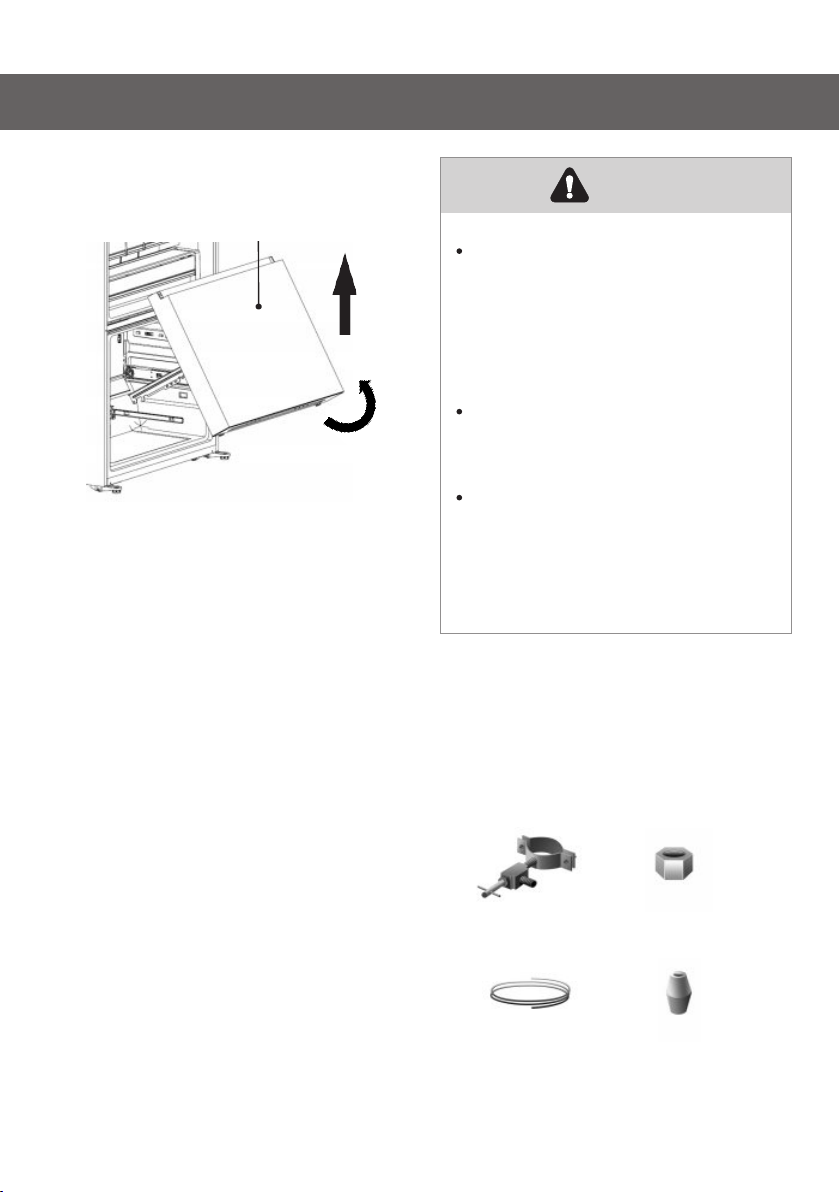

Door Removal
09
Installing your new appliance
Tools you will need(Not provided)：
Allen Wrench (5/32",4mm)
Philips Screwdriver
Wrench (5/16",8mm)
1. With the door closed, remove the 3
screws holding the top cover with
Philips (+) screwdriver, and then
remove the top cover with the entire
harness attached.
2. Separate the two connectors on
the left side door. To remove the wire
connector, press the top of the
connector and separate it from the
other one. To remove the water
coupler from the hinge, twist and pull
the clips from the coupler. Remove
the water line while pressing the
movable part of the water line
coupler.
3. Remove the screws fixed on the
hinges with a wrench ( 5/16",8mm)
and 1 ground screw attached to the
hinge with Philips (+) screwdriver.
Remove the upper left and right door
hinges .
Clip
Screws
Ground
screw
Upper
door hinge
Top cover
Water line
Movable
part
Connector

10
Installing your new appliance
4. Use both hands to open the door
more than 90°. Lift it up and take it
off.
＞90°
5. Remove the 4 hex head bolts
hinges with an Allen wrench
(5/32",4mm). Remove the lower left
and right door hinges.
Disassembling the freezer door
1. Pull out the freezer door and the
upper freezer drawer to the final
position.
2. Take out the ice storage box (if
equipped).
Upper freezer
drawer
Door hinge
Hex head
bolts hinge
Ice storage box

Installing your new appliance
3. Take out the upper freezer drawer
by lifting it up from the rail system.
5. Remove the lower freezer drawer
by lifting it up.
6. Remove 2 screws holding the
support.
4. Remove the middle freezer
drawer by lifting it up
11
Upper freezer
drawer
Middle freezer
drawer
Lower freezer
drawer
Support
Screws

Installing your new appliance
7. Remove the freezer door by lifting
it up
To reattach the drawer after you
moved the appliance to its final
location, assemble the parts in
reverse order.
A water dispenser with a filter is one of
the helpful features on your new
appliance.
To help promote better health, the
water filter removes unwanted particles
from your water. However, it does not
sterilize or destroy microorganisms. You
may need to purchase a water
purifying system to do that.
In order for the ice maker to operate
properly, a water line is required.
The inlet water pressure must be
between 207kPa and 700kPa.
Installing the water lines
The water connection must be
made by a qualified plumber.
Operation outside the water
pressure range may cause
malfunction, severe and
damaging water leaks.
Under normal conditions, a200cc
(5.75 oz.) cup can be filled in
about 10 seconds.
If the refrigerator is installed in an
area with low water pressure
(below 30psi), you can install a
booster pump to compensate
for the low pressure.
Warning
What do you need to do before
you start.
1. Power drill and 1/4’’ drill bit.
2. 1/2’’ or adjustable wrench.
3. Flat blade and Philips head
screwdrivers.
1 ferrule
(sleeve)
Saddle-type
Shut offvalve
(1/4” outlet)
one 1/4”
compression
1/4” extension
tubing
12
Freezer door

Installing your new appliance
4. You need to purchase several item
to complete this connection. You may
find these items sold as a kit at local
hardware store

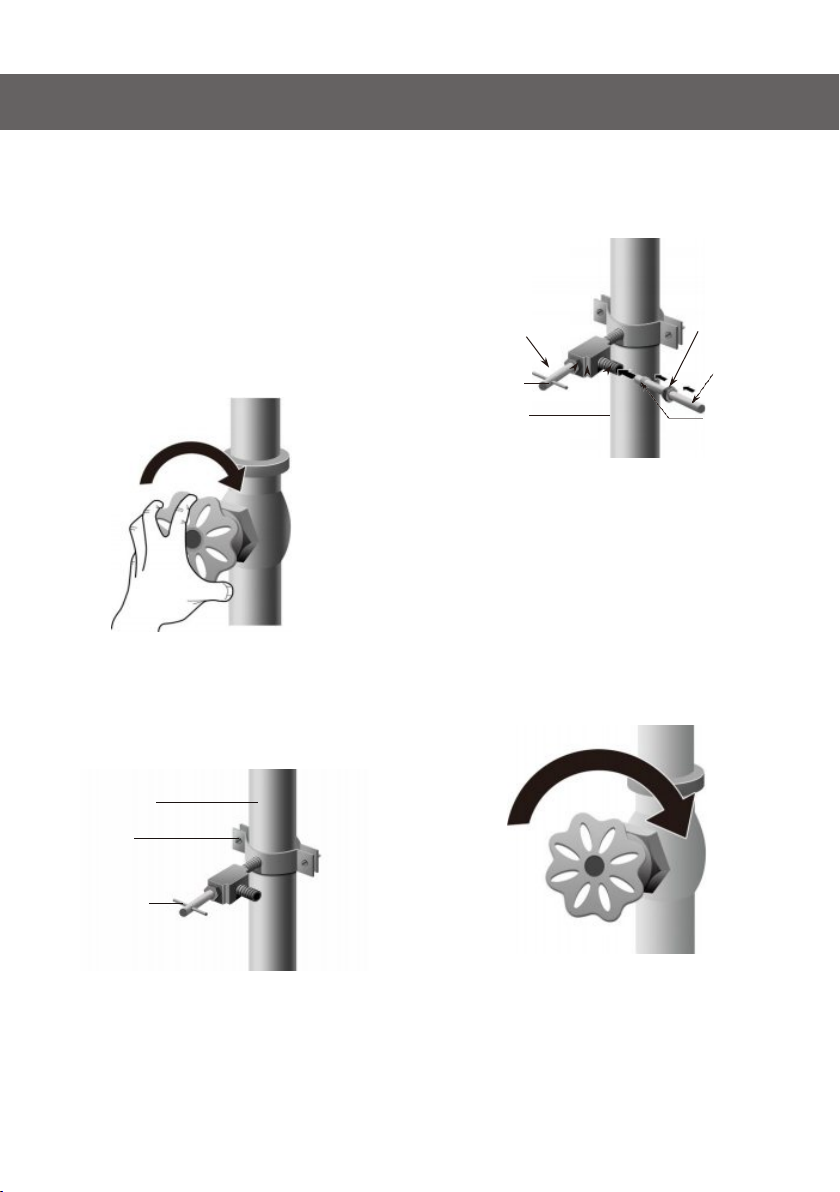

Connecting to the water supply
line
1.First, shut off the main water supply.
2. Using a power drill and a 1/4’’ drill bit
drill into the cold-water line and
connect the saddle-type shutoff valve.
Cold water line
Pipe clamp
Shut off Valve
3. Connect 1/4’’ extension tubing to
shutoff valve outlet.
Saddle-Type Shutoff Valve
Packing Nut
Outlet Valve
1/4” Extension
tubing
Compression Nut
Ferrule(sleeve)
4. Flush the tubing. Turn the main
water supply on and flush out the
tubing until the water is clear. Then,
shut the water off at the water valve
after about a quart of water has
flushed through the tubing.
13

Installing your new appliance
14

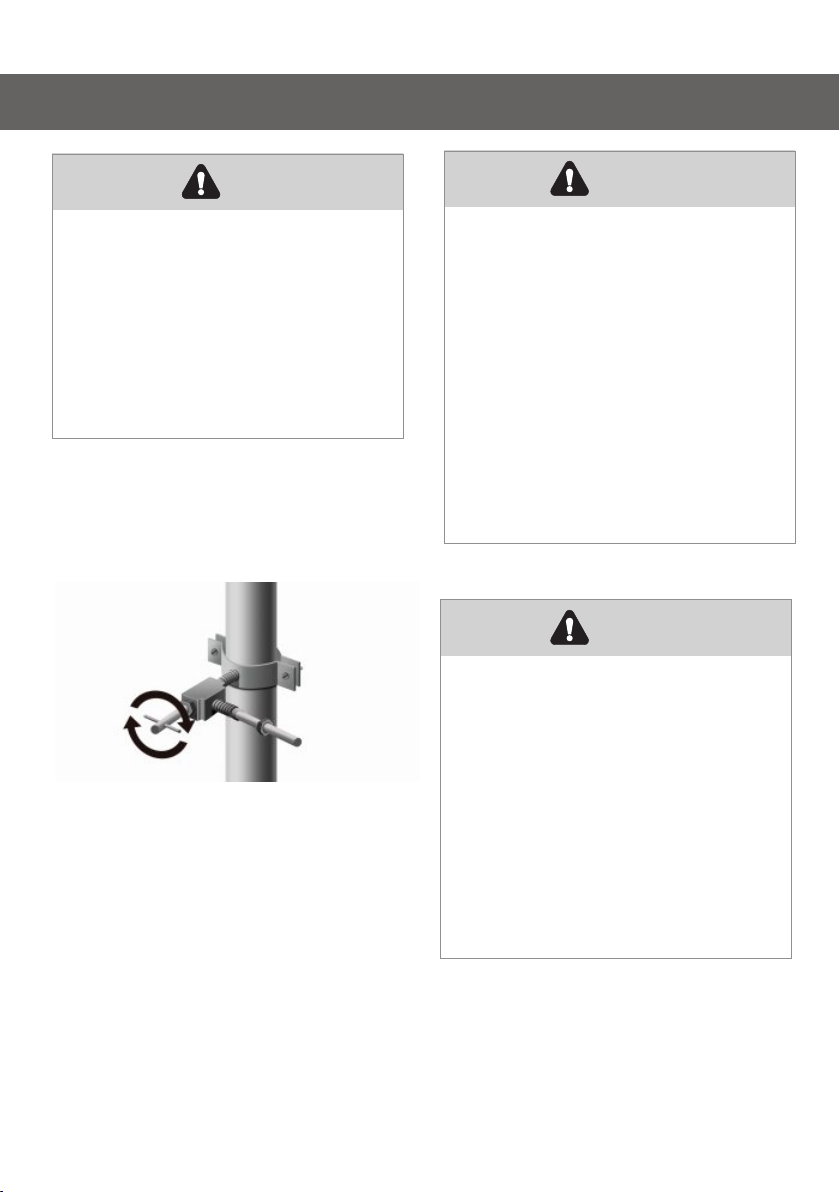

6. Turn the water on and check for
leakage.
Ensure that the water line does
not get pinched or bent when
installing.
This can result in improper water
flow through the line and will
affect the functionality of the
fridge.
Note
After connected to the water
supply line, please open the water
valve to flush the filter for 5 minutes
before use. The initial dark
discoloration of water is normal.
When you connect the water line to
the appliance and press the lever
of the dispenser for the first time, it
is normal that there will be a sound
of exhaust coming out from the
appliance.
Note
1. The water line must be connected
to the cold water pipe. If it is
connected to the hot water pipe, it
may cause the purifier to
malfunction.
2. Avoid contamination of pipes
during installation.
3. Connect to potable water supply
only.
Warning
Check to see if leaks occur at the
water line connections
CAUTION!

Installing your new appliance
2. Unplug refrigerator or disconnect
power.
3. Close shut off value.
4. Thread a 1/4 " compression nut and
ferrule (sleeve) onto the free end and of
1/4" water line.
Connect Water Line to Refrigerator
IMPROTANT: If you turn the refrigerator
on before the water is connected, turn
off the ice maker.
1. You may need to purchase below
items to complete this connection. And
you may find these items sold as a kit at
a local hardware store.
a b cFerrule (Sleeve) -1 pcs
1/4" Compression Nut - 1 pcs
1/4" Water Line - 1 pcs
abc
7. Confirm 1/4" water line is secure by
gently pulling on it.
8. Turn on water supply and check for
leaks, and correct any leaks.
e
d
c1/4" Water Line
1/4" Compression Nut
Ferrule(Sleeve)
Brass Fitting
ba
Water Inlet
5. Insert the free end and of the 1/4"
water line into the brass fitting
attached to the water inlet on the
back of the refrigerator.
6. Slide the 1/4" compression nut over
the ferrule (sleeve) and screw the 1/4"
compression nut onto the brass ftting.
15

Description of the appliance
2
3
5
6
8
9
7
4
1
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Ice maker
Door rack
Vertical baffle part
Water and ice dispenser (inside)
Fruit and vegetables crisper
Multi-function drawer
Freezer LED light
Middle freezer drawer
Lower freezer drawer
Adjustable bottom feet
Top cover
Vertical baffle guide block
Water filter
Refrigerator LED light (inside)
Glass shelf
Wind channel
Refrigerator LED light (both sides)
Crisper cover
Upper freezer drawer
Lower diaphragm（inside）
WiFi Module
Refrigerator door
Display board
Water and ice dispenser
Freezer door
Handles
10
12 13
14
16
15
17
18
19
20
22
23
24
26
11
Due to unceasing modification of our products, your refrigerator may be slightly different
from this instruction manual, but its functions and using methods remain the same.
To get the best energy efficiency of this product, please place all shelves, drawers and
baskets on their original position as per the illustration above.
16
21
25
26

Display controls
Your product has one control panel which is installed on the fridge door. Use your
appliance according to the following control guidelines.
When you set a temperature, you
set an average temperature for
the whole refrigerator cabinet.
Temperatures inside each
compartment may vary from the
temperatures displayed on the
panel, depending on how much
food you store and where you
place it. High or low room
temperature may also affect the
actual temperature inside the
appliance.
Note When the appliance is powered on for
the first time, the backlighting of the
icons on the display panel start working.
If no buttons have been touched or the
doors are closed, the backlighting will
turn off after 60 seconds.
This button serves two purposes:
1.Child Lock
Press and hold "Alarm" for 3 seconds to
lock the all the control panel including
dispenser function. If control panel is
locked, the icon " " will be on, and
none of the buttons on the control
panel work. To unlock the control panel,
please press and hold "Alarm" for 3
seconds again.
The control panel consists of two
areas about temperature, and one
area about different modes.
Child Lock and Door Alarm
17

Display controls
2. Door Alarm
Leaving any door open for over 2
minutes will activate door alarm. The
icon " " will flicker, the control panel will
display "dr", and you will hear a buzzer
sound. The buzzer will sound 3 times per
minute and will stop after 8 minutes. In
case of alarm button to cancel door
alarm, then the icon " " stop flickering
and keep on, the buzzer sound will stop
at the same time. Also door alarm can
be stopped by closing all the doors.
To save energy, please avoid keeping
doors open for a long time when using
refrigerator.
Ice Control
This button controls the ice maker. You
can touch the “Ice Off” button to control
the ice maker. When the Child Lock is
off, you can touch the icon “Ice Off” to
lock the ice maker, and the icon " " will
be illuminated. If you want to unlock the
ice maker, please touch the “Ice Off”
button again and the icon " " will be
off.
You can touch the “Fridge” icon to
activate the mode to control the fridge
temperature. When you touch the
button continuously, the temperature
will be set in the following sequence. If
you have set the temperature type to
Fahrenheit, the temperature settings
cycle from 46°F to 36°F
Fridge temperature control
If you want to decrease the time
needed to cool products in the Fridge,
please touch and hold this button for
3 seconds. The Super Cool icon " "
will be illuminated, and the fridge
temperature setting displays at 36°F
(2°C). Super cool automatically
switches off after 3 hours, and the
refrigerator temperature setting will
revert back to the previous setting.
When Super Cool function is on, you
can touch the “Fridge” button again to
switch it off.
Note
When the icon" " is on, it only lock
the ice maker not the dispenser.
If you have set the temperature type to
Celsius, the temperature settings cycle
from 8°C to 2°C.
18
