1 General
The EDS-3000 is unique Passive Infra-Red and Microwave detector for outdoor and harsh
environment applications.
The EDS-3000 is designed for outdoor usage in most severe and extreme acclimate conditions
that may also accommodate pets.
High reliability is achieved by combining both dual tech hardware with highly sophisticated
software as well as an adaptive coverage area, reducing false alarms alerts to zero.
It comprises of Double Optics and advanced MW Detector inside stylist rigid plastic body.
This special optics combined with state of the art MW Doppler sensor assures elimination of
“false alarms” while maintaining high security standards for the detection of human intruders into
protected area.
The detection sensitivity and range is controlled by digital rotary switch allowing 16 calibration
levels, so that the effective pattern will be set for every installation environment and protection
site.
The EDS-3000 is designed to protect large areas and can easily be installed on walls in order to
provide a solid protection of the area while rejects interferences from birds and small animals due
to “PET MASK” optics.
2 Features
• MW detection based on Doppler concept.
• N.O. & N. C. Relays switched at the same time.
• Height installation calibrations free, from 0.8m to 1.5m (2.6 ft to 4.9 ft)
• Selectable pet immunity between 20kg and 35kg (44 lbs to 77 lbs)
• 16 levels of PIR sensitivity adjustment including 3 MW sensitivity groups.
• Temperature compensation.
• Micro controller signal processing.
• Front and back tamper protection.
• Sound indication for walk test and intruder detection.
• Unique waterproof and seal plastic design.
• Detection Range: Up to 18m (59 ft)
• Detect human intruders walking or running.
• No maintenance required.
• High RFI/EMI Immunity.
• Protection from: direct sunlight, wind up to 30 m/sec, snow and rain, small animals, removing
the top cover, housing pulling out or destruction
alarm shop

6
3 Assembly description
The EDS-3000 is a robust detector which includes big indication led prism that can be easily
observed from long distance. Having a back metal bracket, the EDS-3000 can be easily mounted
to walls and poles using mounting screws or metal bands (supplied).
The EDS-3000 is combined of three detection elements:
Upper PIR element
Lower PIR element
Microwave element
The upper PIR element has an adjustable detection height while the other two are fixed.

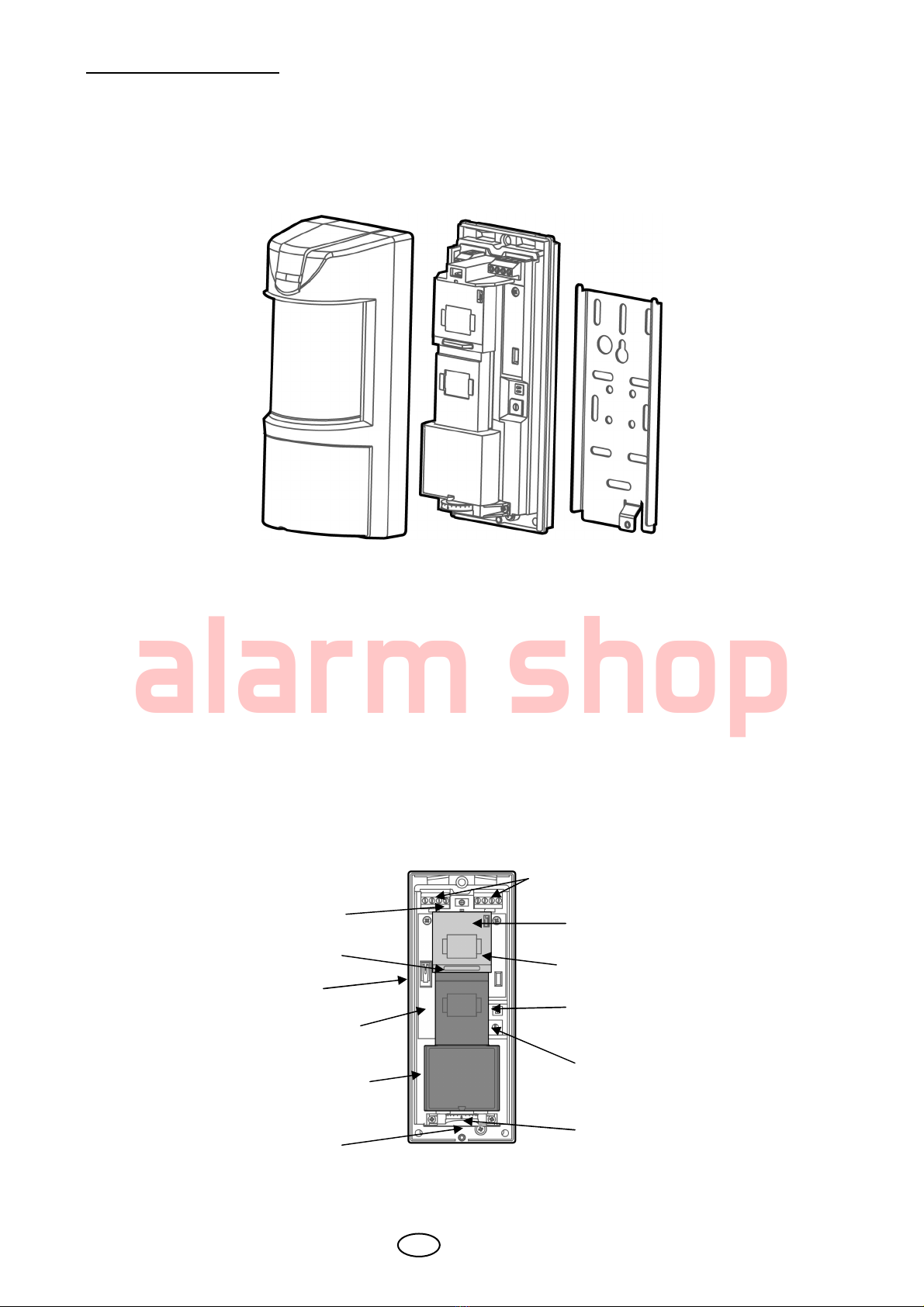

The following drawing shows all internal elements:
Upper PIR element
Lower PIR element
Mi
c
r
owave
e
l
e
m
e
n
t
LED
Terminal Connection Blocks
LED and Buzzer dipswitches
Sensitivity setting
Direction An
g
le Indicato
r
Range setting handle
Range Indication
Tamper switch
Bracket locking screw
alarm shop

7
4 Detection Pattern
The EDS-3000 has a 90° top view PIR and MW detection pattern with over 18m (59 ft) detection
distance (when installed at 1.2m (4 ft) above the ground surface).
The EDS-3000 has an internal rotating housing (which includes the 2 PIR elements and the MW)
that can be adjusted horizontally, so its 90° coverage may vary between 0° and 180°.
The EDS-3000 can differentiate between pets and human bodies and alert accordingly by
having MW movement detection combined with two PIR detection beams:.
A. Lower PIR element which is fixed to 18m range and 60cm above ground level which helps
avoiding pets detection over the entire area.
B. Upper PIR element which has adaptive range between 3 and 18m.
By having both PIR detection beams and MW detection the crossing object will be defined as
intrusion, causing an alarm.
In case of MW detection with only one of the beams
no alarm will be generated.
Detection area
Upper PIR element detection pattern
Adjustable between 3m and 18m (10 ft to 59 ft)
Lower PIR element detection pattern
Fixed to 18m (59 ft) range
Microwave detection pattern Detection No Detection
No pet detection in
all protected area
alarm shop

8
5 Selecting mounting location
The installation of the EDS-3000 requires straight and solid base for the detector and setting of
front panel against the center of protected area.
The protected area must be free from obstacles like walls, fences, trees, ditches and other
microwave detectors, as well as systems of anti-intrusion surveillance.
The bracket provides EDS-3000 installation on a wall or pole. The wall or pole should be leveled.
Choose a location most likely to intercept an intruder according to detection pattern on page 6.
Avoid the following Installation Locations:
• Facing direct sunlight.
• Facing areas subject to rapid temperature changes.
• Wall angle of more than 10º from perpendicular line.
• Mounting at more than 10º Deviation from horizontal line.
• Facing metal doors.
• Do not install near direct source of heat or air gust.
• Clear all physical obstacles from the detection area
(e.g. Plants, laundries, etc.)
• Clear all light reflecting surfaces from the detection area,
as well as water puddles.
• Avoid installation on the following types of ground:
Thick vegetation, Grass (un-mown), Water, Sand and Metal.
NOTE:
Recommended installation height is 1.2m (4 ft).
** If there is a risk of tall pets (over 60cm / 2 ft) the detector is to be installed at 1.4m (4.5 ft).
The DOUBLE DUAL high quality sensor detects motion crossing the beam; it is less sensitive
detecting motion towards the detector.
The EDS-3000 performs best when provided with a constant and stable environment.
In order to ensure suitable operation of the EDS-3000 type of ground should be one of the
following: Asphalt concrete, Cement, Soil, Clay, Gravel or Grass (mown).
alarm shop

9
6 Detector Installation
Important! Prior to installation, read both “Operation” and “Selecting the mounting location”
sections carefully.
1. Install the detector in such manner that the intruder
is most likely to cross the detection area from side to
side.
2. The detector is to be installed at height of 0.8 to 1.5
meter (2.6 to 4.9 ft)
3. Make sure to attach the metal bracket to a leveled
straight and firm wall, leaving 15cm (6 inches) from
the top and 15cm (6 inches) from both sides, for easy
installation and maintenance.
4. Rotating the detection beam may be required for
guarding a side window opening while the detector is
installed facing another direction.

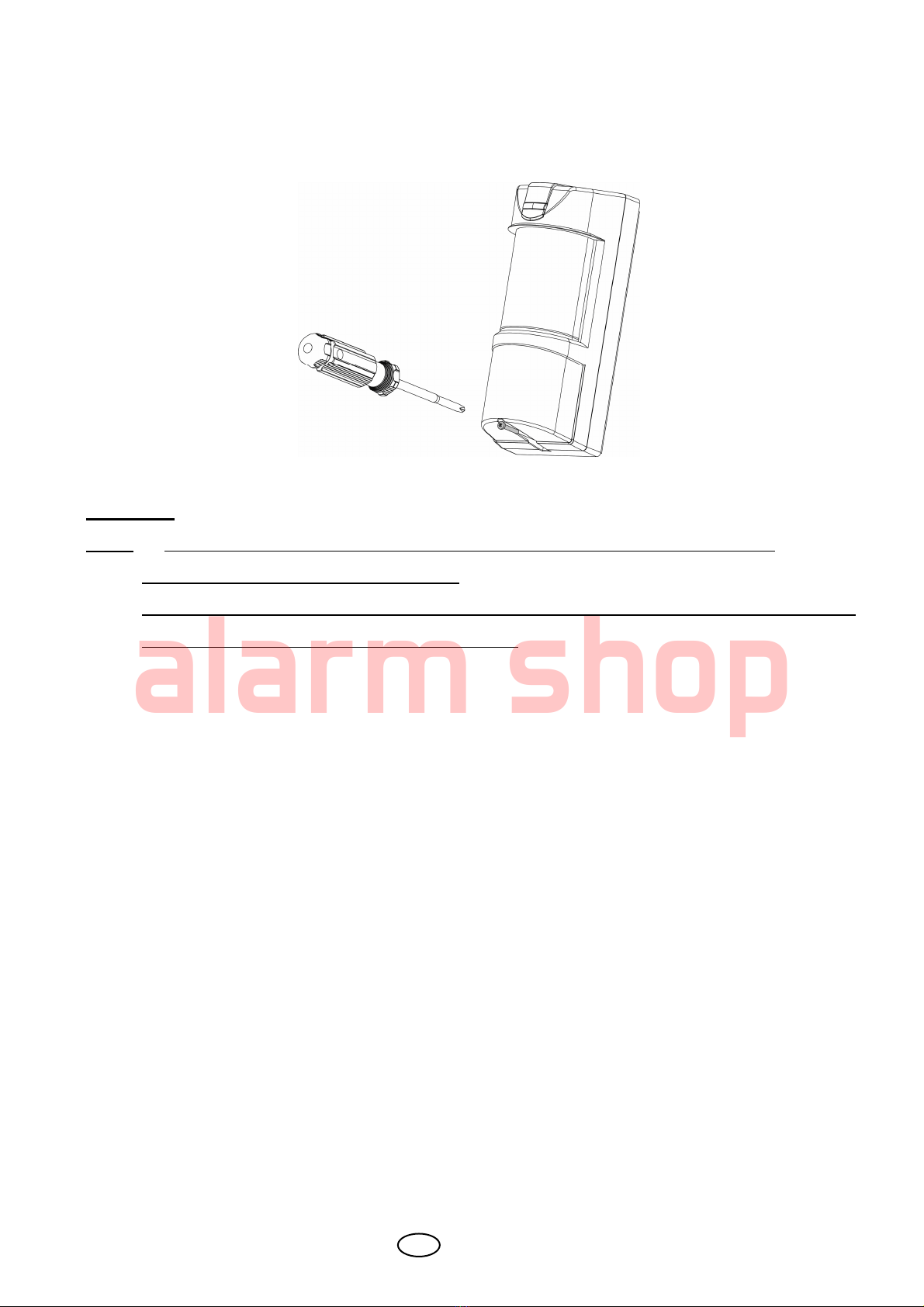

5. Open the detector unwinding the bottom screw.
6. Release the rear metal bracket by unwinding
internal bottom screw.
7. Release the detector body from the metal bracket
by polling front and up.
8. Attach the rear bracket to the wall or a pole using
mounting screws or metal bands.
alarm shop

10
9. Break the relevant rear knockouts on plastic base
rear side for your installation and slide the wires from
the outside via the paths and knockout to the internal
side of the detector.
10. Attach the sealing “U” shaped Sponge Pad to the
wire opening from the rear side after the wires
connection and prior to final product affixing to the
mounted bracket.
11. Place the detector on the mounting bracket from top
side down and then lock the screw at the bottom.
12. Connect the wires to the terminal blocks
according to the following chapter.
alarm shop

11
7 Terminal Block Connections
Terminal 1 - Marked “-” (GND) - Connect to the ground of the CP.
Terminal 2 - Marked “+” (+12V) - Connect to a positive Voltage of 9.6 -16Vdc source
(usually from the alarm CP)
Terminals 3 & 4 - Marked “TAMP” - If a Tamper function is required connect these
Terminals to a 24-hour normally closed protective zone in the CP.
If the top cover of the detector is opened or the detector is detached from installation wall, an
immediate alarm signal will be sent to the CP.
Terminal 5 - Marked “EOL” - End of line – optional terminal for end of line resistors
connections.
Terminals 6, 7 & 8 - Marked “NC / C / NO” - These are the output relay contacts of the
detector. Connect to a normally closed or normally opened zone in the control unit. When an
intruder is detected, alarm relays (N.C. and N.O.) will switch for 1.8 sec.
7.1 Wire Size Requirements
Use #22 AWG or larger wires. Use the following table to determine required wire gauge and
length.
Wire Length [m] 205 310 510 870
Wire Length [ft.] 800 1200 2000 3400
Wire Gauge [#] 22 20 18 16
alarm shop

12
8 Settings & Adjustments
8.1 Detection beam direction
The EDS-3000 detection beam direction may vary between 0º and 180º.
In order to change the detection beam direction rotate the internal detection element
housing to the desired direction.
8.2 Detection range setting
The EDS-3000 detection range may vary between 3m and 18m (10 ft to 59 ft), while
installed on 1.2m (4 ft) height above the ground surface.
Changing the detection range is achieved by sliding the upper detection element up or
down.
Slide the detection element down for long range or up for short range detection.
Long Range Short Range
alarm shop

13
8.3 Sensitivity, Range and Pet immune Adjustment
The calibration of range and sensitivity is performed by single digital 16 position rotary
switch.
There are 3 groups of switch setting according to detection range.
Each group is divided to several levels of sensitivity according to installation environment.
The sensitivity is determined by a rotating switch (16 positions). Changing the sensitivity
affects immunity to environmental noises, also affects the detection distance and pet
immunity level.

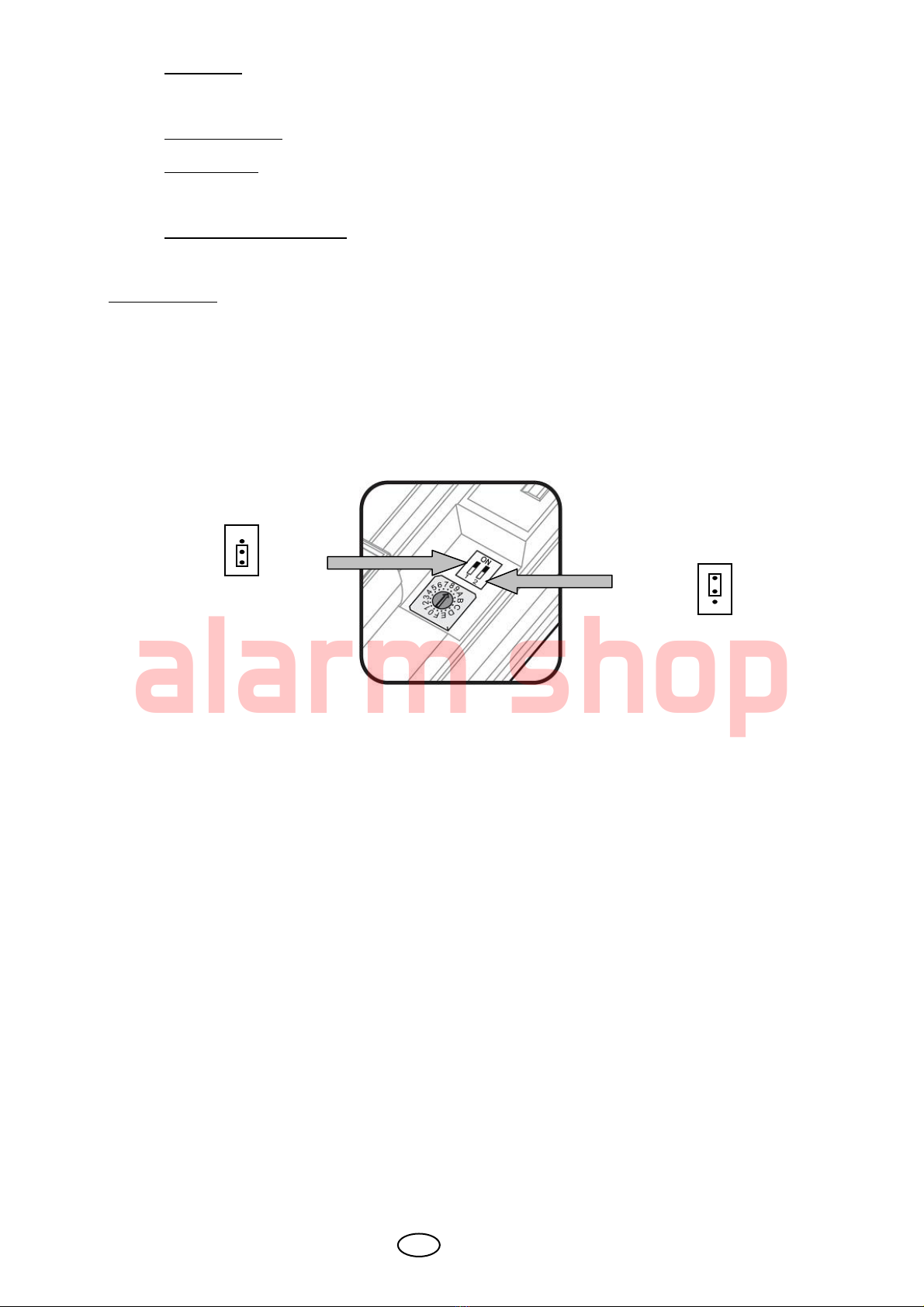

The rotating switch is marked with digits from “0” to “9” and following letters from “A” to “F”.
Position “0” is maximum sensitivity and “F” is minimum sensitivity.
Note: Adjust sensitivity according to environmental conditions!
Group A - positions 0 – 5 – set sensitivity for 18m (59 ft) detection range with immunity to pets
weight up to 20kg (44 lbs)
Group B - positions 6 – A – set sensitivity for 13m (42 ft) detection range with immunity to pets
weight up to 35kg (77 lbs)
Group C - positions B – F – set sensitivity for 7m (23 ft) detection range with immunity to pets
weight up to 35kg (77 lbs)
0
8
4C
3
2
1F
E
D
B
A
97
6
5
Low Risk
Risk
High Risk
Very High Risk
Noisy Area
Extremely Noisy Area
Low Risk
Risk
High Risk
Very High Risk
Noisy Area
Low Risk
Risk
High Risk
Very High Risk
Noisy Area
18m
(59 ft)
with Pet
Immune
up to
20kg
(44 lbs)
13m
(42 ft)
with Pet
Immune
up to
35kg
(77 lbs)
7m
(23 ft)
with Pet
Immune
up to
35kg
(77 lbs)
Each group is divided to 5 or 6 sub-positions that help to define the environmental
condition inside the detection range:
• Low risk: very stable environment without interference like parking garage, under roof
parking space, playground, football court, service road, etc.
• Risk: Stable environment with some trees, bushes, flowerpots, planters.
alarm shop

14
• High risk: Unstable environment with different types of vegetation and grass and
puddles.
• Very high risk: Unstable environment with winds and small pets, rats, mice, birds.
• Noisy area: Unstable environment with vegetation and water sources like swimming
pool, lake, canal, weed as well as small pets like cats and rabbits.
• Extremely Noisy area: Very unstable environment subjected to wind, snow, rain, with
vegetation, water and large pets like dogs.
For example:
If detector is used for 13m (42 ft) range in open space with sunlight and pets, set switch to
position 9.
8.4 Indications setting
The EDS-3000 has two types of indications:
1. LED
2. Buzzer
The installer may determine both indications’ operation during detection (ON or OFF) by using
switch number “1” for the buzzer and switch number “2” for the LED.
(Setting the buzzer ON gives the installer the ability to hear the beep on each detection for 1.8
seconds during the adjustments and a walk test. After the process it is recommended to switch
the buzzer OFF)
LED OFF
ON
OFF
Buzzer ON
ON
OFF
Factory default setting
Factory default setting
alarm shop

15
• Place the top cover to the base and close it using the bottom screw.
9 Operation
Note! Connect the EDS-3000 to a positive Voltage output of 9.6 -16VDC source.
Use only a listed power limited source.
The detector shall be provided with minimum of 4 hours of standby power from either a
listed compatible control unit or power supply.
 The detector is automatically operated once connected to power.
 The LED starts flashing for 30 seconds during the setup period and after that it will turn off.
 At this time the detector is ready for operation.
alarm shop

16
10 Test procedure
Walk Test
Allow 2 minutes of warm up time.
Make sure that the protected area is cleared of all people.
Start walking across the detection zone.
Listen to ALARM sound whenever motion is detected (the red LED also turns ON whenever
motion is detected).
Allow 5 sec. between each test for the detector to stabilize.
Upon installation, the unit should be thoroughly tested to verify proper operation.
Walk across the entire area where coverage is desired. Should the coverage be incomplete,
readjust coverage range or relocate the detector.
Once coverage is as desired, the alarm buzzer should be disabled and the LED may be disabled.
NOTE: Walk Test procedure should be conducted, at least once a year, to confirm
proper operation and coverage of the detector.
alarm shop

17
11 Specifications
• Specifications are subject to change without prior notice.
Detection Method Double PIR AND MW
Microwave Frequency 24.125 GHz
Power Input 9.6 to 16Vdc
Current Draw Active: 24mA (±5%)
Standby: 21mA (±5%)
Temp Compensation Yes, Dual slop temperature compensation
Alarm Period 2 sec (±0.5sec)
Alarm Outputs Form C (NC, NO, Common)
28Vdc 0.1 A with 10 Ohm
Tamper Switch(s)
Two Switches
N.C 28Vdc 0.1 A with 10 Ohm Series protection resistors
Opens when cover is removed from unit’s base
Warm up Period 120sec (± 5sec)
LED Indicator LED is ON during ALARM
RF Immunity 10 V/m plus 80% AM from 80 MHz to 2GHz
ElectroStatic Immunity 6kV contact, 8kV air
Transient Immunity 1kV
Operation Temp -10ºC ~ +50 ºC (14°F ~ 122°F)
Dimensions 200mm x 86mm x 80mm (7.9” x 3.4” x 3.2”)
Weight 500gr. (1100 lbs)
European directives
RTTE directive:1999/5/EC
EMC directive: 89/336/EEC
Low Voltage directive: 73/23/EEC
RoHS directive: 2002/95/EC
European standards
requirements:
EN300 440-2
EN301 489-1
EN50130-4 +A1 +A2
EN61000-6-3+A11
EN60950-1
EN50131-1 / EN50131-2-4 / EN50130-5
USA & Canada
47CFR part 15, subpart C, section 15.245
47CFR part 15, subpart
RSS210
ICES-003
Protection Degree
IEC 60529: IP 65
alarm shop

18
alarm shop

19
CROW LIMITED WARRANTY
(CROW) warrants this product to be free from defects in materials and
workmanship under normal use and service for a period of two years from
the last day of the week and year whose numbers are printed on the printed
circuit board inside this product.
CROW’s obligation is limited to repairing or replacing this product, at its
option, free of charge for materials or labor, if it is proved to be defective in
materials or workmanship under normal use and service. CROW shall
have no obligation under this Limited Warranty or otherwise if the product
is altered or improperly repaired or serviced by anyone other then CROW.
There are no warranties, expressed or implied, of merchantability or
fitness for a particular purpose or otherwise, which extend beyond the
description on the face hereof. In no case shall CROW be liable to anyone
for any consequential or incidental damages for breach of this or any other
warranty, expressed or implied, or upon any other basis of liability
whatsoever, even if the loss or damage is caused by CROW’s own
negligence or fault.
CROW does not represent that this product can not be compromised or
circumvented; that this product will prevent any person injury or property
loss or damage by burglary, robbery, fire or otherwise; or that this product
will in all cases provide adequate warning or protection. Purchaser
understands that a properly installed and maintained product can only
reduce the risk of burglary, robbery or other events occurring without
providing an alarm, but it is not insurance or a guarantee that such will not
occur or that there will be no personal injury or property loss or damage as a
result. Consequently, CROW shall have no liability for any personal injury;
property damage or any other loss based on claim that this product failed to
give any warning. However, if CROW is held liable, whether directly or
indirectly, for any loss or damage arising under this limited warranty or
otherwise, regardless of cause or origin, CROW’s maximum liability shall
not in any case exceed the purchase price of this product, which shall be
the complete and exclusive remedy against CROW.
alarm shop

20
ELECTRONIC ENGINEERING LTD.
ISRAEL: Crow Electronic Engineering Ltd.
12 Kineret St. Airport City
P.O. Box 293, Ben Gurion Airport, 70100
Tel: [phone]
Fax:[phone]
E-mail: [e-mail]
USA: 2160 North Central Road,
Fort Lee, N.J. 07024
Tel: 1-800-GET CROW
or [phone]
Fax: [phone]
E-mail: [e-mail]
AUSTRALIA: 429 Nepean HWY Brighton East Vic 3187
Tel: [phone]
Fax:[phone]
E-mail: [e-mail]
POLAND: VIDICON SP. ZO. O.
15 Povazkowska St.
01 – 797 Warsaw Poland
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
LATIN AMERICA: CROW LATIN AMERICA
5753 NW 151
ST
.Street
MIAMI LAKES,
FL 33014 – USA
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
ITALY: DEATRONIC
VIA Giulianello 4/14
00178 ROMA, ITALY
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
SOUTH AFRICA: SECURITY SYSTEMS & EQUIPMENT SUPPLIERS (Pty) Ltd
53 Juta Street
Braamfontein 2001
Rep. of South Africa
Tel: [phone]
Fax: [phone]
Email: [email protected]
alarm shop
