INSTRUCTION MANUAL
ICE MAKER
Model: IM-262
THANK YOU FOR CHOOSING OUR ICE MAKER
PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING

IMPORTANT NOTICES
When using an electrical appliance, basic safety precautions should
always be followed to reduce the risk of fire, electric shock,
and/or injury, including the following:
1. Read all instructions before using.
2. Remove all packing material and carefully check your ice maker
to ensure it is in good condition and that there is no damage to
the ice maker or power cord and plug.
3. Before using the Ice maker for the first time, please wait 2 hours
after positioning it, and keep the transparent lid open for at least
2hours
4. Pure water is not allowed to be used on this unit, spring water is
recommended.
5. Ensure the voltage is compliant with the voltage range stated on
the rating label, and ensure the earthing of the socket is in good
condition.
6. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
7. Do not upend this product or incline it over a 45℃angle.
8. To protect against risk of electric shock, do not pour water on
cord, plug and ventilation, immerse the appliance in water or any
other liquid.
9. Unplug the appliance after using or before cleaning.
10.Keep the appliance 15cm from other objects to ensure the good
heat releasing.
11.Do not use the accessories which are not recommended by
Manufacturer.
12.This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be

supervised to ensure that they do not play with the appliance.
13.Do not use the appliance close by flames, hot plates or stoves.
14.Do not switch on the power button frequently (ensure 5min.
interval at least) to avoid the damage of compressor.
15.Metal sheet or other electric objects are not allowed to be
inserted into the appliance to avoid fire and short circuit.
16.Do not use outdoors.
17.Never clean with scouring powders or hard implements.
18.Please keep the instruction manual.
19.Warning: Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
20.This appliance is intended to be used in household and similar
applications such as
–staff kitchen areas in shops, offices and other working
environments;
–farm houses and by clients in hotels, motels and other
residential type environments;
–bed and breakfast type environments;
–catering and similar non-retail applications
21.When positioning the appliance, ensure the supply cord is not
trapped or damaged.
22.Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance
23.Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
24.The refrigerant and insulation blowing gas is flammable, when
disposing of the appliance, do so only at an authorized waste
disposal centre. Do not expose to flame.
This symbol indicates the refrigerant R600a and the
non-metallic materials of the appliance are flammable. It’s a warning
symbol. Warning: Risk of fire / flammable materials.

SPECIFICATIONS
Model number：IM-262
Daily ice output：12kg / 24 hours
Ice storage capacity：1.5L/600g
Refrigerant：R600a
Compression-type refrigeration:220-240V/50Hz
Water tank capacity：1.5 L
Voltage: 220-240V
Frequency: 50 Hz
Power consumption: 120 W
Max overall dimensions(W×D×H)：224X 308X283mm
Packing dimensions(L×W×H)：342X 260X 328mm
N.W：
G.W：

DESCRIPTION
1. Micro switch support 11. Top cover
2. Evaporator 12. Transparent lid
3. Water Tray 13. Motor Mount
4. Ice shovel board 14. Back housing
5. Ice basket 15 Air vent
6. Water Reservoir
7. Control panel
8. Buttons
9. Front housing
10. Ice shovel
⑩
⑨
⑧
⑦
⑥
⑤
④
③
②
①
⒒
⒓
⒔
⒕
⒖

FEATURE
Quick ice making
Prompt when the ice is full and water is insufficient
Bullet ice
9 pcs ice can be made in eight minutes
1. During transportation, do not tilt the machine more than 45
degrees, do not reverse the machine. This may damage the
compressor and the sealing system.
2. Remove all packing materials, check the machine carefully and
make sure that the machine, power cord and plug are normal.
3. The machine should be on a level surface. To ensure sufficient
ventilation, the distance of the back of ice maker to the wall should
be at least 150 mm, it should be away from the oven, radiator or
other heat source.
4. Before using the machine for the first time, place the machine and
leave the transparent cover open for at least two hours.
5. Make sure that the home voltage is consistent with the voltage
indicated by the machine.
6. Distilled water is not allowed. Mineral water is recommended.

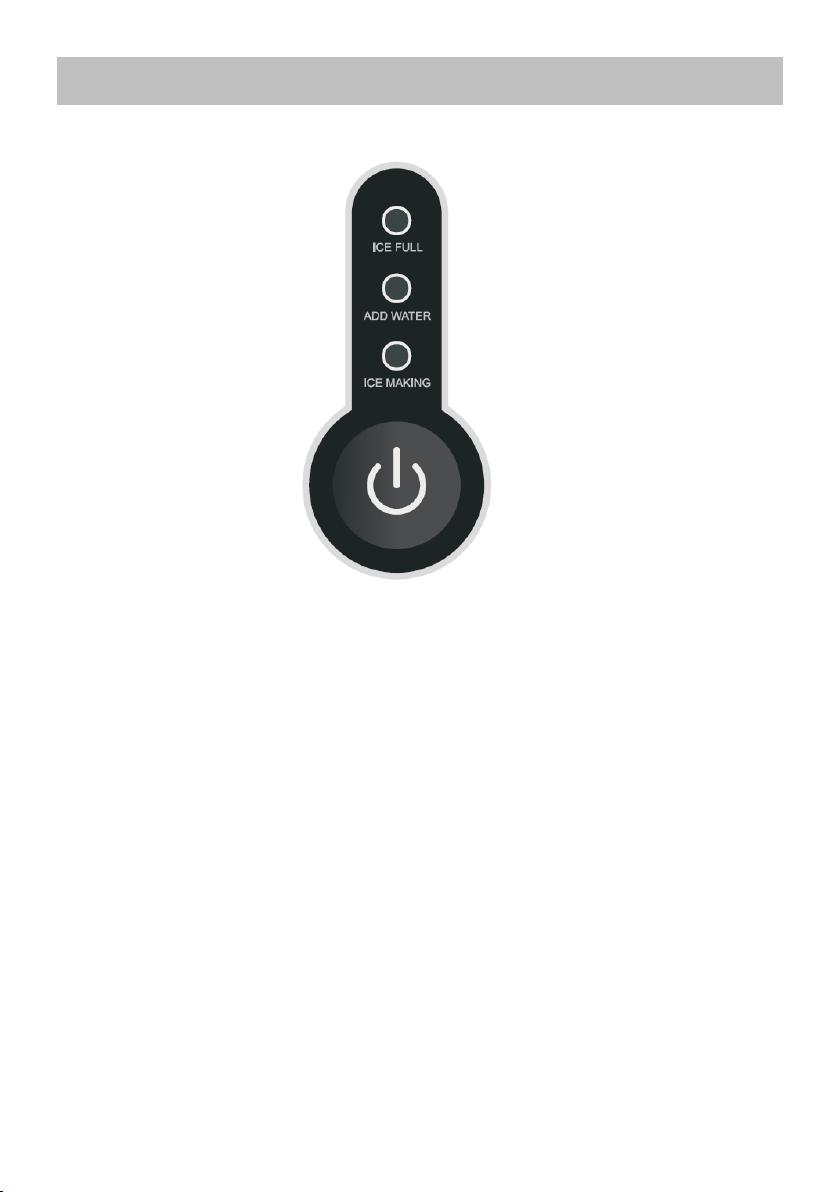

CONTROL PANEL OPERATION
ICE FULL: Ice full alarm
ADD WATER: Water shortage alarm
ICE MAKING: Ice making
1). Plug in the power, the "ICE MAKING " indicator flashes, and the
machine will start the deicing function. Press the power button, the
"ICE MAKING" indicator light is always on and then the ice block will
be made automatically. After the ice making is completed, the
deicing will be carried out, and then the ice shoveling function will be
entered, and so on.
2). ADD WATER: water shortage alarm
When the “ADD WATER”light turns red, it means that there is water
shortage in the water tank. You need to add water and press the
power button to restart the machine.

3) ICE FULL: Ice full alarm
When the ice reaches the maximum capacity of the ice storage
container, the "ICE FULL" light flashes, and the machine stops. At
this time, the ice needs to be poured out. When the ice position is
lower than the full sensor position, the machine will restart
automatically.
4) ICE MAKING: Ice making
When this light is always on, it means that the ice maker is making
ice.
OPERATING INSTRUCTIONS
Step 1
Open the lid and take out the basket and add water to the reservoir.
Note: There is a maximum scale MAX in the reservoir. The water
should not exceed the MAX position. If the water exceeds the
maximum scale MAX, you need to open the bottom drain plug,
release the excess water, and cover with a transparent cover.
Step 2
Plug in the power and press the power button to start the machine.
When the ice basket is full, please take out the ice immediately, do
not let the ice overflow the ice basket.
1. When the indoor temperature is lower than 15 degrees, please
choose small ice. When the indoor temperature is higher than 30

degrees, it is recommended to choose big ice.
2. The three cycles used for the first time, the ice produced is small
and irregular.
3. When the ice basket is full, please take out the ice immediately, do
not let the ice overflow the ice basket
CLEANING & USE GUIDANCE
1. Clean the inner liner, ice collecting tray, water box, ice shovel
and evaporator frequently. When cleaning, unplug the unit and
remove the ice cubes. Use a diluted solution of water and
vinegar to clean the inside and the outside surface of the Ice
maker. Do not spray Ice maker with chemicals or diluted agents
such as acids, gasoline or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure, or in the
built-in structure, clear of obstruction. Do not use mechanical
devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
3. Reuse the machine after being idled for a period of time, it may
not have enough water to pump for air retard, in this case, the
water shortage indicator “ADD WATER”will light up, repress
power button to restart the ice maker is okay.
4. To ensure the cleanness of ice, please change water for water
reservoir at least once one day. If do not use for a long time,
please drain the water out and clean it up.
5. If the compressor takes a strike action for shortage water, fully
water or interruption of power supply, it will delay for 3mins to
start up after restarted.
6. Always use fresh water before starting ice production either at
initial installation or after a long shut-off period.

TROUBLESHOOTING
1. Please note, if a power failure occurs due to disconnection of the
power cord, or the power button has been pushed off during an ice
making cycle, small ice chips may formed and lodge in the
automatic shovel causing it to jam. If this occurs, the ice chips may
be removed by disconnecting the power cord and gently pushing
the shovel to the rear of the cabinet and removing the ice chips,
then restarting.
2. Please check if the water reservoir is flat when the ice shovel can
not remove the ice to ice basket. If not, please push the ice shovel
gently by finger, then press POWER button to restart.
PROBLEM
POSSIBLE CAUSE
SUGGESTED SOLUTIONS
The compressor works
abnormally with a
Buzzing
Noise
The voltage is lower than
recommended
Stop the Ice maker and do not restart
until the voltage is normal.
Water shortage indicator
light is on
1.There is no water
2.The pump is full of air
1.Add to some water until it reaches
MAX position
2.Press POWER button to restart
Indicator lights on display
are not on
Blown fuse/ No power
Replace fuse / Turn power on
The Ice made is too large
and with pieces sticking
together.
Ice of previous cycles left in
the water tray
Take out the ice under the standby
state
The ice making process
was correct, but no ice
came out?
1. The compressor has
no refrigerant
2. Compressor damaged
Call the service hotline

3. Fan motor damaged
All indicators twinkle
simultaneously
Water tray is blocked by ice
cube
Unplug the power to take out the ice
which blocking the tray, then plug the
power and press the POWER button,
the machine will restart 3mins later.
The machine has been
working, but the water
has been warming
Solenoid broke down
Replace the solenoid valve
When the ice is full, the
machine does not display
the ICE FULL Icon
Ice full sensor damaged
1. Replace the ice full sensor
2. Making ice indoor
3. Call the service hotline
1. If the power cord is damaged; it must be replaced by the manufacturer, its
service agent or a similarly qualified person in order to avoid a hazard.
2. Fill with potable water only.
3. It is normal for the compressor and condenser surface to reach
temperatures between 70°C and 90°C during operation and surrounding
areas may be very hot.
4. Due to fast freezing, ice cubes may appear “Cloudy”. This is air trapped
in the water and will not affect quality or taste of ice.
5. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the
appliance.
7. Do not immerse in water.

Correct Disposal of this product
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.
