Crunch PZi 100.2 User manual

POWERZONE PZi AMPLIFIERS
INDEX PAGE
Crunch is proud to introduce the finest high end car audio products available and would like to thank you for your continued support.
The PowerZone Series range of products have been designed to a very high level of performance, with features unavailable in any other
products.
All of the amplifiers have variable crossovers built in, with added touches such as subsonic filter, bass equalization and a bass remote control
module option that allows bass control from with in reach of the drivers seat.
To insure years of listening pleasure, all amplifiers have a built in diagnostic mode that will detect shorted speaker leads, low impedance,
dangerous high temperatures, DC shorts and will shut down the amp to help prevent serious damage.
GeneralInstallationProcedure.........................................................................................................................................................1
AmplifierFeatureDescriptions..........................................................................................................................................................2
PZi100.2/ PZi250.2/ PZi325.1/ 2-CHANNEL AMPLIFIER APPLICATIONS.............................................................................3-4
Full range stereo / Full range mono / 2 way active with mono bass using two 2 channel models
PZi100.4/ PZi125.4/ PZi175.4/ 4-CHANNEL AMPLIFIER APPLICATIONS..............................................................................5-6
4, 3 and 2 channel full range / 2 way active, with mono bass /
front/rear high pass using a 2 channel model for mono sub bass
PZi1000.1/ PZi1500.1/ PZi2000.1D/ PZi3000.1D/1-CHANNELAMPLIFIERSAPPLICATIONS...................................................7
Basic mono amplifier application
PZi550.5/5CHANNELAMPLIFIERFEATUREDESCRIPTIONANDAPPLICATIONS.....................................................................8
FeaturesandSpecifications..............................................................................................................................................................9
SettingUpSystemsAfterInstallationForBestPerformance............................................................................................................10
TroubleshootingandDiagnostics....................................................................................................................................................11
ProductWarranty............................................................................................................................................................................12
The contents of this manual may not be reproduced or copied with out the
written consent of MAXXSONICS USA, Inc.

GENERAL INSTALLATION PROCEDURE
1
System Design
Installation
The success of any car stereo system relies on several factors, such as the system design, execution of the installation, and system setup. Please
remember that any system is only as good as its weakest link.
Please remember that higher power systems are not necessarily useful purely for high sound pressure levels, but also to establish a headroom capability, to
reproduce musical peaks cleanly without distortion. Lower power amplifiers will clip earlier than their more powerful cousins, and cause loudspeaker failure when
overdriven, due to the harmonics generated by a clipped signal, thus overheating voice coils.
Amplifiers should be mounted with the fins running horizontally for best convection cooling, to minimize overheating. Purchase the best quality RCAcables you can
afford, for reliability and less engine noise interference in the audio system.
General:
Run the wiring so that RCAcables are at least 18“ away from power and speaker cables. Keep RCAcables away from electrical devices in the vehicle that can cause
electrical noise, such as electric fuel pumps, emission control modules and other on-board electronic modules.
Power and ground connections(see the features matrix on page 9 for proper gauge cables per amplifier):
Use a sufficient gauge power cable and ground cable using the chart below as reference to what size wire you require. PZi series amplifiers require 4 gauge power
wire. In a multi amplifier system, add the total value of the manufacture recommended fusing to get your total system amperage. Some applications may require
multiple runs of power wire to meet the system requirements. In multi amplifier systems it is advisable to mount a large enough fuse right at the battery, and run one
or multiple +12 volt power cables to a fused distribution block near the amplifiers. It is then a simple matter to connect the +12 volt terminal of each amplifier to the
distribution block. During this process, please ensure that the main power fuse is removed to avoid shorting the electrical system. The main fuse must be within 12” of
the vehicles battery.
Ground each amplifier with as short a ground lead as possible directly to the vehicle chassis using 4 gauge wire or equivalent to the size of the amplifiers’ power wire.
Use a ground distribution block, if you wish, but it is extremely important to keep the main ground lead from this distribution block to the chassis as short as possible ,
not more than 12“. The ground connection integrity to the chassis is very important, and the best way to achieve a good, solid electrical and mechanical contact is to
use a large round crimp lug, crimped and soldered to the ground cable. The next step is to scrape the paint off the vehicle chassis , slightly larger than the ground
lug, at the connection point. Drill a clearance hole in the chassis, the same size as the lug hole, and use a bolt, spring washer and nut to securely fasten the ground
lug. Use petroleum jelly to coat the bolt/lug connection, to prevent oxidization with time.
TIP: Use the same approach when installing head units, equalizers or any audio equipment for that matter - run short individual grounds from each piece directly to
the vehicle chassis, to minimize ground loops and system noise.All power, ground and speaker connections should be crimped and soldered for reliability. Make sure
that none of the cable insulation can chafe against exposed metal in the vehicle, causing short circuits to the chassis.
Safe connection sequence:
After all cables are run, connect speaker wires to the speakers and amplifiers, then run and plug in RCAcables. Next, connect all power, ground, and remote turn on
leads. Now connect all +12 volt cables to the amplifier/s and distribution blocks and fuse holders. Finally, connect the main +12 volt cable to the battery, with the main
fuse removed, and we are almost ready to power up the system.
Power up the system:
The following procedure may seem like overkill, but there is nothing more frustrating when turning on a system for the first time, and it does not work properly
immediately.
First, make sure the head unit is off, and turn all level controls to minimum (counterclockwise), including the head unit volume control. Set all equalizers to 0 dB (no
boost), and all crossover frequency controls at approximate frequencies, as recommended by the loudspeaker manufacturer. Set all input selector and crossover
switches as required for the application. Remove all amplifier fuses, and insert the main fuse at the battery. If the fuse does not blow, you can insert the fuse in one of
the amplifiers, and we are ready to turn on the system. Turn the head unit on, insert a CD, or select a radio station, and increase the head unit volume control. If the
system sounds fine, turn off the head unit, and install fuses in the remaining amplifiers, one by one, till the complete system is powered up and functioning properly.
WOOD
It is highly recommended that the amplifier be mounted to a board of MDF or other solid
structure using the 4 mounting screws provided. Avoid mounting the
amplifier to metal as this can introduce noise and other unwanted issues. When mounting
the amplifier, ensure that it is mounted HORIZONTALLY, as shown in the diagram above, for
optimal heat dissipation. Mounting amplifiers to speaker enclosures is not recommended as
this can cause damage to the amplifier components. When choosing a location for
mounting the amplifier, ensure that you check for clearance from wires, gas tank, electrical
devices and brake lines etc.
NOTE: This Matrix is a general rule
of thumb. Please refer to the
manufacturers specific
requirements. PZi specifications
can be found on page 9.

AMPLIFIER FEATURE DESCRIPTIONS
POWERZONE AMPLIFIERS: APOWER LED indicates the powered up and turned on condition.
Each model is capable of 4 & 2-Ohms stereo per channel, or 4-Ohms mono bridged operation !
!All Crunch amplifiers feature a comprehensive diagnostic system, with speaker lead short circuit,
except the mono amps which are capable of 4, 2 and 1-Ohm loads. !
and amplifier DC faults indicated by the red “PROTECT” LED.
!Tri-Mode operation with any stereo pair of amplifier channels is possible, as with all bridgeable CAUTION: DO NOT OPERATE ANY AMPLIFIER BELOW THE INTENDED IMPEDANCE.. YOU
amplifiers. !
!The input sensitivities for rated output powers are variable from 0.2 volt to 5 volt. WILL CAUSE DAMAGE TO THE AMPLIFIER THAT WILL NOT BE COVERED UNDER THE
!All crossovers are fully variable in their respective ranges. WARRANTY PRINTED IN THE BACK OF THE MANUAL. 2 & 4 Channel amps are capable of 4
!Crossover filters are 12dB/Octave. and 2-Ohms wired stereo and 4-Ohms wired mono bridged. The mono amps are capable of 4, 2
2
TheX-OVER slideswitchselectstheinternalcrossoverfunctions:
-The input signal isrouted directlyto theLINE OUT RCAjacks,regardless of the X-OVER setting
simplifyingdaisychainingofamplifiers.
-HPF: SelectsthebuiltinHIGH PASS filter,variablefrom60Hzto1.2kHz.
-FULL: Bypassesallcrossoversforfullfrequencyrangeoperation.
-LPF: SelectsthebuiltinLOW PASS ,variablefrom30Hzto250Hz.
MODE:Themodeswitchallowsyou to chooseStereo forfullrange2channeloperationorMONO
forbridgingoperation
HIGH INPUT: If your radio/CD player does not have unbalanced (RCA) outputs, you can use the
HIGHlevel(wire)inputs.
LINE INPUT:Thelineinputacceptsunbalanced(RCA)inputsfrom0.2Vto5V.
LINE OUTPUT:Thelineoutputpassesthroughsignalfromthelineinputswhichallowsyoutodaisy
chainmultipleamplifiersfromonesignal.
-The LINE INPUT signal is routed directly to the LINE OUT RCAjacks, regardless of the X-OVER
settingsimplifyingdaisychainingofamplifiers.
-SUBSONIC:Allowsyoutoadjustthecrossoverfilterfrom15Hzto55Hz.
-LPF:AllowsyotoadjusttheLOW PASS crossoverfilterfrom40Hzto150Hz.
MODE:ThemodeswitchallowsyoutochooseStereoforfullrange2channeloperationorMONOfor
bridgingoperation
LEVEL: Adjuststheinputsensitivityfrom0.2voltsto5volts.
BASS EQ: TheBassEQisadjustablefrom0dbto12dB.
REMOTE: Thisistheinputjackfortheunder-dashbassremotemodule.
LINE INPUT:Thelineinputacceptsunbalanced(RCA)inputsfrom0.2Vto6V.
LINE OUTPUT:The lineoutputpassesthrough signalfromtheline inputswhichallowsyoutodaisy
chainmultipleamplifiersfromonesignal.
The4channelampshavethesamefeaturesasthe2channelmodelsacceptthat thereare2setsof
controls.
1setforchannels1&2and1setforchannels3&4.
Inaddition, the 4 channel modelshavea Mode switch which allowsyouto select2,3or 4channel
operation.
TheX-OVER slideswitchselectstheinternalcrossoverfunctions:
-The input signal is routed directly to the LINE OUT RCAjacks, regardless of the X-OVER setting
simplifyingdaisychainingofamplifiers.
-HPF: SelectsthebuiltinHIGH PASS filter,variablefrom60Hzto1.2kHz.
-FULL: Bypassesallcrossoversforfullfrequencyrangeoperation.
-LPF: SelectsthebuiltinLOW PASS ,variablefrom30Hzto250Hz.
MODE:The modeswitchallowsyou tochooseStereofor fullrange2channeloperation orMONO
forbridgingoperation
HIGH INPUT: If your radio/CD player does not have unbalanced (RCA) outputs, you can use the
HIGHlevel(wire)inputs.
LINE INPUT:Thelineinputacceptsunbalanced(RCA)inputsfrom0.2Vto5V.
LINE OUTPUT:Thelineoutput passesthroughsignalfromthelineinputswhichallowsyou todaisy
chainmultipleamplifiersfromonesignal.
Note that the LOW PASS signal is MONO.
-In the LPF position, the HIGH PASS filter acts as a subsonic
filter.
-When the LPF mode is selected, a 0 to +12dB, at 45Hz, BASS
-EQ is also switched in.
The mono amps are capable of 4, 2 & 1-Ohm loads.
Operating the amp below 1-Ohm can cause damage to the
amp not covered in the warranty.
Note that the LOW PASS signal is MONO.
-In the LPF position, the HIGH PASS filter acts as a subsonic
filter.
-When the LPF mode is selected, a 0 to +12dB, at 45Hz, BASS
-EQ is also switched in.

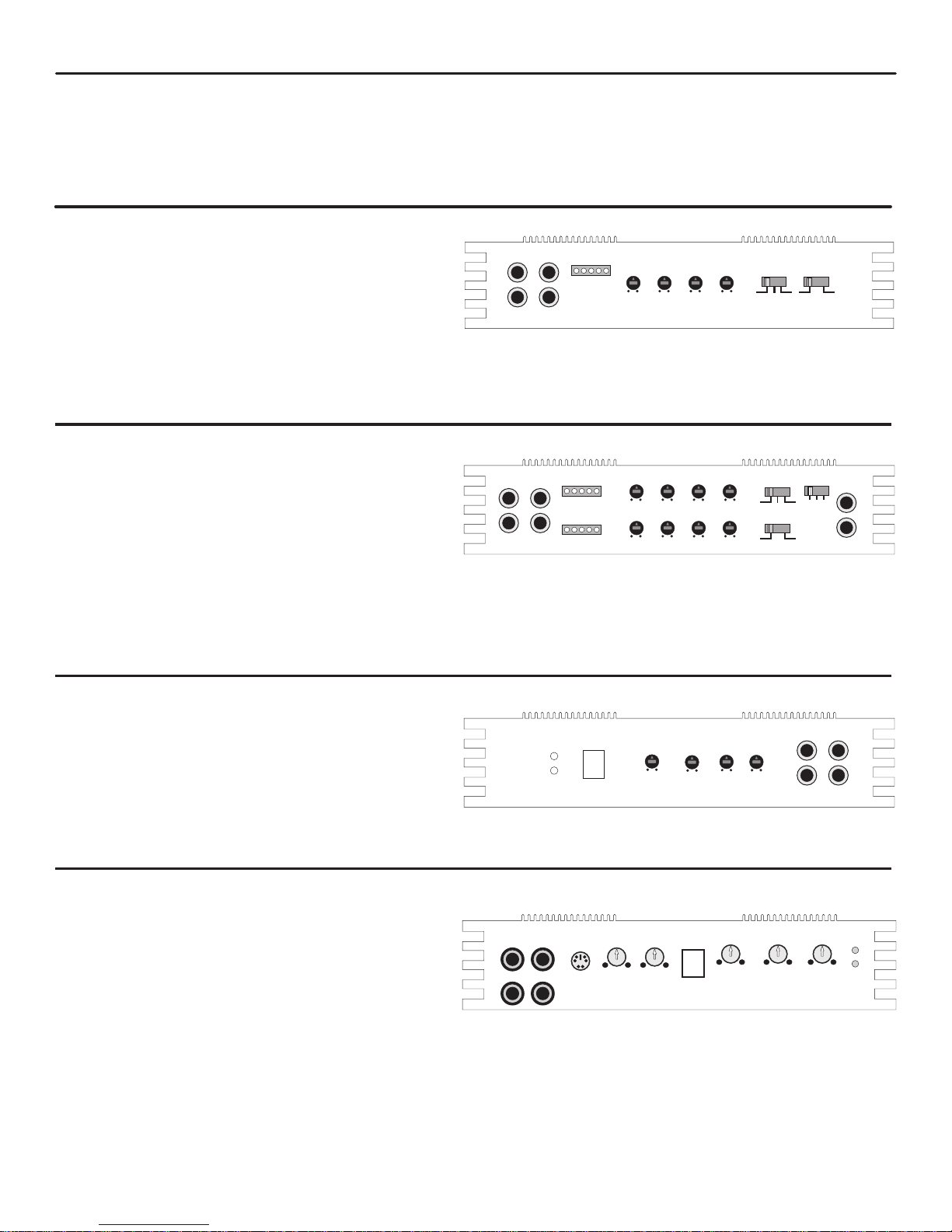

PZi100.2 / PZi250.2 / PZi325.2 2-CHANNEL AMPLIFIERS
PZi100.4 / PZi125.4 / PZi175.4 4-CHANNEL AMPLIFIERS
PZi1000.1 / PZi1500.1 1-CHANNEL MONO BLOCK AMPLIFIERS
LINE OUT LINE INPUT
R R
L L
+ - gnd - +
HI INPUT
5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF MONO STEREO
X-OVER MODE
LINE INPUT
LINE OUTPUT
RR
LL
CH3/4 CH1/2
CH3 CH4
CH1 CH2
CHANNEL 1 / 2
CHANNEL 3 / 4
HI INPUT 5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF
X-OVER
5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF
X-OVER
CHANNEL
2 3 4
MODE
OUTPUT INPUT
L
R
L
R
6V 0.2V
LEVEL
0dB 12dB
BASS EQ
15Hz 55Hz
SONIC
SUB
40Hz 150Hz
LPF
REMOTE
CONTROL
POWER
PROTECT
LINE INPUT: AcceptsunbalancedRCAinputsfrom0.2voltsto9volts.
LINE OUTPUT: The unbalancedRCAoutputs aresetthe sameastheCROSSOVER switchonthe
sidemountcontrol.
BALANCED INPUT: Acceptsbalancedlineinputsfrom0.4voltsto12voltsfortheoptionalMMBLD-
1balancedlinedriver.
LEVEL: Theinputlevelcontrolallowsyoutomatchtheamplifierinputsensitivitytotheoutputlevelof
the RADIO/CD source from 0.2 volts to 9 volts when using unbalanced (RCA) and 0.2 volts to 18
voltswiththebalancedinput.
PHASE: ThePhaseshiftisfullyadjustablefrom0to180degrees.
REMOTE: TheRJ45RemotejackacceptstheBassRemoteModule.
BASS EQ: TheBassBoostisfullyadjustablefrom0to10dbat45Hz.
SUBSONIC: ThevariableSubsonicfilterisfullyadjustablefrom15Hzto35Hz.
LOWPASS: Thebuilt-inlowpassfrequenciesarefullyvariablefrom35to250Hz.
POWER: Indicatesthattheamphaspower,groundandremoteturn-oninputviaagreenL.E.D.
PROTECT: Indicates that the amplifierhas detecteda faultand willnot operate.There are several
possible problems that can cause the amplifier to go into the protect mode. See the trouble
shooting guide inthebackofthemanualfordetails.
The mono amps are capable of 4, 2 & 1-Ohm loads.
Operating the amp below 1-Ohm can cause damage to the
amp not covered in the warranty.
PZi2000.1D / PZi3000.1D 1-CHANNEL D-CLASS MONO AMPLIFIERS
L
R
L
R
9V 0.2V 0 180 0dB 10dB 15 35Hz 35 250Hz PRO
INPUT OUTPUT BALANCED LEVEL PHASE REMOTE BASS EQ SUBSONIC LOW PASS PWR
INPUT
+ - gnd - +
+ - gnd - +

PZi100.2 / PZi250.2 / PZi325.2 / 2 CHANNEL AMPLIFIER APPLICATIONS
3
FULL RANGE MONO
4. Line Level:
This is the most basic application for the POWERZONE Series 2 channel Refer to the section “Setting up systems after installation for best
amplifiers. performance”.
1. Interconnect cable checklist:
Connect the LINE INPUTS to the Radio/CD with good quality RCAcables. NOTE: Minimum final loudspeaker impedances:
2. Crossover Switch: 4 &-2-Ohms stereo mode or 4-Ohms mono mode
The X-OVER switch must be in the FULL position. This amplifier will not do 1-Ohm stereo or 2/1-Ohm mono operation.
3. Crossover frequency control checklist:
N/Afor full range operation.
Switch setting checklist:
This application illustrates the basic mono bridging method for all - The AMPLIFIER X-OVER switch must be in the FULL position.
POWERZONE 2 channel amplifiers.
Crossover frequency control setting checklist:
Interconnect cable checklist: N/Afor full range operation.
AMONO signal source is required, such as would be available from the
mono sub bass output of an active crossover, whether stand alone, or built TIP: If you are using the mono sub bass output of an active crossover, there
Important: is nothing wrong with switching in the low pass filter in these amplifiers for a into a head unit or equalizer. Do not be tempted to connect the steeper low pass roll-off.
hot, or positive outputs, from any source together to obtain a mono signal, as
this could very well damage the output stage of that source.
It is necessary to feed the SAME signal to both left and right inputs via a Y- Minimum final loudspeaker impedance:
adapter RCAcable. Connect the mono speaker positive terminal to the LEFT - 4-Ohms mono.
+, and its negative terminal to RIGHT -.
FULL RANGE STEREO
LINE OUT LINE INPUT
R R
L L
+ - gnd - +
HI INPUT
5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF MONO STEREO
X-OVER MODE
GND REM +12V
POWER INPUT FUSE SPEAKER OUTPUT
LEFT RIGHT
BRIDGED
POWER PROTECT
- + - +
FULL RANGE
STEREO LINE INPUT
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY + 12 volts VIA FUSE
FULL RANGE
SPEAKERS
The HIGH LEVEL inputs are used when the radio/CD player does not have RCAcable outputs. You can connect the radio/CD player speaker wires directly to the
amplifier via the high Level Inputs.
GRAY: CH 1 Speaker Input +
BROWN: CH 1 Speaker input -
Black: Chassis Ground
GREEN: CH 2 Speaker Input -
White: CH 2 Speaker Input +
ORANGE: CH 3 Speaker Input +
PINK: CH 3 Speaker input -
Black: Chassis Ground
BLUE: CH 4 Speaker Input -
YELLOW: CH 4 Speaker Input +
Use this connector for 2 CH amplifiers Use both connectors for 4 CH amplifiers
LINE OUT LINE INPUT
R R
L L
HI INPUT
5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF MONO STEREO
X-OVER MODE
GND REM +12V
POWER INPUT FUSE SPEAKER OUTPUT
LEFT RIGHT
BRIDGED
POWER PROTECT
- + - +
FULL RANGE
MONO LINE INPUT
VIA Y-ADAPTER
FROM MONO SOURCE
FULL RANGE
MONO SPEAKER
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY + 12 volts VIA FUSE
+ - gnd - +

PZi100.2 / PZi250.2 / PZi325.2 / 2-CHANNEL AMPLIFIER APPLICATIONS
4
Stereo high pass with mono low-pass in a 2 way active, or bi-amplified system
Inthisapplicationwewillusea2channelamplifierforthehighfrequencies,and Lows amplifier:
a second one for the low frequencies, or mono sub bass. Please consult the
speakerspecificationstodeterminemaximumamplifierpowerrequirements. - HI PASS (Subsonic filter): 10 Hz to 40 Hz
- LOW PASS: 100 Hz
Interconnect cable checklist:
ConnecttheinputsoftheHIGHSamplifiertoaRadio/CDwithgoodqualityRCA Please note that these frequency points are suggestions only. Refer to the
cables.ConnecttheLINEOUToftheHIGHSamplifiertotheinputsoftheBASS loudspeaker manufacturer specifications and the section “Setting up systems
amplifierwithastereoRCAtoRCAcable. after installation for best performance”
Level control checklist:
Mono bass woofer wiring: -Refertothesection“Setting up systems after installation for best performance”
Connect the mono speaker positive terminal to the LEFT +, and its negative
terminaltoRIGHT-. Minimum final loudspeaker impedances:
- 2-Ohms per channel stereo.
Switch setting checklist:
- 4-Ohms mono bridged.
- Highs amplifier: X-OVER switchintheHPF position.
- Lows amplifier: X-OVER switchintheLPF position.
Crossover frequency control checklist:
Highs amplifier:
- HI PASS: 100 Hz
- LOW PASS: N/A
2 CHANNEL
HIGHS AMPLIFIER
2 CHANNEL
SUB BASS AMPLIFIER
LINE OUT LINE INPUT
R R
L L
+ - gnd + -
HI INPUT
5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF MONO STEREO
X-OVER MODE
GND REM +12V
POWER INPUT FUSE SPEAKER OUTPUT
LEFT RIGHT
BRIDGED
POWER PROTECT
- + - +
LINE OUT LINE INPUT
R R
L L
+ - gnd + -
HI INPUT
5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF MONO STEREO
X-OVER MODE
GND REM +12V
POWER INPUT FUSE SPEAKER OUTPUT
LEFT RIGHT
BRIDGED
POWER PROTECT
- + - +
FULL RANGE
STEREO LINE INPUT
STEREO
INTERCONNECT
RCA CABLE
STEREO
HIGHS
SPEAKERS
MONO BASS
SPEAKER
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY +12 Volts VIA FUSE
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY +12 Volts VIA FUSE

PZi100.4 / PZi125.4 / PZi175.4 / 4 CHANNEL AMPLIFIER APPLICATIONS
4 CHANNEL FULL RANGE SYSTEM
2 or 3 CHANNEL FULL RANGE SYSTEM
Channels 3/4:
Here we show how to use the 4 channel amplifiers as straightforward discrete 4 - HI PASS: N/A
channelfullrangeunits. - LOW PASS: N/A
Interconnect cable checklist:
-ConnectthefourinputsoftheamplifiertoaRadio/CDwithqualityRCAcables. Level control checklist:
-Refertothesection“Setting up systems after installation for best performance”
Switch setting checklist:
Minimum final loudspeaker impedances:
- 1/2CH X-OVER: FULL - 2-Ohms per channel.
- 3/4CH X-OVER: FULL
Crossover frequency control checklist:
Channels 1/2:
- HI PASS: N/A
- LOW PASS: N/A
Channels 1/2:
Hereweshowhowtousethe4channelamplifiersasfullrange2or3channelunits - HI PASS: N/A
bytakingadvantageofthemonobridgingcapabilityofallCrunchamplifiers. - LOW PASS: N/A
Thefollowingexampleshowshowtocreatea3channelsystembymonobridging
channelpair3/4.Inordertocreatea2channelsystem,simplyfollowtheexample Channels 3/4:
toalsomonobridgechannelpair1/2. - HI PASS: N/A
- LOW PASS: N/A
Interconnect cable checklist:
-Connecttheinputsofchannelpair1/2toasuitablestereosource,e.g.aheadunit TIP: If you are using the mono sub bass output of an active crossover, there is
withgoodqualityRCAcables. nothingwrongwithswitchingin thelowpassfilterintheseamplifiersforasteeper
-AMONO signal source is required to bridge channel pair 3/4, such as would be lowpassrolloff.
available from the mono sub bass output of an active crossover, whether
standalone,orbuiltintoaheadunitorequalizer. Level control checklist:
Important: Do not be tempted to connect the hot, or positive outputs, from any -Refertothesection“Setting up systems after installation for best performance”
sourcetogethertoobtainamonosignal,asthiscouldverywelldamagetheoutput
stageofthatsource. Minimum final loudspeaker impedances:
-ItisnecessarytofeedtheSAMEsignaltobothleftandrightinputsviaaY-adapter - 2-Ohms per channel in stereo mode.
RCAcable. - 4-Ohms mono bridged.
- Connect the mono speaker positive terminal to the LEFT +, and its negative
terminaltoRIGHT-asshown.
Switch setting checklist:
- 1/2CH X-OVER: FULL
- 3/4CH X-OVER: FULL
Crossover frequency control checklist:
5
GND REM +12V
POWER INPUT FUSE
POWER PROTECT
CH 3/4 SPEAKER OUTPUT
BRIDGED
-LEFT+ RIGHT+
+ - -
CH ½ SPEAKER OUTPUT
BRIDGED
LEFT RIGHT
+- + - + +
LINE INPUT
LINE OUTPUT
R
L
CH3/4 CH1/2
CH3 CH4
CH1 CH2
CHANNEL 1 / 2
CHANNEL 3 / 4
+ - gnd - +
+ - gnd - +
HI INPUT 5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF
X-OVER
5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF
X-OVER
CHANNEL
2 3 4
MODE
STEREO
FULL RANGE
OR HIGHS
SPEAKERS
MONO
OR SUB BASS
SPEAKER
1 STEREO
1 MONO
FULL RANGE
LINE INPUTS
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY + 12 Volts VIA FUSE
GND REM +12V
POWER INPUT FUSE
POWER PROTECT
CH 3/4 SPEAKER OUTPUT
BRIDGED
LEFT RIGHT
- + - -+
CH ½ SPEAKER OUTPUT
BRIDGED
LEFT RIGHT
- + - - +
LINE INPUT
LINE OUTPUT
R
L
CH3/4 CH1/2
CH3 CH4
CH1 CH2
CHANNEL 1 / 2
CHANNEL 3 / 4
+ - gnd + +
+ - gnd +-+
HI INPUT 5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF
X-OVER
5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF
X-OVER
CHANNEL
2 3 4
MODE
FULL RANGE
SPEAKERS
FULL RANGE
STEREO LINE
INPUTS
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY + 12 Volts VIA FUSE
R
R
L
L

PZi100.4 / PZi125.4 / PZi175.4 / 4 CHANNEL AMPLIFIER APPLICATIONS
6
2 way active, or bi-amplified system with mono bass
2 way active, or bi-amplified system with mono bass, and faded highs/lows
This application shows how easily a 2 way active system can be implemented Channels 3/4:
using a 4 channel amplifier. Channels 1 and 2 will be used for highs, and
channels3and4formonobass. - HI PASS (subsonic): 20 Hz
- LOW PASS: 100 Hz
Interconnect cable checklist:
- We need to feed the same signal to both sets of channels, so must use 2 Y- Please note that these frequency points are suggestions only. Refer to the
adapters,onetofeedtheLEFTsignaltochannels1and3,andtherightsignalto loudspeaker manufacturer specifications and the section “Setting up systems
channels2and4,asshown. after installation for best performance”
Mono bass woofer wiring: Level control checklist:
- Connect the mono speaker positive terminal to the LEFT +, and its negative Refertothesection“Setting up systems after installation for best performance”
terminaltoRIGHT-. Minimum final loudspeaker impedances:
Switch setting checklist: - 2-Ohms per channel in stereo mode.
- 1/2CH X-OVER: HP - 4-Ohms mono bridged.
- 3/4CH X-OVER: LP
Crossover frequency control checklist:
Channels 1/2:
- HI PASS: 100 Hz
- LOW PASS: N/A
Here we present a variation of the previous system. Since this is a 2 way - Follow the instructions as per the previous system for switch and crossover
system,wecanusethefrontoutputsfromaheadunittodrivethehighs,andthe settings.
rearoutput todrivethe bassThismethodallowsthelistenertoeasilyadjust the
relativelevelsofbasstohighs,withthefronttorearfadeontheheadunit.
Channels1and2willbeusedforhighs,andchannels3and4formonobass.
Interconnect cable checklist:
-UsegoodqualityRCAleadstoconnecttheinputsoftheamplifiertothesource
asshown.
GND REM +12V
POWER INPUT FUSE
POWER PROTECT
CH 3/4 SPEAKER OUTPUT
BRIDGED
LEFT RIGHT
- + - -
CH 1 / 2 SPEAKER OUTPUT
BRIDGED
LEFT RIGHT
- + + +
LINE INPUT
LINE OUTPUT
R
L
CH3/4 CH1/2
CH3 CH4
CH1 CH2
CHANNEL 1 / 2
CHANNEL 3 / 4
+ - gnd - +
+ - gnd - +
HI INPUT 5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF
X-OVER
5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF
X-OVER
CHANNEL
2 3 4
MODE
LEFT TO
CHANNELS
1 AND 3
RIGHT TO
CHANNELS
3 AND 4
STEREO
HIGHS
SPEAKERS
MONO
BASS
SPEAKER
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY + 12 Volts VIA FUSE
GND REM +12V
POWER INPUT FUSE
POWER PROTECT
CH 3/4 SPEAKER OUTPUT
BRIDGED
LEFT RIGHT
- + - +
CH 3 / 4 SPEAKER OUTPUT
BRIDGED
LEFT RIGHT
- + - +
LINE INPUT
LINE OUTPUT
R
L
CH3/4 CH1/2
CH3 CH4
CH1 CH2
CHANNEL 1 / 2
CHANNEL 3 / 4
+ - gnd - +
+ - gnd - +
HI INPUT 5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF
X-OVER
5V 0.2V 0dB 12dB 60Hz 1.2KHz 30Hz 250Hz
LEVEL BASS EQ HPF LPF
FULL LPF HPF
X-OVER
CHANNEL
2 3 4
MODE
FULL RANGE
STEREO LINE
INPUTS
STEREO
HIGHS
SPEAKERS
MONO
BASS
SPEAKER
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY + 12 Volts VIA FUSE
R
R
L
L

PZi1000.1 / PZi1500.1 / MONO AMPLIFIER APPLICATIONS
PZi2000.1D / PZi3000.1D / D-CLASS MONO AMPLIFIER APPLICATIONS
7
Basic application
Crossover frequency control checklist:
These sub bass amplifiers can be used any of the bi-amplification systems LOW PASS: 40Hz to 150Hz
described in this manual, replacing the 2 channel amplifiers as per the
illustrations. SUBSONIC:15 Hz to 55 Hz
BASS EQ: 0 to +12dB
Interconnect cable checklist: PHASE: 0 to 180 degrees
Connect the inputs to a suitable source, e.g. a head unit with good quality RCA
cables.ConnecttheLINEOUTtotheinputsofthesystemhighsamplifier.
Level control checklist:
Use at least #12 gauge speakerwiring. The amps have dual speaker terminals, Refertothesection“Setting up systems after installation for best performance”
simplifyingthehookupofmultiplespeakers
Minimum final loudspeaker impedance: 1-Ohm.
FULL RANGE
STEREO LINE INPUT
NOT USED
Y-ADAPTOR
Note: You can use the Radio/CD designated mono line output
or a full range stereo line output. For full range stereo line output,
you will need an optional “Y-Adaptor” as shown
TO BATTERY +12 Volts
+++
R
---
PARALLEL MONO
SUBWOOFERS
2-OHMS EACH MINIMUM
GND REM +12V
POWER INPUT FUSE
SPEAKER OUTPUT
+ + - -
INPUT OUTPUT
LOW SUB BASS
REMOTE
CONTROL
POWER
PROTECT R R
L L
5V 0.2V 40Hz 150Hz 15Hz55Hz 0dB 12dB
LEVEL PASS SONIC BOOST
REMOTE TURN-ON
CHASSIS GROUND
DESIGNATED MONO
OUTPUT FROM HEAD UNIT
MONO
SUBWOOFER
0dB 18dB
PZiR-1
Basic application
Crossover frequency control checklist:
These sub bass amplifiers can be used any of the bi-amplification systems LOW PASS: 35Hz to 250Hz
described in this manual, replacing the 2 channel amplifiers as per the
illustrations. SUBSONIC:15 Hz to 35 Hz
BASS EQ: 0 to +10dB
Interconnect cable checklist: PHASE: 0 to 180 degrees
Connect the inputs to a suitable source, e.g. a head unit with good quality RCA
cables.ConnecttheLINEOUTtotheinputsofthesystemhighsamplifier.
Level control checklist:
Use at least #12 gauge speaker wiring. The amps have dual speaker terminals, Refertothesection“Setting up systems after installation for best performance”
simplifyingthehookupofmultiplespeakers
Minimum final loudspeaker impedance: 1-Ohm.
FULL RANGE
STEREO LINE INPUT
NOT USED
Y-ADAPTOR
Note: You can use the Radio/CD designated mono line output
or a full range stereo line output. For full range stereo line output,
you will need an optional “Y-Adaptor” as shown
TO BATTERY +12 Volts
+++
R
---
PARALLEL MONO
SUBWOOFERS
2-OHMS EACH MINIMUM
GND REM +12V
POWER INPUT FUSE
SPEAKER OUTPUT
+ + - -
INPUT OUTPUT
LOW SUB BASS
REMOTE CONTROL
POWER
PROTECT R R
L L
5V 0.2V 40Hz 150Hz 15Hz55Hz 0dB 12dB
LEVEL PASS SONIC BOOST
REMOTE TURN-ON
CHASSIS GROUND
MONO
SUBWOOFER
0dB 10dB
PZiR-1
L
R
L
R
9V 0.2V 0 180 0dB 12dB 15 35Hz 35 250Hz PRO
INPUT OUTPUT BALANCED LEVEL PHASE REMOTE BA SS EQ SUBSONIC LOW PASS PWR
INPUT
GND REM +12V
POWER SPEAKER
- - + +
DESIGNATED MONO
OUTPUT FROM HEAD UNIT

AMPLIFIER APPLICATIONS
5 CHANNEL FULL RANGE SYSTEM
8
PZi 550.5 / 5 CHANNEL AMPLIFIER FEATURE DESCRIPTION
Channels 3/4:
Here we show how to use the channel amplifier as straightforward discrete 5 - HI PASS: N/A
channelfullrangeunits. - LOW PASS: N/A
Interconnect cable checklist:
-ConnectthefourinputsoftheamplifiertoaRadio/CDwithqualityRCAcables. Level control checklist:
-Refertothesection“Setting up systems after installation for best performance”
Switch setting checklist:
Minimum final loudspeaker impedances:
- 1/2CH X-OVER: FULL - 2-Ohms per channel.
- 3/4CH X-OVER: FULL
Crossover frequency control checklist:
Channels 1/2:
- HI PASS: N/A
- LOW PASS: N/A
The5channelamphavethesamefeaturesasthe4channelmodelsacceptthatthereisanadditionalsetofcontrolsforchannel5
TheX-OVER slideswitchselectstheinternalcrossoverfunctions:
-TheinputsignalisrouteddirectlytotheLINE OUT RCAjacks,regardlessoftheX-OVER settingsimplifyingdaisychainingofamplifiers.
-HPF: SelectsthebuiltinHIGH PASS filter,variablefrom10Hzto150Hz.
-FULL: Bypassesallcrossoversforfullfrequencyrangeoperation.
-LPF: SelectsthebuiltinLOW PASS ,variablefrom30Hzto150Hzforchannel5only.
MODE:Themodeswitchallowsyoutochoose4or5channeloperation.
LINE INPUT:Thelineinputacceptsunbalanced(RCA)inputsfrom0.2Vto5V.
SUBSONIC:Isadjustablefrom15Hzto55Hzforthechannel5only.
BASS EQ:Isadjustablefrom0dBto12dBforchannel5only.
REMOTE:thisisusedforthePZiR-1BassRemotemodule.
POWER
PROTECT
FULL HPF FULL HPF
4CH 5CH
X-OVER X-OVER
10Hz 150Hz
HPF
30Hz 150Hz
LPF
LEVEL
5V 0.2V
LEVEL
5V 0.2V
LEVEL
5V 0.2V
SUBSONIC
15Hz 55Hz 0dB 12dB
BASS EQ
10Hz 150Hz
HPF REMOTE
MODE
CH1CH5
CH5 CH4
CH3
CH2
L
R
INPUT
3/4 CH CONTROLS 1/2 CH CONTROLS
5 CH CONTROLS
POWER PROTECT
FULL HPF FULL HPF
4CH 5CH
X-OVER X-OVER
10Hz 150Hz
HPF
30Hz 150Hz
LPF
LEVEL
5V 0.2V
LEVEL
5V 0.2V
LEVEL
5V 0.2V
SUBSONIC
15Hz 55Hz 0dB 12dB
BASS EQ
10Hz 150Hz
HPF REMOTE
MODE
CH1CH5
CH5 CH4
CH3
CH2
L
R
INPUT
3/4 CH CONTROLS 1/2 CH CONTROLS
5 CH CONTROLS
+12V REM GND
POWER INPUT
SPEAKER OUTPUT FUSE
+
CH 5
CH 5
+
CH 1
+ +
+
CH 2
BRIDGED
CH 4
CH 3
FULL RANGE
SPEAKERS
FULL RANGE
STEREO LINE
INPUTS
DESIGNATED MONO
CHANNEL 5 INPUTS
REMOTE TURN-ON
SUBWOOFER
CHASSIS GROUND
TO BATTERY + 12 Volts VIA FUSE

9

SETTING UP SYSTEMS AFTER INSTALLATION FOR BEST PERFORMANCE
10
PZi1000.1 / PZi1500.1 / PZi2000.1D / PZi3000.1D
General:
At this point you are ready to get more specific on the settings for your amplifier.
Subsonic:
This setting acts as a low frequency cut off for your system bass reproduction. The point that you set it at cuts off any frequencies from reproduction beyond this point. The 12 o’clock
position is a great starting point. EXAMPLE: If you adjust the Subsonic to 25Hz, the amplifier will not play frequencies below 25Hz but will play frequencies from 25Hz to the chosen Low
Pass frequency.
Bass EQ:
This setting is a fixed bass boost at 45Hz that is variable from 0-10dB. This feature provides impact to your bass, but if not adjusted correctly, it can be over used and cause damage to
your subwoofers and amplifiers. It is best to slowly turn this setting clockwise until the desired punch is felt. It is not recommended to exceed the 12 o’clock position unless listening at a
low volume or a low recording quality as this can result in high distortion and possibly clipping.
Low Pass:
The Low Pass control acts as a ceiling and doesn’t allow frequencies to the right of the desired setting to be reproduced. The 12 o’clock position is a great starting point. EXAMPLE: If you
adjust the Low Pass to 80Hz, the amplifier will not play frequencies above 80Hz but will play frequencies from 80Hz to the chosen Subsonic frequency.
Phase:
The variable Phase adjustment allows you to change the relative time that the waveform meets your ear. With standard subwoofer installations where the subwoofer is behind you, the
Phase should generally be at 0. When subwoofers or woofers are in the kick panels or door panels, the Phase adjustment is useful in delaying the timing of the wave meeting your ear by
adjusting the potentiometer to 180 degrees.
Level Control Setup:
Ensure that the Level is turned completely to the left prior to turning the system on. Next you should insert a CD or cassette that you are familiar with to use as a reference, and turn the
head unit volume control to about 80% of its full setting. The system sound level will of course be very low, and the following procedures will help you to match the amplifier input
sensitivities properly to the head unit output signal level.
It is important to match the amplifier LEVEL input sensitivity to the Radio/CD output sensitivity. This can be located in the Radio/CD manual.
If the Radio/CD output sensitivity is 2 volts, then adjust the amplifier LEVEL input to 2 volts.
If you are not sure what the Radio output sensitivity is, follow these general guide lines:
Turn the level control up slowly, till you hear distortion, then back off a few degrees on the control. If at any point your amplifier goes into protection, you will need to turn the Level to the
left a bit and then try again. If you reach a point where the output does not increase, stop turning the Level control to the right as the amplifier/subwoofer combo has reached its maxx
output in this application.
Sit back and enjoy the music!
PZi100.2 / PZi250.2 / PZi325.2 / PZi100.4 / PZi124.4 / PZi550.5
General:
At this point you are ready to get more specific on the settings for your amplifier.
High Pass:
-When in Hi Pass operation, this setting acts as a low frequency cut off for your system reproduction. The point that you set it at cuts off any frequencies from reproduction beyond this
point. The 12 o’clock position is a great starting point. EXAMPLE: If you adjust the High Pass to 100Hz, the amplifier will not play frequencies below 100Hz but will play frequencies from
100Hz to the chosen Low Pass frequency.
-When in Low Pass/Bandpass operation, this setting acts as a low frequency cut off for your system reproduction aka Subsonic Filter. The point that you set it at cuts off any frequencies
from reproduction beyond this point. The 12 o’clock position is a great starting point. EXAMPLE: If you adjust the High Pass to 25Hz, the amplifier will not play frequencies below 25Hz
but will play frequencies from 25Hz to the chosen Low Pass frequency.
-When in Flat/Full operation, the High Pass crossover is bypassed.
Bass EQ:
This setting is a fixed bass boost at 45Hz that is variable from 0-12dB. This feature provides impact to your bass, but if not adjusted correctly, it can be over used and cause damage to
your speakers and amplifiers. It is best to slowly turn this setting clockwise until the desired punch is felt. It is not recommended to exceed the 12 o’clock position unless listening at a low
volume or a low recording quality as this can result in high distortion and possibly clipping.
Low Pass:
The Low Pass control acts as a ceiling and doesn’t allow frequencies to the right of the desired setting to be reproduced. Turning the potentiometer all the way to the right is a great
starting point. EXAMPLE: If you adjust the Low Pass to 120Hz, the amplifier will not play frequencies above 120Hz but will play frequencies from 120Hz to the chosen Hi Pass or
Subsonic frequency.
-When in Hi Pass operation, this setting is bypassed.
Level Control Setup:
Ensure that the Level is turned completely to the left prior to turning the system on. Next you should insert a CD or cassette that you are familiar with to use as a reference, and turn the
head unit volume control to about 80% of its full setting. The system sound level will of course be very low, and the following procedures will help you to match the amplifier input
sensitivities properly to the head unit output signal level.
It is important to match the amplifier LEVEL input sensitivity to the Radio/CD output sensitivity. This can be located in the Radio/CD manual.
If the Radio/CD output sensitivity is 2 volts, then adjust the amplifier LEVEL input to 2 volts.
If you are not sure what the Radio output sensitivity is, follow these general guide lines:
Turn the level control up slowly, till you hear distortion, then back off a few degrees on the control. If at any point your amplifier goes into protection, you will need to turn the Level to the
left a bit and then try again. If you reach a point where the output does not increase, stop turning the Level control to the right as the amplifier/speaker combo has reached its maxx
output in this application.
2 or 3 way active systems (all):
Alwaysstartwiththebass,orlowfrequencyamplifierasareference,byturningitscontroluptothepointwheredistortionisaudible,andbackitoffsome.
Nowadjustthelevelcontrolforthehighsortweeterchannelsina2wayactivesystem,tobalancethehighstolows.
Ina 3way activesystem,match themidrangelevel tothe bass,andthen thehighsto themidrange andbass.It maybenecessary toperform afewiterations ofthemidrange andhighs level

TROUBLESHOOTING A SYSTEM
11
The key to finding the problem in a misbehaving sound system is to isolate parts of that system in a logical fashion to track down the fault.
Description of the PROTECT system built into all PowerZone amplifiers
Thediagnosticsystem willshutdown theamplifier,until resetby turningthe headunit off, andback on.This stateof affairs willbe indicatedby the frontpanel PROTECT
LEDlightingupunderthefollowingconditions:
1-Asortcircuitontheloudspeakerleads.
2-AninternalamplifierfaultthatcausesaDCoffsetontheloudspeakeroutput.
Shouldtheamplifiergointoprotectmode,simplydisconnectallRCAandspeakerleads,whilekeeping+12volt,powergroundandremoteleadsconnected.
1.Nowturntheamplifierbackon,andifthediagnosticLEDlights,theamplifierhasaninternalfault.
2.Ifnot,plugtheRCAcablesback,andresettheamplifier.Ifitgoesintodiagnosticnow,thefaultliesintheinput,eitherwithbadcablesorsourceunit.
3.If theamplifierseemsfinewithRCAcablesplugged in,connectthespeakers,oneatatime,and ifoneofthespeakersoritswiringisfaulty,it willactivatethe diagnostic
system.
Amplifier heatsink overheating
Theamplifierswillshutdownwhentheheatsinktemperaturereaches80degreescentigrade,andturnbackononcetheunithascooleddownbelowthatpoint.
Causes of overheating:
1-Inadequatecooling-relocateorremounttoprovidebetternaturalairflowoverthefins.
2 - Driving high power levels into low impedances - back off on the volume control, and/or make sure you are not loading the amplifier with less than the recommended
loudspeakerimpedance.
Low output power
1-Checkthatlevelcontrolshavebeensetupproperly.
2-Makesurethatthebatteryvoltage,asmeasuredattheamplifier’s+12voltandgroundterminals,is11voltsormore.
3-Checkall+12voltandgroundconnections.
Fuses blowing
1-Theuseofloudspeakerimpedancesbelowtherecommendedminimumswilldrawmorecurrent-check.
2-Ashortonthemain+12voltcablefromthebatterytothevehiclechassiswillcausethemainfusetoblow.
3-Ifanamplifierfuseblowscontinually,withonly+12volt,groundandremoteleadsconnected,theamplifiermaybefaulty.
System does not turn on
1-Checkallfuses.
2-Checkallconnections.
3- Measure the +12 voltand remote turn on voltagesat the amplifierterminals. Ifthese are nonexistent or low,takevoltage measurements at fuse holders,distribution
blocks,theheadunit’s+12voltandremoteleadstolocalizetheproblem.
Noise problems
Systemnoisecanbedividedintotwocategories,hiss,andelectricalinterference.
Hiss, or white noise
1-Highlevelsofwhitenoiseusuallyoccurswhenamplifierlevelcontrolsareturneduptoohigh-readjustaccordingtotheproceduresinsection”Setting up systems after
installation for best performance”
2-Anothermajorproblemthatcancauseexcessivehiss,isanoisyheadunit-unplugtheamplifierinputRCAcables,andifthehisslevelreduces,thesourceunitisatfault.
Electrical interference
Theinsideofanautomobileisaveryhostileelectricalenvironment.Themultitudeofelectricalsystems,suchastheignitionsystem,alternator,fuelpumps,airconditioners,
tomentionjustafew,createradiatedelectricalfields,aswellasnoiseonthe+12voltsupplyandground.Remembertoisolatetheproblem-firstunplugamplifierinputRCA
cables,ifthenoiseisstillpresent,checkthespeakerleads,ifnot,plugtheRCA’sback,andinvestigatethesourcedrivingtheamplifier,onecomponentatatime.
Aticking or whine that changes with engine RPM:
1-ThisproblemcouldbecausedbyradiationpickupofRCAcablestooneartoafuelpumporadistributor,forinstance,-relocatecables.
2-Checkthattheheadunitgroundisconnectedstraighttothevehiclechassis,anddoesnotusefactorywiringforground.
3-Trytosupplytheheadunitwithaclean+12voltsupplydirectlyfromthebattery+,insteadofusingasupplyfromtheindashwiring/fusebox.
Aconstant whine:
Thistypeofnoisecanbemoredifficulttopinpoint,butisusuallycausedbysomekindofinstability,causingoscillationsinthesystem.
1-Checkallconnections,especiallyforgoodgrounds.
2-Makesurethatnospeakerleadsareshortingtoexposedmetalonthevehiclechassis.
3-RCAcablesarenotoriousfortheirproblematicnature,socheckthatthesearegood,inparticulartheshieldconnections.

12
Maxxsonics Limited Warranty
As the manufacturer of Maxxsonics, Autotek, Crunch, MB Quart and Hifonics car audio products,
Maxxsonics USA Inc. Warrants to the original consumer purchaser the amplifier to be free from
defects in material and workmanship for one (1) Year from date of purchase.
All other parts and accessories of the system are warrantied to be free from defects in
material and workmanship for one (1) year from date of purchase. Maxxsonics will
repair or replace at it’s option and free of charge during the warranty period, any system
component that proves defective in materials and workmanship under normal installation,
use and service provided that the product is returned to the authorized Maxxsonics dealer
from where it was purchased. A photo copy of the original receipt must accompany the
product being returned.
Valid purchase receipts will contain the name and address of the authorized reseller.
Any damage to the product as a result of misuse, abuse, accident, incorrect wiring,
improper installation, alteration of date code or bar code labels, revolution, natural
disaster, or any sneaky stuff because someone messed up, repair or alteration out side
of our factory or authorized service centers and any thing else you have done that you
should not have done is not covered.
This warranty is limited to defective parts and specifically excludes any incidental
or consequential damages connected therewith. This warranty is not to be construed
as an insurance policy.
Warranty on installation labor, removal, re-installation and freight charges are not the
responsibility of Maxxsonics USA Inc.
Warranty products damaged as a result of insufficient or improper packing materials
are not covered by this limited warranty and such damaged product will be returned
“as is” at the expense of the owner.
SERIES
CRUNCH
