Kenwood KAC-9104D User manual

KAC-9104D
CLASS DMONO POWER AMPLIFIER ~ page 2-5
INSTRUCTION MANUAL
AMPLIFICATEUR MONO CLASSE D ~ page 6-9
MODE D'EMPLOI
AMPLIFICADOR DE POTENCIA CLASE DMONOF6NICO ~ pagina 10-13
MANUAL DE INSTRUCCIONES
Kenwood Corporation
@
AE86
Take the time to read through this instruction manual. Familiarity
with installation and operation procedures will help you obtain the
best performance from your new power amplifier.
For your records
Record the serial number, found on the back of the unit, in the spaces
designated
on the warranty card, and in the space provided below. Refer
to the model
and serial numbers whenever you call upon your Kenwood
dealer for information or service
on the product.
Model KAC-9104D Serial number _
US Residence Only
©864-3925-00/00 (KV lEV)

Safety'precQutions
AWARNING
To prevent injury or fire, take the following precautions:
• When extending the ignition, battery, or ground wires, make sure to use
automotive-grade wires or other wires with a8 mm' (AWG 8) or more to
prevent wire deterioration and damage to the wire coating.
•
To prevent ashort circuit, never put or leave any metallic objects (such as coins
or metal tools) inside the unit.
•
If the unit starts to emit smoke or strange smells, turn offthe power
immediately
and consult your Kenwood dealer.
• Do not touch the unit during use because the surface of the unit becomes hot
and may cause burns iftouched.
•Mounting
and wiring this product requires skills and experience. For safety's
sake, leave the mounting and wiring work to professionals.
ACAUTION
Cleaning the unit
Ifthe front panel gets dirty, turn offthe power and wipe the panel with adry
silicon cloth or soft cloth.
ACAUTION
Do not wipe the panel with a hard cloth or acloth dampened by volatile
solvents such as paint thinner and alcohol. They can scratch the surface ofthe
panel and/or cause the indicator letters to peel off.
To prevent battery from running out
When the unit is used in the ACC ON position without turning the engine ON, it
depletes the battery. Use it after starting the engine.
NOTE
This Class Bdigital apparatus complies with Canadian ICES-Q03.
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications
are expressly approved in the instruction manual. The user could
lose the authority to operate this equipment if an unauthorized change or
modification is made.
FCC NOTE
This equipment has been tested and found to comply with the limits for a
Class Bdigital device, pursuant to Part 15 ofthe FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment may cause harmful interference to
radio communications, if it is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a
particular installation. If
this eqUipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on acircuit different from that to which
the
receiver is connected.
•
Consult the dealer or an experienced radiolTV technician for help.
To prevent damage to the machine, take the following
precautions:
• Be sure the unit is connected to a 12V DC power supply with a negative
ground connection.
•
Do not open the bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat
or humidity. Also avoid places with too much dust or the possibility ofwater
splashing.
• When replacing a fuse, only use a new one with the prescribed rating. Using a
fuse with the wrong rating may cause your unit to malfunction.
•
To prevent ashort circuit when replacing a fuse, first disconnect the wiring
harness.
NOTE
•If you experience problems during installation, consult your Kenwood dealer.
• If the unit does not seem to be working right, consult your Kenwood dealer.
Wiring
• Take the battery wire for this unit directly from the battery. If it's connected to
the
vehicle's wiring harness, it can cause blown fuses etc.
• If a bUZZing noise is heard from the speakers when the engine is running,
connect aline
noise filter (optional) to each ofthe battery wire.
• Do not allow the wire to directly contact the edge of the iron plate by using
Grommets.
•Connect the ground wire to a metal part ofthe car chassis that acts as an
electrical ground passing electricity to the battery's negative e terminal. Do
not turn the power on ifthe ground wire is not connected.
• Be sure to install aprotective fuse in the power cord near the battery. The
protective fuse should be the same capacity as the unit's fuse capacity or
somewhat larger.
• For the power cord and ground, use a vehicle type (fireproof) power wring
cord with acurrent capacity greater than the unit's fuse capacity. (Use apower
Wiring cord with adiameter of8mm' (AWG 8) or greater.)
• When more than one power amplifier are going to be used, use apower
supply wiring
wire and protective fuse of greater current-handling capacity
than the total maximum current drawn
by each amplifier.
(EDeclaration
of Conformity with regard to the EMC
Directive 2004/108/EC
Manufacturer:
Kenwood Corporation
2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan
EU Representative's:
Kenwood Electronics Europe BV
Amsterdamseweg 37,1422 AC UITHOORN, The Netherlands
Speaker selection
• The input power ofthe speakers that are going to be connected should be
greater than the output power (in Watts) of the amplifier. Use of speakers
having input power ratings that are less than the output power ofthe amplifier
will
cause smoke to be emitted as well as damage.
• Use speakers that have an impedance of 10 or greater. When more than one
set of speakers are going to be used, calculate the combined impedance ofthe
speakers and then connect suitable speakers to the amplifier.
~
;.
0' 40:~'
: : : 40 40
, 40: •
,,,
iiO·~iO··············
Combined impedance
2 English
Information on Disposal of Old Electrical and Electronic
Equipment (applicable for
EU countries that haveadopted
separate waste collection systems)
)t
Products with the symbol (crossed-out wheeled bin) cannot be
disposed as household waste.
Old electrical and electronic equipment should be recycled at a
facility
capable ofhandling these items and their waste byproducts.
_Contact your
local authority for details in locating a recycle facility
nearest to you. Proper recycling and waste disposal will help conserve
resources whilst preventing detrimental effects on our health and the
environment.
This Product is not installed by the manufacturer ofa vehicle on the production
line, nor by the professional importer ofa vehicle into an EU Member State.

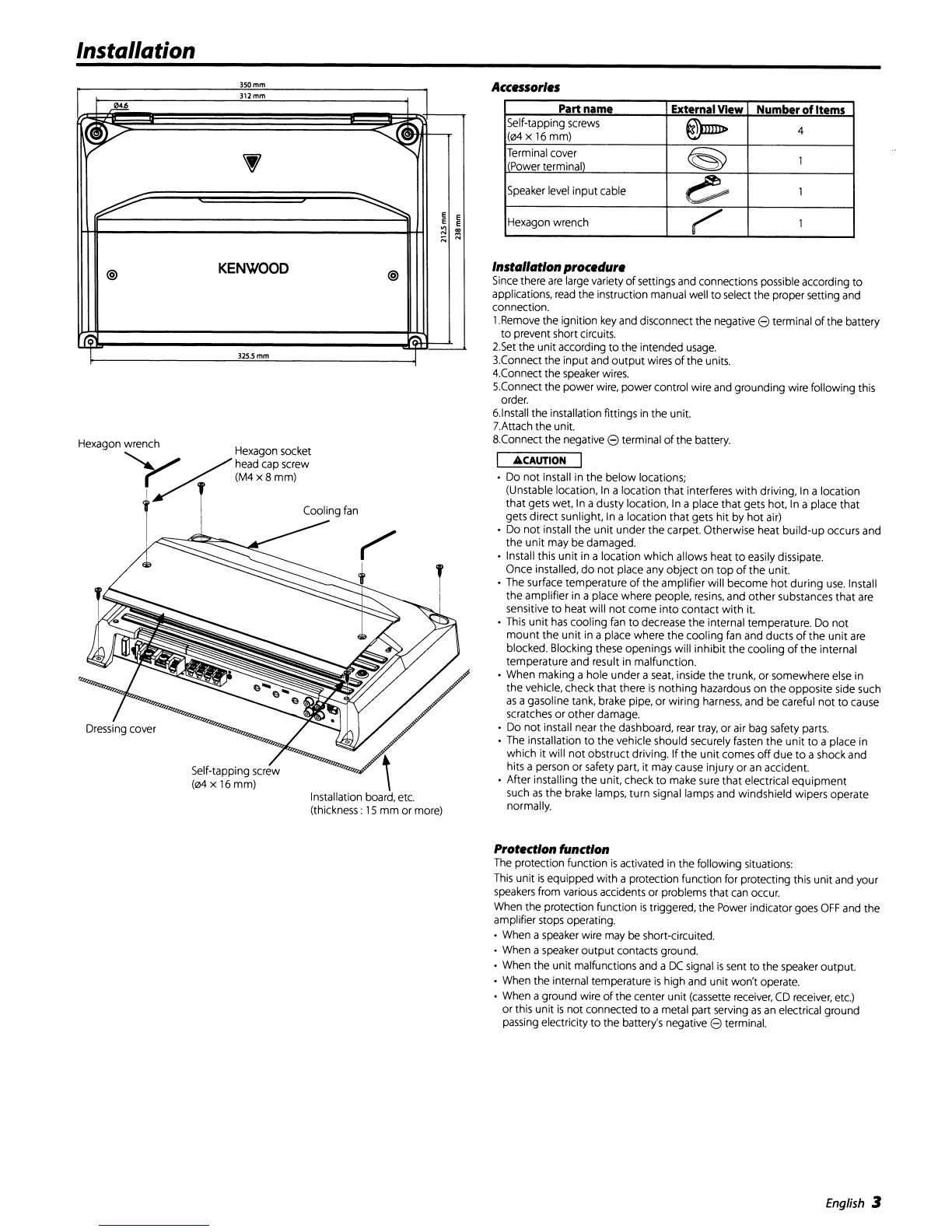

Installation
Hexagon wyrench Hexagon socket
./ ~ head cap screw
/T (M4x8mm)
Part name
External View Numberof Items
Self-tapping screws
~
4
(04 x
16mm)
Terminal cover
~
1
Power terminal}
Speaker level
input cable
~
1
Hexagon wrench
~
1
•Do not install in the below locations;
(Unstable location,
In alocation that interferes with driving, In alocation
that gets wet, In adusty location,
In aplace that gets hot, In aplace that
gets direct sunlight.
In alocation that gets hit by hot air)
•Do
not install the unit under the carpet. Otherwise heat build-up occurs and
the unit may be damaged.
•Install this
unit in alocation which allows heat to easily dissipate.
Once installed,
do not place any object on top of the unit.
•The surface temperature
of the amplifier will become hot during use. Install
the amplifier in aplace where people, resins, and
other substances that are
sensitive
to heat will not come into contact with it.
•This
unit has cooling fan to decrease the internal temperature. Do not
mount the unit in aplace where the cooling fan and ducts of the unit are
blocked. Blocking these openings will inhibit the cooling of the internal
temperature and result in malfunction.
•When making ahole under aseat. inside the trunk, or somewhere else in
the vehicle, check that there
is nothing hazardous on the opposite side such
as agasoline tank, brake pipe, or wiring harness, and be careful not to cause
scratches or other damage.
•Do not install near the dashboard, rear tray, or air bag safety parts.
•The installation
to the vehicle should securely fasten the unit to aplace in
which it will not obstruct driving. If the unit comes off due to ashock and
hits aperson or safety part,
it may cause injury oran accident.
•After installing the unit, check
to make sure that electrical equipment
such as the brake lamps, turn signal lamps and windshield wipers operate
normally.
Illsterliat/ollprocedure
Since there are large variety of settings and connections possible according to
applications,
read the instruction manual well to select the proper setting and
connection.
1.Remove the ignition key and disconnect the negative 8terminal
of the battery
to prevent short circuits.
2.Set the unitaccording to the intended usage.
3.Connect the inputand output wires of the units.
4.Connect the speaker wires.
5.Connect the power wire, power control wire and grounding wire following this
order.
6.lnstall the installation fittings
in the unit.
7.Attach
the unit.
8.Connect the negative 8terminal
of the battery.
ACAUTION
Accessories
\
Installation board, etc.
(thickness:
15 mm or more)
350
mm
312mm
~
I~~
'" ~
~:;.I
~
~
~
E
E
::J
@
KENWOOD
@
325.5mm
Protect/oll fullctloll
The protection function is activated in the following situations:
This unit is equipped with aprotection function for protecting this unit and your
speakers from various accidents or problems that can occur.
When the protection function
is triggered, the Power indicator goes OFF and the
amplifier stops operating.
•When aspeaker wire may be short-circuited.
•When aspeaker
output contacts ground.
•When the unit malfunctions and a
DC signal is sent to the speaker output.
•When the internal temperature
is high and unit won't operate.
•When aground wire
of the center unit (cassette receiver, CD receiver, etc.)
or this unit
is not connected to ametal part serving as an electrical ground
passing electricity
to the battery's negative 8terminal.
English 3

Connection
"Commercially available parts
• RCA cable orSpeakerlevel Input connection
• RCA cable connections
!
.. ~=-~.-e.eul ~
J;mI~~~I.IWifi1Wifi1je
'7\1 o • 0
~= ~~~...?=17\ -.-o=E==
¢ .
·
·
•
•
•
•
•
·
•
•
•
•
·
•
•
•
LINE OUT terminal
Right Input
Genuine-accessory car
I
Power control wire
CENTER UNIT
I
(CD receiver, etc.)
RCA cable"
Left input,
~
r
CW 11
0\
EJ] ~
l;ml~ ~= .. IW@W@I· .~=-~.
.~
Y!1 DoO
~=-
o0\7'\
~=E;;a= __
'~_. _:'W!=o
/'
-'.
Cable Color of the (onnector
I!I Left
:: White
- White/Black
iii Right
:-: Grav
- Grav/Black
• Speaker level input connections
ACAUTION
•Ifsound is not output normally, immediately turn
power off
and check connections.
•
Be sure to turn the power off before changing the
setting of
any switch.
•Ifthe
fuse blows, check wires for shorts, then
replace the fuse with one ofthe same rating.
•
Check that no unconnected wires or connectors
are touching the car body. Do not remove
caps from unconnected wires or connectors to
prevent short circuits.
•Connect the
speaker wires to appropriate speaker
connectors separately. Sharing the negative wire
ofthe
speaker or grounding speaker wires to the
metal body ofthe
car can cause this unit to fail.
NOTE
• Do not connect cables and leads to both RCA
cable input jacks and the speaker level input
terminals simultaneously,
for this may cause
malfunction or damage.
SpeakerlevelInput connections
• The genuine-accessory car stereo shall have a
maximum power output of no more than
40 W.
• The power is turned on and off as the unit
detects input
signal (Signal Sensing Turn-ON).
There fore it is not necessary to connect the
power control
wire.
IAWARNING I
To prevent fire caused by ashort in the wiring,
connect afusible link or
breaker nearby the
battery's positive terminal.
Speabr outputterminals
• As this unit accepts speakers with aminimum
impedance of 1ohm, connect
speakers with 1-
ohm or higher impedance to these terminals.
•Powerwire and Speabr wire connection
Power control wire"
(RCA cable connection)
~--..;....;;.....;;.;..;;..;;..;;.;..;....;.;.;.;....;.----- ~ .
LINE OUT terminal
• The signal that's input from the line input
terminal
is output.
Fuse
30A x2
Terminal cover
..... -- ...... Lead terminal"
e~~ Subwoofer (L + R)
~==O~~(;'10)
Battery wire"
Battery
Ground wire"
~
•• " • ~~~ When twosubwoofers
o are connected. (;'20)
o
~~A Dual voice coil subwoofer
8~12O+20J
4 English

Controls
Troubleshooting Guide
What mightappear to be a malfunction In your unitmay Just be the result
of sflght mlsoperatlon or mlswlrlng. Before calling service, first check the
following table for possible problems.
No sound. (Blown fuse.)
tI' Input (or output) cables are disconnected.
~ Connect the input (or output) cables.
tI' Protection circuit may be activated.
~ Check connections by referring to <Protection function>.
tI' Volume is too high.
~ Replace the fuse and use lower volume.
tI' The speaker cord is shorted.
Q" Aher check the speaker cord and fixing the cause of the short, replace the
fuse.
The output level Istoo small (or too large).
tI' The input sensitivity adjusting control is not set to the correct position.
~ Adjust the control correctly referring to <Controls>.
The sound quality Is bad. (The sound Is distorted.)
tI' The speakers wire are connected with wrong e/e polarity.
Q" Connectthem properly checking the e /e of the terminals and wires
well.
tI' Aspeaker wire is pinched by ascrew in the car body.
~ Connect the speaker wire again so that it is not pinched byanything.
tI' The switches may be set improperly.
~ Set switches properly by referring to <Controls>.
@
KENWOOD
.-----+iII~1 G)
~~====I~~~:1tI®
@
CD PowerIndicator
When the power is turned on, the Power indicator lights.
If the Power indicatordoes not light when the power
is turned on, the
protection function may be activated. Check whether there
is any indication
of trouble. Refer to <Protection function> (page 3).
@illumination
@ ISF (Infrasonic filter) switch
Ultralow frequencies that cannot be reproduced even by asubwoofer speaker
do not become sound but become unnecessary oscillations, which affect the
sound by causing distortion, etc. Setting this switch
to "15 Hz' or "25 Hz" cuts
the frequencies belowthe respective frequency.
This improves the reproduction performance of the speakers by eliminating
unnecessary oscillations which will
not become sound.
o PHASE switch
When this switch is set '180" (Reverse) the speaker output phase is reversed.
@) BASS BOOST LEVEL control
Sets the low frequency level to be compensated.
® LPF(Low-PGSs Filter} FREQUENCY control
This control adjusts the frequency band output from this unit.
Q) INPUTSENSITIVITYcontrol
Set this control according to the pre-output level of the center unit connected
with this unit, or
to the maximum power output of the genuine-accessory car
stereo.
Use the diagram on the right as aguide.
!pecifications
CEA-2006
Primary Power Output Ratings (RMS Watts per
channel @4ohms, 1%THO+N) 500 Wx1
Signal
to Noise Ratio (Reference: 1Watt into 4
gh!D~L .. .. ..z.;;.9..~.f.\ .
Audio Section
Mi'l>,<PQV\il'!LQl!!P.\JL .J(lQQW.xL
Rated Power Output (+B = 14.4 V)
(40) (20 Hz -200 Hz, 0.5 % THO) 500 Wx1
(40) (OIN45324, +B = 14.4 V) 500 Wx1
(2 0) (100 Hz, 0.8 % THO) 900 Wx1
. __ ... 11 .. -OL________ .. ?2QQ_W_.J:<_L _
.f!~9\i~D~Y.B_~~QQQ~~(±1L:.~_cji;lL .__. ;;_t::L~_.fQQ.1::I.L. ... _
Sensitivity (rated output) 0.2 V - 5.0 V
Input Impedance 10k()
Signal to Noise Ratio 100 dB
Low
Pass Filter Freguency (-24 dB/oct.) 50 -200 Hz (variable)
Infrasonic Filter Freguency (-18 dB/oct.)
15/25 Hz
Bass Boost Circuit (40 Hz) 0 - + 18 dB (variable)
General
Operating Voltage 14.4 V (11 - 16 Vallowable)
Current Consumption
55 A
Installation
Size (W xHx 0) 350 x 59 x238 mm
. ..... . .______.__ .___!J'!~_><:~_5!'~J:<.2'biQ<;h __
_ W.l'!JghL . ... _. __ ._. J,1..~g_\.r.;;Jg~t._ .... _
• Specifications subject to change without notice.
English 5

KENWOOD
