CrustBuster 4560 User manual

P.O. Box 526 - Spearville, Kansas 67876 - [phone]
crustbuster.com
4560 Air Drill
OWNER'S MANUAL
#615120-2015

Identification
Your CrustBuster® drill is identified by a Serial Number and Model Number. Record
these numbers in the spaces provided in this manual and refer to them when ordering
parts or requesting service.
Serial Number Model Number
Warranty
WARRANTY: In addition to the implied warranties of fitness and of merchantability,
CrustBuster®/Speed King, Inc. warrants new products sold by it to be free from defects in
workmanship and material for a period of 12 months, from the date of delivery to the first user
customer. Warranty on purchased parts (cylinder, blades, bearings, shanks, etc.) will be the same
as that offered by the appropriate manufacturer of these parts.
EXCLUSIONS: No warranty of any kind is made by CrustBuster®/Speed King, Inc. with regard to
new products which have been subject to operation in excess of recommended capacities, misuse,
abuse, negligence, or accident, or have been altered or repaired in any manner not authorized by
CrustBuster®/Speed King, Inc. CrustBuster®/Speed King, Inc. is constantly striving to improve its
products. Changes in design and improvement will be made whenever CrustBuster®/Speed King,
Inc. believes the efficiency of its products will be improved thereby, but without incurring any
obligation to incorporate such improvements in any products which have been shipped or are in
service. No obligation exists for compensation of unauthorized repairs or modifications without prior
approval. And in no event will CrustBuster®/Speed King, Inc. be liable for consequential damages,
such as but not limited to: downtime, delayed or late tillage or planting, etc.
WARRANTY REGISTRATION: This warranty is not valid unless registered with
CrustBuster®/Speed King, Inc. within 10 days from the date of purchase. It is the sole
responsibility of the selling retail dealer to fill out the registration forms and see that they are
properly filed with CrustBuster®/Speed King, Inc. This can be done at crustbuster.com.
WARRANTY PROCEDURE: Should any part fail to conform with this warranty, CrustBuster®/Speed
King, Inc. will repair or replace the part or parts which do not conform. If a part is defective, take it
to your authorized CrustBuster® Farm Equipment Dealer immediately, along with your warranty
registration, and complete the proper forms requesting a warranty adjustment. Our representative
will pick up the part to be returned to the factory for examination. If the customer (first user)
requests that a new part be substituted for the old part, a new part will be charged to the dealer who
will in turn charge the customer. If the part is found by us to be defective, a credit for the part will
be given to the dealer to be passed on to the customer. If the dealer or customer wishes to repair
the part, this will be done only if authorized by CrustBuster®/Speed King, Inc. This warranty
procedure is in addition to all remedies authorized by law.
CRUSTBUSTER®/SPEED KING, INC.
Box 526
Spearville, KS 67876
Specifications are subject to change without notice. ® is a registered trademark of CrustBuster/Speed King, Inc.

Table of Contents
Identification and Warranty . . . . . . . . . . . . . . . . . . . . . Inside Front Cover
Safety................................................. 2-9
HitchingtoTractor...................................... 10-11
Transporting.............................................11
Fold and Unfold Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
WalkwayLadder..........................................13
Illustrations and Repair Parts:
TankandFrame.................................... 15-17
TankwithAuger .................................... 18-19
Tank Auger and Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Frame...............................................22
CenterFrame ...................................... 23-24
Wings...............................................25
ToolBars.......................................... 26-27
AirHose .............................................27
Openers .......................................... 28-29
Presswheels..........................................30
OutsideScraperAssy...................................31
FeedTubeBars .......................................32
Distributor............................................32
Feeders........................................... 33-34
Hydraulics:
Solenoid and Lock Valve. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Fan.................................................36
Motors...............................................36
Fold.................................................37
Openers .............................................38
Tires ................................................39
Cylinders.............................................40
Electronic and Electrical:
GateControlEnclosure..................................41
WireBox.............................................42
Wisker Switch Mounting Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Wiring Harness for Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Wiring Harness for Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
SwitchBoxforTractor...................................44
40' Extension for Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
IndicatorLightAssy.....................................44
RemoteEnclosure................................... 45-46
HitchOptions:......................................... 47-48
1

BE A SAFE OPERATOR
BY THINKING BEFORE ACTING
AND
BY READING
YOUR OWNER'S MANUAL
Avoid Accidents
Most accidents, whether they occur in indus-
try, on the farm, at home, or on the highway,
are caused by the failure of some individual to
follow simple and fundamental safety rules or
precautions. For this reason most accidents
can be prevented by recognizing the real
cause and doing something about it before the
accident occurs.
———————
Regardless of the care used in the design
and construction of any type of equipment,
there are many conditions that cannot be
completely safeguarded against without inter-
fering with reasonable accessibility and effi-
cient operation.
A CAREFUL OPERATOR
is the Best Insurance Against an Accident.
The complete observance of one simple rule
would prevent many thousands
of serious injuries each year.
That rule is:
Never Attempt to
Clean, Oil, or Adjust
A Machine While It Is In Motion.
To Our Customers
The following pages and illustrations are
printed to help supply you with the knowledge
to better operate and service your new
CrustBuster equipment.
We are proud to have you as a customer and
feel you will be proud to be a CrustBuster
owner.
Any piece of equipment needs, and must
have, a certain amount of service and mainte-
nance to keep it in top running condition. We
have attempted to cover all the adjustments
required to fit most conditions; however, there
may be times when special care must be taken
to fit a condition.
Study this owner's manual carefully and
become acquainted with all the adjustments
and operating procedures before attempting to
operate your new equipment. Remember, it is
a machine and has been designed and tested
to do an efficient job in most operating condi-
tions and will performin relation to the services
it receives.
If special attention is required for some
condition, ask your CrustBuster dealer; he will
be glad to help and answer any questions on
operations and service of your new machine.
TAKE TIME FOR SAFETY
2

Safety
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
NOTICE: Used to address practices not related to physical injury.
RECOGNIZE SAFETY INFORMATION
UNDERSTAND SIGNAL WORDS
FOLLOW SAFETY INSTRUCTIONS
3

Safety
OPERATE SAFELY
AVOID TIP-OVERS
KEEP RIDERS OFF MACHINE
4

Safety
HANDLE FUEL SAFELY - AVOID FIRES
PREPARE FOR EMERGENCIES
WEAR PROTECTIVE CLOTHING
5

Safety
USE SAFETY LIGHTS AND DEVICES
USE A SAFETY CHAIN
6

Safety
TRANSPORT SAFELY
TOW LOADS SAFELY
7

Safety
PRACTICE SAFE MAINTENANCE
AVOID HIGH-PRESSURE FLUIDS
8

Safety Decals
#05328000 #606145
#604512 #607986
#608000 #611087 #608018
#608026
#602151 #602177
9

Hitching to Tractor
The drill is equipped with a telescoping category II
draw bar hitch or an optional 2 point hitch (category
III).
Secure drill clevis to tractor draw bar with an ade-
quate size hitch pin (Hitch pin is commonly supplied
with tractor.)
Never use an unsecured pin in draw bar.
Attach safety chain from drill to tractor
draw bar supports.

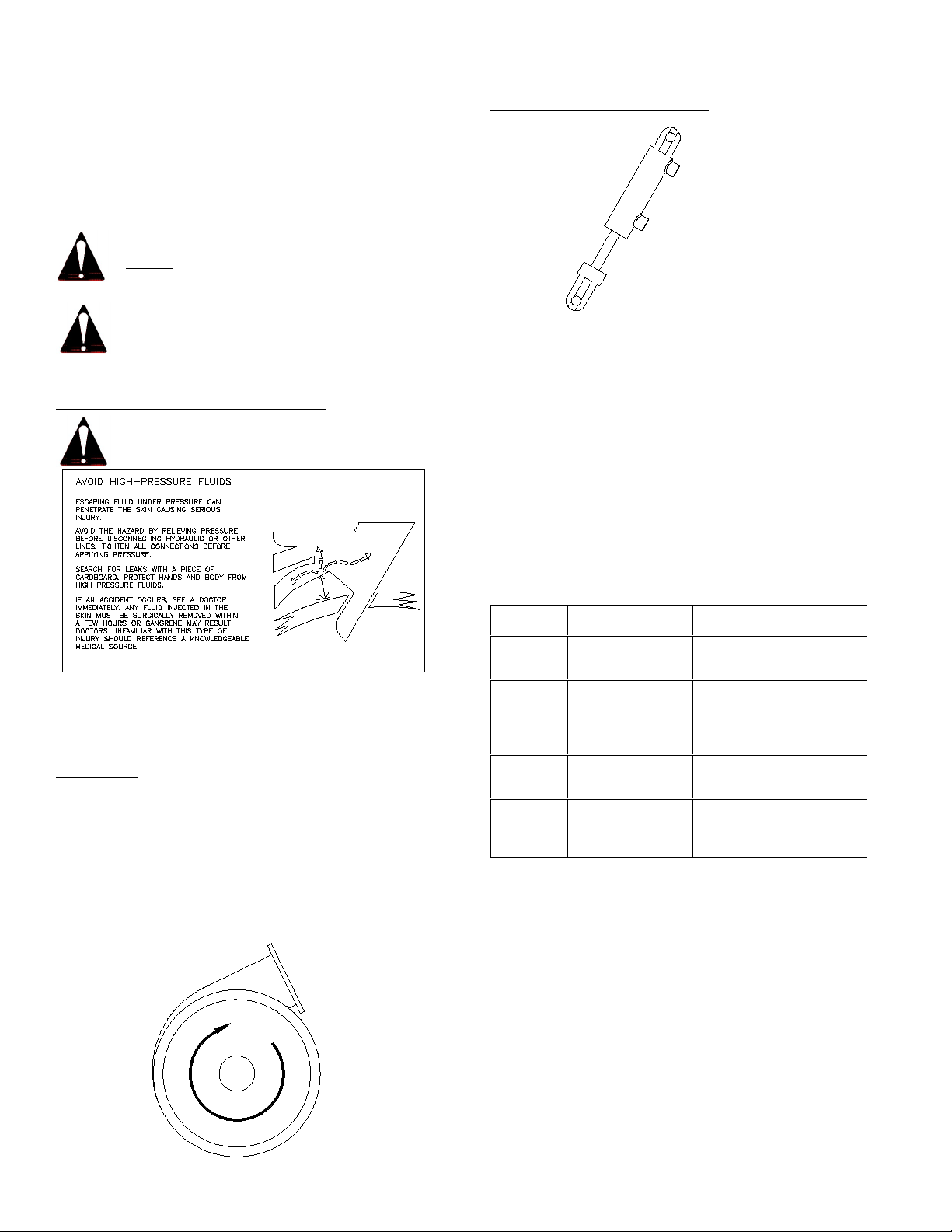

Hydraulic Connections to Tractor
Hydraulic hoses are clamped and labeled in circuit
pairs.
Fan Motor
The first hose connection to be made should be the
case drain hose of the fan drive motor. This zero
pressure connection is a flat face coupler which is
only to be connected to the tractor hydraulic sump.
The fan drive motor hoses are large 3/4" diameter
hoses. The fan is only driven one direction so the
return hose can be routed to the SCV port or tractor
hydraulic sump. Make sure fan turns the correct
direction (Figure FF).
Figure FF
Telescoping Hitch Cylinder
Figure TH
This hydraulic cylinder is located at the front of the
drill so these hoses go directly to SCV on tractor.
This cylinder controls the levelness of the drill and
lifts front of hitch in transport (Figure TH).
The next two hydraulic circuits are connected to
electric solenoid selector valves.
One hydraulic circuit operates the disk opener lift
cylinders and wing wheel cylinders. The second
circuit is selected between the fold and the seed
meter hydraulic motor drive.
In summary, four SCV outlets and one zero pres-
sure case drain port is required.
SCV Function Oil Flow @2200 psi
No. 1 Telescoping
hitch cylinder
5 to 8 GPM
No. 2
with case
drain
Fan motor 3 to 8 GPM
(If tractor has a priority
circuit, connect the fan
motor to it.)
No. 3 Disk opener lift
and wing wheel
12 to 16 GPM
No. 4 Drill fold cylinder
and seed meter
drive
3 to 8 GPM
How the electric solenoid valves are switched will
be explained in the Fold and Field Operation
Section. (Page 12)
The hydraulics on the drill are charged and purged
of air at the factory. Unless the hydraulic circuits
are opened and drained for service or repair, no
purging or bleeding of air is required.
10

Hitching to Tractor Transport
Electrical Connections to Tractor
Shut off tractor and lights and accessories before
making electrical connection to drill.
A 24 foot long tractor harness (Part No. 614966) is
supplied with the 4560 drill. This harness has 3/8"
diameter ring terminals on one end, a 4 prong male
connector at 15 feet, and a 4 place female
connector at the other end.
The 3/8" diameter ring terminals are connected to
12 volt battery terminals.
Black wire to POSITIVE 12 volt.
White wire to NEGATIVE 12 volt.
The brake controller (Part No. 615021) is plugged
into the middle connector of the tractor harness.
The brake controller is then routed into back of
tractor cab for easy access to the operator.
The end 4 place connector is connected to the 4560
drill harness. This plug is next to the 7 pin light plug.
Connect the 7 pin light plug to the 7 pin light
receptacle on the tractor.
Secure the tractor and drill harnesses so they are
not damaged by pinching or dragging.
These connections supply 12 volt electrical power
to the electrical boxes on the left side of the seed
tank front leg. This power is for the electric actua-
tors used to open and close seed meter gate and
electric brakes.
Also included in the harness is power for lights and
brake control.
Electronic Connection to Tractor
The drill is equipped with modules and harness
compatible with ISO 11783 guidelines. This re-
quires the tractor to be equipped with a virtual
terminal, tractor ECU and harness.
The drill is connected to the tractor through the ISO
BUS 9 pin Deutsch connector.
This ISO BUS connection provides control of the
seed meter drive and monitors row blockage, fan
speed, seed hopper level and pressure.
When transporting drill, be aware you are
towing a 48,000 lb. load with 18,000 lb.
hitch weight.
DO NOT EXCEED 15 MPH!
Take appropriate precautions when stopping and
turning.
NUse an adequate hitch pin.
NNEVER use an unsecured pin in draw bar.
NMake sure safety chain is in place.
NLug bolts should be checked prior to towing, after
1 mile of transport, within the next 20 miles and
periodically thereafter. Check hub for looseness
and excess heating.
CAUTION:
Your drill weighs more than the towing
vehicle.
EXERCISE EXTREME CAUTION!
The drill is equipped with electric powered hydraulic
brakes. To operate these brakes, push the button
on the brake controller, or apply tractor brakes.
Electric brakes are activated by tractor brake light
circuit.
MAXIMUM ALLOWABLE SPEED - 15 MPH
NEVER ALLOW ANYONE TO RIDE
THE DRILL!
Proper tire inflation is necessary for acceptable tire
wear and safe transport. Make sure all tires are
properly inflated.
Center Frame Tires-
Size 445/50R 22.5 at 120 psi
Wing Frame Tires-
Size 11L x 15 -8 ply at 60 psi
Be sure warning lights are operating prop-
erly and SMV sign is unobstructed.
11

Fold and Unfold Instructions
NFolding and unfolding of drill should be done on
level ground with the tractor transmission in
neutral.
NStay clear of drill during the fold and unfold
operation.
NOperate tractor hydraulics slowly while folding
and unfolding drill.
To Unfold:
Note: The fold and unfold system on this drill is
electric over hydraulic system. The sys-
tem must have power in order to prevent
damage to the implement. When unit is
folded up in transport the two indicator
lights located above the fan should be on
which indicates that power is to the sys-
tem.
1. Lower the wing wheels all the way down.
Note: The wing wheels must be lowered before
the opener bars can be lowered to prevent
damage to the wing wheels. They also
must be down all the way in order to pre-
vent tires from hitting opener bar in the
field.
2. Lower hitch so transport pins will clear
holder when wing is unfolded.
3. Put tractor in to neutral and begin to unfold
the wings.
Note: As wings begin to unfold, one of the indi-
cator lights should go off. This is
indicating that Valve #2 has been
switched from Wing Tires to Opener
Bars.
4. Once wings have been unfolded all the
way and the pull bar lock has been en-
gaged, you can now lower opener bars to
field operating height.
Note: Once opener bars on wings go down part
of the way, the second indicator light
should go off. This is switching Valve #1
from Fold to Hydraulic Drive.
5. Implement is now in field operating mode
and ready for use.
To Fold:
1. Raise openers up until they are all the way
up.
Note: One of the indicator lights (located above
the fan) should come on before the
opener bars are all the way up. This light
indicates that valve #1 has now been
selected from Hydraulic Drive to Fold.
2. Put the tractor into neutral and begin to
fold wings inward. Once wings begin to
get close to the hitch, the tongue may
need to be lowered in order for transport
pins to engage wings.
Note: The second indicator light should come
on before wings are all the way in. Once
the light has come on this indicates that
valve #2 has now been selected from
Opener Bar to Wing Tires.
3. Raise tongue or hydraulic hitch until
transport pins begin to engage wings.
4. Raise wing tires until all four wheel arms
are all the way up.
Note: The wheel arms will not all go up at the
same time. The operator needs to make
sure that they are up all the way for proper
transport clearance.
5. Raise hitch all the way up to insure proper
road clearance. You are now ready for
transport.
Note: The above fold sequence is achieved by
wisker switches turning on and off electric
over hydraulic selector valves. Wisker
switch #1 is located on the left wing and
should make contact with opener bar
before opener bar is all the way up. This
switch operates Selector Valve #1 which
selects from Hydraulic Drive to Fold.
Wisker switch #2 is located at the front of
the tongue by the jack. This switch
should make contact before wings are all
the way in. This switches Selector Valve
#2 from Opener Bars to Wing Tires.
12

Walkway Ladder
The lower section of the ladder swings down for
access. This ladder section is held up by a spring
loaded pin located at the upper right corner of the
lower ladder section.
Pull the pin out and lower ladders section.
To stow ladder, fold section up and latch with pin.
Make sure ladder is securely latched for
transport and planting.
Watch your step on walkways, steps, and
ladders.
Grain Hopper
To Open Lids:
To open lids pull spring loaded pin to free T-handle
lid latch to rotate. (Page 17)
Be careful when working around lids not to damage
lid seal. For air system to operate properly, the tank
must be air tight.
To Close Lids:
Make sure seal and seal area is clean of seed and
debris before closing lid. Close lid and latch by
rotating lid latch until spring loaded pin engages hole
in handle.
Keep lids closed to keep out rodents and
debris. This tank is a confined space and
has suffocation and toxic chemical risks.
The hoppers are equipped with screens. These
screens are made to catch large objects which
could damage meter rotors. After each tank filling,
the screens should be cleaned of debris. Screens
may be lifted out of tank for cleaning.
Leave the screen in place during normal operation.
Tank Material Gates
Each meter has 3 material gates. One above
meter and two below.
The gate above the meter stops material from
flowing out of the tank and into the meter housing.
If the meter needs cleaned or serviced this gate can
be closed. Meter service can take place without
emptying the seed hopper. This gate is opened and
closed by electrical actuators. A switch box,
mounted on the left front leg of the seed hopper,
powers and controls the actuators. Use the
switches to select between left and right meter and
opening and closing. Make sure gate is fully open
during calibration and planting.
The two gates located on the bottom of the meter
are for emptying the tank and cleaning the meter.
Note: The meter on the LEFT side of the seed
hopper meters seed for the RIGHT side of
the drill and the RIGHT meter delivers
seed for the LEFT side of drill.
It is best to close the upper electric gate before
opening either lower gate. This will prevent
accidentally emptying seed hopper content.
The outside of each meter is the inlet side of the air
stream. This side is therefore the inlet side of seed
and is directly below the seed hopper opening. Be
cautious when opening this gate. It may have
considerable pressure from the weight of grain
above it.
Make sure upper gate is closed.
Forty to fifty pounds of seed may be in the meter.
A funnel (Item #6, Page 29) provided to catch the
seed when the gates are opened.
The gates are held shut by latches. Each latch has
a small safety catch which must be pushed down
to free main latch.
Once the lower gate is removed, the upper gate can
be opened andclosed with electric control.
The inboard gate, or cover, provides access to the
outlet side of the meter. This cover is removed to
clean meter and for calibration of seed rate. This
gate is equipped with the same type of latch as the
outboard gate.
13

Tank & Frame
Item Qty Part No. Description
1 1 879205 Tank
2 1 879023 Frame
3 16 331926 Bolt ½" x 2"
4 16 331363 Nylock ½"
5 4 01071000 Bolt 5/8" x 2"
6 4 01572700 Nylock 5/8"
14

Tank
15

Tank
#879205 Tank Assembly
Item Qty Part No. Description
1 1 975755 Tank
2 2 975821 Lid
3 20' 613000 Rubber Seal 3/4" x 3/4" xFt
4 2 156950 Lid Handle
5 1 975797 Stair Handrail Right
6 1 975789 Catwalk Handrail Left
7 .2' 434506 Chain 2/0 Passing
8 1 975771 Catwalk
9 1 975805 Stair Handrail Left
10 1 975813 Steps
11 1 313817 Stair Rod
12 2 338392 Klik Pin 1/4" -1 3/4" Ring
13 2 975094 Eductor Nozzle -6 Inlet
14 11' 710186 Hose 2½" Ureflex x Feet
15 36 606392 Clamp 2½" Worm Drive
16 1 879148 Feeder -6 Fluted Left
17 7' 708131 Hose 1½" ID x Feet
18 4 00242800 Clamp 1½" Worm Drive
19 2 613570 Feeder Seal
20 15' 04143400 Hose 8" Kanaflex
21 4 03461100 Clamp 8" Worm Drive
22 1 613232 Fan
23 1 613240 Fan Screen
24 4 153858 Spacer Bushing
25 8 01147800 Bolt ½" x 1½"
26 8 330159 Flat Washer ½"
27 8 331363 Nylock ½"
28 4 334243 Bolt 3/8" x 2"
29 61 330837 Nylock 3/8"
30 14 335703 Bolt 3/8" x 1½"
31 24 337857 Bolt 3/8" x 1 3/8"
32 7 330886 Bolt 3/8" x 3"
Item Qty Part No. Description
33 16 01252600 Carriage Bolt 5/16" x 1"
Stainless Steel
34 12 01377100 Carriage Bolt 5/16" x 1½"
Stainless Steel
35 28 03933900 Nylock 5/16" Stainless Steel
36 1 976654 Fan Mount
37 6 613588 Rubber Grip
38 1 882191 Lid Latch T-Handle Left
39 1 882209 Lid Latch T-Handle Right
40 4 339226 Chain Quick Link 3/16
41 4 275669 Screen
42 1 80457500 Ladder 4'
43 8 01011600 Bolt 5/16" x 1 1/4"
44 8 331611 Nylock 5/16"
45 1 313932 Hex Shaft 7/8" x 1"
46 1 879882 Feeder -6 Fluted Right
47 2 242743 Hose Rest
48 4 01071000 Bolt 5/8" x 2"
49 4 01572700 Nylock 5/8"
50 8 01029800 Bolt ½" x 1"
51 1 879197 Gate Control Enclosure
52 1 604512 Decal “Slow Moving Vehicle”
53 4 03573300 Decal Striping
54 2 02004000 Decal “CBI Logo”
55 2 611087 Decal Warning “Moving Parts”
56 1 606145 Decal “Pinch Points”
57 1 05328000 Decal “Danger Hopper”
58 1 607986 Decal “Suffocation”
59 1 608000 Decal “Electrocution”
60 1 00166900 Decal “Watch Your Step”
61 4.75' 615104 Rubber Trim
#879585 Lid Latch Handle Left
Item Qty Part No. Description
1 1 980433 Lid Latch T-Handle
2 2 975847 Lid Latch
3 2 03001500 Bearing 1" Flange Mount
4 2 334243 Bolt 3/8" x 2"
5 2 330837 Nylock 3/8"
#879593 Lid Latch Handle Right
Item Qty Part No. Description
1 1 980433 Lid Latch T-Handle
2 2 975847 Lid Latch
3 2 03001500 Bearing 1" Flange Mount
4 2 334243 Bolt 3/8" x 2"
5 2 330837 Nylock 3/8"
#977645 Latch Adjustment
16

Tank with Auger
17

Tank with Auger
#881615 Tank Assembly w/Auger
Item Qty Part No. Description
1 1 975755 Tank
2 2 975821 Lid
3 20' 613000 Rubber Seal 3/4" x 3/4" xFt
4 2 156950 Lid Handle
5 1 881607 Ladder
6 1 979260 Ladder Mount
7 1 979195 Handrail Rear Left
8 1 979211 Handrail Front
9 1 979203 Handrail - Side
10 1 979187 Handrail - Rear Right
11 16 339598 Pin 3/8" x 2½" Square
12 1 979229 Walkway -Front
13 2 975094 Eductor Nozzle -6 Inlet
14 11' 710186 Hose 2½" Ureflex x Feet
15 36 606392 Clamp 2½" Worm Drive
16 1 879148 Feeder -6 Fluted Left
17 7' 708131 Hose 1½" ID x Feet
18 4 00242800 Clamp 1½" Worm Drive
19 2 613570 Feeder Seal
20 15' 04143400 Hose 8" Kanaflex
21 4 03461100 Clamp 8" Worm Drive
22 1 613232 Fan
23 1 613240 Fan Screen
24 4 314690 Spacer Bushing
25 8 01147800 Bolt ½" x 1½"
26 40 330159 Flat Washer ½"
27 64 331363 Nylock ½"
28 4 334243 Bolt 3/8" x 2"
29 30 330837 Nylock 3/8"
30 14 335703 Bolt 3/8" x 1½"
31 12 337857 Bolt 3/8" x 1 3/8"
32 8 01017300 Bolt 3/8" x 1"
33 16 01252600 Carriage Bolt 5/16" x 1"
Stainless Steel
Item Qty Part No. Description
34 12 01377100 Carriage Bolt 5/16" x 1½"
Stainless Steel
35 28 03933900 Nylock 5/16" Stainless Steel
36 1 976654 Fan Mount
37 4 613588 Rubber Grip
38 1 879585 Lid Latch Handle Left
39 1 879593 Lid Latch Handle Right
40 8 980011 Riser
41 4 275669 Screen
42 1 80457500 Ladder 4'
43 8 01011600 Bolt 5/16" x 1 1/4"
44 8 331611 Nylock 5/16"
45 1 313932 Hex Shaft 7/8" x 1"
46 1 879882 Feeder -6 Fluted Right
47 2 242743 Hose Rest
48 4 01071000 Bolt 5/8" x 2"
49 4 01572700 Nylock 5/8"
50 40 01029800 Bolt ½" x 1"
51 1 879197 Gate Control Enclosure
52 1 604512 Decal “Slow Moving Vehicle”
53 4 03573300 Decal Striping
54 2 02004000 Decal “CBI Logo”
55 2 611087 Decal Warning “Moving Parts”
56 1 606145 Decal “Pinch Points”
57 1 05328000 Decal “Danger Hopper”
58 1 607986 Decal “Suffocation”
59 1 608000 Decal “Electrocution”
60 1 00166900 Decal “Watch Your Step”
61 4.75' 615104 Rubber Trim
62 16 334300 HHCS ½" x 3½"
63 1 979179 Walkway -Rear Right
64 1 979161 Walkway -Rear Left
#879585 Lid Latch Handle Left
Item Qty Part No. Description
1 1 975839 Lid Latch Handle Left
2 2 975847 Lid Latch
3 2 03001500 Bearing 1" Flange Mount
4 2 334243 Bolt 3/8" x 2"
5 2 330837 Nylock 3/8"
#879593 Lid Latch Handle Right
Item Qty Part No. Description
1 1 980425 Lid Latch Handle Right
2 2 975847 Lid Latch
3 2 03001500 Bearing 1" Flange Mount
4 2 334243 Bolt 3/8" x 2"
5 2 330837 Nylock 3/8"
18
