Crux SWRFD-60E User manual

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.041819
SWRFD-60E
Radio Replacement with Steering Wheel Control Retention
for Select Ford Vehicles with 4” Screen
1 of 5
RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
- Retains factory features in select Ford vehicles with 4” screen.
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains factory 4” screen.
- Works on vehicles with or without Sync.
- Retains factory Aux-Input on vehicles without Sync.
- Retains voice command features on vehicles with Sync.
- Phone pick up and hang up functions using the steering wheel control buttons.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
CAN Module SWC Module SWRFD-60E Harness SWC Cable SWC 3.5MM PLUG ADAPTER
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
12V Ground Black
Illumination Orange
Reverse Gear Purple/White
Power Antenna Blue/White
Vehicle Speed Sense Pink
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
Factory Aux Input*
24-Pin
Plug
TO FACTORY
RADIO
HARNESS
12-Pin
Connector
SWC
MODULE
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
AFTERMARKET
RADIO SELECTOR
(See Chart)
FORD
SWC SETTING
(OFF OFF OFF OFF)
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
Cap or insulate if
not being used
Kenwood/JVC (BLUE /YELLOW)
Insulate with tape
if not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
LIN BUS (Green)
12-Pin
Connector
TO FACTORY
SCREEN
TO FACTORY
SCREEN
HARNESS
SWC 1
with Sync
(Orange wire) SWC 2
without Sync
(Blue wire)
* Retention of factory AUX Input is available ONLY on vehicles WITHOUT Sync.
CAN
MODULE

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.041819
2 of 5
RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
SWRFD-60E
Radio Replacement with Steering Wheel Control Retention
for Select Ford Vehicles with 4” Screen

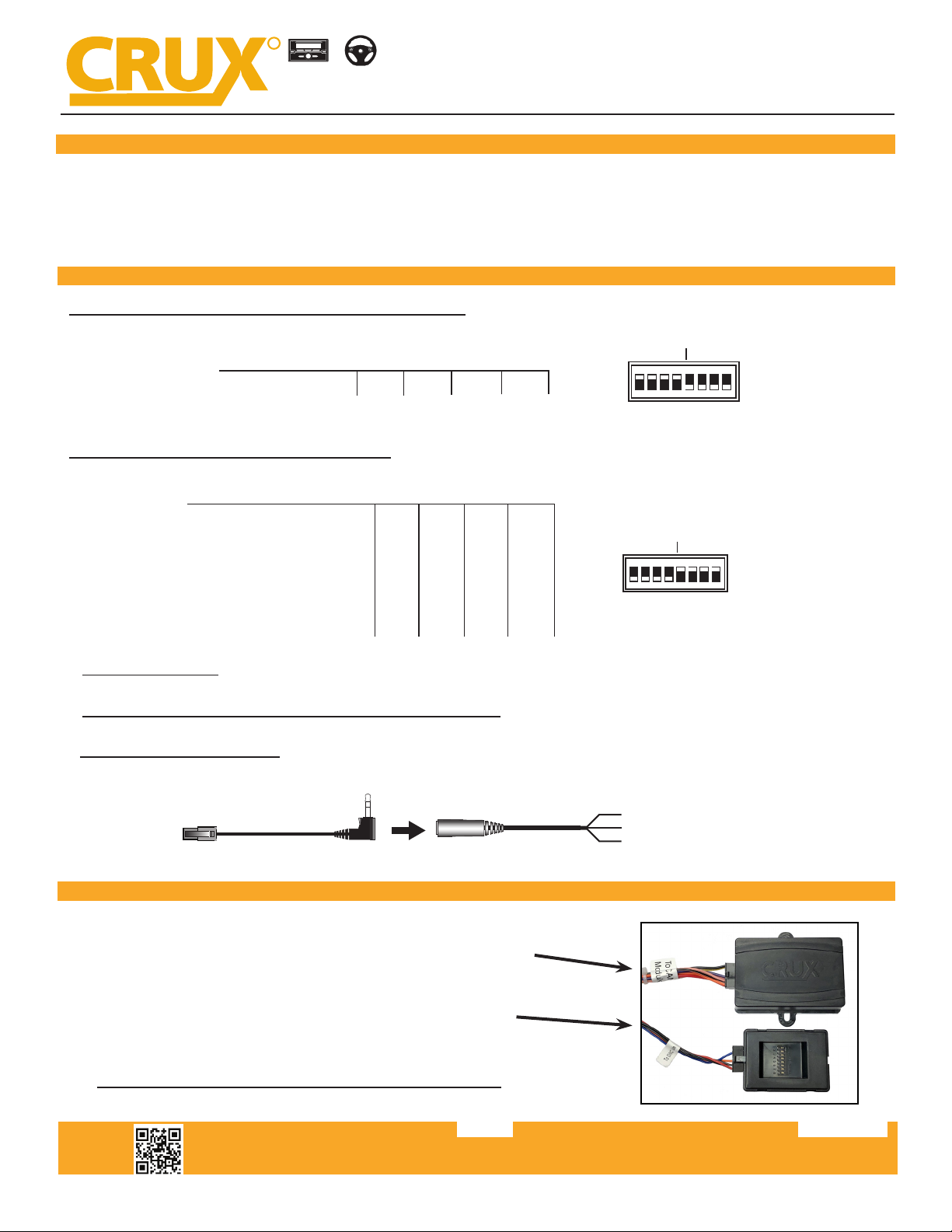

DIP SWITCH SETTINGS:
FORD STEERING WHEEL CONTROL DIP SWITCH SETTING:
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
(included in kit)
AFTERMARKET RADIO DIP SWITCH SETTINGS:
SWC 3.5MM PLUG ADAPTER:
Use the supplied 3.5MM SWC Plug adapter for aermarket radios that do not have a 3.5mm SWC jack.
RADIO BRAND: DIP: 1 2 3 4
Dual, Fahrenheit, Jensen, Pioneer
Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF OFF ON ON
OFF OFF ON ON
OFF OFF OFF OFF
OFF ON ON OFF
OFF ON ON ON
OFF ON OFF ON
OFF ON OFF OFF
OFF OFF ON OFF
SWC MODULE
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
DIP: 5 6 7 8
Ford OFF OFF OFF OFF
SWC MODULE
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
1. The factory AUX Input is retained ONLY on vehicles without Sync system.
2. The Date and Time display MUST BE adjusted prior to removal of the factory radio. You cannot make adjustments once the
radio has been removed.
3. The SWRFD-60E does not retain Sync features.
NOTE: Insulate the Blue/Yellow and Green wires if not being used.
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
NOTES:
IMPORTANT INSTALLATION NOTES:
Plug the 12-pin Molex connector labeled “To CAN Module”
to the CAN module
Plug the 12-pin Molex connector labeled “To SWC Module”
to the smaller SWC Module
Failure to do so will damage the modules!

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.041819
3 of 5
RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
SWRFD-60E
Radio Replacement with Steering Wheel Control Retention
for Select Ford Vehicles with 4”Screen
IMPORTANT:
Set me and date before removing the factory
radio. Go to Menu > Clock Sengs > Set Time /
Set Date.
1. Carefully remove the top cover of the
screen.
2. Remove the rubber mat on top of
the dashboard.
3. Remove the 2 screws under the
rubber mat.
4. Pop up the top poron of the
dashboard.
5. Remove the 2 screws holding the
radio faceplate.
6. Remove the radio faceplate and
unplug the connector.
INSTALLATION INSTRUCTIONS:
Connect the SWRFD-60E T-harness to the aermarket radio harness. Refer to the diagram on page 1 for wire color
codes.

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.041819
4 of 5
RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
SWRFD-60E
Radio Replacement with Steering Wheel Control Retention
for Select Ford Vehicles with 4”Screen
OPERATION:
Bluetooth handsfree steering wheel controls:
7. Remove the 2 screws holding the
headunit.
8. Unplug the headunit connectors. 9. Mate the headunit connectors to the
SWRFD-60E T-harness connectors.
The 4” screen needs to be removed to plug in the SWRFD-60E factory screen retenon harness. Unplug the
factory 12 pin connector from behind the screen and plug it into the 12 pin male connector of the SWRFD-60E
harness. Plug the 12 pin male connector of the SWRFD-60E harness to the screen.
For vehicles with Sync, long press of
factory pick up and hang up buons
on SWC is retained.
For vehicles without Sync, long press
of = pick up, long press of =
hang up.
For vehicles with Sync, short press
of CMD = Voice Command Acvate
/ Deacvate

VEHICLE APPLICATIONS:
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: [phone] • fax: [phone] • www.cruxinterfacing.com
rev.041819
5 of 5
RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
SWRFD-60E
Radio Replacement with Steering Wheel Control Retention
for Select Ford Vehicles with 4”Screen
FORD
2011 - 2014
2013 - Up
2011 - 2015
2013 - 2014
2014 - Up
2012 - 2014
2015 - Up
2014 - 2018
Edge
Escape
Explorer
F-150
Fiesta
Focus
Transit
Transit Connect
2013 Escape 2015 Transit Connect
2014 F-150 2014 Focus
SYSTEM COMPATIBILITY:
4” screen with or without MyFord Touch (Sync)
