CruzPro CC-10 User manual

Solar Charge
Regulator
Introduction
The CC-10 Pulse Width Modulated (PWM) charge
controller senses battery voltage and regulates your
charging source (solar panels or dumb charger).
The CC-10 enables you to leave your charging
source connected permanently without fear of
damaging overcharges or excess electrolyte loss.
You are assured you have a fully charged battery
whenever you need it.
Specifications
Input Voltage: 21VDC(or 42 VDC) Max.(unloaded
solar panel)
Output Voltage: 13.6 VDC (or 27.2VDC) float
voltage
Maximum Current: 6 Amps continuous
CruzPro
CC-10
1999 BV Engineering CC10MAN-B
http://www.cruzpro.com Made in New Zealand
Installation
The CC10 is not water-proof and must be located in
an area that will not get wet. Using the case back
as a drill guide, drill two 2mm (3/32 inch) holes
where indicated.
Mount the case back
using the two stain-
less countersunk
screws provided.

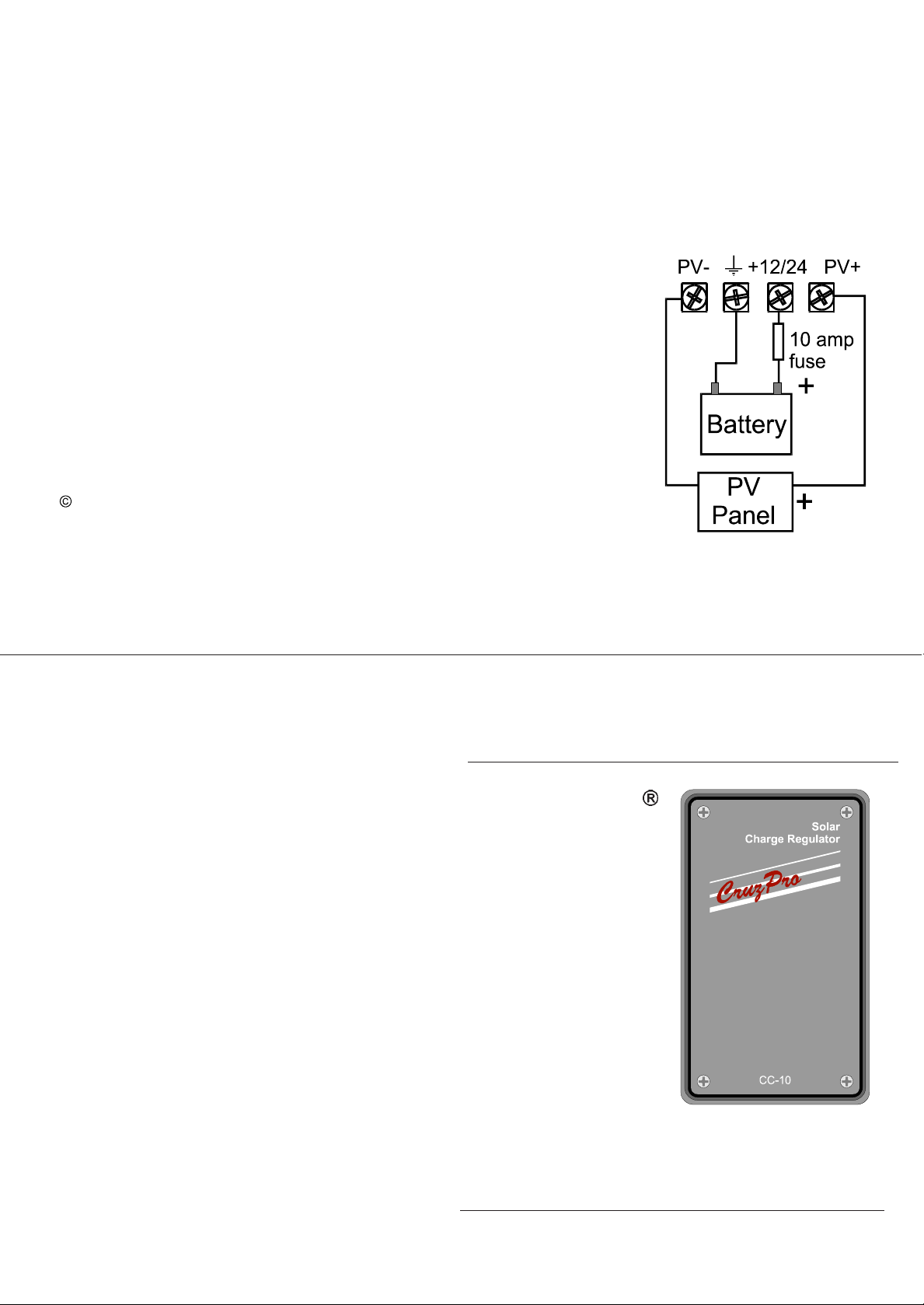

Connect the screw
terminals as shown,
connecting the "12V
or 24V Battery (+)"
wire last. Use a 10
amp fuse as shown
for safety.
Other CruzPro Products
lDepthsounder, Fishfinder, Active Transducers
lSpeed/Log/w Water Temperature Display
lDC Volts/Amps/Amp-Hour Monitors
lAC Volts/Amps/Frequency/kW Monitor
lLPG/Petrol Gas Detectors/Alarms
lBilge Water Detector/Alarms & Pump Controllers
lWindlass Controller/Chain Counter
lDigital Fuel Gauge/Consumption Calculator
lSmart and Manual Alternator Regulators
lMarine Security System
lRPM/Engine Hours/Elapsed Time Gauge
lDigital Oil Pressure Gauge/Alarm
lDigital Water Temperature Gauge/Alarm
lDigital Amps Gauge
l3 Bank Digital Volts Gauge/Alarm
lDigital Clock/Watch/Race Timers/Alarms
l8 and 16 Amp Light Dimmers
lBattery Voltage Monitors/Alarms
lSolar Panel Charge Controllers
l4 & 8 Channel NMEA Combiners/RS-232 Convertors
lEngine/Exhaust Temperature Monitor/Alarm
Full details at http://www.cruzpro.com
Email to: [email protected]

Introduction
The CC-10 Pulse Width Modulated (PWM) charge
controller senses battery voltage and regulates your
charging source (solar panels or dumb charger).
The CC-10 enables you to leave your charging
source connected permanently without fear of
damaging overcharges or excess electrolyte loss.
You are assured you have a fully charged battery
whenever you need it.
Specifications
Input Voltage: 21VDC(or 42 VDC) Max.(unloaded
solar panel)
Output Voltage: 13.6 VDC (or 27.2VDC) float
voltage
Maximum Current: 6 Amps continuous
1999 BV Engineering CC10MAN-B
http://www.cruzpro.com Made in New Zealand
Installation
The CC10 is not water-proof and must be located in
an area that will not get wet. Using the case back
as a drill guide, drill two 2mm (3/32 inch) holes
where indicated. Mount the case back using the two
stainless countersunk
screws provided.
Connect the screw
terminals as shown,
connecting the "12V
or 24V Battery (+)"
wire last. Use a 10
amp fuse as shown
for safety.
Solar Charge
Regulator
CruzPro
CC-10
Other CruzPro Products
lDepthsounder, Fishfinder, Active Transducers
lSpeed/Log/w Water Temperature Display
lDC Volts/Amps/Amp-Hour Monitors
lAC Volts/Amps/Frequency/kW Monitor
lLPG/Petrol Gas Detectors/Alarms
lBilge Water Detector/Alarms & Pump Controllers
lWindlass Controller/Chain Counter
lDigital Fuel Gauge/Consumption Calculator
lSmart and Manual Alternator Regulators
lMarine Security System
lRPM/Engine Hours/Elapsed Time Gauge
lDigital Oil Pressure Gauge/Alarm
lDigital Water Temperature Gauge/Alarm
lDigital Amps Gauge
l3 Bank Digital Volts Gauge/Alarm
lDigital Clock/Watch/Race Timers/Alarms
l8 and 16 Amp Light Dimmers
lBattery Voltage Monitors/Alarms
lSolar Panel Charge Controllers
l4 & 8 Channel NMEA Combiners/RS-232 Convertors
lEngine/Exhaust Temperature Monitor/Alarm
Full details at http://www.cruzpro.com
Email to: [email protected]
