Alpha 6000S series User manual

Preface
1
Preface
Thank you for using ALPHA6000S, ALPHA6000V, ALPHA6700S series inverters.
This series of inverters adopt the most advanced inverter current vector control technology,
low-speed rated torque output, ultra-quiet and stable operation and built-in or external PG
functions, can easily achieve closed-loop control. They are characterized by diverse control
modes, up to 36 perfect protection and alarm functions, on-line monitoring and on-line
adjustment of a variety of parameters, built-in RS-485 communication interface, flexible
operation, and can satisfy various needs of users. Available extension card can meet the users'
needs of system extension.
This series of inverters apply to most motor drive applications, including paper making, spinning
and weaving, food, cement, printing and dyeing, plastic machinery, metallurgy, steel and other
industries. As speed controllers, this series of inverters possesses good adaptability of load,
running stability, high precision and good reliability. They can improve the power factor and
efficiency, and be used as a power-efficient application.
If you have some problems that can’t be solved in operation, please contact the nearest local
agents, or contact our company directly.
To ensure the perfect use of this product and the safety of users, please read the user manual
carefully before the operation of inverter and keep the manual in proper place for future
reference
The information contained in this manual is subject to change without notice.
Before mounting, commissioning and using the inverter, it strongly suggested that you must read
the safety rules warnings listed in this book and cautions marked on the inverter to ensure your
safety and extending the life of this equipment,. When in operation, we must pay attention to the
situation of load and all notes that related on safety

Foreword
2
Danger!
This equipment contains dangerous voltage ,Not accord with the
warning or breach this manual operation. Electric shock can cause
serious or fatal injury. Only qualified personnel shall wire the drive.
Please cut off the power before wiring and inspecting. It is not
permissible to touch PCB or interior components before battery control
lamp goes off or until 5 minutes after the power has been removed. It is
necessary to use meters to confirm the charging capacitor has discharged
off. Otherwise, a risk of electric shock may happen.
Don't contact AC power source to the output terminals U, V, W of the
inverter. When using the inverter, the earthing terminal of the inverter
must be grounded correctly and reliably according to IEC electrical
safety regulation.
Warning!
Unauthorized change of inboard wiring and using accessories, which
sold or recommended by blame manufacturer may cause fire, electric
shock and injury.
Since body static electricity may cause serious damage to MOS
field-effect transistor and other sensitive elements please don’t touch the
interior devices, such as PCB, IGBT module etc. before any measure is
took to prevent static electricity.
Caution!
Keep all marks and labels are clear to read. Replace the lost or worn
mark at any moment.
Please keep the user manual near the inverter that can be reached easily
and give this manual to the users who use the product.
All rights reserved. The contents in this document are subject to change without notice. If
you have any questions and problems about the use of our products, please contact our
agents or us. Any improved suggestions are welcome.

Table of Contents
3
Contents
Preface..............................................................................................................................................1
Chapter 1 Purchase Inspection.........................................................................................................6
1.1 Unpacking Inspection..................................................................................................... 6
1.2 Naming Rule................................................................................................................... 6
1.3 Nameplate of Inverter..................................................................................................... 7
Chapter 2 Installation and Wiring....................................................................................................8
2.1 External Dimension and Installation Dimension (See Appendix 1)............................8
2.2 Mounting Place Requirements and Management........................................................... 8
2.2.1 Installation Location................................................................................................ 8
2.2.2 Ambient Temperature.............................................................................................. 9
2.2.3 Preventive Measures................................................................................................ 9
2.3 Installation Direction and Space..................................................................................... 9
2.4 Main Circuit Wiring......................................................................................................10
2.4.1 The Main Circuit Terminals Arrangement and wiring.......................................... 10
2.4.2 Main Circuit Wiring operation...............................................................................14
2.5 Control Circuit Connection...........................................................................................15
2.5.1 Function of Control Circuit Terminals.................................................................. 15
2.5.2 Wiring of control circuit terminals........................................................................ 19
2.6 Wiring of Inverter for Basic Operation.........................................................................28
2.7 Matters Needing Attentionon Wiring.......................................................................... 32
Chapter 3 Operation.......................................................................................................................33
3.1 Function and operation of keypad.................................................................................33
3.1.1 Keypad layout........................................................................................................ 33
3.1.2 Description of button function............................................................................... 34
3.1.3 Description of LED digitals and indicators........................................................... 35
3.1.4 Display state of keypad..........................................................................................36
3.1.5 Operation method of keypad..................................................................................38
3.2 Run command mode select........................................................................................... 40
3.3 Trial Operation..............................................................................................................40
3.3.1 Operation mode of inverter....................................................................................40
3.3.2 Check points before running..................................................................................41
3.3.3 Check points time during running..........................................................................41
3.3.4 Operation of initial power on.................................................................................43
3.3.5 First test run operation........................................................................................... 44
3.4 Commissioning of keypad............................................................................................ 46
3.5 Operation of Control Circuit Terminal......................................................................... 46

Table of Contents
4
Chapter 4 Parameter Index.............................................................................................................48
Chapter 5 Detailed Function Introductions....................................................................................90
5.1 Basic Function (Group P0)........................................................................................... 90
5.2 Start/Stop Control (Group P1)...................................................................................... 94
5.3 Auxiliary Operation (Group P2)................................................................................. 103
5.4 I/O Terminal Ctrl (Group P3)..................................................................................... 108
5.5 Analog and pulse function (Group P4)....................................................................... 125
5.6 PLC Operating (Group P5)......................................................................................... 129
5.7 Cut-to-length Function and Wobble Frequency Operating (Group P6)..................... 134
5.8 PID Control (Group P7)..............................................................................................139
5.9 Vector control mode(Group P8)................................................................................. 142
5.10 V/F Control (Group P9)............................................................................................ 146
5.11 Motor Parameters (Group PA)..................................................................................150
5.12 MODBUS Communication (Group Pb)....................................................................153
5.13 Display Control (Group PC)..................................................................................... 154
5.14 Protection and Fault Parameters (Group Pd)............................................................ 158
5.15 Running History Record (Group PE)........................................................................164
5.16 Protection of parameters (Group PF)........................................................................165
Chapter 6 Troubleshooting.......................................................................................................... 168
6.1 Troubleshooting.......................................................................................................... 168
6.2 Warning display and explanation................................................................................172
6.3 Motor’s faults and corrective measure........................................................................172
Chapter 7 Peripheral Equipment..................................................................................................175
7.1 Peripheral Equipment Connection Diagrams..............................................................175
7.2 Function of Peripheral Equipment.............................................................................. 177
7.2.1 AC Input Reactor................................................................................................. 177
7.2.2 EMI Filter.............................................................................................................178
7.2.3 Braking Unit and Braking resistor....................................................................... 178
7.2.4 Leakage Protector................................................................................................ 179
7.2.5 Capacitor Box...................................................................................................... 180
Chapter VIII Maintenance........................................................................................................... 181
8.1 Inspection and Maintenance....................................................................................... 181
8.1.1 Daily Inspection................................................................................................... 181
8.1.2 Regular Maintenance........................................................................................... 182
8.1.3 Regularly-replaced Elements............................................................................... 184
8.2 Storage and Protection................................................................................................... 185
Chapter IX Quality guarantees.....................................................................................................186

Table of Contents
5
Appendix 1 External Dimension and Installation Dimension(Unit: mm)................................ 187
Appendix 2 Technical Specifications....................................................................................... 195
Appendix 3 Recommendation for Selection of the Main Circuit Output Cable.......................197
Appendix 4 Use of MODBUS Communication....................................................................... 198
Appendix 5 Keypad Installation Dimension (Unit: mm)..........................................................212
Appendix 6 LCD Keypad Use Instruction................................................................................214
A6.1 LCD Keypad Instruction..........................................................................................214
A6.2 LCD Use Instruction................................................................................................ 214
A6.3 LCD Contrast Adjustment....................................................................................... 218
Appendix 7 Frequency Inverter Warranty Card....................................................................... 219

Chapter 1 Purchase Inspection
6
Chapter 1 Purchase Inspection
1.1 Unpacking Inspection
All inverters have passed the strict tests before delivery. After unpacking, please check if the product was damaged
by careless transport, the product specification, and model is complied with the order, and if it has a quality check
passed mark. If there is any problem, please contact the supplier.
1.2 Naming Rule
The naming rule of the product is as following
ALPHA6000S - 3 7R5 G B - X
附加说明
X：标准机型带底座
V：标准机型壁挂式
空：窄体机型
附加说明
B：带制动单元
空：无制动单元
适用负载
G：泛用型
适配电机功率
R75：0.75KW
7R5： 7.5KW
075： 75KW
额定电压
2：3相220V
3：3相380V
系列代号
ALPHA6000S
ALPHA6700S
ALPHA6000V
Bottom-level modules of ALPHA6000S and ALPHA6700S series inverters are high performance motor
control modules, which contain three control modes, i.e. V/F, sensorless vector control (SVC), V/F
separation.
Bottom-level modules of ALPHA6000V series inverters are high performance motor control modules, which
contain four control modes, i.e. V/F, sensorless open-loop vector control (SVC), speed sensor closed-loop
vector control (VC) and V/F separation.
Notes: 1. If the user has special needs, please specify the technology requirement in the order.
2. -X rule applies to 160KW-500KW models.
Series code
Rated voltage
Power of motor
Suitable load
Additional information
Additional information
2:3-phase 220V
3:3-phase 380V
G: General
purpose
B: With brake unit
Blank: No brake unit
X: Standard model with base
V: Wall type standard model
Blank: narrow-body model

Chapter 1 Purchase Inspection
7
1.3 Nameplate of Inverter
On the right side of the bottom plate of inverter, there is a nameplate, which marks the model and rated value of
inverter. See the following Figure:
Inverter model
Adaptive motor model
Rated input voltage, current,
frequency
Rated output voltage, current,
frequency
Barcode information
Production date
ALPHA6000S Series Nameplate of Inverter
Notes: Nameplates of ALPHA6000S series inverters are similar with those of ALPHA6000V series inverters.
After unpacking, check whether the nameplate of the drive is consistent with the demand, if it is inconsistent,
contact the dealer or the supplier.

Chapter 2 Installation and Wiring
8
Chapter 2 Installation and Wiring
2.1 External Dimension and Installation Dimension (See Appendix
1)
2.2 Mounting Place Requirements and Management
·Don’t carry the inverter by its cover. The cover cannot support the weight of the inverter and may drop.
·Please install the inverter on a strong support, failing which the inverter may fall off.
·Don’t install the inverter in places where water pipes may leak onto it.
·Don’t allow screws, washers and other metal foreign matters to fall inside the inverter, otherwise there is a
danger of fire or damage.
·Don’t operate the inverter if parts are not complete, otherwise there is a danger of fire or human injury.
·Don’t install the inverter under direct sunshine; otherwise, it may be damaged.
·Don’t short circuit PB, + and -, otherwise there is a danger of fire or the inverter may be damaged.
·Cable lugs must be connected to main terminals firmly.
·Don’t apply supply voltage (AC 220V) to control terminals except terminals TA, TB, TC.
Please mount the inverter as following application occasions and maintain appropriate condition
2.2.1 Installation Location
The installation location should meet the following conditions:
Good indoor ventilation
Ambient temperature: -10 °C ~ 40 °C. If the temperature is higher than 40 °C, the inverter should be forced
ventilation is required and derating used.
Humidity should be lower than 95%, no condensing and rain water drops.
Do not mount the inverter on the timber or other combustible matters.
Avoid direct sunlight.
It is strictly prohibited to install the inverters in places where have flammable, explosive, corrosive gases or
liquids;
Mount in the location free of dust, metal powder, corrosive gas or combustible gas.
The installation foundation should be solid and free of vibration.
No electromagnetic interference, away from source of interference.
Attention

Chapter 2 Installation and Wiring
9
Derating use must be considered when the inverter is installed at high altitude, greater than 1000 m. This is
because the cooling effect of inverter is deteriorated because of the thin air. Derating 6% per 1000 m higher of
the altitude.
2.2.2 Ambient Temperature
In order to enhance operating reliability of the inverter, be sure where the inverter mounted has a good ventilation;
when the inverter is used in a closed case, cooling fans or an air-conditioning must be installed to keep the ambient
temperature below 40℃
2.2.3 Preventive Measures
Installing the inverter, please set a shield to prevent metal debris falling into it, and remove the shield after installing.
Please remove the protection membrane when the ambient temperature is over 40° C or the internal temperature is
too high due to other reasons. Please pay attention to avoid small parts falling into the inverter.
2.3 Installation Direction and Space
Inverters of this series are all equipped fans for forced cooling. In order to be an effective cooling cycle, the inverter
must be mounted in the vertical direction, up, down, left and right away from adjacent articles or baffle (wall)
maintain adequate space, as Figure 2-1

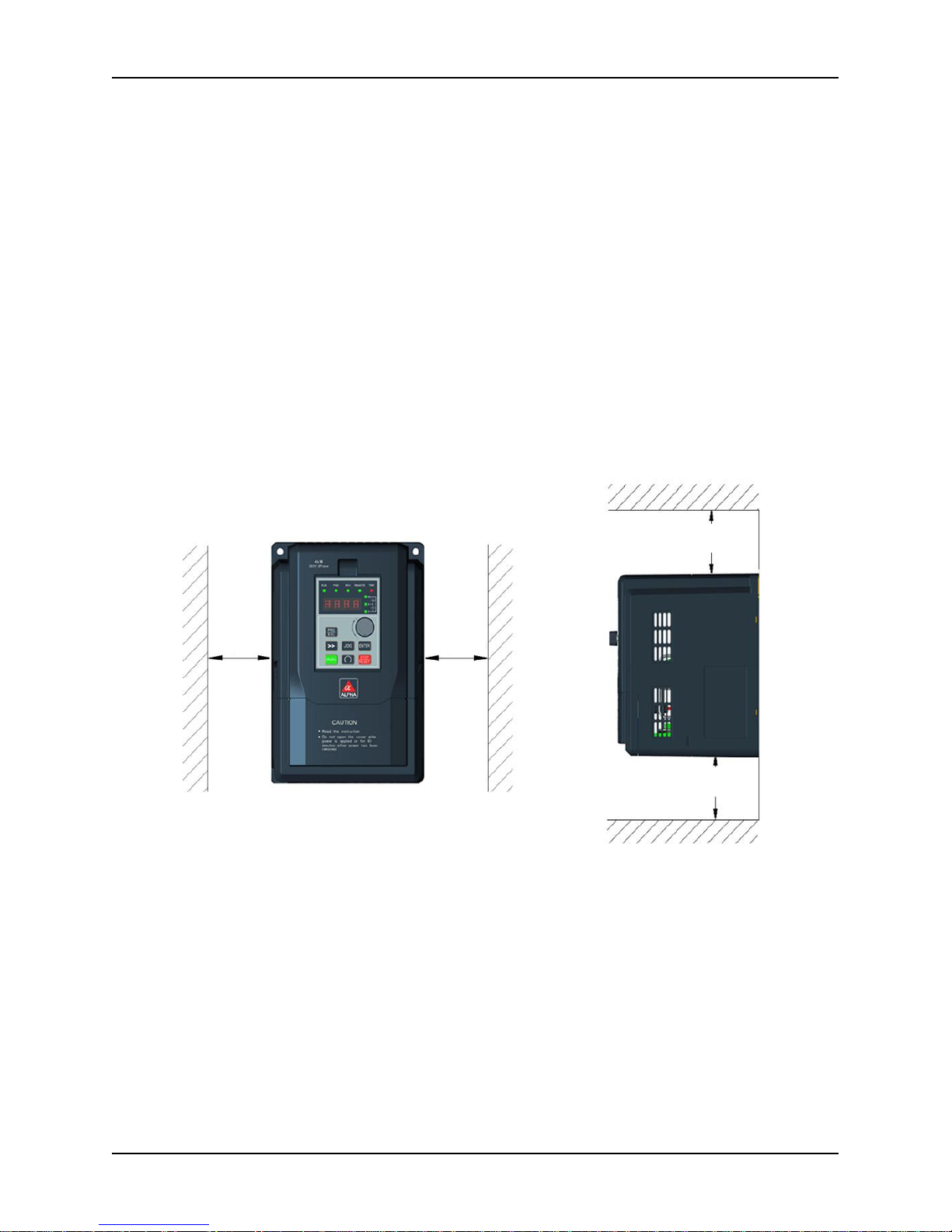

Figure 2-1 Installation Direction and Space
Greater
than 50mm
Greater
than 50mm
Greater than
120mm
Greater than
120mm

Chapter 2 Installation and Wiring
10
2.4 Main Circuit Wiring
2.4.1 The Main Circuit Terminals Arrangement and wiring

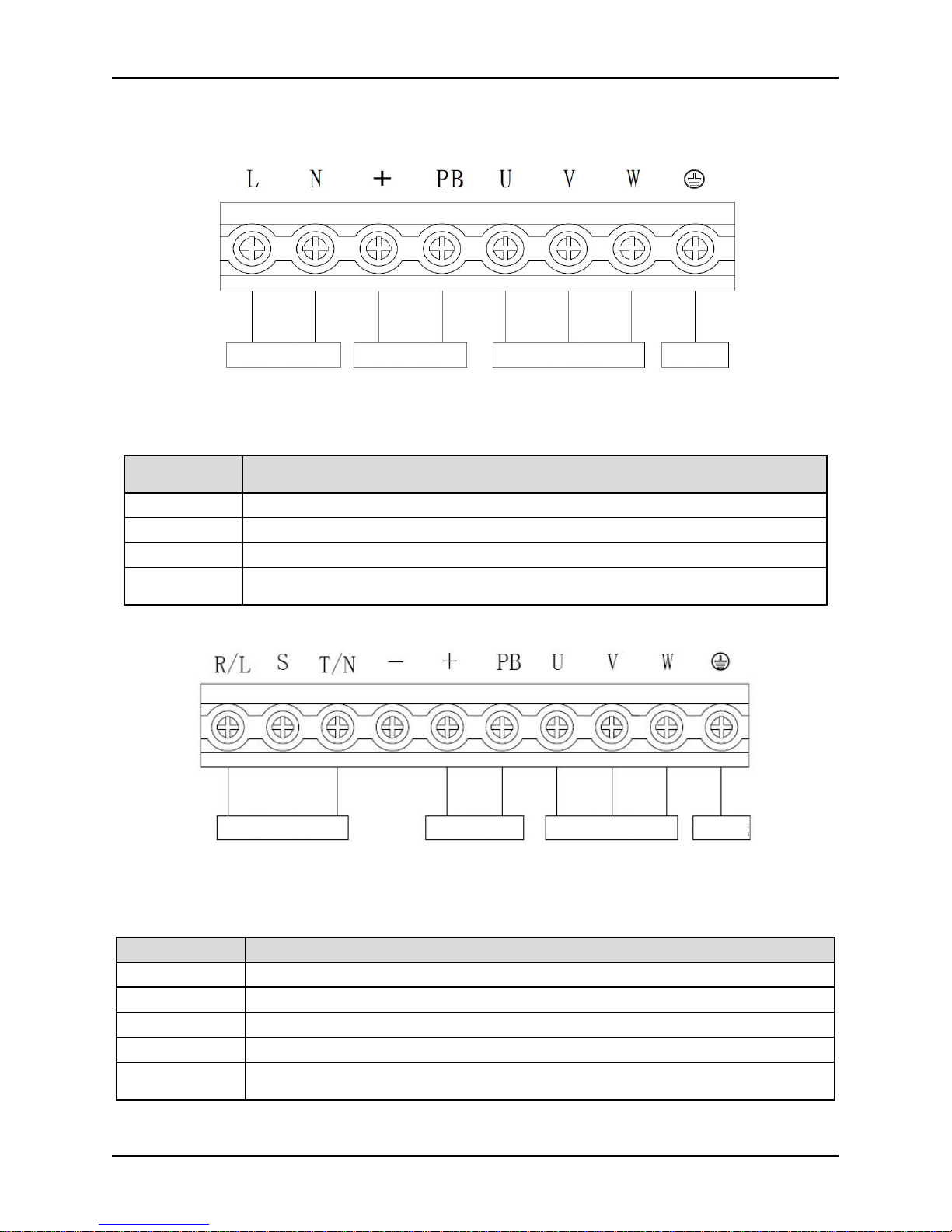

Fig. 2-2 Wiring of terminals of major loops of S2R4GB ~ S2R75GB models
Table 2-1 Function and description of terminals of major loops of S2R4GB~S2R75GB
Terminal
symbol Terminal name and function
L.N Single-phase AC 220V input terminal
+.PB Reserved terminals for an external braking resistor
U.V.W Three-phase AC output terminals
PE Protective earth terminals for input power or shield earth terminals for motor cable and
braking resistor cables

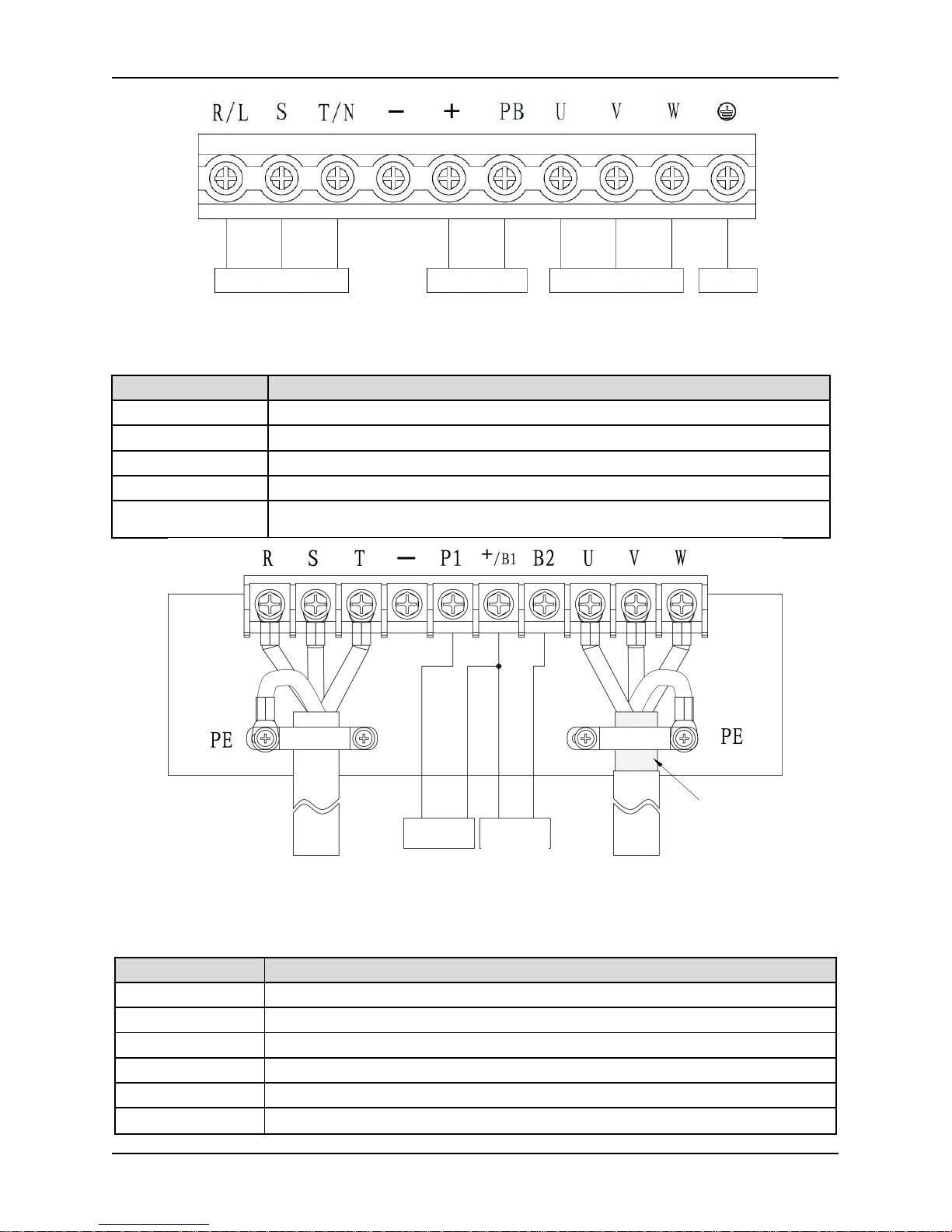

Fig. 2-3 Wiring of terminals of major loops of S21R5GB ~ S22R2GB models
Table 2-2 Function and description of terminals of major loops of S21R5GB ~ S22R2GB models
Terminal symbol Terminal name and function
L.N Single-phase AC 220V input terminal
+.PB Reserved terminals for an external braking resistor
- DC negative bus output terminals
U.V.W Three-phase AC output terminals
PE Protective earth terminals for input power or shield earth terminals for motor cable and
braking resistor cables
Input power
Braking resistor
Electric motor
Ground wire
Input power
Braking resistor
Electric motor
Ground wire

Chapter 2 Installation and Wiring
11
Fig. 2-4 Wiring of terminals of major loops of 3R75GB ~ 3004GB models
Table 2-3 Function and description of terminals of major loops of 3R75GB~3004GB
Terminal symbol Terminal name and function
R.S.T Three-phase AC 380V input terminal
+.PB Reserved terminals for an external braking resistor
- DC negative bus output terminals
U.V.W Three-phase AC output terminals
PE Protective earth terminals for input power or shield earth terminals for motor cable and
braking resistor cables
Fig. 2-5 Wiring of terminals of major loops of 35R5GB ~ 3015GB models
Table 2-4 Function and description of terminals of major loops of 35R5GB~3015GB
Terminal symbol Terminal name and function
R.S.T Three-phase AC 380V input terminal
P1.+/B1 Reserved terminals for an external DC reactor
+/B1.B2 Reserved terminals for an external braking resistor
- DC negative bus output terminals
U.V.W Three-phase AC output terminals
PE Protective earth terminals for input power or shield earth terminals for motor cable and
Input power
Braking resistor
Electric motor
Ground wire
Reactor
Braking
resistor
Electric motor
PE conductor
core and shield
layer
Input power

Chapter 2 Installation and Wiring
12
braking resistor cables
Notes: When a DC reactor is not connected, the supplied short circuit sheet should be short-circuited with "P1" and
"+ / B1"
Fig. 2-6 Wiring of terminals of major loops of 3018G ~ 3132G models
Table 2-5 Function and description of terminals of major loops of 3018G~3132G
Terminal symbol Terminal name and function
R.S.T Three-phase AC 380V input terminal
P1.+ Reserved terminals for an external DC reactor
- DC negative bus output terminals
U.V.W Three-phase AC output terminals
PE Protective earth terminals for input power or shield earth terminals for motor cable and
braking resistor cables
Notes: When DC reactor is not connected, please short “P1” and “+/B1” with supplied copper bar.
Input power
Braking unit
Braking
resistor
Reactor
Motor
PE conductor
core and shield
layer

Chapter 2 Installation and Wiring
13
Fig. 2-7 Terminals of major loops of 3160G ~ 3355G models
Fig. 2-8 Terminals of major loops of 3400G ~ 3500G models
Table 2-6 Function and description of terminals of major loops of 3160G~3500G
Terminal symbol Terminal name and function
R、S、T Three-phase AC 380V input terminal
P1、+Reserved terminals for an external DC reactor
- DC negative bus output terminals
U、V、W Three-phase AC output terminals
PE Protective earth terminals for input power or shield earth terminals for motor cable and
braking resistor cables
Upper wiring board
Lower wiring board
Input power
Braking unit
(external, optional)
Braking unit
(external, optional)
Reactor (built-in,
standard)
Electric motor
Upper wiring board
Lower wiring board
Input power
Braking unit
(external, optional)
Braking unit
(external, optional)
Reactor (built-in,
standard)
Electric
motor

Chapter 2 Installation and Wiring
14
Notes: When a DC reactor is not connected, the supplied short circuit sheet should be short-circuited with "P1" and
"+"
2.4.2 Main Circuit Wiring operation
When the motor is running, please make sure if it is in positive rotation while the motor receives positive rotation
command. If the motor is in reverse rotation, the rotation direction of the motor can be changed by exchanging any
two wires of output terminals (U, V, and W) of the inverter. The rotation direction can also be changed by modifying
the function code P2.37 to change the phase sequence of the motor.
Do not mistakenly connect the input power cable to the output terminal; otherwise the components in the inverter
will be damaged. Output terminals are prohibited to be grounded. The lines should not be collided with the
enclosure, or short connected; otherwise the inverter will be damaged.
Earth terminal PE must be grounded. 380V class grounding resistance should be 10Ω or less. The earth wire should
never share with electric welder or power equipment. The earth wire should be of conductor diameter specified in the
technical standard for electrical equipment, and should be as close to the ground point as possible. On occasions
using more than two inverters at the same time, please do not form the earth wire into ring circuit. Proper grounding
method and incorrect grounding method are shown in Fig. 2-9.
Inverte r I n v e r t e rRight
Inverte r I n v e r t e rInverte r
Wrong
Inverte r
Figure 2-9 Earthing Connection Method
Notes: The neutral point of motor using Y connection can’t be connected to earth.
Since the inverter output PWM wave, if a capacitor for improving power factor or a lightning varistor is installed on
the output side, which would case tripping or damage to parts, be sure to remove it.
If a contactor or other on-off part is needed to be installed between the output and the motor, be sure the on-off
operation is done when the inverter has no output, otherwise the inverter would be damaged.
Countermeasures to conduction interference: To inhibit conduction interference of the output, besides installing
noise filter and using shielded motor cables, leading all the output cables to earthing metal tube is also a method.
Make the distance between the output cables and the control signal cables greater than 30 cm, the effect of
conduction interference will obviously decrease too.
Countermeasures to RFI: The input cables, output cables and the inverter itself would produce RFI. Placing noise
filters both at input and output sides, and shielded with metal shell would reduce RFI. The cables between the
inverter and the motor should be as short as possible. Measure to reduce RFI is shown as Figure 2-10.
Power
supply
Noise
Filter Inverter Noise Filter Motor
Metal tube
Metal shell box
Figure 2-10 Method to Restrain RFI

Chapter 2 Installation and Wiring
15
The longer the distance between the inverter and the motor, the higher the carrier frequency would be, and the
greater the high harmonic leakage current of the cables would be. Leakage current has a negative impact to inverters
and Equipment nearby, so reduce leakage current as little as possible.
The relationship of the distance between the inverter and the motor and carrier frequency is shown as Table 2-7
Table 2-7 Distance between the inverter and the motor and carrier frequency.
Distance between inverter and motor Below 50m Below 100m Above 100m
Carrier frequency Below 8 kHz Below 4 kHz Below 2 kHz
2.5 Control Circuit Connection
2.5.1 Function of Control Circuit Terminals
Fig. 2-11 Terminal arrangement of control loop of S2R4GB ~ 3004GB models
10V
AI3
AO2
AI2
GND
AO1
GND
X6
485-
X5
485+
X4
24V
X3
PLC
X2
COM
DO
Y1
TA
CME
TB TC
COM
X1
AI1
Fig. 2-12 Terminal arrangement of control loop of 35R5GB and above models

Chapter 2 Installation and Wiring
16
X10
COM1
X9
COM1
X8X7
24V1 CME1
BRA
Y2
BRB BRC
Y3
PLC1

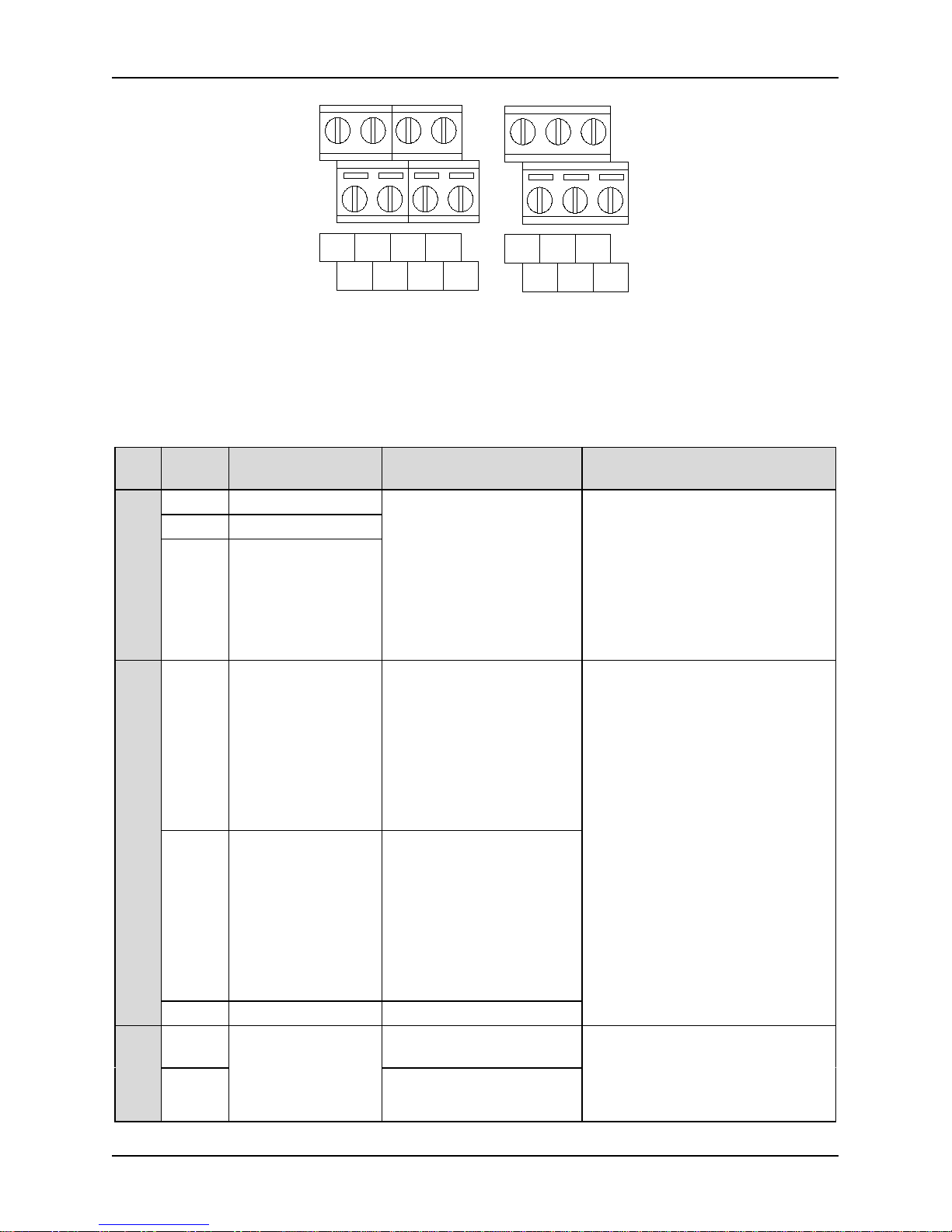

Fig. 2-13 Terminal arrangement of extension board (optional for 35R5GB and above models)
In order to reduce interference and attenuation of control signal, the length of control cables should be limited
in 50m and away from power cables for more than 30cm. Avoid control wire and power wire being parallel. Try to

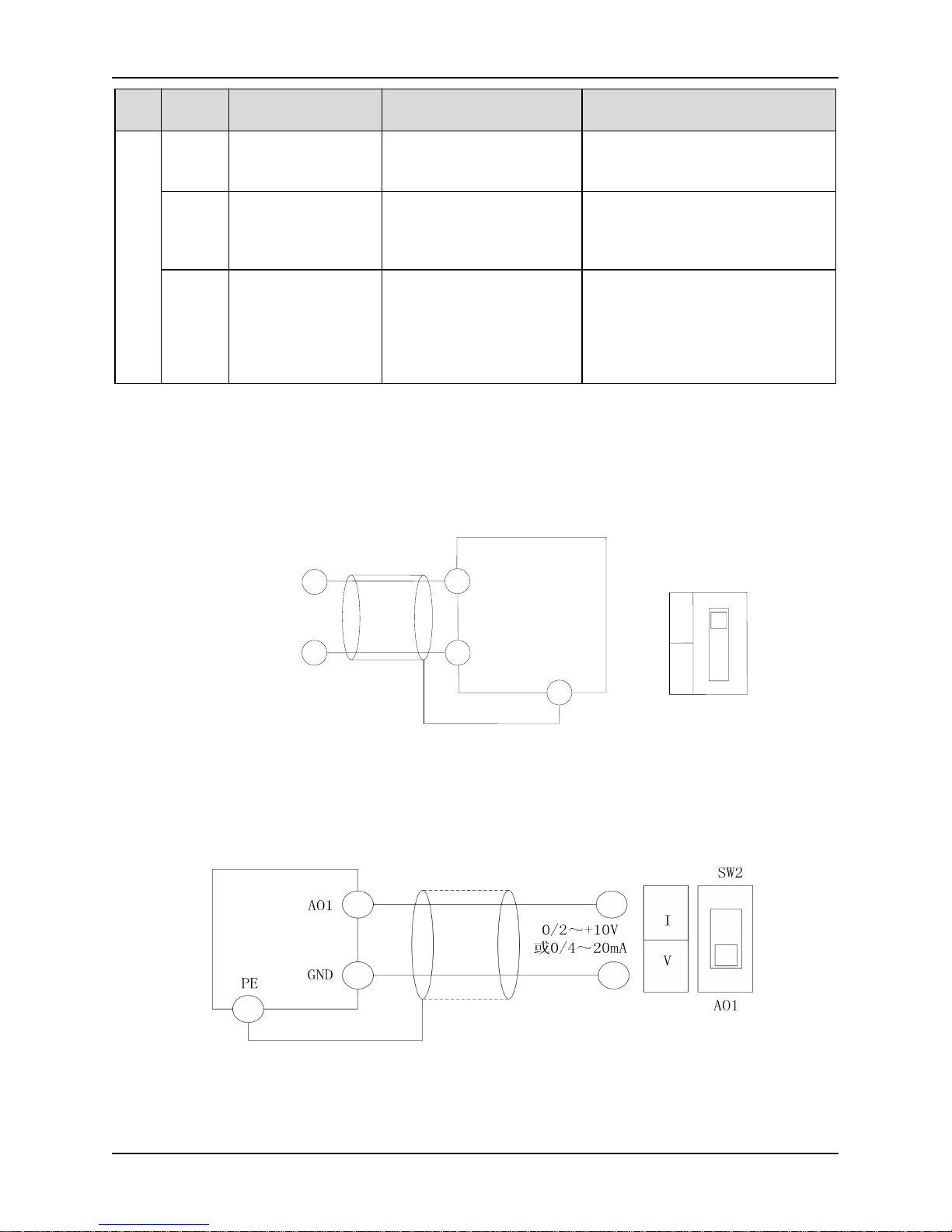

use STP (Shielded Twisted Pair) to connect analog input and output signal.

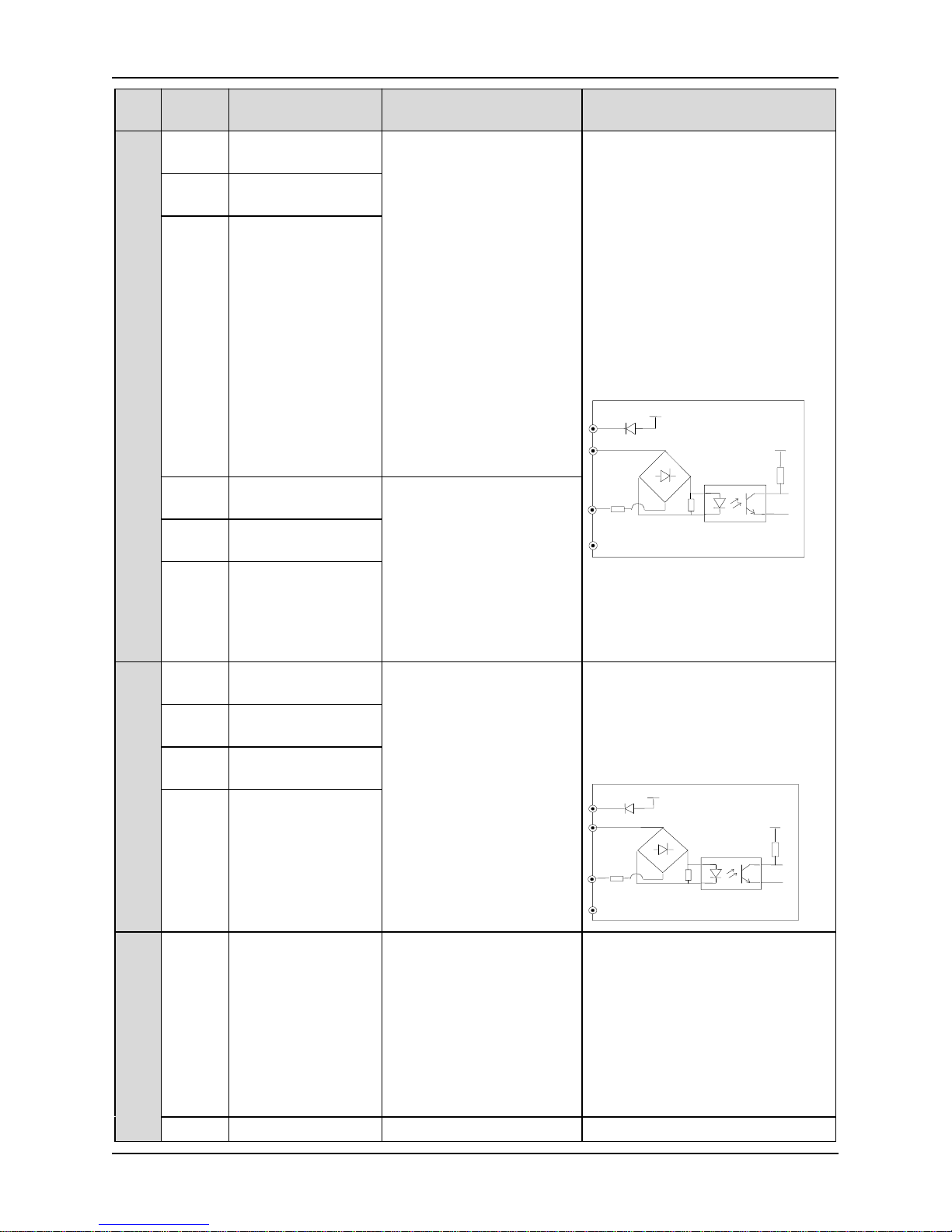

Table 2-8 Function of control circuit terminals
Catego
ry
Terminal
label
Name Description of terminal
function Specification
Analog input
AI1 Analog input 1 Receive voltage/current input.
Voltage and current are
selected by toggle switches
SW1, SW3, SW4. The range
span of factory default input
voltage is shown in
instructions in function code
P4.00 ~ P4.10 and P4.16 ~
P4.20.
Range of AI1, AI2 input signals:
0~10V or 0~20mA
Range of AI3 input signal:
-10~10V or -20~20mA
The input impedance is 30kΩ while
inputting voltage signal. The input
impedance is 250Ω while inputting the
current signal
Reference ground: GND
AI2 Analog input 2
AI3
Analog input 3
(Only for 35R5GB
and above)
Analog output
AO1 Analog output 1
Provide analog
voltage/current output. It
represents 14 magnitudes.
The output voltage and
current are selected by switch
SW2. The factory default
input voltage is shown in
instructions in function code
P4.21. Current output range: 0/4 ~ 20mA
Voltage output range: 0/2 ~ 10V
Reference ground:
AO2
Analog output 2
(Only for 35R5GB
and above)
Provide analog
voltage/current output. It
represents 14 magnitudes.
The output voltage and
current are selected by switch
SW5. The factory default
input voltage is shown in
instructions in function code
P 4.22.
AO3 Reserve Reserve
Communi
cation
485+ RS485
communication
interface
485 differential signal
positive terminal
Standard RS-485 communication
interface,
Not isolated to GND
Please use twisted pair or shielded
cable
485- 485 differential signal
negative terminal

Chapter 2 Installation and Wiring
17
Catego
ry
Terminal
label
Name Description of terminal
function Specification
Multi-function input terminal
X1 Multi-function input
terminal 1
It can be defined as a
multi-function on-off input
terminal through
programming, please see
Section 5.4 of Chapter V
Function Description of Input
Terminals of I/O Terminal
Control (Group P3) for
details.
X3 can be used as an ordinary
multi-function terminal for
S2R4GB ~ 3004GB series
inverters, it can also be
programmable and used as an
input port of high speed
pulse; but it can only be used
as an ordinary multi-function
terminal for 35R5GB ~
3500G series inverters.
Opto-coupler isolation input
Input impedance R = 3.9kΩ
Maximum input frequency:
200Hz (ordinary IO)
50KHz (high-speed pulse)
Input voltage range: 0~30V
Common port: PLC
Reference ground: COM
COM
+24V
X1-X6
PLC
+5V
24V
R
X2 Multi-function input
terminal 2
X3 Multi-function input
terminal 3
X4 Multi-function input
terminal 4
It can be defined as an input
port of high-speed pulse
through programming, please
see Section 5.4 of Chapter V
Function Description of Input
Terminals of I/O Terminal
Control (Group P3) for
details.
X6 is exclusive for 35R5GB
and above models.
X5 Multi-function input
terminal 5
X6 Multi-function input
terminal 6
Multi-function input terminal
X7 Multi-function input
terminal 7 It can be defined as a
multi-function on-off input
terminal through
programming, please see
Section 5.4 of Chapter V
Function Description of Input
Terminals of I/O Terminal
Control (Group P3) for
details.
X7 ~ X10, located on IO
extension board, are
extension terminals,
and are exclusive for
35R5GB and above models.
Opto-coupler isolation input
Input impedance R = 3.9kΩ
Maximum input frequency: 400Hz
Input voltage range: 0~30V
Common port: PLC1
Reference ground: COM1
COM1
+24V
X7-X10
PLC1
+5V
24V
R
X8 Multi-function input
terminal 8
X9 Multi-function input
terminal 9
X10 Multi-function input
terminal 10
Multi-function output
DO Open collector output
terminal
It can be defined as a
multi-function output
terminal for pulse signal
through programming. It can
also be used as an on-off
output terminal. Section 5.4
of Chapter V Function
Description of Output
Terminals of I/O Terminal
Control (Group P3).
Opto-coupler isolated open collector
output.
Range of operating voltage: 0V~26V
Maximum output current: 50mA
Range of Output frequency: 0~50KHz
Reference ground: COM
Y1 Open collector output It can be defined as a Opto-coupler isolated open collector

Chapter 2 Installation and Wiring
18
Catego
ry
Terminal
label
Name Description of terminal
function Specification
Y1 multi-function on-off output
terminal through
programming, please see
Section 5.4 of Chapter V
Function Description of
Output Terminals of I/O
Terminal Control (Group P3)
for details.
output
Range of operating voltage: 0V~26V
Maximum output current: 50mA
Y terminals are exclusive for 35R5GB
and above models. Y1 is a control
board terminal with the common port
of CME, Y2 ~ Y3, located on the
extension board, are extension
terminals with the common port of
CME1.
Y2 Open collector output
Y2
Y3 Open collector output
Y3
Relay output
TA
Relay output
It can be defined as a
multi-function relay output
terminal through
programming, please see
Section 5.4 of Chapter V
Function Description of
Output Terminals of I/O
Terminal Control (Group P3)
for details.
TA-TB: NC;
TA-TC: NO.
Contact capacity:
250VAC/2A (COSΦ=1)
250VAC/1A (COSΦ=0.4)
30VDC/1A
TB
TC
BRA
Relay output
(exclusive for
35R5GB and above
models, located on the
extension board,
extended function)
It can be defined as a
multi-function relay output
terminal through
programming, please see
Section 5.4 of Chapter V
Function Description of
Output Terminals of I/O
Terminal Control (Group P3)
for details.
BRA-BRB: NC;
BRA-BRC: NO.
Contact capacity:
250VAC/2A (COSΦ=1)
250VAC/1A (COSΦ=0.4)
30VDC/1A
BRB
BRC
Power and reference ground
10V +10V power supply
Provide +10V power supply
externally
(Reference ground: GND)
Maximum output current 30 mA
Open circuit voltage can be up to 12V
24V +24V power supply
Provide +24V power supply
externally
(Reference ground: COM)
Maximum output current 200mA
24V1 IO extension board
+24 V power
Provide +24V power supply
externally
(Reference ground: COM1)
Maximum output current 200mA
PLC Multi-function input
common port
Common port of
multi-function input terminal
PLC is connected with 24V internally
while leaving the factory
PLC1
Multi-function input
common port of IO
extension board
Common port of
multi-function input terminal
of IO extension board
PLC1 is connected with 24V1
internally while leaving the factory
GND Reference ground of
+10 V power supply
Reference ground of analog
signal and +10 V power
supply
Isolated to COM from inside
Common port of +10 V, AI1, AI2, AI3,
AO1, AO2, AO3 signals
COM Common port of
+24V power supply
Used in conjunction with
other terminals
Isolated to GND, and short connected
with CME while leaving the factory
COM1
Common port of
+24V power supply of
IO extension board
Used in conjunction with
other terminals
Isolated to GND, and short connected
with CME1 while leaving the factory
CME Common port of Common port of Short connected with COM while

Chapter 2 Installation and Wiring
19
Catego
ry
Terminal
label
Name Description of terminal
function Specification
output terminal Y1 multi-function output
terminal Y1
leaving the factory
Internal isolation between CME and
GND
CME1
Common port of
output terminals
Y2~Y3 of IO
extension board
Common port of
multi-function output
terminals Y2~ Y3
Isolated to GND, and short connected
with COM1 while leaving the factory
PE Shield ground
It is used for grounding of
terminal wiring shield layer.
Shield layer of analog signal
lines, 485 communication
lines, and motor cables can be
connected to this terminal
It is internally connected to connection
terminal PE of major loop
2.5.2 Wiring of control circuit terminals
●Wiring of analog input terminals
AI1/AI2 terminals accept analog signal input, toggle switches SW1 and SW3 select the input voltage (0 ~ 10V) or
the input current (0 ~ 20mA). AI3 (exclusive for 35R5GB and above models) terminals accept analog signal input,
toggle switch SW4 selects the input voltage ( - 10 ~ 10V) or the input current (-20 ~ 20mA). The wiring of terminals
is shown in Fig. 2-14:
AI1/AI2 0-10V/0-20mA
AI3 -10-10V/-20-20mA
AI1 AI2 AI3
GND
PE
Near-end of shield
line is grounded
I
V
SW1/SW3/SW4
Inverter
Fig. 2-14 Wiring diagram of analog input terminals
●Wiring of analog output terminal
In S2R4GB ~ 3004GB, analog output terminal AO1 external connecting analog meter can indicate a variety of
physical quantities. Slide switch SW2 selects the output voltage (0/2 ~ 10V) or the output current (0/4 ~ 20mA). The
wiring of terminals is shown in Fig. 2-15:
Fig. 2-15 Wiring diagram of S2R4GB~3004GB analog output terminals
Inverter
Near-end of shield line is
grounded
