About Lumen+
Lumen+ by inverSOL is an intelligent, renewable energy system that provides you with greater
energy independence. The system captures and stores solar energy to power critical household
appliances regardless of the state of incoming utility power. Its unique hybrid DC/AC coupled
design lowers yourutility bills, provides backup power, and reduces your carbon footprint.
LFP (lithium-ion phosphate battery) cells used in Lumen+ are assembled in packs that are validated
and produced with uncompromised safety and quality control. Your Lumen+ battery stores excess
solar energy produced during the day for use at night. In addition, the energy storage system
assures that your critical appliances have power 24/7/365.
Your Lumen+ also includes a powerful computing and communications platform that is the brain of
the system. The inverSOL proprietary algorithms ensure that virtually all solar energy produced is
consumed at some point during the day. The user experience is enhanced through an interactive
touch display and smartphone app. Wireless connectivity provides the latest weather information,
software updates, and energy management features.
The Lumen+ intelligent power management system optimizes your energy production with your
energy consumption. An interactive touchscreen offers an enhanced user experience and real time
information. The Automatic transfer switch included in Lumen+ seamlessly merges solar and electric
utility power when grid power is available and ensures no interruption during a power outage.
How It Works
Lumen+ harnesses the Sun’s energy to provide power for your home. If you are generating more
solar energy than you are consuming, the power is stored in the battery for use at another time
during the day. If you consume more than the Sun is providing, Lumen+ draws the additional
required power fromyour local utility. In the event of a power outage, the power detection system
automatically switches to Lumen+’s LFP batteries. With Lumen+, there is Energy Always.

4
About Lumen+
Smart Features
The Lumen+ includes inverSOL’s unique power optimization system. The Lumen+ smart features
minimize wasted solar power and reduce energy bills by maximizing the use of the battery while at
the same time ensuring capacity will be available when the sunshine is reduced, or inclement
weather is on the horizon. The proprietary algorithm built in the Lumen+ brain continues to learn
based on real-time data and modifies usage to save you money, while ensuring backup power is
available.
The Lumen+ brain also allows you to track energy usage and savings in real time via a mobile app
or touchscreen display.

www.inversolpr.com User Manual Lumen+ 5
Safety
Intended Use
The Lumen+ is a solar battery storage system that produces and stores electrical energy. Improper
use of this system poses a risk of death or injury to the user or third parties as well as damage to
theproduct and other items of value. The following points must therefore be observed to complywith
the intended use of the product:
•The solar storage system must be fully installed in accordance with the installation
instructions.
•The solar storage system must be installed by a licensed electrician.
•The solar storage system must only be used at a suitable installation location.
•The transport and storage conditions must be observed.
The following uses are not permissible:
•Operation in locations at risk of flooding.
•Operation outdoors.
•Operation of the battery modules outside of its storage system.
Failure to comply with the conditions of the warranty and the information specified in this document
invalidates any warranty claims. The solar storage system must only be operated as described in
the product documentation. Incorrect operation can lead to injury to yourself or others and cause
damage to property.
Lumen+ is not intended for use as a primary or backup power source for life -support
systems, medical equipment, or any other use where product failure could lead to injury to
persons or loss of life or property damage.
Product Modifications or Changes to the Product Environment
•Only use the storage system in its original state - without any unauthorized
modifications –and when it is in proper working order.
•Safety devices must never be overridden, blocked, or tampered with.
•System interfaces must be wired in accordance with product documentation.
•All repairs on the storage system must only be performed by authorized service
technicians.

6
Safety
Voltage inside the Storage System
The solar storage system contains live electrical parts, w hich poses a risk of electrical shock.
Therefore, do not open the storage system.
Handling the Battery Modules
The battery modules installed in the solar storage system are protected by multiple protective
devices and can only be operated safely when installed in the unit.
Despite their careful design, thebattery cells inside the battery modules may corrode or experience
thermal runaway in the event ofmechanical damage, heat, or a fault.
This can have the following effects:
1. High heat generation on the surface of the battery cells.
2. This may ignite and cause an explosive flame.
3. Smoke from burning battery modules can irritate the skin, eyes, and throat. Therefore,
please note the following safety precautions:
•Do not open, modify, deform, or otherwise tamper with the battery modules.
•Do not allow the battery modules to come into contact with water, except when
extinguishing a fire.
•Do not heat the battery modules or allow to operate outside the permissible
temperature range.
•Keep the battery modules well away from sources of ignition.
•Do not short-circuit the battery modules. Discontinue use after a short circuit.
•Do not deep discharge the battery modules.

www.inversolpr.com User Manual Lumen+ 7
Safety
Conduct in Case of Fire
Fire may occur with electrical equipment despite its careful design. Additionally, a fire in the vicinity
of the equipment can cause the storage system to catch fire, releasing the contents of the battery
modules.
In the event of a fire in the vicinity of the product or in the storage system itself, proceed as
follows:
1. Only firefighters with appropriate protective equipment (safety gloves, safety
clothing, face guard, breathing protection) should enter the room where the
burning storage system is located.
2. There is a danger of electrocution when extinguishing fire while the storage
system is switched on.
•Switch off the storage system to electrically isolate it (see Operation).
•Switch off the main circuit protection device in the building.
3. If the storage system and/or mains fuses cannot be safely switched off:
•Observe the minimum distances specified for the extinguishing
agent used.
4. The storage system works with an output voltage of 240 V (AC) and is therefore
considered a low-voltage system.
•A storage system fire can be extinguished using conventional
extinguishing agents.
•Water is recommended as an extinguishing agent to cool the
battery modules and prevent thermal runaway in battery
modules which are still intact.
Information on the battery modules:
•Battery modules have a nominal voltage of 48 V (DC) and therefore fall into
the range of protected extra-low voltage (under 60 V DC).
•Battery modules in the Lumen+ are LFP (Lithium-Ion Phosphate).

8
Figure 1. Lumen+ Operation When Current Flows with Grid
Power
Product Description
The Lumen+ unit is designed to provide you with years of uninterrupted power. It produces up to
6000 watts of split phase 240 VAC and/or 120 VAC. It also reduces your utility bills by substituting
solar power for utility power. The proprietary algorithm running in the Lumen+ controller optimizes
the use of solar. All the solar energy produced (up to 6000W) is either consumed when produced
or stored in the battery for later use. In addition, the energy storage system provides backup power
when solar or utility power is not available. Figures 1 and 2 depict how the energy flows with
Lumen+ when the grid power is on and off.

www.inversolpr.com User Manual Lumen+ 9
The intelligence in the Lumen+ provides uninterrupted power to your home or small business. The
smart transfer switch automatically combines the energy available from solar, utility, and battery to
ensure you always have power. The unit comes pre-programmed to first consume all available solar
energy that is generated during the day. If you consume more power than is produced by solar, the
system will draw the additional power required from the electric utility. If solar and utility power is
not available, the system will operate from the battery. Lumen+ will reduce your utility bills by the
amount of solar power that is generated.
Figure 2. Lumen+ Operation When Current Flow s without Grid P ower
At the heart of the Lumen+ energy storage system is an expandable 7680 Wh Lithium-Ion
Phosphorus (LFP) battery. The batteryis designed for more than 10 years life under normal operating
conditions. The intelligent charging system is programmed to fully charge the battery in under 4
hours. The energy storage system is also expandable up to 11,520 Wh.
Product Description

10
7.68 kWh
6.14 kWh
6,000
3.5 hr.
96%
110/220V ~20A, 240V
6000VA
-10 to +55 C
235 lbs.
up to 24
Table 1. Specifications
Table
Product Description
The Lumen+ includes a powerful embedded computer with a touchscreen interface for configuring
the system and monitoring performance. Your Lumen+ unit can also be connected to the internet
to allow its performance to be optimized to weather and utility grid conditions as well as provide
connectivity through an available smartphone app.
Battery Capacity
Nominal Power Rating
Number of Cycles
Charging Time
Round Trip Efficiency
Output Voltage
Max Load Surge
Power Temperature
Weight
Number of Panels
configuraciones del si stem a

www.inversolpr.com User Manual Lumen+ 11
System Options
System Options
The Lumen+ is available in several different configurations. The standard configuration is split
phase 120V/240V with a 7,680 Wh LFP energy storage system. Both single phase and three phase
configurations are also available. The energy storage system is expandable up to 11,520 Wh.

12
Figure 3. Lumen+ Front View
Installation
Physical Installation
Place the unit against a wall where convenient to make the electrical connections to your main panel
and the critical loads subpanel. The unit should be placed in a location that provides good
ventilation with at least 6 inches of clearance from the front and sides. Now you are ready to make
the electrical connections. The Lumen+ can be opened to access the main power switch and to trip
breakers to A/C power, battery power, and solar panels.

www.inversolpr.com User Manual Lumen+ 13
Emergency Stop
Input Ports
Label
Product S/N
Figure 4. Lumen+ Side Panel
FAN Outlet
FAN Outlet
Installation
Solar Connections
The Lumen+ includes two solar input ports (Figure 4). Each input can accommodateup to 3,000 W
of solar power (total of 6,000W). It is important to balance the solar to each of these inputs. Various
solar panel configurations are supported for any number of panels from 6 to 24, wired in series
and/or parallel by a certified electrician.

14
Figure 5. Lumen+ Connections
Installation
System Connections
The Lumen+ requires one 40A 240VAC input connection to utility power and provides one 25A
240VACconnection to the desired critical loads.
1. Connect input to main panel.
2. Identify critical loads such as refrigerators, air conditioning, lights, etc.
3. Relocate critical loads to sub panel.
4. Connect subpanel to output.
Figure 5 below shows the connections diagram.
np

www.inversolpr.com User Manual Lumen+ 15
Mobile App
Mobile App
The Lumen+ has a mobile app available for download. The app works on iOS and Android.
At the time of purchase, each Lumen+ unit is configured with unique credentials for app pairing.
Setup & Pairing Procedure:
1. Your credentials and a unique QR code are provided with your Lumen+.
2. On the App store search for the inverSOL app and install.
3. During installation, allow the app to access your camera.
4. After installation, log in with the credentials you were provided.
5. When first used, the app opens your camera to scan the QR code associated with your unit.
6. If the camera does not automatically open, click the “+” icon on the home screen.
7. Scan the QR code associated with your unit and your Lumen+ will be paired with the app.

16
Operation
The intelligent controller in your Lumen+ makes it easy to operate. To turn the unit on, open the
unit’s door and turn on the Load / Battery / Grid / and Remote switches. The display will power
up, run initialization self-tests, and pre-program default settings. This takes about 20 seconds. To
turn the system off, turn the Load / Battery / Grid / and Remote switches to the off position.
Power Outage: In the event of grid outage, the unit’s operation depends on available solar energy
- Photovoltaic (PV) - and battery power to deliver power to the home (load).
•When the load is higher than P V output, then PV and Battery will power the load. If the
load is less than the PV capacity, then PV will charge the battery and power the load.
•When PV is unavailable (night), the battery powers the load. If PV becomes available
before battery shutdown, then PV charges the battery and powers the load.
•When PV is unav ailable for an extended time, the battery will eventually shut down
and stop powering the load. When the Grid or PV becomes available again, the Lumen+
acts as an off-grid unit, powering the load but not charging the battery. Turn off the Remote
switch for 5 seconds and turn it back ON to start charging the battery.
Note: If the battery goes down and then PV returns, the Lumen+ will NOT power the load and will
NOT charge the battery. Please turn off the Remote switch for 5 seconds and turn it back ON to start
charging the battery. Please monitor the load, battery charge, and solar energy generation during
an outage to avoid battery depletion.
Storage: Turn the Load / Battery / Grid / and Remote switches to the off position when the unit is
stored to disconnect the battery and maximize storage life.

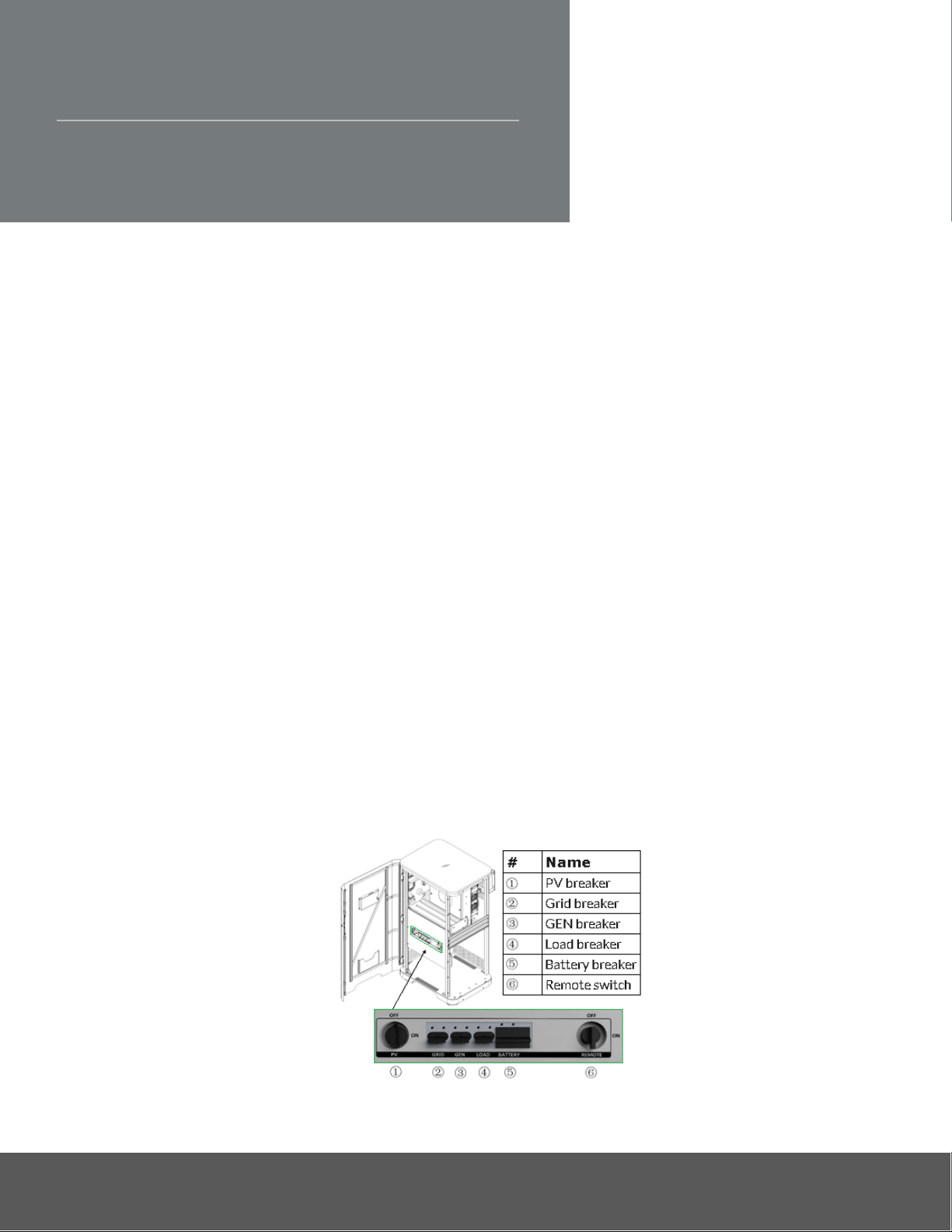

Figure 6. Lumen+ Distribution Box Switches
Operation

www.inversolpr.com User Manual Lumen+ 17
User Interface Overview
User Interface
The Lumen+ comes with a touchscreen display that allows you to monitor and manage the unit’s
performance. There is also an available smartphone app that provides the same information.
The touchscreen connects to the internal TELiG unit, where a service manager collects data from
the Lumen+. After five minutes of inactivity, a screensaver appears and the screen turns off after
another minute. The manager continues running even if the screen is dark.
The green status bar across the bottom of the screen appears on every page. It displays the current
state of charge of the battery, the WiFi network name the unit is connected to, the date and time,
as well as warnings for the state of the unit and solar panel(s).
The default time is set to UTC/GMT. It will change
automatically on connection to a WiFi network. To
manually change time, see the Settings page.
Home Page

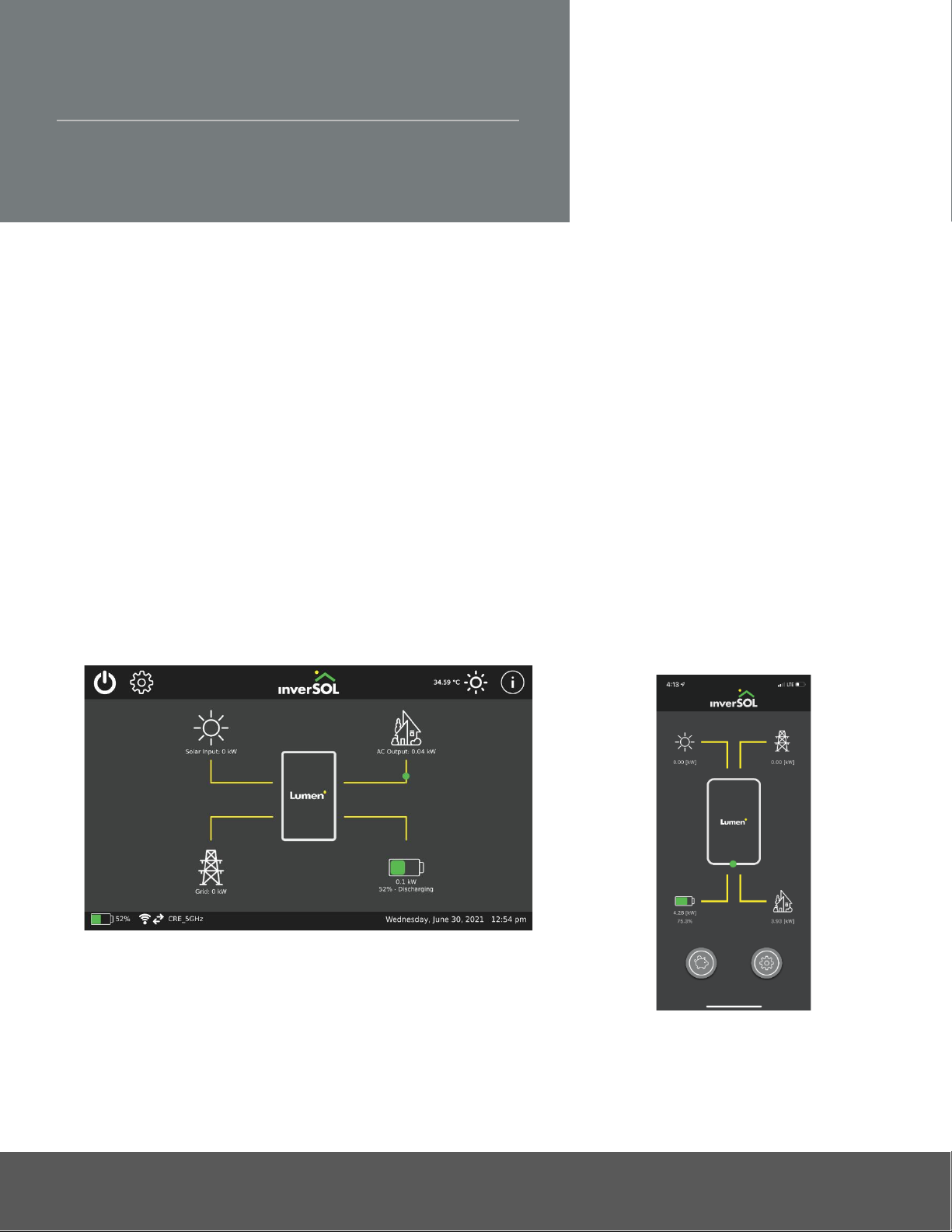

(touchscreen)
Home Page
(Mobile app)

18
User Interface: Home Page
Icon
Description
(touchscreen & mobile app)
Displays total power being generated by the panel(s)
Displays power drawn from your local grid
Displays power currently used by your household load
Displays current state of battery charge
(touchscreen only)
Turn off the screen –This does not power off the unit. To turn on
again, tap anyw here on the screen.
Nav igate to Settings Page, where the user can set time/date,
operation modes, wireless settings, and pair with the phone app.
Nav igate to Weather Forecast Page if the unit is connected to
Wi-Fi, where current weather in your area is displayed.
Nav igate to Information Page, where energy generation &
consumption details are displayed.
(mobile app only)
Display a Savings Report.
Nav igate to the Settings Page, where you can access Savings
Report settings, manage Lumen+ units accessed w ith the app,
contact support via email, and change language settings.
Table 3. Home P age Icons
Sun
Grid
House
Battery
Power
Settings (Gear)
Weather (Sun)
Info
Sav ings (Piggy Bank)
Settings (Gear)

www.inversolpr.com User Manual Lumen+ 19
User Interface: Weather
Weather Forecast Page
To see a forecast for your area, your device must be connected to Wi-Fi. The weather forecast is
powered by OpenWeatherMap.org.
The page displays current weather conditions, sunrise time, sunset time, and wind speed. At the top
right is a switch to change display units between Metric & Imperial.
The five-day forecast is shown in the bottom row. To see an hourly forecast, including current day,
tap the weather icon of the day of interest.
To return to the Homepage, tap the back arrow at the top left corner.

20
User Interface: Weather

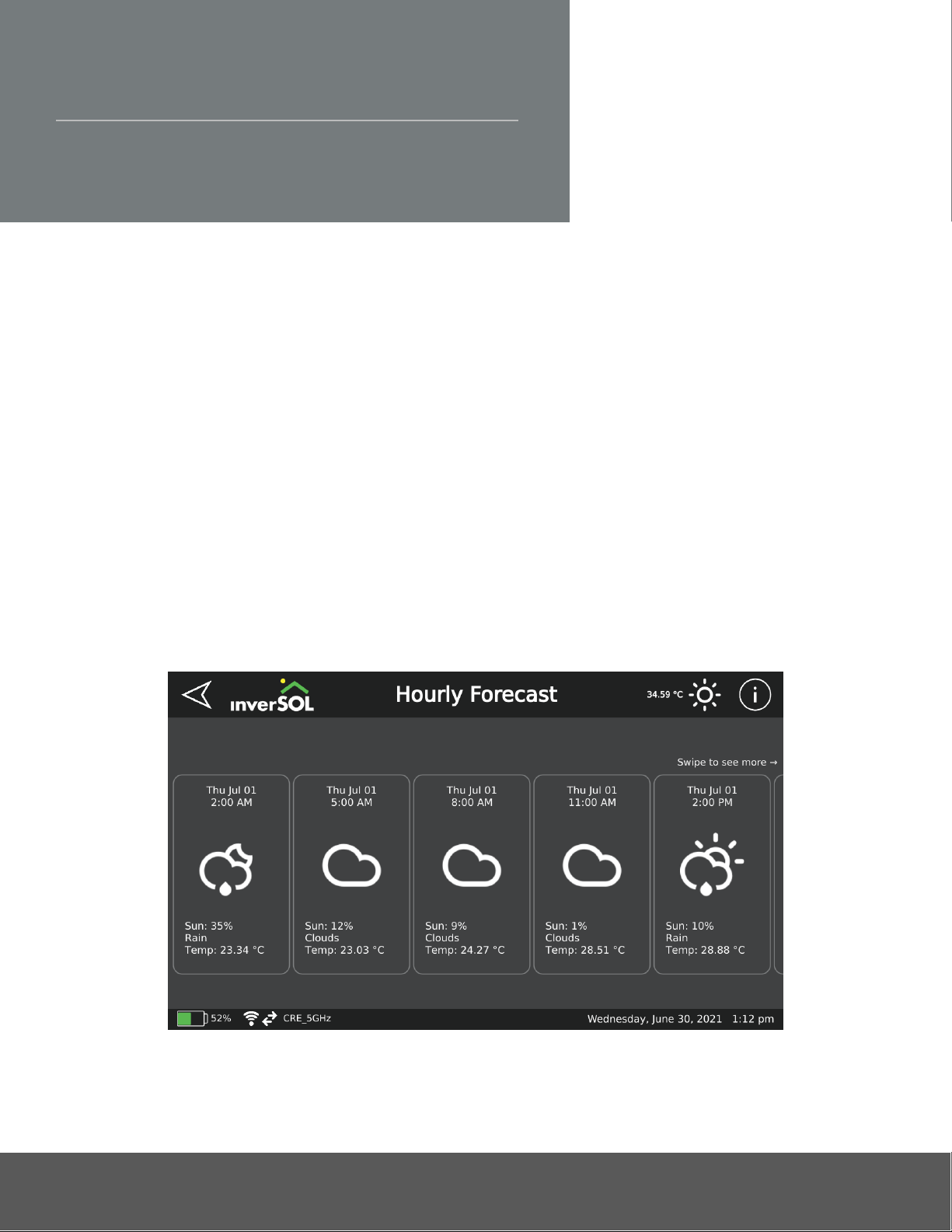

Hourly Forecast Page
This page displays an hourly forecast for the day selected in 3 hour increments up to 24 hours from
the first item. Each icon displays predicted cloud cover, weather, and temperature. Use the
information provided to note days where you will be getting more or less sun as this will affect the
amount of energy your panel(s) generate.
Swipe left to see future items and right to see past items. To return to the Weather page, tap the
back arrow at the top left.
