Crypto ReDi 50A Owner's manual

SD DVB-T
MPEG-4 RECEIVER
ReDi 50A
Quick User Manual
to begin immediately watching digital television
Contains:
System Connections,
Getting started for the first time & Channel Scanning,
Device Features
E P G, T I M E S H I F T, P V R

ReDi 50A Quick User Manual
V . I p i r o u 4 5 , 1 5 1 2 5 M a r o u s i , Τ el: 210-8098700, Fax: [phone]
Site: w w w. c r y p t o . g r , Email: [e-mail]
2
SYSTEM CONNECTIONS
GETTING STARTED FOR THE FIRST TIME
The very first time that the dev ice is going to be used the “welcome” menu will appear. Press
the cursors buttons to adjust the region, language, Display Mode, Aspect Mode (according to
y o ur T V t yp e y o u ca n a d j u st b e t w e e n 1 6 : 9 o r 4 :3 o r a u to t o l e t t h e d e v i c e t o p i c k o n e
automatically according to the TV type that you have).
When youare done just select ok and press ok button on your remote tostart the channel
search.
Channel Scan
T o b e a b l e t o s c a n f o r c h a n n e l s a f t e r y o u s t a r t t h e d e v i c e f o r t h e f i r s t t i m e d o t h e f o l l o w i n g .

ReDi 50A Quick User Manual
V . I p i r o u 4 5 , 1 5 1 2 5 M a r o u s i , Τ el: 210-8098700, Fax: [phone]
Site: w w w. c r y p t o . g r , Email: [e-mail]
3
A u t o S c a n
1. Select the "Auto Scan" and press "OK" button to enter the Auto Scan menu.
2. Press the cursor button to set "FTA Only", then highlight "Search" and press the "OK"
button to start the auto scan.
Detailed Scanning
1. Select "Channel Scan", and press the "OK" button to enter the Channel Scan menu.
2. Press cursor button to set Scan mode, Scan Band, Channel No., Frequency and
Bandwidth, then highlight "Search" and press "OK" button to start channel scan .
Channel Scan mode:
-By channel
-By frequency
DEVICE FEATURES

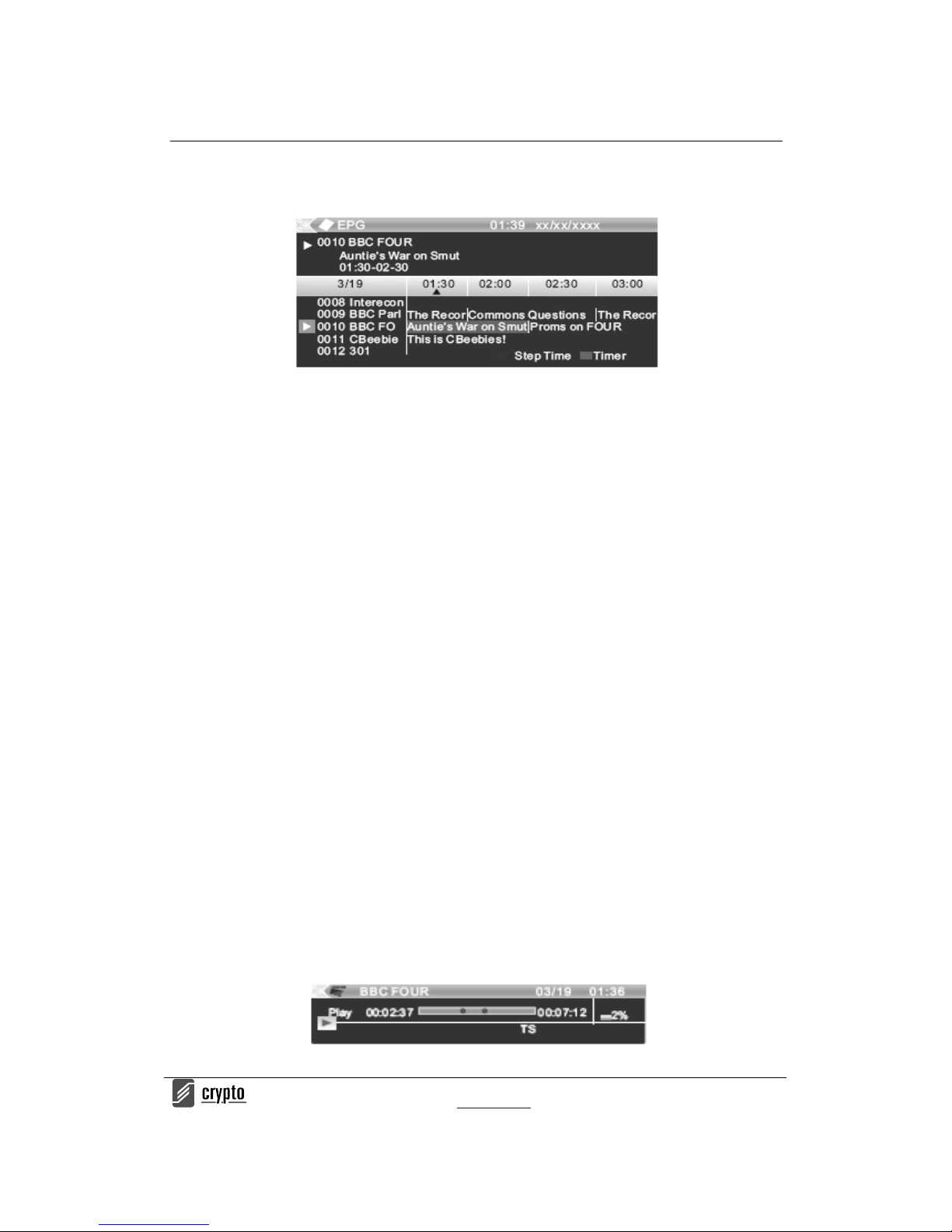

Electronic Program Guide (EPG)
WiththeDVB-Tyoucanhaveaccesstoprograminformationanytimeyouwant.Thatfeature
is displayed on-screen with functions allowing a viewer to navigate, select, and discover
content by time, title, channel etc. Also you can have access to TV guide of any digital
channel. To use this function simply follow the following:
1. Press "EPG" button to enter EPG menu.
2. Press cursor button to switch between channel list, events schedule of the selected
channel and now/next events.
3. Press "Green" button to start Timer settings.
Withthisoptionyoucansetthedevicetoopenorclosewheneveryouwant,setachannelas
wake up channel and schedule to record any future broadcast.
4. Press "Red" button to enter the "Step time" menu.
Withthisoptionyoucanfindinformationaboputaprogramofeachchannel,basedonhours
or days. Eg you can see the the program quide of a channel 2 or 3 days later, etc.

ReDi 50A Quick User Manual
V . I p i r o u 4 5 , 1 5 1 2 5 M a r o u s i , Τ el: 210-8098700, Fax: [phone]
Site: w w w. c r y p t o . g r , Email: [e-mail]
4
5. If you want to go back to the channel press the "EPG" button again.
T i m e S h i f t
The digital receiver ReDi 50A gives you the abilit y to record and watch one program
interfacing with the viewing time. All you have to do is to connect an external hard drive or a
USB stick in the usb port of the device.
Withthisfunctionyoucan:
Pause the program and continue to see if another time.
NOTE: For proper operation of TIME SHIFT it is recommend using a storage device that
supports USB 2.0 and has high speed read /write. Also if it is possible it is recommended to
use a USB stick or HDD with high storage space. The product can support up to 2TB disks
The TIME SHIFT is a feature where you can simultaneously track, pause or to go back and
forth when you are watching a program. For example, while watching your favorite show
someone rings the door bell. No problem. Just press “Pause” button freeze the image. when
y o u r e t u r n y o u c a n r e s u m e v i e w i ng f r o m w h e r e y o u l e f t b y p r es s i n g “ P l a y”
• Enable TIME SHIFT
- To use TIME SHIFT press <PAUSE> and a bar with the time when the recording is started
(right) will appear. From this moment and forth the channel program will be recorded.
Each time you wish to pause or rewind the program a new bar will appear.
Notice that now the bar has 2 times. The right is the normal time showing the on going time
from the beginning when started Time Shift and the left is the play backed time according to
the time you choose to watch of the recorded program.

ReDi 50A Quick User Manual
V . I p i r o u 4 5 , 1 5 1 2 5 M a r o u s i , Τ el: 210-8098700, Fax: [phone]
Site: w w w. c r y p t o . g r , Email: [e-mail]
5
During TIME SHIFT, it is possible to do the following.
- Press "PAUSE" to pause the program and <PLAY> to continue watching later.
- Press "STEP FORWARD" or "FORWARD" to fast forward the recorded program at specified
time steps according to “Jump” settings(30 Mon - 30 minutes) or at 2χ, 4x, speed etc
respectively.
- Press "STEP BACKWARD" or "BACKWARD" to quickly rewind the recording at specified
time steps according to “Jump” settings (30 Mon - 30 minutes) or at 2χ, 4X, speed etc,
respectively.
This choices affect only the recorded progra m, and not the function of TIME SHIFT.
T o r e t u r n t o t h e n o r m a l p l a y i n g t i m e p r e s s t h e " S T O P " a n d t h e n t h e < E X I T > . T h e T I M E S H I F T
will continue to record but you will watch the normal time of the program
• S t o p T I M E S H I F T
The TIME SHIFT is switch off when you change the channel or if you enter the main menu
NOTE:
• The TIME SHIFT is disabled when you activate it for a specific channel and you have
scheduled a recording (PVR) to another channel. When that recording starts the device will
take you to that channel automatically an d it will deactivate Time Shift to the other
• The TIME SHIFT can be activated while recording a program, but only for that channel you
are recording.
Examples:
- Suppose you want to see a show but because you're busy you can not watch the first 20
minutes. All you need to do is to activate TIME SHIFT at the start of the show and after 20
minutes you will be able to view it from the beginning by pressing the "BACKWARD" button
rewinding the recorded program.
- With the activation of TIME SHIFT, you can also see a movie without having to wait the
annoying ads. What you must do is: Start TIME SHIFT and allow the device to record for 10 to
20 minutes. Then turn backwards the recording by pressing the "BACKWARD" button and
start to see it from the beginning. When it's time for the ads just make the program run fast
forward by pressing the "FORWARD" button and press the <play> when the ads are finished.
Withthislittletrickyoucanskiptheadswhilethenormaltimeofthemovieiscontinuedtobe
recorded.

ReDi 50A Quick User Manual
V . I p i r o u 4 5 , 1 5 1 2 5 M a r o u s i , Τ el: 210-8098700, Fax: [phone]
Site: w w w. c r y p t o . g r , Email: [e-mail]
6
Personal Video Recording (PVR)
•Instant Recording
Withthisfeature,withatouchofabuttonyoucanwriteaprogramyouarewatching.
- Press <RECORD> button on your remote to immediately start recording the program you
are watching
- Pressing the button again <RECORD>, you can adjust the duration of the recording.
- Press <STOP> button to stop recording. A window will appear.
- Select YES to stop recording. Select NO to resume recording.
•Scheduled Recording
Apart from the operation of direct recording, the device can be scheduled to write a program
in the future.
-Press and the <Menu> button and select <settings>, <Timer Settings>
This menu lets you set the timer for a recording.
T i m e M o d e : O f f / O n c e / D a i l y
T i m e s e r v i c e : R e c o r d
Wakeup Channel: Set the channel you want to record.
Wakeup Date: Press OK and then the numbers to enter the date of recording.
Wakeup Time: Press OK and then the number s to enter time you want the device to start
writing.
Duration: Press OK and then the numbers to enter the duration of the recording
T o s e e a l l t h e p r o g r a m s y o u h a v e r e c o r d e d p r e s s :
1. Menu <Rec&Media> select “Record Manager” press OK or press “PVR” button
2. Press the Up and Down arrow keys to select the desired entry and press the OK to play the
file.
3. Press <EXIT> on the remote to exit the menu.

ReDi 50A Quick User Manual
V . I p i r o u 4 5 , 1 5 1 2 5 M a r o u s i , Τ el: 210-8098700, Fax: [phone]
Site: w w w. c r y p t o . g r , Email: [e-mail]
7
Note :
•Whenyouwriteaprograminaparticularchannelyoucanwatchanotherofthesame
group of four digital channels, at the same time you make the record.
•Whenyouhaveprogrammedarecordingforachannelandyouarewatchinganother
with the time shift activated when the recording will start the device automatically
deactivate Time Shift and takes you to the channel that is programmed to be
recorded.
•During the time that a recording takes place the Time Shift function can be activated
in parallel with the recording only for that specific channel and not for anyone else.
Front panel
1. Remote sensor
2. Channel up/ Down
3. USB slot
4. Standby button
Rear panel
