1- Introduction
We thank you for having chosen our Heat pump.
This installation and maintenance notice contains the necessary
information to its installation (delivery control, the installation, the
connections) and to its repair. It is a complementary document to the
user’s manual which describes its instructions for use.
We invite you to read it first.
2- Caution
This document is an integral part of the product and it must stays in
the technical room.
This Heat pump is exclusively for heating swimming pools.
Any other use not in conformity and random will be considered as
dangerous and unsuitable.
The assembly, the electric connection and the start up must be
carried out by specialized and professional person.

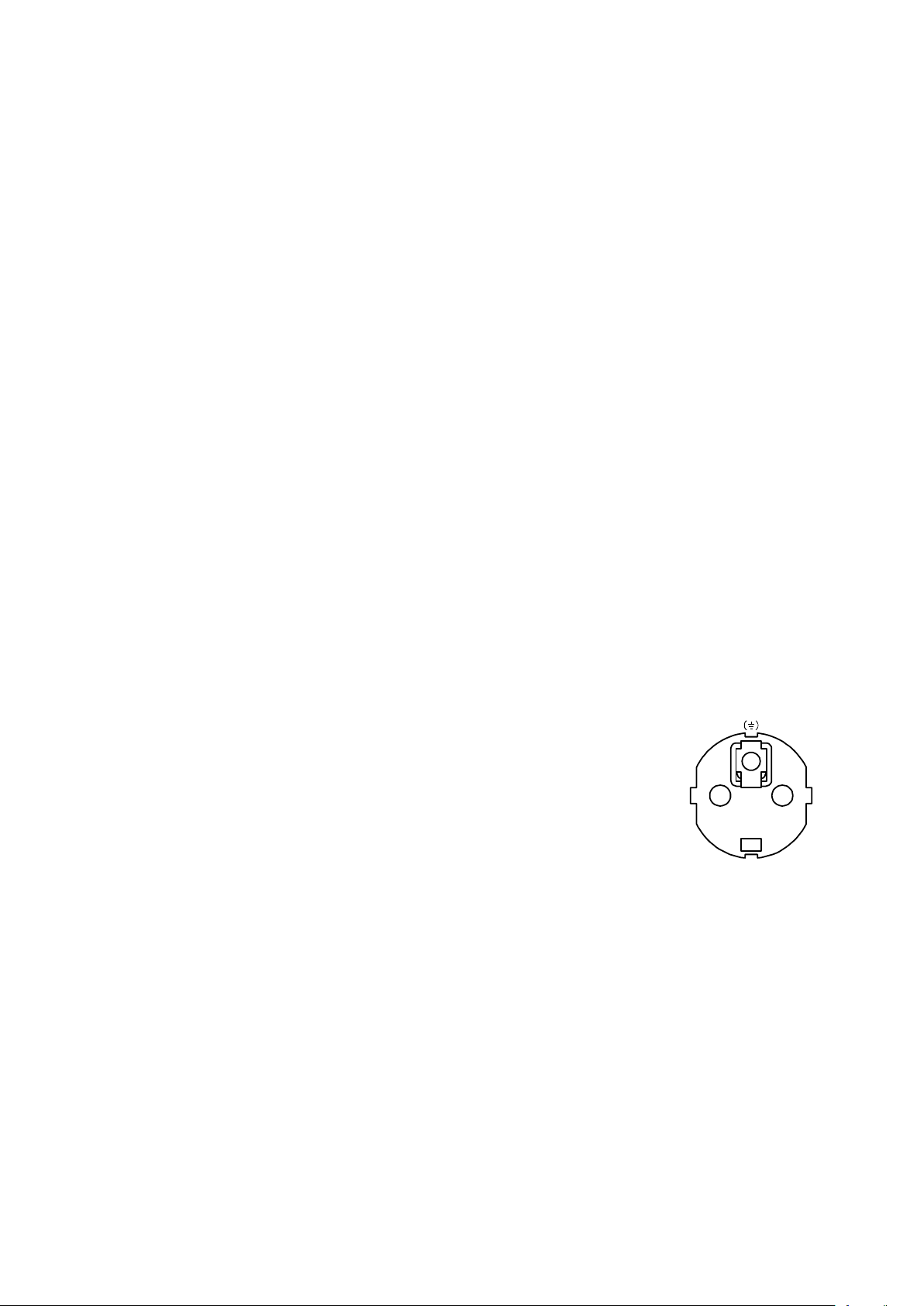

When connect plug to socket (power supply), please
make sure that live wire, neutral wire, earth wire to
plug should be connected as right drawing.
It is essential to maintain the temperature in the swimming pool lower
than the recommended value by the swimming pool’s manufacturer.
Please make sure that minimum water flow speed is 3.5m³/h.
In a concern to a constant improvement, our products can be modified
without notice; the present pictures in this note or the characteristics
which are described are not contractual.
16A 250V~
(L) (N)

3- Delivery’s control
At the delivery time, check the condition of packing; in case of
damages, have reservation about them to the carrier, before 48 hours
and by registered letter with acknowledged receipt.
Before any manipulation, check the complete state of the machine.
4
- Technical description
Characteristics:
MODEL 50HS-A 85HS-A 100HS-A 130HS-A 160HS-A 210HS-A
Power supply 230/50/1 230/50/1 230/50/1 230/50/1 230/50/1 380/50/3
Heating Input Power *
(kW) 1.05 1.7 2.1 2.6 3.5 4.3
Heating Capacity *(kW) 5.5 8.5 10.5 13 17.5 22.5
Heating Running Current
*(A) 5.2 8 10 13 17 7*3
Cooling Input Power *
(kW) 1.0 1.7 2.0 2.5 3.5 4.2
Cooling Capacity *(kW) 4.0 7.2 8.2 10 14 17
Cooling Running Current
*(A) 5 8 10 12 17 7*3
Air flow (m3/H) 1600 2000 2400 2500 3400 4000
Noise level (d(B)A) <51 <53 <55 <56 <58 <60
Refrigerant gas R410a R410a R410a R410a R410a R410a
Water Connection*(mm) 50 50 50 50 50 50
Net weight of the unit
(kg) 50 54 65 80 112 128
Overall sizes L x W x H
(cm) 95*30*55 95*30*55 100*30*60 100*30*69 112*43*79 122*43*95
* possible variations of value according to climatic conditions
4

5

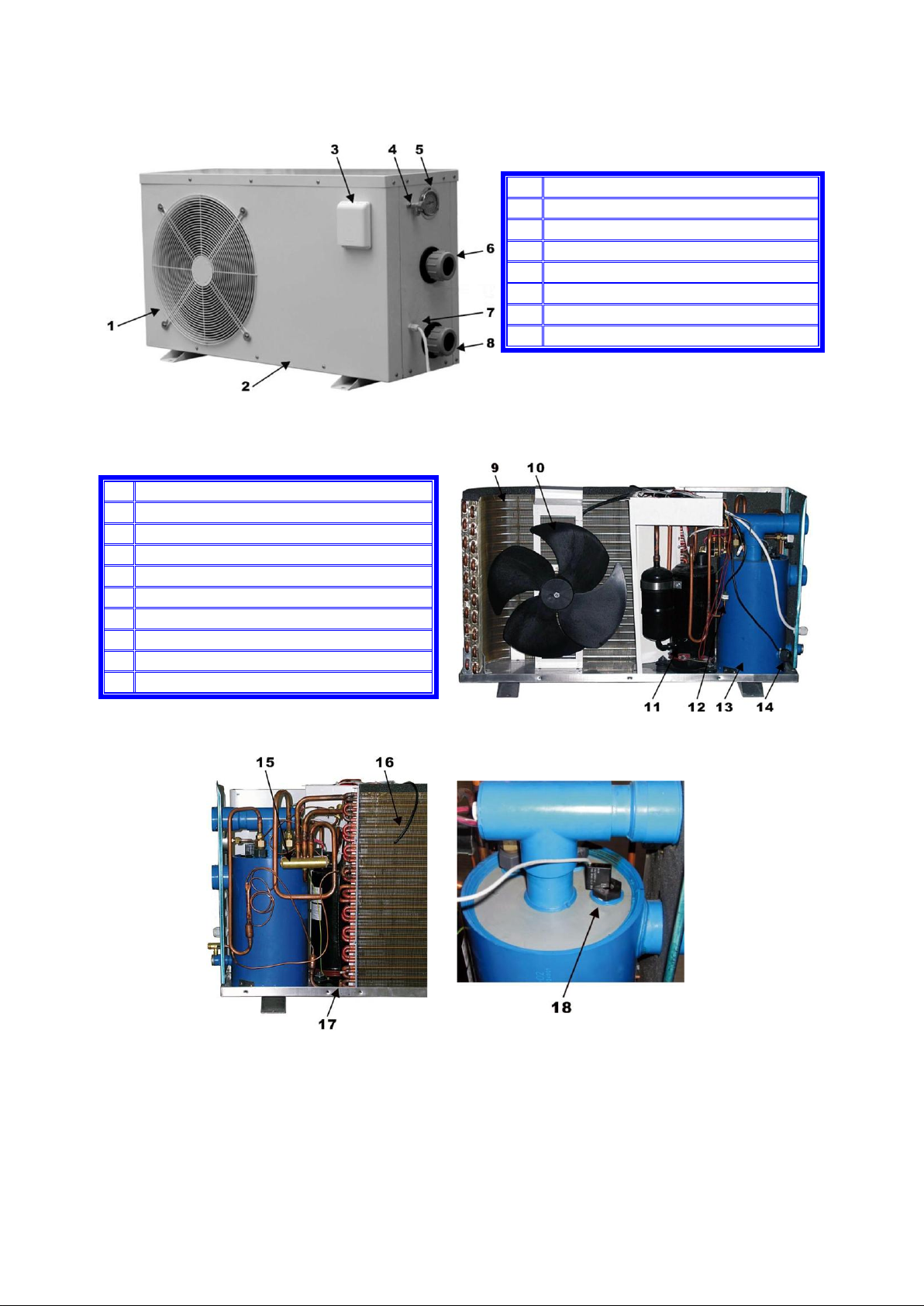

Outside:
1
Fan protection grid ( blow side )
2
Metal cabinet
3
Control panel
4
Refrigerant charge valve
5
Refrigerant pressure manometer
6
Fast connection for water outlet
7
Wire connection for power supply
8
Fast connection for water intlet
Inside:
(Front sheet cover and panel removed)
9
Evaporator
10
Fan
11
Compressor
12
High and low pressure interruptor
13
Titanium heat exchanger
14
Temperature sensor of swimming pool water
15
Four way valve
16
Ambient temperature sensor
17
Defrost sensor
18
Water flow switch

1
3 4 5 6 7 8 9 10 11 12 13 14 15 16
19
20
21
22
35
363738394041
42
43
44
23
BP- 85HS- A Explored view
217 18
24
25
26
27
28
29
30
31
32
33
34
45
1 Fan protection net
2 Front panel
3 Control panel cover
4 Wire controller
5 Verge board polyfoam
6 Verge board
7 Exhaust pipe
8 Four way valve
9 Compr essor
10 Hi gh pressure interruptor
11 Low pressure interruptor
12 Water flow swi tch
13 Gas returning pipe
14 Titanium heat exchanger
15
16 Ri ght size board
17 Po we r cord
18 Right rear board
19 Re frigerant charge valve
20 Pr essure man omet er
21 Fa st connection
22 Gas ket
23
24
Terminal
25
Public terminal
26
Electrical box
27
28
Circuit board
29
Copper sensor
30
Water sensor
31
Ambi en t sen sor
32
Compr essor sensor
33
Mot or capacitor
34
Compr essor capacitor
35
Frame
36
Capillary
37
Rear net
38
Condenser
39
Condenser top polyfoam
40
Left carriage
41
Left net
42
Top cover
43
Mot or bracket
44
Fan mot or
45
Fan
Drain tube
Transformer
Rubber wa ter fender

7
Wire control operation
The function of the LCD display and control:
Heatingmode
(‘SUN’symbol)
M
T EM P
SET
P ress t o t ur n on and
t ur n of f t he unit s.
Press to setandcheck
theoperationdata.
Press to starttimer on/timer off.
Press secondstochecktemperature.3
LCDsrceen
Press buttontochoosecoolingor heating mode
Press this button seconds tosetor reviewdata.3
water outlettemp.
Parameter valve
Coolingmode
(‘SNOW’symbol)
coercive
defrosting
wat er s et t ing temp.
Digit no.
Timer on
Timer off
Set the operation parameter:
When the unit stops, press" "button 3 seconds to enter operation parameter setting interface.
◎Press" "again to start setting(parameter from 0-11, see Operation Parameter Table).
◎Under parameter setting, press " " or " " to set data for parameter from 0-11.
◎No press in 10s, it will exit the setting interface.
NO Meaning Range Change Factory setting
0 Max. setting water temperature 0/1 (5 ~ 45/60°C) Not change 0 (5 ~ 45°C)
1 Defrosting start temperature -20 ~ 10°C Can change -7°C
2 Defrost exit temperature 5 ~ 45°C Can change 12°C
3 Turnround of defrosting
Under heat mode 30 ~ 150 min Can change F0 (45 min)
4 Time of exit defrost
Under heat mode 1 ~ 15 min Can change 2 min
5 Compressor protection
Exhaust temperature 70 ~ 110°C Can change 95°C
6 Temperature of electrical
valve switch on 0 ~ 60°C No use 7°C
7 Water pump mode 0/1 No use 1
8 Automatic restart 0/1 Not change 1
9 Mode
(heat/coo & heat/cool/two tank) 0/1/2/3 Suggest not
change 1
10 Water temperature difference
to restart 1 ~ 10°C Can change 3°C
11 Water pump/Condenser heater 0/1 Not change 0

8
M
Parameter 3
Turnround of defrosting
(30 ~ 150min.)
factory setting: 150 min.
Parameter 8
auto ma tic re sta rting (0/1)
fac tory se tting: 1
M
water pump mode:
0: already open
1: 30s start before compressor start
30s stop after compressor stop.
Parameter 7
AUX
Parameter 9
Mode: 0(heating only)
1(cooling and he ating)
2(heating only)
3(2 tank)
factory set ting: 1
Parameter 0
to set the max setting water
temperature. (5~45/60 )
factory setting: 5~45 .
C
C
Parameter 1
to set the defrosting start
temperature under heating mode
(-20~10 C) factory setting:-7 C
Parameter 2
defrosting exit temperature
(5~45 C)
factory setting: 12 C
M
Paramete r 4
tim e of de fro sting
(1-15 min)
fac tory s etting: 2 m in.
compressor protection
ex ha ust tem peratu re
(70~110 C)
facto ry s ettin g: 9 5 C
Parameter 5 temperature of solenoid valve
switch on (0~60 C)
factory setting: 7 C
M
Param ete r 6
Parameter 10
Wate r tem peratur e diffe rence
to restart unit
1 ~ 10 C
factory s etting: 3 C
Parameter 11
Mode: 0(w ater pump )
1(condenser hea ter)
factory se tting: 0
Choose the operation mode:
◎Press “ ” to power on unit. Under running, the LCD displays the water setting temp,
water temperature and current mode.
◎Press “ ” to choose mode(mode can be changed under running)
◎Press “ ” to set temperature 1 °C higher, press “”to set temperature 1 °C lower.
◎The temperature setting range of water heating is 5 °C ~ 45°C .
The temperature setting range of water cooling is 5 °C ~ 40°C .
When water temperature reaches to setting temperature, the unit will stop;
the unit has to restart when water temperature drop 3°C on HEATING mode.
the unit has to restart when water temperature increase 3°C on COOLING mode.
C o o l i ng m o d e H e a ti ng m o d e
M M
Check current temperature:
◎Under running, press “” 3 seconds to check the current status of the unit. You can check
water/ambient/compressor/condenser temperature. If no buttons are depressed within 10 seconds,
the LCD will display water-setting/water temperature. When the unit is switched off, current water
temperature is displayed.
M M M
Condenser te m p .
W a te r
te m p .
outlet Ambient te m p . compressor
exhaust temp.

9
Stop the unit in low ambient temperature:
◎when the unit is OFF mode, press “”button 3 seconds to enter ambient temperature
setting interface.
◎the range of stop temperature is from -15°C to 97°C,the range of restart temperature is from
-13°C to 99°C.
◎–F on left panle means -15°C (stop temperature), -d on the right panel means -13°C (restart
temperature). The unit will stop when ambient temperature is -15°C, and the unit will restart when
ambient temperature increase to -13°C.
the display panel show “EE C “when ambient temperature drop down to -15°C.
M
Timer switch ON:
1. When the unit stops, press “” botton to set time for TIMER ON, press the botton again
once to cancel the TIMER ON.
Press “ ” and “”to set the time interval of 1 hour in a cycle manner : 1,2…24
2. When it reaches the switch-ON time, the unit will operate in the pre-set modes.
3. Press “”botton under TIMER ON setting, then the unit will start immediately, and the
TIMER setting is cancelled.
Timer switch OFF:
1. When the unit is running, press “” botton to set time for TIMER OFF, press the botton
again once to cancel the TIMER OFF.
Press “ ” and “”to set the time interval of 1 hour in a cycle manner: 1,2…24
2. When it reaches the switch-OFF time, the unit will automatically stop.
3. Press “”botton under TIMER OFF setting, then the unit will stop immediately, and the
TIMER setting is cancelled.
Timer OFF and Timer ON can not be set at the same time.
Coercive Defrosting ( only on water HEATING mode ):
1. press “” botton 5 seconds when the unit is running, the unit go to defrost state.
2. When the defrost time reaches 2 minutes, defrost is stopped.
3. After exiting the defrosting, the unit will stop 1 minute, then it will heat water again.
Key lock:
Press “” and “”5 seconds, to set keylock.
Press “” and “”5 seconds again to release keylock.

10

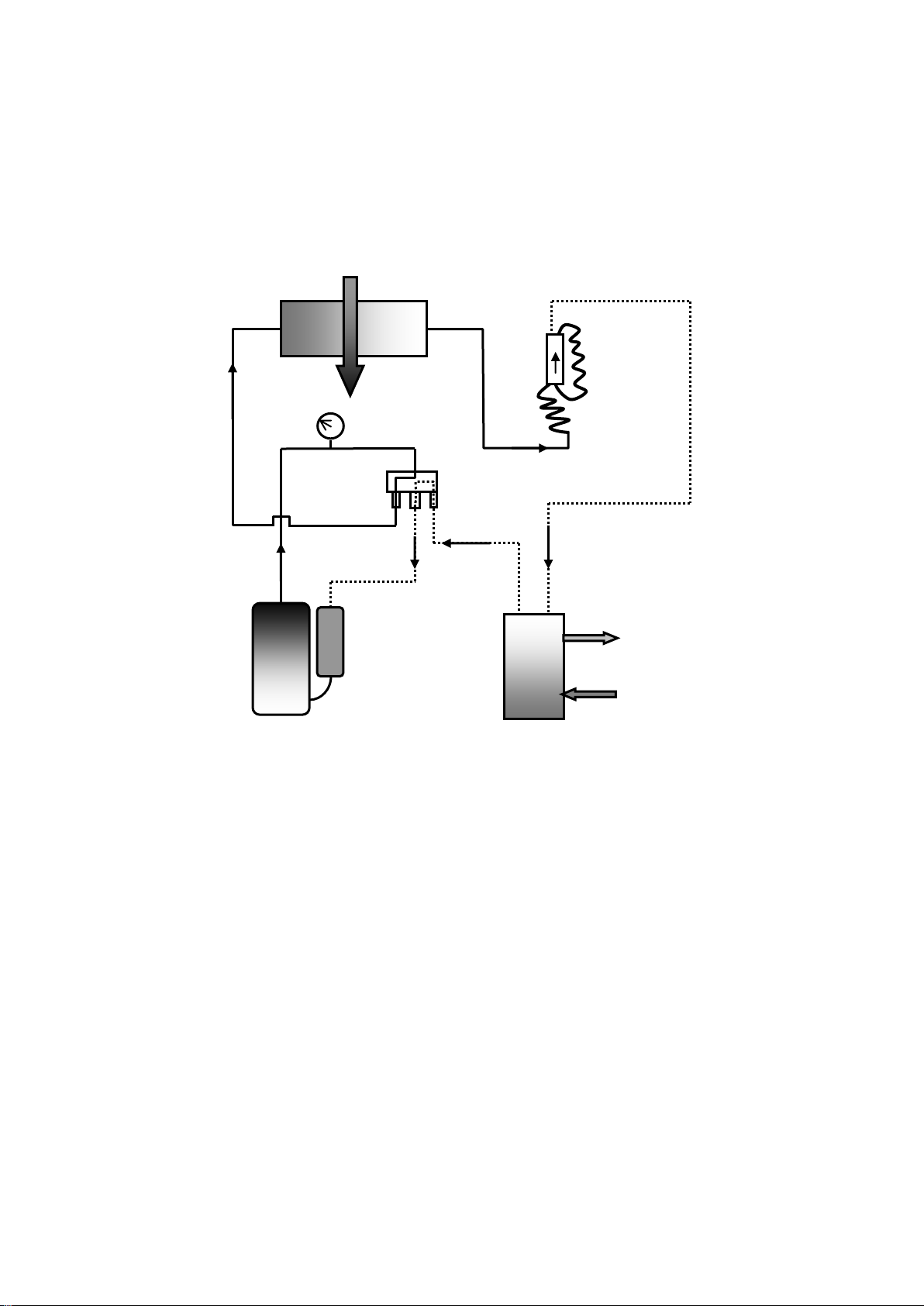

General diagram of the refrigerating circuit
The heat pump is reversible allowing the swimming-pool’s heating or
cooling:
Swimming-pool water’s heating mode:
The cold and liquid refrigerant fluid absorbs the heat contained in the air through the evaporator
(gilled radiator), in which it is vaporizing; it is then put up in pressure and in temperature by the
compressor which sends it in the condenser (exchanger) where it loses its heat (in giving it to the
water of swimming pool) and comes back in liquid state; it loses its pressure and still cools in the
expansion capillaries before turning back to the evaporator for a new cycle.
Hot water
Cold water
Hot air
Cold air
Compressor
Single
way
valve
Condenser
(exchanger)
4 way valve
Pressure and gas
intake
Evaporator
(gilled
radiator)
Expansion
capillary

11
Swimming-pool water’s cooling mode:
The 4 way valve reverses the circulation of the refrigerant fluid; the fluid vaporizes in the
exchanger (evaporator) in getting the heat of the water, goes through in the compressor which
reheats it and through in the gilled radiator (which becomes condenser) where it comes back to
liquid state.
Cold water
Heat water
Cold air
Hot air
Compressor
Evaporator
(exchanger)
4 way
valve
Evaporator
(gilled
radiator)
Pressure and gas
intake
Single
way
valve
Expansion
capillary

12
Safety and control systems
The heat pump is fitted out:
Temperature control:
A temperature sensor of the evaporator, starting the
defrosting operation.
An ambient temperature sensor ensuring the cut of the heat
pump when the temperature of the external air goes down
under -15°C (factory settings). The normal cycle restarts when
the outside temperature goes up to -13°C (factory settings).
A temperature sensor placed on the exchanger, ensuring the cut of
the heat pump when the temperature of the water reaches the
required temperature. The normal cycle restarts when the
temperature in the exchanger goes down to a temperature lower of
3°C (factory settings) than this required.
With 4 safety systems:
A water flow detector placed at the exit of the exchanger
A high pressure gas circuit breaker, a low pressure gas circuit
breaker
An outlet compressor temperature sensor
If a defect occurs on one of these systems (defective system, off-line
or abnormal measured value) a message of defect appears on the
display screen; see the paragraph “Error codes and what to do” of this
note.
Caution: the removal or the shunt of one of the control or safety
systems involves the cancellation of the guarantee.

13
Electric diagram
Y/G
C1
FAN MOTO R C2PCBFM
XT1
RED
WHITE
R
S
C
COMPRESSORCM
CM
C1
BLACK
4
3
NL
LDB-1
C2
FM
OUT5
PCB
CONTROL BOARD
CREEPAGE
EXAMINE
LDB-1
WATER
TEMPERATURE
COPPER
SENSOR
POWER
Y/G
COMPRESSOR
CAPACITOR 1
FAN MOTOR
CAPACITOR 2
COMPRESSOR
TEMPERATURE
/
3
CN3
L ED
TRANSFORMER
AMBIENT
TEMPERATURE
BLACK
WHITE
CN1
CN2 CN4
OUT4OUT3 OUT6 OUT7
4
3
BLUE
BLUE
BLACK
YV
BXT2
YV FOUR WAY
VALVE XT1 TERMINAL
XT2 PUBLIC
TERMINAL
N
L
Y/G
BRO WN
BLUE
YG/
HIGHLOW
PRESSURE
SWITCH
/ WATER
FLOW
SWITCH

14
5- Installation
Rules of installation:

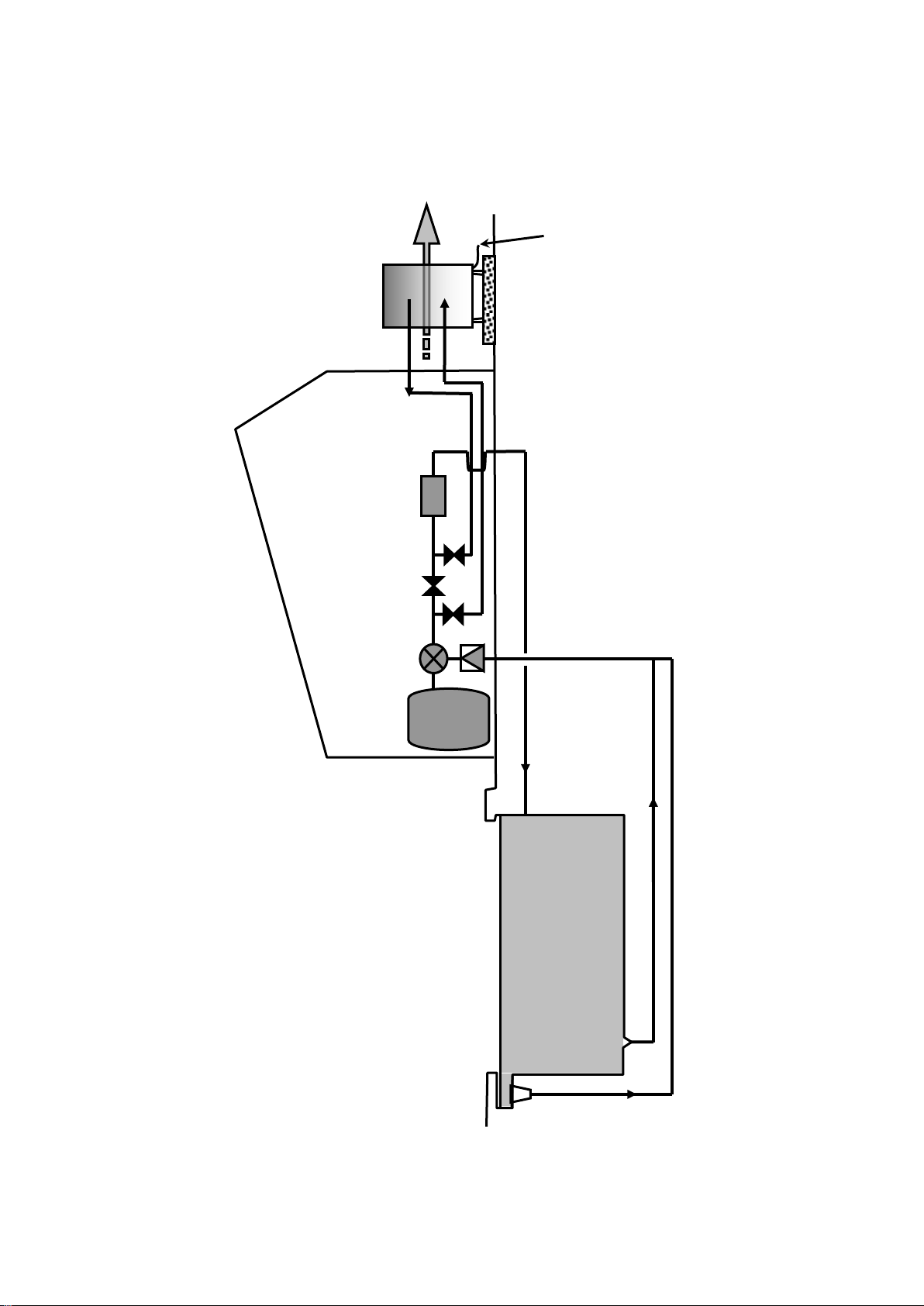

Electric and hydraulic connections must be carried out according to standards
in effect (NF C 15 100, CE I 364).
The machine must be installed outside.
The machine must be posed on its ant vibratory studs, set and lying flat and on a
massive base (concrete slab); this base must have a sufficient height to prevent any
entry of water by the bottom of the machine. Height must be adjusted to fit the
connector collecting the condensates.
The obstacles such as wall and vegetation must be separated from the machine as
indicated on the diagram below.
Exhausting Blowing
side side
Do not to install the Heat pump in a confined place (the fan would recycle its air and
the Heat pump would be down performance).
The fan should not blow towards the windows or crossing point.
Safety distance between the swimming pool and the foot bath: the fitter must
imperatively refer to the standard C15-100 section 702; the machine should not be
installed in volume 1 surrounding the swimming pool but at least in volume 2 so at a
distance of 3 m minimum of the swimming pool and foot bath.
Other precautions of installation:
- Do not to install the machine near a way with circulation of car in order to avoid
mud projections.
- Avoid directing blowing against dominant winds.
- If the machine is intended to be used in winter, put it in a place protected from the
falls of snow.
- The machine must be able to be supervised in order that children do not play
around
2,5 m mini
0,5 m mini
0,3 m mini
0,5 m mini

Swimming-Pool
Technical room
Chemical treatment
Blowing
By-pass
Heat Pump
Drain of the condensates: insert the plastic elbow in the hole of evacuation of the bottom and connect the pipe if need.
Hydraulic connections: To respect imperatively Connection is carried out with a by-pass located on the circuit of filtration, upstream appliances of the chemical treatment of water. Connect intake/outlet water PVC pipes DN50 to the openings of the machine in following the inlet / outlet indications (grease the worms before screwing)
Filter
15

16
Electric connections:
CAUTION: before connecting the machine, make sure that the feeder is
disconnected to the electrical network.
The electric installation must be carried out by an experienced electrician and the
supply must come from a severing equipment and differential protection; the whole
must be carried out according to standards' in force in the country where the
material is installed.
Characteristics of the electric supply:
- 230 V +/- 10%, single-phase current, 50 Hz
- Mode of neutral TT and TN.S; the circuit of heat pump must be connected to an
earth circuit.
Characteristic minimum of the protection:
- Protection must be of 16 A, by circuit breaker or fuse; it must protect the Heat
pump exclusively; the circuit breaker must be specified with curve D, the fuse must
be specified Am.
- Differential protection : 30 mA (the length of cable between the connector block of
the heat pump and the protection of should not exceed 12 m).
Control :
The heat pump is fitted out with a water flow detector which function is to apply
the signal to the electronic card when the water flow is sufficient.
We recommend when it is possible to control the heat pump to the filtration
pump (by contacting relay non supplied to insert in the feeding circuit of the heat
pump).
The remmonded water flow speed is 3.5m³/h.
Removed control panel:
An extension cord allows the removal of the panel in inserting it in a standard
electric box into the technical local; the option is supplied with a cover allowing to
seal the aperture let by the removal of the control panel.

17
Procedure of use
Action
External Appliance
or Button of heat
pump
Display
Heat pump
answer
Put the heat pump
under tension
Engage the circuit
breaker of the heat
pump
Display current water
temperature
Put in circulation
the swimming
pool water into
the pipes
Engage the circuit
breaker of pump of
filtration
Start
Press the button
Start between 1 second
and 3 minutes in the
previous operation mode
(heating or cooling)
Go from heating
mode to cooling
mode or inversely
from cooling to
heating
Press the button
Stop for 3 minutes,
reverse of cycle and
restart in a new mode
Set the water
temperature
into the
swimming pool
,
adjustable from
5°C to 45°C
The heat pump heats
or cools until the
required temperature
Stop
Press the button
Immediate stop
and wait
Switch off
Use the circuit
breaker of pump
of filtration,
and heat pump
Complete stop

18
6- Water Flow and refrigerating circuit pressure
After putting into service, do the settings of pressure of the refrigerant circuit
for having an optimal operating of the heat pump, following:
Stage 1:
Before starting the Heat Pump, ambient
temperature around 20°C, refrigerant meter
shows pressure from 14 to 16kg/cm².
Stage 2:
Close completely the by pass valve and open
large inlet and outlet valves of the Heat
Pump; in these conditions the totality of the
water flow goes by the Heat Pump.
Put into service the Heat Pump in heating mode, wait for the indicated
pressure being stabilized; the correct setting of the pressure is from 21 to 35
kg/cm²;
In most of cases (pump of filtration given a flow until 20m³/h) you do not have
to open the by pass valve.
If the stabilized pressure is under 21kg/cm², the progressive opening of the by
pass valve will allow rising this pressure.
The adjustment of the by pass valve done, you have in principle no reason to
modify it during the season. See the paragraph “Environment problem” too.

2
7- Defrosting
The defrosting is necessary only in heating mode.
Sequences of the defrosting:
1- Start
The defrosting is engaged if the following conditions are at the same time
fulfilled:
- the defrosting sensor temperature goes down to -7°C
- the compressor runs without stopping for 5 minutes
- the compressor had run totally 45 minutes
2- The compressor and the fan stop
3- After 20 seconds, the 4 way valve shifts
4- One minute after its stop, the compressor starts alone and the accumulated
freeze on the gills becomes melting, what is generally with a steam cloud
5- Stop:
The defrosting stops if one of the following conditions is fulfilled:
- the defrosting operates 20 seconds and the detected temperature by the
defrost sensor goes up to 12°C.
- the compressor had run totally 3 minutes
6- The compressor stops
7- After 1 minute the 4 way valve shifts
8- Two minutes after its stop the compressor and the fan start for restarting
in heating mode.
8 –Environment problem
Under certain external conditions the heat exchanges between the refrigerant and
the water on one hand and between the fluid and the air on the other hand are
insufficient; the consequence is that the refrigerating circuit runs up in pressure
and the compressor consumes more electricity.
The temperature sensors compressor outlet and the magnetic circuit breaker
on the compressor power supply protect the compressor from these extreme
conditions; the error messages EE 6 occur.
The condition causing this situation is as follows:
In heating mode:
- insufficient water flow:
close the by-pass valve for increasing the refrigerant exchange water
In cooling mode:
- too important water flow: open the by pass valve for decreasing the water flow
and so the exchange water refrigerant
- insufficient air flow: be sure that the real net of condenser are not blocked.
Note: these error codes are likely to occur if temperature of swimming pool water is
high and the ambient air is hot.
19

20
9 –Error codes and what to do:
This table explains the error codes caused by a defective
regulating component or by a security operation.
Screen and state
of the heat water
pump
Component
Possible
Intervention
Second reason if
the
intervention is
without effect
EE 1
Compressor and fan
stop
Water temperature
sensor
Sensor disconnected,
non supplied or
defective
Check the connections, the wires,
change it or replace the electronic card
EE 2
Compressor and fan
stop
Ambient air
temperature
sensor
Sensor disconnected,
non supplied or
defective
Check the connections, the wires,
change it or replace the electronic card
EE 3
The heat pump
continues running
Oultlet
compressor
temperature
sensor
Sensor disconnected,
non supplied or
defective
Check the connections, the wires,
change it or replace the electronic card
EE 4
The heat pump
continues running
Defrost sensor
The defrosting is
incomplete and the
automatism decides
to stop the heat pump
Increase lightly the water flow going into
the heat pump; the effect is to increase
the temperature of the refrigerant in the
evaporator.
EE 6
Compressor and fan
stop
Oultlet
compressor
temperature
sensor
Outlet compressor
temperature detected
up to 105°C more
than 3 times in 24h
Environment problem
Refrigerant leakage
Capillary is half blocked
EE 7
Compressor and fan
stop
Magnetic circuit
breaker
Electric current leak
from the compressor,
the fan or an
electrical valve;
electric safety system
of the heat pump
Switch off the current and call an
electrician for repairing or replacing the
defective component
EE8
Wire control
Communication
error
Signal cable of wire
Control is loose
Check the connection of signal cable
EE 9
High pressure,
Low pressure
protection
protector is
disconnected, or
defective
Water temperature is too high
Ambient temperature is too high
Capillary is blocked
Call a refrigerating engineer who will do
the necessary controls of the circuit
pressure
EE b
Flow switch
Flow switch
disconnected, non
supplied or defective
Check the connections, the wires,
change it or replace the electronic card
EE C
Ambient
temperature
sensor
Ambient temperature
low than minimum
temperature
