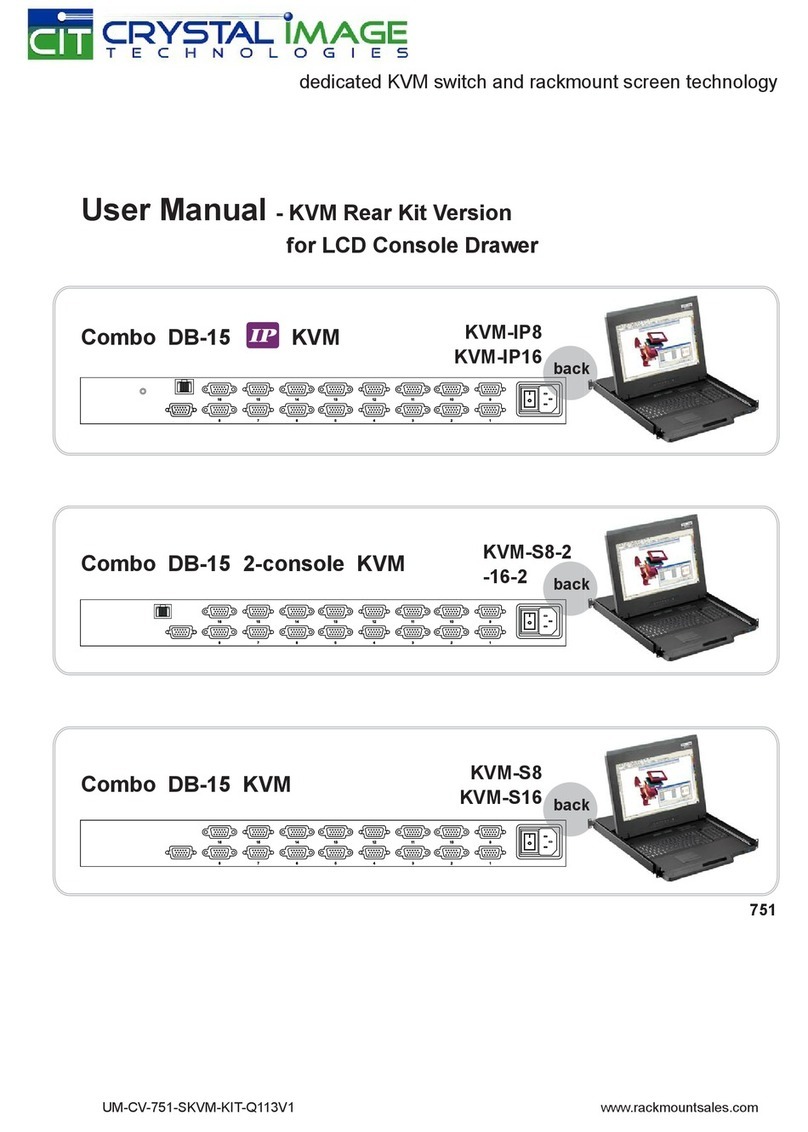

Crystal Image RM-116-1U User manual

UM-CV-751-116-Q113V1 www.rackmountsales.com
User Manual
1U LCD Console Drawer
RM-116-1U
Options :
- AV / DVI-D / HDMI / Audio
- Full Range KVM
- DC power
dedicated KVM switch and rackmount screen technology
20” 1600 x 1200 LCD
751

UM-CV-751-116-Q113V1 www.rackmountsales.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-CV-751--Q113V1 www.UDFNPRXQWVDOes.com
< Part. 3 > Options
3.1 HDMI, DVI-D, S-Video + BNC & Audio
3.2 48V, 24V or 12VDC power
P. 11
P.12
< Part. 2 > Specifi cations / OSD
2.1 Product Specifications
2.2 Keyboard / Mouse Specifications
2.3 On-screen Display Operation ( OSD )
P.6 - 7
P.8
P.9 - 10
< Part. 1 > RM-116-1U
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
1.4 Connection
Contents
P. 1
P.1 - 2
P.3 - 4
P. 5

Matrix
DB-15 KVM
Local Remote 8-port 16-port 32-port
111 -MIP813 -MIP1613 -
112 -MIP824 -MIP1624 -
110 -M802 -M1602 -
120 -M803 -M1603 -
1 3 0 -M804 -M1604 -
www.rackmountsales.com/v/pdf/citummkvm.pdf
Matrix
Cat6 KVM
Local Remote 8-port 16-port 32-port
111 - Cat5M-IP116-3 Cat5M-IP132-3
112 - Cat5M-IP216-4 Cat5M-IP232-4
110 - Cat5M-16-2 Cat5M-32-2
120 - Cat5M-16-3 Cat5M-32-3
1 3 0 - Cat5M-16-4 Cat5M-32-4
www.rackmountsales.com/v/pdf/citumcat5m.pdf
PS/2
DB-15 KVM
Local Remote 8-port - -
1 0 0 -801 - -
www.rackmountsales.com/v/pdf/citumps2kvm.pdf
DVI-D
KVM
Local Remote 12-port - -
1 0 0 -DVI1201 - -
www.rackmountsales.com/v/pdf/citumdvikvm.pdf
< Part. 4 > KVM Integration
Contents
Combo
Cat6 KVM
Local Remote 8-port 16-port 32-port
111 Cat5-IP08 Cat5-IP16 Cat5-IP32
110 Cat5-08-2 Cat5-16-2 Cat5-32-2
1 0 0 Cat5-08 Cat5-16 Cat5-32
www.rackmountsales.com/v/pdf/citumcat5.pdf
Combo
DB-15 KVM
Local Remote 8-port 16-port 32-port
101 -IP801-IP1601-
110 -802 -1602 -
1 0 0 -801 -1601 -
www.rackmountsales.com/v/pdf/citumkvm.pdf

UM-CV-751-116-Q113V1 www.rackmountsales.com
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfiber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfi ber cloth fi rst, not directly on the parts you are cleaning.
3
4

UM-CV-751-116-Q113V1 www.rackmountsales.com
1
3
Carry handle to release the 2-pt lock
LCD interchangeable module kit
Installation Slides
LCD membrane
1
2
3
5
6
7
7
Membrane switch (KVM option)
Keyboard interchangeable module kit
Mouse interchangeable module kit
4
4
6
5
RM-116-1U unit X 1
- CE-6 6ft Combo KVM cable X 1
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the single console models.
It varies with options such as KVM, HDMI, DVI-D, AV, audio & DC power.
< 1.1 > Package Content
P. 1
< Part 1 >
< 1.2 > Structure Diagram
2

UM-CV-751-116-Q113V1 www.rackmountsales.com
< 1.2 > Dimension
The weight is only for the single console models. It varies with accessories & options
such as KVM, HDMI, DVI-D, AV, audio & DC power.
P. 2
Front View
Side View UNIT : mm
1mm = 0.03937 inch
Top View
Model Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
RM-116-1U 439.6 x 650 x 44 mm
17.3 x 25.6 x 1.73"
595 x 860 x 140 mm
23.4 x 33.9 x 5.5”
14.5 kg
32 lb
22 kg
48 lb

UM-CV-751-116-Q113V1 www.rackmountsales.com
■Tighten all 8 pcs of M6 screw to complete the
installation.
Complete the installation
Step 4
< 1.3 > Installation - How to install 1U 20" LCD Tray RM-116-1U
P. 3
Left bracket
■Attach the left and right mounting bracket to
rack 19" mounting rails.
■Adjust the mounting bracket to fit your rack.
■M6 screw x 8 pcs included.
Step 1
Right bracket
Front side
Rear side
Leave all M6 screws slightly loose, until
you complete the installation in step 3
Step 2
■Pick up the LCD tray.
■Insert the LCD tray into the mounting bracket.
■Pull and hold the left & right black arrow buttons
on the rails.
■Return the LCD tray to park position.
Mounting bracket
Black arrow button
■Fix the rear kit to the mounting bracket with M3.2
screw x 4 pcs included.
Step 3
This step is necessary. Failure to complete this
will cause damage.
Front side
Rear kit
M3.2 screw
M6 screw

UM-CV-116-Q113V1 www.rackmountsales.com
■Operate the LCD console drawer.
■Flip up the LCD to a suitable angle.
■Press the handle button and slide out the
drawer.
P. 4
< 1.3 > Installation- How to use the drawer

UM-CV-751-116-Q113V1 www.rackmounsales.com
RM-116-1U
P. 5
KVM
Combo
KVM cable
KVM
PS/2 server USB server
Combo
KVM cable
LCD console drawer LCD console drawer
< 1.4 > Connection to PS/2 or USB Server
< 1.4 > Connection to external KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
Combo
KVM cable
Combo
KVM cable
PS/2 console KVM
LCD console drawer LCD console drawer
USB console KVM
KVM KVM

UM-CV-751-L120-Q113V1 www.rackmountsales.com
Video
Connectivity
Digital HDMI HDMI 1.1, CEA-861-D
DVI DVI-D, TMDS single link
Analog VGA Analog 0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio
Connectivity
Audio Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ/ 750mV
Audio Output Connector 3.5mm stereo jack
Resistance / Power level 30kΩ/ 2.8V
Speaker Output Power 2 x 2W
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption Screen display ON 48W or less
Power saving mode 4W or less
Power button OFF 1W or less
Regulatory Safety Approval FCC & CE
LCD
Panel
Manufacturer
Panel Size ( diagonal ) 20-inch TFT color LCD
Display pixel ( dots x lines ) 1600 x 1200
Brightness ( typ. ) 300
Contrast Ratio ( typ. ) 800:1
Color 16.7 M
Viewing Angle ( L/R/U/D ) 89/89/89/89
Response Time ( ms ) 16
Dot pitch ( mm ) 0.255
Display Area ( mm ) 408.00H x 306.00V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight Type CCFL
MTBF ( hrs ) 45,000
< 2.1 > Product Specifi cations
P. 6
< Part 2 >

UM-CV-751-116-Q113V1 www.rackmountsales.com
Applicable
Format
VGA Input PC Signal 1600 x 1200 x 60Hz
1400 x 1050 x 60Hz
1440 x 900 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Physical
Specifi cation
Product ( W x D x H ) 439.5 x 650 x 44 mm
17.3 x 25.6 x 1.73 inch
Packing ( W x D x H ) 595 x 860 x 140 mm
23.4 x 33.9 x 5.5 inch
Net Weight 14.5 kgs / 32 lbs
Gross Weight 22 kgs / 48 lbs
RM-116-1U
P. 7
Environmental
Conditions
Operating Temperature 0 to 50°C degree
Humidity 20~90%, non-condensing
Storage Temperature -5 to û°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random

UM-CV-751-116-Q113V1 www.rackmountsales.com
< 2.2 > Keyboard / Mouse Specifi cations
keyboard integrated with touchpad
P. 8
Supporting layouts
America
United States
EMEA
United Kingdom Germany France Spain Norway
Italy Russia Switzerland Netherlands Portugal
Asia
China Japan Korea Arabia Turkey
Key force 55 ± 5g
Travelling distance 3 ± 0.3mm
Switch life > 10 million life cycle time
Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux / Mac
tp

UM-CV-751--Q113V1 www.UDFNPRXQWVDOes.com
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Scroll through menu options and adjust
the displayed control
Display the OSD menu
Act as an Enter key to select screen setting options
Turn the monitor on or off
Membrane Switch Function
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will flash continuously when there is no signal input.
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
1
2
< 2.3 > On-screen Display Operation ( OSD ) RM-116-1U
P. 9

UM-CV-751--Q113V1 www.UDFNPRXQWVDOes.com
< 2.3 > On-screen Display Operation ( OSD )
P.10
OSD Confi guration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer

UM-CV-751-116-Q113V1 www.rackmountsales.com
< 3.1 > Options :
< Part 3 >
- AV
- DVI-D
- HDMI
- Audio
( HDMI 1.1, CEA-861-D )
( DVI-D TMDS single link )
( S-Video + Composite, BNC )
( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
For AD2.2 upgrade, either HDMI or DVI-D is provided.
P. 11
Audio
Power
KVM
DVI-DHDMI
S-Video BNC
in - in - out
PC Video

UM-CV-751-116-Q113V1 www.rackmountsales.com
DC power
KVM
Option excludes 1 x power cord and 1 x AC power adapter
***
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Effi ciency 84% 85% 85%
< 3.2 > Options : DC Power
P.12

UM-CV-751-116-Q113V1 www.rackmountsales.com
The company reserves the right to modify product specifications without prior notice and assumes no responsibility
for any error which may appear in this publication.
