Crystal Image Cat5M-IP116-3 User manual

dedicated KVM switch and rackmount screen technology
back
back
User Manual - KVM Rear Kit Version
for LCD Console Drawer
Matrix Cat6 KVM
Matrix Cat6 KVM -Cat5M16-2 / 16-3 / 16-4
-Cat5M32-2 / 32-3 / 32-4
Cat5M-IP116-3/216-4
Cat5M-IP132-3/232-4
751

UM-CV-751-KVM-KIT-Q113V1 www.rackmountsales.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-CV-751-MKVM-KIT-Q113V1 www.rackmountsales.com
Cat5M-16-2 Cat5M-16-3 Cat5M-16-4
Cat5M-32- Cat5M-32-3 Cat5M-32-4
2.1 Package contents
2.2 KVM port & Cat6 dongle connection
2.3 Remote console connection
2.4 KVM Cascade
2.5 Specifications
3.1 KVM Button
3.2 Password
3.3 KVM OSD
3.4 KVM Hotkey / Remote Console Hotkey
Contents
< Part 1 > Matrix Cat6 KVM Kit
Cat5M-IP116-3 Cat5M-IP216-4
Cat5M-IP132-3 Cat5M-IP232-4
1.1 Package contents
1.2 KVM port & Cat6 dongle connection
1.3 IP & Remote console connection
1.4 IP console setting
1.5 KVM Cascade
1.6 Specifications
< Part 2 > Matrix Cat6 KVM Kit
P. 1
P.2 - 3
P.4 - 5
P. 6
P. 7
P. 8
P.9 - 10
P.14
P.15 - 16
P.17
P.18
P.19
P.20
P.21
P.22
< Part 3 > Usage

UM-CV-751-KVM-KIT-Q113V1 www.rackmountsales.com
-Cat5M-IP116-3
-Cat5M-32-2
< 1.1 > Package Contents
Cascade
-Cat5M-IP216-4
1Power
Remote Console 1
1
Remote Console 1
2
Power
• Receiver box for remote console x 1
• Power adapter w/ power cord ( for receiver ) x 1
• CE-6 6ft Combo KVM cable for receiver box x 1
back
KVM Rear Kit
-Cat5M-IP216-3 / -Cat5M-IP232-3
-Cat5M-IP216-4 / -Cat5MI-P232-4
-Cat5M-32-4
Cascade
Matrix Cat6 IP KVM
< Part 1 > Matrix Cat6 KVM
P. 1

UM-CV-751-KVM-KIT-Q113V1 www.rackmountsales.com
Cat6 KVM port
USB Servers
PS/2 Servers
VGA-PS/2 dongle
DVI-USB dongle
USB Servers
USB
DVI-D
VGA-USB dongle
USB
VGA
PS/2
VGA CAT 5 / 6 cable
max. 40 meters
CAT 5 / 6 cable
max. 40 meters
Matrix Cat6 IP KVM
Cat5 Dongle PS/2
■To connect DB-15 connector to the computer’s video card
■To connect PS/2 keyboard connector to the computer’s keyboard port
■To connect PS/2 mouse connector to the computer’s mouse port
Cat5 Dongle USB
■To connect DB-15 connector to the computer’s video card
■To connect USB connector to the computer’s USB port
Cat5 Dongle USB/DVI
■To connect DVI-D connector to the computer’s video card
■To connect USB connector to the computer’s USB port
< 1.2 > KVM port & Cat6 dongle connection
P. 3
Drawer KVM Rear Kit

I
n
t
e
r
n
e
t
Remote
USB console
Remote
Cat6
Console 1
CAT 5 / 6 cable
max. 100m
Network device
hub or router
Network device
hub or router
Receiver
CAT 5 / 6 cable
max. 100m
CAT 5 / 6 cable
max. 150m
2
1
I
n
t
e
r
n
e
t
P. 4
< 1.3 > IP & Remote console connection
Drawer KVM Rear Kit
Matrix Cat6 IP KVM

How to use a receiver to connect a remote console
Receiver
K/B Mouse Local Remote
Local
Computer Monitor
Power
USB
Remote I/O
Monitor
CE-6
Combo
KVM cable Cat6 cable
up to 150m
12V DC Power
Adapter
Local computer
( Optional setup )
VGA
cable
Remote
Console
Button
to
PC
Button
to
KVM switch
P. 5
Matrix Cat6 IP KVM
The receiver provides a hotkey function for remote console. Please refer to P.20
Drawer KVM Rear Kit
Front
Rear
Front
Rear

UM-CV-751-KVM-KIT-Q113V1 www.UDFNPRXQWVDOes.com
After the cable connection, please take the following steps to configure the IP KVM :
1. Download from the link:
www.rackmountsales.com/v/pdf/citumipkvm.pdf
2. Refer to page 3 to configure the IP KVM by device setup as below.
< 1.4 > IP console setting
- http://192.168.1.22
- http://192.168.1.22 (for 1st IP)
http://192.168.1.23 (for 2nd IP)
11. Open Internet Explorer ( I.E. ), version 6.0 or above
12. Enter the IP KVM address into the address bar
- For Single IP - http://192.168.1.22
- For Dual IP - http://192.168.1.22 ( for 1st IP )
http://192.168.1.23 ( for 2nd IP )
13. Enter username ( default is super )
Password ( default is pass )
14. After successful login to IP KVM, the user will enter the main page of IP KVM
The setting is enough for intranet.
If the users access KVM GUI via internet, please ask MIS for assistance and
download IP KVM user manual from the link :
www.rackmountsales.com/v/pdf/citumipkvm.pdf
3. Click Refresh Device to search the connected IP KVM
4. Select the M.A.C. address, which you want to setup, then click Query Device
5. Enter Super user login. The default is super
6. Enter Super user password. The default is pass
7. Enter the new super user password
8. Re-enter the new password
9. Change the desired IP address / Subnet mask / Gateway, then click Setup Device to confirm the setting to IP KVM
10. The default address is as below:--
■The single IP KVM model, such as MU-IP3213
■The dual IP KVM model, such as MU-IP3224
P. 6
Matrix Cat6 IP KVM

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
Cascade
< 1.5 > KVM Cascade Matrix Cat6 IP KVM
■Cascade up to 8 levels, 256 servers
■Cascading multiple KVM with CMC-8 cascade cable.
Cascaded KVMs from level 2 to 8 must be the models of Cat5M-16 / Cat5M-32 or M-802 / M-1602.
When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other
slave KVM switches (e.g. level 2 to 8).
The slave matrix KVM will be as a port expansion module of the master matrix KVM, the original
remote console on slave KVM will be sacrificed and disabled.
P. 7
Cat5M-16-2
Cat5M-16-2
Cat5M-16-2
Cat5M-16-2
Cat5M-32-2
CatM-32-2
Cat5M-32-2
Master KVM
Slave KVM
level 2
Slave KVM
level 8
Slave KVM
level 7
Slave KVM
level 6
Slave KVM
level 5
Slave KVM
level 4
Slave KVM
level 3
To cascade IN port
Drawer KVM Rear Kit
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
KVM-Matrix-8
■8ft Matrix KVM cascade cable

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
< 1.7 > Specifications
-Cat5M-IP216-3 -Cat5M-IP216-4
-Cat5M-IP232-3 -Cat5M-IP232-4
▀KVM Port
Number of ports: 16 or 32
Connector: RJ-45
Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via
Cat6 / Cat5 cable
▀Local Console Nil for LCD console drawer version
▀Cat6 Remote Console
Number of remote port: 1
Monitor port: DB15-pin VGA, up to 1600 x 1200
Keyboard & mouse port: 2 x USB type connector for keyboard & mouse
Remote I/O: RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet
▀IP Remote Console
Number of IP console: 1 for Cat5M-IP116-13 / Cat5M-IP132-3
2 for Cat5M-IP216-4 / Cat5M-IP232-4
User management: 15-user login, 1 x active user
Browser: Internet Explorer, Firefox, Safari
Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR
IP Access: RJ45 Ethernet per IP console
▀Expansion: Up to 256 servers by 8-level cascade
▀Compatibility
Multi-platform: Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support: Windows 7 / Vista / 2003 / XP, Linux, Unix
▀Power
Input: AC power adapter
Consumption: Max. 48 Watt, Standby 5 Watt
▀Regulatory Approval: FCC, CE
▀Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58~100Hz / 0.98G (11ms / cycle)
P. 8
Matrix Cat6 IP KVM

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
P. 9

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
Matrix Cat6 KVM
< 2.1 > Package Contents
P.10
< Part 2 > Matrix Cat6 KVM
• Receiver box for remote console x 1
• Power adapter w/ power cord ( for receiver ) x 1
• CE-6 6ft Combo KVM cable for receiver box x 1
back
KVM Rear Kit
-Cat5M-16-2 / -Cat5M-32-2
• Receiver box for remote console x 2
• Power adapter w/ power cord ( for receiver ) x 2
• CE-6 6ft Combo KVM cable for receiver box x 2
back
KVM Rear Kit
-Cat5M-16-3 / -Cat5M-32-3
• Receiver box for remote console x 3
• Power adapter w/ power cord ( for receiver ) x 3
• CE-6 6ft Combo KVM cable for receiver box x 3
back
KVM Rear Kit
-Cat5M-16-4 / -Cat5M-32-4

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
P. 11
Matrix Cat6 KVM
-Cat5M-16-2
-Cat5M-32-2
-Cat5M-16-3

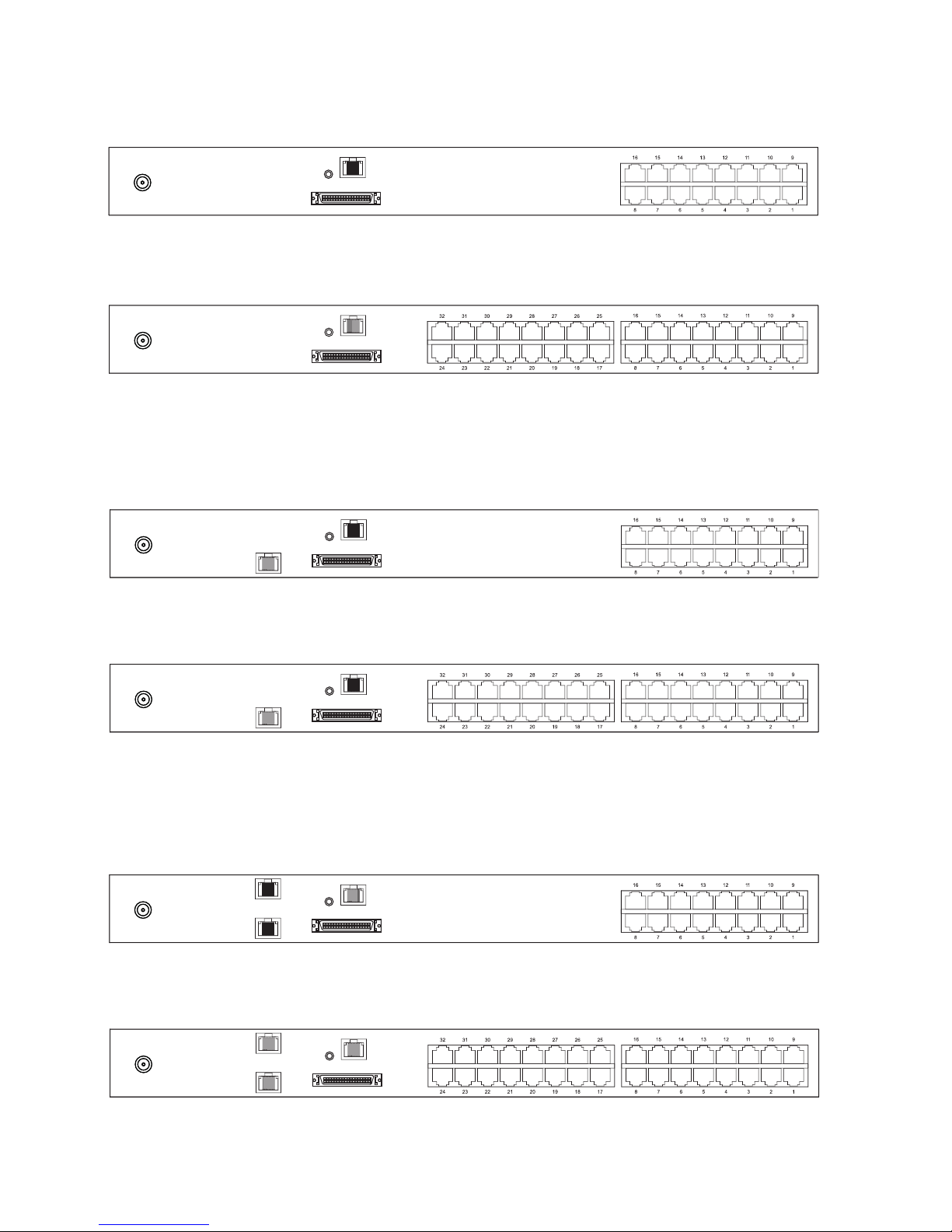

-Cat5M-32-3
Power
Remote Console 1
Cascade
Remote Console 1
Remote-2
-Cat5M-16-4
-Cat5M-32-4
Remote Console 1
Remote-2
Remote-3
CascadePower
CascadePower

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
Cat6 KVM port
USB Servers
PS/2 Servers
VGA-PS/2 dongle
DVI-USB dongle
USB Servers
USB
DVI-D
VGA-USB dongle
USB
VGA
PS/2
VGA CAT 5 / 6 cable
max. 40 meters
CAT 5 / 6 cable
max. 40 meters
Cat5 Dongle PS/2
■To connect DB-15 connector to the computer’s video card
■To connect PS/2 keyboard connector to the computer’s keyboard port
■To connect PS/2 mouse connector to the computer’s mouse port
Cat5 Dongle USB
■To connect DB-15 connector to the computer’s video card
■To connect USB connector to the computer’s USB port
Cat5 Dongle USB/DVI
■To connect DVI-D connector to the computer’s video card
■To connect USB connector to the computer’s USB port
< 2.2 > KVM port & Cat6 dongle connection
P.12
Drawer KVM Rear Kit
Matrix Cat6 KVM

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
Remote
USB console 1
Remote
USB console 2
Remote
Cat6
Console 1
Remote
Cat6
Console 3
Remote
USB console 3
Remote
Cat6
Console 2
CAT 5 / 6 cable
max. 150m
Receiver
Receiver
Receiver
CAT 5 / 6 cable
max. 150m
CAT 5 / 6 cable
max. 150m
Matrix Cat6 KVM
P.13
< 2.3 > Local console & remote console connection
Drawer KVM Rear Kit

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
How to use a receiver to connect a remote console
Receiver
K/B Mouse Local Remote
Local
Computer Monitor
Power
USB
Remote I/O
Monitor
Combo
KVM cable
Cat6 cable
up to 150m
12V DC Power
Adapter
Local computer
( Optional setup )
Remote
Console
Button
to
PC
Button
to
KVM switch
P.14
The receiver provides a hotkey function for remote console. Please refer to P.20
Drawer KVM Rear Kit
Matrix Cat6 KVM
Front
Rear
Front
Rear

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
Cascade
KVM-COMBO-8
■8ft Matrix KVM cascade cable
Cat5M-16-2
Cat5M-16-2
Cat5M-16-2
Cat5M-16-2
CatM-32-2
Cat5M-32-2
Cat5M-32-2
Master KVM
Slave KVM
level 2
Slave KVM
level 8
Slave KVM
level 7
Slave KVM
level 6
Slave KVM
level 5
Slave KVM
level 4
Slave KVM
level 3
To cascade IN port
Drawer KVM Rear Kit
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
P.15
■Cascade up to 8 levels, 256 servers
■Cascading multiple KVM with CMC-8 cascade cable.
< 2.4 > KVM Cascade
Cascaded KVMs from level 2 to 8 must be the models of Cat5M-16-2 / Cat5M-32-2 or M-802 / M-1602.
When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other
slave KVM switches (e.g. level 2 to 8).
The slave matrix KVM will be as a port expansion module of the master matrix KVM, the original
remote console on slave KVM will be sacrificed and disabled.
Matrix Cat6 KVM

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
P.16
< 2.5 > Specifications
-Cat5M-16-2 -Cat5M-16-3 -Cat5M-16-4
-Cat5M-32-2 -Cat5M-32-3 -Cat5M-32-4
▀KVM Port
Number of ports: 16 or 32
Connector: RJ-45
Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via
Cat6 / Cat5 cable
▀Local Console Nil for LCD console drawer version
▀Cat6 Remote Console
Number of remote port: 1 for Cat5M-16-2 / Cat5M-32-2
2 for Cat5M-16-3 / Cat5M-32-3
3 for Cat5M-16-4 / Cat5M-32-4
Monitor port: DB15-pin VGA, up to 1600 x 1200
Keyboard & mouse port: 2 x USB type connector for keyboard & mouse
Remote I/O: RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet
▀Expansion: Up to 256 servers by 8-level cascade
▀Compatibility
Multi-platform: Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support: Windows 7 / Vista / 2003 / XP, Linux, Unix
▀Power
Input: AC power adapter
Consumption: Max. 48 Watt, Standby 5 Watt
▀Regulatory Approval: FCC, CE
▀Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58~100Hz / 0.98G (11ms / cycle)
Matrix Cat6 KVM

UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com
Bank no. 7-Segment BANK LED indication
PC port LEDs Online : Blue LED on indicating a PC is connecting to the port
Active : Green LED on indicating a selected channel
Remote : Orange LED on indicating the port is selecting by IP / remote console
Channel button Press to select channel from 01 to 32
Bank button Select the bank from 1 to 8
Power ON
■Turn off all servers and KVM switches
■Make sure all cables / connectors are properly connected
■Recommend Power ON sequence is monitor, KVM switch finally computer
Front Panel - Port LED Indications
Channel
button
16 ports
32 ports
3.1 KVM Button
Part 3. Usage
Bank no. PC port LEDs Bank
button
Front Panel - Port LED Indications
P.17
Matrix Cat6 KVM Usage
