Cub Cadet 28HP Tank 53AB5JEX750 Setup guide

1
Hydrostatic Zero-Turn
Commercial Riding Mower
Professional Turf Equipment
ILLUSTRATED PARTS LIST
60” & 72” Fabricated Deck
InDirect Injection Diesel

2
TABLE OF CONTENTS
60" Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
72" Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
60" Fabricated Cutter Deck. . . . . . . . . . . . . . . . . . . . . 6 and 7
60" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 8 and 9
72" Fabricated Cutter Deck. . . . . . . . . . . . . . . . . . . 10 and 11
72" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . 12 and 13
Hydro Hose and Pump Assembly. . . . . . . . . . . . . .14 and 15
Fuel Tank Assembly . . . . . . . . . . . . . . . . . . . . . . . . 16 and 17

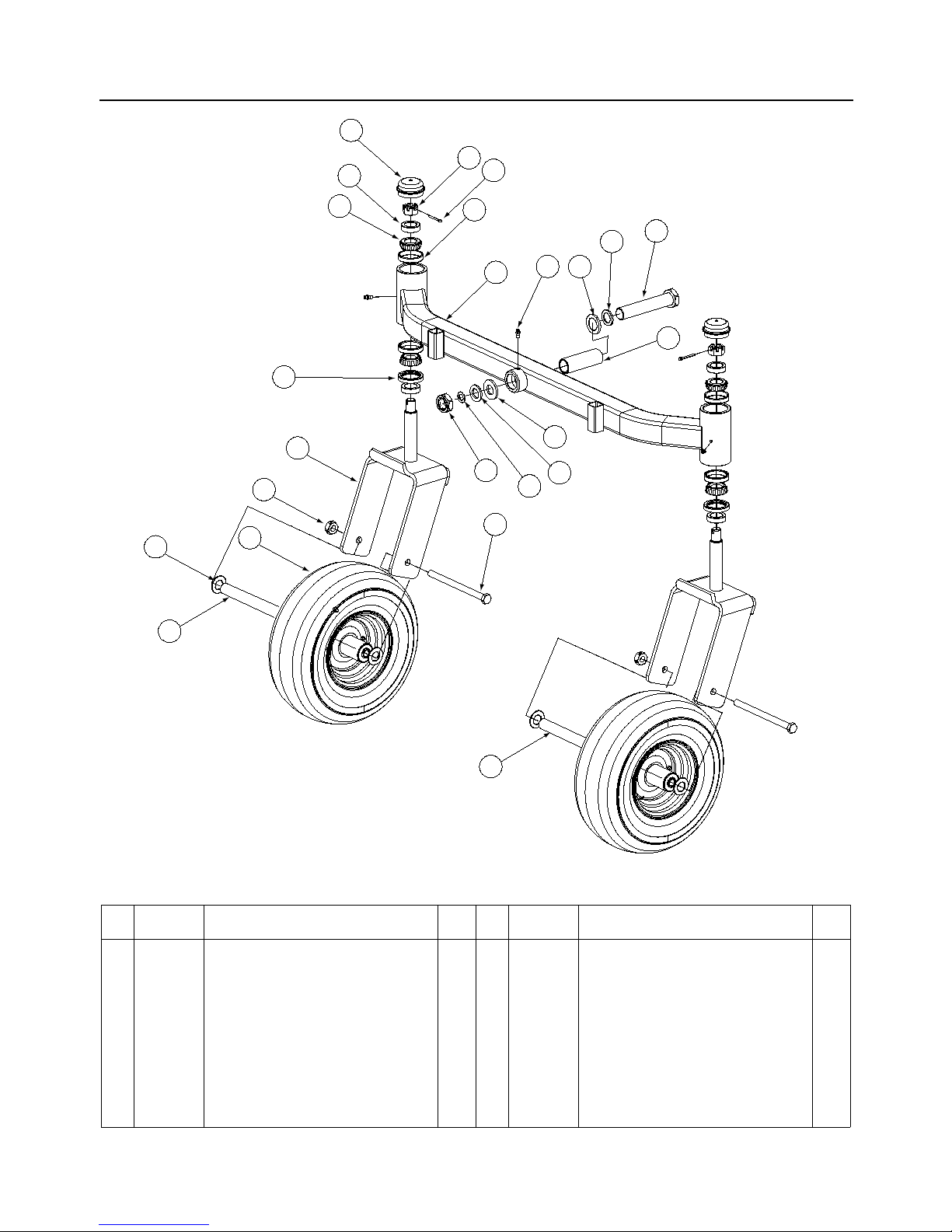

60" Front Caster Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 18
72" Front Caster Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 19

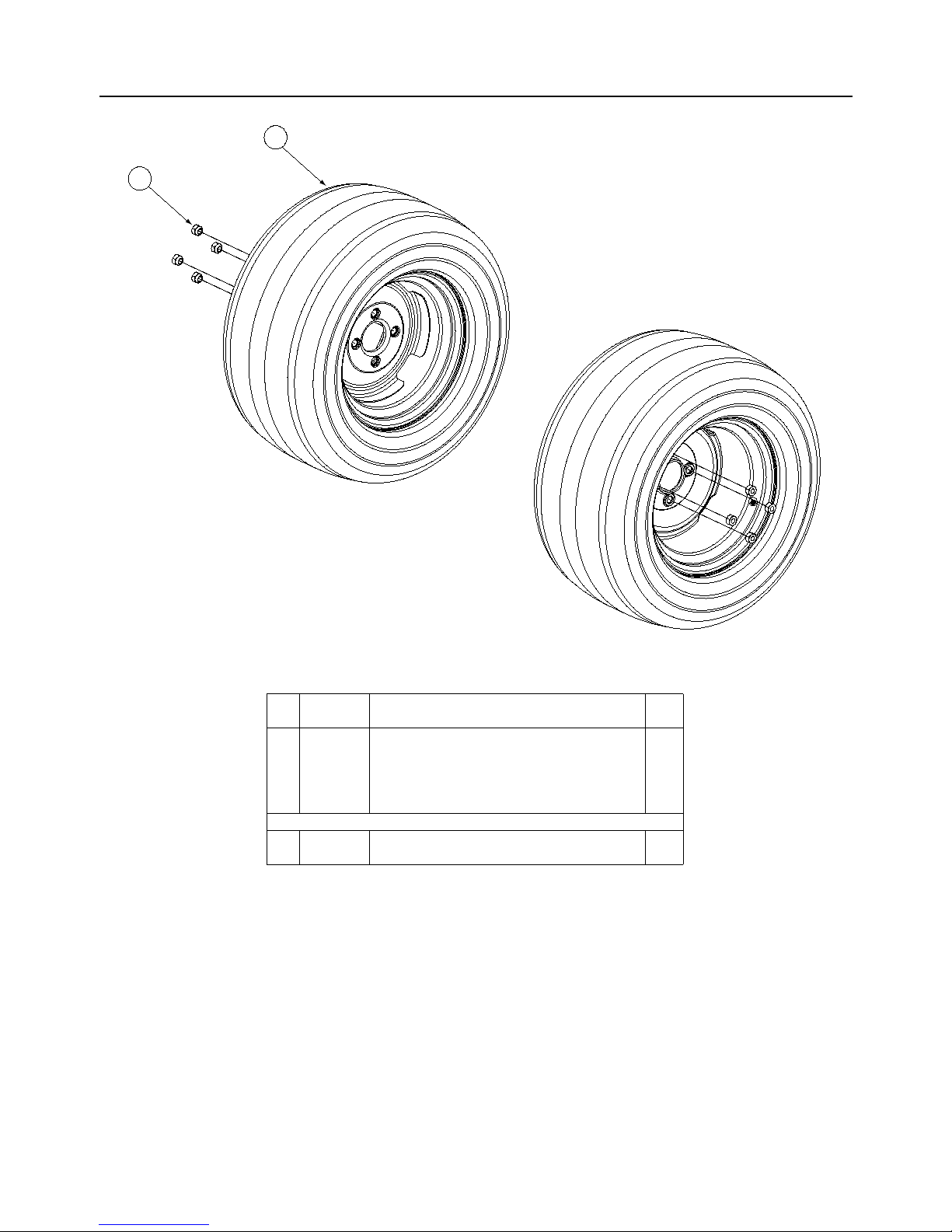

Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Floor Panel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Control Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 22 and 23
Radiator Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 24 and 25
28.2 HP Caterpillar Engine Assembly . . . . . . . . . . 26 and 27
Electrical Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Seat Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
60" Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 30 and 31
72" Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 32 and 33
Foot Pedal Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
MODELS LISTED IN THIS MANUAL
28HP Tank, 28HP Tank,
53AB5JEX750 53AB5JEZ750

3

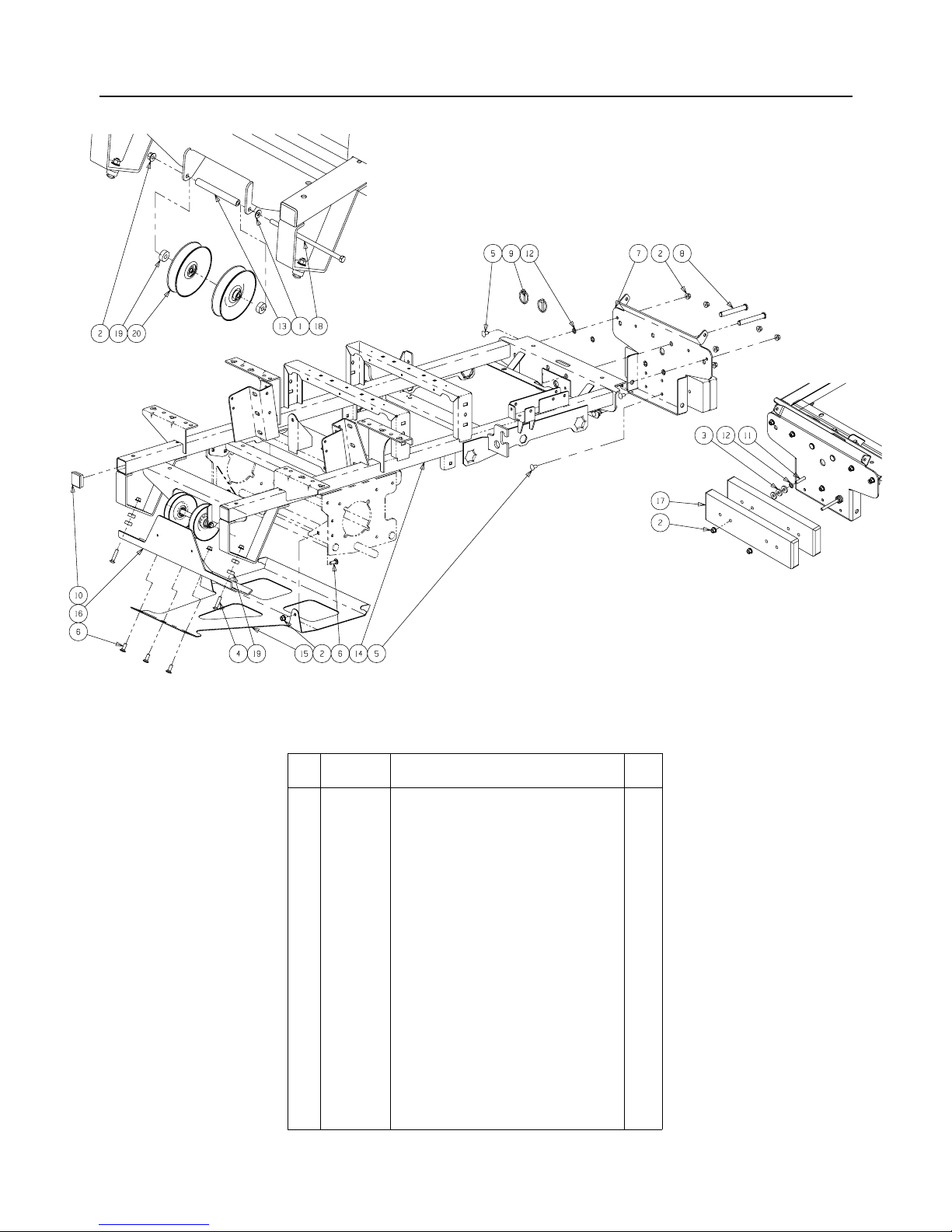

60" Frame Assembly- Figure 1 and Parts List
Ref.
No. Part No. Description Qty.
100012158 Flat Washer, 3/8 1
200022560 Hex Nut, 3/8-16 Flange Lock 15
300083192 Idler Washer 6
401000364 Hex Carriage Screw, 3/8-16, 1.75 2
501000372 Carriage Bolt, 3/8-16 x .75 Long 5
601000643 Carriage Bolt, 3/8-16 x 1 5
701001713 Bracket Assembly, Frame, Front 1
801003282 Clevis Pin, .625 Dia x 4.375 Long 2
901003993 Linch Pin, 3/16 Dia. 2
10 01005160 Plug, Square Tube 2
11 01008049 Carriage Bolt, 3/8-16 x 4.0 2
12 01008225 Push Retainer, 3/8"-Thread Stud 6
13 01009604 Spacer, .385 ID x .625 OD x 4.89 1
14 02001012 Frame Assembly 1
15 02002282 Skid Plate 1
16 02002281 Guard Bracket 1
17 02002426 Bar Weight 2
18 710-3248 Hex Head Cap Screw, 3/8-16 x 8.50 1
19 750-3119 Spacer .406 ID x 1.0 OD 6
20 756-3045 Idler Pulley, 5.06 Dia. 2
GD: 02001001-04/11/06

4
72" Frame Assembly- Figure 2 and Parts List
Ref.
No. Part No. Description Qty.
100012158 Flat Washer, 3/8 1
200022560 Hex Nut, 3/8-16 Flange Lock 15
301000364 Hex Carriage Screw, 3/8-16, 1.75 2
401000372 Carriage Bolt, 3/8-16 x .75 Long 7
501000643 Carriage Bolt, 3/8-16 x 1 5
601003282 Clevis Pin, .625 Dia x 4.375 Long 2
701003993 Linch Pin, 3/16 Dia. 2
801005160 Plug, Square Tube 2
901007779 Bracket Assembly, Frame, Front 1
10 01008225 Push Retainer, 3/8"-Thread Stud 4
11 01009604 Spacer, .385 ID x .625 OD x 4.89 1
12 02001012 Frame Assembly 1
13 02002282 Skid Plate 1
14 02002281 Guard Bracket 1
15 710-3248 Hex Head Cap Screw, 3/8-16 x 8.50 1
16 750-3119 Spacer .406 ID x 1.0 OD 6
17 756-3045 Idler Pulley, 5.06 Dia. 2
GD: 02002434-04/11/06

5

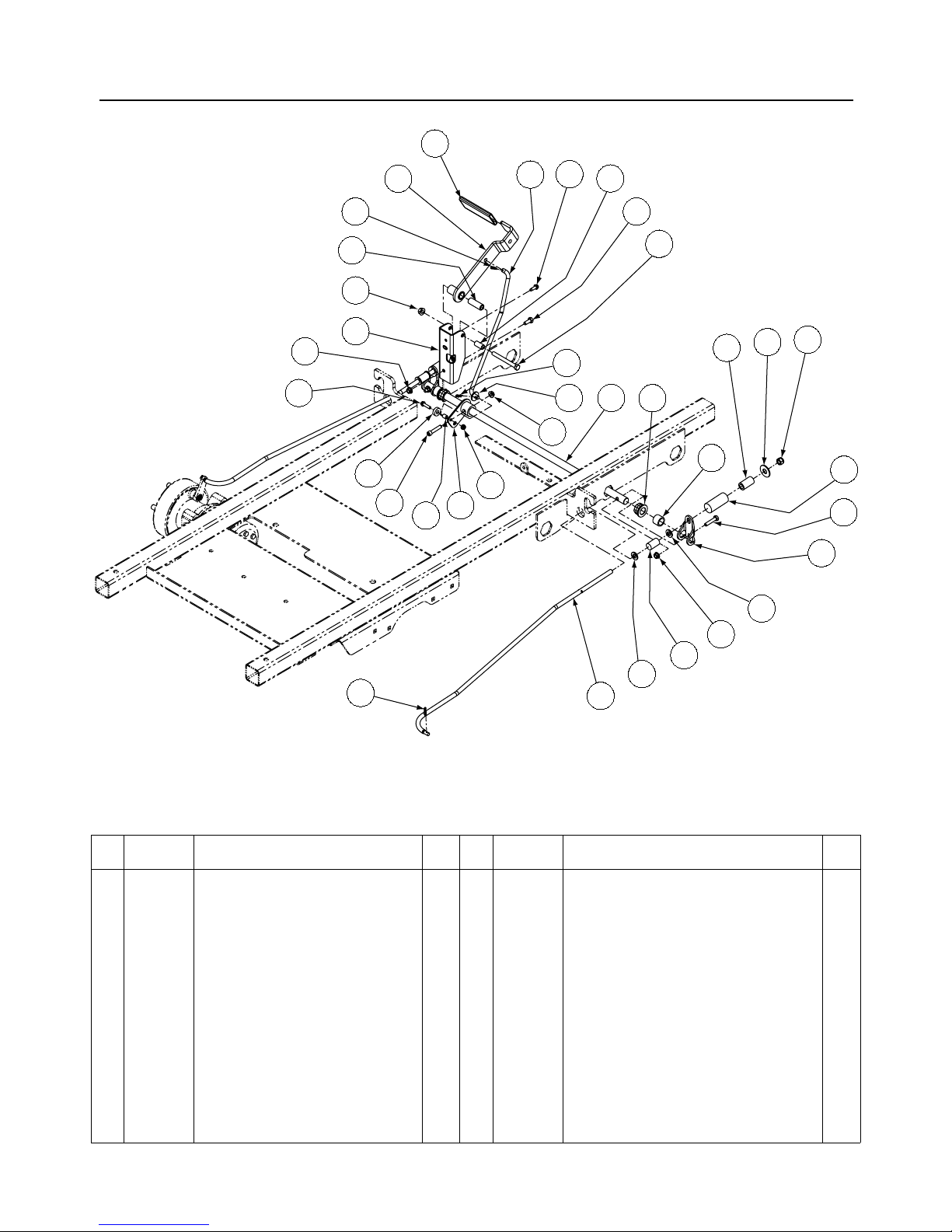

Brake Assembly - Figure 3 and Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1741-0598 Hex Flange Bearing, .752 ID 217 01003575 Force Brake Spring 2
200011459 Flat Washer, 1/2 218 01003716 Parking Brake Grip 1
301000371 Hex Cap Screw, 3/8-16 x 3-1/4 119 01008600 Socket Head CapScrew, 5/16-18 x 1.50 1
400012382 Hex Cap Screw, 5/16-18 x 1-1/2 220 01008607 Spacer, .375 OD x .257 ID x .438 1
500012152 LockNut, 1/4-20, Nylon Insert 121 01008886 Brake Rod 1
600022560 Flange Lock Hex Nut, 3/8-16 122 01008889 Parking Brake Mounting Bracket 1
700027279 Nylock Nut, 7/16-14 223 01009561 Brake Arm Assembly 1
800071691 Spacer, Control Rod 124 01009566 Brake Bracket 2
901000393 Washer, .469 ID x .875 OD x .105 425 01009568 Linkage Brake Rod 2
10 01000635 Hex Flange Lock Nut, 5/16-18 426 01009569 Pivot Brake Shaft 1
11 01000897 Self Tapping Screw, 1/4-20 x 1.00 127 01009601 Low Pressure Hose 2
12 01002751 Spacer, .39 x .63 x 1.75 128 01009602 Spacer, .76 ID x 1.0 OD x .75 2
13 01002771 Cotter Pin, .072 x 1.12 Lg 429 00013092 HHCS, 5/16-18 x 1.0 1
14 01003468 Spacer, .375 x .50 x .75 Lg 130 01000629 Screw, TT, 1/4-20, 0.75, Hex Index Washer 1
15 01003595 Brake Handle 131 01000723 Flat Washer, .406 ID, 1.0 OD, .105 1
16 01003574 Neutral Brake Spring 2
GD: 01009516-06/17/05
18
13
15
6
22
12
21
3
13
10
14
26
5
23
11
20
19
828
1
27 27
17
4
24
13
9
10
16
9
25
10
30
29
31

6
60" Fabricated Cutter Deck - Figure 4
25 6
17
24
12
14 29
34
12
12
12
12
21
23
43
16
7
27
47
18
38
39
40
28
8
42
23
33
44
18
37
26
41
469
20
13
30
47
11
19
36
35
17
15
331
5
1
32
10
17
22 46 45
22
GD: 01009439-11/04/05

7
60" Fabricated Cutter Deck - Parts List for Figure 4
Ref.
No. Part No. Description Qty.
100003107 Cotter Pin, .125 Dia. x 1.0 2
200011925 Hex Cap Screw, 3/8-16, 3.75 4
301002010 Carriage Screw, 3/8-16 x 1.25 4
400012428 Lock Nut, Nylon Insert, 1/2-13 4
501002130 Label, 60" 2
600022560 Flange Lock Hex Nut, 3/8-16 50
700030633 Decal, Rotating Blade 1
800030635 Decal, Warning Shield Missing 2
901003254 Chute Deflector Rod 1
10 00083192 Idler Washer 1
11 01000343 Complete Wheel, 5.00 Dia. 2
12 01000372 Carriage Bolt, 3/8-16 x .75 Lg. 35
13 01000375 Roller Pin, 1/2 Dia. x 7.31 Lg. 1
14 01000385 Front Roller 5
15 01000398 Wheel Spacer 2
16 01009808 Spacer, .385 x .50 x 3.045 2
17 01000643 Carriage Bolt, 3/8-16 x 1 7
18 01001745 Pin, 5/8 Dia. x 1.2 Lg. 4
19 01003253 Torsion Spring, 0.4ID x 2.16Lg 1
20 01002166 Decal, Danger Hand and Feet 2
21 01002635 Roller Pin 1
22 00013406 Hex Cap Screw, 5/16-18 x .75 1
23 01004304 Hex Index Washer Screw, 3/8-16, .5 8
24 01009300 Chute Bracket 1
25 01008644 Finger Guard 1
26 01004685 Belt Cover Support 2
27 01008814 60 Deck Assembly 1
28 01008633 Left Hand Mount Deck Bracket Assembly 1
29 01005364 Deck Roller Mount Bracket 3
30 01005260 Anti-Scalp Wheel Front Mount Bracket 2
31 01005256 Left Hand Front Roller Mount Bracket 1
32 01005258 Right Hand Front Roller Mount Bracket 1
33 01008635 Right Hand Deck Bracket Assembly 1
34 01005437 Outer Belt Cover Support Assembly 2
35 01006693 Chute Deflector 1
36 01008226 Chute Deflector Bracket 1
37 02000448 Right Hand Deck Belt Cover 1
38 02000447 Left Hand Deck Belt Cover 1
39 01005869 T-Handle Latch Draw 4
40 00017778 Phillips Head Screw, 10-32 16
41 00014608 Lock Nut, Nylon Insert, 10-32 16
42 01006086 Commercial Mower Label 1
43 01001169 Grass Catcher Roller 2
44 02000109 Pillow Block 2
45 01000635 Nut, 5/16-18, Hex Flange Lock 1
46 01004109 Stop Bracket 1
47 00012158 Flat Washer, 3/8 4

8
60" Fabricated Deck Spindle Assembly - Figure 5
28
7
10
34
11
22
33
30
27
32
25
16
31
28
6
26
27
20
2
4
14
5
13
18
23
24
9
19
8
325
36
29 12
17
15
1
21
35
4
37
4
38
4
8
GD: 01009508-03/20/06

9
60" Fabricated Deck Spindle Assembly - Parts List for Figure 5
Ref.
No. Part No. Description Qty.
101000389 Lock Washer, 7/16 1
200011438 Hex Cap Screw, 3/8-16 x 1-1/2 12
300011925 Hex Cap Screw, 3/8-16, 4.00 1
400012158 Flat Washer, 3/8 15
501005737 Idler Arm Casting, Deck Spindle 1
01000308 Bearing Sleeve 2
600022560 Flange Lock Hex Nut, 3/8-16 17
700060078 Grease Fitting, 1/4-28 x 3/16 2
800083192 Idler Washer 4
901009635 Extension Spring, .98 x OD x 5.000 1
10 01000302 Shoulder Screw, 7/16-14 1
11 01000364 Hex Carriage Screw, 3/8-16, 1.75 1
12 01000380 Flange Hex Nut, 3/4-16 3
13 01000387 Torsion Idler Spring 1
14 01000392 Flat Washer, .781 ID 2.00 OD, .105 3
15 01000393 Flat Washer, .469 ID, .875 OD, .105 1
16 01005616 V-Pulley, 5.00 OD 3
17 01000643 Carriage Bolt, 3/8-16 x 1 1
18 01000723 Flat Washer, .406 ID, 1.0 OD, .105 2
19 01003245 Spacer, .39 ID x .625 OD x 2.75 1
20 01003532 Aluminum Spindle Assembly 3
21 00005763 Hex Nut, 7/16-14 1
22 01004081 Flat Pulley 1
23 01004101 Idler Pulley, 4.06 OD 1
24 01004118 Shoulder Screw, .50 x .27 Lg., 3/8-16 1
25 01004415 Spacer, .760 ID x 2.00 OD x .925 4
26 01005434 Aluminum Spindle Support Plate 3
27 01008081 V-Pulley, Cast, 6.360 OD 1
28 01005213 Hex Cap Screw, 3/4-16, 7.00 2
29 01005338 Hi-Lift Blade, 21.0, 0.756 ID 3
30 01003123 Spacer .812 ID x .218 LG 2
31 01005376 V-Belt, A Section x 122.3 1
32 01009583 V-Belt, B Section x 147.4 1
33 01005388 Hex Cap Screw, 3/4-16, 9.00 1
34 01005690 Spring Tension Rod Assembly 1
35 02001855 Idler Arm Assembly, Flat Top Bearing 1
36 00011861 Hex Cap Screw, 3/8-16 x 2.50 1
37 00006131 Hex Nut, 3/8-16 1
38 02002356 Belt Guide 1

10
72" Fabricated Cutter Deck - Figure 6
GD: 01008212-05/15/06

11
72" Fabricated Cutter Deck - Parts List for Figure 6
Ref.
No. Part No. Description Qty.
100003107 Cotter Pin, .125 Dia. x 1.0 1
200011925 Hex Cap Screw, 3/8-16, 3.75 6
300012158 Flat Washer, 3/8 6
400012428 Lock Nut, Nylon Insert, 1/2-13 4
500014608 Lock Nut, Nylon Insert, #10-32 16
600017778 Phillips Head Screw, #10-32 x 1/2 16
700022560 Flange Lock Hex Nut, 3/8-16 61
801000343 Complete Wheel, 5.00 Dia. 6
901000372 Carriage Bolt, 3/8-16 x .75 Lg. 44
10 01000385 Front Roller 4
11 01000398 Wheel Spacer 6
12 01000643 Carriage Bolt, 3/8-16 x 1 2
13 01001169 Grass Catcher Roller 2
14 01001745 Pin, 5/8 Dia. x 1.2 Lg. 4
15 01002010 Carriage Screw, 3/8-16 x 1.25 7
16 01003253 Torsion Spring, 0.4ID x 2.16Lg 1
17 01004304 Hex Index Washer Screw, 3/8-16, .5 8
18 01004685 Belt Cover Support 2
19 01005364 Deck Roller Mount Bracket 3
20 01005260 Anti-Scalp Wheel Front Mount Bracket 4
21 01005437 Outer Belt Cover Support Assembly 2
22 01005869 T-Handle Latch Draw 4
23 01008097 72 Deck Assembly 1
24 01008233 Roller Pin 1
25 01008514 Chute Bracket 1
26 01008526 Finger Guard 1
27 01009102 Pin, .375 x 14.06 1
28 01009300 Chute Bracket 1
29 01009705 Chute Deflector 1
30 01009843 Discharge Baffle Weldment 1
31 02000109 Pillow Block, Steel 3
32 02000110 Pillow Block, Bronze 1
33 02000447 Left Hand Deck Belt Cover 1
34 02000448 Right Hand Deck Belt Cover 1
35 02002632 Right Hand Deck Weldment Bracket 1
36 02002633 Left Hand Deck Weldment Bracket 1

12
72" Fabricated Deck Spindle Assembly - Figure 7
8
25
6
44
2
1
15 38
33
20
19
17
35
9
6
4
5
324
11
6
40
12
41
7
43
28
42
23
13
34
21
16
30
36
10
39
37
14
26
31
18
22
30
18
32
9
29
27
21
4
46
6
45
11
GD: 02000586-03/20/06

13
72" Fabricated Deck Spindle Assembly - Parts List for Figure 7
Ref.
No. Part No. Description Qty.
100005763 Hex Nut, 7/16-14 1
200011438 Hex Cap Screw, 3/8-16 x 1-1/2 12
300011444 Hex Cap Screw, 3/8-16 x 1-1/4 1
400011861 Hex Cap Screw, 3/8-16 x 2-1/2 2
500011925 Hex Cap Screw, 3/8-16, 4.00 1
600012158 Flat Washer, 3/8 15
701002771 Cotter Pin, .072 x 1.12 Long 2
800021958 Taper Grease Fitting, 1/4-28, 45 degree 3
900022560 Flange Lock Hex Nut, 3/8-16 19
10 00060078 Grease Fitting, 1/4-28 x 3/16 2
11 00083192 Idler Washer 4
12 02000726 Extension Spring, 1.0 x OD x 5.00 1
13 01000302 Shoulder Screw, 7/16-14 1
14 01000364 Hex Carriage Screw, 3/8-16, 1.75 1
15 01000380 Flange Hex Nut, 3/4-16 3
16 01000387 Torsion Idler Spring 1
17 01000389 Lock Washer, 7/16 1
18 01003123 Spacer .812 ID x .268 LG 3
19 01000393 Flat Washer, .469 ID, .875 OD, .105 1
20 01000643 Carriage Bolt, 3/8-16 x 1 1
21 01000723 Flat Washer, .406 ID, 1.0 OD, .105 2
22 01002564 Spacer, .76 ID x 2.0 OD x .477 1
23 01002751 Spacer, .39 ID x .63 OD x 1.75 1
24 01003245 Spacer, .39 ID x .625 OD x 2.75 1
25 01003532 Aluminum Spindle Assembly 3
26 01004081 Flat Pulley 1
27 01004101 Idler Pulley, 4.06 OD 1
28 01004304 Screw, TT, 3/8-16 x .50, 2
29 01005434 Aluminum Spindle Support Plate 3
30 01008542 Hex Cap Screw, 3/4-16, 7.50 2
31 01008543 Hex Cap Screw, 3/4-16, 9.50 1
32 01007499 V-Pulley, 5.75 OD 3
33 02000568 Bahia Blade, 25.0, .756 ID 3
34 01007786 Idler Arm Assembly, Deck 1
01000308 Bearing Sleeve 2
35 02001897 Idler Arm Assembly, Drive 1
36 01007937 V-Belt, B Section x 124.0 LG 1
37 02000611 V-Belt, B Section x 155 LG 1
38 01008018 Spacer, .760 ID x 2.00 OD x .330 3
39 02000583 V-Pulley, 6.95 OD x .750 Bore, Cast 1
40 01008204 Spring Tension Rod 1
41 01008618 Tension Idler U-Bracket 1
42 01008252 Handle Tension Weldment 1
43 01008270 Tension Idler Handle Grip 1
44 01009101 Straight Adapter Fitiing 3
45 00006131 Hex Nut, 3/8-16 1
46 02002356 Belt Guide 1

14
Hydro Hose and Pump Assembly - Figure 8
GD: 02001004-05/16/06

15
Hydro Hose and Pump Assembly- Parts List for Figure 8
Ref.
No. Part No. Description Qty.
100012157 Washer lock 3/8 zinc 2
200012158 Flat Washer, 3/8 2
300012172 Hex Cap Screw, 3/8-16 x 2.00 4
400012428 Washer lock 3/8 zinc 8
500020628 Key, 3/16" x 7/8" 2
600022560 Flange Lock Hex Nut, 3/8-16 20
700030261 Cap, Hydro Oil Tank 1
800034167 Hex Cap Screw, 3/8-16 x 5.00 4
901000369 Hex Cap Screw, 3/8 -16 x 1.25 2
10 01000372 Carriage Bolt, 3/8-16 x .75 LG. 1
11 01000643 Carriage Bolt, 3/8-16 x 1 5
12 01002010 Carriage Screw, 3/8-16 x 1.25 4
13 01001618 Strut Frame 2
14 01004040 Grommet, .75 ID 2
15 01004192 Oil Pan Drain Plug w/ Seal 1
16 01006799 Hydro Pump Pulley 2
17 01007309 Hex Nut, 3/8-24 2
18 01007312 Spacer, .625 OD x .385 ID x 1/2 8
19 01008449 Socket Head Capscrew, 1/2-13; 6-1/2 8
20 02000296 Grommet Fitting, .54 ID x .78 OD 1
21 02000841 Socket Low Head Cap Screw, 1/4-20 x 0.75 2
22 02001088 Hydro Pump Mounting Bracket 1
23 02001100 Hydro Pump, BDP-12, LH 1
01009631 Kit, Fan 1
24 02001101 Hydro Pump, BDP-12, RH 1
01009631 Kit, Fan 1
25 02001102 Hose Assembly 2
26 02001103 Hose Assembly 2
27 02001106 Hose Assembly, Pilot includes: 1
02001175 Tee Fitting
Hose Clamp
-- Hose, .50 ID x .75 OD
28 02001107 Hose Assembly, Drain includes: 1
02001175 Tee Fitting
Hose Clamp
-- Hose, .50 ID x .75 OD
29 02001151 Fitting Elbow Spur, 5/8 x 1/2 1
30 02001160 Fitting Elbow, 9/16 x 1/2 4
31 02001180 Fitting Elbow, 3/4 x 1/2 1
32 02001492 Hydro Motor Frame Assembly 1
33 02001496 Hydro Motor, Left Hand Assembly w/ Brake & Drum 1
34 02001497 Hydro Motor, Right Hand Assembly w/ Brake & Drum 1
35 02001715 Adaptor Fitting, 8 x 10 4
36 02001975 Adaptor Fitting, 8 x 8 4
37 02002257 Hydraulic In-Tank Filter includes: 1
02002258 Replacement Filter Element 1
38 02002573 Hydraulic Tank Assembly 1
39 02002604 Tank Support Bracket 2
40 750-3119 Spacer .406 ID x 1.0 OD 2
NOTE: Lubricant, 02002058 Quarts, 2.00

16
Fuel Tank Assembly - Figure 9
GD: 02001008-05/08/06

17
Fuel Tank Assembly - Parts List for Figure 9
Ref.
No. Part No. Description Qty.
100012133 Hex Cap Screw, 1/4-20 x 1/2 1
200012157 Lock Washer, 3/8 8
300012235 Clamp, Union 9
400012470 Cable Tie 6
500013198 Hex Cap Screw, 5/16-18 x 2.00 1
600022560 Hex Nut, 3/8-16, Lock Flange 3
701000215 Hose Clamp 9
801000368 Hex, Cap Screw, 3/8-16, .88 9
901000635 Nut, Lock, HexFlange, 5/16-18 1
10 01000723 Flat Washer, .406 ID, 1.0 OD, .105 8
11 01000872 Washer, 1.25 x .411 x .100 1
12 01002010 Carriage Screw, 3/8-16 x 1.25 2
13 01002766 Lock Nut, 1/4-20 1
14 01009806 Fuel Tank 2
15 01009809 Fuel Fitting, Return 2
16 01009812 Shut Off Fuel Valve 1
17 01009821 Fuel Fitting, Pickup 2
18 02001081 Fuel Cap 1
19 02001061 Fuel Filter Mounting Bracket 2
20 -- 1/4" Hose, Carb BioDiesel (in inches) 152.50
21 -- 5/16" Hose, Carb BioDiesel (in inches) 93.00
22 -- Fuel Strainer (purchase through caterpillar) 1
23 -- Water Filter (purchase through caterpillar) 1
24 02002253 Fuel Tank Grommet 4
25 02002601 Adaptor, M14 x 1.5 ORB x 4JIC MA 2
26 02002602 Adaptor, 4JIC FE x 1/4 Barb 2

18
60" Front Caster Assembly - Figure 10 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
100023287 Nut, 1/2-20, Center Lock 212 01002620 Cup Bearing 4
201006294 Bell Washer, 1.25 ID 213 01002621 Bearing Cone 4
300060078 Grease Fitting 314 01002622 Seal 2
402000588 Flat Washer, 1.00 ID 215 01002624 Ring Seal 4
502000589 Spacer, 1.005 ID x 1.25 OD x 3.6 116 01006347 Grease Cap, 1.986 OD 2
601000678 Nut, Jam, 1.0-14, Insert Lock 117 01002626 Slotted Nut, 3/4-16 2
701006309 Hex Cap Screw, 1-14 x 5.0 118 01002627 Cotter Pin, 5/32, 1.25 2
801006913 Wheel, 13 x 6.50 x 6, White 219 01006912 Wheel Spacer 2
901007407 Yoke, Caster Wheel 220 01003123 Spacer, .812 ID x .218LG 4
10 01006961 HHCS, 1/2-20, 7.50 221 01009997 Retainer Extension, Self Locking 1
11 02000439 Front Axle Assembly 1
16
15
13
8
20
1
9
14
17
11 3
5
7
10
2
64
2
4
18
12
19
19
21
GD: 02000369-10/21/04

19
72" Front Caster Assembly - Figure 11 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
100023287 Nut, 1/2-20, Center Lock 210 01006961 HHCS, 1/2-20, 7.50 2
201006294 Bell Washer, 1.25 ID x 2.5 OD x .180 211 01007760 Front Axle Assembly 1
300060078 Grease Fitting 312 01002620 Cup Bearing 4
401009997 Retainer Extension, Self Locking 113 01002621 Bearing Cone 4
502000589 Spacer, 1.005 ID x 1.25 OD x 3.6 114 01002622 Seal 2
601000678 Nut, Jam, 1.0-14, Insert Lock 115 01002624 Ring Seal 4
701006309 Hex Cap Screw, 1-14 x 5.0 116 01006347 Grease Cap, 1.986 OD 2
801006913 Wheel, 13 x 6.50 x 6, White includes: 217 01002626 Slotted Nut, 3/4-16 2
02002108 Tire 118 01002627 Cotter Pin, 5/32, 1.25 2
02002106 Roller Bearings 219 01006912 Wheel Spacer 2
02002107 Retainer Bushings 220 02000588 Flat Washer, 1.00 ID x 2.00 OD x .075 1
901007407 Yoke, Caster Wheel 221 01003123 Spacer, .812 ID x .218LG 4
16
15
13
1
9
14
17
11
7
10
2
620
2
20
18
12
19
19
21
8
3
5
4
GD: 01007758-01/24/05

20
Wheel Assembly - Figure 12 and Parts List
Ref.
No. Part No. Description Qty.
100012187 Lug Nut, 1/2-20 8
201006324 Wheel Assembly, 24 x 12.00-12, Turf Master
Includes:
2
00073975 Tire, 24 x 12.00-12, Turf Master
Rim, 12 Dia x 8.50 width
OPTIONAL TIRES
01002182 Wheel Assembly, 24 x 12.00-12, Turf Saver
01004473 Tire, 24 x 12.00-12, Turf Saver
2
1
GD: 01002572-09/27/00
