Cubot S1 User manual

User manual
Model:CUBOT S1
Brand:CUBOT

Product activation (first usage)
1. For first usage, make the thimble of the charger wire contact the bracelet end with a
contact, and insert the USB into a charger, mobile phone or computer for activation.
2. The bracelet will display the interface below after it is successfully activated
Charger wire
CUBOT S1 Smart Bracelet

Wear the bracelet

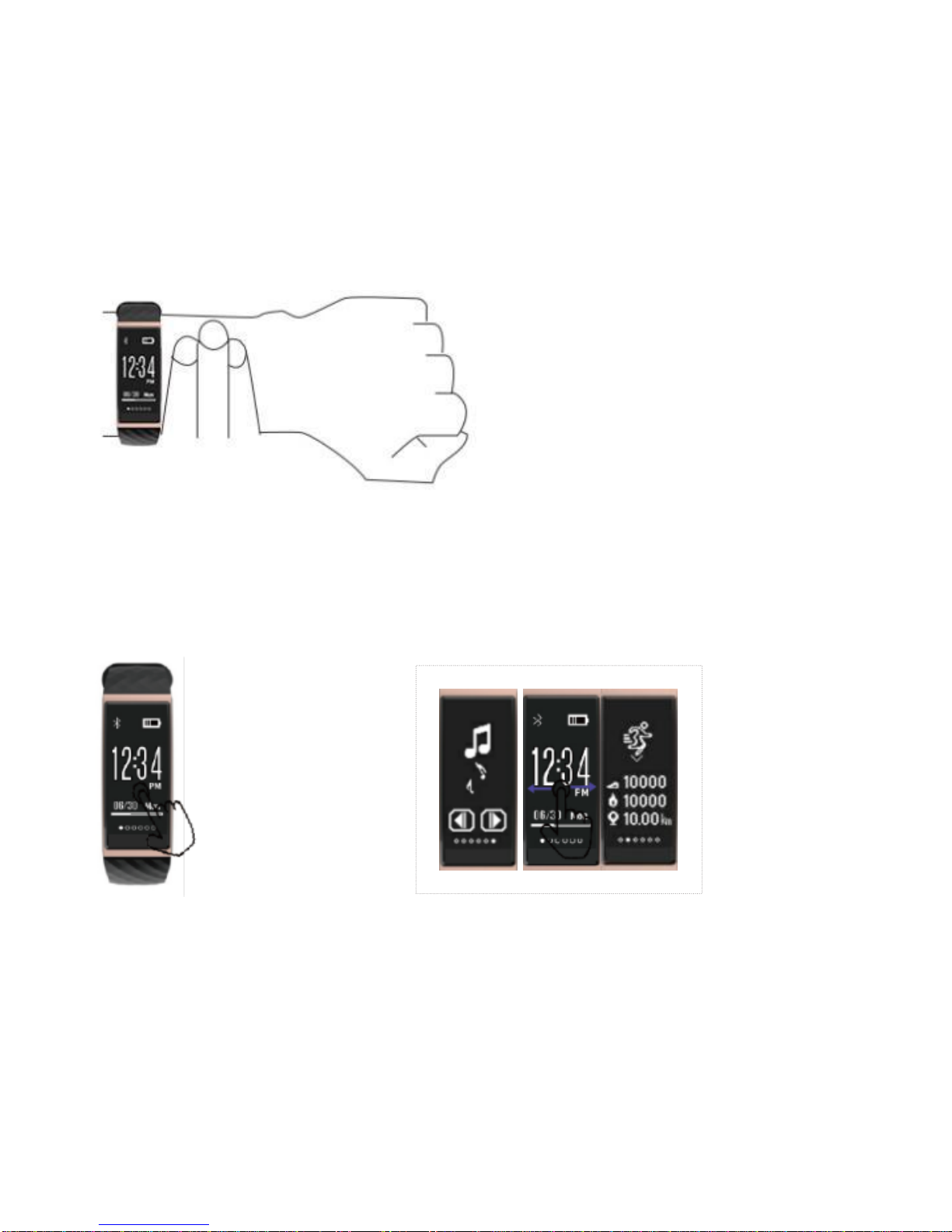

1) Wear the bracelet on your wrist. If you wear it all day long, you are suggested to
wear it at the place one finger wide below your ulna.
2) If you intend to accurately measure your heart rate by using any S1 bracelet, you
may shift the bracelet to your upper wrist, namely the place three fingers wide below
your ulna. The bottom heart rate sensor shall cling to your skin and movement shall be
avoided. Do not wear the bracelet too tight, otherwise blood circulation will be affected,
Ulna

which affects correct heart rate signals.
Touch
1.The bracelet will be lightened by touching its screen, and all functional interfaces can
be viewed by sliding horizontally.

2. All functional interface displays
APP download and installation
1. Make sure that your mobile phone is connected to mobile Internet orWLAN;
2. Scan the QR codes below or visit various APP stores to download and install
“CUBOT S1”APP (iPhone users may search and download it at APP Store, Android
users may search and download it at the Play Shop of Google Play).
Bracelet binding and data synchronization
1. Bracelet binding, unbinding and Bluetooth disconnection
1) First bracelet binding: Enable the Bluetooth of your mobile phone to start the S1
bracelet APP; the APP will go to the exercise interface after a successful binding is
Time,
date,
battery
level
Atmospheric
pressure,
temperature,
elevation display
UV light
display
Music
control
Heart
rate
Main
interface
of exercise

finished. And a Bluetooth icon will appear on the time interface of the bracelet;
2) In case you have bound any smart bracelet and need to bind another S1 bracelet,
you shall unbind other bracelet before binding any S1 bracelet. Press the button
on the APP to pop up a sidebar. Click “Setup management”menu to enter the device
management interface. Click “My device”to pop up the device selection interface.
3) The bracelet will automatically disconnect if it is out of the effective range of the
Bluetooth of your mobile phone. It will automatically connect the APP after it is
disconnected due to non-manual disconnection and it is in effective Bluetooth range
again.
4) You may turn off the Bluetooth on the APP, and the bracelet will disconnect with the
Bluetooth. The bracelet will connect the APP automatically after the Bluetooth is turned
on again.
2. Data synchronization
1)After the binding is successful, the bracelet will have automatic data synchronization
with the APP. The bracelet time will be calibrated automatically, and data
synchronization will be performed automatically when the APP is started each time;
2) You may also have manual data synchronization on the APP. Manual data
synchronization can be performed by pulling down the relevant page on the exercise,
sleeping or heart rate interfaces. (Normal connection between the bracelet and mobile
phone Bluetooth shall be guaranteed during data synchronization)

Synchronize data by
pulling down any
place outside the
running step circle
Heart rate measurement
1. Wearing method and instructions
1) Wear the bracelet at the rear of the joint at the back of your wrist to make the optical
sensor behind the bracelet and your skin have good and stable contact;
2) The bracelet is at the rear of the joint at the back of your wrist; if your wrist is thin, you
may wear the bracelet at a higher place (i.e. any proper wrist position with larger
circumference);
3) The bracelet performance may be reduced if your hands are often cold or you have
unfavorable blood circulation. Before enabling the heart rate monitoring function, have
exercise for several minutes to enhance your blood circulation;

4)The bracelet can be worn as an ordinary one when the heart rate monitoring function
is not used;
5) Your heart rate can be viewed and the heart rate monitoring function can be used in
exercise mode.
2. Heart rate measurement
Each S1 bracelet has two ways for measuring heart rates: real time heart rate
measurement and all weather heart rate monitoring:
1) Real time heart rate measurement can be simultaneously controlled from the
bracelet and the APP. In case real time measurement is started on the APP, it can be
turned off on the APP; in case real time measurement is started on the bracelet, it can
be turned off by clicking the heart rate icon or it can be turned off on the APP.
a. Horizontally slide on the bracelet to switch to the heart rate interface; click the heart
rate icon to start real time heart rate measurement, and it will display and store real
time heart rate values 10 seconds later; the bracelet will transfer the measured heart
rate data to the APP in real time after it is connected with the APP; the data will be
uploaded to the records for making curves; real time measurement will be stopped by
clicking the icon again;
b. Click “Start measurement”after entering the heart rate interface on the APP to start
the real time heart rate measurement function of the bracelet; light up the bracelet at the

moment, it will display real time heart rate measurement values; turn off real time
measurement by clicking “Turn off measurement”on the APP;
2) All weather heart rate monitoring
Enter the sidebar of the APP, select the “Device management”menu to enter the device
management interface; turn on the “24-hour monitoring”switch to start all weather heart
rate monitoring function; the bracelet will automatically and repeatedly monitor heart
rate in a while, and it will upload the collected heart rate data to the APP for making
heart rate curves (it is necessary to wear the bracelet for more than 30 minutes for
collecting heart rate data), and the all weather heart rate monitoring will be shut off by
turning off the “24-hour monitoring”switch.
3. Default heart rate zone
1) Heart rate zones can help you use different exercise intensities to reach optimum
exercise effects. A heart rate zone is calculated on the basis of your maximum
estimated heart rate. A simple way for calculating your maximum estimated heart rate is
using 220 to subtract your age. In order to determine your heart rate zone, please refer
to the table below:

4. Heart rate prewarning function
Enter the sidebar of the APP, select the “Smart reminder”menu to enter the smart
reminder interface; click and enter the “Heart rate prewarning”interface; turn on the
heart rate prewarning switch and click the “Set up heart rate prewarning value”setup
Exercise type
Icon of heart rate
Heart rate section
Description
Warm-up
X≦50%
Fat burning
50%<X≦70%
Heart and lung
70%<X≦85%
Extreme sports
X>85%
Resting heart rate

box to set up your heart rate prewarning value. You can set up your maximum heart rate
as per the above calculation method; when your heart rate reaches the heart rate zone
in the above table, the bracelet will display a corresponding icon; when any actually
measured heart rate reaches or exceeds your maximum heart rate, the bracelet will
display an icon and vibrate for reminding.
5. View heart rate records
You can enter the heart rate interface on the APP, click to enter the “Heart rate
records”interface to view daily, weekly and monthly records of dynamic heart rates and
all weather heart rates.
Exercise
1) Each S1 bracelet can automatically identify various exercise states such as walking,
running, cycling and climbing stairs and record all kinds of exercise data; enter the
exercise interface on the APP and click the icon to enter the “Exercise records”
interface to view daily, weekly and monthly records;
2) Switch to the exercise interface on the bracelet, click the main interface icon to
enter the exercise subinterface to successively view real time data of walking, running,

Exercise
subinterface
Climbing
stairs
interface
Cycling
interface
Running
interface
Walking
interface
Exercise icon
Stopwatch
Automatic display and
viewing of number of steps, calorie
and distance, etc.
Stop timekeeping
Return to exercise main
interface
<> It means you can horizontally
slide to view other subinterfaces
cycling and climbing stairs; if the bracelet is bound with the APP, you can also view real
time and historical exercise data on the APP.
Music control
Connect your bracelet with your APP and turn on the music player on your mobile
phone. Switch to the music interface on your bracelet; click the music icon to play/pause
the music on your mobile phone. Click previous and next buttons to switch to any
Exercise main
interface
Number of steps
Calorie
Distance
It means
there is
any
submenu

UV icon
Next song
previous or next song on your mobile phone.
UV
Switch to the UV interface on the bracelet; click the UV icon to start measurement; any
current UV index will be displayed by clicking the icon once.
You can also view detailed UV information on the APP. Bind your bracelet with the APP
and switch to the “UV index interface”to view current real time UV index, UV grade &
grading, sun protection measures and corresponding duration for sun protection.
Previous
song
Sun protection grade
Sun protection factor
Music icon

Elevation
Temperature
Atmospheric pressure
1) The bracelet can automatically acquire current atmospheric pressure, temperature
and elevation for you to understand current geographical conditions and weather
conditions so as to make your exercise plans in a more effective manner.
2) Switch to the atmospheric pressure interface on the bracelet, and it will display
current atmospheric pressure, temperature and elevation.
Bracelet charging
When the bracelet displays the icon , it means that the bracelet has a low battery
and you need to recharge the bracelet. No operation shall be done to the bracelet at the
moment. A specific magnetic type charger wire is used for the product. During charging,
make the thimble of the charger wire contact the bracelet end with a contact, and insert
the USB into power supply. The charging duration is about two hours (note: please
timely recharge your bracelet after it has a low battery icon. In case the unused time is
Atmospheric
pressure
11

quite long, the bracelet data may lose or even have a zero clearing before it
synchronizes with the data in your mobile phone).
Basic parameters
Product model: CUBOT S1 Net weight:24g
Display mode:OLED display screen Battery type: Lithium polymer
Battery capacity: 85mAh Synchronization method: Bluetooth 4.0
Ingress protection:IP65 Operating temperature: -10℃~50℃
Device requirement: mobile phones with IOS8.0 and above versions; mobile phones
with Android4.3 and above versions and Bluetooth4.0.
Instructions:
1. You can use the bracelet at will when washing your hands and in raining conditions,
and the bracelet shall be wiped dry as soon as it is wet;
2. Do not use the bracelet when washing your car, swimming, diving and bathing;
3. You shall follow all required instructions for using the device;
4. Do not attempt disassembling the device; in case of any improper treatment or
disposal, any component or battery inside the product may have adverse impacts on
environment or human health;

5. Do not expose the bracelet to any place with high moisture, extremely high or low
temperature for a long time;
6. Do not use any corrosive detergent to clean your bracelet;
7. Do not use the bracelet in any environment with strong electromagnetic interference;
8. Do not let your children or pets use the bracelet, or any suffocation may be caused by
swallowing any small part;
9. Do not use the bracelet in any sauna or steam bathroom;
10. Do not put the bracelet into fire for the battery may cause explosion.

FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
