Currys Essentials C16LDVB11 User manual

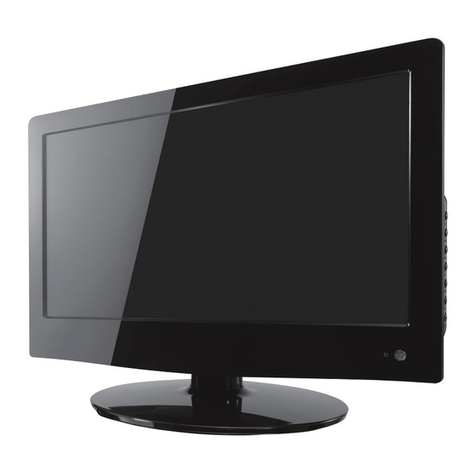

16” LED BACKLIT LCD TV
AND DVD COMBI
INSTRUCTION MANUAL
C16LDVB11
C16LDVB11_IB_110404_Annie.indd 1 11年4月4日 下午6:04

C16LDVB11_IB_110404_Annie.indd 2 11年4月4日 下午6:04

Contents
Preparation .........................................................................................................................................................................................5
Unpacking the TV ...............................................................................................................................................................................................................5
Installing / Removing the Base Stand .........................................................................................................................................................................6
Front View and Controls ...................................................................................................................................................................................................7
Rear View and Sockets ......................................................................................................................................................................................................8
Installing Batteries in the Remote Control ................................................................................................................................................................9
Remote Control Operation Range ................................................................................................................................................................................9
Remote Control .................................................................................................................................................................................................................10
Connections ......................................................................................................................................................................................12
Making Video and Audio Connections .....................................................................................................................................................................12
Connecting an AV Device with an HDMI Cable .....................................................................................................................................................12
Connecting a Computer with a VGA Cable .............................................................................................................................................................13
Connecting an AV Device with a Component (YPbPr) Cable ...........................................................................................................................13
Connecting an AV Device with a SCART Cable ......................................................................................................................................................14
Connecting an AV Device with Composite Cable .................................................................................................................................................14
Connecting a USB Storage Device ..............................................................................................................................................................................15
Connecting the Aerial .....................................................................................................................................................................................................15
Initial Setup ......................................................................................................................................................................................16
Turning the TV On for the First Time .........................................................................................................................................................................16
− Selecting the Input Source................................................................................................................................................................................17
− Channel Selection ...............................................................................................................................................................................................17
− Display Channel Information ...........................................................................................................................................................................17
− Volume Adjustment .............................................................................................................................................................................................17
− Optimum Viewing ................................................................................................................................................................................................17
Using the Features ...........................................................................................................................................................................18
Customising the Channel Setting (TV, DTV or Radio Mode) .............................................................................................................................18
− Auto Tuning ............................................................................................................................................................................................................18
− DTV Manual Tuning..............................................................................................................................................................................................19
− ATV Manual Tuning ..............................................................................................................................................................................................19
− Channel Edit (ATV / DTV Mode) ...................................................................................................................................................................... 20
− Signal Information (DTV Mode) .......................................................................................................................................................................21
− CI (Common Interface) (DTV Mode) .............................................................................................................................................................. 22
− Software Update (Over Air Download)........................................................................................................................................................ 23
− Software Update (USB) ...................................................................................................................................................................................... 23
Customising the Picture Setting ................................................................................................................................................................................ 24
Customising the Sound Setting ................................................................................................................................................................................. 26
− Stereo / Dual Sound Reception (ATV Mode) .............................................................................................................................................. 27
− Speaker Sound Output Selection (DTV Mode) ......................................................................................................................................... 27
Customising the Time Settings................................................................................................................................................................................... 27
Customising the Option Setting ................................................................................................................................................................................ 28
− OSD Language ...................................................................................................................................................................................................... 28
− Audio Language (DTV Mode) .......................................................................................................................................................................... 29
− Subtitle Language (DTV Mode) ...................................................................................................................................................................... 30
− Hearing Impaired ................................................................................................................................................................................................. 30
− Country .................................................................................................................................................................................................................... 30
− PVR File System (DTV Mode) .............................................................................................................................................................................31
− CEC (Consumer Electronics Control) ............................................................................................................................................................ 32
− Restore Factory Default ..................................................................................................................................................................................... 32
Customising the LOCK Setting .................................................................................................................................................................................... 33
− Lock System ........................................................................................................................................................................................................... 33
− Set Password ......................................................................................................................................................................................................... 34
− Block Channel ....................................................................................................................................................................................................... 35
− Parental Guidance ............................................................................................................................................................................................... 36
Teletext (ATV Mode) ........................................................................................................................................................................................................ 37
− To Turn on Teletext Function........................................................................................................................................................................... 37
C16LDVB11_IB_110404_Annie.indd 3 11年4月4日 下午6:04

Digital Teletext (DTV Mode) ......................................................................................................................................................................................... 38
− Teletext within Digital Service ........................................................................................................................................................................ 38
EPG (Electronic Programme Guide) (DTV Mode) ................................................................................................................................................. 38
− Switch On / O EPG ............................................................................................................................................................................................. 38
− Select a Programme ........................................................................................................................................................................................... 39
Using the Features via USB Port .....................................................................................................................................................40
My Photo ............................................................................................................................................................................................................................. 40
My Music ............................................................................................................................................................................................................................. 40
My Movie ..............................................................................................................................................................................................................................41
My Text................................................................................................................................................................................................................................. 42
PVR (Personal Video Recorder) .......................................................................................................................................................43
Time Shift Function ......................................................................................................................................................................................................... 43
Recording DTV Programme onto a USB Storage Device ..................................................................................................................................44
Timer Programming .......................................................................................................................................................................................................44
Play Recorded Programme .......................................................................................................................................................................................... 45
Using the DVD Features ...................................................................................................................................................................47
Using the Built-in DVD Player ...................................................................................................................................................................................... 47
Compatible Disc Types .................................................................................................................................................................................................. 47
− Supported Formats ............................................................................................................................................................................................. 47
− Region Code .......................................................................................................................................................................................................... 47
Basic DVD Playback Functions .................................................................................................................................................................................... 48
− Playing the DVD ...................................................................................................................................................................................................48
− Menu Playback (for DVD) .................................................................................................................................................................................. 48
− Stopping Playback ............................................................................................................................................................................................... 48
− Previous / Next (for DVD / CD / Multimedia discs) .................................................................................................................................. 48
− Forward / Backward (for DVD / CD / Multimedia discs) .........................................................................................................................48
− Pause (for DVD / CD / Multimedia discs) ..................................................................................................................................................... 48
− Repeat (for DVD / CD / Multimedia discs) ................................................................................................................................................... 48
− Display (for DVD / Multimedia discs) ............................................................................................................................................................ 49
− Goto (for DVD / CD / Multimedia discs) ....................................................................................................................................................... 49
− Audio (for DVD / CD) ........................................................................................................................................................................................... 49
− Repeat A-B (for DVD / CD)................................................................................................................................................................................. 49
Playing Multimedia Discs .............................................................................................................................................................................................. 50
Using the DVD Language Setup Page...................................................................................................................................................................... 52
Using the DVD Video Setup Page .............................................................................................................................................................................. 52
Using the DVD Rating Setup Page ............................................................................................................................................................................. 53
Using the DVD Misc Setup Page ................................................................................................................................................................................. 53
Maintenance .....................................................................................................................................................................................54
Hints and Tips ...................................................................................................................................................................................55
Display Modes ..................................................................................................................................................................................57
YPbPr Mode ....................................................................................................................................................................................................................... 57
PC Mode .............................................................................................................................................................................................................................. 57
HDMI Mode ....................................................................................................................................................................................................................... 57
Specifications ...................................................................................................................................................................................58
Safety Warnings ...............................................................................................................................................................................59
C16LDVB11_IB_110404_Annie.indd 4 11年4月4日 下午6:04

GB
5
Preparation
Unpacking the TV
Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:
Remote Control / AAA Batteries x 2
(P.N.: 504C1636101 & 32200007158)
Mains Adapter
(P.N.: 514C2413116)
SCART Adapter Cable
(P.N.: 30430110019)
Screw A
(P.N.: 209122231101)
Instruction Manual
(P.N.: 4031C163601)
Quick Start Guide
(P.N.: 4033C163601)
Digital TV Switchcover Addendum
(P.N.: 4031C241307)
MUTE
TITLE A-BD.SETUP
ANGLE
TEXT S D.MENU
MENU
INFO
GUIDE
VOL
1 2 3
FAV/REP
EXIT
OK
CH
4 5 6
7 8 9
0
AD RECALL/GOTO
Preparation
TV
TV Base
(P.N.: 102C1631111)
Thank you for purchasing your new Currys Essentials 16" LED Backlit LCD TV and DVD Combi.
Your new TV has many features and incorporates the latest technology to enhance your viewing experience.
We recommend that you spend some time reading this instruction manual in order that you fully
understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
C16LDVB11_IB_110404_Annie.indd 5 11年4月4日 下午6:04

GB
6
Preparation
4. To remove the base stand, untighten the 1 screw that
holds the base stand to the rear of the TV. Slide the
base stand out.
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side
facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam)
beneath the screen.
3. To install the base stand, align
the screw hole and then secure
the base stand by hand or
using a screwdriver with the
provided 1 screw.
5. Mounting on the wall. This TV is designed to be wall-
mounted with a standard 100 mm x 100 mm mounting
kit designed for flat-panel TVs (sold separately).
Mount this TV according to the instructions included
in the mounting kit. Due to space restrictions, we
recommend that you make all connections (refer to
page 12-15 for details) before mounting on to the wall.
or
screw
screw
unscrew
Installing / Removing the Base Stand
100 mm
100 mm
Four mounting holes
(size M4x12 screw)
Screw A x 1
(P.N.: 209122231101)
Screw B x 1
(P.N.: 209020412B1)
• Remove the base stand before mounting the TV onto the wall.
• The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure
that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO
NOT exert pressure on the front of the TV at any time because the screen could crack.
Keep the spare screw should you want to use
the base stand option.
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our Customer Technical Services Centre.
Tel: [phone] (UK only)
C16LDVB11_IB_110404_Annie.indd 6 11年4月4日 下午6:04

GB
7
Preparation
Front View and Controls
Item Description
1 POWER LED
Illuminates green when the TV is turned on. Illuminates red when the TV is in standby
mode. The LED will flash green and red when the timer programming has started in
the standby mode.
2 IR (Infrared Receiver) Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
3 Press to eject disc. (DVD mode)
4 Press to start playback or pause. (DVD mode)
5 Disc Slot Insert the disc with the label side facing backwards to you (12 cm discs only. Don't
insert 8 cm discs)
6 INPUT
Press to select among different input signal sources:
DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD / DMP.
Confirmed the selection on OSD menu.
7 MENU Displays the OSD (on screen display) menu.
8 CH + / – Press to select a channel or select a sub-menu from the OSD menu.
9 VOL + / – Adjusts the volume.
Press to select and adjust a setting in the OSD menu.
10 Switches the TV on from standby mode.
Switches the TV back to standby mode.
6
7
9
10
5
4
3
8
1 2
C16LDVB11_IB_110404_Annie.indd 7 11年4月4日 下午6:04

GB
8
Preparation
HDMI1 USB PC AUDIO VGA RF
SCART
Rear View and Sockets
Socket Description
1 RF Aerial To connect to the aerial socket on the wall with the RF coaxial cable.
2 VGA / PC AUDIO To connect to a computer or other devices with a VGA interface.
3 SCART To connect to a VCR, DVD Player, or other AV device with a SCART output socket by using
the SCART adapter cable provided.
4 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 22 for details)
5 USB Allows the insertion of a USB storage device to play video, audio, photo and text files
(DMP mode) and record DTV programmes on to a USB storage device.
6 HDMI1 / HDMI2 To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
7 VIDEO / AUDIO (L/R) To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
8 Y, PB, PR / AUDIO (L/R) To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
9 Mains Adapter Connects the mains adapter to the mains socket.
1
2
3
5
6
4
69
87
VIDEO L R Y Pb Pr
HDMI2
C16LDVB11_IB_110404_Annie.indd 8 11年4月4日 下午6:04

GB
9
Preparation
3. Close the battery compartment cover.
Handling the Batteries
• Improper or incorrect use of batteries may cause
corrosion or battery leakage, which could cause
fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will
not function. Replace both batteries at the same
time with new ones.
• Do not install new batteries with used ones and do
not mix different types of batteries.
• Do not dispose of used batteries as domestic
waste. Dispose of them in accordance with local
regulations.
Handling the Remote Control
• Take care of your fingernails when you press and
hold the battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote
control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct
sunlight or near sources of excessive heat.
• Remove the battery from the remote control when
not in use for a long period of time, as it could cause
corrosion or battery leakage and may result in physical
injury and/or property damage including fire.
MUTE
TITLE A-BD.SETUP
ANGLE
TEXT S D.MENU
MENU
INFO
GUIDE
VOL
1 2 3
FAV/REP
EXIT
OK
CH
4 5 6
7 8 9
0
AD RECALL/GOTO
Remote Control Operation Range
Point the remote control at the TV no more than 5 metres from the
remote control sensor on the TV and within 60° in front of the TV.
The operating distance may vary depending on the brightness of the
room.
Installing Batteries in the Remote Control
1. Slide the back cover to open the battery compartment of the remote
control.
2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends
of the batteries with the (+) and ( - ) ends indicated in the battery
compartment.
30° 30°
5M
C16LDVB11_IB_110404_Annie.indd 9 11年4月4日 下午6:04

GB
10
Preparation
1.
Switches the TV between on and standby mode.
2. MUTE
Mutes and restores your TV sound.
3. Coloured buttons
Access the TELETEXT items or channel edit when using Digital /
Freeview TV Channels. (ATV / DTV mode)
(RED)
Eject a disc. (DVD mode)
TITLE (GREEN)
Displays the DVD title content. (DVD mode)
D.SETUP (YELLOW)
Display and exit the DVD setup menu. (DVD mode)
A–B (BLUE)
Repeat a segment between A and B. (DVD mode)
4.
To reverse playback rapidly. (DVD / DMP mode)
(SUBPAGE)
Displays the subpage on the teletext screen. (ATV mode)
5.
To advance playback rapidly. (DVD / DMP mode)
(REVEAL)
Reveals hidden information such as the answer to a quiz in
teletext. (ATV mode).
6.
To skip to the beginning of the previous chapter / track / photo.
(DVD / DMP mode)
(HOLD)
Freezes a multi-page passage on screen in teletext. (ATV mode)
7.
To skip to the beginning of the next chapter / track / photo.
(DVD / DMP mode)
(LIST)
Display the text page on the teletext screen. (ATV mode)
8. PLAY
To start playback. (DVD / DMP mode)
9. Pause
• To pause playback. (DVD / DMP mode)
• Start the time-shift function (DTV mode)
10. Stop
To stop the playback or recording. (DVD / DMP mode)
11. ANGLE
Select dierent angles for the video. (DVD mode)
INDEX
To select the page number of the index from teletext. (ATV
mode)
12. RETURN
Return to menu. (DVD mode)
TEXT
Turns on and o the teletext function. (ATV / DTV mode)
13. S (Subtitle)
• Displays subtitles which are broadcast with the programme.
(DTV mode).
• Displays subtitles on the DVD. (DVD mode)
Remote Control
MUTE
TITLE A-BD.SETUP
ANGLE
TEXT S D.MENU
MENU
INFO
GUIDE
VOL
1 2 3
FAV/REP
EXIT
OK
CH
4 5 6
7 8 9
0
AD RECALL/GOTO
1
4
3
8
12
5
9
13
2
7
11
6
10
C16LDVB11_IB_110404_Annie.indd 10 11年4月4日 下午6:04

GB
11
Preparation
14. D.MENU
Display the DVD menu. (DVD mode)
15. INFO
• Display the present screen information such as the
current channel on ATV / DTV mode and the input
source except ATV / DTV mode.
• Display the present screen information such as the
current title / chapter. (DVD mode)
16. MENU
• Display the OSD (On Screen Display) menu.
• Return to the main menu in the OSD menu.
17. (INPUT)
Select among the dierent input signal sources:
DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV /
DVD / DMP
18.
Allows you to navigate the OSD menus and adjust the
system settings to your preference.
OK
• Conrm the selection in the OSD menus.
• Display the channel list. (ATV / DTV mode)
19. GUIDE
Displays the EPG electronic Programme guide. (DTV
mode)
20. Exit
Exit the OSD menu.
21. VOL + / –
Adjusts the volume.
22. FAV
Display the favourite channel list. (ATV / DTV mode)
REP
Select between dierent repeat modes. (DVD mode)
23. CH + / –
Select a channel.
24. REC
Record the current programme. (DTV mode).
25. 0-9 Number Button
• Press to select a programme.
• Select numbered items in a menu. (DVD mode)
26. AD (Audio Description)
• Switches between the audio languages (only
applicable when the TV programme has this feature).
(DTV mode)
• Select Stereo / Dual Sound Reception (ATV mode)
27. RECALL
Return to the previous viewing channel. (ATV / DTV
mode)
GOTO
To skip to a specic location on a DVD / CD. (DVD mode)
MUTE
TITLE A-BD.SETUP
ANGLE
TEXT S D.MENU
MENU
INFO
GUIDE
VOL
1 2 3
FAV/REP
EXIT
OK
CH
4 5 6
7 8 9
0
AD RECALL/GOTO
25
26
21
16
19
18
15
27
23
17
20
14
22
24
C16LDVB11_IB_110404_Annie.indd 11 11年4月4日 下午6:04

GB
12
Connections
Connecting an AV Device with an HDMI Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection)
Protocol.
• The TV has a total of 2 HDMI input sockets, please make sure the correct input source is selected corresponding to your
connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.
1. Use a HDMI cable to connect the TV’s HDMI input
socket to the external AV device’s HDMI output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the TV
or on the remote control to turn on your TV.
4. Press the button on the right side panel of the TV
or on the remote control to display the Input Source
List. Use the buttons to select HDMI1 / HDMI2
and then press the OK button to confirm.
Making Video and Audio Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains adapter cable to the mains socket until all other connections
are complete.
Signal Type Separate Audio
Connection Required
HDMI HDMI
(480i/480p/576i/576p/720p/1080i/1080p*) No
VGA INPUT
VGA
Yes
Component Video
(480i/480p/576i/576p/720p/1080i/1080p*)
Yes
SCART
SCART (RGB Input) No
Composite Video
Yes
Best Video
Performance
*1080p: Although this TV is compatible with a 1080p input, the screen is not capable of
displaying this resolution and consequently the image will be scaled to suit the screen.
Connections
Although this TV is able to connect to a HDMI
device, it is possible that some devices may not
operate correctly.
HDMI1 USB PC AUDIO VGA RF
SCART
VIDEO L R Y Pb Pr
HDMI2
Rear Right Side View of TV
Rear Right Bottom View of TV
HDMI Cable
(not included)
Blu-ray Player / DVD Player /
Recorder
Set-top BoxGame Console
C16LDVB11_IB_110404_Annie.indd 12 11年4月4日 下午6:04

GB
13
Connections
Connecting an AV Device with a Component (YPbPr) Cable
1. Use a component cable to connect the TV’s YPbPr
input sockets to an external AV device’s component
output sockets.
2. Use an AV cable to connect the TV’s AUDIO(L/R) input
sockets to the external AV device’s component audio
output sockets. (Audio Left = white, and Audio Right
= red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the TV.
4. Press the button on the right side panel of the TV
or on the remote control to turn on your TV.
5. Press the button on the right side panel of the TV
or on the remote control to display the Input Source
List. Use the buttons to select YPbPr and then
press the OK button to confirm.
Connecting a Computer with a VGA Cable
1. Use a VGA cable to connect the TV’s VGA input
socket to a computer’s VGA output socket. Use an
audio cable to connect the TV’s PC AUDIO input
socket to the computer’s audio output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the
TV or on the remote control to turn on your TV.
4. Press the button on the right side panel of the
TV or on the remote control to display the Input
Source List. Use the buttons to select PC and
then press the OK button to confirm.
Rear Right Side View of TV
Computer
HDMI1 USB PC AUDIO VGA RF
SCART
VGA Cable
(not included)
Audio Cable
(not included)
• The best resolution is 1366 x 768.
• If your computer is set to shut down after a
few minutes of idle mode, the TV will also
switch to standby due to no signal being
received, this is to save energy. Press the
button on the right side panel of the TV or
on the remote control to restart the TV.
Satellite Receiver
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
L
R
COMPONENT
OUT
Y
Pr
Pb
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
Component Cable
(not included)
Pb/Cb
Pr/Cr
Y
Pb/Cb
Pr/Cr
Y
VIDEO L R Y Pb Pr
HDMI2
Rear Right Bottom View of TV
C16LDVB11_IB_110404_Annie.indd 13 11年4月4日 下午6:04

GB
14
Connections
Connecting an AV Device with Composite Cable
1. Use an AV cable to connect the TV’s AUDIO(L/R)
/ VIDEO input sockets to the external AV device’s
composite audio / vedio output sockets. (VIDEO =
yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the
TV or on the remote control to turn on your TV.
4. Press the button on the right side panel of the
TV or on the remote control to display the Input
Source List. Use the buttons to select AV and
then press the OK button to confirm.
Connecting an AV Device with a SCART Cable
1. Use a SCART cable to connect the TV’s SCART adapter
cable to an external AV device’s SCART output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the TV
or on the remote control to turn on your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Rear Right Side View of TV
HDMI1 USB PC AUDIO VGA RF
SCART
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
SCART Adapter Cable
(included)
Satellite Receiver
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
VIDEO L R Y Pb Pr
HDMI2
Rear Right Bottom View of TV
C16LDVB11_IB_110404_Annie.indd 14 11年4月4日 下午6:04

GB
15
Connections
Connecting the Aerial
Connect one end of the RF coaxial cable to the aerial
socket on the wall and the other end of the cable to
the RF (75Ω) socket at the rear right side of your TV.
HDMI1 USB PC AUDIO VGA RF
SCART
OR
RF coaxial cable
(not included)
Connecting a USB Storage Device
1. Switch off the TV before connecting any USB storage
device.
2. Connect your USB storage device to the USB port of
your TV.
3. Press the button on the right side panel of the TV
or on the remote control to turn on your TV and your
USB storage device.
4. Press the button on the right side panel of the TV
or on the remote control to display the Input Source
List. Use the buttons to select DMP and then
press the OK button to confirm.
Rear Right Side View of TV
HDMI1 USB PC AUDIO VGA RF
SCART
USB Cable
(not included)
Adapter
Portable
hard Disk
USB Hub
USB
• If a hard disk is used, make sure its mains adapter is connected to the mains supply.
• If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current consumption
may exceed 500mA.
• The maximum supported storage space of the hard disk is 250 GB.
• The file system only supports FAT32 format.
• If you want to store the video streaming of a DTV programme, the transfer rate of the USB storage device must not be
less than 5MB/s, otherwise the picture and sound of the programme will be affected and a warning statement will be
shown on the screen. If this happens, please upgrade your USB storage device.
• The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard disk. This is
normal and the starting time may vary depending on the brand and the memory size of the connected hard disk.
• Disconnect the USB storage device if it is not in use.
Do not connect the TV to the mains
supply until you have completed all the
connections.
C16LDVB11_IB_110404_Annie.indd 15 11年4月4日 下午6:04

16
GB
Initial Setup
6. Channel tuning will commence. This operation may take up to 6
minutes. The display will show the progress of the tuning and the
number of channels found.
7. If you want to skip the ATV tuning, press the MENU button to
interrupt the tuning half way. A pop-up screen will be displayed,
press the button to select YES to confirm. You will then go
straight to DTV tuning. You may repeat the above step if you also
want to skip the DTV tuning. An installation reminder will appear
the next time you turn on the TV.
8. After tuning is complete, the channels are arranged in a preset
order. If you wish to skip channels, modify the preset order or
rename channels, select Channel Edit under the Channel menu
(refer to page 20-21 for details).
Channel Tuning
TV : 3 Channel(s)
DTV : 0 Channel(s)
Radio : 0 Channel(s)
Data : 0 Channel(s)
36%... 668.75MHz (TV)
Please press MENU to skip.
5. Press the buttons to navigate the menu and change the
settings. Press the OK button to confirm.
OSD Language Select your desired language to be displayed on
the menu. The default on-screen menu language
is set as English.
Country Select the country where you will operate the TV.
The default country is set as UK.
Dansk
Deutsch
Hrvatski
Italiano
OSD Language
OK
Magyar
Nederlands
Norsk
PolskiEnglish
Cesky
E k
Espanol
~
Fran ais
Portugues
Pycck
France
Greece
UK
Australia
Austria
Czech
Denmark
Finland
Country
OK
Belgium
Bulgaria
Croatia
Hungary
Italy
Luxembourg
Germany
Turning the TV On for the First Time
1. Connect the mains adapter to the mains adapter socket located
at the rear right bottom side of your TV and then connect to the
mains socket after you have completed all the connections.
2. At this stage, the TV switches to standby mode. The red LED
indicator will illuminate on the front panel of the TV.
3. In standby mode, press the button on the right
side panel of the TV or on the remote control to
turn the TV on. The red LED indicator will turn
green.
4. The first time you turn the TV on, it will go straight into the First
Time Installation menu. Please ensure the aerial is plugged
in and then press the OK button. (If you have already installed
the TV using the Quick Start Guide, please go to the next step
“Selecting the Input Source” on the next page.)
First Time Installation
Please ensure aerial is plugged in!
Then press OK button.
Initial Setup
• Only use the included mains adapter. Do not use it with
any other equipment.
• Always disconnect the TV from the mains socket when
not in use for a long period of time.
• The button on the right side panel of the TV or on
the remote control is only used for switching the TV into
standby, it does not disconnect the TV from the mains
power. To completely disconnect the mains power,
please remove the mains adapter from the mains socket.
VIDEO L R Y Pb Pr
HDMI2
To the mains socket
Mains Adapter
(included)
C16LDVB11_IB_110404_Annie.indd 16 11年4月4日 下午6:04

17
GB
Initial Setup
Selecting the Input Source
1. Press the button on the right side panel of the TV or on the
remote control to display the Input source list.
2. Press the buttons to select the input source that you want: DTV / ATV /
SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD / DMP.
3. Press the OK button to confirm your selection.
Input Source
OK
DTV
ATV
SCART
YPbPr
PC
HDMI1
HDMI2
AV
DVD
DMP
Channel Selection
• Press the CH + / – buttons on the remote control repeatedly or the 0-9 buttons to select the channel.
Alternative
Press the OK button to enter the Channel List. Then use the buttons to highlight and select the channel.
Press the OK button to view the selected channel.
If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the
password, the channel will then be unlocked (refer to page 20-21 for details on Channel Edit).
• Press the FAV button to view the Favourite List. Then use the buttons to highlight and select the channel. Press the OK
button to view the selected channel (refer to page 20-21 for details on Channel Edit).
• Press the RECALL button to return to the previously viewed channel.
Display Channel Information
• Press the INFO button to view the current information.
Volume Adjustment
• Press the VOL + or – button on the side panel of the TV or on the remote control to adjust the volume.
• If you wish to switch the sound off, press the MUTE button. Press the MUTE button again or the VOL + button to resume
audio listening.
Optimum Viewing
The diagrams below demonstrate the optimum viewing angles for this TV.
Side View Top View
35°
15°
45°
45°
C16LDVB11_IB_110404_Annie.indd 17 11年4月4日 下午6:04

18
GB
Using the Features
4. Channel tuning will commence. This operation may take up to 6 minutes.
The display will show the progress of the tuning and the number of
channels found.
5. If you want to skip the ATV tuning, press the MENU button to interrupt
the tuning half way. A pop-up screen will be displayed, press the
button to select YES to confirm. You will then go straight to DTV tuning.
You may repeat the above step if you also want to skip the DTV tuning.
An installation reminder will appear the next time you turn on the TV.
6. After tuning is complete, the channels are arranged in a preset order. If
you wish to skip channels, modify the preset order or rename channels,
select Channel Edit under the channel menu (refer to page 20-21 for
details).
3. In the Tune Type menu, press the buttons to select ATV / DTV /
DTV + ATV. Press the button and then press the buttons to
select the country where you will operate the TV. Press the OK button to
confirm.
2. Press the buttons to select Auto Tuning and then press the OK
button.
Customising the Channel Setting (TV, DTV or Radio Mode)
Auto Tuning
Use this to automatically find and store all available channels. This is normally recommended if some channels have been added
or removed by the broadcaster or if you have moved house.
1. Press the MENU button and then press the buttons to select the
CHANNEL menu and then press the OK button.
Channel Tuning
TV : 3 Channel(s)
DTV : 0 Channel(s)
Radio : 0 Channel(s)
Data : 0 Channel(s)
36%... 668.75MHz (TV)
Please press MENU to skip.
CHANNEL
SOUND
TIME
OPTION
LOCK
EXIT
EXIT
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Signal Information
CI Information
Software Update(OAD)Off
Software Update(USB)
Channel Edit
Tune Type DTV+ATV
UK
Australia
Austria
Belgium
Bulgaria
Croatia
Czech
Denmark
Finland
MENU
Using the Features
C16LDVB11_IB_110404_Annie.indd 18 11年4月4日 下午6:04

19
GB
Using the Features
3. The DTV Manual Tuning screen will pop up. Press the buttons
to select the desired UHF channel and then press the OK button to
commence the search of that channel. When the signal has been tuned,
the picture and signal strength will be displayed on the screen.
4. Press the MENU button to return back to the main menu.
5. Press the EXIT button to exit the menu.
2. Press the buttons to select ATV Manual Tuning and then press the
OK button.
2. Press the buttons to select DTV Manual Tuning and then press the
OK button.
DTV Manual Tuning
Allows you to make manual fine tuning adjustments of the channel under DTV mode.
1. Press the MENU button and then press the buttons to select the
CHANNEL menu and then press the OK button. CHANNEL
SOUND
TIME
OPTION
LOCK
EXIT
EXIT
CHANNEL
SOUND
TIME
OPTION
LOCK
EXIT
EXIT
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Signal Information
CI Information
Software Update(OAD)Off
Software Update(USB)
Channel Edit
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Signal Information
CI Information
Software Update(OAD)Off
Software Update(USB)
Channel Edit
DTV Manual Tuning
VHF CH 5
Bad Nomal Good
Press OK to search
ATV Manual Tuning
Allows you to make manual fine tuning adjustments if the channel reception is poor under ATV mode.
1. Press the MENU button and then press the buttons to select the
CHANNEL menu and then press the OK button.
C16LDVB11_IB_110404_Annie.indd 19 11年4月4日 下午6:04

20
GB
Using the Features
a. Delete
Press the RED button to delete the selected channel.
b. Rename (ATV channels)
Press the GREEN button to rename the selected channel. Press
the buttons to select the characters to represent the station
name. Press the buttons to move to the next character and
then press the GREEN button again to confirm the new name.
3. A Channel Edit screen will pop up. Press the buttons to select
the programme you want to edit.
2. Press the buttons to select Channel Edit and then press the OK
button.
3. The ATV Manual Tuning screen will pop up. Use the buttons to select
the following options and the buttons to adjust the setting.
Storage To Presets the channel number.
Sound System Selects the sound system: I / DK / BG / L (for
SECAM).
Current CH Displays the current channel number.
Search Press the buttons to start the manual
tuning.
Fine-Tune Press the buttons to make manual fine
tuning adjustments.
Frequency Displays the current tuned frequency.
4. After finishing the manual tuning adjustment of a channel, press the
RED button to save your channel before tuning the next channel.
5. Press the MENU button to return back to the main menu.
6. Press the EXIT button to exit the menu.
Channel Edit (ATV / DTV Mode)
Allows you to edit TV programmes in the Channel List.
1. Press the MENU button and then press the buttons to select the
CHANNEL menu and then press the OK button.
ATV Manual Tuning
Storage To 1
Sound System I
Current CH 1
Search
Fine-Tune
Frequency 255.25 MHz
Save MENU
CHANNEL
SOUND
TIME
OPTION
LOCK
EXIT
EXIT
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Signal Information
CI Information
Software Update(OAD)Off
Software Update(USB)
Channel Edit
Channel Edit
OK
Delet e R en am e Mo ve Skip FAV
MENU
800 SZTVM01 DTV
800 SZTVM02
800 SZTVM03
800 SZTVM04
804 Date
1C-51
2C-53
3C-61
DTV
DTV
DTV
DTV
ATV
ATV
ATV
All channels (DTV and ATV) are listed, please ensure that
you edit the correct channel.
C16LDVB11_IB_110404_Annie.indd 20 11年4月4日 下午6:04
