Curtis RDR323 User manual
RDR323 3.22cuft
1500W
59.4 lbs 595x510x681mm
120V/60Hz

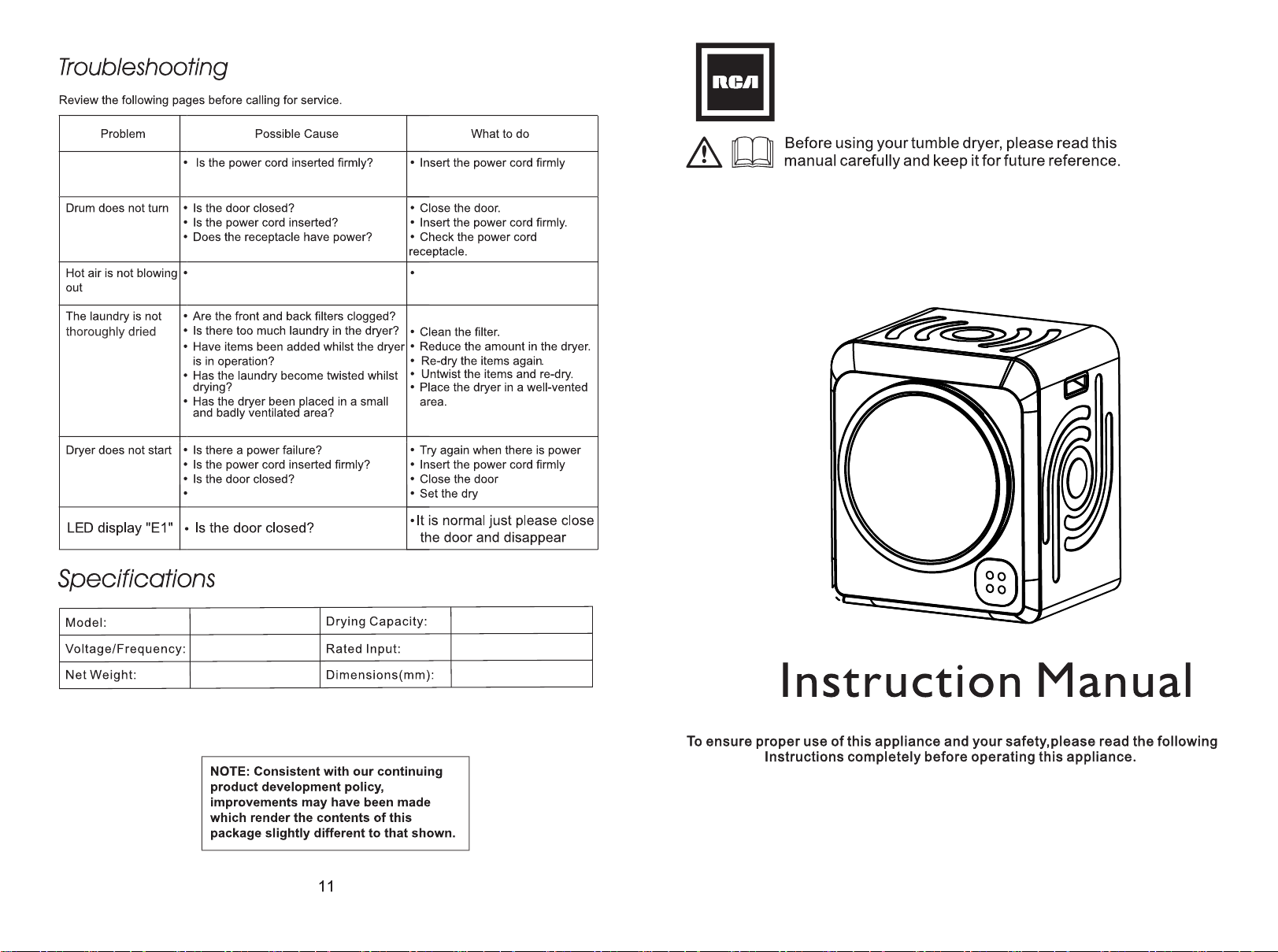

Set the Program correctly
Program does not
work
Is the Program in the OFF position?
Is the Program in correctly set on cold
air?
program
RDR323
This product is manufactured and sold by Curtis International Ltd.
RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trad-
emarks or trademarks of RCA Trademark
Management and are used under license by Curtis International Ltd.
Any other product, service, company, trade or product name and logo referenced
herein are neither endorsed nor sponsored by
RCA Trademark Management or its affiliates.

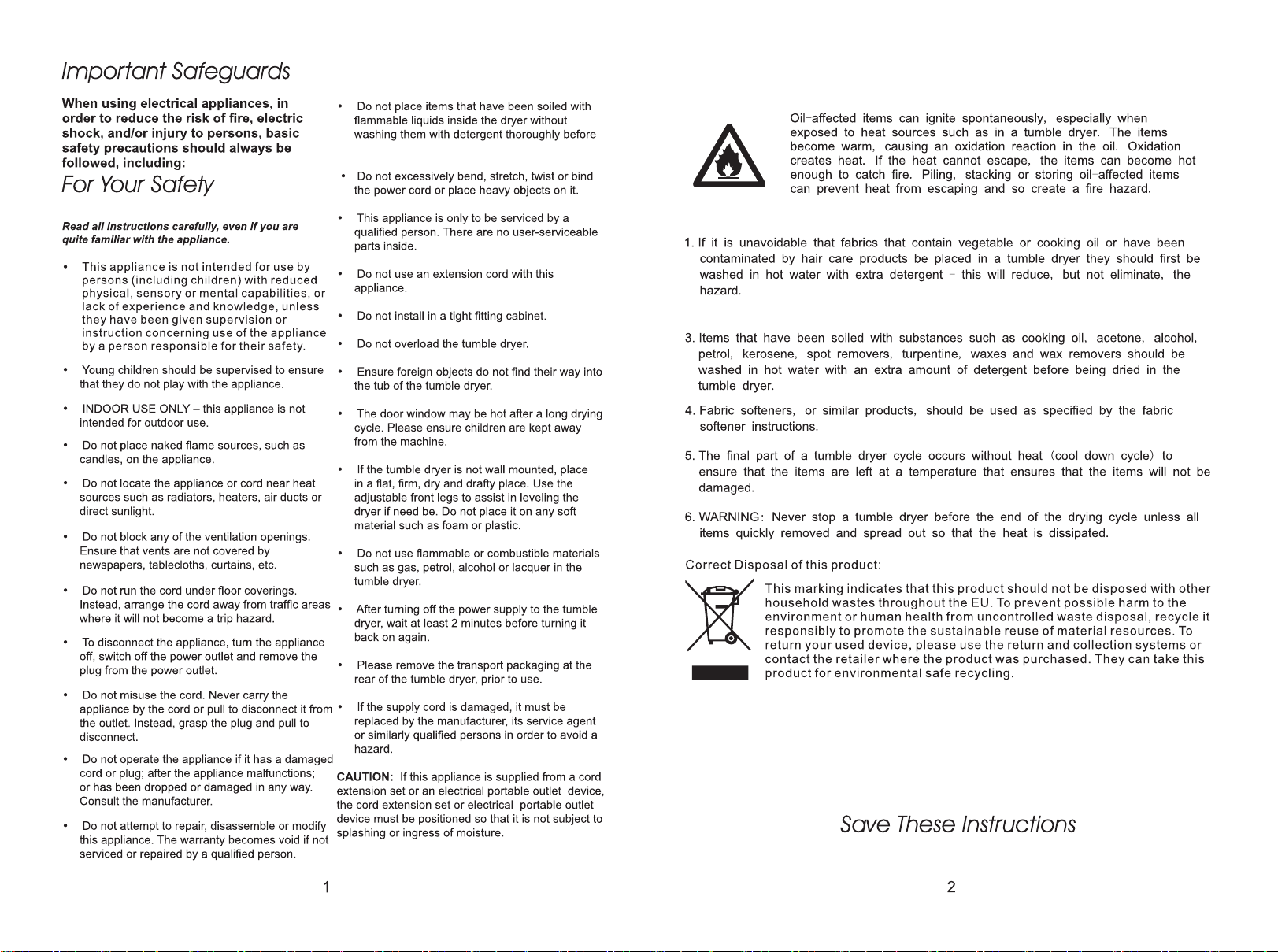

2. Do not dry unwashed items in the tumble dryer.
- this appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved
- children shall not play with the appliance
- cleaning and user maintenance shall not be made by children without supervision
- Children of less than 3 years should be kept away unless continuously supervised
Control Panel
Cabinet
-that the tumble dryer is not to be used if industrial chemicals have been used for cleaning
- that the lint trap has to be cleaned frequently
-that lint must not to be allowed to accumulate around the tumble dryer
-that adequate ventilation has to be provided to avoid the back flow of gases into the room
from appliances burning other fuels, including open fires
-items such as foam rubber (latex foam), shower caps, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be dried in the tumble dryer
WARNING: The appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off by a utility
-that the appliance must not be installed behind a lockable door, a sliding door or a door
with a hinge on the opposite side to that of the tumble dryer, in such a way that a full
opening of the tumble dryer door is restricted.
15 642 3
1Hour
Smart
Extra Airing
40℃
60℃
110V
Remove all objects from pockets such Eusure that the fan is switched off from
the supply mains before removing the guard.
as lighters and matches.
Clothings type
Quick-drying！Clothes
Cotton！clothes, jeans
Crease Guard Max
dry time
50min
50min
60℃
55℃
40℃
Program
1Hour
Smart
Extra
Max volume of
dry clothings Heat
cotton！weaving！clothes,
jeans！and！bedsheets
1
60min
1Power Supply Key
2Program Selection Key
3Temperature Selection Key
4Start/pause key
5Program Indicator
6Temperature Indicator
1) Press the "power" button to turn on (off) the power supply;
2) Programming. Users can select the program according to the clothing material and clothing
quantity, click the "Program Selection" button, and switch the program between "Extra","smart"
and "One Hour".
3) Selection of heating temperature. When using the "timing" program, the heating temperature
can be set in the three options of "60", "40" and "air-drying". When the selection is successful,
the corresponding temperature indicator lights up.
4) Press the "Start/Stop" button, and the dryer will start working after 2 seconds. Pressing this
button during operation can stop working. Clothes can be added or reduced in this state, and
hot steam will come out carefully when opening the door, so as to avoid scalding. Press the
machine again to resume operation and continue to complete the selection process. The
"Start/Stop" key is the switch between start and stop of dryer. If you press the "Start/Stop"
button directly after turning on the power supply, the dryer will run according to the intelligent
program.
8.8~13.2 lbs
2.2~13.2 lbs
4.4 lbs
1
60℃
Airing
Operating guide
In standby state,confirm the normal state
is ok
Open the door and put clothes in drum,
the clothes weight should not exceed
rated drying capacity for appropriate
Close the door and check if these is
clothes to be pinned by door
Select program, according to actual need
to choose the drying time / program
Push start/pause button on the door and
dryer start working
Dryer stop work after one or two minutes,
take out the dryed clothes

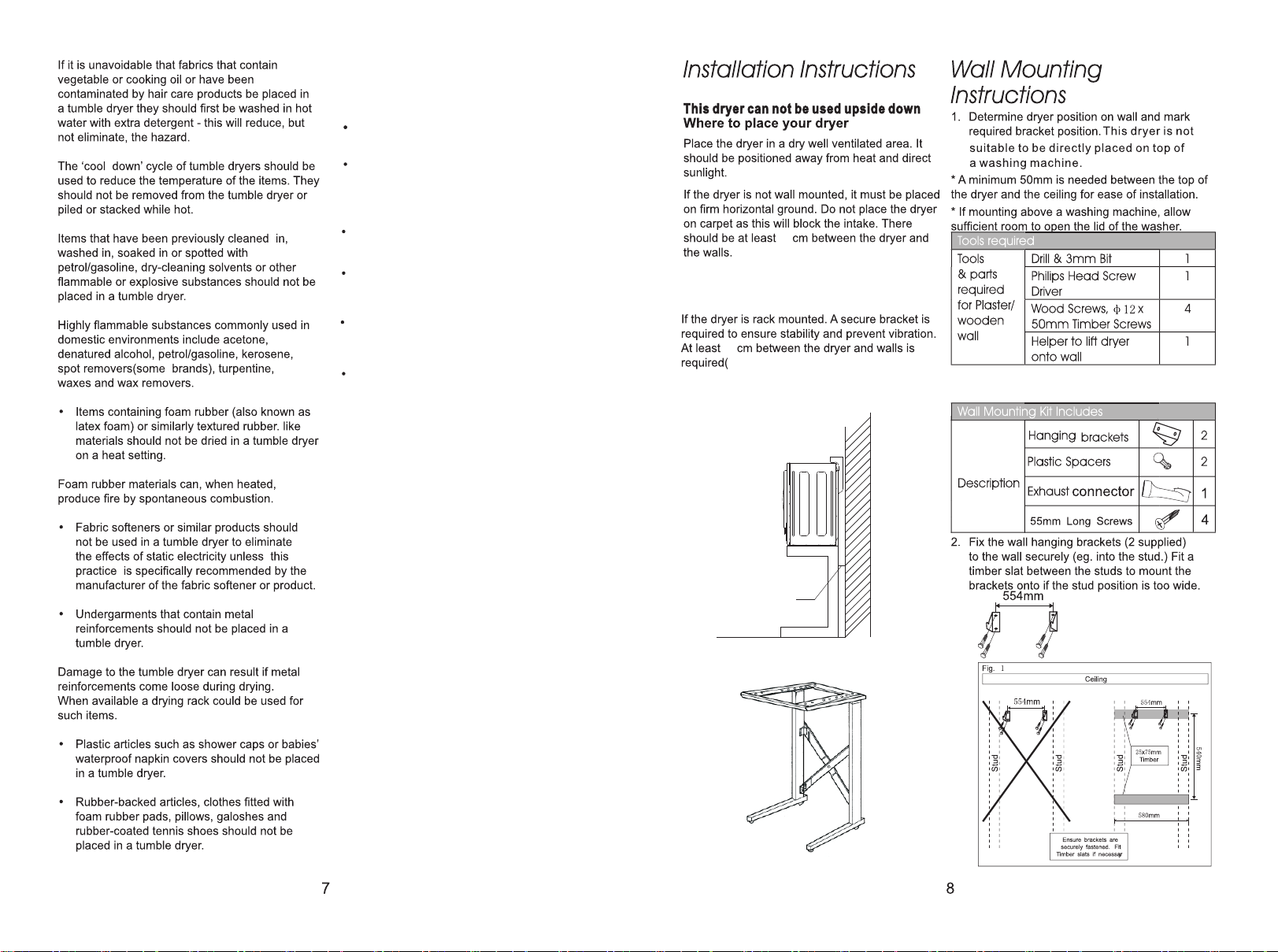

13cm
Bracket
The bracket is not included).
Note:Optional for Wall Mounted Kits with
Extra Cost.
13
13
Note:All accessories Optional with Extra Cost.
For service assistance and product information,please call:1-800-968-9853
7045 BECKETT DRIVE,UNIT 15,MISSISSAUGA,ON,L5 S2A3 www.curtisint.com
To make a warranty claim, do not return this product to the store. Please
1 Year Warranty
This product is warranted to be free from defects in material and workman-
ship for a period of one (1) year from the date of original purchase. During
this period, your exclusive remedy is repair or replacement of this product or
component found to be defective, at our option; however, you are responsible
for all costs associated with returning the product to us. If the product or
component is no longer available, we will replace with a similar one of equal
or greater value. Prior to a replacement being sent, the product must be
rendered inoperable or returned to us.
This warranty does not cover glass, filters, wear from normal use, use not in
conformity with the printed directions., or damage to the product resulting
from accident, alteration, abuse, or misuse. This warranty extends only to the
original consumer purchaser or gift recipient. Keep the original sales receipt,
as proof of purchase is required to make a warranty claim. This warranty is
void if the product is used for other than single-family household use or
subjected to any voltage and waveform other than as on the specified rating
on the label (e.g., 120V~60Hz).
We exclude all claims for special, incidental, and consequential damages
caused by breach of express or implied warranty. All liability is limited to the
amount of the purchase price. Every implied warranty, including any statutory
warranty or condition of merchantability or fitness for a particular purpose, is
disclaimed except to the extent prohibited by law, in which case such warran-
ty or condition is limited to the duration of this written warranty. This warranty
gives you specific legal rights. You may have other legal rights that vary
depending on where you live. Some states or provinces do not allow limita-
tions on implied warranties or special, incidental, or consequential damages,
so the foregoing limitations may not apply to you.
For faster service, locate the model, type, and serial numbers on your
appliance.
