Curtiss-Wright DuraCOR 311 User manual

USER MANUAL
DuraCOR 311
Intel® AtomTM E3845 Mission Computer

DuraCOR 311
Page 2 of 72
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
Disclaimer
Although the information contained herein has been carefully verified, Curtiss-Wright assumes no responsibility for errors that might
appear in this document or for damage to property or persons resulting from improper use of this manual or related software.
Curtiss-Wright reserves the right to change the contents and form of this document, as well as the features and specifications of its
products, at any time without notice. The information in this publication does not represent a commitment on the part of Curtiss-
Wright. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this
document may be photocopied, reproduced, or translated into another language without the prior written consent of Curtiss-Wright.
Contact Information
Curtiss-Wright
Defense Solutions Division
3222 S. Washington St.
Salt Lake City, Utah, USA 84115
T: +1.801.483.1533
Toll-Free: +1.800.483.3152
F: +1.801.483.1523
Email:
Sales: [e-mail]
Support: slp_tsuppor[email protected]m
Web-site: www.curtisswrightds.com
Send us your comments and feedback: [e-mail]
Trademarks
Parvus is a brand of Curtiss-Wright Corporation.
All trademarks, both marked and not marked, appearing in this document are the property of their respective owners.
Copyright
© 2020 Curtiss-Wright
WEEE
The information below is issued in compliance with the regulations as set out by the 2002/96/CE directive, subsequently superseded
by 2003/108/CE. It refers to electrical and electronic equipment and the waste management of such products. When disposing of a
device, including all of its components, subassemblies, and materials that are an integral part of the product, you should consider
the WEEE directive.
This symbol has been attached to the equipment or, if that was not possible, on the packaging,
instruction literature, and/or the guarantee sheet. Using this symbol states that the device has been
marketed after August 13th 2005, and implies that you must separate all of its components when
possible, and dispose of them in accordance with local waste disposal legislation.
Because of the substances present in the equipment, an improper use or disposal of the refuse can cause damage to human
health and to the environment.
With reference to WEEE, it is compulsory not to dispose of the equipment with normal urban refuse. Arrangements should be
instigated for separate collection and disposal.
Contact your local waste collection body for more detailed recycling information.
In case of illicit disposal, sanctions may be levied on transgressors.
RoHS
This device, including all its components, subassemblies, and the consumable materials that are an integral part of the product, has
been manufactured in compliance with the European directive 2002/95/EC known as the RoHS directive (Restrictions on the use of
certain Hazardous Substances). This directive targets the reduction of certain hazardous substances previously used in electrical
and electronic equipment (EEE).

DuraCOR 311
Table of Contents
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
Page 3 of 72
Table of Contents
Table of Contents......................................................................................................................3
List of Figures...........................................................................................................................6
List of Tables.............................................................................................................................7
Chapter 1 Introduction.............................................................................................................8
About This Document....................................................................................................................................8
Manual Organization ..............................................................................................................................8
Definitions...............................................................................................................................................8
Description of Safety Symbols................................................................................................................8
Functional Description...................................................................................................................................9
Features..................................................................................................................................................9
Configurations.......................................................................................................................................10
Base System..................................................................................................................................10
Base System with Removable Storage Bay Option.......................................................................11
System Block Diagram .........................................................................................................................12
Shared Resources and Connectors Location.......................................................................................13
Chapter 2 Operational Description .......................................................................................14
Mini-PCIe Expansion...................................................................................................................................14
Installing Mini-PCIe Cards into the DuraCOR 311 Mission Computer.................................................15
Integrating Mini-PCIe Cards .................................................................................................................15
Storage Options ..........................................................................................................................................16
mSATA .................................................................................................................................................16
2.5” SSD Expansion .............................................................................................................................16
Installing the Device.......................................................................................................................16
Removing the Device.....................................................................................................................16
Accessories....................................................................................................................................16
MicroSD Card Expansion .....................................................................................................................17
Installation......................................................................................................................................17
Removal.........................................................................................................................................18
Audio...........................................................................................................................................................18
Microphone...........................................................................................................................................18
Serial Configuration.....................................................................................................................................19
Console Redirect..................................................................................................................................19
GPIO ...........................................................................................................................................................19
Built-In Test (BIT)........................................................................................................................................19
Zeroization...................................................................................................................................................19
Remote Off..................................................................................................................................................19
Implementing Remote Off.....................................................................................................................19
Write Protect ...............................................................................................................................................20
Power Hold Up............................................................................................................................................20
Chapter 3 Quick Start Guide .................................................................................................21
Recommended Equipment..........................................................................................................................21
Breakout Cable Set ..............................................................................................................................21

DuraCOR 311
Table of Contents
Page 4 of 72
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
Power-on Sequence....................................................................................................................................21
Chapter 4 Connector Description.........................................................................................23
Connector Identification ..............................................................................................................................23
Connector Pinouts.......................................................................................................................................24
J1 Power Connector.............................................................................................................................24
J2 I/O Connector...................................................................................................................................25
J3 I/O Connector...................................................................................................................................27
J4 Configurable I/O Connector.............................................................................................................29
Configurable I/O Internal Connectors...................................................................................................31
Test Cable Set –CBL-C31X-01 ...........................................................................................................32
Chapter 5 Specifications .......................................................................................................33
Technical Specifications..............................................................................................................................33
Energy Efficient CPU/GPU...................................................................................................................33
Storage.................................................................................................................................................33
Modular/Expandable.............................................................................................................................33
Target Applications...............................................................................................................................33
Standard I/O Interfaces ........................................................................................................................34
Related Products..................................................................................................................................34
Mechanical Specifications...........................................................................................................................34
Physical ................................................................................................................................................34
Dimensions...........................................................................................................................................34
Mounting the System............................................................................................................................37
Power....................................................................................................................................................37
Environmental Specifications......................................................................................................................37
Temperature.........................................................................................................................................37
Shock/Vibration.....................................................................................................................................38
EMI/EMC ..............................................................................................................................................38
Operating Conditions............................................................................................................................38
Other Specifications....................................................................................................................................39
Reliability ..............................................................................................................................................39
Export Jurisdiction ................................................................................................................................39
CE Marking...........................................................................................................................................39
Chapter 6 Troubleshooting ...................................................................................................40
Product Identification...................................................................................................................................40
Technical Assistance ..................................................................................................................................40
Returning for Service ..................................................................................................................................40
Chapter 7 Contact Info...........................................................................................................41
Appendix A Onboard Microcontroller Functions.................................................................42
USB Serial Communication Protocol....................................................................................................42
Protocol Buffers....................................................................................................................................42
BIT Status via Protocol Buffers.............................................................................................................42
Serial Configuration via Protocol Buffers..............................................................................................43
Apendix B GPIO Configuration.............................................................................................44
GPIO ...........................................................................................................................................................44
GPIO Example Code............................................................................................................................45
Building Example Code ........................................................................................................................45

DuraCOR 311
Table of Contents
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
Page 5 of 72
Appendix C –BIOS Settings ..................................................................................................46
BIOS Operation...........................................................................................................................................46
Determining the BIOS Version .............................................................................................................46
BIOS Update.........................................................................................................................................46
Setup Guide..........................................................................................................................................47
Menu Bar........................................................................................................................................47
Legend Bar.....................................................................................................................................47
Selecting an Item ...........................................................................................................................47
Displaying Submenus ....................................................................................................................47
Item Specific Help Window ............................................................................................................47
General Help Window....................................................................................................................48
BIOS Setup...........................................................................................................................................48
Main......................................................................................................................................................48
System Information........................................................................................................................49
Boot Features.................................................................................................................................49
Platform Information.......................................................................................................................51
Advanced..............................................................................................................................................51
Miscellaneous ................................................................................................................................52
Watchdog.......................................................................................................................................52
H/W Monitor ...................................................................................................................................53
CPU Configuration .........................................................................................................................55
CPU Power Management ..............................................................................................................56
Uncore Configuration.....................................................................................................................57
IGD - LCD Control..........................................................................................................................58
South Cluster Configuration...........................................................................................................60
PCI Express Configuration.............................................................................................................60
USB Configuration .........................................................................................................................61
Audio Configuration........................................................................................................................62
SATA Drives...................................................................................................................................63
LPSS & SCC Configuration ...........................................................................................................64
Miscellaneous Configuration..........................................................................................................65
SMBIOS Event Log........................................................................................................................66
Memory ECC Error Logging...........................................................................................................67
Kontron Board................................................................................................................................68
Security.................................................................................................................................................69
Boot ......................................................................................................................................................69
Exit........................................................................................................................................................70
Glossary ..................................................................................................................................71

DuraCOR 311
List of Figures
Page 6 of 72
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
List of Figures
Figure 1: Base Unit .....................................................................................................................................11
Figure 2: Base System with Removable Storage Bay................................................................................11
Figure 3: DuraCOR 311 Block Diagram......................................................................................................12
Figure 4: SATA Expansion..........................................................................................................................13

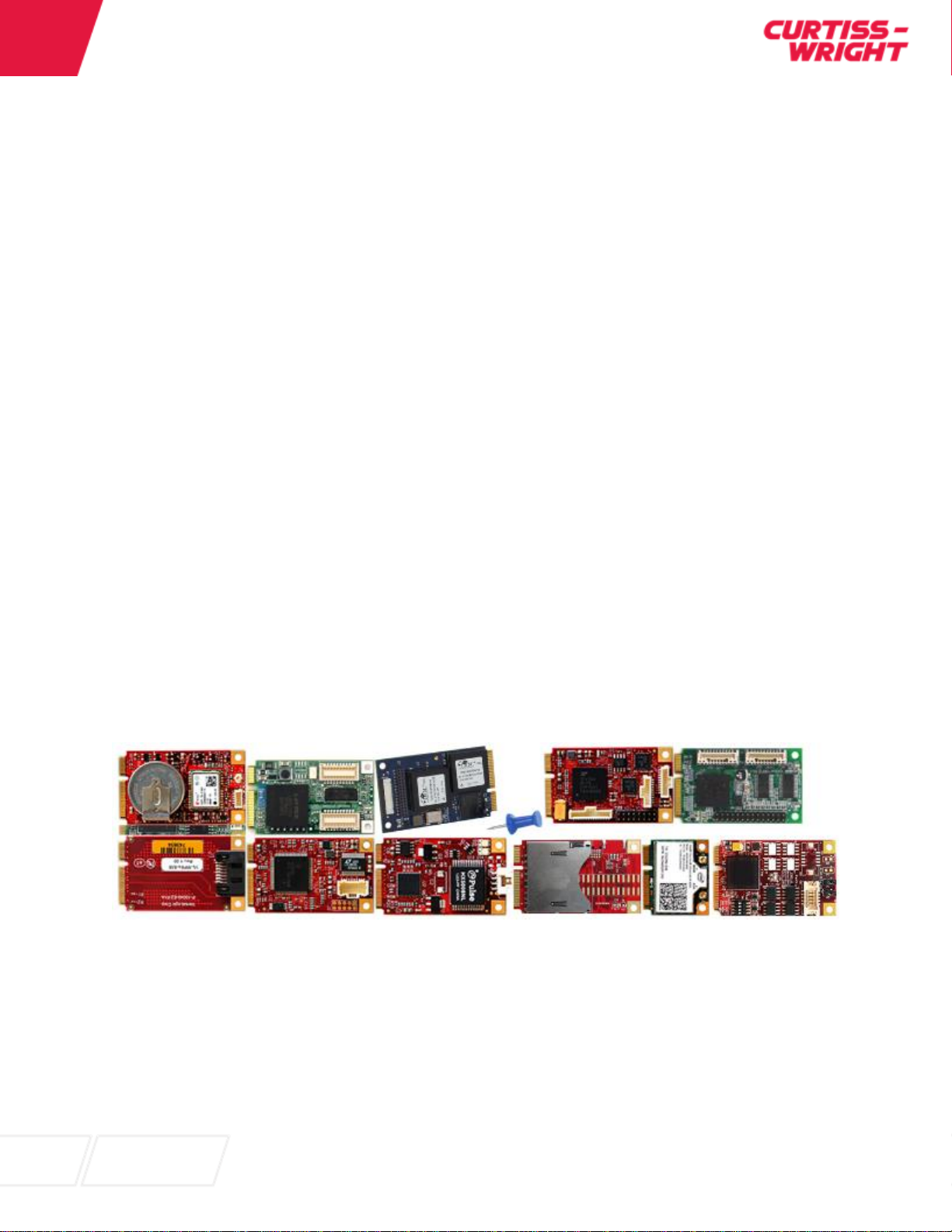

Figure 5: Mini-PCIe Cards from various Manufactureres ...........................................................................14
Figure 6: Card Slot Identification.................................................................................................................15
Figure 7: SSD Removable Tray..................................................................................................................16
Figure 8: MicroSD Card Slot.......................................................................................................................17
Figure 9: MicroSD Card Removal...............................................................................................................17
Figure 10: DuraCOR 311 Connector Identification.....................................................................................23
Figure 11: DuraCOR 311 J1 Front Pinout...................................................................................................24
Figure 12: DuraCOR 311 J2 Front Pinout...................................................................................................25
Figure 13: DuraCOR 311 J3 Front Pinout...................................................................................................27
Figure 14: DuraCOR 311 J4 Front Pinout...................................................................................................29
Figure 15: P2 –Audio Connector................................................................................................................31
Figure 16: P4-P6 –Configurable I/O...........................................................................................................31
Figure 17: CBL-C31X-01 Starter Cable Set................................................................................................32
Figure 18: DuraCOR 311 Top View Dimensions ........................................................................................35
Figure 19: DuraCOR 311 Front View Dimensions......................................................................................35
Figure 20: DuraCOR 311 Side View Dimensions.......................................................................................36
Figure 21: DuraCOR 311 with Removable SATA SSD Option Front View ................................................36
Figure 22: DuraCOR 311 with Removable SATA SSD Option Side View..................................................36
Figure 23: DuraCOR 311 Mounting Hole Locations ...................................................................................37
Figure 24: GPIO Connection to CPU..........................................................................................................44

DuraCOR 311
List of Tables
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
Page 7 of 72
List of Tables
Table 1: DuraCOR 311 Configurations.......................................................................................................10
Table 2: DuraCOR 311 Peripheral Chip List...............................................................................................12
Table 3: Stereo Connector Pinout...............................................................................................................18
Table 4: DuraCOR 311 Connector IdentificationTable ...............................................................................23
Table 5: J1 Connector Information..............................................................................................................24
Table 6: J1 Pinout .......................................................................................................................................24
Table 7: J2 Connector Information..............................................................................................................25
Table 8: J2 Pinout .......................................................................................................................................25
Table 9: J3 Connector Information..............................................................................................................27
Table 10: J3 Pinout .....................................................................................................................................27
Table 11: J4 Connector Information...........................................................................................................29
Table 12: J4 Pinout .....................................................................................................................................29
Table 13: Configurable I/O Internal Connector Part Numbers....................................................................31
Table 14: CBL-C31X-01..............................................................................................................................32
Table 15: USB Serial Protocol ....................................................................................................................42

DuraCOR 311
Chapter 1 Introduction
Page 8 of 72
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
Chapter 1 Introduction
The DuraCOR 311 is an ultra-small form factor (SFF) tactical mission computer based on a low-power,
four-core Intel®AtomTM 3845 (Bay Trail-I) processor equipped with a rugged Flash disk and PCIe-Mini
Card I/O expansion slots. It contains a MIL-STD-1275/704 power supply in an IP67 (dust/water proof)
sealed aluminum chassis with micro-miniature MIL-DTL-38999 like connectors.
About This Document
This manual provides the technical information necessary to take advantage of all features and integrate
the mission computer in diverse platforms and applications.
Manual Organization
This manual provides functional and technical descriptions of the DuraCOR 311 hardware, instructions on
connecting the system to test equipment, connector descriptions and pinouts, and specifications.
Chapter 1 provides an introduction and function description of the DuraCOR 311
Chapter 2 explains how to operate the DuraCOR 311. It describes the system connectors and
cables, and includes procedures for starting the system, installing and using Mini-PCIe IO cards,
and using zeroization capabilities.
Chapter 3 provides a Quick Start guide
Chapter 4 contains connector pinouts for all connectors (external and internal).
Chapter 5 provides chassis specifications, dimensions, and mounting instructions. In addition, it
provides the technical and environmental specifications for the DuraCOR 311.
Chapter 6 provides troubleshooting instructions and technical support contact information
Chapter 7 provides additional contact information.
Definitions
Please refer to the Glossary at the end of this document for an explanation of terms.
Description of Safety Symbols
The following symbols are used in this manual to indicate important information and potentially dangerous
situations.
Warning! Danger, electrical shock hazard!
Personal injury or death could occur. Also damage to the system, connected peripheral devices, or
software could occur if the warnings are not followed carefully.
Caution! Hazard to individuals, environment, devices, or data!
If you do not adhere to the safety advice next to this symbol, there is obvious hazard to individuals, to
environment, to materials, or to data.

DuraCOR 311
Chapter 1 Introduction
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
Page 9 of 72
Note: This symbol highlights important information or instructions that should be observed.
Functional Description
The Parvus®DuraCOR®311 is an ultra-small form factor (SFF) tactical mission computer based on a low-
power, four-core Intel®Atom™ 3845 (Bay Trail-I) processor equipped with a rugged Flash disk and PCIe-
Mini Card I/O expansion slots. At less than 40 cu. in. in volume, 1.5 lbs. in weight, and 15W power, this
miniature multi-core rugged Commercial Off-the-Shelf (COTS) processor is an ideal x86 computing
solution for size, weight, power and cost (SWaP-C) sensitive mobile, airborne, ground, manned and
unmanned vehicle and sensor applications. Optimized for high performance energy efficient processing,
the unit boasts a quad-core 64-bit Intel Architecture (IA) CPU with integrated Intel HD Graphics.
The ultra-reliable and modular design of the DuraCOR 311 features high mechanical robustness and I/O
flexibility to meet the needs of civil and military aerospace platforms. The unit features an industrial-grade
Intel-based Computer-on-Module (COM) tightly integrated with a Flash SSD and system carrier board,
which provides a full complement of standard vetronics I/O interfaces (including USB, Ethernet, Serial,
DIO, Video, Audio), as well as up to three slots for optional add-on Mini-PCIe I/O modules. In addition to
internal mSATA and microSD card slots, the system offers an optional removable 2.5” SATA SSD storage
option for high capacity storage and information assurance requirements. Like other DuraCOR models,
the 311 leverages both an ecosystem of rugged COTS Mini- PCIe modules (including MIL-STD-1553 and
ARINC429 avionics databus interfaces) and Curtiss-Wright’s responsive, cost-competitive application
engineering services to deliver Modified COTS (MCOTS) variants quickly and without a traditional NRE
fee.
The unique combination of small size, low-power multi-core processing, and flexible I/O of the DuraCOR
311 delivers new capabilities for Command, Control, Communications, Computers, Intelligence,
Surveillance and Reconnaissance (C4ISR) applications. This compact system supports a wide operating
temperature range of -40 to +71°C (-40 to +160ºF) without fans or active cooling requirements. It thrives
in extreme shock and vibration conditions, high altitude, and humidity, making it well suited for mobile,
tactical, aerospace, and ground vehicle applications. Reliably designed for use onboard aircraft and
vehicle platforms, the DuraCOR 311 has successfully passed comprehensive qualification testing to MIL-
STD-810G, MIL-STD-461F, MIL-STD-1275D, MIL-STD-704F and RTCA/DO-160G test conditions for
environmental, power and EMI (thermal, shock, vibration, dust, water, humidity, altitude, power
spikes/surges, conducted/radiated emissions and susceptibility).
Housed in a rugged sealed IP67-rated (dust and water proof) aluminum chassis with MIL-performance
circular connectors, the DuraCOR 311 features advanced EMI filtering and power conditioning to protect
against input vehicle/aircraft voltage surges, spikes and transients. In addition, optional 50ms power hold-
up capabilities are supported for MIL-STD-704F aircraft power switch-over requirements.
Features
Miniature SWaP-optimized quad-core Intel®Atom™processor system:
Size: ~40 in³ volume
Weight: < 1.5 lbs. (< 0.68 kgs)
Power: < 15W typical
Rugged IP67 chassis with micro-mini MIL-performance circular connectors
Modular I/O architecture: up to three slots for PCIe Mini-Cards (for add-on I/O)

DuraCOR 311
Chapter 1 Introduction
Page 10 of 72
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
Rugged Flash storage (mSATA / microSD card / removable 2.5” SATA SSD)
28 VDC MIL-1275/704/DO-160 power supply for aircraft and ground vehicles; optional 50 ms
power hold-up
Qualified to extreme MIL-STD-810G/DO-160 thermal, shock, vibration, altitude, humidity; also
MIL-STD-461F/DO-160G EMI/EMC
Designed and manufactured using AS9100 Aerospace Grade/ISO 90001:2000 certified Quality
Program.
CE Marking
Configurations
Due to the modularity of the DuraCOR 311 (mSATA / microSD/Removable SSD, pre-integrated Mini-PCIe
cards, and operation system options), numerous configuration variants are possible. Please consult with
your sales representative and application engineer to assess your technical requirements and
recommended system configuration.
Table 1: DuraCOR 311 Configurations
Product Number
Description
System w/ mSATA
C311-01
DuraCOR 311, Intel 3845, 4 GB RAM, 16 GB mSATA SSD mSATA, Linux
C311-02
DuraCOR 311, Intel 3845, 4 GB RAM, 32 GB mSATA SSD mSATA, Linux
C311-03
DuraCOR 311, Intel 3845, 4 GB RAM, 64 GB mSATA SSD mSATA, Linux
C311-04
DuraCOR 311, Intel 3845, 4 GB RAM, 128 GB mSATA SSD mSATA, Linux
C311-05
DuraCOR 311, Intel 3845, 4 GB RAM, 256 GB mSATA SSD mSATA, Linux
C311-52
DuraCOR 311, Intel 3845, 4 GB RAM, 32 GB mSATA SSD mSATA, Windows
C311-53
DuraCOR 311, Intel 3845, 4 GB RAM, 64 GB mSATA SSD mSATA, Windows
C311-54
DuraCOR 311, Intel 3845, 4 GB RAM, 128 GB mSATA SSD mSATA, Windows
C311-55
DuraCOR 311, Intel 3845, 4 GB RAM, 256 GB mSATA SSD mSATA, Windows
SYSTEM with 2.5" REMOVABLE STORAGE BAY (Disk sold separately)
C311-00R
DuraCOR 311, Intel 3845, 4 GB RAM, no mSATA, Removable 2.5" SATA SSD
Storage Bay (disk sold separately)
Base System
The base system contains a Smart Mobility ARChitecture (SMARC) form factor System on Module (SOM)
and a pre-installed storage device loaded with either Linux or Windows 10.
Example ordering code
C311-01: DuraCOR 311, Intel 3845, 4 GB RAM, 16 GB mSATA SSD, Linux

DuraCOR 311
Chapter 1 Introduction
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
Page 11 of 72
Figure 1: Base Unit
Base System with Removable Storage Bay Option
Example ordering code
C311-00R: DuraCOR 311, Intel 3845, 4 GB RAM, no mSATA, Removable 2.5” SATA SSD
Storage Bay
SSD31X-064S-L: 64 GB 2.5" SATA SSD, Industrial SLC NAND Flash -40/+85C, Mounting Tray,
Linux (compatible with DuraCOR 31X)
Figure 2: Base System with Removable Storage Bay

DuraCOR 311
Chapter 1 Introduction
Page 12 of 72
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
System Block Diagram
The block diagram shows the DuraCOR 311 interfaces.
Figure 3: DuraCOR 311 Block Diagram
Table 2: DuraCOR 311 Peripheral Chip List
Interface
Description
MFG
MFG Part Number
Processor
Intel®AtomTM E3845 –On SMARC
Intel
Ethernet
I210 - On SMARC
Intel
I210 - On Motherboard
Intel
WGI210IT
Serial
Dual TXRX RS232/422/485 Multiprotocol
Transceiver
Linear Technologies
LTC2872
PCIe
PCIe Switch
Broadcom/Avago
PEX8605
PCIe Gen 3 Mux/Dmux
NXP Semiconductors
CBTL02043A
USB
7-port USB 2.0 HUB
Microchip Technology
USB2517
Audio
Audio CODEC
Cirrus Logic Inc.
CS4207
Microcontroller
ARM Microcontroller
Freescale
MK60DN512

DuraCOR 311
Chapter 1 Introduction
MNL-0667-01 Rev B2
ECO-5941
Effective: 17 Mar 20
Page 13 of 72
Shared Resources and Connectors Location
To accommodate different configurations, the following shared resources are explained below:
Mini-PCIe / mSATA Socket: This socket can be used either for an mSATA SSD or for a mini-PCIe card.
