Overview
CyberPower Automatic Transfer Switches PDUs with dual input for power
provide redundant and increased reliability for critical devices with a single
power plug. Users can define the preferred input power source. When a
selected source is unstable or unavailable, the ATS PDU will switch to the
second power source to constantly provide power to connected devices. The
entire ATS PDU series are designed with LED and LCD interfaces for users
to easily observe power status and device load. On-site power management
is accomplished as users can configure power settings, via LCD interface,
according to local power condition. Available in both switched and metered/
monitored configurations, users have a broad base of options to select the
ATS PDU that best fits their needs.
WARNING: This automatic transfer switch has dual power cords (A & B) to
provide redundant power sources to devices with single power supplies and
can be plugged into separate compatible sources* to ensure continuous
access. Users select the preferred source as the primary input. CyberPower
Smart App Online and Sinewave series UPS are highly recommended for use
as the power source.
*Note: Only sine wave AC power sources are compatible with this ATS PDU.
Simulated sine wave AC power sources are NOT compatible.
Model List
Switched Series Metered/Monitored Series
1U 1U
PDU15SW10ATNET PDU15M10AT
PDU20SW10ATNET PDU20M10AT
PDU20SWT10ATNET PDU20MT10AT
PDU20SWHVT10ATNET PDU20MHVT10AT
PDU15SWHVIEC12ATNET PDU15MHVIEC12AT
PDU20SWHVIEC10ATNET PDU20MHVIEC10AT
PDU20SWHVCEE10ATNET* PDU20MHVCEE10AT*
2U 2U
PDU30SWT17ATNET PDU30MT17AT
PDU30SWHVT19ATNET PDU30MHVT19AT
PDU32SWHVCEE18ATNET* PDU32MHVCEE18AT*
*Selected models may not be available in certain regions. Please contact your
CyberPower sales team for more information.
Safety Precautions
Read the following before installing or operating the Automatic Transfer
Switches (ATS) PDU:
• Use only the supplied hardware to attach the mounting brackets.
• The ATS PDU must be plugged into a single phase three-wire, grounded
outlet on a circuit that is protected by a fuse or circuit breaker. For
PDU15xxxxx series, please use a 15A circuit protector. For PDU20xxxxx
series, please use a 20A circuit protector. For PDU30xxxxx series,
please use a 30A circuit protector. Connection to any other type of
power outlet may result in a electrocution hazard.
• Do not use extension cords or adapters with these ATS PDUs.
• Never install an ATS PDU or associated wiring or equipment during a
lightning storm.
• Ensure that the power cord, plug, and socket are in good condition.
To prevent the risk of fire or electrocution, this ATS PDU should
be installed in a temperature and humidity controlled indoor area
free of conductive contaminants. Do not install this ATS PDU where
excessive moisture or heat is present.
Before using, please check to ensure the package contains all the
items shown below. If there are missing parts, please contact your
local CyberPower sales team for technical support.
Check

2
Below items only provided with IEC type ATS PDU
Power Cord 10 feet
IEC-320 C13/C14 x 2
(PDU15SWHVIEC12ATNET/
PDU15MHVIEC12AT Model Only)
Power Cord 10 feet
IEC-320 C19/C20 x 2
(PDU20SWHVIEC10ATNET/
PDU20MHVIEC10AT Model Only)
For 1U Models
Product Contents
ATS PDU
Cable Ties
Qty.: 18 (NEMA Outlet)
Qty.: 30 (IEC Outlet)
RJ45/DB9 Serial Port
Connection Cable
Jumper (Switched type only)
Mounting Bracket x 2 24 (M4x8) Bracket Mounting Screws
(Includes eight spares)
6 (M5x12) Rack Mounting Screws/
6 Washers (Includes two spares for each)
4 (M3x4) Cord Retention Tray
Mounting Screws
Cord Retention Tray
User's Manual, Registration & Software Download Cards
U
s
e
rs
M
a
nu
a
l
Registration
Card
PowerPanel
Management Software

3
For 2U Models
Product Contents
ATS PDU
Mounting Bracket x 2 24 (M4x8) Bracket Mounting Screws
(Includes eight spares)
6 (M5x12) Rack Mounting Screws/
6 Washers (Includes two spares for each)
Cord Retention Tray X 2 8 (M3x4) Cord Retention Tray
Mounting Screws
Cable Ties
Qty.: 30 (NEMA Outlet)
Qty.: 50 (IEC Outlet)
RJ45/DB9 Serial Port
Connection Cable
Jumper (Switched type only)
User's Manual, Registration & Software Download Cards
U
s
e
rs
M
a
nu
a
l
Registration
Card
PowerPanel
Management Software

4
Product Features
Technical Specifications
Switched Series Metered Series
Model Name PDU15SW10ATNET PDU15SWHVIEC12ATNET PDU15M10AT PDU15MHVIEC12AT
Input
Nominal Voltage 100-120V 200-240V 100-120V 200-240V
Frequency 50/60Hz
Derated Input Current 12A 12A(UL)/10A(CE) 12A 12A(UL)/10A(CE)
Plug Type (2) NEMA 5-15P (2) IEC-320 C14 (2) NEMA
5-15P (2) IEC-320 C14
Power Cord Type SR (14 AWG) Socket SR (14 AWG) Socket
Power Cord Length 10 ft/3.05 m
Output
Nominal Voltage 100-120V 200-240V 100-120V 200-240V
Derated Output Current 12A 12A(UL)/10A(CE) 12A 12A(UL)/10A(CE)
Outlet Type NEMA 5-15R IEC-320 C13 NEMA 5-15R IEC-320 C13
Outlet Number 10 12 10 12
Transfer Time Typical: 8-12ms
16ms max @ 60Hz/ 18ms max @ 50Hz
Management and Communications
Multifunction LCD Readout Voltage, Frequency, Load, Current, HW/FW Version, Network Information
Software PowerPanel® Business Edition
Networking Yes, with installed RMCARD Yes, with optional RMCARD
Serial Port RJ45
Sensor Capable Optional
Physical
Dimension (W x H x D) 17.05" x 1.75" x 9.3"/433mm x 44mm x 236mm
Environmental
Humidity 0 to 95% Non-condensing
Altitude 13100 ft/4000 m
Temperature 32oF to 113oF/0oC to 45oC
Safety Approvals
Certifications UL 60950-1
FCC Class A
UL 60950-1
CE, FCC Class A
UL 60950-1
FCC Class A
UL 60950-1
CE, FCC Class A
* All specifications are subject to change without notice.
NEMA Type
IEC Type
A. SNMP/HTTP Network Slot
Allows users to remotely control and monitor the ATS PDU when installed
with CyberPower’s Remote Management Card.
B. Serial Port (RJ45 modular port)
Use serial port to connect with PC and execute local control of the ATS PDU.
C. Source Indicator
Indicates Source A or B is in use. When both sources are normal, selected
source shows constant green LED while another source shows blinking
green LED.
D. Output Indicator
Indicates load condition of the ATS PDU.
E. Multifunction LCD Readout
Displays various ATS PDU information such as power and load conditions.
F. Select Button
Use to control the LCD screen and toggle through the available
informational options.
G. Enter Button
Use to choose selected items, enter to next level menu or return to
previous menu.
H. AC Inlet/AC Power Cord
Use to connect ATS PDU to utility power or UPS.
I. Ground Stud
Use to ground the ATS PDU.
J. AC Output Receptacles
Provides power distribution for connected equipment.
K. Outlet Indicator (switched series only)
When the LED is on, the outlet is providing power to connected
equipment.
Front/Rear Panel Description (1U 15A Models)
Provides SNMP Card Communication
Expansion Port
Select
Enter
PDU20SWT10ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000002-00
Serial Port
A B C D E F G
H I K
J
H I K
J
Provides SNMP Card Communication
Expansion Port
Select
Enter
PDU20SWHVIEC10ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000003-00
Serial Port
A B C D E F G
H I K
J
H I K
J
Provides SNMP Card Communication
Expansion Port
Serial Port
Select
Enter
PDU30SWT17ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000005-00
B1
B2
B3
A B C D E FG
H
H
K
K
J
I
I
J
L
L
A B C D E FG
Provides SNMP Card Communication
Expansion Port
Select
Enter
A
B
Source Output
- Normal
- Warning
- Overload
B1
B2
Serial Port
QCN-0000021-00 PDU32SWHVCEE18ATNET
H
I
JK L
SOURCE A SOURCE B
8 9 103 4 6
SOURCE A SOURCE B
3 4 5 6 7 8 9 1021
SOURCE A SOURCE B
1 2 3 4 5 6 7 8 910
SOURCE A
SOURCE B
BANK 1 (20A)
BANK 2 (20A)
BANK 3 (24A)
L5-30R
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17
BANK 1
SOURCE A
SOURCE B
(20A)
BANK 2 (20A)
BANK 3 (24A)
L6-30R
19
1234
10 11 12 13
56 7 8
14 15 16 17
9
18
BANK 1 (20A)
BANK 2 (20A)
1234
13
12
11
10 14 15 16 17
876
59
18
123456 7 8 9 10 11 12
SOURCE A SOURCE B

5
Product Features
Front/Rear Panel Description (1U 20A Models)
NEMA Type
IEC Type
A. SNMP/HTTP Network Slot
Allows users to remotely control and monitor the ATS PDU when installed
with CyberPower’s Remote Management Card.
B. Serial Port (RJ45 modular port)
Use serial port to connect with PC and execute local control of the ATS PDU.
C. Souce Indicator
Indicates Source A or B is in use. When both sources are normal, selected
source shows constant green LED while another source shows blinking
green LED.
D. Output Indicator
Indicates load condition of the ATS PDU.
E. Multifunction LCD Readout
Displays various ATS PDU information such as power and load conditions.
F. Select Button
Use to control the LCD screen and toggle through the available
informational options.
G. Enter Button
Use to choose selected items, enter to next level menu or return to
previous menu.
H. AC Inlet/AC Power Cord
Use to connect ATS PDU to utility power or UPS.
I. Ground Stud
Use to ground the ATS PDU.
J. AC Output Receptacles
Provides power distribution for connected equipment.
K. Outlet Indicator (switched series only)
When the LED is on, the outlet is providing power to connected
equipment.
Technical Specifications
Switched Series Metered Series
Model Name
PDU20SW10ATNET PDU20SWHVT10ATNET PDU20M10AT PDU20MHVT10AT
PDU20SWHVCEE10ATNET PDU20MHVCEE10AT
PDU20SWT10ATNET PDU20MT10AT
PDU20SWHVIEC10ATNET PDU20MHVIEC10AT
Input
Nominal Voltage 100-120V 200-240V 100-120V 200-240V
Frequency 50/60Hz
Derated Input Current 16A
Plug Type
(2) NEMA 5-20P (2) NEMA L6-20P (2) NEMA 5-20P (2) NEMA L6-20P
(2) IEC 309 16A (2) IEC 309 16A
(2) NEMA L5-20P (2) NEMA L5-20P
(2) IEC-320 C20 (2) IEC-320 C20
Power Cord Type SR (12AWG) SR (12AWG) SR (12 AWG) SR (12AWG)
Socket Socket
Power Cord Length 10 ft/3.05 m
Output
Nominal Voltage 100-120V 200-240V 100-120V 200-240V
Derated Output Current 16A
C13: 12A (UL)
10A (CE)
C19: 16A
16A
C13: 12A (UL)
10A (CE)
C19: 16A
Outlet Type NEMA 5-20R (8) IEC C13
(2) IEC C19 NEMA 5-20R (8) IEC C13 (2) IEC C19
Outlet Number 10 8+2 10 8+2
Transfer Time Typical: 8-12ms
16ms max @ 60Hz/ 18ms max @ 50Hz
Management and Communications
Multifunction LCD Readout Voltage, Frequency, Load, Current, HW/FW Version, Network Information
Software PowerPanel® Business Edition
Networking Yes, with installed RMCARD Yes, with optional RMCARD
Serial Port RJ45
Sensor Capable Optional
Physical
Dimension (W x H x D) 17.05" x 1.75" x 9.3"/433mm x 44mm x 236mm
Environmental
Humidity 0 to 95% Non-condensing
Altitude 13100 ft/4000 m
Temperature 32oF to 113oF/0oC to 45oC
Safety Approvals
Certifications UL 60950-1
FCC Class A
UL 60950-1
FCC Class A UL 60950-1
FCC Class A
UL 60950-1
FCC Class A
UL 60950-1
CE, FCC Class A
UL 60950-1
CE, FCC Class A
* All specifications are subject to change without notice.
Provides SNMP Card Communication
Expansion Port
Select
Enter
PDU20SWT10ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000002-00
Serial Port
A B C D E F G
H I K
J
H I K
J
Provides SNMP Card Communication
Expansion Port
Select
Enter
PDU20SWHVIEC10ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000003-00
Serial Port
A B C D E F G
H I K
J
H I K
J
Provides SNMP Card Communication
Expansion Port
Serial Port
Select
Enter
PDU30SWT17ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000005-00
B1
B2
B3
A B C D E FG
H
H
K
K
J
I
I
J
L
L
A B C D E FG
Provides SNMP Card Communication
Expansion Port
Select
Enter
A
B
Source Output
- Normal
- Warning
- Overload
B1
B2
Serial Port
QCN-0000021-00 PDU32SWHVCEE18ATNET
H
I
JK L
SOURCE A SOURCE B
8 9 103 4 6
SOURCE A SOURCE B
3 4 5 6 7 8 9 1021
SOURCE A SOURCE B
1 2 3 4 5 6 7 8 910
SOURCE A
SOURCE B
BANK 1 (20A)
BANK 2 (20A)
BANK 3 (24A)
L5-30R
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17
BANK 1
SOURCE A
SOURCE B
(20A)
BANK 2 (20A)
BANK 3 (24A)
L6-30R
19
1234
10 11 12 13
56 7 8
14 15 16 17
9
18
BANK 1 (20A)
BANK 2 (20A)
1234
13
12
11
10 14 15 16 17
876
59
18
123456 7 8 9 10 11 12
SOURCE A SOURCE B

6
Provides SNMP Card Communication
Expansion Port
Select
Enter
PDU20SWT10ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000002-00
Serial Port
A B C D E F G
H I K
J
H I K
J
Provides SNMP Card Communication
Expansion Port
Select
Enter
PDU20SWHVIEC10ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000003-00
Serial Port
A B C D E F G
H I K
J
H I K
J
Provides SNMP Card Communication
Expansion Port
Serial Port
Select
Enter
PDU30SWT17ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000005-00
B1
B2
B3
A B C D E FG
H
H
K
K
J
I
I
J
L
L
A B C D E FG
Provides SNMP Card Communication
Expansion Port
Select
Enter
A
B
Source Output
- Normal
- Warning
- Overload
B1
B2
Serial Port
QCN-0000021-00 PDU32SWHVCEE18ATNET
H
I
JK L
SOURCE A SOURCE B
8 9 103 4 6
SOURCE A SOURCE B
3 4 5 6 7 8 9 1021
SOURCE A SOURCE B
1 2 3 4 5 6 7 8 910
SOURCE A
SOURCE B
BANK 1 (20A)
BANK 2 (20A)
BANK 3 (24A)
L5-30R
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17
BANK 1
SOURCE A
SOURCE B
(20A)
BANK 2 (20A)
BANK 3 (24A)
L6-30R
19
1234
10 11 12 13
56 7 8
14 15 16 17
9
18
BANK 1 (20A)
BANK 2 (20A)
1234
13
12
11
10 14 15 16 17
876
59
18
123456 7 8 9 10 11 12
SOURCE A SOURCE B
NEMA Type
IEC Type
A. SNMP/HTTP Network Slot
Allows users to remotely control and monitor the ATS PDU when installed
with CyberPower’s Remote Management Card.
B. Serial Port (RJ45 modular port)
Use serial port to connect with PC and execute local control of the ATS PDU.
C. Source Indicator
Indicates Source A or B is in use. When both sources are normal, selected source
shows constant green LED while another source shows blinking green LED.
D. Output Indicator
Indicates load condition of the ATS PDU.
E. Multifunction LCD Readout
Displays various ATS PDU information such as power and load conditions.
F. Select Button
Use to control the LCD screen and toggle through the available
informational options.
G. Enter Button
Use to choose selected items, enter to next level menu or return to previous
menu.
H. AC Inlet/AC Power Cord
Use to connect ATS PDU to utility power or UPS.
I. AC Output Receptacles
Provides power distribution for connected equipment.
J. Outlet Indicator (switched series only)
When the LED is on, the outlet is providing power to connected equipment.
K. Circuit Breaker
Provides output overload protection.
L. Ground Stud
Use to ground the ATS PDU.
Technical Specifications
Switched Series Metered Series
Model Name PDU30SWT17ATNET PDU30SWHVT19ATNET PDU30MT17AT PDU30MHVT19AT
Input
Nominal Voltage 100-120V 200-240V 100-120V 200-240V
Frequency 50/60Hz
Derated Input Current 24A
Plug Type (2) NEMA L5-30P (2) NEMA L6-30P (2) NEMA L5-30P (2) NEMA L6-30P
Power Cord Type SR (10 AWG)
Power Cord Length 10 ft/3.05 m
Output
Nominal Voltage 100-120V 200-240V 100-120V 200-240V
Derated Output Current 5-20R: 16A
L5-30R: 24A
C13: 12A
C19: 16A
L6-30R: 24A
5-20R: 16A
L5-30R: 24A
C13: 12A
C19: 16A
L6-30R: 24A
Derated Output Current
(each bank) 20A
Bank Number 2
Outlet Type (16) NEMA 5-20R
(1) NEMA L5-30R
(16) IEC C13
(2) IEC C19
(1) NEMA L6-30R
(16) NEMA 5-20R
(1) NEMA L5-30R
(16) IEC C13
(2) IEC C19
(1) NEMA L6-30R
Outlet Number 17 19 17 19
Circuit Breaker Yes
Transfer Time Typical: 8-12ms
16ms max @ 60Hz/ 18ms max @ 50Hz
Management and Communications
Multifunction LCD
Readout Voltage, Frequency, Load, Current, HW/FW Version, Network Information
Software PowerPanel® Business Edition
Networking Yes, with installed RMCARD Yes, with optional RMCARD
Serial Port RJ45
Sensor Capable Optional
Physical
Dimension (W x H x D) 17.05" x 3.5" x 9.3"/433mm x 88mm x 236mm
Environmental
Humidity 0 to 95% Non-condensing
Altitude 13100 ft/4000 m
Temperature 32oF to 113oF/0oC to 45oC
Safety Approvals
Certifications UL 60950-1, FCC Class A
* All specifications are subject to change without notice.
Product Features
Front/Rear Panel Description (2U 30A Models)

7
Product Features
Front/Rear Panel Description (2U 32A Models)
A. SNMP/HTTP Network Slot
Allows users to remotely control and monitor the ATS PDU when
installed with CyberPower’s Remote Management Card.
B. Serial Port (RJ45 modular port)
Use serial port to connect with PC and execute local control of the
ATS PDU.
C. Source Indicator
Indicates Source A or B is in use. When both sources are normal,
selected source shows constant green LED while another source
shows blinking green LED.
D. Output Indicator
Indicates load condition of the ATS PDU.
E. Multifunction LCD Readout
Displays various ATS PDU information such as power and load
conditions.
F. Select Button
Use to control the LCD screen and toggle through the available
informational options.
G. Enter Button
Use to choose selected items, enter to next level menu or return to
previous menu.
H. AC Inlet/AC Power Cord
Use to connect ATS PDU to utility power or UPS.
I. AC Output Receptacles
Provides power distribution for connected equipment.
J. Outlet Indicator (switched series only)
When the LED is on, the outlet is providing power to connected
equipment.
K. Circuit Breaker
Provides output overload protection.
L. Ground Stud
Use to ground the ATS PDU.
Technical Specifications
Switched Series Metered Series
Model Name PDU32SWHVCEE18ATNET PDU32MHVCEE18AT
Input
Nominal Voltage 200-240V
Frequency 50/60Hz
Max. Input Current 32A
Plug Type (2) IEC 309 32A
Power Cord Type SR (10 AWG)
Power Cord Length 10 ft/3.05 m
Output
Nominal Voltage 200-240V
Derated Output Current C13: 10A
C19: 16A
Derated Output Current
(each bank) 20A
Bank Number 2
Outlet Type (16) IEC C13
(2) IEC C19
Outlet Number 18
Circuit Breaker Yes
Transfer Time Typical: 8-12ms
16ms max @ 60Hz/ 18ms max @ 50Hz
Management and Communications
Multifunction LCD Readout Voltage, Frequency, Load, Current, HW/FW Version, Network Information
Software PowerPanel® Business Edition
Networking Yes, with installed RMCARD Yes, with optional RMCARD
Serial Port RJ45
Sensor Capable Optional
Physical
Dimension (W x H x D) 17.05" x 3.5" x 9.3"/433mm x 88mm x 236mm
Environmental
Humidity 0 to 95% Non-condensing
Altitude 13100 ft/4000 m
Temperature 32oF to 113oF/0oC to 45oC
Safety Approvals
Certifications CE
* All specifications are subject to change without notice.
Provides SNMP Card Communication
Expansion Port
Select
Enter
PDU20SWT10ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000002-00
Serial Port
A B C D E F G
H I K
J
H I K
J
Provides SNMP Card Communication
Expansion Port
Select
Enter
PDU20SWHVIEC10ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000003-00
Serial Port
A B C D E F G
H I K
J
H I K
J
Provides SNMP Card Communication
Expansion Port
Serial Port
Select
Enter
PDU30SWT17ATNET
A
B
Source Output
- Normal
- Warning
- Overload
QCN-0000005-00
B1
B2
B3
A B C D E FG
H
H
K
K
J
I
I
J
L
L
A B C D E FG
Provides SNMP Card Communication
Expansion Port
Select
Enter
A
B
Source Output
- Normal
- Warning
- Overload
B1
B2
Serial Port
QCN-0000021-00 PDU32SWHVCEE18ATNET
H
I
JK L
SOURCE A SOURCE B
8 9 103 4 6
SOURCE A SOURCE B
3 4 5 6 7 8 9 1021
SOURCE A SOURCE B
1 2 3 4 5 6 7 8 910
SOURCE A
SOURCE B
BANK 1 (20A)
BANK 2 (20A)
BANK 3 (24A)
L5-30R
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17
BANK 1
SOURCE A
SOURCE B
(20A)
BANK 2 (20A)
BANK 3 (24A)
L6-30R
19
1234
10 11 12 13
56 7 8
14 15 16 17
9
18
BANK 1 (20A)
BANK 2 (20A)
1234
13
12
11
10 14 15 16 17
876
59
18
123456 7 8 9 10 11 12
SOURCE A SOURCE B

8
Installation Guide
ATS PDU Configuration
WARNING: This automatic transfer switch has dual power cords (A & B) to
provide redundant power sources to devices with single power supplies and
can be plugged into separate compatible sources* to ensure continuous
access. Users select the preferred source as the primary input. CyberPower
Smart App Online and Sinewave series UPS are highly recommended for use
as the power source.
*Note: Only sine wave AC power sources are compatible with this ATS PDU.
Simulated sine wave AC power sources are NOT compatible.
CyberPower Sinewave UPS
CyberPower Online UPS
Utility Power Utility Power
Utility Power
CyberPower Online UPS
SOURCE A
SOURCE B
CyberPower ATS PDU
CyberPower ATS PDU
ON/OFF
SELE CT
Equipment Loads
SOURCE A
(Preferred Source)
SOURCE B
Equipment Loads
Best Configuration
Minimum Acceptable Configuration
CyberPower Sinewave UPS
CyberPower Online UPS
Utility Power Utility Power
Utility Power
CyberPower Online UPS
SOURCE A
SOURCE B
CyberPower ATS PDU
CyberPower ATS PDU
ON/OFF
SELE CT
Equipment Loads
SOURCE A
(Preferred Source)
SOURCE B
Equipment Loads

9
Installation Guide

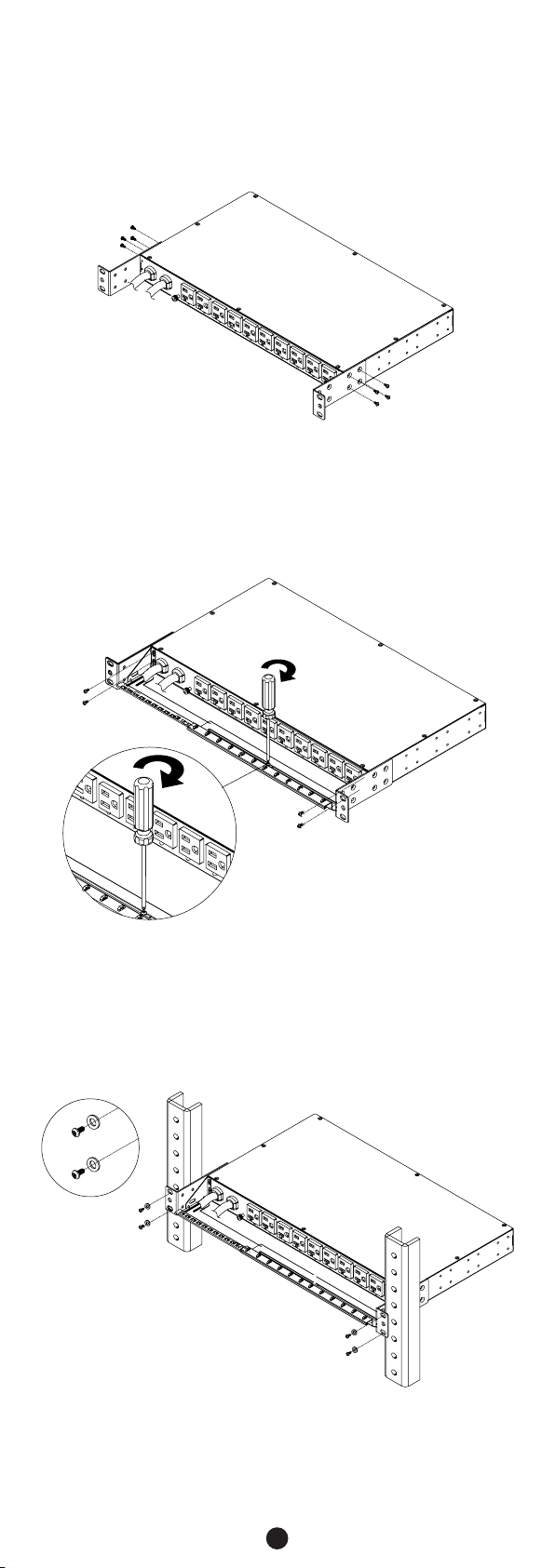

Front Mounting
Step 1. Mounting Bracket Installation
Use the provided Mounting Bracket Screws (16) to attach the
Mounting Brackets (2) to the ATS PDU.
Step 2. Cord Retention Tray Installation (optional)
Adjust the length of the Cord Retention Tray till the screw hole on the
Tray and ATS PDU are aligned. Attach the Cord Retention Tray to the
ATS PDU with the 4 supplied Cord Retention Tray Mounting Screws.
Tighten the Cord Retention Tray with the screw on it.
Step 3. ATS PDU Mounting
Use the provided Washers (4) and Screws (4) to secure the ATS PDU
to your existing rack system.
Note: You may also use the screw sets provided by the rack to secure
the ATS PDU.
Please only use the provided screws for the entire installation process.
For 1U Models

10
Installation Guide
Step 4. Cable Ties (Optional)
Use the provided Cable Ties to fasten each cord to the Cord
Retention Tray.
For 2U Models
Step 1. Mounting Bracket Installation
Use the provided Mounting Bracket Screws (16) to attach the
Mounting Brackets (2) to the ATS PDU.
Step 2. Cord Retention Tray Installation (optional)
Adjust the length of the Cord Retention Trays till the screw hole on
the Trays and ATS PDU are aligned. Attach the Cord Retention Trays
to the ATS PDU with the 8 supplied Cord Retention Tray Mounting
Screws. Tighten the Cord Retention Trays with the screw on it.
Front Mounting

11
Installation Guide
Step 3. ATS PDU Mounting
Use the provided Washers (4) and Screws (4) to secure the ATS PDU
to your existing rack system.
Note: You may also use the screw sets provided by the rack to secure
the ATS PDU.
Step 4. Cable Ties (Optional)
Use the provided Cable Ties to fasten each cord to the Cord
Retention Tray.
Rear Mounting
For 1U Models
Step 1. Mounting Bracket Installation
Use the provided Mounting Bracket Screws (16) to attach the
Mounting Brackets (2) to the ATS PDU.
Front Mounting

12
Installation Guide
Rear Mounting
If you plan on attaching the Cord Retention Tray to the ATS PDU, use
the provided Mounting Bracket Screws (8) to attach the Mounting
Brackets (2) to the ATS PDU.
Step 2. Cord Retention Tray Installation (optional)
Adjust the length of the Cord Retention Tray till the screw hole on the
Tray and ATS PDU are aligned. Attach the Cord Retention Tray to the
ATS PDU with the 4 supplied Cord Retention Tray Mounting Screws.
Tighten the Cord Retention Tray with the screw on it.
Step 3. ATS PDU Mounting
Use the provided Washers (4) and Screws (4) to secure the ATS PDU
to your existing rack system.
Note: You may also use the screw sets provided by the rack to secure
the ATS PDU.

13
Installation Guide
Rear Mounting
Step 4. Cable Ties (Optional)
Use the provided Cable Ties to fasten each cord to the Cord
Retention Tray.
For 2U Models
Step 1. Mounting Bracket Installation
Use the provided Mounting Bracket Screws (16) to attach the
Mounting Brackets (2) to the ATS PDU.
If you plan on attaching the Cord Retention Tray to the ATS PDU, use
the provided Mounting Bracket Screws (8) to attach the Mounting
Brackets (2) to the ATS PDU.

14
Installation Guide
Rear Mounting
Step 2. Cord Retention Tray Installation (optional)
Adjust the length of the Cord Retention Trays till the screw hole on
the Trays and ATS PDU are aligned. Attach the Cord Retention Trays
to the ATS PDU with the 8 supplied Cord Retention Tray Mounting
Screws. Tighten the Cord Retention Trays with the screw on it.
Step 3. ATS PDU Mounting
Use the provided Washers (4) and Screws (4) to secure the ATS PDU
to your existing rack system.
Note: You may also use the screw sets provided by the rack to secure
the ATS PDU.
Step 4. Cable Ties (Optional)
Use the provided Cable Ties to fasten each cord to the Cord
Retention Tray.

15
Replacing the LCD Panel
Step 1. Use a slotted screwdriver to gently lift out the LCD panel.
Step 2. Disconnect the cable connector.
Step 1. Receptacle evaluation
Ensure that the plug type of your ATS PDU unit matches the
receptacles that you are using.
Electrical Installation
The ATS PDU must be plugged into a three-wire, grounded utility receptacle or
a UPS that is connected to a grounded utility receptacle. The utility receptacle
must also be connected to an appropriate branch circuit/main with fuse or
circuit breaker protection. Connection to any other type of receptacle may
result in an electrocution hazard.
Step 2. Plug the ATS PDU into the utility receptacle and/or UPS.
For configuration details, refer to ATS PDU Configuration on page 8.
Step 3. Attach equipment
It is extremely important not to exceed the ATS PDU's maximum
current load (as outlined in the Specifications section). In order to
determine total load, use the LCD screen on the front of the ATS
PDU to monitor the load being attached.
Installation Guide

16
Power Cord Locking - For IEC Type ATS PDU
Input Power Cord
Installation Guide
Step 1. Align and insert the Cable Tie from the upper side of the Fixed Stand
and fasten it as shown below.
Step 2. Align and insert the Cable Tie from the bottom side of the Fixed
Stand and fasten it as shown below.
Output Power Cord
Step 1. Align and insert the Cable Tie from the upper side of the Fixed Stand
and fasten it as shown below.

17
Step 1. Attach the LAN Cable
Using a CAT5 RJ45 cable, attach one end to the Ethernet port on the
RMCARD, and the other end to a network port.
Step 2. Establish the ATS PDU IP address
Assigning an IP address to the CyberPower ATS PDU requires the user
to have an available IP address that is valid on the respective network. If
an available IP address is unknown, contact the network administrator to
obtain one. The default IP is 192.168.20.177 and the default for the DHCP
function is on.
There are multiple methods for setting up the IP address of the ATS PDU
Please follow the instructions below for the method that is appropriate for your
application.
Please make sure the ATS PDU is powered on during this process.
Option 1 (recommended): Power Device Network Utility
1. Download the Power Device Network Utility software available at
www.cyberpower.com.
2. Highlight the ATS PDU device from the list and select Edit and Setup device =>
Assisted Setup from the menu.
3. Configure the IP Address, Subnet Mask, and Gateway Address to match
your network settings.
4. Enter the user name and password of the ATS PDU device at the Authentication
menu.
Note: The default username is “cyber” and the default password is “cyber”. For
further information and installation instructions, see Appendix B.
Option 2: DHCP Server
1. Ask your administrator if there is DHCP server on the LAN.
2. Make sure the DHCP is Enabled.
3. Make sure the network connection is ready and power on the ATS PDU.
4. The ATS PDU will obtain an IP address from the DHCP server automatically.
Option 3: Address Resolution Protocol (ARP) Command
1. Obtain the MAC address from the sticker on the ATS PDU.
2. Open a command prompt as an administrator and type the following:
“arp -s [available IP address] [MAC address of ATS PDU]”.
Example: arp -s 192.168.20.240 00-0C-15-00-00-01
IP Address MAC Address
3. Use the Ping command to assign a size of 123 bytes to the IP.
* Type in “ping 192.168.20.240 -l 123” then press Enter.
* If the replies are received, your computer can communicate with the IP
address.
Option 4: Hyper Terminal or Terminal Emulator
1. Use the included RJ45/DB9 serial port connection cable, attach one end to
the serial port on the front of the ATS PDU, and the other end to the PC/server.
2. Open the Hyper Terminal software on your PC and select a name and icon for
the connection.
3. Setup the COM port settings using the values indicated in Appendix A.
4. Press Enter to enter the Authentication menu.
5. Enter the user name and password of the ATS PDU device at the Authentication
menu.
6. Press 4and Enter to access Network Settings to view the IP address.
Note: The default username is “cyber” and the default password is “cyber”.
For further information and configuration via Hyper Terminal, see
Appendix A-Hyper Terminal.
Network Installation
(Performed when a Remote Management Card is installed)
Installation Guide

18
Operation
Remote Management
The remote management function via the RMCARD205 provides for
monitoring of the ATS PDU operational information, controlling outlets and
utilizing SNMP functionality.
Web
Remote management can be performed via web interface. To access the web
interface, please follow the instructions below:
1. Enter the IP address of the ATS PDU into a web browser.
2. Enter the user name and password of the ATS PDU device at the
authentication screen.
Note: The default username is “cyber” and the default password is “cyber”.
Telnet and SSH
The CyberPower ATS PDU provides Telnet and Secure Shell (SSH) as Remote
Management methods. Telnet uses user name and password as basic security
while SSH has a higher security level with encryption of the transmitted
packets including user name, password, and data. Configure the Setting of
Telnet and SSH on the Web Interface. The default user name and password is
cyber/cyber.
Note: When user logs in with the admin username and admin password
through Telnet or SSH, there are two types of interfaces available. One
is the command line interface (CLI) and the other is a menu interface.
The default is CLI. If the user wants to change to the menu interface,
type in the [menumode] command. To switch back to CLI, it is necessary
to logout and login to the RMCARD.
SNMP
The CyberPower ATS PDU supports SNMPv1 and SNMPv3 protocols.
Download the CyberPower MIB file and add it to a SNMP-supported
management software. Default read/write community is public/private for
SNMPv1. SNMPv3 provides a higher security level than SNMPv1 by encrypting
the transmitted packet. Configure the settings of the SNMPv1/SNMPv3 on
Web Interface. For more details, please see the RMCARD205 User Manual.
Local Management
LCD Operation
The LCD screen provides instant information, such as source condition, voltage
and current, for the ATS PDU. In addition, users can use the interface to configure
each PDU parameters and control each outlet on the switched ATS PDU.
A. Scroll Mode: The ATS PDU information will display in following order
automatically when “Scroll Mode On” is configured.
Source A information
Source B information
Device Load
Bank 1 Current (2U series)
Bank 2 Current (2U series)
Bank 3 Current (2U series)
Environment Status (Displays when the ENVIROSENSOR is connected)
B. Main Menu Map
About
Hardware Version
Firmware Version
Network Information
Serial Number
Settings
Preferred Source A/B/None
Source
Configuration
Nominal Voltage
Voltage Range
Freq. Deviation
Sensitivity
Load
Configuration
Device
Bank/1/2/3
Overload
Threshold
Near Overload
Threshold
Low Load
Threshold
Outlet Control Device
Bank/1/2/3 All/Outlet 1-N
Immediate On
Delay On
Immediate Off
Delay Off
Reboot
Delay Reboot
LCD Settings
Brightness
Scroll Mode
Screen Off
