Chapter1 <Introduction>
1.1 <Product Overview>
MXMA is based on a motherboard built with Intel desktop technology and anindustrial
form factor. Using the Intel945G and ICH7R, the board integrates a new Pentium 4
processor 775-pin socket, DDR2 memory slot, IntelGraphic Media Accelerator 950
technology, PCI express interface and Serial ATA II with RAID function for a powerful
desktop system.
IntelLGA775 processor
The IntelPentium 4 processor now comes with a new form factor: 775-pin PLGA
package, for 533/800/1066MHz front-side-bus, 2MB L2 cache, and for 90nm manufacturing
technology, the PLGA processor without a pin header on the solder side of the board makes for
easier intstallation.
Intel945G and ICH7R chipset
The Intel 945G integrates DDR2 400/533/667MHz for memory, and Graphic Media
Accelerator (GMA) 950 technology for a new graphic engine. It can provide up to 224MB of
frame buffer when you install it over 256MB of system memory. The ICH7R integrates with up
to 8 USB2.0 interfaces, and serial ATA II interface with RAID functionality.
One Marvell E8053
One Gigabit LAN with Marvell E8053, the MXMA comes with powerful network functionality for
fast and large data transfer; ideal for a NAS system or Server platform.
PCI-Express interface
MXMA integrates one x16, x4 and x1 PCI-Express interface, it can provide up to 8GB/s of
bandwidth ( AGP 8x can only provide up to 2GB/s).
Multimedia interfaces
MXMA also integrates 7.1 channel HD audio, PCI-Express, PCI and ISA interface, for these
flexible function, system integrator can built more powerful systems for many applications.
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.7
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

1.2 <Product Specification>
General Specification
Form Factor Industrial motherboard
CPU IntelPentium 4 /Pentium D/Celeron D/ Core 2 Duo
processor with LGA775 package type: 775 pin PLGA
Front side bus: 533/800/1066MT/s (133/200/266MHz x 4)
IntelHyper-Threading Technology and Dual Core supported
Memory 4 x 240-pin DDR2 400/533/667MHz SDRAM up to 4GB
Up to 8GB/s of bandwidth with dual-channel interleaved mode
Dual-Channel technology supported
Unbufferred, none-ECC memory supported only
Chipset Intel945G (Northbridge) and ICH7R (Southbridge)
BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock IntelICH7R built-in RTC with lithium battery
Enhanced IDE Enhanced IDE interface supports dual channels and up to 2
ATAPI devices at Ultra DMA100
One 40-pin IDE port onboard
Serial ATAII IntelICH7R integrates 4 Serial ATA II interface
RAID 0, 1,5,10 Intel Matrix Storage Technology supported
Multi-I/O Port
Chipset Intel82801GR ICH7R with WinbondW83627THG controller
Serial Port Five internal RS-232 and one external RS-232 serial port
USB Port Eight Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
Parallel Port One LPT port on rear I/O panel
Floppy Port One Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Smart Fan One CPU fan connectors for fan speed controllable
VGA Display Interface
Chipset Intel945G GMCH (Graphic Memory Controller Hub)
Core Frequency 400MHz
Memory IntelDVMT 3.0 with up to 224MB shared with system memory
Display Type CRT, LCD monitor with analog display
Connector External DB15 female connector on rear I/O panel
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.8
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

Ethernet Interface
Chipset 10/100/1000MT LAN interface with Marvell E8053
Type 10Base-T / 100Base-TX/1000Base-T,
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector one External RJ45 connectors with LED on rear I/O panel
Audio Interface
Chipset IntelICH7R with RealtekALC880 codec
Intel High Definition Audio compliance
Interface 7.1 channels sound output
Connector External Audio phone jack for Line-out, Line-in, MIC-in, Surround,
Center and Backsurround
Onboard audio connector with pin header (built-in amplifier for
speaker out)
Onboard CD-IN and S/PDIF connector
Expansive Interface
PCI-Express One x16 PCI-Express slot (compatible with x1 slot)
One x4 PCI-Express slot
One x1 PCI-Express slot
Up to 8GB/s of transfer bandwidth
Power supply: +3.3V, +12V
PCI Four-PCI slot (32-bit, 33MHz)
Power supply: +3.3V, +5V
ISA One ISA slot
Power and Environment
Power
Requirement Standard ATX 24-pin (20-pin is compatible) power supply Additional +12V 8-pin(4-pin is compatible) power connector
Dimension 307mm x 244mm (L x W)
Temperature Operating within 0 ~ 60oC (32 ~ 140oF)
Storage within -20 ~ 85oC (-4 ~ 185oF)
Ordering Code
MXMA Supports Intel Pentium 4 LGA775 with DDRII, Onboard VGA, One
Marvell Gigabit LAN ,8 x USB2.0, Realtek ALC880 HD Audio, 6 x
COM Ports, GPIO, SATA, CF and ISA slot.
The specifications may vary slightly from your model.
For further detail visit our website: http://www.cyberresearch.com
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.19
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

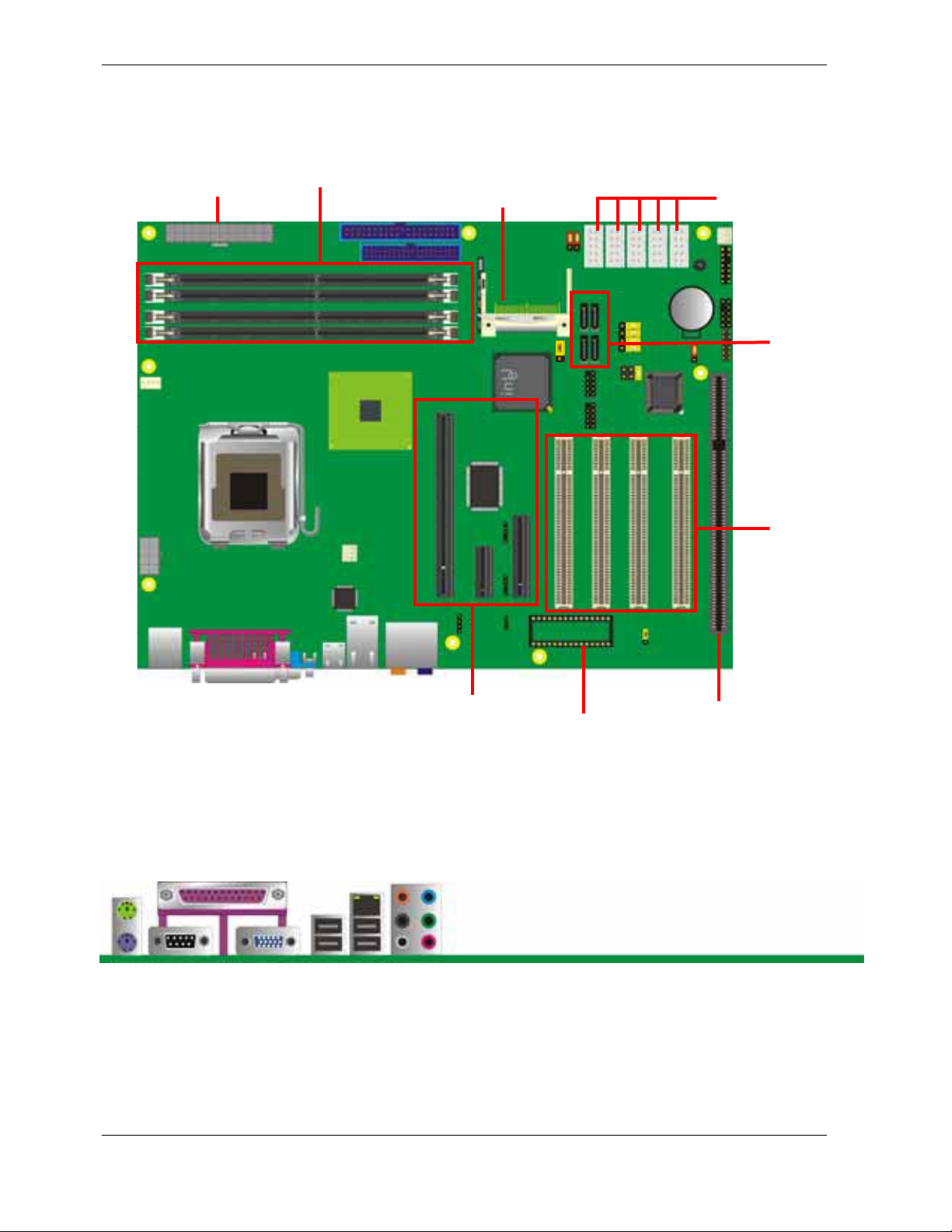

1.3 <Component Placement>
COM port
ISADOC
CF
ATX
SATA II
DIMM
PCI-Express
PCI
LPT LAN
PS2
Serial port VGA Audio
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.10
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

1.4 <Block Diagram>
Intel Pentium 4 with 775 pin PLGA processor
Intel GMA950 Graphics
PCI-Express 16x 8GB/s Intel 945G
GMCH
4 x Serial ATA II ports
300MB/s
1 x Marvell E8053
Gigabit LAN
4 x PCI bus
BIOS
6 x Serial ports
1 x Floppy port
8-bit GPIO
8 x USB2.0 ports
ALC 880 AC97 7.1CH Codec
ICH7R
1 x LPT Port
1 x IDE
4x & 1x PCI-Express
1 x ISA bus
DMI2GB/s
4 x 240-pin DDR2
400/533/667MHz
up to 4GB
6.4GB/s
SMBus 2.0
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.11
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

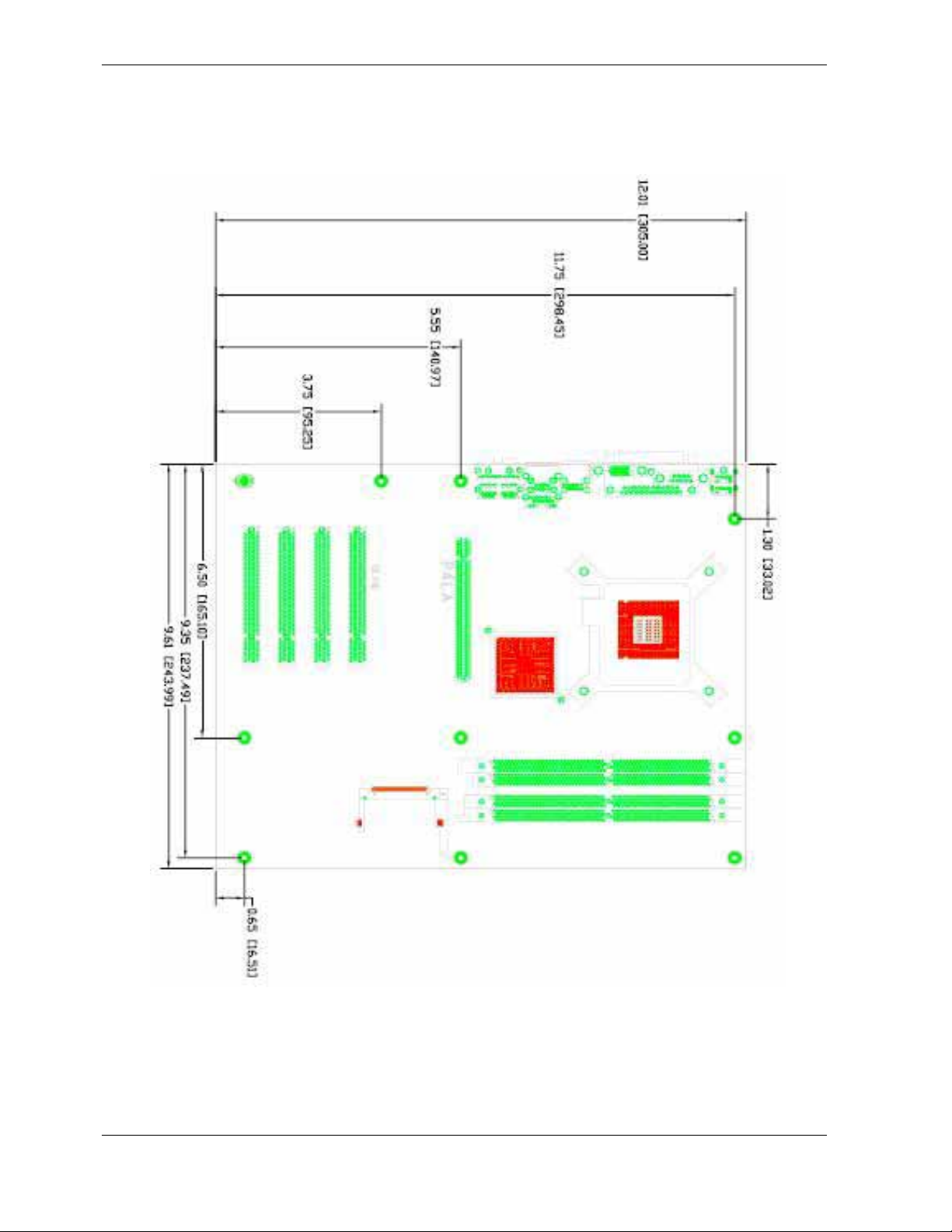

1.5 <Mechanical Drawing >
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.12
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

Chapter 2 <Hardware Setup>
2.1 <Connector Location>
ISA
DOC
JFRNT
CN_ Audio
CN_DIO
CF
SYSFAN
ATX IDE1 FDD
CN_USB1/2
JP2
JDOC
CD_IN SPDIF
NBFAN CN_SMBUS
CN_IR
CPUFAN
CN_12V JP1
JCSEL1 JCSEL2
JRTC
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.13
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JCFSEL Compact Flash Address Setting
JCSEL1 Setting RS232/422/485
JCSEL2 Setting RS232/422/485
JDOC Setting address
JP1 Setting COM Port Voltage
JP2 Setting COM Port Voltage
JRTC
JCFSEL JP2 JCSEL1
JP1 JDOC
JCSEL2
CyberResearch®Motherboards MXMA Seriess
CyberResearch, Inc.14
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU LGA775 CPU socket Standard
DDRII1/2/3/4 240 -pin DDR2 SDRAM DIMM socket Standard
IDE1 40-pin primary IDE connector Standard
FDD 34-pin floppy connector Standard
S_ATAII1/2/3/4 7-pin Serial ATA II connector Standard
ATX 24-pin power supply connector Standard
CN_12V 8-pin +12V additional power supply connector Standard
CN_AUDIO 5 x 2-pin audio connector Standard
CDIN 4-pin CD-ROM audio input connector Standard
CN_DIO 6 x 2-pin digital I/O connector Standard
CN_USB1/2 10-pin USB connector Standard
CPUFAN 4-pin CPU cooler fan connector Standard
SYSFAN 3-pin system cooler fan connector Standard
NBFAN 3-pin Northbridge cooler fan connector Standard
CN_IR 5-pin IrDA connector Standard
CN_SMBUS 4-pin I2C connector Standard
JFRNT 14-pin front panel switch/indicator connector Standard
SPDIF Digital audio optical interface Standard
DOC 32-pin DiskOnChip Socket Standard
2.3.2 <External Connectors>
Connector Function Remark
VGA DB15 VGA connector Standard
USB Dual USB Port Standard
COM DB7 Serial port connector Standard
PS2 PS/2 Keyboard/Mouse connector Standard
AUDIO Audio connectors Standard
USB_RJ45_A/B Dual USB and RJ45 LAN connector Standard
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.15
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

2.4 <CPU and Memory Setup>
2.4.1 <CPU installation>
MXMA has an LGA775 CPU socket onboard; please read the following steps to install
the processor properly.
Attention: If the MXMA needs an RMA, please Keep CPU socket cover on the CPU Socket.
IntelPentium 4 processor
Package type: 775 pin PLGA
L2 Cache: Up to 2M
FSB: 533/800/1066MHz (266MHz x 4)
Manufacturing: 90nm
Intel Hyper Threading Technology
And Dual core support Check point
1. Lift this bar
2. Uncover this plate
3. Place the CPU on the top of
the pins
3. Cover this plate
4. Lock this bar
Note: To avoid bending CPU pins, place CPU CAREFULLY
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.16
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

2.4.2 <Memory installation>
The MXMA has Four 240-pin DDR2 DIMMs which support up to 4GB of memory capacity.
The memory frequency supports 400/533/667MHz .Only Non-ECC memory is supported.
Dual-Channel technology is supported while applying two of the same modules.
DDRII4 (DIMM4)
DDRII3 (DIMM3)
DDRII2(DIMM2)
DDRII1(DIMM1)
128-pin 112-pin
Please check the pin number to match the socket side prior
to installing memory module.
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.17
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

2.5 <CMOS Setup>
The board’s CMOS data can be setting in the BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
1
JRTC
3
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc.18
25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com
