CYBEX Arc Trainer 625A User manual

This instruction sheet describes how to install the Broadcast Vision kit for Cybex Arc models 626A and 626AT.
Tools Required:
• Phillips screwdriver
• Utility knife
• ESD (Electrostatic Discharge) grounding strap
• Headphones (not included)
• 5/32” Allen wrench
• Block, 4" (10 cm)
Read and understand all instructions thoroughly before installing this kit.
Verify the kit contents shown.
Qty.Description
1
Cable, Headphone jack jumper,
770A-357
1
1Cable, CAT6 4 ft., OAW-245162
1Cable, CAT6 14 ft., OAW-245213
1PCA, Handset audio jack, 770A-2474
1Headphone jack decal, 770A-3815
2Coupler, OCN-227476
2Screw, 4 x 3/8", HT0425107
Disconnect power source
Unplug the power cord from the power outlet.
Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
Component damage.Wear an ESD grounding strap during this procedure. Connect
ESD grounding strap to frame bolts or unpainted metal of frame. If ESD grounding
strap is not available, touch frame bolts or unpainted metal of frame before handling
any electronics.

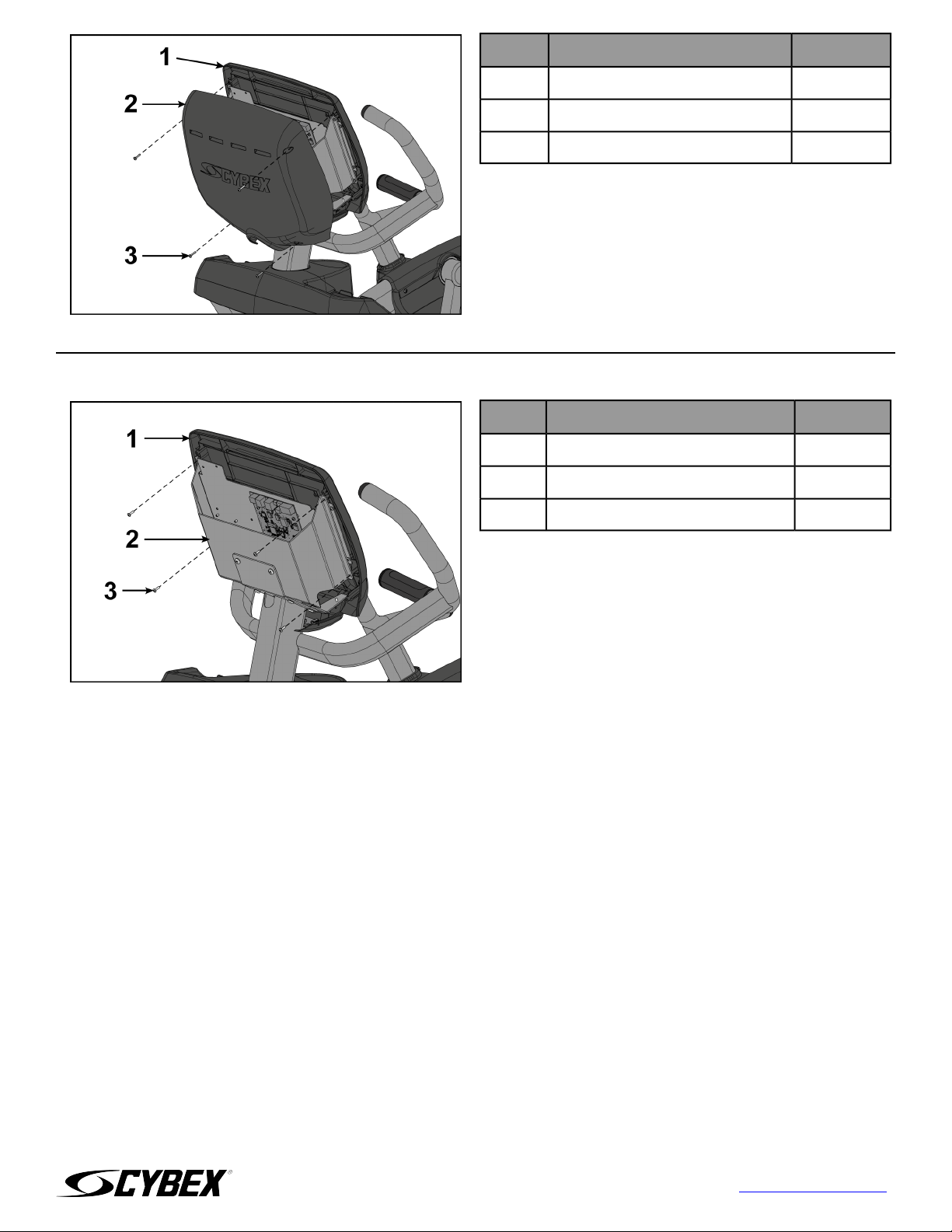

Remove back cover
Remove the four screws securing the back cover to the console assembly using a Phillips screwdriver.
www.cybexintl.com
Page 1 of 13
Broadcast Vision Upgrade Kit 625A
Installation InstructionsKit Number 626AK012

Qty.Description
1Console assembly1
1Back cover2
4Screws3
Remove console assembly
Remove the six screws securing the console assembly to the console support using a Phillips screwdriver.
Qty.Description
1Console assembly1
1Console support2
6Screws3
www.cybexintl.com
Page 2 of 13

Disconnect console cables
1. Disconnect console cables from MCC board.
Qty.Description
1MYE/BV, Gray1
1CSAFE, Red2
1Console cable3
1Upper display4
1Headphone jack5
1iPod (optional)6
1Heart rate7
1Handset membrane8
1iPod board assembly (optional)9
MCC board cables
2. Unplug cables from MCC board by un-latching connectors with the following procedure:
a) Press in the top of the cable connector.
Qty.Description
1
DO NOT PULL CONNECTOR
OUT BY THE WIRES!
1
1Step a, Latch2
1Step b3
1Step c4
b) Ensure latch disengages the connector.
c) Unplug cable by holding down latch and pulling straight out from connector. Do not pull on wires, remove
by connector.
www.cybexintl.com
Page 3 of 13

3. Unplug optional iPod cable.
The iPod cable is held in place by a notch in the access cover.
a) Press in both side latches of cable connector.
b) Ensure latches disengage from the connector.
c) Unplug cable by holding down latches on both sides and pulling straight out from connector.
Do not pull on wires, remove by connector.

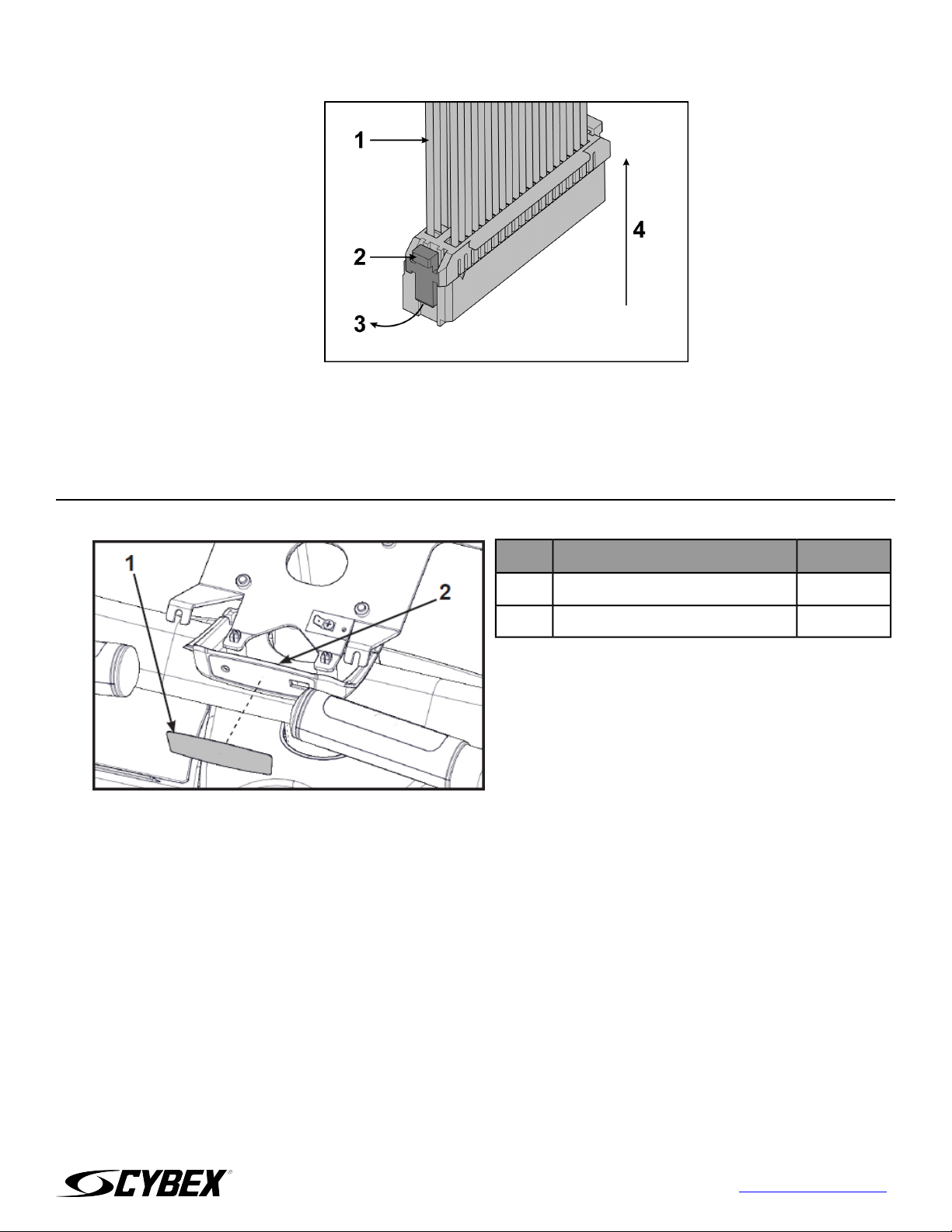

Install headphone jack board
1. Remove the blank decal from the headphone jack cover using a utility knife.
Qty.Description
1Blank decal1
1Headphone jack cover2
www.cybexintl.com
Page 4 of 13

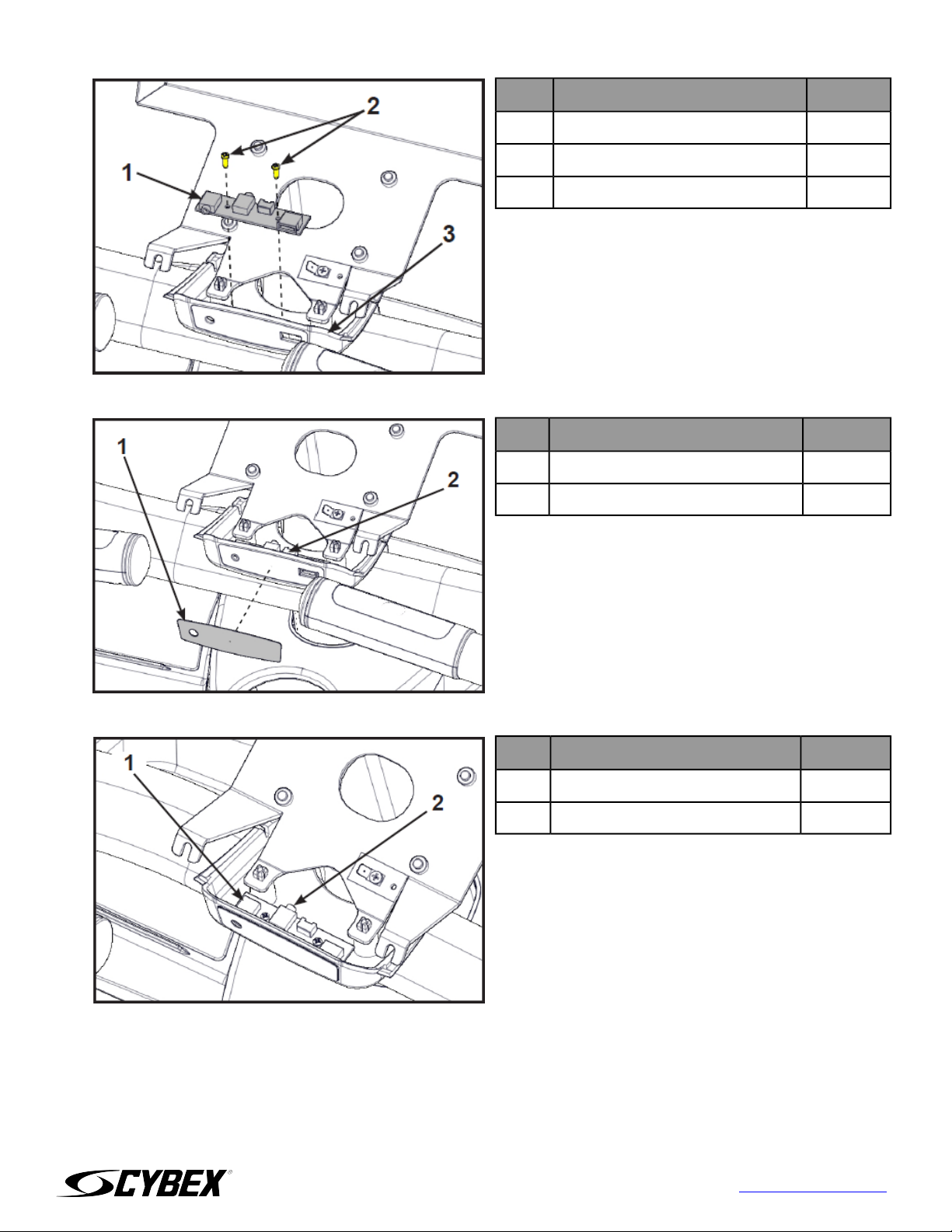

2. Install the two 4 x 3/8” screws securing the headphone jack board to the headphone jack cover using a Phillips
screwdriver.
Qty.Description
1Headphone jack board1
2Screws, 4 x 3/8”2
1Headphone jack cover3
3. Install the headphone jack decal to the headphone jack cover.
Qty.Description
1Headphone jack decal1
1Headphone jack cover2
4. Plug the headphone jack cable into the headphone jack board.
Qty.Description
1Headphone jack board1
1Plug cable in here2
www.cybexintl.com
Page 5 of 13

Connect console cables
1. Install console cables to MCC board.
Qty.Description
1MYE/BV, Gray1
1CSAFE, Red2
1Console cable3
1Upper display4
1Headphone jack5
1iPod (optional)6
1Heart rate7
1Handset membrane8
1iPod board assembly (optional)9
MCC board cables
2. Plug 4 foot Cat6 cable into gray connector (1) and route through console assembly.
3. Plug headphone jack jumper into headphone jack (5).
Install console assembly
Install the six screws securing the console assembly to the console support using a Phillips screwdriver.
Qty.Description
1Console assembly1
1Console support2
6Screws3
www.cybexintl.com
Page 6 of 13

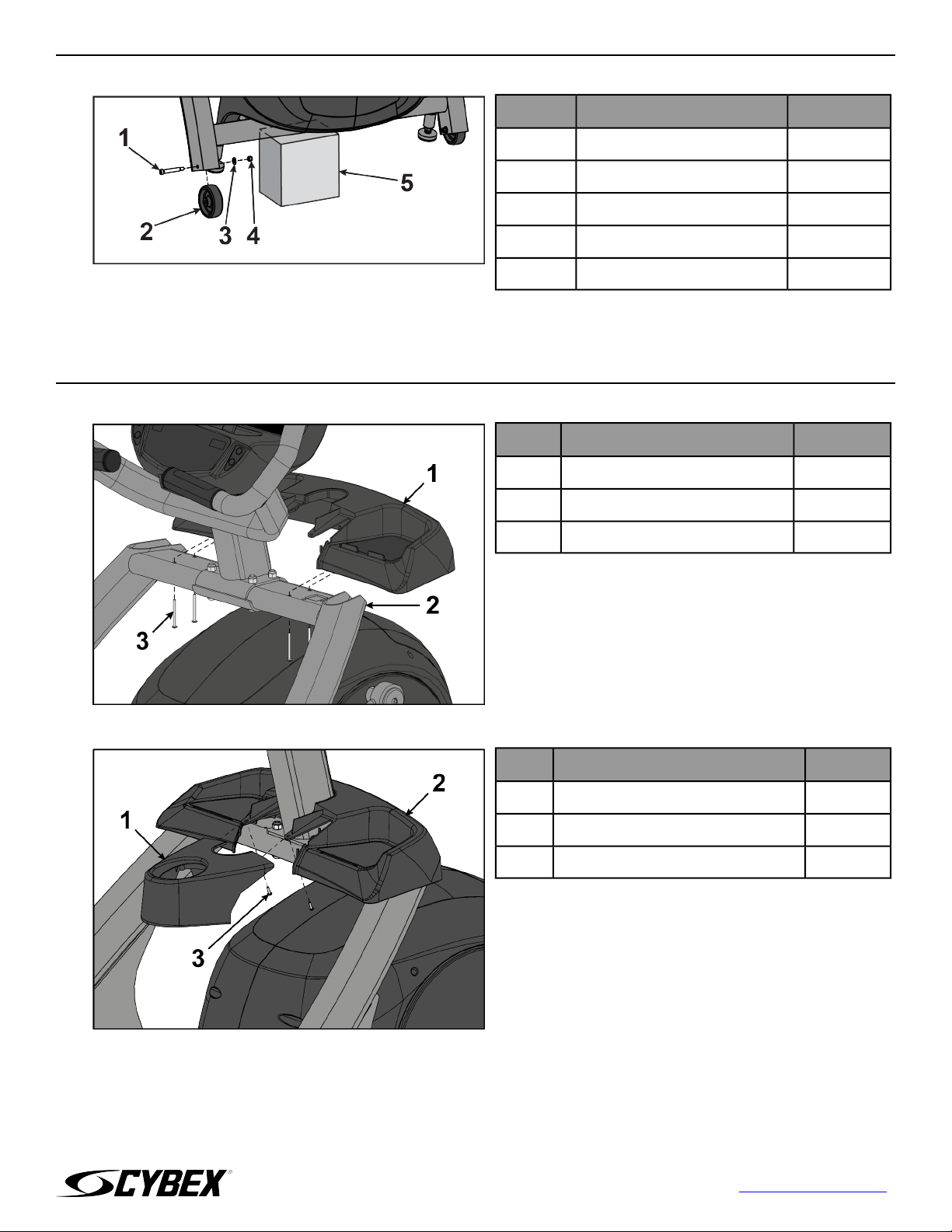

Remove tray assembly
1. Remove three screws securing accessory tray bottom to the accessory tray base using a Phillips screwdriver.
QtyDescription
1Accessory tray bottom1
1Accessory tray base2
2Screw, #6 x 0.50"3
1Screw, 8-16 x 0.50"4
2. Remove two screws securing accessory tray top to accessory tray base using a Phillips screwdriver.
QtyDescription
1Accessory tray top1
1Accessory tray base2
2Screw, 8-16 x 0.50"3
3. Remove four screws securing accessory tray base to frame using a Phillips screwdriver.
QtyDescription
1Accessory tray base1
1Frame2
4Screws3
www.cybexintl.com
Page 7 of 13

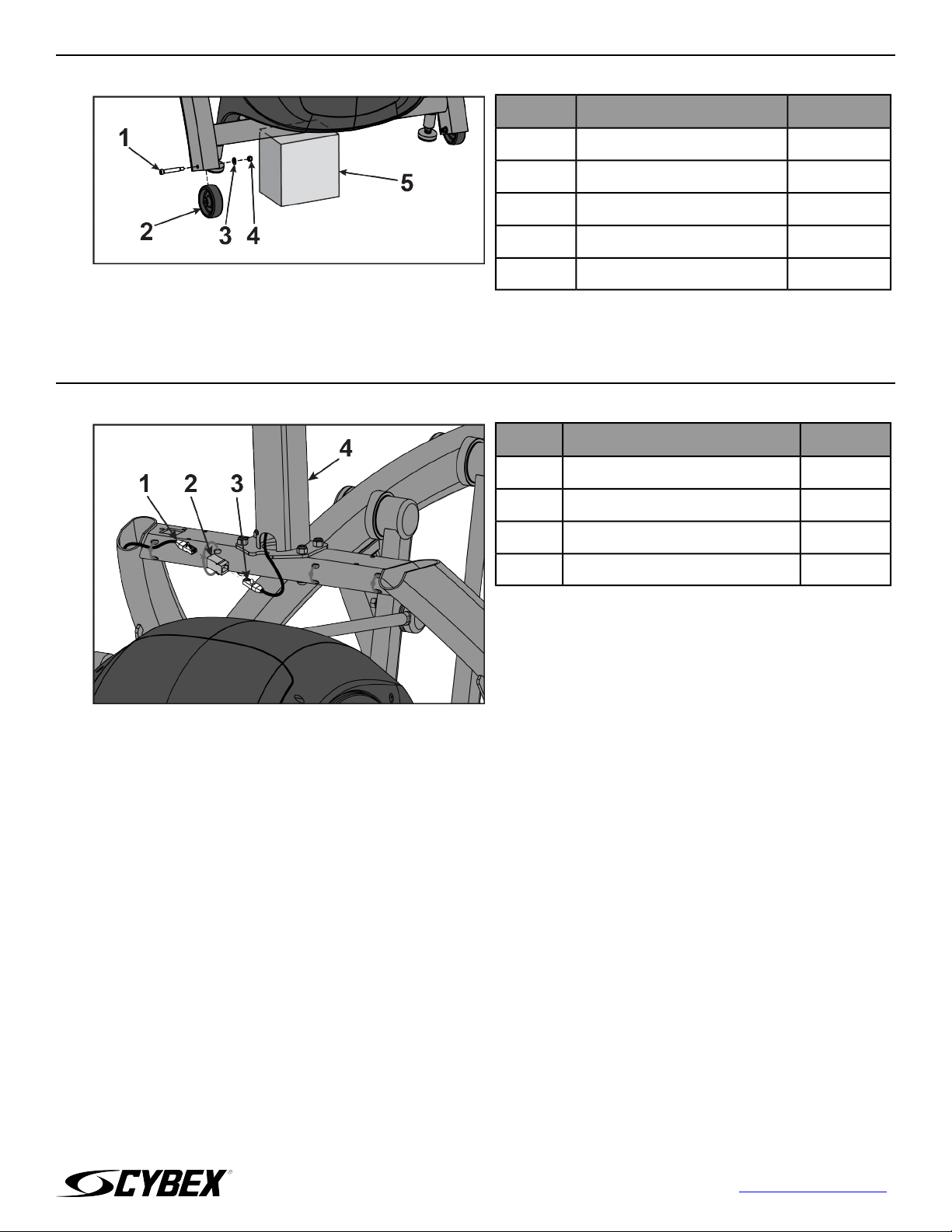

Remove right wheel
1. Place a 4" (10 cm) block under unit to elevate right wheel.
Qty.Description
1Bolt1
1Wheel2
1Lockwasher3
1Nut4
1Block5
2. Remove bolt, lockwasher, and nut securing right wheel using a 7/16” wrench and a 5/32” Allen wrench.
Route Broadcast Vision cables
1. Route 4 foot CAT6 cable through the bottom of console weldment and connect to coupler.
Qty.Description
1Cable, CAT6 14 ft.1
1Coupler2
1Cable, CAT6 4 ft.3
1Weldment4
2. Connect 14 foot CAT6 cable to coupler.
3. Feed 14 foot CAT6 cable down through the bottom of the frame (where the wheel was removed).
www.cybexintl.com
Page 8 of 13

4. Route 14 foot CAT6 cable back up through the bottom of the frame and out the access hole.
Qty.Description
1Cable, CAT6 14 foot1
1Mounting plate2
Qty.Description
1Access hole1
5. Insert the Cat6 coupler into the mounting plate by hooking the upper tab into the mounting plate and snapping
in the lower tab.
Qty.Description
1Upper tab1
1Mounting plate2
1Cat6 coupler3
1Lower tab4
1Installed5
1Front of unit6
6. Plug 14 foot CAT6 cable into coupler.
www.cybexintl.com
Page 9 of 13

Install right wheel
1. Install wheel, bolt, lockwasher, and nut securing right wheel using a 7/16” wrench and a 5/32” Allen wrench.
Qty.Description
1Bolt1
1Wheel2
1Lockwasher3
1Nut4
1Block5
2. Remove block.

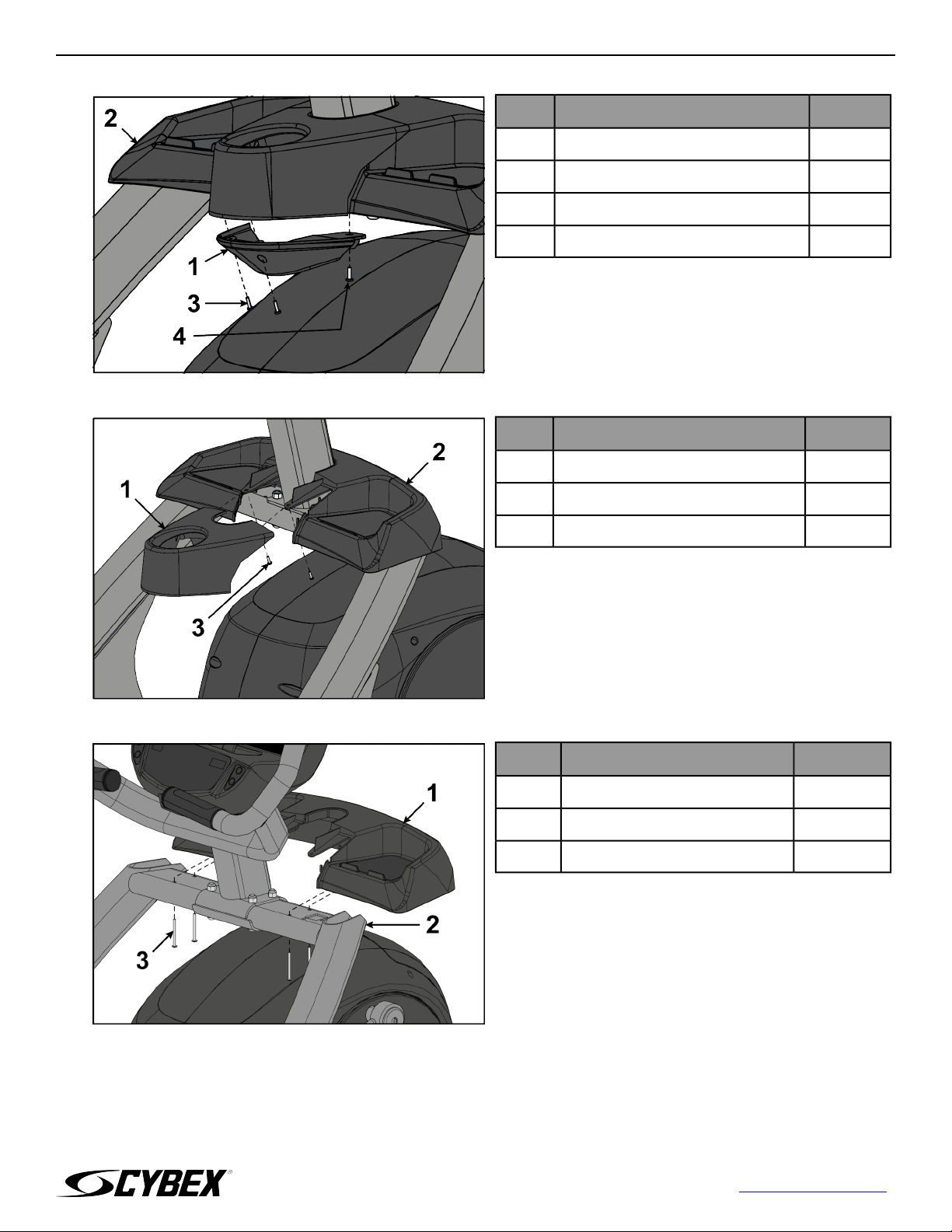

Install tray assembly
1. Install four screws securing accessory tray base to frame using a Phillips screwdriver.
QtyDescription
1Accessory tray base1
1Frame2
4Screws3
2. Install two screws securing accessory tray top to accessory tray base using a Phillips screwdriver.
QtyDescription
1Accessory tray top1
1Accessory tray base2
2Screw, 8-16 x 0.50"3
www.cybexintl.com
Page 10 of 13

3. Install three screws securing accessory tray bottom to the accessory tray base using a Phillips screwdriver.
QtyDescription
1Accessory tray bottom1
1Accessory tray base2
2Screw, #6 x 0.50"3
1Screw, 8-16 x 0.50"4
Install back cover
Install the four screws securing the back cover to the console assembly using a Phillips screwdriver.
Qty.Description
1Console assembly1
1Back cover2
4Screws3
www.cybexintl.com
Page 11 of 13

Connect Broadcast Vision to Cybex product
1. Plug the short cable (TV side) of the C.A.B. (Console Adapter Box) or C-tv (Connected TV) into the Broadcast
Vision TV.
Qty.Description
1Short cable, TV side1
1
C.A.B. Console Adapter Box or C-tv
(Connected TV)
2
1Long cable, Cybex product side3
2. Plug the long cable of the C.A.B. (Console Adapter Box) or C-tv (Connected TV) into the coupler at the base of
the Cybex product.
C.A.B. (Console Adapter Box) or C-tv (Connected TV) setup option
For self powered units; plug in AC adapter or have another user pedal the unit for the entire procedure.
1. Plug the power cord into the power outlet. (Treadmills and powered units).
2. Turn the main power switch to the on (I) position. (Treadmills and powered units).
The control panel will light up.
3. Press any key to access the Opening Screen.
4. Press and the hold the Scan/Hold or Display option and UP keys for 3 seconds.
5. Navigate through the setup menu with the UP and DOWN keys.
6. Navigate to the A/V option.
7. Press the ENTER key once to enter setup values.
8. Select C.A.B. (Console Adapter Box) or C-tu (Connected TV) from the A/V options.
9. Press the ENTER key again to save any changes and advance forward in the menu.
10. Press the STOP key to exit Setup options.
Complete installation
1. Plug the optional power cord into the power inlet.
2. Begin striding the unit until the console lights up.
www.cybexintl.com
Page 12 of 13

3. Operate the unit at all levels to verify proper operation.
Cybex®and the Cybex logo are registered trademarks of Cybex International, Inc.
10 Trotter Drive, Medway, MA 02053 • 508-533-4300 • FAX [phone]
©Copyright 2017, Cybex International, Inc. • www.cybexintl.com • 626A-331 B • March 2017
www.cybexintl.com
Page 13 of 13
