USER MANUAL
PR-300C
300 watts, Cool White, LED Profile

Caution!................................................................................................................. 3
Introduction........................................................................................................... 3
Safety instructions ............................................................................................... 3
Overview................................................................................................................ 4
Installation............................................................................................................. 5
Read ‘Safety information’ before installing the xture. .................................................................. 5
Fastening the xture to a at surface............................................................................................... 5
Mounting the xture on a truss ......................................................................................................... 5
Securing with a safety cable.............................................................................................................. 6
DMX-512 connection/connection between xtures......................................................................... 6
Art-Net Connection............................................................................................................................. 7
Power connection............................................................................................................................... 7
Operation............................................................................................................... 8
Control Menu Map............................................................................................................................... 8
Control menu....................................................................................................................................... 9
Main Menu ........................................................................................................................................... 9
Addressing ........................................................................................................................................10
Universal DMX Control.....................................................................................................................10
RDM control.......................................................................................................................................10
Art-Net protocol ................................................................................................................................11

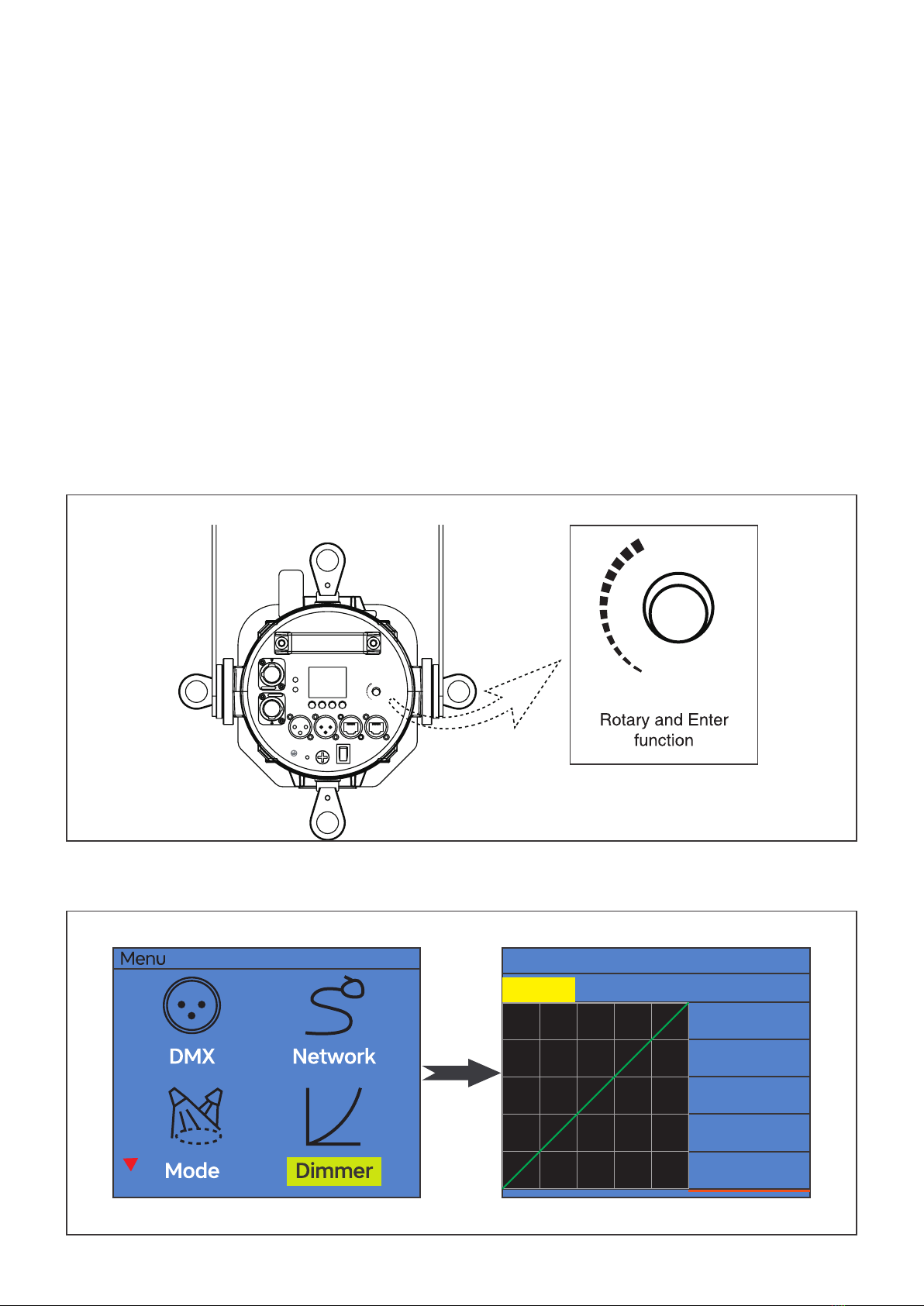

Rotary Knob function .......................................................................................................................11

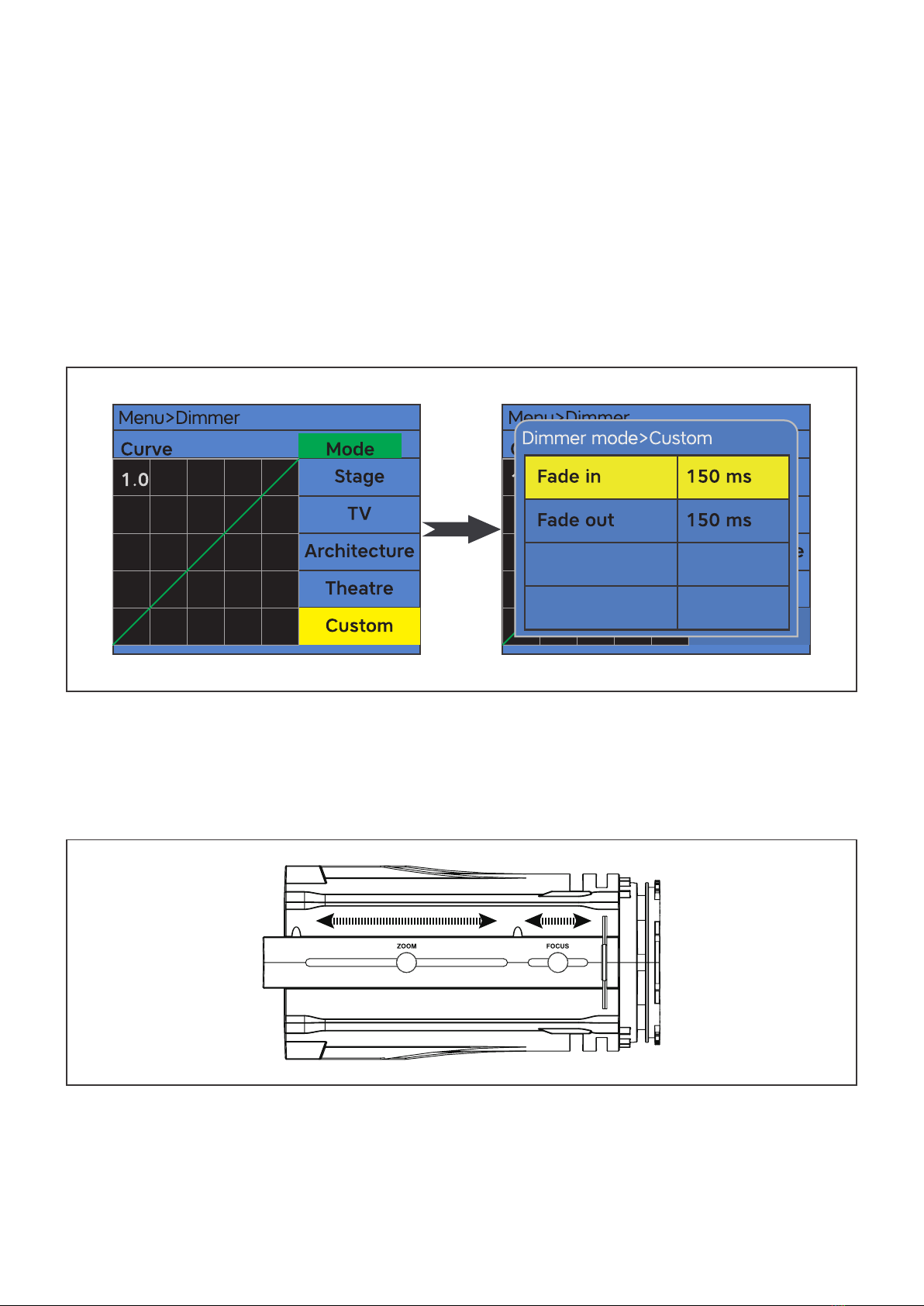

Set dimmer curves............................................................................................................................12
Zoom ..................................................................................................................................................13
DMX Protocol...................................................................................................... 14
Fixture Cleaning ................................................................................................. 14
Fuse Replacement.............................................................................................. 14
Troubleshooting ................................................................................................. 14
The xture does not work, no light .................................................................................................14

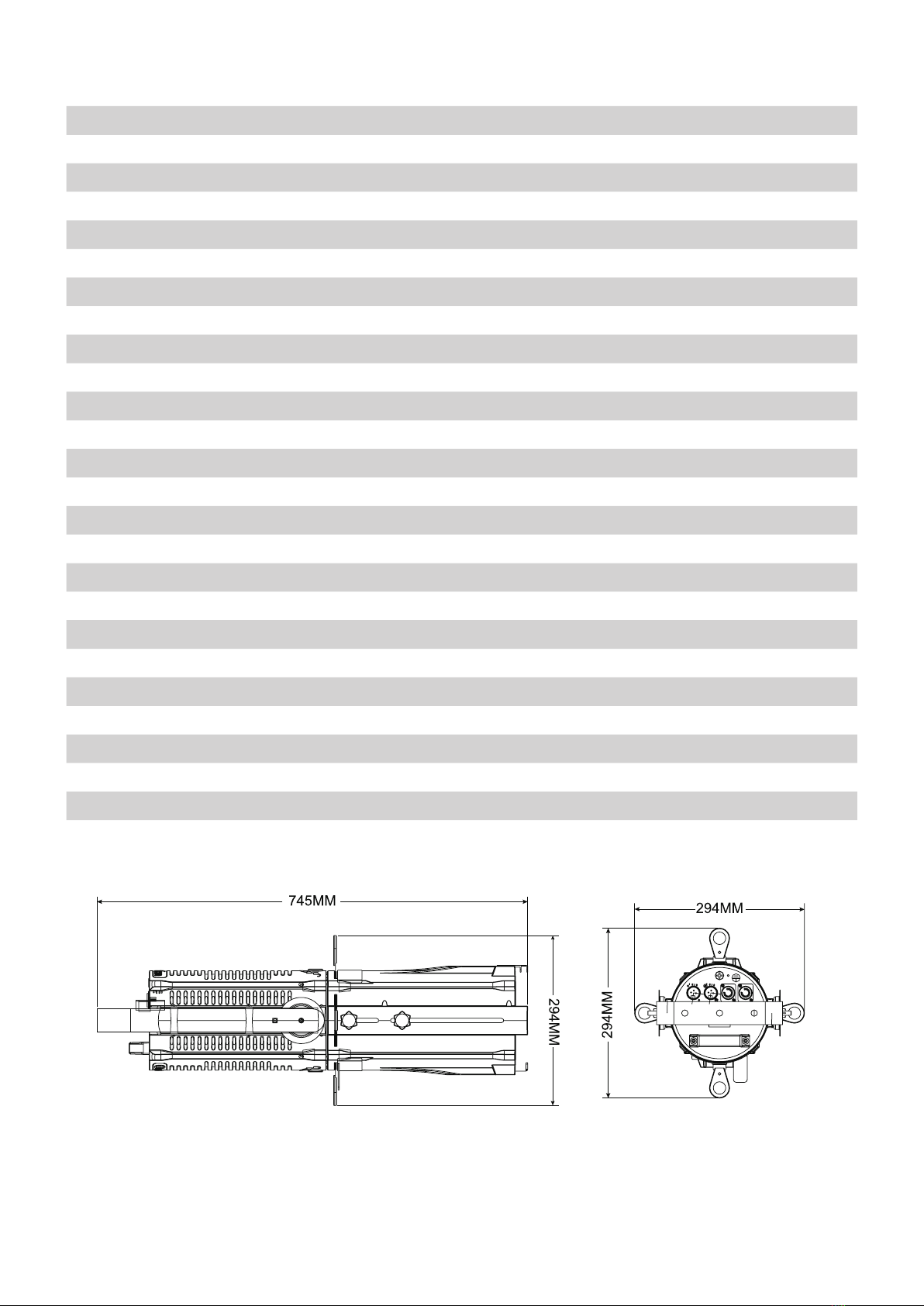

Technical specications.................................................................................... 15
Table of contents

3V1.0
Caution!
Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric
shock when touching the wires!
Avoid looking directly into the light source!
Wear protective glasses and other PPE (personal protective equipment) when working on or near
the xture.
For your own safety, please read this user manual carefully before you initial start-up.
Follow operating safety precautions and pay attention to warning signs methods and equipment
on the user manual.
Indoor use only! To prevent risk of re or shock, do not expose this product to rain or moisture. IP
20 rating.
The ambient temperature must always be between -5° C and +45° C.
Always make sure you are connecting this product to the proper voltage in accordance with the
specications in this manual or on the product’s specication label.Make sure it is grounded when
using it!
Unplug mains lead before opening the housing!
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture
and the powercord from time to time.
Make sure to replace the fuse with another of the same type and rating.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot
during operation. After use, wait for a cool-down period of at least 10 minutes before handling or
transporting the device.
Every person involved with the installation, operation and maintenance of this device has to
- be qualied
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- download the latest version of the user manual from the Internet
Introduction
Thank you for having chosen PR-300C . You will see you acquired a powerful and versatile device.
Unpack your item. Before you initial start-up, please make sure that there is no damage caused by
transportation. Should there be any, consult your dealer and do not use the device.
Safety instructions
This device has left our premises in absolutely perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual. Always disconnect from the mains, when the device is not in
use or before cleaning it. Keep away children and amateurs from the device! There are no serviceable
parts inside the device. Maintenance and service operations are only to be carried out by authorized
dealers.

4V1.0

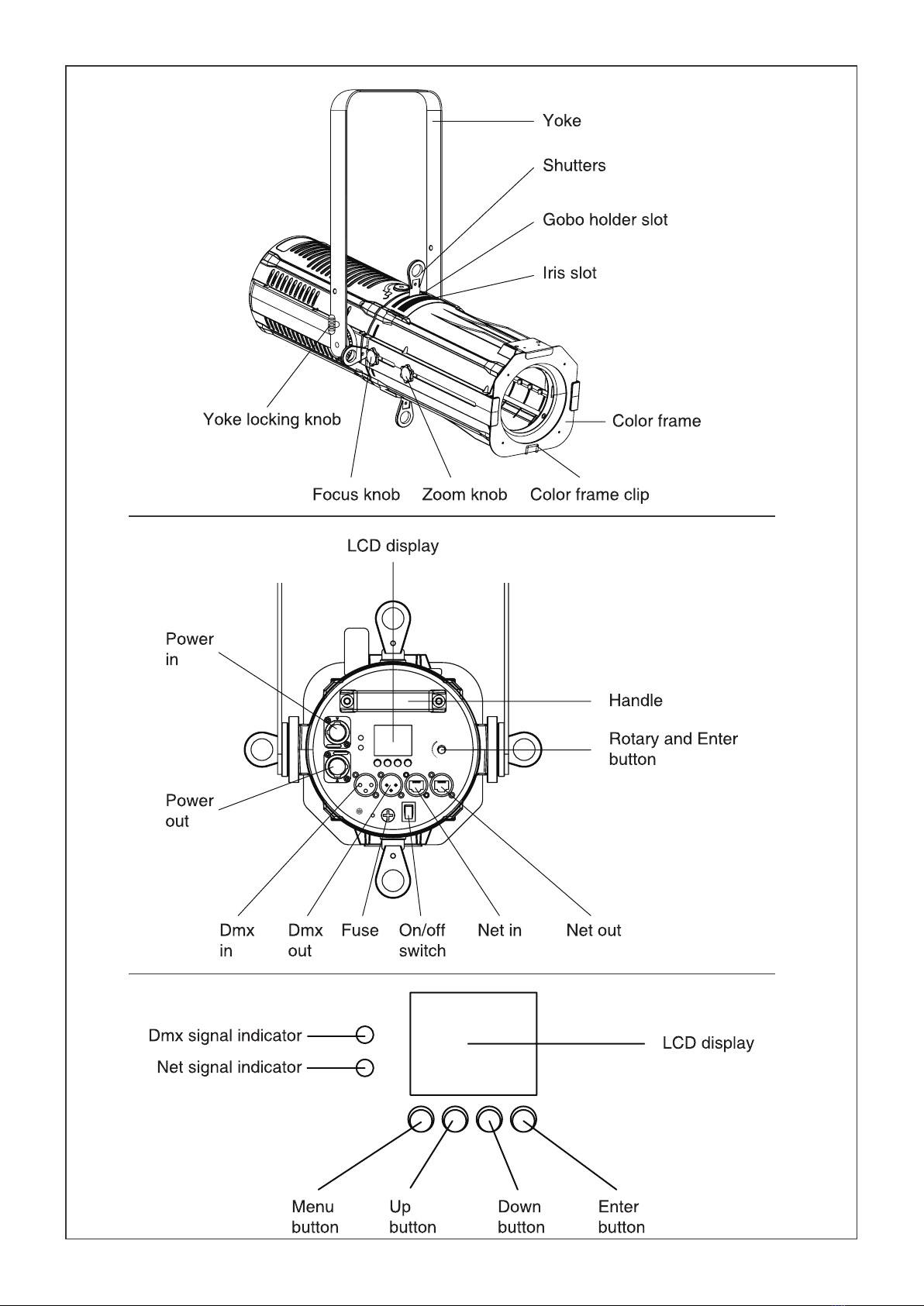

Overview

5V1.0
Installation
Read ‘Safety information’ before installing the xture.
The xture is designed for indoor use only and must be used in a dry location with adequate ventilation.
Ensure that none of the xture’s ventilation slots are blocked.
Fasten the xture to a secure structure or surface. Do not stand it on a surface or leave it where it can
be moved or fall over. If you install the xture in a location where it may cause injury or damage if it falls,
secure it as directed in this user manual using a securely anchored safety cable that will hold the xture if
the primary fastening method fails.
Fastening the xture to a at surface
The xture can be fastened to a hard, xed, at surface that is oriented at any angle. Ensure that the
surface and all fasteners used can support at least 10 times the weight of all xtures and equipment to
be installed on it.
Fasten the xture securely. Do not stand it on a surface or leave it where it can be moved or fall over.
If you install the xture in a location where it may cause injury or damage if it falls, secure it as directed
below with a securely anchored safety cable that will hold the xture if the primary fastening method fails.
Mounting the xture on a truss
The xture can be clamped to a truss or similar rigging structure in any orientation. When installing the
xture hanging vertically down, you can use an open-type clamp such as a G-clamp. When installing in
any other orientation, you must use a half-coupler clamp that completely encircles the truss chord.
To clamp the xture to a truss:
1. Check that the rigging structure can support at least 10 times the weight of all xtures and equipment
to be installed on it.
2. Block access under the work area.
3. Fold the legs of the mounting bracket together and bolt a rigging clamp securely to the mounting
bracket. The bolt used must be M10, grade 8.8 steel minimum. It must pass through both mounting
bracket legs and be fastened with a self-locking nut.
4. Working from a stable platform, hang the fixture with its clamp on the truss and fasten the clamp
securely.
5. Secure the xture with a safety cable as directed below.

6V1.0
Securing with a safety cable
Secure the xture with a safety cable (or other secondary attachment) that is approved for the weight of
the xture so that the safety cable will hold the xture if a primary attachment fails.
Loop the safety cable through the eyebolt in the back of the xture and around a secure anchoring point.
Do not loop the safety cable around the fixture’s mounting bracket only, as this will leave the fixture
unsecured if it separates from the bracket.
DMX-512 connection/connection between xtures
DMX/RDM
controller
Occupation of the XLR-connection:
1. Group
2. Signal (-)
3. Signal (+)
DMX OUT
1. Group
2. Signal (-)
3. Signal (+)
DMX IN
If you are using controllers with this occupation, you can connect the DMX-output of the controller directly
with the DMX-input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with other
XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture.
Always connect one output with the input of the next xture until all xtures are connected.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in
preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an
XLR plug with a 120 resistor connected between pins 2 and 3, which is then plugged into the output XLR
socket of the last xture in the chain.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω
resistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last
xture.

7V1.0
Art-Net Connection
Connect the Ethernet inputs of all xtures with the Ethernet network.
Switch/Router PC/Controller
Art-Net Art-Net
Occupation of the RJ45-connection:
PR-300C installs two RJ45 connectors for DMX data transmission. Pin 1 is for data +, Pin 2 for data -,
Pin 7 & 8 for earthing.
12345678
Ground
-
+
NET IN
+
-
Ground
12345678
NET OUT
Power connection
Power Requirements
The PR-300C luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire contains
an auto-ranging power supply.
Power linking between xtures:
The xture with powercon in and out socket. Connect the power out to the power in socket in the next
xture till all are connected.
Caution: maximum power linking - 6 units.
Connection with the mains:
Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection cables as below:
Cable color Connection International
Brown Live L
Blue Neutral N
Yellow/green Earth(Ground)

8V1.0
Operation
The PR-300C can operate in three different modes. In each mode you can run the xture as a stand
alone fixture or in a master/slave confiugration. This next section will detail the differences in the
operating modes.
Control Menu Map
Default setting in bold.
MAIN MENU LEVEL 1 LEVEL 3 LEVEL 3 FUNCTION INSTRUCTION
DMX 001-512 DMX address setting
Network
DHCP DHCP(Dynamic Host Conguration
Protocol) mode
Manual
IP address xxx.xxx.xxx.xxx Fixtures' IP address (assigned via
DHCP, if active)
Net Mask
255.0.0 Net Mask for class A IP address
255.255.0.0 Net Mask for class B IP address
255.255.255.0 Net Mask for class C IP address
Mode
DMX 1/2/3CH DMX channel mode
ArtNet
Net 000-127 Set Art-Net net
SubNet 000-015 Set Art-Net subnet in Art-Net net
Universe 000-015 Set Art-Net universe in Art-Net
subnet
Channel 1/2/3CH Art-Net channel mode
Auto Program 001-008 Preset programs
Speed 001-009 Programs speed
Maunal Brightness 000-255 Dimmer 0-100%
Strobe 000-255 Strobe with speed increasing
Dimmer
Curve 0.3-3.0 Dimmer curves adjustment
Mode
Standard Dimmer mode, Standard
Stage Dimmer mode, Stage
TV Dimmer mode, TV
Architecture Dimmer mode, Architecture
Theatre Dimmer mode, Theatre
Custom
Fade in
(150 ms~2230 ms) Custom dimmer curve
Fade out
(150 ms~2230 ms)

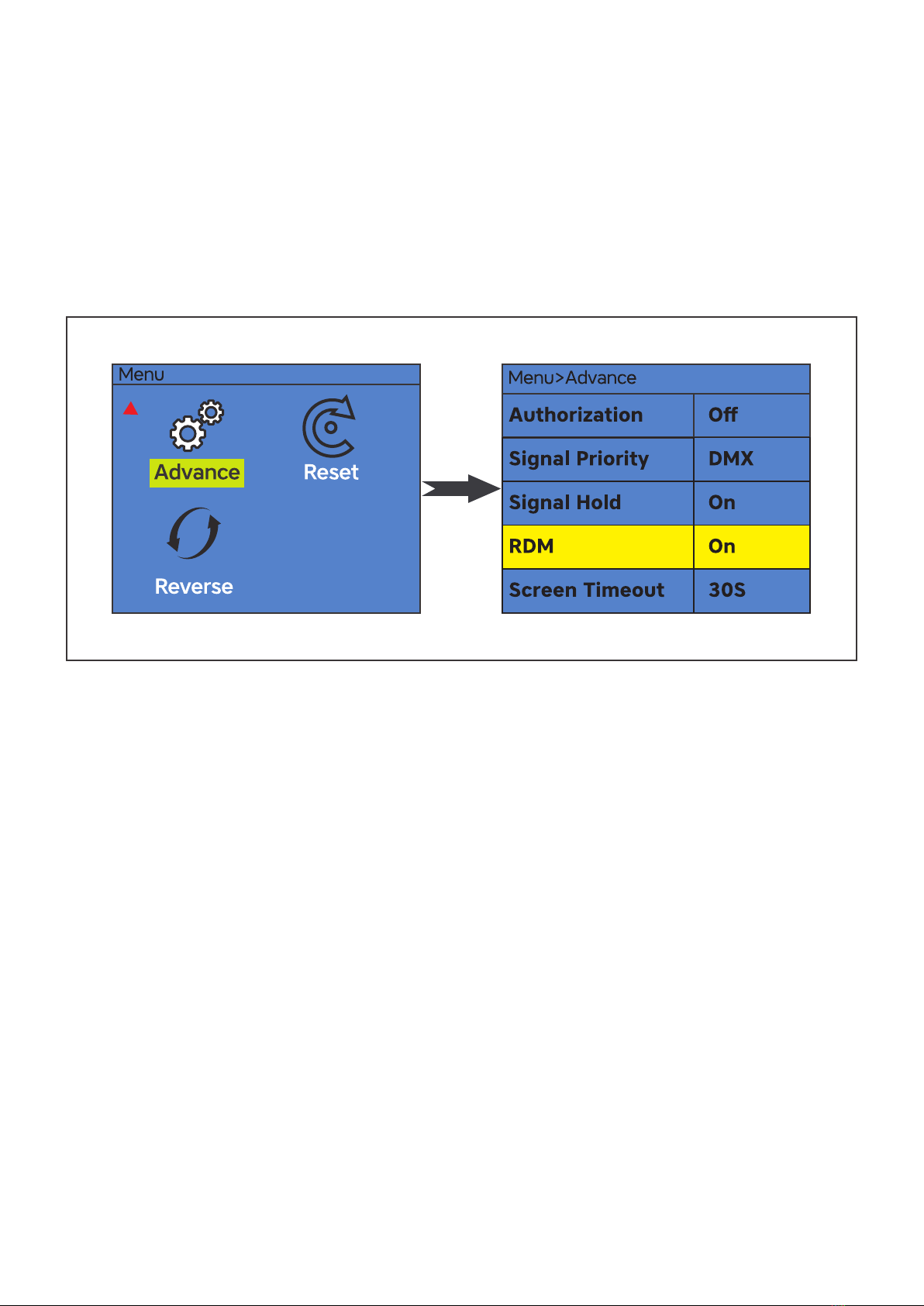

Advance Authorization On/Off
Advanced settings/calibration(Only
qualied technicians should perform
this function. Inqure your local
dealer for password.)

9V1.0
Signal Priority DMX DMX/Art-Net signal priority setting
ArtNet
Signal Hold On/Off Run if signal cut
RDM On/Off RDM function on/off
Screen Timeout 30S Display shut off time
Never
Screen Brightness 10-100% Display brightness
Reset Yes/No System reset
Reverse Yes/No Display reverse 180 degree
Control menu
The information menu will appear after the xture is switched on. In this menu, the following status is
displayed:
Main Menu
Press the MENU button to enter the Main Menu interface.

10 V1.0

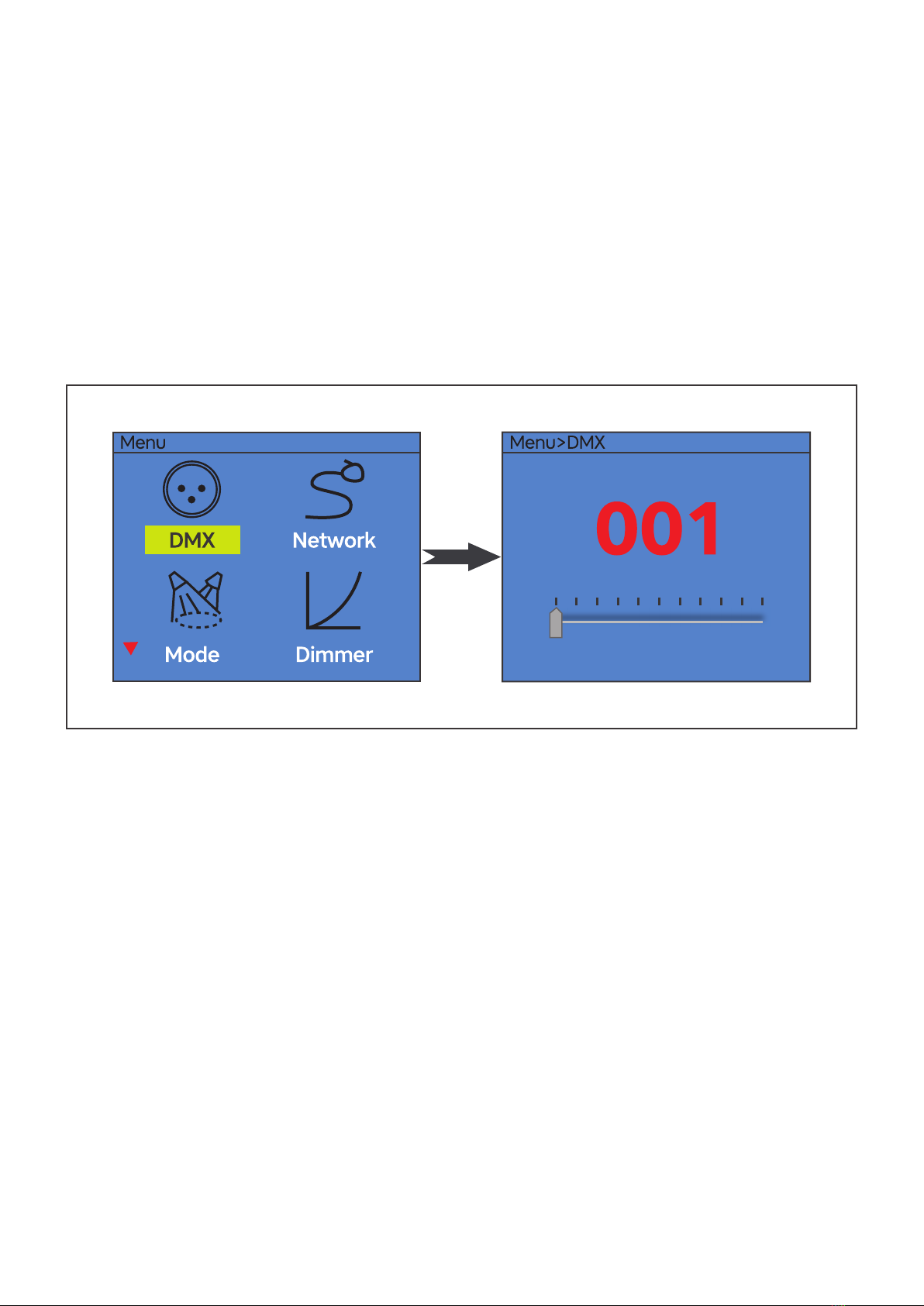

Addressing
All xtures should be given a DMX starting address when using a DMX signal, so that the correct xture
responds to the correct control signals. This digital starting address is the channel number from which
the xture starts to listen to the digital control information sent out from the DMX controller. The allocation
of this starting address is achieved by setting the correct number on the display located on the base of
the device.
You can set the same starting address for all xtures or a group of xtures, or make different address for
each xture individually.
If you set the same address, all the units will start to listen to the same control signal from the same
channel number. In other words, changing the settings of one channel will affect all the fixtures
simultaneously.
If you set a different address, each unit will start to listen to the channel number you have set, based on
the quantity of control channels of the unit. That means changing the settings of one channel will affect
only the selected xture.
In the case of the PR-300C, which is 1/2/3 channels xture. If you set, for example, the address in the 1
channel mode to channel 2, the device will use the channel 2 for control.
Note: After switching on, the device will automatically detect whether DMX 512 data is received or not. If
there is data received at the DMX input, you will see the DMX indicator light in green.
Universal DMX Control
This function allows you to use a universal DMX-512 controller to control the dimmer and strobe. A DMX
controller allows you to create unique programs tailored to your individual needs.
RDM control
The PR-300C can communicate using RDM (Remote Device Management) in accordance with ESTA’s
American National Standard E1.20-2006: Entertainment Technology RDM Remote Device Management
Over DMX512 Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open
standard for DMX512 device conguration and status monitoring.

11 V1.0
The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting
existing non-RDM equipment. It allows a console or dedicated RDM controller to send commands to and
receive messages from specic xtures.
With RDM function, you can set the DMX address of your fixtures remotely. This is especially useful
when the device is installed in a remote area.
Each PR-300C has a factory set RDM UID (unique identication number).
Note: Before operation, enable RDM function in Advanced settings.
Art-Net protocol
The xtures on a data link are connected to the Ethernet with Art-Net™ communication protocol. The
control software running on your PC (or light console) has to support Art-Net protocol.
Art-Net™ communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP. Its purpose is
to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
For more detail explaination of Art-Net protocol, please referring to: https://artisticlicence.com/art-net-4/
IP Address
The Art-Net protocol can operate on either a DHCP managed address scheme or using static addresses.
Net
A group of 16 consecutive Sub-Nets or 256 consecutive Universes is referred to as a net. There are 128
Nets in total.
SubNet
A group of 16 consecutive universes is referred to as a subnet. (Not to be confused with the subnet
mask).
Universe
A single DMX512 frame of 512 channels is referred to as a Universe.

12 V1.0
Rotary Knob function
The knob in the rear panel of the PR-300Cact as multi function. Including rotary control of dimmer, up/
down/enter function function.
Dimmer & strobe function:
1. Press the MENU button to enter the main menu.
2. Press the UP or DOWN button to select Mode menu and press ENTER.
3. Press DOWN menu and select Manual sub menu.
4. Press ENTER and select Brightness or Strobe in third menu.
5. Rotate the rotary knob to control the dimmer(right stop = maximum output, left stop = zero output), or
strobe(right stop = maximum strobe, left stop = no strobe).
Note: Rotary dimmer or strobe function works in information Menu and Mode-Manual menu.
Up, Down, Enter function:
The knob can also act as up, down and enter function.
1. Press the MENU button to enter the main menu interface.
2. Right rotation = Down, left rotation = Up, press = Enter function.
Set dimmer curves
This function allows you to select preset dimmer curves as well as custom dimmer curves
Menu>Dimmer
Curv e
1. 0
Mode
St andard
St age
TV
Architectur e
Theatre

13 V1.0
To set preset dimmer curves:
1. Press the MENU button to enter the main menu.
2. Press the UP or DOWN button to select Dimmer menu and press ENTER.
3. Press DOWN menu and select Mode sub menu.
4. Select disired dimmer mode.
Custom dimmer curves:
1. Press the MENU button to enter the main menu.
2. Press the UP or DOWN button to select Dimmer menu and press ENTER.
3. Press DOWN menu and select Mode sub menu.
4. Press the UP or DOWN button to select Custom menu and press ENTER.
5. Adjust fade in and fade out time to customize yout dimmer curves. Time vary from 150 ms to 2230
ms.
Zoom
This function allows you to adjust the beam width of the xture.
Step 1: Loosen the zoom buttons on the side of the device.
Step 2: Adjust the zoom by sliding the back lenshousing forward or backward.
Step 3: Tighten the zoom buttons.

14 V1.0
DMX Protocol
1 Channel Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
2 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Strobe 000-255: Strobe with speed increasing
3 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Dimmer ne 000-255: 16 bit dimmer
CH3 Strobe 000-255: Strobe with speed increasing
Fixture Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should
be carried out periodically to optimize light output. Cleaning frequency depends on the environment
in which the fixture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend
cleaning on a monthly basis. Periodic cleaning will ensure longevity, and crisp output.
To clean the xture:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Vacuum or gently blow away dust and loose particles from the outside of the xture with low-pressure
compressed air.
3. Clean the surfaces by wiping gently with a soft, clean lint-free cloth moistened with a weak detergent
solution. Do not rub glass surfaces hard: lift particles off with a soft repeated press. Dry with a soft,
clean, lint-free cloth or low-pressure compressed air. Remove stuck particles with an unscented
tissue or cotton swab moistened with glass cleaner or distilled water.
4. Check that the xture is dry before reapplying power.
Fuse Replacement
This fuse is located in a fuseholder next to the MAINS OUT socket on the connections panel.
To replace a fuse:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Unscrew the cap of the fuseholder and remove the fuse. Replace with a fuse of the same size and
rating only.
3. Reinstall the fuseholder cap before reapplying power.
Troubleshooting
Listed below are a few common problems that you may encounter, with solutions.
The xture does not work, no light
• Check the connection of power and main fuse. Be sure the external fuse has not blown.
• Measure the mains voltage on the main connector.

15 V1.0
Model PR-300C
Light source: 300 watts Cool white COB
LED Color temperature: 5600K
LED life expectancy: 50,000 Hrs.
CRI: 97, R9 ≥ 90
TLCI: ≥98
Manual zoom
Zoom range: 18° to 38° (optional 5°-10° or 9°-18°prole lenses)
Light output 29,000 Lux @ 2m @ 18°
Optional Fresnel lens adapter 25°-50° (PMMA)
5 Dimmer curves
16 bit dimmer
Strobe
Video icker free with selectable PWM
Intelligent temperature control
Silent operation
Control protocols: Rotary, DMX, RDM, Artnet
Control channels: 1, 2, 3 CHs
Input voltage: AC100-240V/50-60Hz
DMX connections: 3 pin XLR In/Out male and female
Power connections: PowerCon In/Out
Dimensions: 745 x 294 x 294mm
Net weight: 8.7 Kg (including lens)
Color: Black
IP rating: 20
Operating temperature: -5°C/45°C
Technical specications
www.cyclopslighting.com
