Cymbol G3-IP-2MPID-IR User manual

IR Dome Camera
Quick Guide
Smart Secure Technology™
™
Series
™

Quick Installation Guide
1. Description
The Network Camera supports the network service for a sensor image with progressive scan, which
can be monitored on a real-time screen regardless of distances and locations. By using its dedicated
program, many users are able to have an access to the Network Camera at once or a single user can
monitor various network cameras at the same time. It also enables users to play, store and retrieve a
monitoring image by using a PC. All the settings and real-time monitoring screens are also provided
through an access to the web.
The Network Camera is fully featured for security surveillance and remote monitoring needs. It is
based on the DSP compression chip, and makes it available on the network as real-time, full frame
rate Motion JPEG and H.264 (or MPEG-4) video streams.
The alarm input and alarm output can be used to connect various third party devices, such as, door
sensors and alarm bells.
• Installation Steps
Follow these steps to install the network camera on your local network (LAN):
1. Check the package contents against the list below.
2. Connect the Network Camera
3. Set an IP address.
4. Set the password.

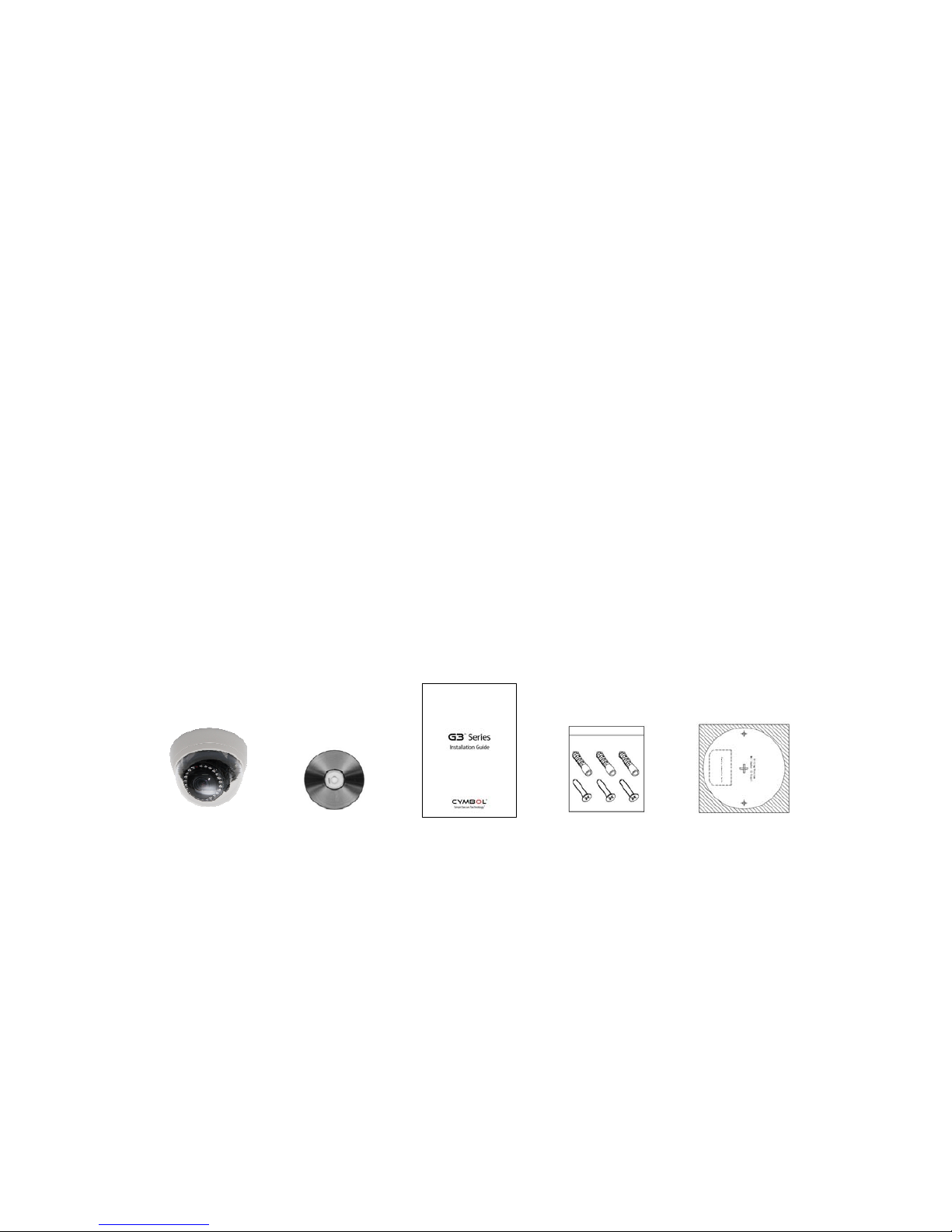

• Package Component
The system comes with the following components:
CameraUnit InstallationCD InstallationGuide AccessoryKit Templatesheet
• Contents in the installation CD
1. The User Guide
2. The SmartManager User Guide
3. The Cymbol Interface User Guide
4. The SmartManager Installation software
5. The Cymbol Interface Installation software
Note: Check your package to make sure that you received the complete system, including all
components shown above.
2

Quick Installation Guide
• Connection Cable
NO Name Description
1 Lens Allows wide area to be monitored
2 Power Cable Cable for Power source (DC 12V)
3 Ethernet Cable Cable for Ethernet (POE)
Camera Dimension
See the diagrams below for the exact dimension
3

Quick Installation Guide
2. Installation
2.1 Connection
• Camera Installation
Carefully remove the contents from the box, and verity that nothing was damaged in shipment.
1) Make screw holes for camera on the ceiling with Template Sheet
2) Disassemble a camera by Camera Cover
3) Fix the camera set using Anchors(2x) and Screws(2x) to the ceiling.
4) Assemble Camera Cover to Dome Camera. Turn Camera Cover clockwise to complete installation
Locking Screw
4

Quick Installation Guide
• Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera. Generally a
cross-over cable is used for directly connection to PC, while a direct cable is used for connection
to a hub.
Micro SD memory slot
Insert the SD memory card.
SD memory card
• Connecting
the Power
Connect the DC 12V power adaptor to the camera.
5

Quick Installation Guide
2.2 Network Connection and IP assignment
The Network Camera supports the operation through the network. When a camera is first connected
to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the
“Smart Manager” utility on the CD. The factory default IP is “192.168.30.220”.
1. Connect the Network Camera / device to the network and power up.
2. Start SmartManager utility (Start>All programs>SmartManager>SmartManager), the main
window will be displayed, after a short while any network devices connected to the network will
be displayed in the list.
3. Select the camera on the list and click right button of the mouse. You can see the pop-up menu
below.
4. Select Assign IP. You cam see a Assign IP window. Enter the required IP address.
Note: For more information, refer to the Smart Manger User Guide.
6

Quick Installation Guide
3. Operation
The Network Camera can be used with Windows operating system and browsers. The recommended
browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows.
3.1 Access from a browser
1. Start a browser (Internet Explorer).
2. Enter the IP address or host name of the Network Camera in the Location/Address field of your
browser.
3. You can see a starting page. Click Live View or Setup to enter web page.
4. The network camera’s Live View page appears in your browser.
3.2. Access from the internet
Access from the internet once connected, the Network Camera is accessible on your local network
(LAN). To access the network camera from the Internet you must configure your broadband router to
allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which
will attempt to automatically configure the router to allow access to the network camera. This is
enabled from Setup > System > Network > NAT.
For more information, please see “3.5.5 System>Network>NAT” of User Guide.
7

Quick Installation Guide
3.3 Setting the admin password over a secure connection
T
o
g
ain access to the product, the password for
t
he default administrator user must be set. This
is done in the “Admin Password” dialo
g
, which is
displayed when the network camera is accessed
f
or the setup at the first time. Enter your admin
name and password, set by the administrator.
Note: The default administrator username and
password is “admin”. If the password is lost, the
Network Camera must be reset to the factory
default settin
g
s. See “3.6 Resetting to the Factory
Default Settin
g
s
”
.
3.4 Live View Page
T
he live view pa
g
e comes in several screen
modes: 1600x1200, 1280x1024, 1280x720,
704x480(576), 640x480, 352x240(288)
and 320x240. Users are allowed to select
t
he most suitable one out of those modes.
Please, ad
j
ust the mode in accordance with
y
our PC specifications and monitorin
g
purposes.
1) General controls
LiveViewPage Search&PlaybackPage SetupPage HelpPage
The video drop-down list allows you to select a customized or pre-programmed
video stream on the live view page. Stream profiles are configured under Setup > Basic
Configuration > Video & Image. For more information, please see “3.5.1 Basic Configuration >
Video & Image” of User Guide.
Theresolutiondrop-downlistallowsyoutoselectthemostsuitableone
out of video resolutions to be displayed on live view page.
Theprotocoldrop-downlistallowsyoutoselectwhichcombinationof
protocols and methods to use depends on your viewing requirements, and on the properties of
your network.
8

Quick Installation Guide
2) Control toolbar
The live viewer toolbar is available in the web browser page only. It displays the following
buttons:
The Stop button stops the video stream being played. Pressing the key again toggles the
start and stop. The Start button connects to the network camera or start playing a
video stream.
The Pause button pause the video stream being played.
The Snapshot button takes a snapshot of the current image. The location where the
image is saved can be specified.
The digital zoom activates a zoom-in or zoom-out function for video image on the live
screen.
The Full Screen button causes the video image to fill the entire screen area. No other
windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full
screenview.
The Manual Trigger button activates a pop-up window to manually start or stop the event.
3) Video Streams
The network camera provides several images and video stream formats. Your requirements and
the properties of your network will determine the type you use.
The Live View page in the network camera provides access to H.264, MPEG-4 and Motion JPEG
video streams, and to the list of available video streams. Other applications and clients can also
access these video streams/images directly, without going via the Live View page.
3.5 Network Camera Setup
This section describes how to configure the network camera, and is intended for product
Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access
to the settings for Basic, Live View, Video & Image, Event, and System Configuration.
You can configure the network camera by clicking Setup in the top right-hand corner of the Live View
page. Click on this page to access the online help that explains the setup tools
When accessing the Network Camera for the first time, the
“Admin Password” dialog appears. Enter your admin name
and password, set by the administrator.
Note: If the password is lost, the Network Camera must
be reset to the factory default settings.
See “3.6 Resetting to the Factory Default Settings”.
9

Quick Installation Guide

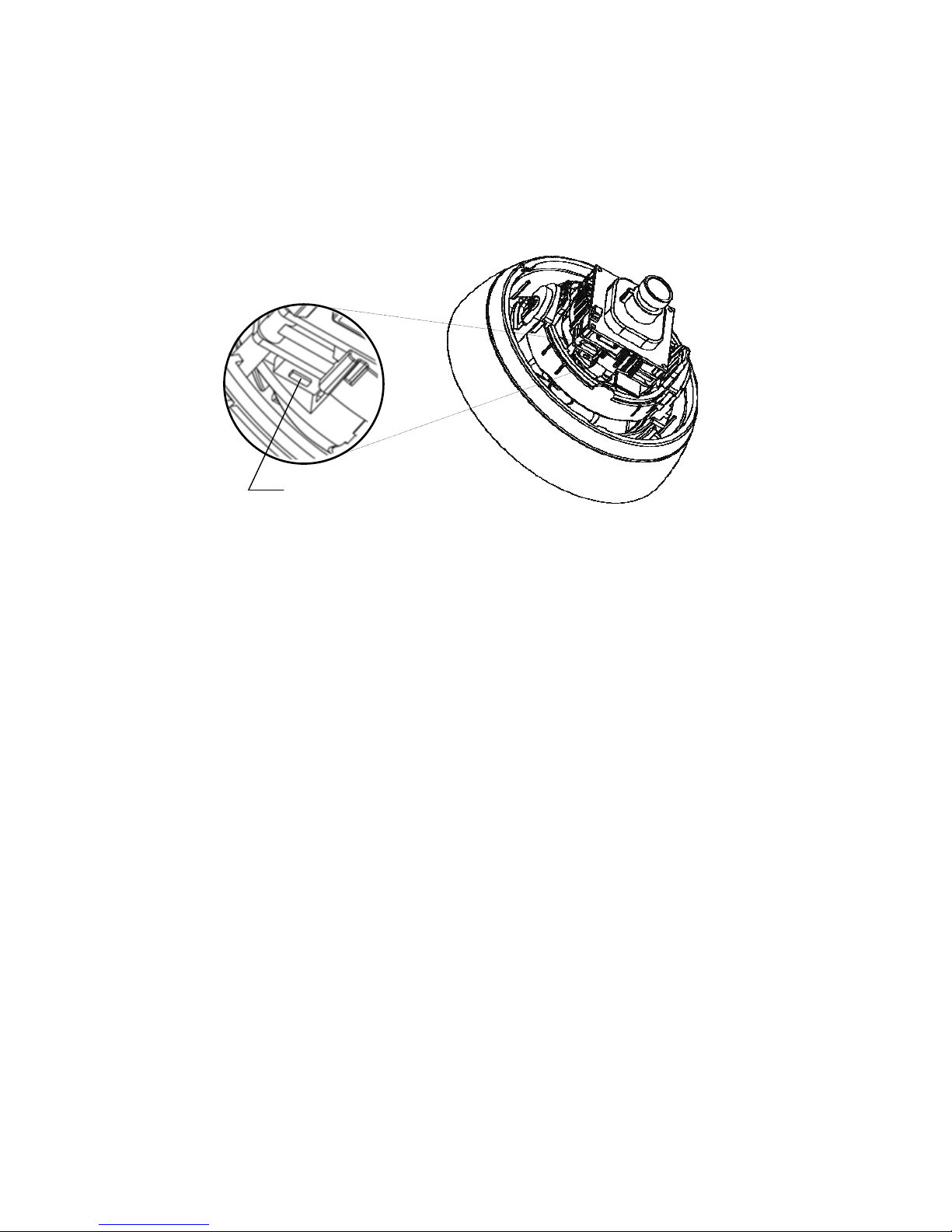

3.6 Resetting to the factory default settings
To reset the Network Camera to the original factory settings, go to the Setup>System> Maintenance
web page (described in User Guide, “3.5.5 System > Maintenance”) or use the Reset button on the
network camera, as described below
Reset Button
• Using the Reset Button
Follow the instructions below to reset the Network Camera to the factory default settings using
the Reset button.
1. Switch off the Network Camera by disconnecting the power adapter.
2. Press and hold the Reset button with a straightened paperclip while reconnecting the power.
3. Keep the Reset button pressed during about 2 seconds or more than.
4. Release the Reset button.
5. The network camera resets to factory defaults and restarts after completing the factory
reset.
Caution: When performing a Factory Reset, you will lose any settings you have saved.
(Default IP 192.168.30.220)
3.7 More Information
For more information, please see the Network Camera User Guide, which is available on the CD
included in this package.
10

Quick Installation Guide
11

©2013 Cymbol Products, Inc. All rights reserved.
www.cymbol.com
