Cynix SE-N22DC SE Series User manual

INSTRUCTION MANUAL Ver 1.0
Speed Dome Camera / SE Series

Speed Dome Camera Instruction Manual 2/35

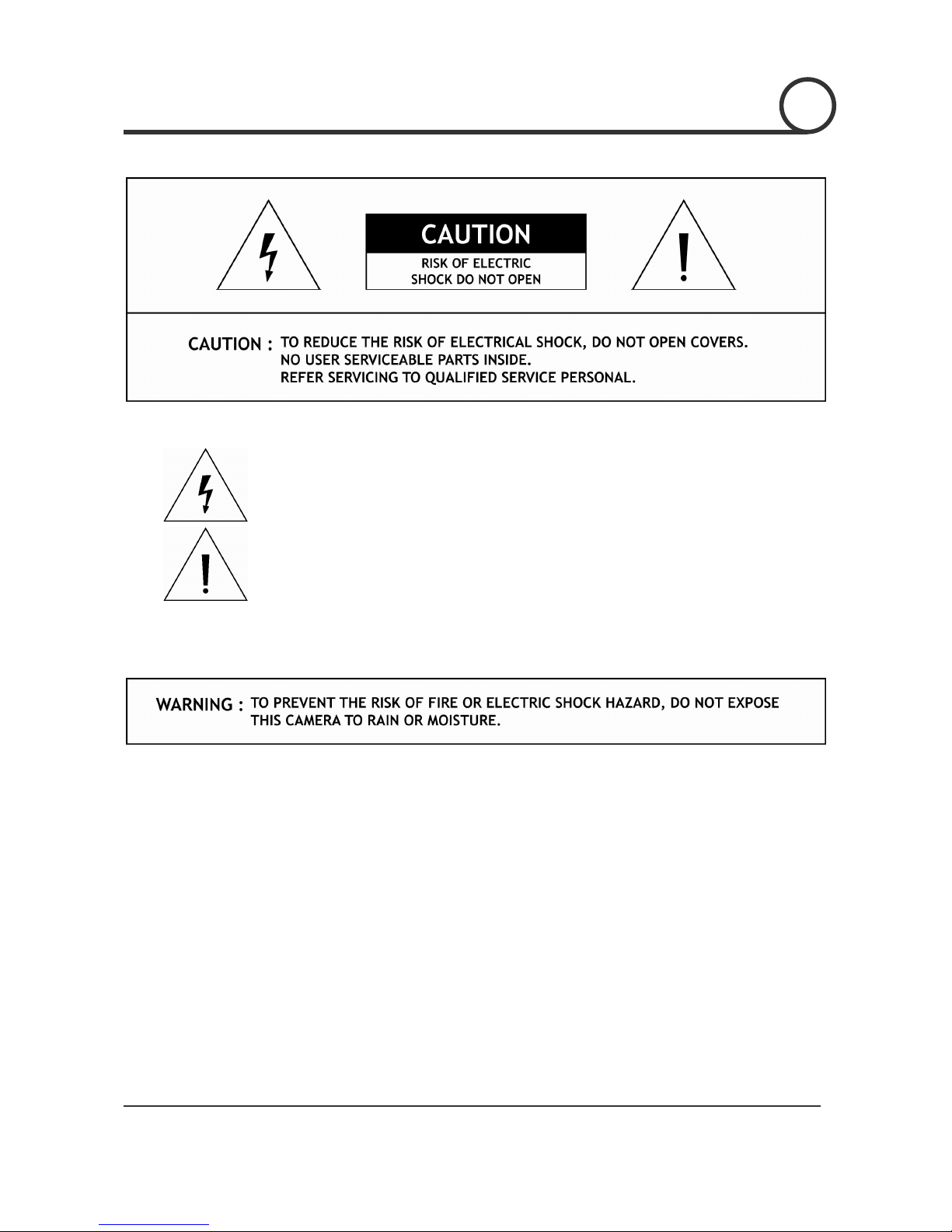

This lightning flash with arrowhead symbol is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the product's enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to persons.
This exclamation point symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.

Speed Dome Camera Instruction Manual 3/35
Important Safeguard
1. Read Instructions
Read all of the safety and operating instructions before using the product.
2. Retain Instructions
Save these instructions for future reference.
3. Attachments / Accessaries
Do not use attachments or accessories unless recommended by the appliance manufacturer as they may
cause hazards, damage product and void warranty.
4. Water and Moisture
Do not use this product near water or moisture.
5. Installation
Do not place or mount this product in or on ana unstable or improperly supported location. Improperly
installed product may fall, causing serious injury to a child or adult, and damage to the product. Use only
with a mounting device recommended by the manufacturer, or sold with the product. To insure proper
mounting, follow the manufacturer's instructions and use only mounting accessories recommended by
manufacturer.
6. Power source
This product should be operated only from the type of power source indicated on the marking label.
Precautions
Operating
zBefore using, make sure power supply and others are properly connected.
zWhile operating, if any abnormal condition or malfunction is observed, stop using the camera
immediately and then contact your local dealer.
Handling
zDo not disassemble or tamper with parts inside the camera.
zDo not drop or subject the camera to shock and vibration as this can damage camera.
zCare must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your
quality of camera.
Installation and Storage
zDo not install the camera in areas of extreme temperature, which exceed the allowable range.
zAvoid installing in humid or dusty places.
zAvoid installing in places where radiation is present.
zAvoid installing in places where there are strong magnetic fields and electric signals.
zAvoid installing in places where the camera would be subject to strong vibrations.
zNever expose the camera to rain and water.
NOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICE

Speed Dome Camera Instruction Manual 4/35
○
1Introduction
Features 5
Product&Accessories 6
PartsName&Functions 7
○
2Installation
RearBracketDisassembling/Assembling 8
DIPSwitchSetup 9
DirectInstallationontheCeiling 12
Installation using In-Ceiling Mount Bracket 13
Installation using Ceiling Mount Bracket 15
InstallationusingWallMountBracket 16
Cabling 17
○
3Operation
CheckingBeforeOperation 19
Start OSD Menu
20
Reserved Preset
20
Relay Output Control
20
Preset
21
Swing
21
Group
22
Other Motion Functions
23
OSD Display of Main Screen
24
○
4How to use OSD Menu
General Rules of Menu Operation
25
Main Menu
25
Display Menu for Main Screen
25
Camera Module Setup
26
Motion Setup
26
Preset Setup
28
Swing Setup
30
Group Setup
31
○
5Specifications
SE-N(P)22CC
32
SE-N(P)22DC
33
Dimension
34
CONTENTS

Speed Dome Camera Instruction Manual 5/35
Features
Camera Specifications
zCCD Sensor : 1/4" Super HAD CCD
zZoom Magnification : ×22 Optical Zoom, ×10 Digital Zoom (Max. ×220 Zoom in Total)
zDay & Night Function →SE-x22DC Model
Powerful Pan/Tilt Functions
zMax. 240°/sec high speed Pan/Tilt Motion
zUsing Vector Drive Technology, Pan/Tilt motions are accomplished in a shortest path. As a result,
time to target view is reduced dramatically and the video on the monitor is very natural to watch.
zFor jog operation using a controller, since ultra slow speed 0.1°/sec can be reached, it is very easy
to locate camera to desired target view.
Preset, Swing and Group Functions
zMax. 64 sets of position and zoom magnification are designated and stored as Preset. For each
Preset, additional information such as Dwell time (pause time in Group action when camera reaches
to a certain Preset position), Alarm action and area Label can be assigned independently to meet to
your requirements.
z8 of Swing action can be stored. This enables to move camera repetitively between two preset
positions with designated speed.
z8 set of Group action can be stored. This enables to move camera repetitively with combination of
Preset or Swing. A Group is composed of max. 20 entities of Preset or Swings.
PTZ Control
zWith RS-485 communication, max. 255 of cameras can be controlled at the same time.
zPelco-D or Pelco-P protocol can be selected as a control protocol in the current version of firmware.
OSD(On Screen Display) Menu
zOSD menu is provided to display the status of camera and to configure the functions interactively.
zThe information such as Camera ID, Pan/Tilt angle, Alarm I/O, Preset info can be displayed on the
screen.
Alarm I/O Functions
z2 alarm sensor Inputs and 2 alarm Output relays are available.
zTo reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo
coupler and the relay is used for alarm output.
zThe signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various applications.
Meanwhile, the maximum load of relay contact is AC 250V, 5A or DC 28V, 5A.
zIf an external sensor is activated, camera can be set to move to the corresponding Preset position.
Meanwhile, the output relay can be matched to some specific Preset positions to do counteractions
such as turning on the light or sound the alarm.
INTRODUCTION 11

Speed Dome Camera Instruction Manual 6/35
Product & Accessories
Product & Accessories
zCamera Body zDome Cover zScrews
Options
zIn-Ceiling Mount Bracket
(SBI-100)
zCeiling Mount Bracket
(SBC-100)
zWall mount bracket
(SBW-100)
INTRODUCTION 1

Speed Dome Camera Instruction Manual 7/35
Parts Name & Functions
Rear Bracket
Lockup Screw
Dome Cover
Drop Prevention
Spring
Drop Prevention
Hook
Signal Cable
Fuse
Cabling
Terminal Block
zMain Body zRear Bracket
zDome Cover Care must be taken when you clean the clear dome cover. Since
scratch, finger print and dust on the dome cover will ruin quality of
camera, do not remove the vinyl tape on cover before installation is
completed.
zRear Bracket This rear bracket is used to install the camera directly on the ceiling or
attach to the other brackets such as wall, ceiling, and outdoor mount.
After separating this bracket first and then attach this directly to ceiling
or to the other bracket. Camera must be assembled at the last stage.
zDrop Prevention Spring
Drop Prevention Hook
This part keeps the camera from dropping during installation and
maintenance. After install the Rear Bracket, please, hang the spring to
the drop prevention hook of main body as shown in picture for further
tasks.
zSignal Cable Do not forget to connect this cable before you assemble Rear bracket
and Main body of camera.
zLockup Screw Tighten this screw to fix the camera into the bracket after you assemble
Rear bracket and Main body by turning the Main body.
zFuse If the fuse is burnt to protect your came from over-current damage, the
fuse have to be replace with new one. The fuse specification is 250V 2A.
However, we recommend consulting with supplier to remove the cause
of over-current.
zCabling Terminal Block During installation, Power, Video, Communication, Alarm I/O cables are
connected on to this cabling terminal block.
INTRODUCTION 1

Speed Dome Camera Instruction Manual 8/35
Rear Bracket Disassembling
①Remove the fixing screw as shown bellow. ②Dismantle the Rear bracket by turning main
body about 15°.
15
Rear Bracket Assembling
①After you locate the internal cable properly, place
the Rear Bracket on to Main body by considering
the matching line of both parts as show in picture
bellow. Then, slightly turn the Rear Bracket
clockwise to assemble.
②Tighten the fixing screw as shown bellow.
INSTALLATION 2

Speed Dome Camera Instruction Manual 9/35
DIP Switch Setup
Before you install the camera, you should set the DIP switches to configure the camera ID, communication
protocol.
1 2 4 8 16 32 64 128
ON
N.C N.C PAL
N.O N.O NTSC
Refer to
the Manual
0000 0000
ON
OPTIONS
ADDRESS (ID) RESERVED
Communication Protocol
Sensor Type
Camera ID
Camera ID Setup
123456
ON
ON
78
zID number of camera is set using binary number. The example is
shown bellow.
Pin 1 2 3 4 5 6 7 8
ID Value 1 2 4 8 16 32 64 128
ex) ID=5 on off on off off off off off
ex) ID=10 off on off on off off off off
zThe range of ID is 1~255. Do not use 0 as camera ID. Factory default
of Camera ID is 1.
zIf you want to control a certain camera, you must match the camera
ID with Cam ID setting of DVR or Controller. Don’t forget Camera ID.
2
INSTALLATION

Speed Dome Camera Instruction Manual 10/35
Communication Protocol Setup
123456
ON
O
N
78
Sensor Type Setup
123456
ON
ON
78
zSelect the appropriate Protocol with DIP switch combination.
Switch State
Pin 1 Pin 2 Pin 3
Protocol/Baud rate
OFF OFF OFF PELCO-D, 2400 bps
ON OFF OFF PELCO-D, 9600 bps
OFF ON OFF PELCO-P, 4800 bps
ON ON OFF PELCO-P, 9600 bps
Otherwise Reserved
zIf you want to control using DVR or P/T controller, their protocol must
be identical to camera. Otherwise, you can not control the camera.
zIf you changed camera protocol by changing DIP S/W, the change
will be effective after you reboot the camera.
zFactory default of protocol is ‘Pelco-D, 2400 bps.
zIf you want to use Alarm Input, the types of sensor must be selected.
The sensor types are Normal Open and Normal.
~Normal Open Output Voltage is high state when sensor is
activated.
~Normal Close Output Voltage is high state when sensor is not
activated.
Pin No. Switch State Sensot Type
ON Sensor 1 : Normal Close Type
Pin4
OFF Sensor 1 : Normal Open Type
ON Sensor 2 : Normal Close Type
Pin5
OFF Sensor 2 : Normal Open Type
zIf sensor type is not selected properly, the alarm can be activated
reversely.
INSTALLATION 22

Speed Dome Camera Instruction Manual 11/35
Reserved for Supplier
123456
ON
ON
78
zSince Pin 6 ~ Pin 8 is only for supplier, DO NOT CHANGE THESE ITS
ORIGINAL STATE.If you change one of these, proper operation can
not be achieved.
~Pin 6 Reserved for future upgrade.
~Pin7 PAL / NTSC system selection of Camera.
~Pin 8 Factory default is ON state. This pin is used for system
firmware upgrade. DO NOT CHANGE THIS PIN.
INSTALLATION 2

Speed Dome Camera Instruction Manual 12/35
Direct Installation on the Ceiling
①To pass cables to upside of ceiling, please, make
about 50~60mm hole on the ceiling panel.
②Attach the Rear Bracket to the Ceiling Plate.
③After install the Rear Bracket, please, hang the
spring to the hook of the Main body. And plug the
connector cable properly.
④ After you locate the internal cable properly,
place the Rear Bracket on to Main body by
considering the matching lines of both parts as
show in picture bellow. Then, slightly turn the
Rear Bracket clock-wise to assemble.
⑤Tighten the fixing screw as shown bellow.
INSTALLATION 2

Speed Dome Camera Instruction Manual 13/35
Installation using In-Ceiling Mount Bracket (SBI-100)
①Cut the panel of Ceiling as shown bellow.
165
353-
120
120
Hole Dimension(mm)
②Assemble Rear bracket of camera to the In-
Ceiling Mount Bracket as shown bellow.
③Place the In-Ceiling Mount Bracket into the hole of
Panel made in step ①.
④ Fasten 3 screws to fix the In-Ceiling Mount
Bracket. The 3 legs of bracket must be located
properly.
⑤After Insert the camera from bottom, please, hang
the spring to the hook of the Main body. And plug
the connector cable properly.
⑥After you locate the internal cable properly,
place Main body to the Rear Bracket by
considering the matching lines of both parts.
Then, slightly turn the camera clock-wise to
assemble.
INSTALLATION 2

Speed Dome Camera Instruction Manual 14/35
⑦To assemble Deco. Ring, please, place side cut of
Deco. Ring into contact with protrusion of in-ceiling
mount as shown in the figure. Then, turn the deco.
Ring clock-wise.
INSTALLATION 2

Speed Dome Camera Instruction Manual 15/35
Installation using Ceiling Mount Bracket (SBC-100)
①To pass cables to upside of ceiling, please, make
about 50~60mm hole on the ceiling panel and
attach the Ceiling mount bracket on it.
②Assemble the Rear Bracket of camera on to
Ceiling mount bracket.
③After install the Rear Bracket, please, hang the
spring to the hook of the Main body. And plug the
connector cable properly.
④ After you locate the internal cable properly,
place Main body to the Rear Bracket by
considering the matching lines of both parts.
Then, slightly turn the camera clock-wise to
assemble.
INSTALLATION 2

Speed Dome Camera Instruction Manual 16/35
Installation using Wall Mount Bracket (SBW-100)
①After removing the back plate of wall mount
bracket, attach the back cover on to the wall.
After hang the wall mount bracket on to back plate,
tighten the screw in the bottom to fix. Make sure
cable is passed though properly.
②Assemble the Rear Bracket of camera on to wall
mount bracket.
③After install the Rear Bracket, please, hang the
spring to the hook of the Main body. And plug the
connector cable properly.
④ After you locate the internal cable properly,
place Main body to the Rear Bracket by
considering the matching lines of both parts.
Then, slightly turn the camera clock-wise to
assemble.
2
INSTALLATION

Speed Dome Camera Instruction Manual 17/35
Cabling
12V DC
Monitor
Keyboard Controller / DVR
RS-485
BNC
I/O
Power
IrDA
Sensor
Door
Switch
Light
Alarm
Buzzer
Sensor Output Devices
Power Connection
zPlease, check the voltage and current capacity of power carefully. The rated electrical power to operate
this camera is DC 12V / 1A. The current must be 1A or higher.
zBe careful with polarity of power, the polarity is molded on the connector. If reverse polarity is applied,
the camera will be damaged seriously.
Video Connection
zConnect with BNC coaxial cable.
 RS-485 Communication
zFor PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the same time,
RS-485 communication lines of them is connected in parallel as shown below.
RS-485
+-
#1
+-
#2
+-
#n
+-
K
eyboard Controller / DVR
INSTALLATION 2

Speed Dome Camera Instruction Manual 18/35
Alarm I/O Connection
zSensor Input
IN COM+
Internal +5V~12V
IN 1-
IN 2-
Sensor 1 Output
+
+
-
-
+
-
Sensor 2 Output
Before connecting sensors, check driving voltage and output signal type of the sensor. Since output
signal types of the sensors are divided into Open Collector and Voltage Output type in general, the
cabling must be done properly after considering these typed. Also, the sensor type, i.e. “Normal Open”
or “Normal Close” in Dip switch in Rear bracket of camera must be set properly.
Signal Description
IN COM+ Connect (+) cable of electric power source for Sensors to this port as shown in the
circuit above.
IN1 -, IN2 - Connect output of sensors for each port as shown in the circuit above.
zRelay Output
OUT 1
AC or DC
OUT 2
AC or DC
Internal
LOAD
LOAD
Maximum allowable electrical load of relay is shown bellow table.
Drive Power DC Power AC 110V Power AC220V Power
Max. Load DC 28V, 5A AC110V, 10A AC250V, 5A
2
INSTALLATION

Speed Dome Camera Instruction Manual 19/35
Check points before operation
zBefore power is applied, please, check the cables carefully.
zThe camera ID of the controller must be identical to that of the target camera. The camera ID can be checked
by reading DIP switch of the camera.
zIf your controller supports multi-protocols, the protocol must be changed to match to that of the camera.
zIf you changed camera protocol by changing DIP S/W, the change will be effective after you reboot the
camera.
zSince the operation method can be different for each controller available, refer to the manual for your
controller if camera can not be controlled properly. The operation of this manual is based on the standard
Pelco® Controller.
OPERATION 3

Speed Dome Camera Instruction Manual 20/35
Starting OSD Menu
zFunction Using the OSD menu, Preset, Swing, Group and Alarm I/O function can be configured
for each application.
zStart Menu After type the numeric key 95, press the Preset key to start OSD menu.
[95] + [Preset]
Reserved Preset
zDescription Some Preset numbers are reserved to special functions.
zFunction Preset 95 : Menu Select
Preset 71~78 : Swing Move
Preset 81~88 : Group Move
Preset 91~92 : Relay Output Control
Relay Ouput Control
zFunction From keyboard or DVR, the relay output can be controlled by using Preset function. It is
noted that the output can be changed according to preset settings if you send the preset
command.
zTo set “ON” After typing (Relay Number + 90), press Preset key longer than 2 seconds.
[91~92] + [Preset] (longer than 2 sec.)
Ex) To set “ON” Relay 1: [91] + [Preset] (longer than 2 sec)
To set “ON” Relay 2: [92] + [Preset] (longer than 2 sec)
zTo set “OFF” After typing (Relay Number + 90), press Preset key.
[91~92] + [Preset]
Ex)
To set “OFF” Relay 1: [91] + [Preset]
To set “OFF” Relay 2: [92] + [Preset]
OPERATION 3
