CYP HDBaseT CH-POC1 User manual

CH-POC1
HDBaseT Power Inserter
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2010 by Cypress Technology.
All Rights Reserved.
Version 1.0 December 2010
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 31/03/14 Preliminary Release

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Hardware Description ........................... 2
6.1 Front Panel ........................................2
6.2 Rear Panel.........................................3
7. Connection Diagram ............................ 4
8. Specications ........................................ 5

1
1. INTRODUCTION
The HDBaseT Power Inserter is designed to provide 24V power to a
connected PoC-capable HDBaseT Receiver unit for it to operate
without power supply. In a simple application of HDBaseT PoC
extender set, the Receiver unit can be powered by the connected
transmitter unit, over a single run of CAT5e/6/7 cable. However,
when comes to an integration of multiple HDBaseT devices, the PoC-
capable Receiver unit might not always be able to benet from the
PoC feature as the transmitter could be either non-PoC or its power
output is used by other device, to work around such a situation you
can install HDBaseT Power Inserter to the system to insert the power
required by the Receiver unit.
2. APPLICATIONS
• Lecture room / Class room installation
• Showroom display / Show Window display installation
• Game Console / Game Competition installation
3. PACKAGE CONTENTS
• 1 x HDBaseT Power Inserter
• 1 x 24V/2.7A DC Power Supply (with 3.5mm 2-Pole Terminal Block)
• 1 x Power Cord
• 1 x Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipments such as CAT5e/6/7 Transmitter and output to
CAT5e/6/7 Receiver with connection cables.
5. FEATURES
• Supports power insertion
• Supports HDBaseT signal bypass
• Power cascading
• Compact and easy to use

2
6. HARDWARE DESCRIPTION
6.1 Front Panel
CAT5e/6/7 IN DC 24V IN
+
-
1 2
1CAT5e/6/7 IN: Connect CAT5e/6/7 cable from a compatible
Transmitter.
2DC 24V IN: Connect 24V DC power supply into the unit with 3.5mm
2-pole Terminal Block connector and connect the adaptor to an
AC outlet.

3

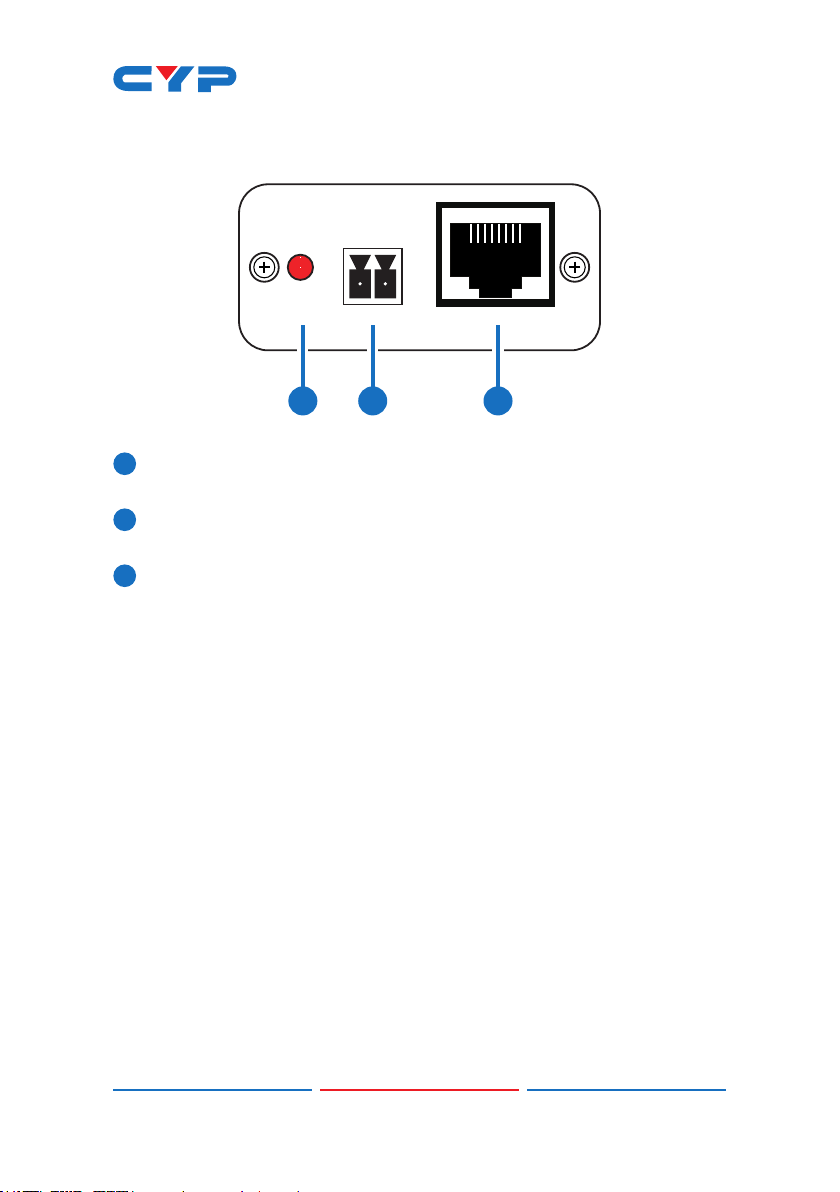

6.2 Rear Panel
DC 24V OUT
+
-
CAT5e/6/7 OUT
POWER
21 3
1POWER LED: This LED will illuminate when the power is connected to
power supply
2DC 24V OUT: Connect this slot to another compatible Receiver for
power cascading.
3CAT5e/6/7 OUT: Connect CAT5e/6/7 cable from a compatible
Receiver.

4
7. CONNECTION DIAGRAM
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
1HDMI OUTHDMI IN 234567LAN
SERVICE
CAT5e/6/7 OUT
STD TV
DC 24V
IR IN IR OUT
EDID
CAT5e/6 In
Link
IR1 Extender
IR2 Blaster
Power
CAT5e/6 In
Link
IR1 Extender
IR2 Blaster
Power
CAT5e/6/7 IN DC 24V IN
+
-
Blu-ray or PS3 Player
3D TV/Display 3D TV/Display
Router (with Internet
Connection)
HDMI
HDMI
CH-POC1
CHDBT-1H7CE

5
8. SPECIFICATIONS
Input Ports 1 x RJ-45
1 x DC 24V (3.5mm 2-pole Terminal Block)
Output Port 1 x RJ45
1 x DC 24V (3.5mm 2-pole Terminal Block)
Power Supply 24V / 2.7A DC (US/EU standards, CE/FCC/
UL certied)
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions (mm) 50(W) x 72(D) x 23(H) / Jacks Excluded
50(W) x 73.5(D) x 23(H) / Jacks Included
Wight(g) 353
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C~40˚C / 32˚F ~ 104˚F
Storage temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20~90% RH (no condensation)
Power Consumption (W) 0.3W

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
MPM-CHPOC1
