General information
Z5553 Mounting instructions
Version: 1.2 en, 03/2017, D2626.EN .01
Copyright © 2017 by d&b audiotechnik GmbH & Co. KG; all
rights reserved.
Keep this document with the product or in a safe place
so that it is available for future reference.
When reselling this product, hand over this document to the new
owner.
d&b audiotechnik GmbH & Co. KG
Eugen-Adolff-Str. 134, D-71522 Backnang, Germany
T [phone], F [phone]
[email protected], www.dbaudio.com

1 Z5553 Flying bracket 24S................................................ 4
1.1 Scope of supply and weight...................................................... 4
1.2 Safety precautions...................................................................... 4
1.3 Intended use................................................................................ 5
1.4 Mounting options and angle settings........................................ 5
1.5 Assembly..................................................................................... 5
1.6 Adjustments................................................................................. 6
2 Z5553 Fixing template...................................................... 7
3 Built-in dimensions............................................................... 8
4 Declarations........................................................................... 9
4.1 Manufacturer's declaration........................................................ 9
4.2 Disposal....................................................................................... 9
Contents
d&b Z5553 Mounting instructions 1.2 en 3

1.1 Scope of supply and weight
Please verify the shipment for completeness and proper condition
of the items.
Qty. d&b Code Description
1Z5553 Flying bracket 24S [1]
Including:
4 Q3051.003.00 Hex head bolt M10 x 25 [2]
4 Q5301.000.00 Spring washer M10 [3]
4 Q5007.000.00 U washer 10.5 [4]
1 D2626.EN .01 Z5553 Mounting instructions
Weight 5.1 kg (11.3 lb)
1.2 Safety precautions
General safety
Installation and setup should only be carried out by qualified and
authorized personnel observing the valid national Rules for the
Prevention of Accidents (RPA).
It is the responsibility of the person installing the assembly to ensure
that the suspension/fixing points are suitable for the intended use.
Always carry out a visual and functional inspection of the items
before use. In case there is any doubt as to the proper functioning
and safety of the items, these must be withdrawn from use
immediately.
Load safety information
The d&b Z5553 Flying bracket 24S is designed to support one
d&b 24S or 24S-D loudspeaker.
No additional loads must be added.
The bracket must only be used in an upright position or suspended
vertically as shown in the graphic opposite.
1 Z5553 Flying bracket 24S
d&b Z5553 Mounting instructions 1.2 en4

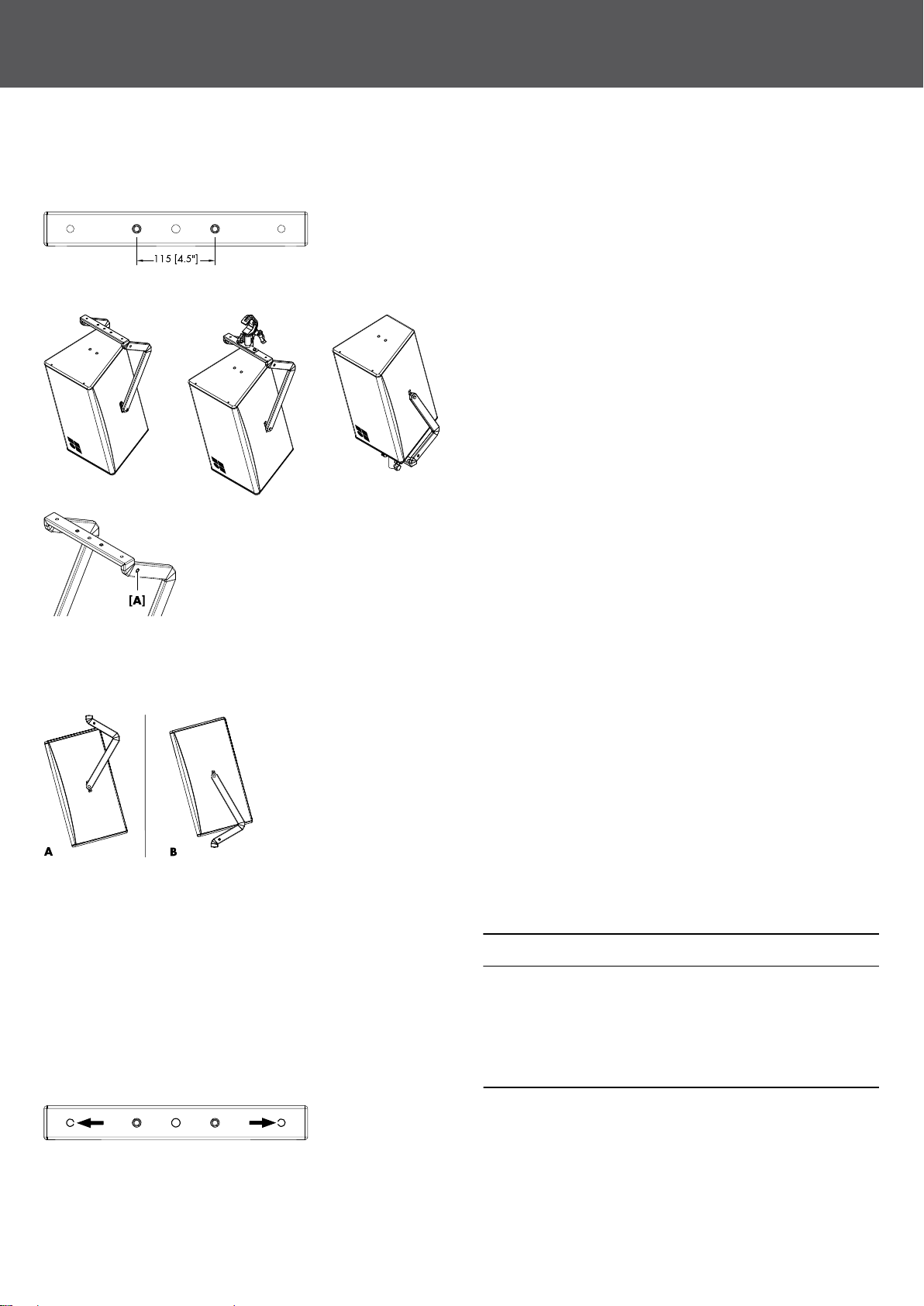

1.3 Intended use
The d&b Z5553 Flying bracket 24S must only be used in
conjunction with d&b 24S or 24S-D cabinets.
The tie bar of the bracket is supplied with two M8 threaded inserts
at the standard d&b spacing (115 mm/4.5") to accept the
following accessories:
The bracket can be:
▪ directly mounted to ceilings.
▪ horizontally flown from overhead bars or truss with a tube
diameter between 40 mm and 70 mm (1.5" and 2.75") using
the Z5010 TV spigot with fixing plate in conjunction with the
Z5012 Pipe clamp.
▪ mounted on loudspeaker stands with a tube diameter of 35 mm
(1.4") using the Z5024 Loudspeaker stand adapter.
Note: Refer to the specific mounting instructions for assembly
and operation of these accessories.
Two additional M10 threaded inserts [A] are provided which are
intended for support purposes in flown applications. The inserts
can accept two M10 eye bolts (such as d&b Q9032) which are
used to lift the cabinet to its operating position using steel wire
ropes.
Once the cabinet is fixed in its operating position, the steel wire
ropes and eye bolts may be removed.
1.4 Mounting options and angle settings
The bracket can be attached in two ways:
Type A Flown applications.
Type B High-stand applications.
1.5 Assembly
Attaching the bracket to ceilings
NOTICE!
Only use mounting parts (fixing anchors and screws) that are
suitable for the intended application.
Observe the occurring extraction forces acting on the fixing
anchors and screws.
The rated extraction force is 385 N.
To attach the bracket to the ceiling, use the holes shown in the
graphic opposite to provide adequate support.
A corresponding fixing template is supplied with these mounting
instructions. Refer to Þ Chapter 2 "Z5553 Fixing template"
on page 7.
d&b Z5553 Mounting instructions 1.2 en 5

Preparing the cabinet
The threaded inserts of the cabinet are covered by dummy caps in
cabinet color. To remove the caps, proceed as follows:
1. Cut out the caps along the recessed spline using an
appropriate cutting knife.
2. Carefully take off the caps and ensure the cabinet coating is
not peeled off.
Attaching the bracket to the cabinet
NOTICE!
Only use the supplied and specified screws [2], otherwise there is
a risk of damaging the threaded inserts.
Always use the spring washers [3] and U washers [4] to prevent
the bolts from slackening.
Tools required:
▪ Open-ended spanner/wrench (size #17)
1. From the rear, attach the bracket to the cabinet as shown in
the graphic opposite.
2. Insert the screws together with the spring and U washers.
3. Properly tighten all screws.
1.6 Adjustments
The vertical and the horizontal aiming can be set continuously.
Vertical aiming
Tools required:
▪ Allen key (size #8)
1. Slightly slacken the fixing screws [F] on both sides.
2. Set the loudspeaker to the required vertical angle.
3. Retighten the fixing screws [F] on both sides.
Horizontal aiming
The horizontal aiming is set via the TV spigot assembly or the
loudspeaker stand adapter.
d&b Z5553 Mounting instructions 1.2 en6

Z5553 Fixing template - Scale 1:2
2 Z5553 Fixing template
d&b Z5553 Mounting instructions 1.2 en 7

Z5553 Flying bracket 24S, built-in dimensions in mm [inch]
Built-in dimensions Z5010/Z5012 assembly
3 Built-in dimensions
d&b Z5553 Mounting instructions 1.2 en8

4.1 Manufacturer's declaration
This declaration covers:
▪ d&b Z5553, Flying bracket 24S.
National standards and technical specifications
applied:
DIN 18 800, DIN 1055, DGUV Vorschrift 17.
Backnang, 2016-09-07
Frank Bothe,
Chief Technology Officer (CTO)
d&b audiotechnik GmbH & Co. KG
4.2 Disposal
When out of use the rigging components must be disposed of in
accordance with the national environmental regulations.
Ensure that damaged rigging components are disposed of in a
way that they cannot be used again.
4 Declarations
d&b Z5553 Mounting instructions 1.2 en 9
