General information
Z5388 Mounting instructions
Version: 1.2 en, 04/2020, D2823.EN .01
Copyright © 2020 by d&b audiotechnik GmbH & Co. KG; all
rights reserved.
Keep this document with the product or in a safe place
so that it is available for future reference.
When reselling this product, hand over this document to the new
owner.
d&b audiotechnik GmbH & Co. KG
Eugen-Adolff-Str. 134, D-71522 Backnang, Germany
T [phone], F [phone]
[email protected], www.dbaudio.com

1 Z5388 VP Horizontal bracket......................................... 4
1.1 Scope of supply and weight...................................................... 4
1.2 Safety precautions...................................................................... 4
1.3 Intended use................................................................................ 5
1.4 Mounting options and angle settings........................................ 5
1.5 Assembly..................................................................................... 6
2 Fixing template..................................................................... 8
3 Built-in dimensions............................................................... 9
4 Manufacturer's declaration........................................... 11
4.1 EU conformity (CE symbol)...................................................... 11
4.2 Disposal.................................................................................... 11
Contents
d&b Z5388 Mounting instructions 1.2 en 3

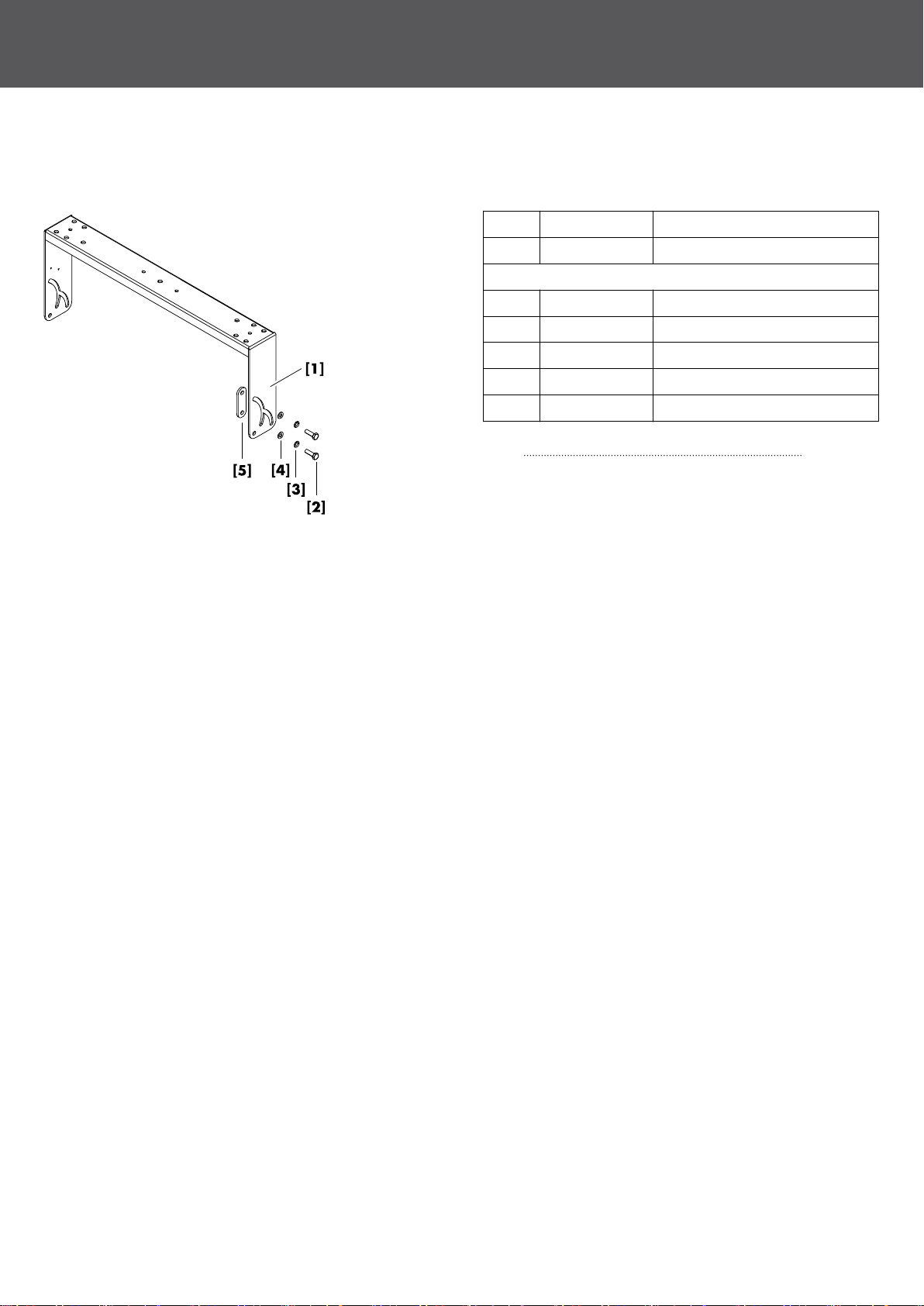

1.1 Scope of supply and weight
Please verify the shipment for completeness and proper condition
of the items.
Qty. d&b Code Description
1Z5388 VP Horizontal bracket [1]
Including:
4 Hex head bolt M10 x 25 [2]
4 Spring washer M10 [3]
4 U washer 10.5 [4]
2 Rubber pad [5]
1 D2823.EN .01 Z5388 Mounting instructions
Weight 4.3 kg (10 lb)
1.2 Safety precautions
General safety
Installation and setup should only be carried out by qualified and
authorized personnel observing the valid national Rules for the
Prevention of Accidents (RPA).
It is the responsibility of the person installing the assembly to ensure
that the suspension/fixing points are suitable for the intended use.
Always carry out a visual and functional inspection of the items
before use. In case there is any doubt as to the proper functioning
and safety of the items, these must be withdrawn from use
immediately.
Load safety information
The VP Horizontal bracket is designed to support either one V7P/
V10P or Vi7P/Vi10P loudspeaker.
No additional loads must be added.
Scope of supply
1 Z5388 VP Horizontal bracket
d&b Z5388 Mounting instructions 1.2 en4

1.3 Intended use
The d&b Z5388 VP Horizontal bracket must only be used in
conjunction with d&b V-Point or Vi-Point cabinets (V7P/V10P or
Vi7P/Vi10P) as described in these mounting instructions.
The bracket can be:
▪ directly mounted to walls.
▪ directly mounted to ceilings or other suitable surfaces.
▪ horizontally flown from overhead bars or trusses with a tube
diameter between 40 mm to 70 mm (1.5" to 2.75") using the
Z5010 TV spigot with fixing plate in conjunction with the
Z5012 Pipe clamp.
▪ mounted together with a second horizontal bracket using the
Z5552 Bracket connector to set up a vertical array of two
cabinets.
Note: For assembly and operation of these accessories, refer
to the specific mounting instructions.
1.4 Mounting options and angle settings
Mounting holes are provided on the tie bar of the bracket.
One centered 9 mm (0.35") hole is provided at each end of the tie
bar for fixing the bracket directly to walls or ceilings or other
suitable surfaces.
Two centered 9 mm (0.35") holes at the d&b standard spacing of
115 mm (4.5") are provided to allow the attachment of the Z5010
TV spigot.
Five mounting holes are provided at each end of the tie bar to
attach the Z5044 MAX Bracket connector, the Z5053 Ci60/Ci90
Bracket connector or the Z5054 Ci60/Ci90 Flying adapter.
One 11 mm (0.43“) hole [a] and two semi-circular slots [b], [c]
are located at each end of the bracket.
Using the M10 threaded inserts at the top and bottom of the
loudspeaker cabinet, the bracket can be attached in two directions
to allow angle settings over a range of 101°, starting from +11°
through to –90°. The following mounting options and angles
settings are possible.
Option 1
The bracket is attached to the cabinet with hole [a] facing to the
front of the cabinet. Both bolts are fitted into slot [b].
The vertical coverage angle can be set over a range of 30°,
starting from 0° to –30°.
Z5388 Mounting holes
d&b Z5388 Mounting instructions 1.2 en 5

Option 2
The bracket is attached to the cabinet with hole [a] facing to the
back of the cabinet. One bolt is fitted into hole [a] and the second
one is fitted into the axis of slot [b] and slot [c] to allow the bolt to
move in slot [c].
The vertical coverage angle can be set over a range of 60°,
starting from –30° to –90°.
Option 3
The bracket is attached to the cabinet with hole [a] facing to the
back of the cabinet. Both bolts are fitted into slot [b].
The vertical coverage angle can be set over a range of 11°,
starting from 0° to +11°.
1.5 Assembly
Attaching the bracket to walls or ceilings
NOTICE!
Only use mounting parts (fixing anchors and screws) that are
suitable for the intended application.
Observe the occurring extraction forces acting on the fixing
anchors and screws. The rated extraction forces for the respective
application (wall or ceiling mounting) and cabinet are listed in the
following table.
Application Rated extraction forces
Wall mounting 560 N
Ceiling mounting 380 N
To attach the bracket to walls or ceilings, use the holes shown in
the graphic opposite to provide adequate support.
A corresponding fixing template is supplied with these mounting
instructions. Refer to Þ Chapter 2 "Fixing template" on page 8.
d&b Z5388 Mounting instructions 1.2 en6

Attaching the cabinet to the bracket
NOTICE!
Only use the supplied and specified screws [2], otherwise there a
risk of damaging the threaded inserts.
Always use the spring washers [3] and U washers [4] to prevent
the bolts from slackening.
Always place the rubber pads [5] between the bracket and the
cabinet to prevent the cabinet coating from scratching during
assembly and adjustment.
Tools required:
▪ Open-ended spanner/wrench (size #17)
1. Starting on one side, first align one hole of the rubber pad
with one threaded insert.
2. Insert one screw together with the spring and U washers.
3. Align the second hole of the rubber pad with the second
threaded insert.
4. Insert the second screw together with the spring and
U washers.
5. Tighten both screws.
↳This will simplify the attachment of the rubber pad on the
opposite side.
6. On the opposite side, proceed in the same manner.
d&b Z5388 Mounting instructions 1.2 en 7

Z5388 Fixing template
2 Fixing template
d&b Z5388 Mounting instructions 1.2 en8

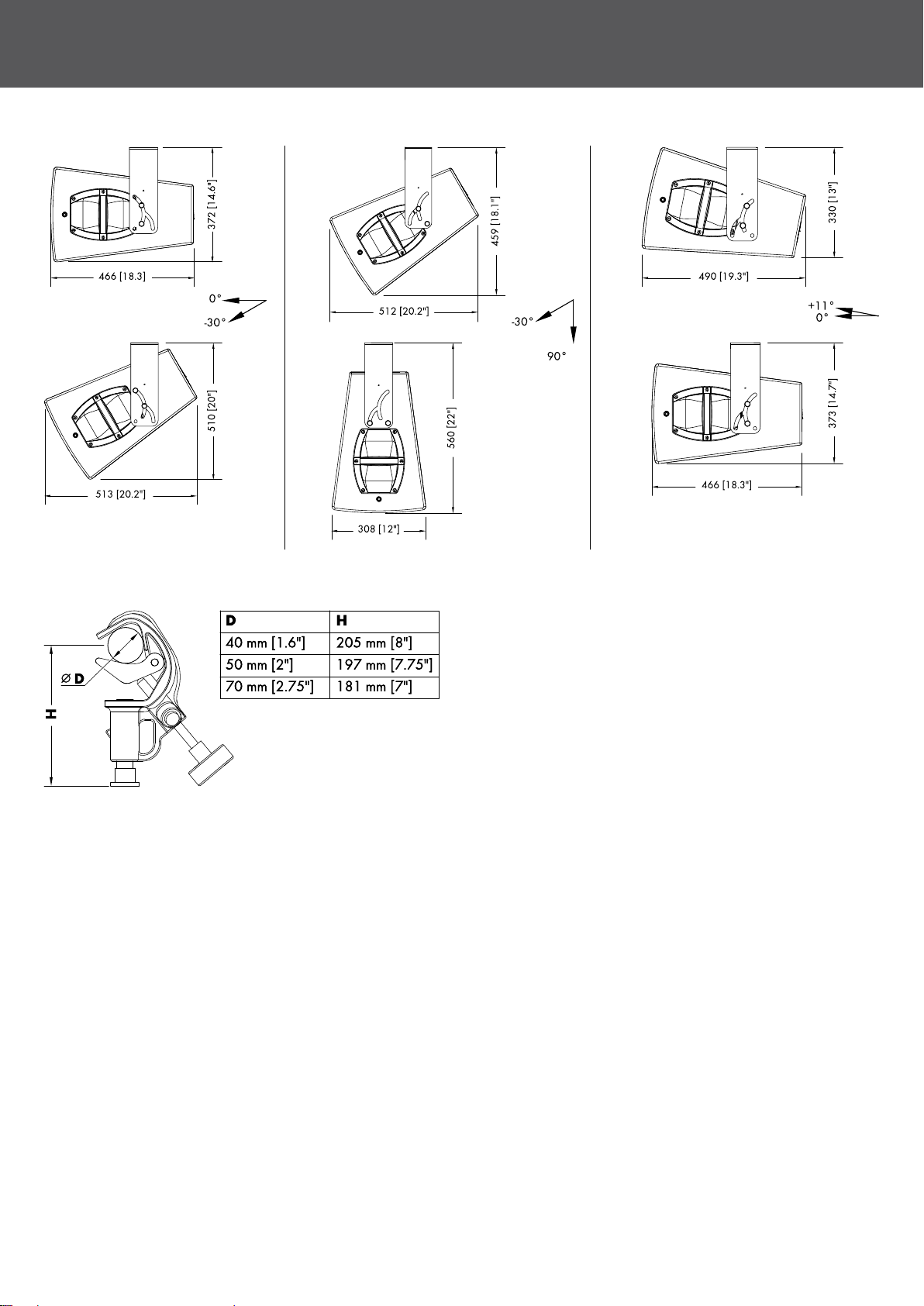

Z5388 Mounting options 1,2 and 3 with built-in dimensions in mm [inch]
Built-in dimensions Z5010/Z5012 Assembly
3 Built-in dimensions
d&b Z5388 Mounting instructions 1.2 en 9

Z5388 Dimensions in mm [inch]
d&b Z5388 Mounting instructions 1.2 en10

4.1 EU conformity (CE symbol)
This declaration applies to:
d&b Z5388 VP Horizontal bracket
manufactured by d&b audiotechnik GmbH & Co. KG.
All product variants are included, provided they correspond to the
original technical version and have not been subject to any later
design or electromechanical modifications.
We herewith declare that said products are in conformity with the
provisions of the respective EC directives including all applicable
amendments.
A detailed declaration is available on request and can be ordered
from d&b or downloaded from the d&b website at
www.dbaudio.com.
4.2 Disposal
When out of use the rigging components must be disposed of in
accordance with the national environmental regulations.
Ensure that damaged rigging components are disposed of in a
way that they cannot be used again.
4 Manufacturer's declaration
d&b Z5388 Mounting instructions 1.2 en 11
