General information
Z5555/Z5556 Mounting instructions
Version: 1.2 en, 02/2021, D2628.EN .01
Copyright © 2021 by d&b audiotechnik GmbH & Co. KG; all
rights reserved.
Keep this document with the product or in a safe place
so that it is available for future reference.
We recommend you to regularly check the d&b website for the
latest version of this document.
When reselling this product, hand over this document to the new
owner.
d&b audiotechnik GmbH & Co. KG
Eugen-Adolff-Str. 134, D-71522 Backnang, Germany
T [phone], F [phone]
[email protected], www.dbaudio.com

1 Z5555 Horizontal bracket 21S-SUB/Z5556
Bracket extension 21S-SUB............................................. 4
1.1 Scope of supply and weight...................................................... 4
1.2 Safety precautions...................................................................... 4
1.3 Intended use................................................................................ 5
1.4 Mounting options and angle settings........................................ 5
1.5 Z5555 Assembly........................................................................ 6
1.6 Z5555 Adjustments.................................................................... 7
1.7 Z5555/Z5556 Assembly.......................................................... 8
2 Z5555 Fixing template...................................................... 9
3 Built-in dimensions............................................................ 10
4 Manufacturer's declaration........................................... 11
4.1 EU conformity (CE symbol)...................................................... 11
4.2 Disposal.................................................................................... 11
Contents
d&b Z5555/Z5556 Mounting instructions 1.2 en 3

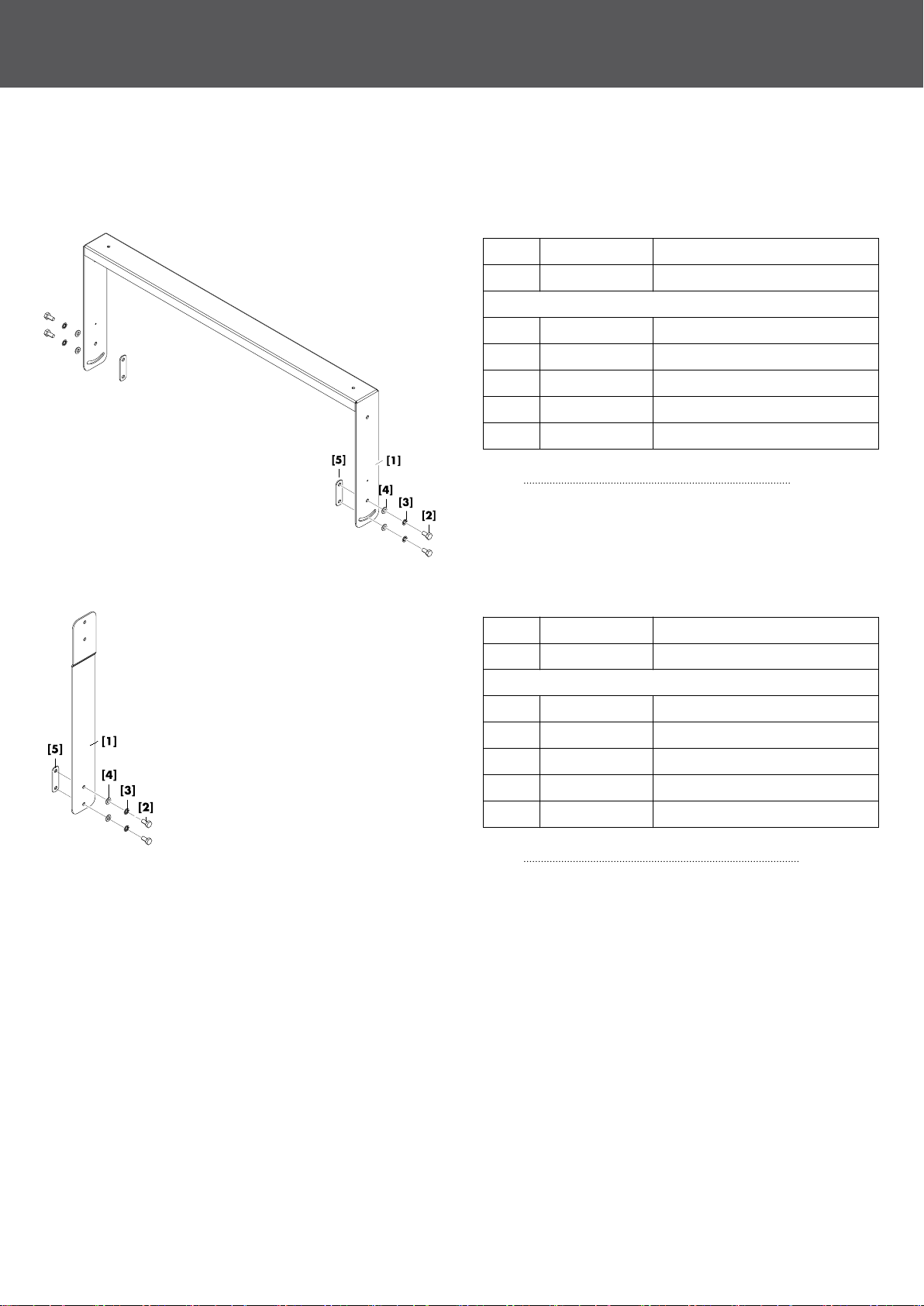

1.1 Scope of supply and weight
Please verify the shipment for completeness and proper condition
of the items.
Z5555 Horizontal bracket 21S-SUB
Qty. d&b Code Description
1Z5555 Horizontal bracket 21S-SUB [1]
Including:
4 Q3051.003.00 Hex head bolt M10 x 25 [2]
4 Q5301.000.00 Spring washer M10 [3]
4 Q5007.000.00 U washer 10.5 [4]
2 B2015.050.00 Rubber pad [5]
1 D2628.EN .01 Z5555 Mounting instructions
Weight 7.8 kg (17.2 lb)
Z5556 Bracket extension 21S-SUB
Qty. d&b Code Description
2Z5556 Bracket extension 21S-SUB [1]
Including:
4 Q3051.003.00 Hex head bolt M10 x 25 [2]
4 Q5301.000.00 Spring washer M10 [3]
4 Q5007.000.00 U washer 10.5 [4]
2 B2015.050.00 Rubber pad [5]
1 D2628.EN .01 Z5555 Mounting instructions
Weight 2.0 kg (4.4 lb)
1.2 Safety precautions
General safety
Installation and setup should only be carried out by qualified and
authorized personnel observing the valid national Rules for the
Prevention of Accidents (RPA).
It is the responsibility of the person installing the assembly to ensure
that the suspension/fixing points are suitable for the intended use.
Always carry out a visual and functional inspection of the items
before use. In case you have any doubt as to the proper
functioning and safety of the items, these must be withdrawn from
use immediately.
Z5555 Scope of supply
Z5556 Scope of supply
1 Z5555 Horizontal bracket 21S-SUB/Z5556 Bracket extension 21S-SUB
d&b Z5555/Z5556 Mounting instructions 1.2 en4

Load safety information
The d&b Z5555 Horizontal bracket 21S-SUB is designed to
support one d&b 21S-SUB loudspeaker which corresponds to a
total system weight of 58.3 kg (114.8 lb).
In combination with the d&b Z5556 Bracket extension 21S-SUB a
second 21S-SUB loudspeaker can be added which then results in
a total system weight of 114.8 kg (253 lb).
No additional loads must be added.
1.3 Intended use
The d&b Z5555 Horizontal bracket 21S-SUB as well as the
Z5556 Bracket extension 21S-SUB must only be used in
conjunction with the d&b 21S-SUB loudspeaker as described in
these mounting instructions.
The bracket can be directly mounted to a ceiling.
The Z5556 Bracket extension 21S-SUB is used to interconnect a
maximum of two 21S-SUB loudspeakers.

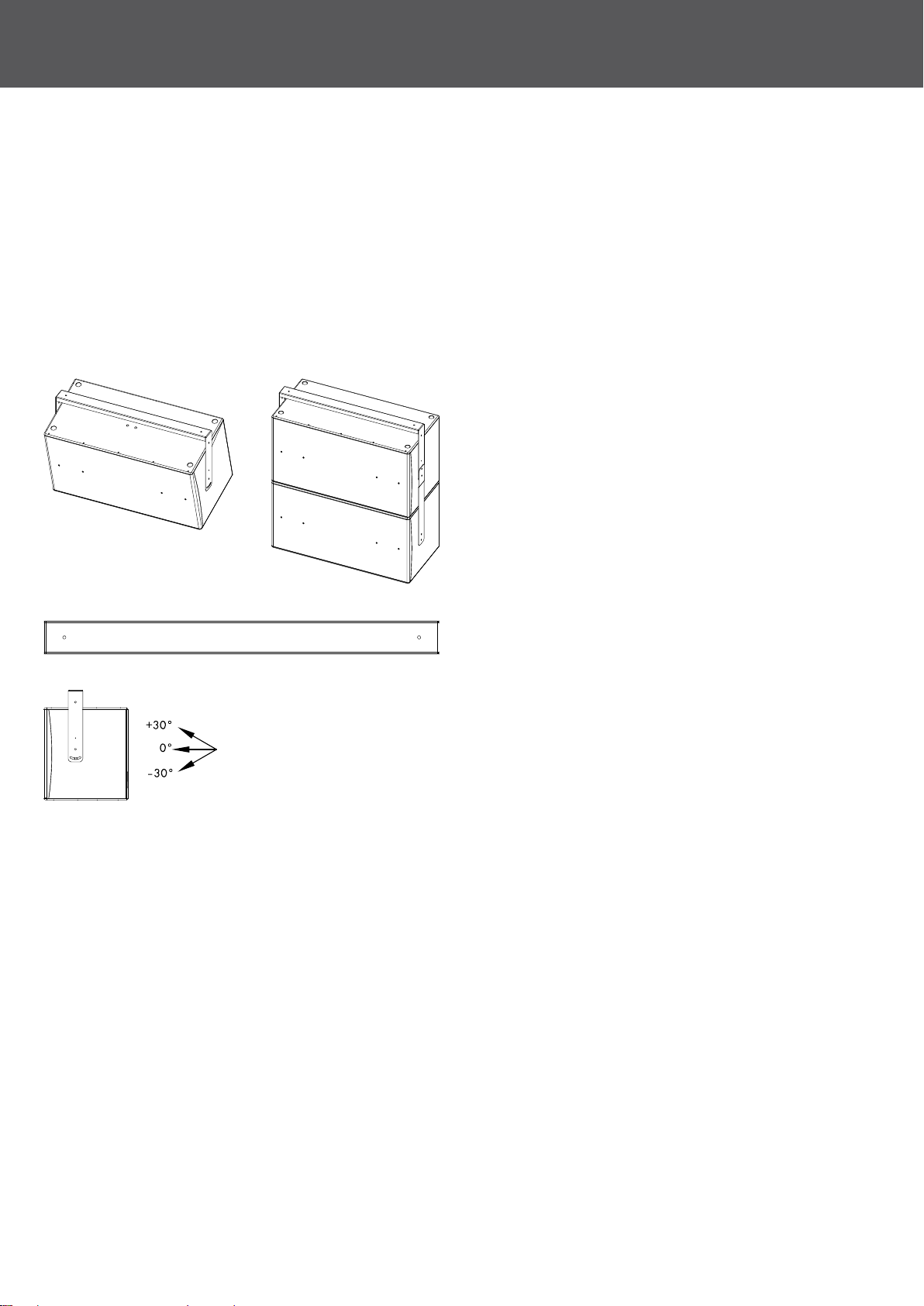

1.4 Mounting options and angle settings
One 9 mm (0.35") hole is provided at each end of the tie bar to
attach the bracket directly to the ceiling.
Each end of the bracket is equipped with a semi-circular slot. In
conjunction with a single d&b 21S-SUB loudspeaker the cabinet
can be vertically aligned within a range of 60°(±30°).
Z5555 Mounting holes
d&b Z5555/Z5556 Mounting instructions 1.2 en 5

1.5 Z5555 Assembly
Attaching the bracket to ceilings
NOTICE!
Only use mounting parts (fixing anchors and screws) that are
suitable for the intended application.
Observe the occurring extraction forces acting on the fixing
anchors and screws.

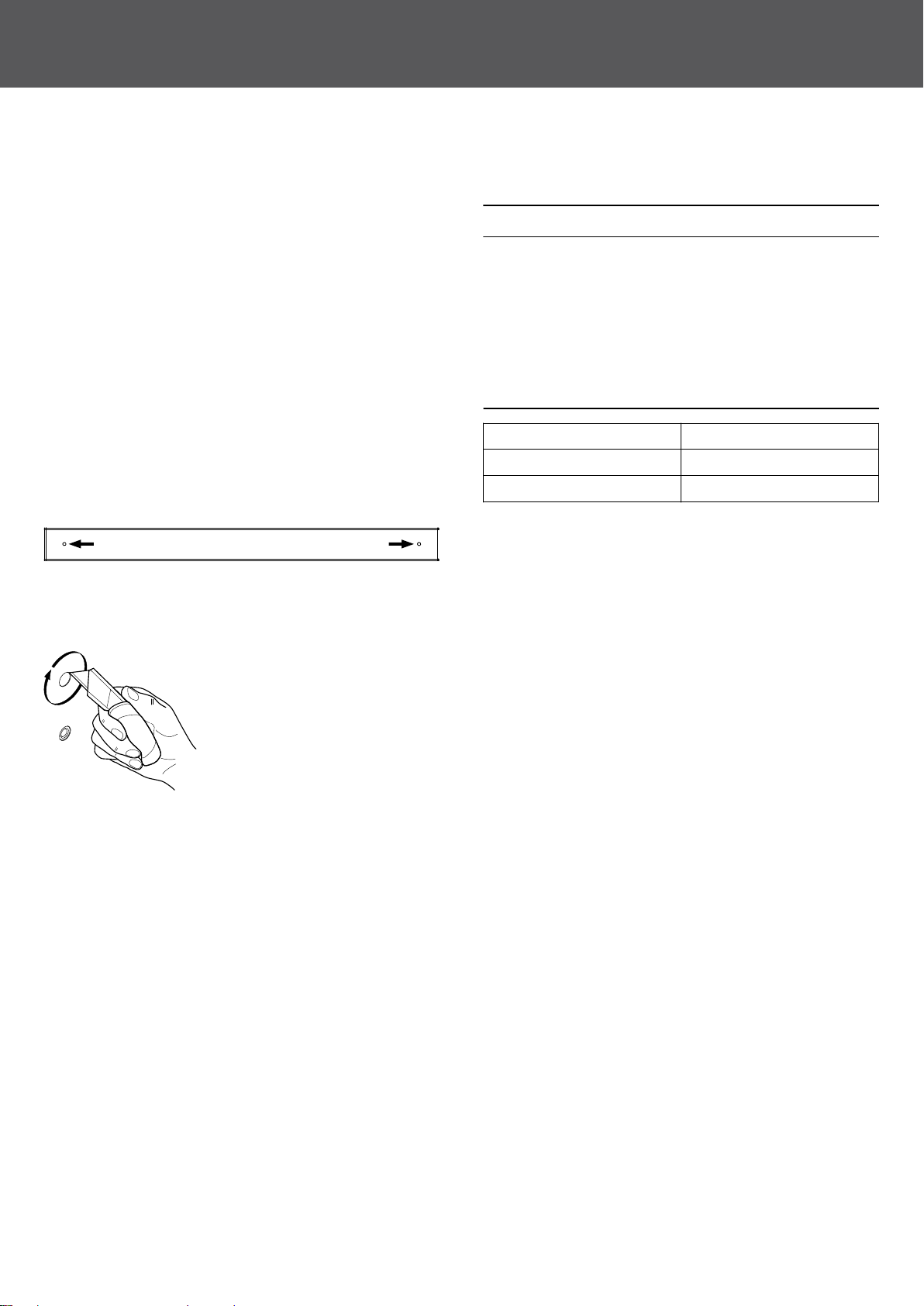

Observe the occurring extraction forces acting on the fixing
anchors and screws. The rated extraction forces for the respective
application (wall or ceiling mounting) and cabinet are listed in the
following table.
Application Rated extraction forces
1 x 21S-SUB 620 N
2 x 21S-SUB 1200 N
To attach the bracket to the ceiling, use the holes shown in the
graphic opposite to provide adequate support.
A corresponding fixing template is supplied with these mounting
instructions. Refer to Þ Chapter 2 "Z5555 Fixing template"
on page 9.
Preparing the cabinet
The threaded inserts of the cabinet are covered by dummy caps in
cabinet color. To remove the caps, proceed as follows:
1. Cut out the caps along the recessed spline using an
appropriate cutting knife.
2. Carefully take off the caps and ensure the cabinet coating is
not peeled off.
d&b Z5555/Z5556 Mounting instructions 1.2 en6

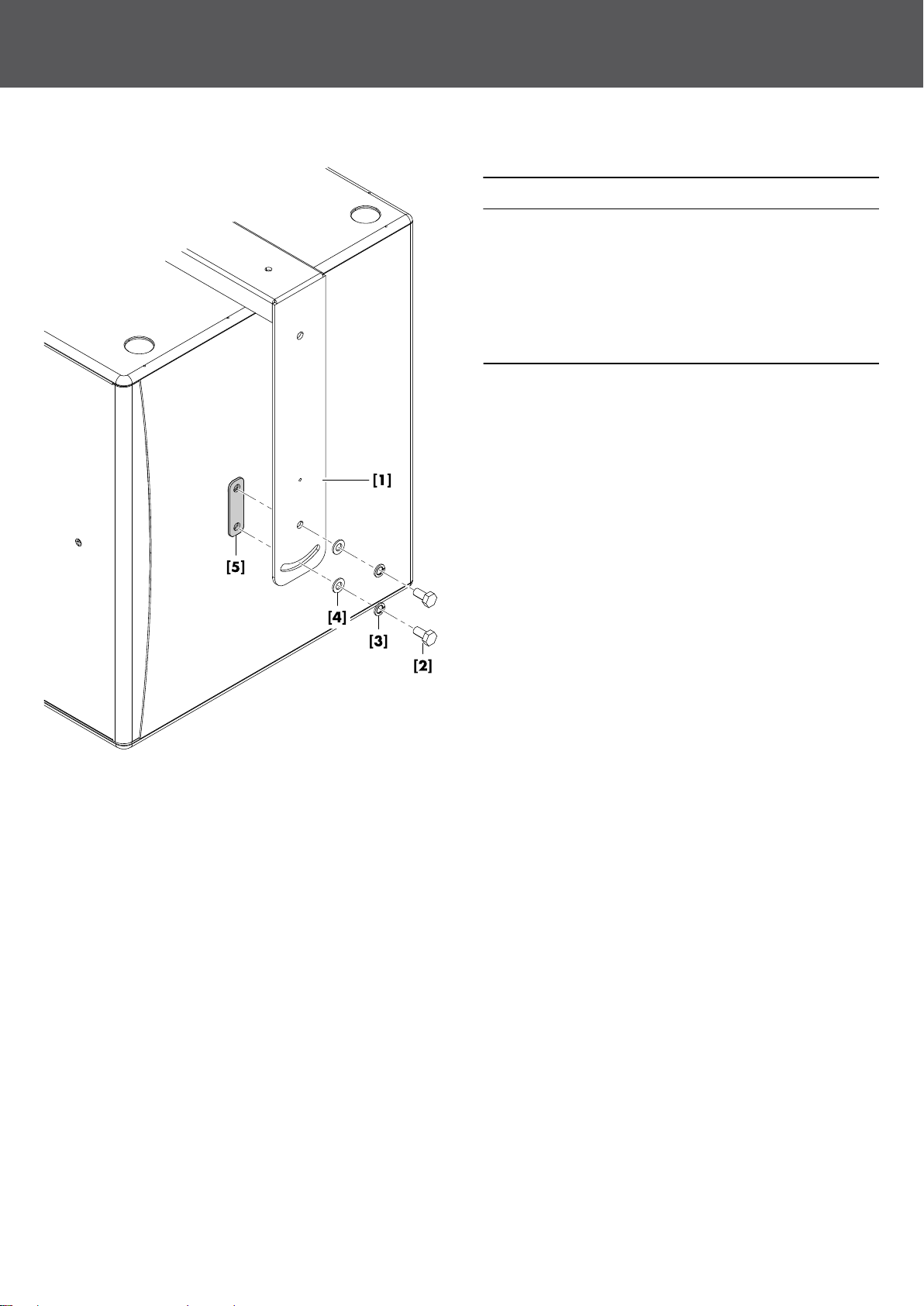

Assembly
NOTICE!
Only use the supplied and specified screws [2], otherwise there is
a risk of damaging the threaded inserts.
Always use the spring washers [3] and U washers [4] to prevent
the bolts from slackening.
Always place the rubber pads [5] between the bracket and the
cabinet to prevent the cabinet coating from scratching during
assembly and adjustment.
Tools required:
▪ Open-ended spanner/wrench (size #17)
1. Starting on one side, first align one hole of the rubber pad
with one threaded insert.
2. Insert one screw together with the spring and U washers.
3. Align the second hole of the rubber pad with the second
threaded insert.
4. Insert the second screw together with the spring and
U washers.
5. Tighten both screws.
↳This will simplify the attachment of the rubber pad on the
opposite side.
6. On the opposite side, proceed in the same manner.
1.6 Z5555 Adjustments
To align the cabinet to its desired angle, proceed as follows:
1. Slightly slacken all screws.
2. Align the cabinet to its desired angle.
3. Finally tighten all screws.
d&b Z5555/Z5556 Mounting instructions 1.2 en 7

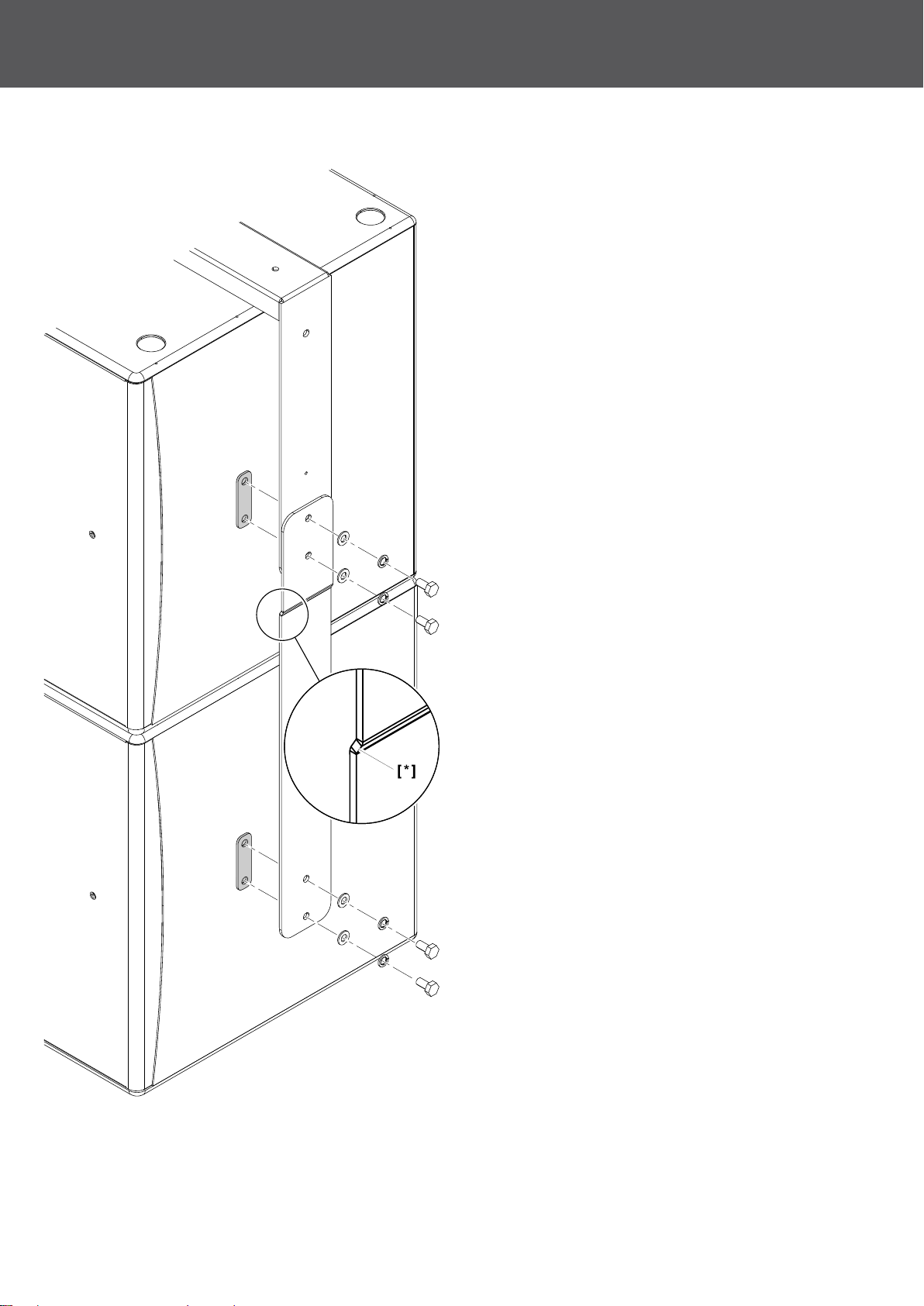

1.7 Z5555/Z5556 Assembly
The assembly procedure is similar to the procedure described
above and is carried out in the same manner.
Note:
▪ Observe the built-in direction [*] of the bracket extension as
shown in the graphic opposite.
▪ In connection with the bracket extension, the vertical angle of
0° for both subwoofer can not be changed.
d&b Z5555/Z5556 Mounting instructions 1.2 en8

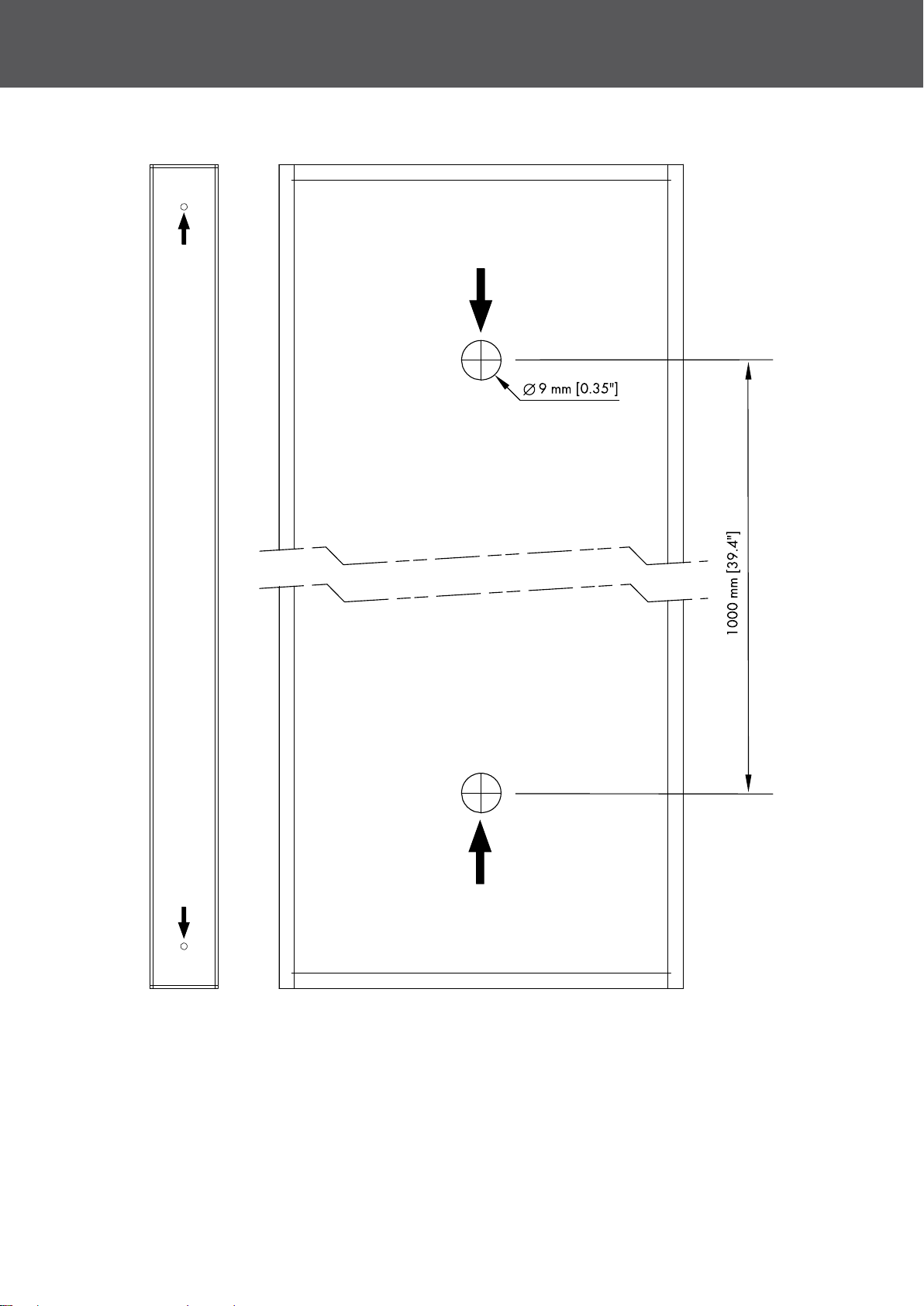

Z5555 Fixing template
2 Z5555 Fixing template
d&b Z5555/Z5556 Mounting instructions 1.2 en 9

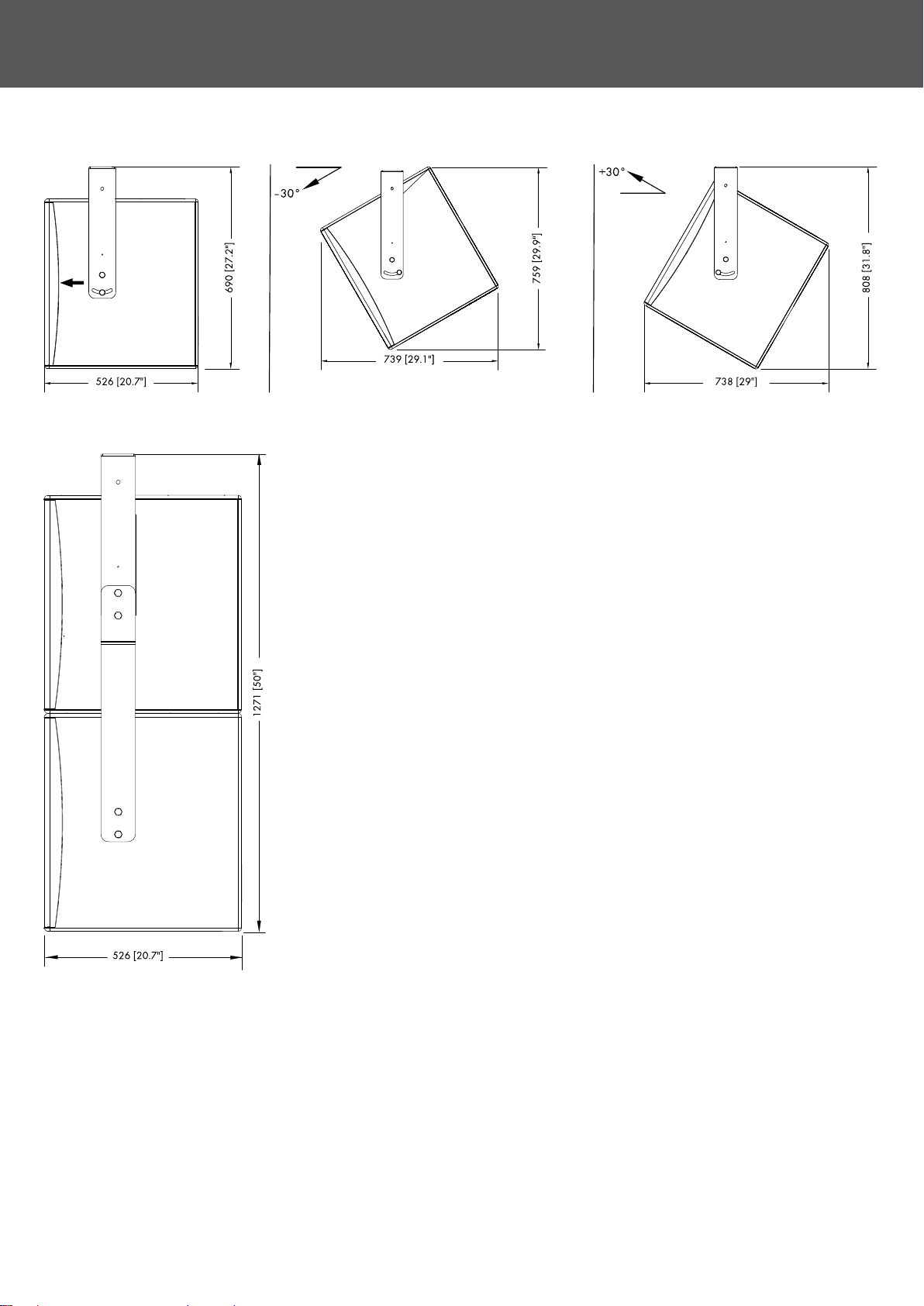

Z5555 Mounting options and built-in dimensions in mm [inch]
Z5555 with Z5556 built-in dimensions in mm [inch]
3 Built-in dimensions
d&b Z5555/Z5556 Mounting instructions 1.2 en10

4.1 EU conformity (CE symbol)
This declaration applies to:
d&b Z5555, Horizontal bracket 21S-SUB
d&b Z5556, Bracket extension 21S-SUB
manufactured by d&b audiotechnik GmbH & Co. KG.
All product variants are included, provided they correspond to the
original technical version and have not been subject to any later
design or electromechanical modifications.
We herewith declare that said products are in conformity with the
provisions of the respective EC directives including all applicable
amendments.
A detailed declaration is available on request and can be ordered
from d&b or downloaded from the d&b website at
www.dbaudio.com.
4.2 Disposal
When out of use the rigging components must be disposed of in
accordance with the national environmental regulations.
Ensure that damaged rigging components are disposed of in a
way that they cannot be used again.
4 Manufacturer's declaration
d&b Z5555/Z5556 Mounting instructions 1.2 en 11
