VOGELS Elite 5445 Series User manual

TVM 5445/5645/5845 Series - English 1
TVM 5445 Series
TVM 5645 Series
TVM 5845 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
…we just wanted to say thanks for choosing Vogel’s. Smart choice.
And you’re already making another smart choice – reading the manual! Keep reading to learn all about
safe, efficient installation, and how to use your new mount.

TVM 5445/5645/5845 Series - English 2
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could put
you, your TV, and your family at substantial risk.
Don’t dare risk it… Read all
lVogel’s recommends that the mounting and/or installation of this product should be carried out
by a suitably qualified expert.
lVogel’s cannot be held responsible for any injury and/or damage caused by incorrect
installation.
lPlease consult the manual for your TV and ensure that the weight and size of the TV is within
the maximum weight and size limits specified for this product, and that the TV mounting bolts
used are of a suitable length and diameter. Note that not all the TV mounting accessories
provided are required for the installation of any one TV.
lThe wall mounting accessories provided are exclusively intended for installation on walls made
of solid brick, solid concrete or solid wood columns.
lAny material covering the wall must not exceed 3 mm/ 0.12 inch.
lFor mounting on walls made of other materials, such as hollow bricks, wood panels or
plasterboard, please consult your installer and/or specialist supplier.
lClean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean the
product.
lOnly qualified, certified personnel may repair the product. Use only original spare parts. The
use of other parts will result in voiding the warranty, and could lead to injuries.
lAlterations to the product and technical modifications are not permitted. This will void the
warranty, and could lead to injuries.
lAlways store the product in a dry and safe place with a temperature between -10°C to +50°C.
lHandle and transport the product with care.
lRepack the product when transporting or not using it for a longer period of time.
lLifting your TV is a two-person job. Don’t be bold!

TVM 5445/5645/5845 Series - English 3
What’s in your box?
lSomething missing? Make sure your packaging has everything in place:
A. Wall mount
B. Interface bars
C. Interface strips
D. Safety instructions
E. Bolts for fastening strips on TV (see contents below)
F. Spacers
G. Washers Ø 18 mm
H. Screws
I. Plugs (fischer© DuoPower)
J. Washers Ø 26 mm
K. Covers
L. Protective TV patches
M. Cable fingers
O. Spirit level
Q. Interface bolts
R. Strip covers

TVM 5445/5645/5845 Series - English 4
lContents of the TV fasteners kit:
l4x M6*12mm bolts
l4x M6*25mm bolts
l4x M6*35mm bolts
l4x M8*12mm bolts
l4x M8*25mm bolts
l4x M8*45mm bolts
l4x M6 washer
l4x spacer 10mm
l4x spacer 5mm
You don't need all fasteners to mount your TV. Store the rest for later or other use!
Got your tools ready?

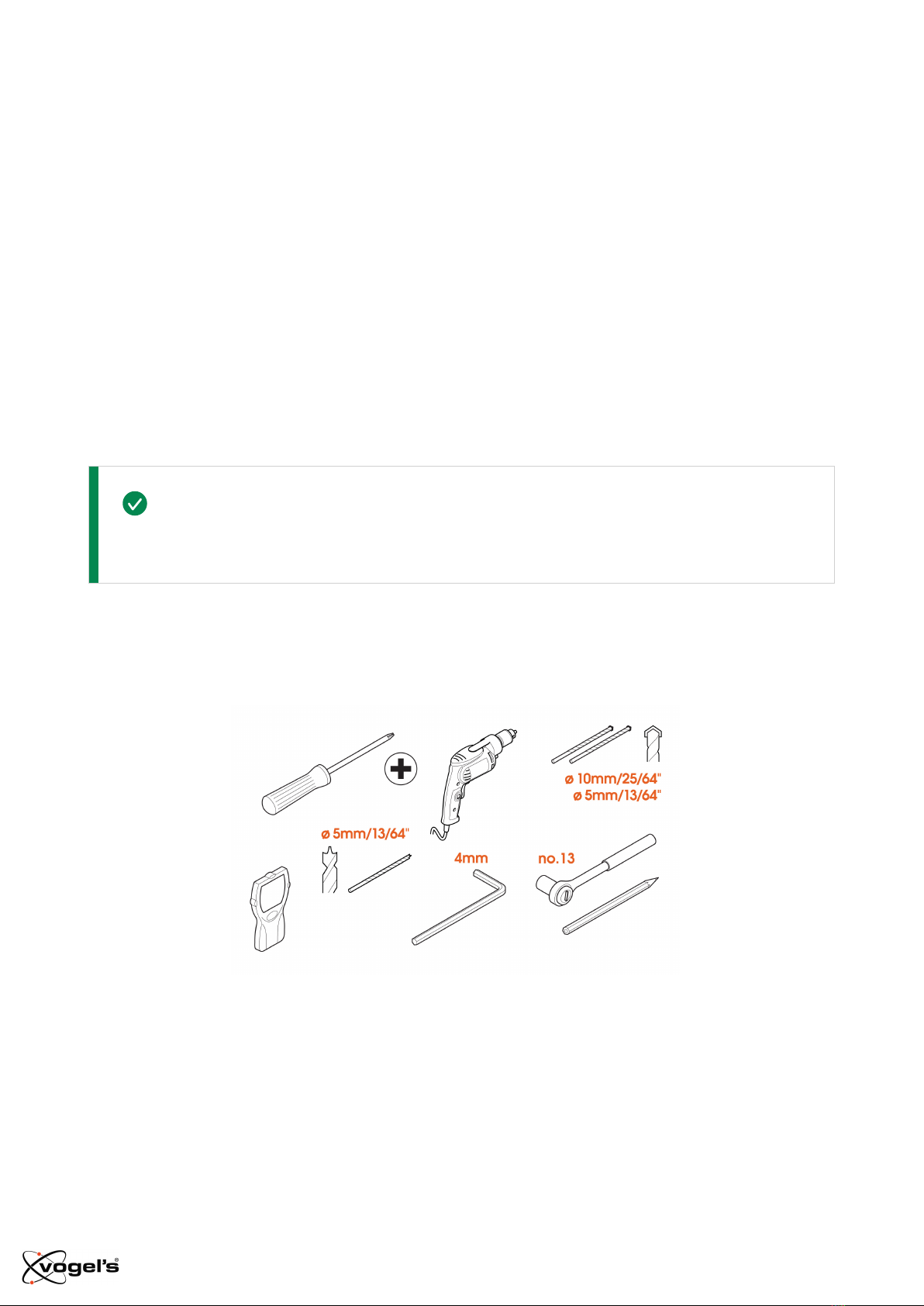

lDon’t start without all the necessary tools:
lCrosshead screwdriver
lDrilling machine
l10 mm or 25/64” concrete / brick drill (for concrete / brick walls only)
l5 mm or 13/64” concrete / brick drill (for concrete / brick walls only)

TVM 5445/5645/5845 Series - English 5
l5 mm or 13/64” wood drill (for wooden walls only)
lStud finder
lSocket wrench
lPencil
lM4 (4mm) Allen key
Take care of your safety
lWho cares about looking cool? Always wear personal protective equipment:
lEye protection
lEar protection
lSafety shoes

TVM 5445/5645/5845 Series - English 6
Ready… set… get installing!
Step 1: Attach the strips to the TV

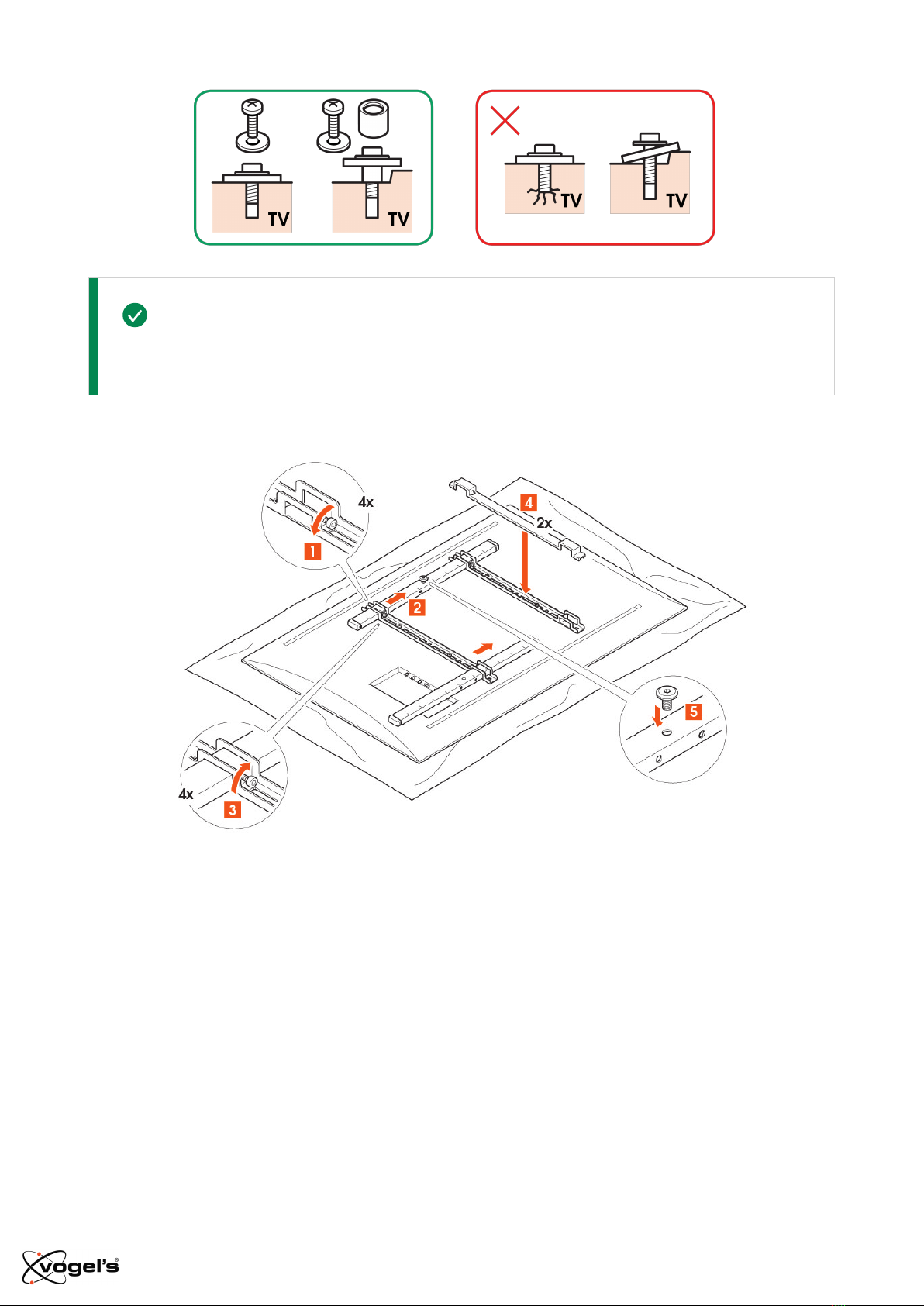

1. Put the protective TV patches Ⓛon the interface strips Ⓒ.
2. Carefully place the TV face down, on a clean surface without any obstacles.
3. Screw the interface strips Ⓒon to the TV with the bolts Ⓔ. Make sure the interface strips Ⓒ
are at the same height and do not stick out.
4. Loosen the interface bars Ⓑ.
Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer
Care are waiting to help: vogels.com/contact
Make sure bolts and spacers are positioned correctly.

TVM 5445/5645/5845 Series - English 7
Refer to the user manual of your TV for the correct mounting material.
5. Slide the interface bars Ⓑthrough the interface strips Ⓒ.
6. Tighten the bars Ⓑ.
7. Attach the strip covers Ⓡ.
8. Put the interface bolt Ⓠin the upper interface bar. Make sure you don't screw it in completely,
yet.

TVM 5445/5645/5845 Series - English 8
Step 2: Attach the wall mount to the wall
How well do you know your walls? What they’re made of matters more than you think…
Concrete / Brick wall
Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first
hole, easily.

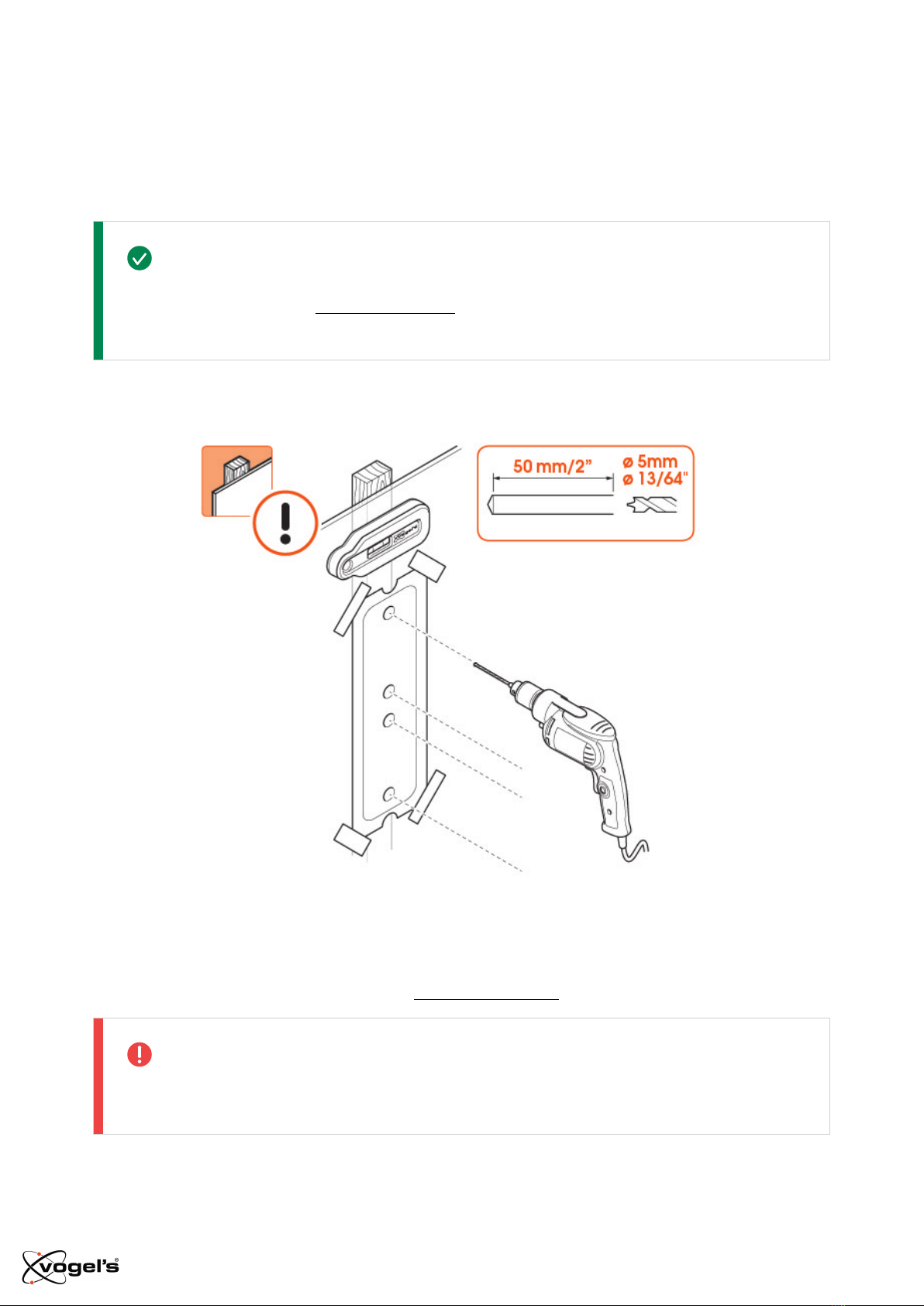

1. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template.
2. Drill the holes.
How deep do you drill? Check the length of the screw (not the plug!) to find the right depth – this
stops things from breaking.

TVM 5445/5645/5845 Series - English 9

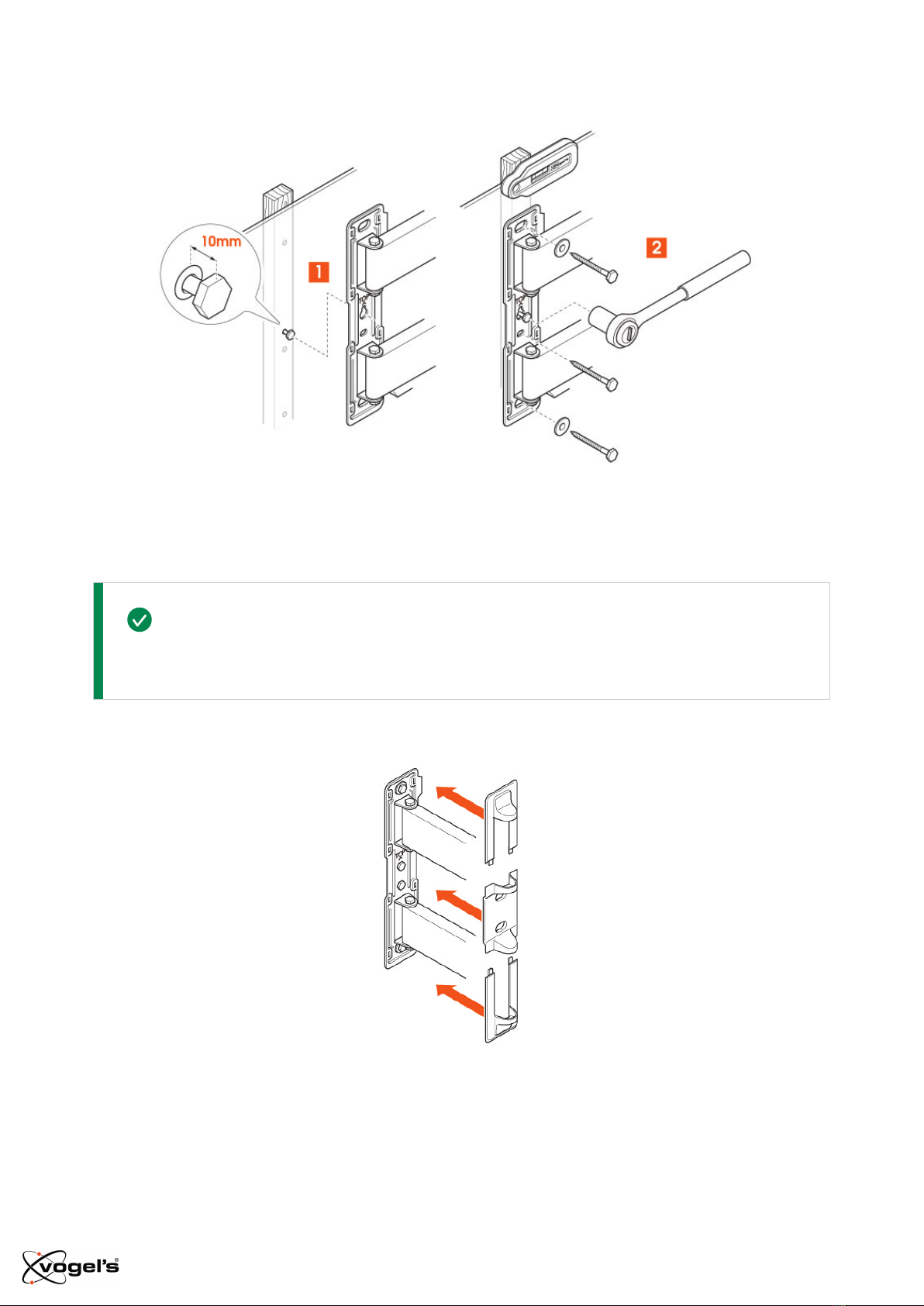

3. Attach the wall mount Ⓐto the wall with the screws Ⓗ,washers Ⓙand plugs Ⓘ. Use the
spirit level to level the wall mount. Make sure that you insert the centre screw into the wall first.
Lubricate the screws for easy screwing in.
4. Click the covers Ⓚinto place. Simple!

TVM 5445/5645/5845 Series - English 10
Wooden wall with studs
Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first
hole, easily.
1. Don’t just guess! Always use a stud finder to determine the position of studs.
2. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template.
Don’t destroy your belongings! The wall mount must always be attached to the studs.
3. Now for the fun part… drilling the holes.

TVM 5445/5645/5845 Series - English 11
4. Attach the wall mount Ⓐto the wooden wall with the screws Ⓗand washers Ⓙ. Use the spirit
level to level the wall mount. Make sure that you insert the centre screw into the wall first.
Lubricate the screws for easy screwing in.
5. Click the covers Ⓚinto place. Simple!

TVM 5445/5645/5845 Series - English 12
Other wall type / I don’t know my wall type
If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or
plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier
or the Vogel’s Consumer Care team at www.vogels.com/contact.

TVM 5445/5645/5845 Series - English 13
Step 3: Attach the TV to the wall mount

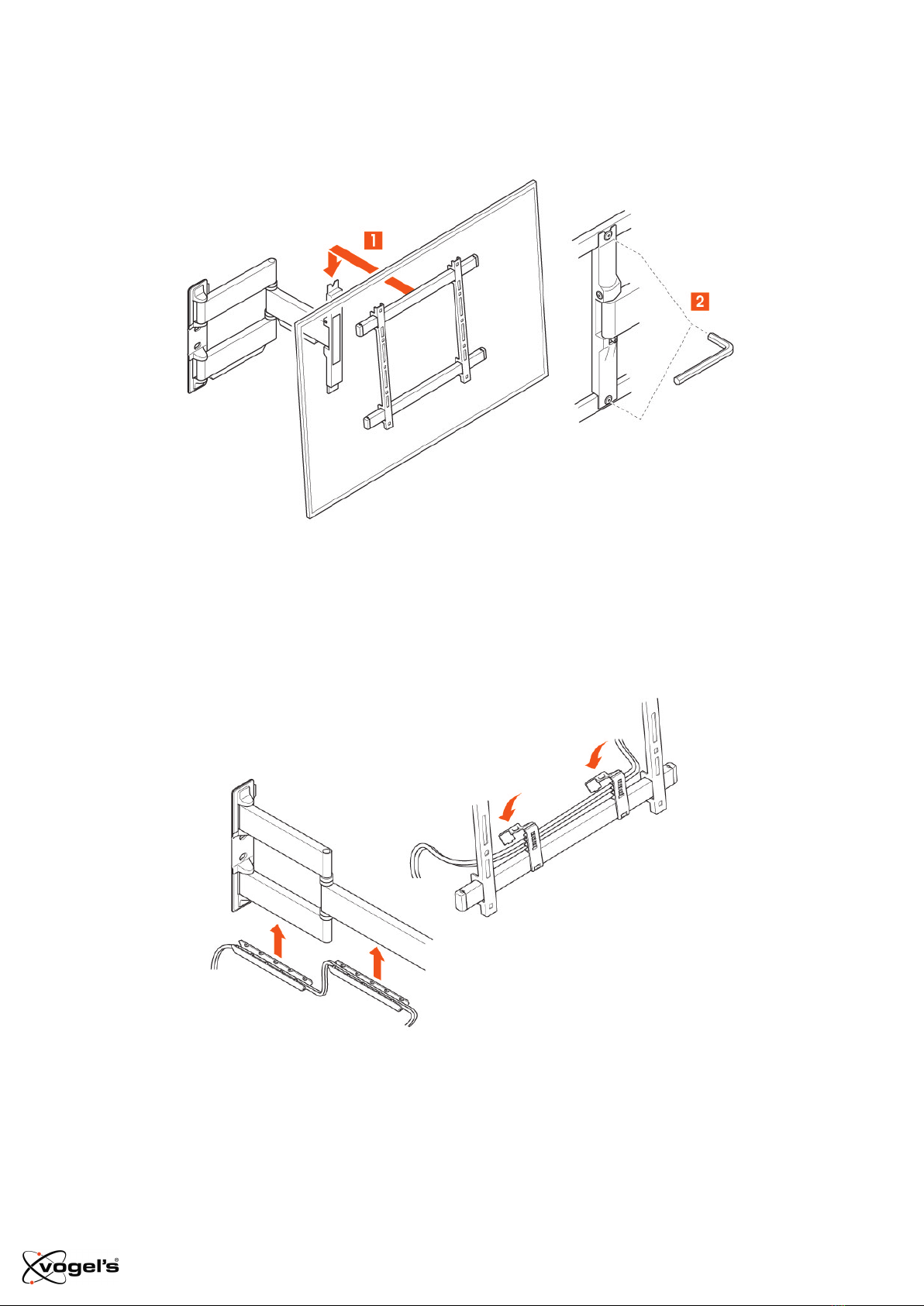

1. Carefully lift and attach the TV onto the interface bracket on the wall mount Ⓐ.
2. Tighten the upper interface bolt and place the bottom interface bolt.
3. Guide the cables through the cable arm covers, put them into the arms, and slide into a locked
position.
4. Guide the cables with the cable fingers.

TVM 5445/5645/5845 Series - English 14
5. Make sure the TV is levelled by using the spirit level.
6. When you have the correct position, tighten the bolts.
Job done now! Enjoy watching your TV!
Handy features
Having a cable mess? Do you need inspiration about how to hide and guide your cables or how
to place other TV accessories? Take a look at our website vogels.com!

TVM 5445/5645/5845 Series - English 15
Removing your TV
1. Remove the bottom interface bolt and loosen the upper interface bolt.
2. Unplug the cables from your TV.
3. Lift your TV off of the interface bracket, and put it down somewhere safe.
Again, lifting your TV is a two-person job. Always get help.

TVM 5445/5645/5845 Series - English 16
Tell us how you feel!
Your opinion matters more than you might think. It helps us make better products, and helps other
customers make informed choices.
Share your feedback, and sign up to win Vogel’s products!
Simply visit vogels.com/review for sharing or the Terms and Conditions.
Confused? Unsure? Going crazy?
There’s plenty of help waiting for you, online:
[e-mail]
www.vogels.com/contact
facebook.com/
VogelsForSure/
instagram.com/
vogels_official/
www.youtube.com/
c/VogelsForSure

TVM 5445/5645/5845 Series - English 17
Simple troubleshooting
Found a problem you can’t fix? Don’t panic… try these!
Problem Cause Solution
‘I have a lot of leftover
bolts, is something
wrong?’
No, you did it very well! You
only need 4 bolts to install
the mount to your TV.
Because of all the different
types of TVs, we have
included the most common
sizes for the most sold TVs.
Don’t waste the other bolts, save them!
You can use them for another TV when
you buy a new one or use it elsewhere.
‘My wall screws have
snapped!’
You might not be drilling
deep enough… or your drill
could be too blunt, so that
the hole is too narrow and
the screw gets stuck.
Use another hole in the wall plate to fix the
wall mount to the wall. Make sure you use
a sharp drill of the correct size. Use the
size of the screw as indication of the depth
to be drilled.
‘My cover is stuck!’ If the space between your
wall and your wall mount is
a little too tight, things can
get tricky to reach.
Push a small screwdriver between wall and
wall mount to push the snap hooks down to
release.

TVM 5445/5645/5845 Series - English 18
FAQs
‘Where can I request the correct bolts for my
TV (a service kit)?’
Whatever you need, simply contact your local
Vogel's dealer or Vogel's. Click here to contact
Vogel's Consumer Care.
‘Where can I find installation videos?’ Click or tap the button on the front page of this
manual. The installation video can be found at
the product page of your product on our
website. It can also be found on our YouTube
channel: www.youtube.com/c/VogelsForSure
‘What if I need spare parts?’ If you require a spare part, please contact your
local dealer or Vogel's. Click here to contact
Vogel's Consumer Care.
‘Where can I find the drilling template?’ The drilling template is printed on the inlay card
in the box. You can cut it out for your
convenience.
‘How high do I need to hang my TV?’ The centre of your TV should ideally be
positioned at eye level, while seated. Download
and use the free DrillRight™ AR app to
determine the height of the TV and to mark the
first hole.
‘How high do I need to hang my TV in case of
a tilt mount?’
When a wall mount with tilt function is used, your
TV can be mounted above eye level.
‘Which bolts or screws do I need to use?’ Vogel's offers a complete assembly kit with all
mounting materials included in the box, for both
your TV and wall. Do you miss the correct bolts
for your TV? Please contact your local Vogel's
dealer. Click here to contact Vogel's Consumer
Care.
‘Why do you use Fischer© plugs?’ The Fischer© DuoPower plug is widely
regarded as the best standard in plugs. Don’t
settle for less!
‘What is VESA?’ VESA is a standard pattern of mounting location
holes on the back of a TV which allows many
standard TV mounts to be easily fitted to your
TV.

TVM 5445/5645/5845 Series - English 19
Go green!
We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your
local recycling facility, or contact your municipal office. Recycling matters!

TVM 5445/5645/5845 Series - English 20
Guarantee
Thanks again for choosing Vogel’s! Just like every product we make, your new purchase is made of
durable materials and is based on a meticulous design. That is why Vogel’s gives you a 10-year
guarantee for defects in materials and manufacturing.
1. Vogel’s guarantees that if during the guarantee period of a product, faults arise due to defects in
manufacturing and/or materials, it will, at its discretion, repair or if necessary replace the product,
free of charge. A guarantee for normal wear and tear is hereby expressly excluded.
2. If the guarantee is invoked, the product should be sent to Vogel’s, together with the original
purchase document (invoice, sales slip or cash receipt). The purchase document should clearly
show the name of the supplier and the date of purchase.
3. Vogel’s guarantee shall lapse in the following cases:
lIf the product has not been drilled, installed and used in accordance with the Instructions for
Use;
lIf the product has been altered or repaired by someone other than Vogel’s;
lIf a fault arises due to external causes (outside the product) such as for example lightning,
water nuisance, fire, scuffing, exposure to extreme temperatures, weather conditions,
solvents or acids, wrong use or negligence;
lIf the product is used for different equipment than is mentioned on or in the packing.
Vogel’s Products BV - Hondsruglaan 93 - 5628 DB Eindhoven - The Netherlands
Vogel’s Products BV 2022 © All rights reserved.
