D-Link DWR-530 User manual

iD-Link DWR-530 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes.
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in
the United States or other countries. All other company or product names mentioned herein are trademarks or
registered trademarks of their respective companies.
Copyright © 2011 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written
permission from D-Link Systems, Inc.
Preface

iiD-Link DWR-530 User Manual
Table of Contents
Preface...........................................................................i
Trademarks .............................................................. i
Product Overview ........................................................ 1
Package Contents ...................................................1
System Requirements .............................................1
Introduction ..............................................................2
Hardware Overview ................................................. 3
Front ..................................................................3
Back ...................................................................4
Wireless Installation Considerations ........................ 5
Product Setup ..........................................................6
Connection Setup .................................................... 7
3G Modem Mode ...............................................7
3G Router Mode ................................................8
Modem Mode: D-Link Connection Manager .............. 9
New Prole ..............................................................9
Establishing a Connection ..................................... 10
Ending a Connection .............................................10

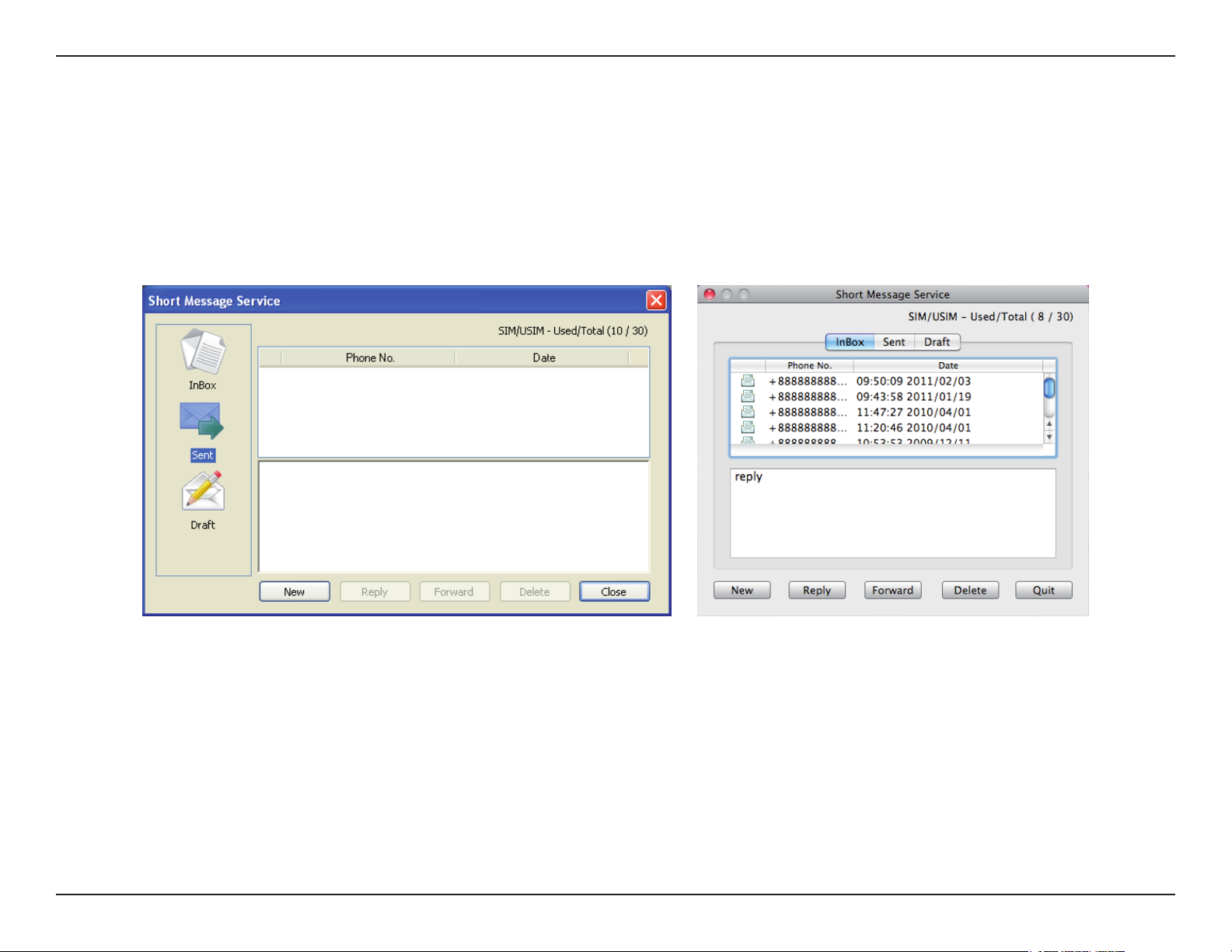

Text Messaging (SMS) .......................................... 11

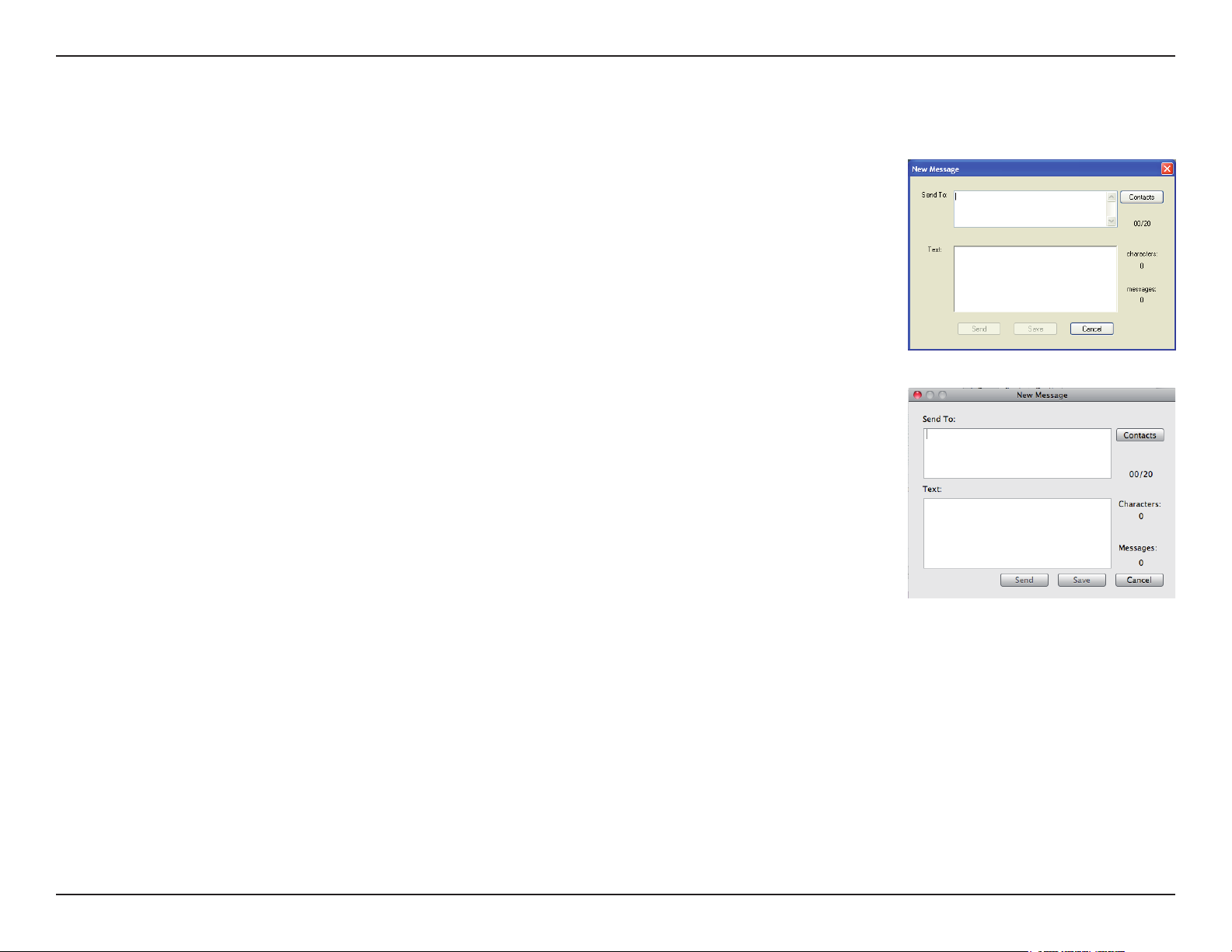

New/Reply/Forward Text Message ..................12
Deleting a Message .........................................12
Contact Management ............................................13

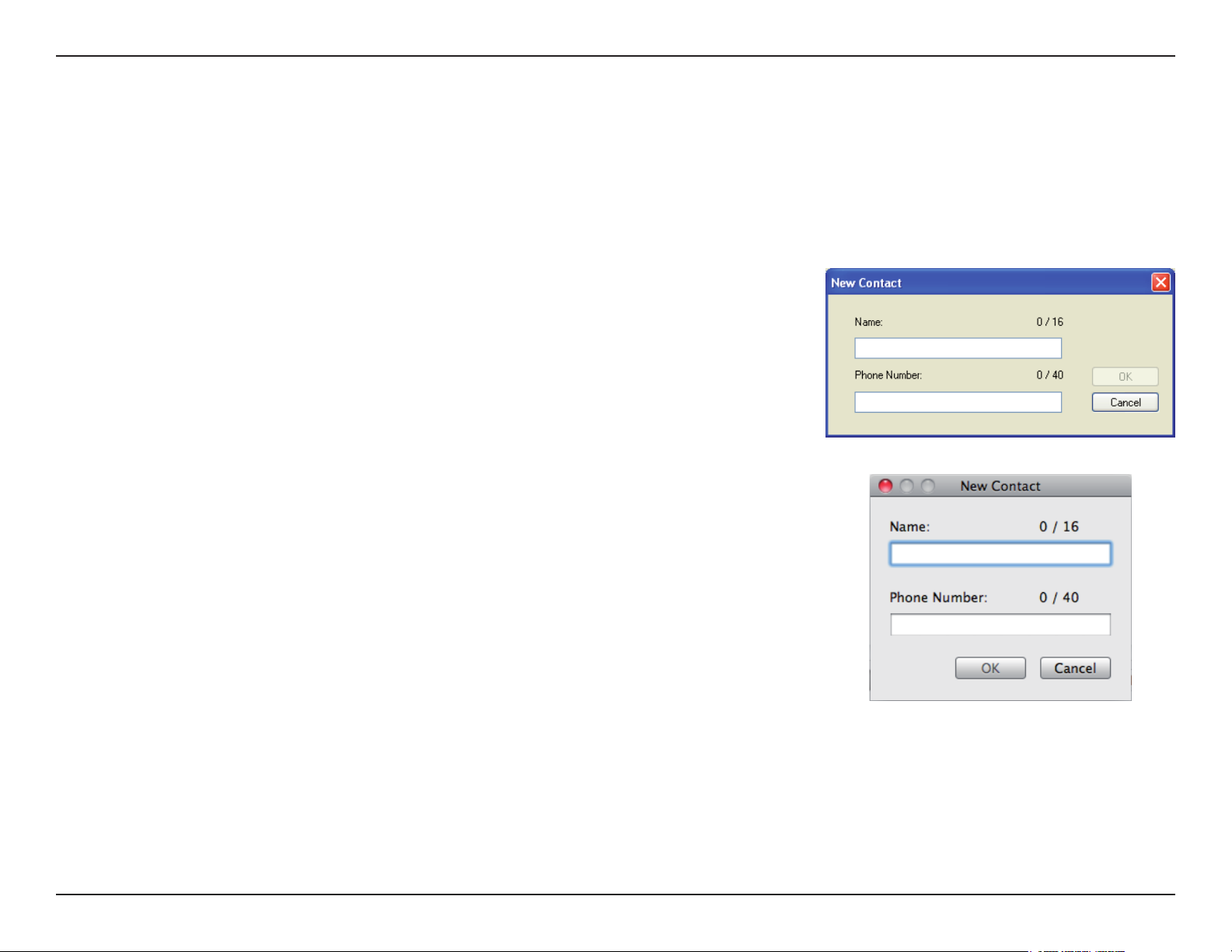

Adding Contacts ..............................................13

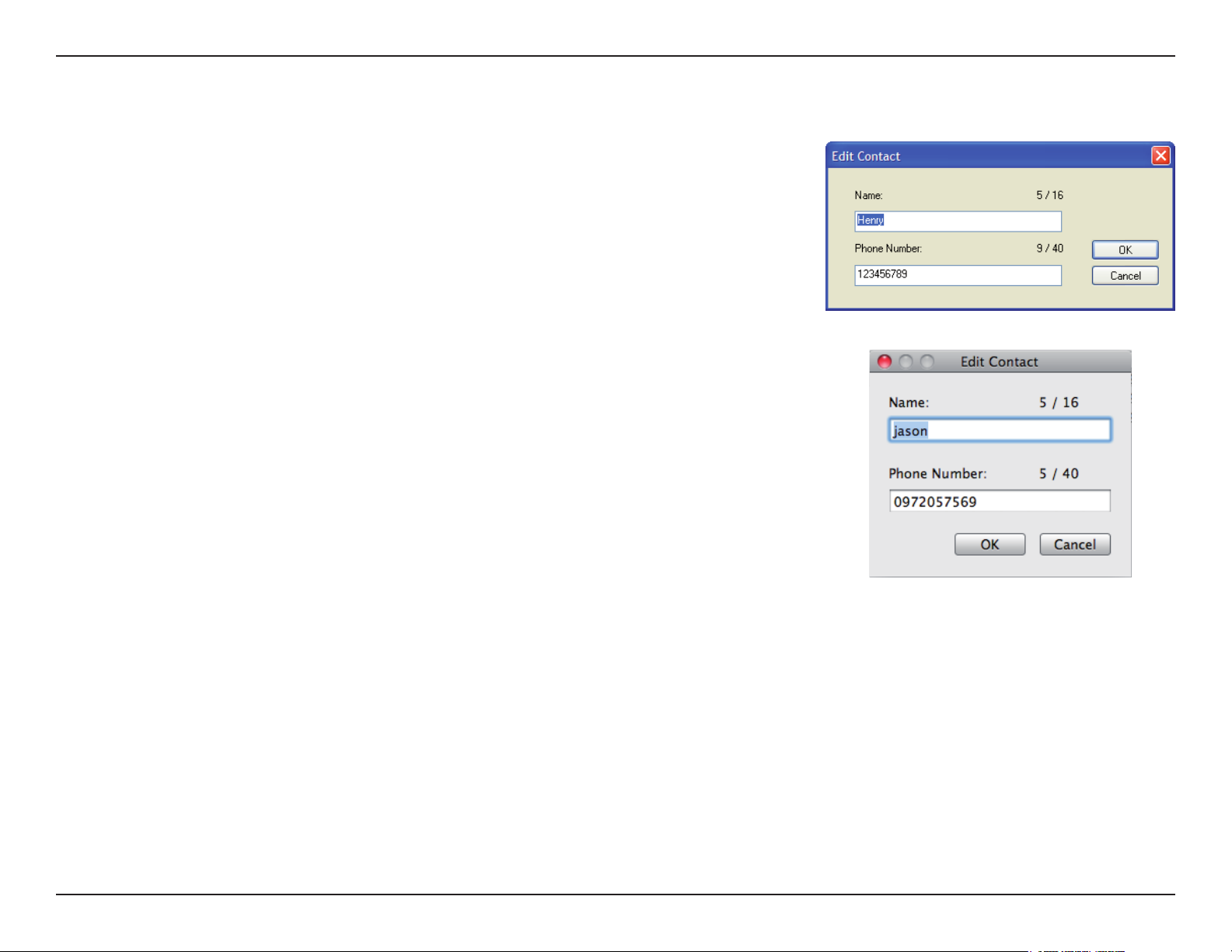

Editing Contacts ...............................................14
Deleting Contacts ............................................14
Importing vCards to Contacts ..........................15
Exporting Contacts to vCards ..........................15
Router Mode: D-Link Connection Manager (Windows
only) ............................................................................16

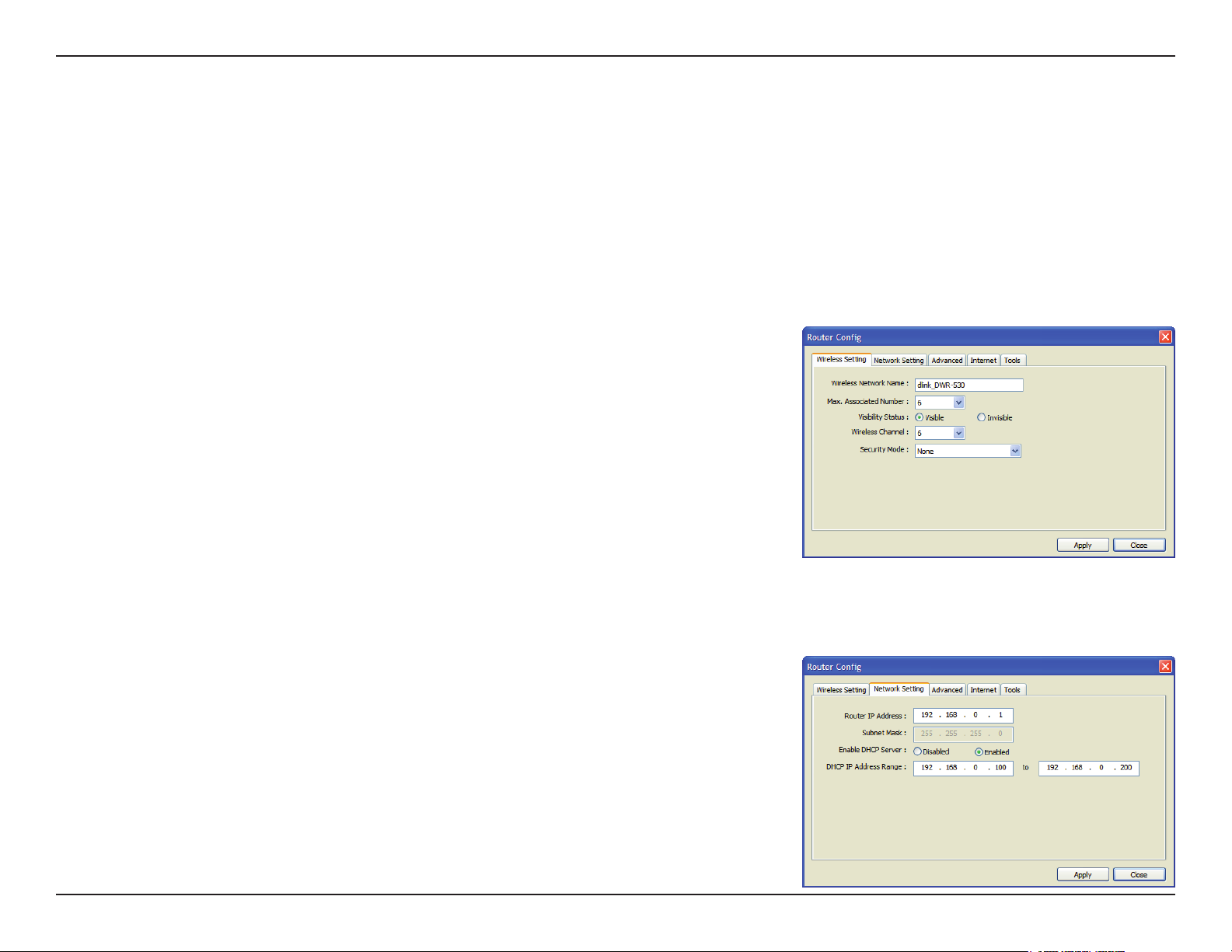

Wireless Settings ...................................................16
Network Settings ...................................................16
Advanced Settings .................................................17
Internet Settings ....................................................17
Tools ...................................................................... 18
Router Mode: Web-Based Conguration Utility ..... 19
Internet Connection Setup Wizard ......................... 20
Internet Setup ........................................................ 23
Wireless Settings ...................................................24
Manual Wireless Setup .......................................... 27
Network Setup ....................................................... 28
MAC Filter ..............................................................29
File Sharing ...........................................................30
Administrator Settings ...........................................31
Factory Reset ........................................................32
Device Information .................................................33
Wireless Information ..............................................34
Support .................................................................. 35
Wireless Security.......................................................36
What is WEP? .......................................................36
Table of Contents

iiiD-Link DWR-530 User Manual
Table of Contents
Congure WEP ......................................................37
What is WPA? .......................................................38
Congure WPA-PSK/WPA2-PSK ..........................39
Connect to a Wireless Network ................................ 40
Using Windows Vista™ .........................................40
Congure Wireless Security ............................ 41
Using Windows® XP ............................................... 43
Congure WEP ................................................44
Congure WPA-PSK ........................................46
Troubleshooting ........................................................ 48
Wireless Basics ......................................................... 50
What is Wireless? ..................................................51
Tips ........................................................................ 53
Wireless Modes ..................................................... 54
Networking Basics .................................................... 55
Check your IP address ..........................................55
Statically Assign an IP address .............................56
Warnings and Declarations ...................................... 57
Technical Specications........................................... 61

1D-Link DWR-530 User Manual
Section 1 - Product Overview
• D-Link DWR-530 3.75G HSUPA Router
• Battery
• USB cable
• Power adapter
System Requirements
• A compatible (U)SIM card with service*
• Computers with Windows®, Macintosh® , or Linux-based operating systems
• Internet Explorer 6 or higher, Firefox 2.0 or higher, or another Java-enabled browser (for conguration)
*Subject to services and service terms available from your carrier.
Product Overview
Note: Using a power supply with a different voltage rating than the one included with the DWR-530 will cause damage and
void the warranty for this product.
Package Contents

2D-Link DWR-530 User Manual
Section 1 - Product Overview
Introduction
The D-Link DWR-530 3.75G HSUPA Router is a palm sized 3G router, slim and small enough to carry in a pocket. It
allows users to access and share their 3G mobile Internet connection anywhere and anytime.
The DWR-530 can function in either Wi-Fi router mode or 3G USB modem mode. When in Wi-Fi router mode, the
device allows Wi-Fi capable devices like smart phones, portable gaming devices, notebooks, or digital cameras
access to 3G networks via a wireless connection. The DWR-530 can share its 3G connection with up to 6 Wi-Fi
clients. The built-in battery allows you to simply turn it on to provide your devices with an instant connection to the
Internet.
When using the D-Link DWR-530 3.75G HSUPA Router as a 3G USB modem, you can not only keep your PC
connected to a 3G network, but you can also turn off your PC’s Wi-Fi adapter in order to save battery power.

3D-Link DWR-530 User Manual
Section 1 - Product Overview
Indicator Color Solid Blinking(fast) Blinking
(Slow)
SMS LED Green New incoming message Inbox full
Signal LED Blue WCDMA/HSDPA/HSUPA network Transmitting Dial on Demand
Green GSM/GPRS network Transmitting Dial on Demand
Red SIM error/ Noservice
Battery LED Blue Charging to full 100% to 50% capacity
Green Charging, 99% to 50% capacity 50% to 10% capacity
Red Charging, 50% to 0% capacity Less than 3% capacity Less than 10% capacity
WiFi LED Green Router mode Transmitting
Hardware Overview
Front
Power Button
Reset Button Mode Selector Switch
Status LEDs

4D-Link DWR-530 User Manual
Section 1 - Product Overview
Hardware Overview
Back
Port/LED Function
Micro USB Port Connects to a PC or power adapter through the included USB cable.
MicroSD Slot Accepts a MicroSD card for the DWA-530’s File Sharing function.
Micro USB Port MicroSD Slot

5D-Link DWR-530 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DWR-530 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network.
Keep in mind, however, that the quantity, thickness and location of walls, ceilings, or other objects that the wireless signals must pass
through, may limit the range. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home
or ofce. The key to maximizing the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can
reduce your adapter’s range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices
so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and
drywall. Materials such as glass, metal, brick, insulation, concrete and water can affect wireless performance. Large
objects such as sh tanks, mirrors, le cabinets, metal doors and aluminum studs may also have a negative effect on
range.
4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless
device as possible. The base transmits a signal even if the phone in not in use. In some cases, cordless phones, X-10
wireless devices, and electronic equipment such as ceiling fans, uorescent lights, and home security systems may
dramatically degrade wireless connectivity.

6D-Link DWR-530 User Manual
Section 2 - Installation

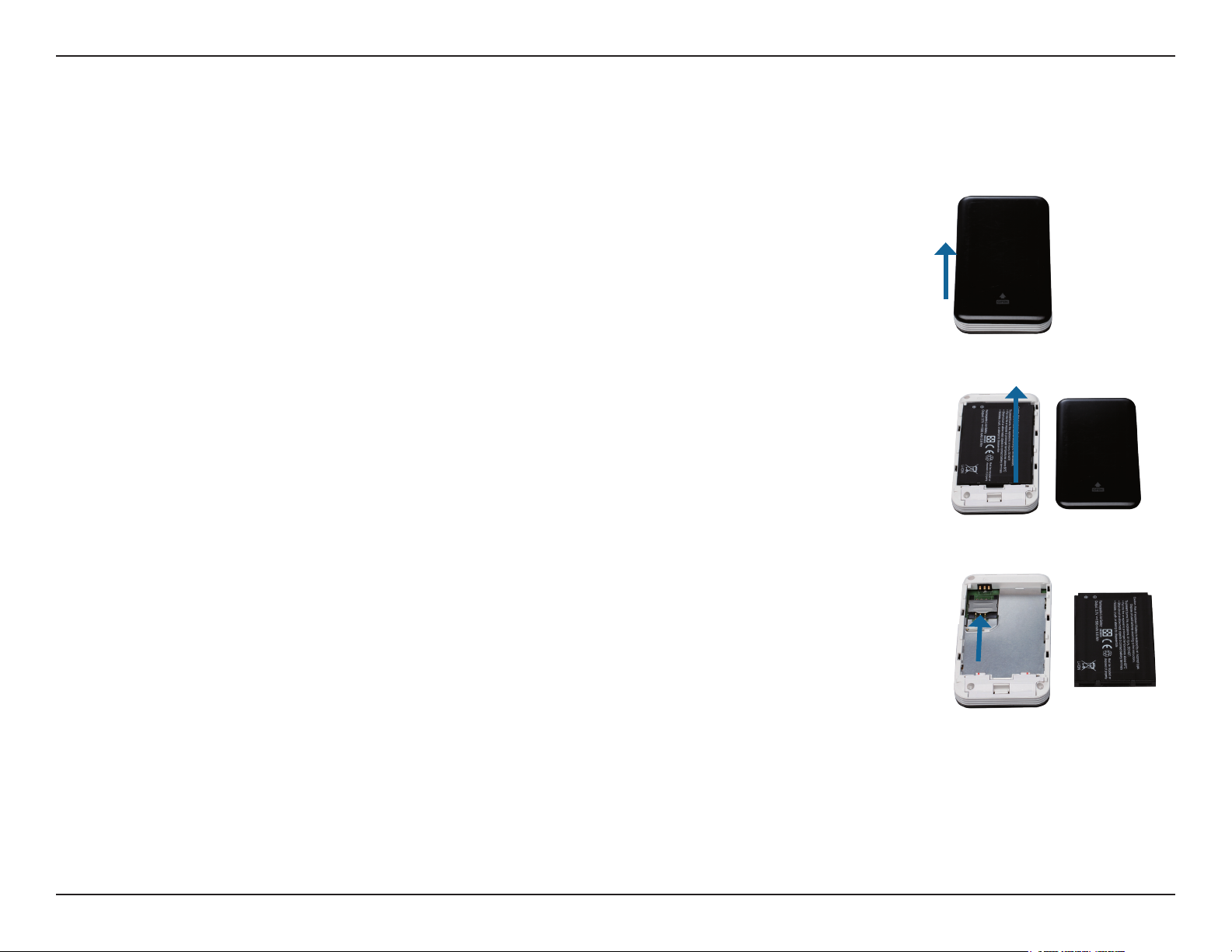

1. Remove the back cover of the DWR-530, and remove the
battery.
Product Setup
2. Insert the SIM card with the gold contacts facing down. Make
sure that you insert the SIM card in the right direction, with the
notched edge facing away from the DWR-530’s contacts.
3. Replace the battery and the back cover.

7D-Link DWR-530 User Manual
Section 2 - Installation
Connection Setup
3G Modem Mode
1. Move the router/modem selection switch to modem mode.
2. Make sure the DWR-530 is turned off, and all LEDs are off.
3. Connect the 3.75G HSUPA Router to your computer with the included USB cable.
4. Turn on the DWR-530 by pressing and holding the power button until all the LEDs light
up.
(To turn off the DWR-530, press and hold the power button until all the LEDs turn off.)
5. Windows Users: The D-Link Connection Manager installation program should start
automatically. Follow the prompts to install the D-Link Connection Manager. If you see
a prompt about whether to install a driver, click Continue Anyway.
If the installation program does not start, open My Computer, open the drive labeled
DWR-530, and double-click the Setup.exe le.
Mac Users: A window will appear showing the contents of the DWR-530. Double-click
on the .pkg le and follow the prompts to install the D-Link Connection Manager.
6. Enter the PIN code for the SIM card.
7. Click the Connect icon in the Connection Manager.
8. You can now use the DWR-530 3.75G HSUPA Router as a 3G modem.

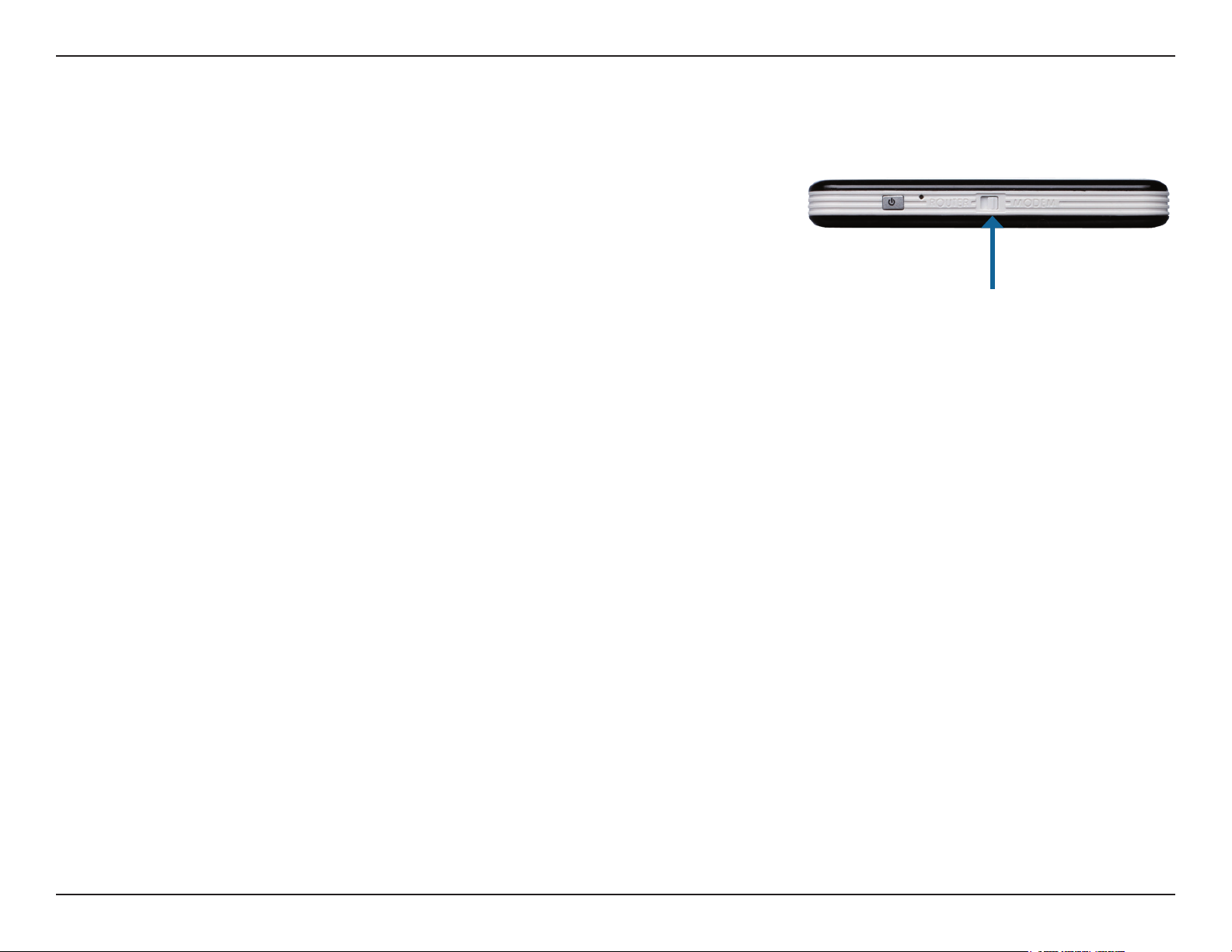

Modem/Router switch
in modem position
Note: You have to install the Connection Manager software when using the DWR-530 for the rst time. After successful installation, you
can congure its USB modem and Wi-Fi router basic settings.

8D-Link DWR-530 User Manual
Section 2 - Installation
Connection Setup

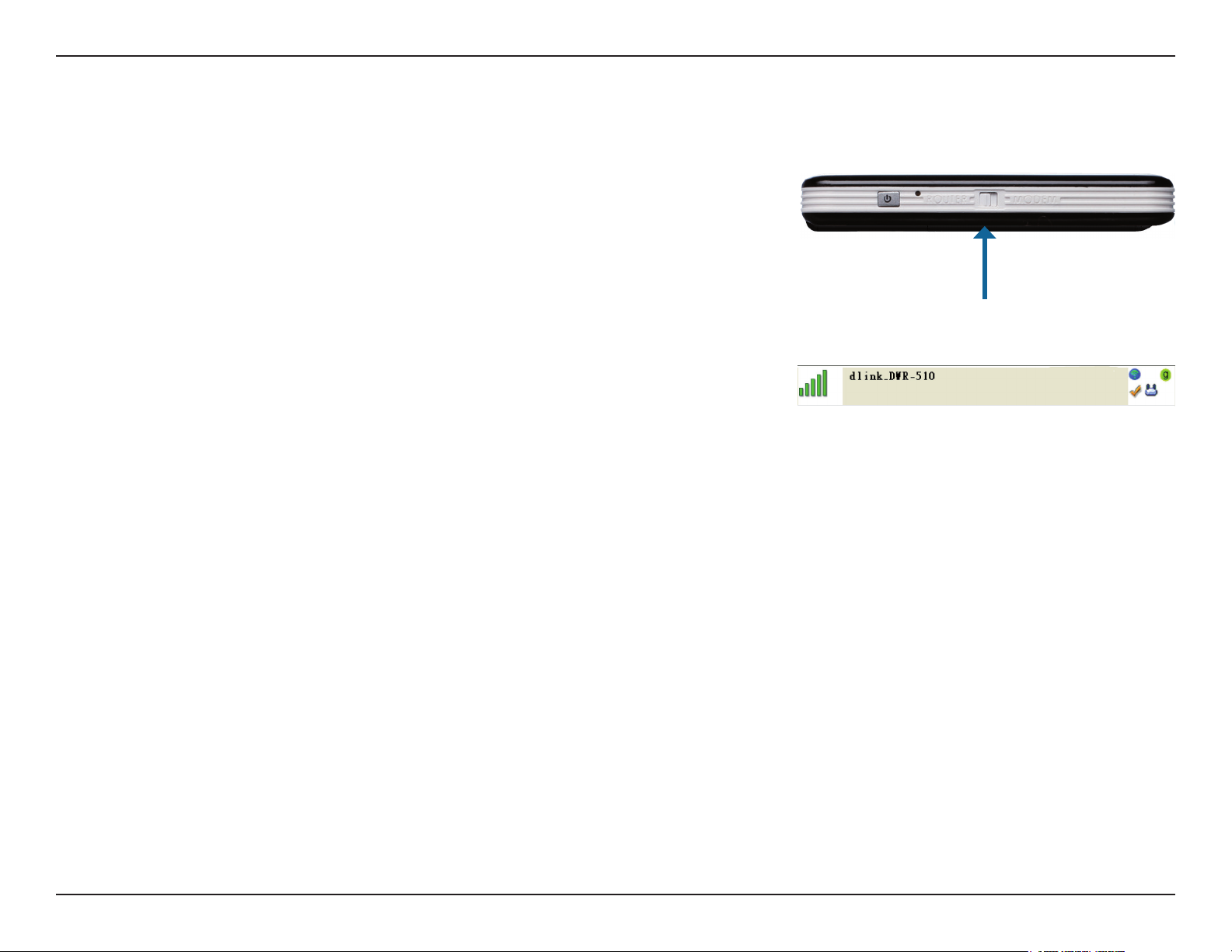

3G Router Mode
Modem/Router switch
in router position
1. Move the router/modem selection switch to router mode.
2. Turn on the DWR-530 by pressing and holding the power button until all
the LEDs light up. (To turn off the DWR-530, press and hold the power
button until all the LEDs turn off.)
3. On your PC, look for a wireless network called dlink_DWR-530 and
connect to it.
4. You can now use the DWR-530 3.75G HSUPA Router as a 3G router.
You can congure the router by using a web browser to go to 192.168.0.1.

9D-Link DWR-530 User Manual
Section 3 - Configuration
When using Modem Mode, you will need to use the D-Link Connection Manager. It allows you to manage your 3G
connection, and lets you send and receive SMS messages through a simple to use interface.
Note: These settings will only take effect when the DWR-530 is in Modem Mode.
Modem Mode: D-Link Connection Manager

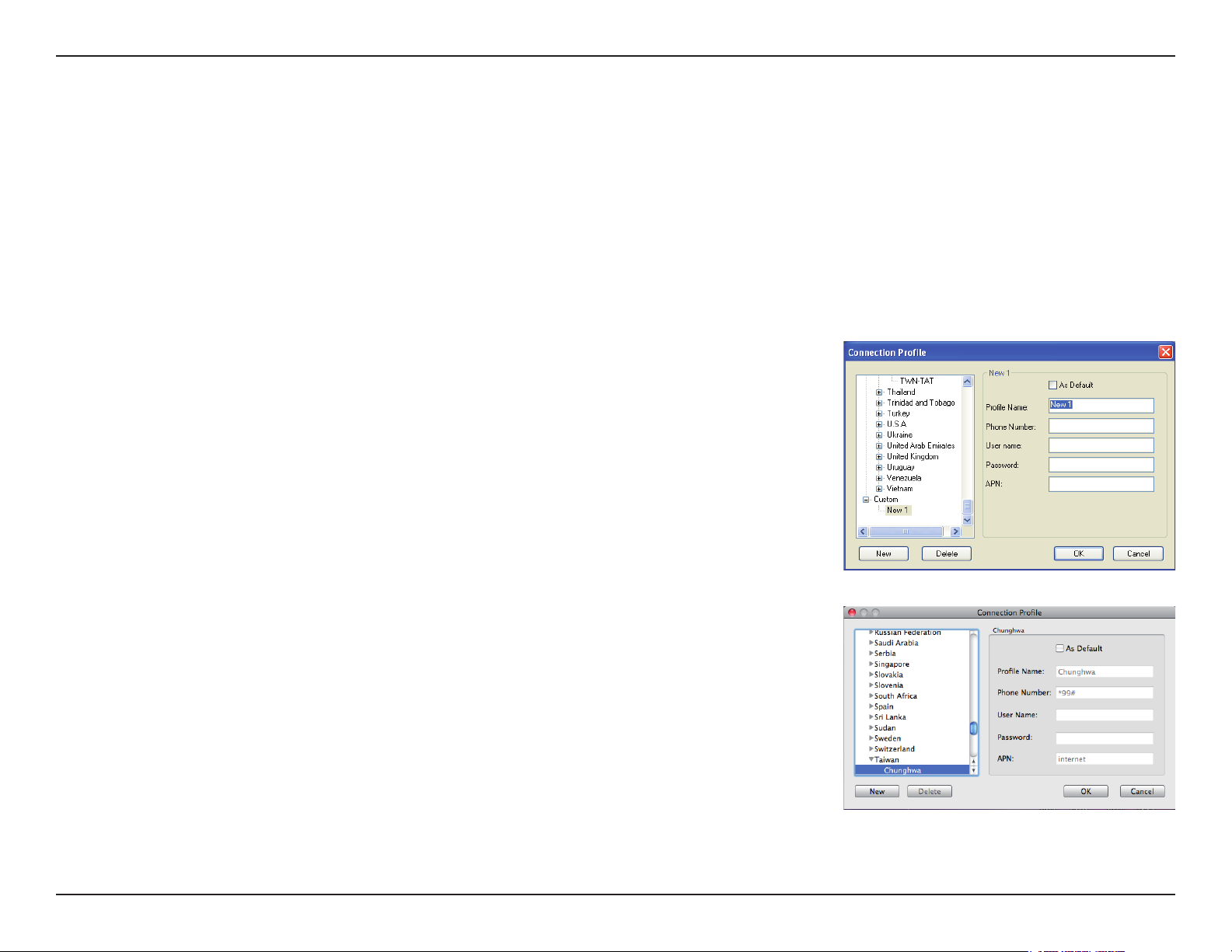

New Profile
Before starting, if the mobile service provider associated with your
SIM card is listed in the preset prole list, you can directly connect
to the desired network using its pre-dened prole.
You also can create your own prole by following the steps below:
1. Click the Edit button, then go to Connection Prole.
2. Click the New button to create a new prole.
3. Choose a Prole Name, then type in the Phone Number, User
Name, Password, and APN. If you want to make this your default
prole, check As Default. Click OK to continue.
Windows
Mac

10D-Link DWR-530 User Manual
Section 3 - Configuration
Establishing a Connection
You can click the Connect button to connect to the network via the default prole. Once connected,
you can use the mobile service network to browse the Internet, send e-mail, send text messages, and
perform other tasks online. Connect
Ending a Connection
If you wish to disconnect, click the Connect button again.
Disconnect

11D-Link DWR-530 User Manual
Section 3 - Configuration
Text Messaging (SMS)
The DWR-530 can be used to perform all the text messaging functions that can be done on a mobile phone such as
sending, receiving, replying, forwarding and deleting.
Windows Mac

12D-Link DWR-530 User Manual
Section 3 - Configuration
New/Reply/Forward Text Message
1. Click the SMS button.
2. Click New, Reply, or Forward.
3. Enter the recipient’s phone number or click Contacts to see the
contacts stored to the SIM card. In the contacts window, click
the box next to the recipients name and click Add to return to the
New SMS window.
4. Enter a message to send.
5. Click Send to send the message.
Deleting a Message
1. Click the SMS button.
2. Select the messages you want to delete and click Delete.
3. Click Delete to delete the selected messages.
4. Click Yes to conrm.
Windows
Mac

13D-Link DWR-530 User Manual
Section 3 - Configuration
Contact Management
Adding Contacts
The DWR-530 contacts manager displays all the contacts on the SIM Card. Contacts can be added, edited, deleted
and imported.
1. Click the Contacts button.
2. Click the New button.
3. In the Add Contact window, enter the contact name and telephone
number.
4. Click OK to add the contact. Windows
Mac

14D-Link DWR-530 User Manual
Section 3 - Configuration
Deleting Contacts
Editing Contacts
1. Click the Contacts button.
2. Select the contact to edit.
3. Click the Edit button.
4. Modify the contacts details.
5. Click OK to save the changes.
1. Click the Contacts button.
2. Select the contact to delete and click the Delete button.
3. Click Yes to conrm the deletion.
Windows
Mac

15D-Link DWR-530 User Manual
Section 3 - Configuration
Importing vCards to Contacts
Exporting Contacts to vCards
1. Click the Contacts button.
2. Click the Export button.
3. Select the destination to save the vCard(s).
4. Click OK to export the card(s).
5. After the export, a message will be displayed. Click OK to close.
1. Click the Contacts button.
2. Click the Import button.
3. Select the source of the vCard(s).
4. Click Open to import the card(s).
5. After the import, a message will display the import information.
Click OK to close the window.

16D-Link DWR-530 User Manual
Section 3 - Configuration
Router Mode: D-Link Connection Manager
(Windows only)
Wireless Settings
Network Settings
The D-Link Mobile Connection Manager allows you to conveniently adjust options such as the wireless or network
settings for the DWR-530. You can also access these settings by using the web-based conguration utility(see page 19).
1. Enter a wireless network name. When connecting other devices to
your wireless network, this is the name you will need to search for.
2. Select the maximum number of devices to allow to connect to
your wireless network.
3. Set the visibility status to Visible or Invisible.
4. Choose the wireless channel and security mode.
5. Click Apply to save the settings.
1. Enter the router IP address and subnet mask.
2. If you want to enable DHCP Server, check Enabled. Otherwise,
check Disabled.
3. Enter values for the DHCP IP address range.
4. Click Apply to save the settings.
