D-Link DWR-922 User manual

Version 1.00 | 12/02/2016
User Manual
DWR-922
4G LTE Router

iD-Link DWR-922 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2016 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation.
Revision Date Description
1.00 December 02, 2016 • Initial release
Preface

iiD-Link DWR-922 User Manual
Table of Contents
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 1
Introduction ................................................................................... 2
Hardware Overview..................................................................... 3
Front View................................................................................ 3
Back View................................................................................. 4
Installation ......................................................................... 5
Before You Begin........................................................................... 5
Wireless Installation Considerations...................................... 6
Conguration..................................................................... 7

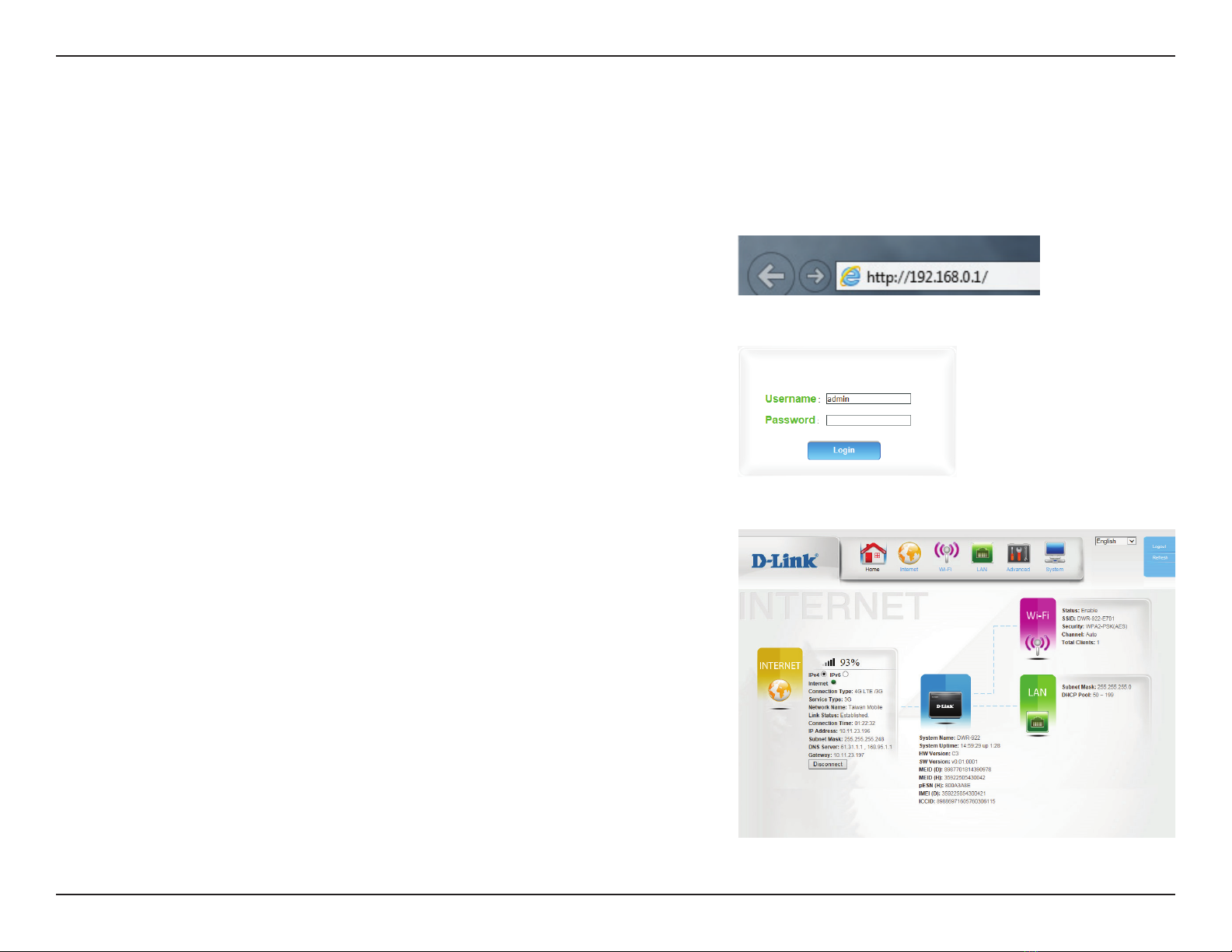

Getting Started.............................................................................. 7
Internet............................................................................................. 8
WAN Service ........................................................................... 8

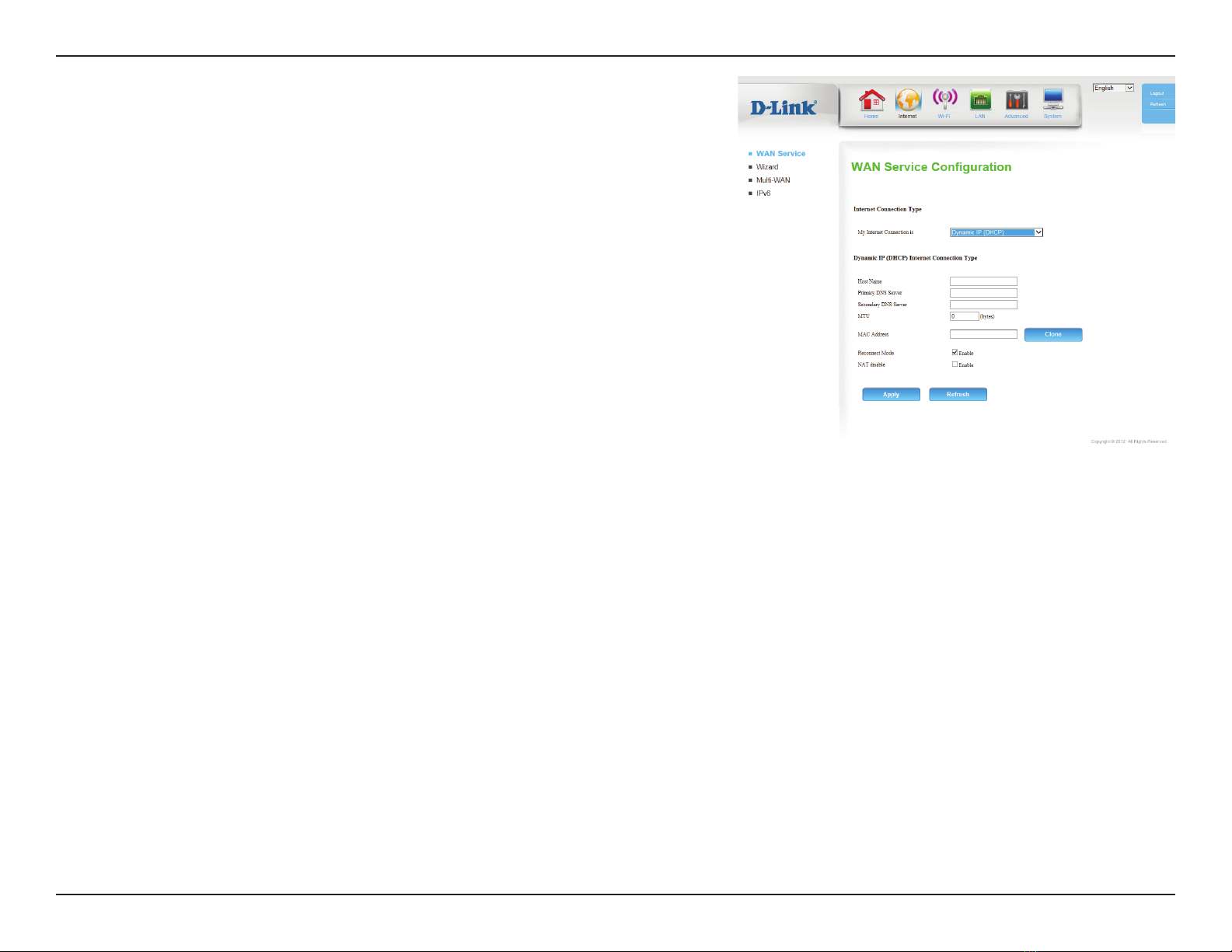

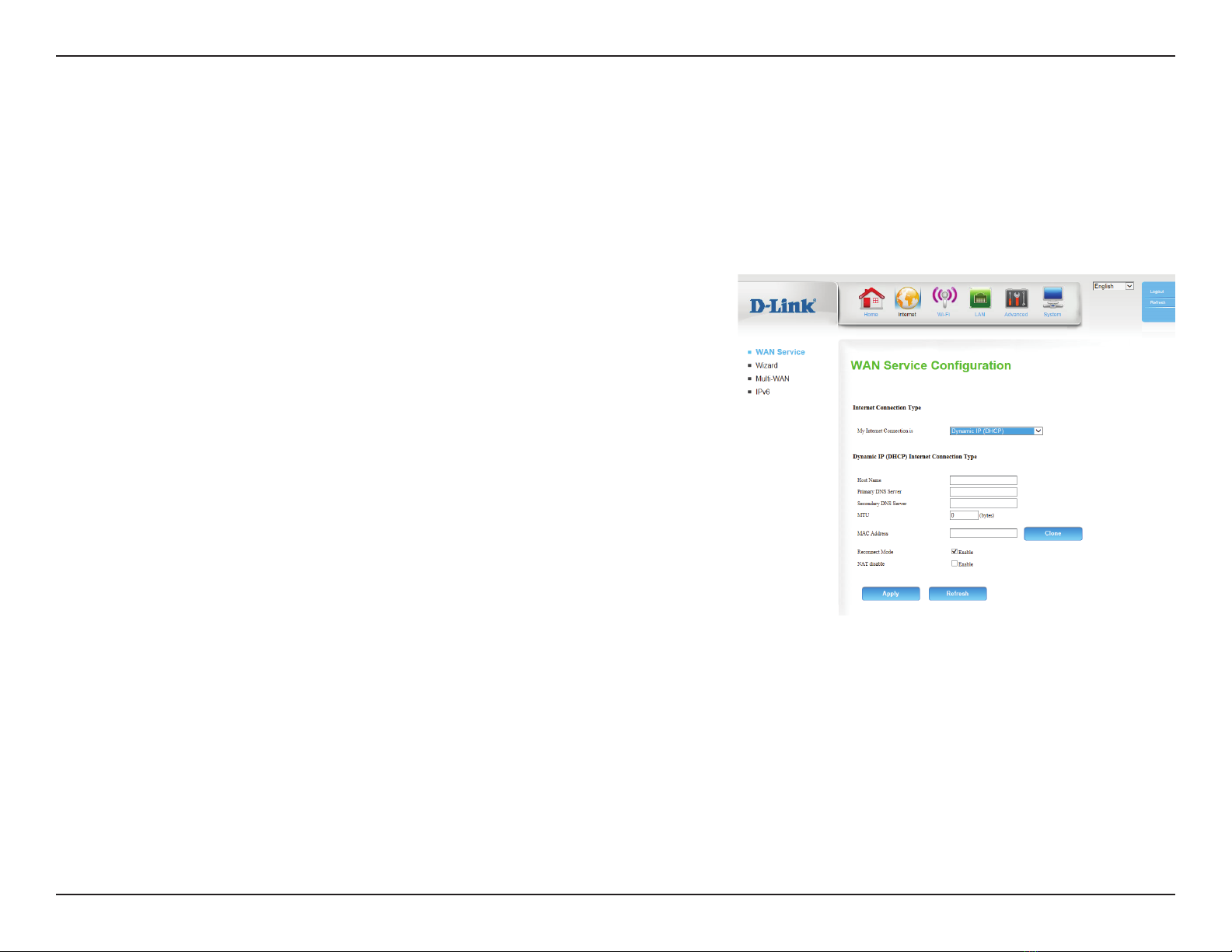

Dynamic IP (DHCP).......................................................... 8

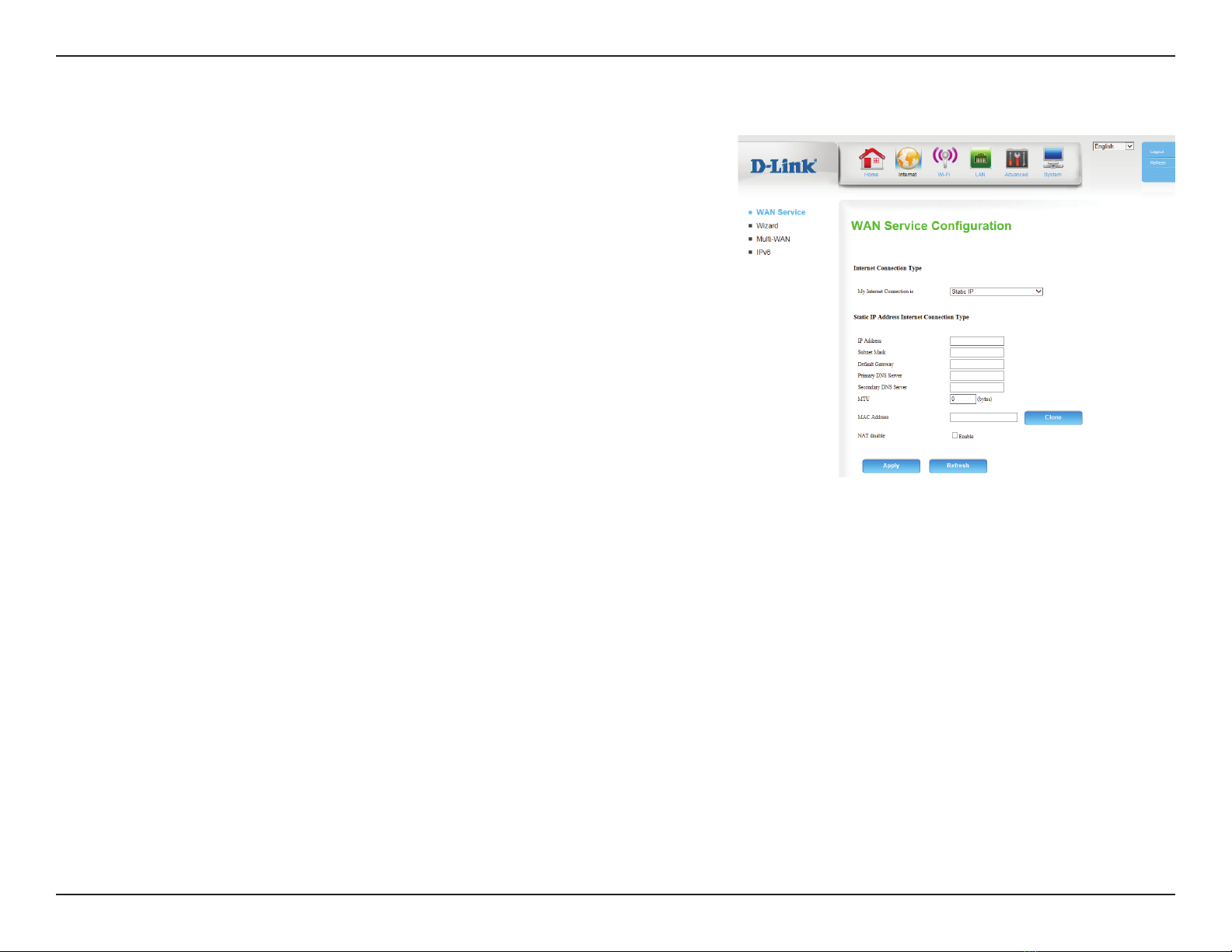

Static IP..............................................................................10

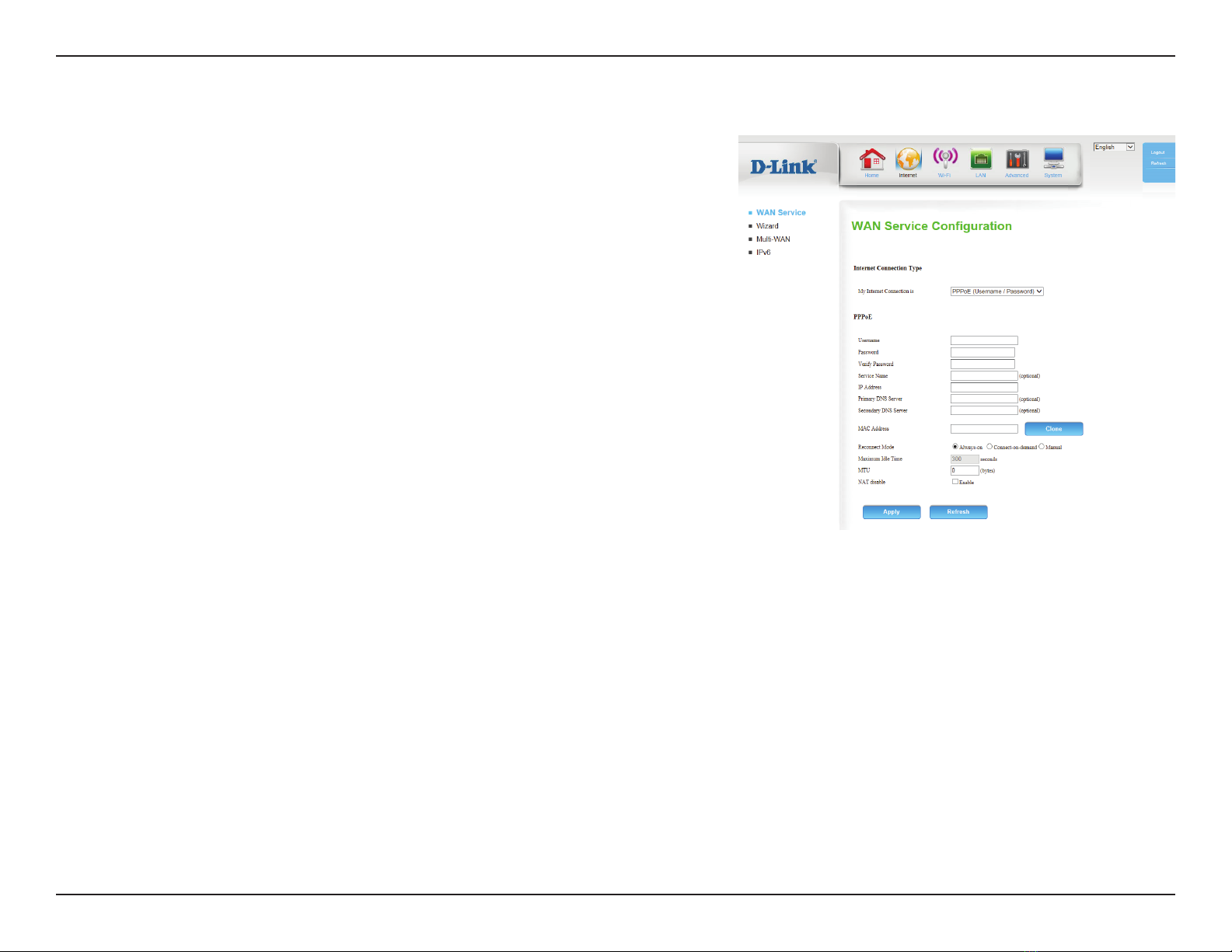

PPPoE (Username / Password) ..................................11

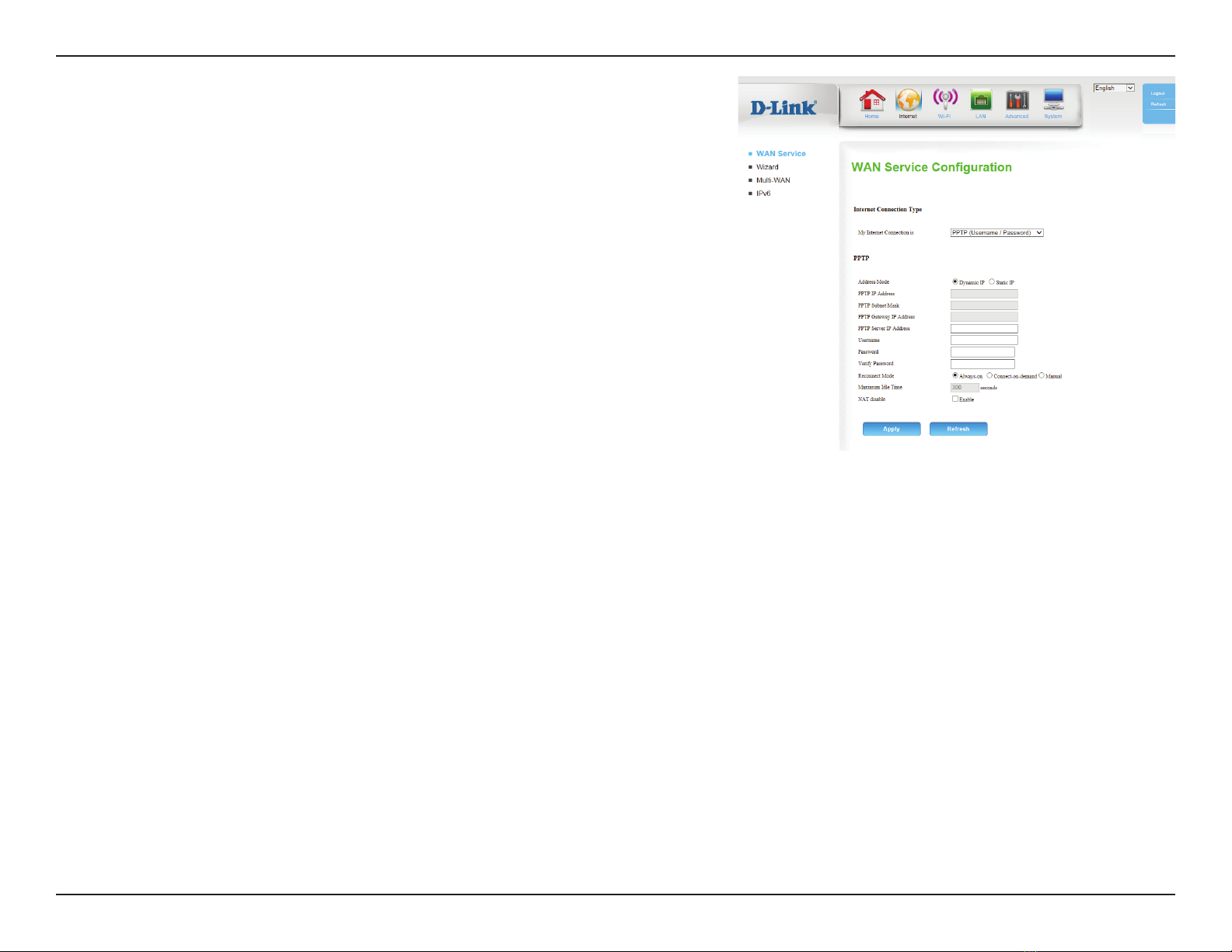

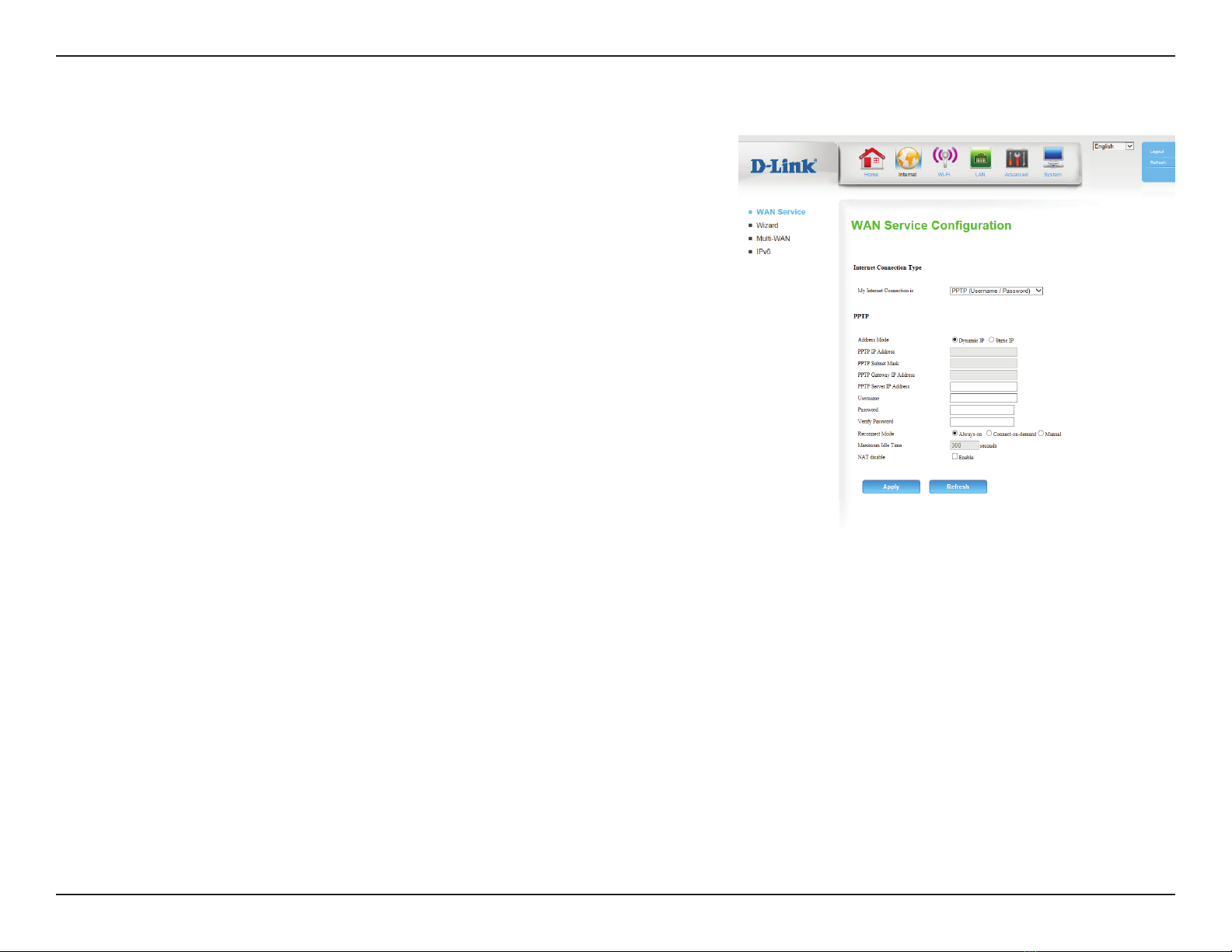

PPTP....................................................................................13
L2TP ....................................................................................15
4G LTE / 3G .......................................................................17
Wizard.....................................................................................19
Multi-WAN.............................................................................23
Multi-WAN Conguration ................................................24
4G LTE / 3G failover........................................................24
Static IP Address Failover ............................................25
Dynamic IP Failover.......................................................26
PPPoE Failover.................................................................27
IPv6 ..........................................................................................28
Link-local Only ................................................................28
Static IPv6 .........................................................................29
Autoconguration (SLAAC/DHCPv6)......................30
PPPoE .................................................................................31
PPPoE .................................................................................32
Wi-Fi.................................................................................................33
Device List .............................................................................33
Wi-Fi Settings .......................................................................33
WPS..........................................................................................35
Wi-Fi Advanced....................................................................37
LAN ..................................................................................................39
Device List .............................................................................39
LAN Settings.........................................................................39
DHCP .......................................................................................40
Advanced ......................................................................................41
DNS ..........................................................................................41
Applications..........................................................................42
DMZ .........................................................................................43
Virtual Server........................................................................44
URL Filter................................................................................45
Routing...................................................................................46
QoS...........................................................................................47
MAC Address Filter .............................................................48
Table of Contents

iiiD-Link DWR-922 User Manual
Table of Contents
Outbound Filter...................................................................49
Inbound Filter ......................................................................50
SNMP.......................................................................................51
Advanced Network ............................................................52
Network Scan.......................................................................53
System ............................................................................................54
Time Settings .......................................................................54
Administration.....................................................................55
Reboot & Reset ....................................................................56
Firmware Upgrade..............................................................57
System Logs..........................................................................58
Schedules ..............................................................................59
Add New Rule..................................................................59
Connection Reset ...............................................................60
Connect a Wireless Client to your Router ......................61
WPS Button...................................................................................61
Windows® 10................................................................................62
Windows® 8...................................................................................64
WPA/WPA2 ............................................................................64
Windows® 7...................................................................................66
WPA/WPA2 ............................................................................66
WPS..........................................................................................69
Windows Vista®............................................................................73
WPA/WPA2 ............................................................................74
Windows® XP................................................................................76
WPA/WPA2 ............................................................................77
Troubleshooting ..............................................................79
Wireless Basics .................................................................83
What is Wireless?.........................................................................84
Tips...................................................................................................86
Wireless Modes............................................................................87
Networking Basics...........................................................88
Check your IP address...............................................................88
Statically Assign an IP address...............................................89
Wireless Security ............................................................90
What is WPA? ...................................................................90
Technical Specications ..................................................91
Regulatory Information ..................................................92

1D-Link DWR-922 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
System Requirements
* Subject to services and service terms available from your carrier.
• A compatible SIM/UICC card with service.*
• Computer with Windows 10/8/7/Vista/XP, Mac OS 10.3 or above, or Linux-based operating
system with a compatible network adapter.
• Java-enabled browser such as Internet Explorer 9, Safari 7, Chrome 28, or Firefox 23 or above
(for conguration).
Power Adapter
DWR-922 4G LTE Router with Presinstalled SIM/UICC
3G/4G Antennas
RJ-45 Cable

2D-Link DWR-922 User Manual
Section 1 - Product Overview
Introduction
D-Link’s DWR-922 4G LTE Router allows you to access mobile broadband networks from anywhere. Once connected, you
can check e-mail, surf the web, and stream media. Use your carrier’s SIM/UICC card to share your 3G/4G Internet connection
through a secure wireless network or by using any of the four 10/100 Ethernet ports.
The DWR-922 lets you connect to your 3G/4G mobile connection with fast downlink speeds of up to 100 Mbps and
uplink speeds up to 50 Mbps, giving you the speed to ensure fast, responsive Internet access. Surf the web with ease and
stream music and video over the Internet to your PCs and mobile devices.
The DWR-922 utilizes dual-active rewalls (SPI and NAT) to prevent potential attacks across the Internet. Industry standard
WPA/WPA2 wireless encryption keeps your wireless network secure and your trac safe, allowing you to share your 3G/4G
connection without worrying about unauthorized users accessing your network.
The DWR-922 can be installed quickly and easily almost anywhere. It can be congured through almost any web browser
without the need for special software. This router makes it possible to stay connected, even when conventional broadband
services are unavailable.

3D-Link DWR-922 User Manual
Section 1 - Product Overview
Hardware Overview

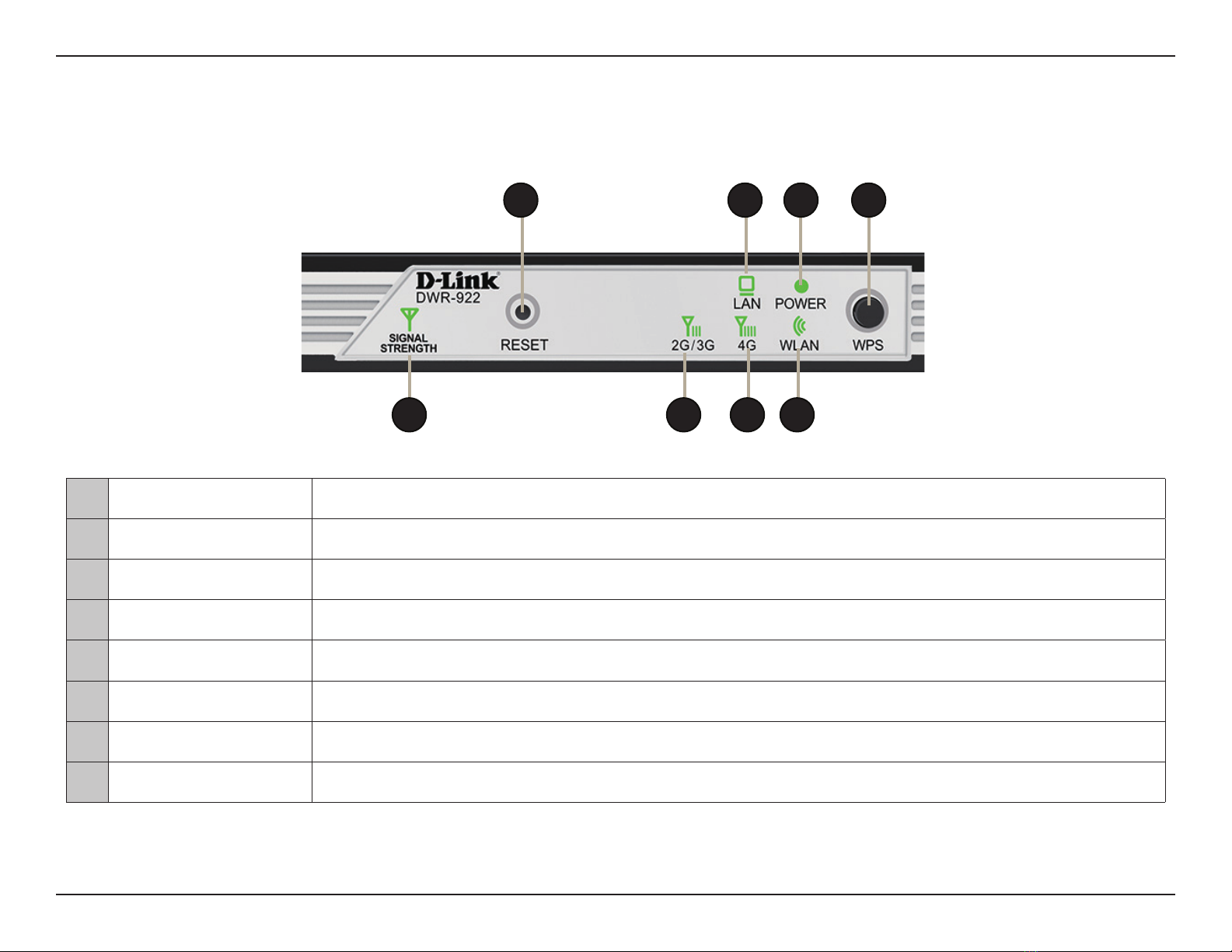

Front View
1 Reset Button Press this button with an unfolded paperclip and hold for ten seconds to reset the device.
2 LAN LED Will be lit if an Ethernet connection is established, and will blink when data is being transferred.
3 Power LED Will be lit if the device is powered on and working.
4 WPS Button Press this button to initiate a new WPS connection. See WPS Button on page 61 for details.
5 Signal Strength LED Will blink red if there is no SIM card or no signal. Solid red, amber, or green indicates the signal strength.
6 2G/3G LED Will be lit if a 2G or 3G connection is established, and will blink when data is being transferred.
7 4G LED Will be lit if a 4G LTE connection is established, and will blink when data is being transferred.
8 WLAN LED Will be lit if the wireless function is enabled, and will blink when wireless data is being transferred.
1 4
5 6 87
2 3

4D-Link DWR-922 User Manual
Section 1 - Product Overview
1 Ethernet LAN Ports For connection to a network-enabled desktop or notebook computer.
2Ethernet WAN Port For connection to a DSL/cable modem or router.
3 SIM Card Slot Accepts a standard mini-SIM/UICC card for 3G/4G LTE connectivity.
4 Power Connector Connects to the included power adapter.
5 Power Button Turns the device on or o.

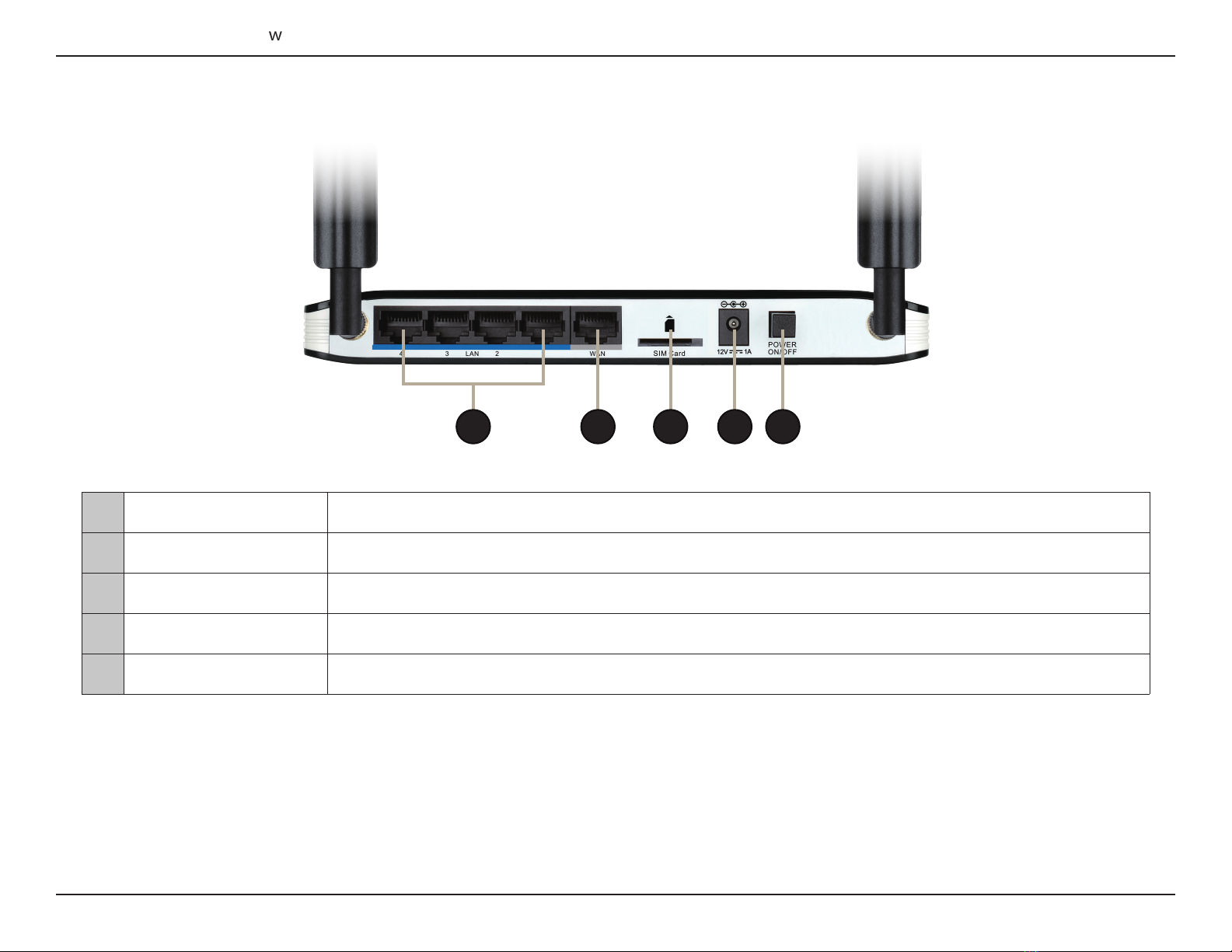

Back View
1 4 52 3

5D-Link DWR-922 User Manual
Section 2 - Installation
Before You Begin
Installation
This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area
such as a closet, cabinet, or in an attic or garage.
Ensure that your DWR-922 4G LTE Router is disconnected and powered off before performing the steps below..
1. Verify that your SIM/UICC card is installed and has been activated by your carrier.
Caution: Always unplug/power down the router before installing or removing the SIM/UICC card. Never insert or remove the SIM/UICC card while
the router is in use.
2. Attach the included antennas to the back of the router, screwing them in clockwise. Arrange them so that they point upward.
3. Connect the power adapter to the socket on the back panel of your DWR-922. Plug the other end of the power adapter into a wall outlet or
power strip. Make sure the power button is in the“On” position.
a. The Power LED will light up to indicate that power is being supplied to the router and the router is turned on.
b. The LEDs on the front panel will ash on and o as the DWR-922 Mobile Router performs initialization and Internet connection processes.
c. After a few moments, if a connection has been established, the following LEDs will turn solid green: Power, Signal Strength, WLAN, LAN (if
connected), and either 2G/3G or 4G.
Note: By default, the DWR-922 uses the mobile network as the sole Internet connection. If you wish to use your mobile connection as a backup
to a wired connection, or you wish to use a wired connection exclusively, you must use the Optional Advanced Setup procedure.
4. Connect via Wi-Fi using the SSID and password printed on the bottom of the router, or through Ethernet via one of the LAN ports on
the back of your DWR-922.

6D-Link DWR-922 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DWR-922 can be accessed using a wireless connection from anywhere within the operating range of your wireless network. Keep in mind that
the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range of the wireless
signal. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce. The key to maximizing
the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can reduce your adapter’s
range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall
or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as
glass, metal, brick, insulation, concrete, and water can aect wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal
doors, and aluminum studs may also have a negative eect on range.
4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base
transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling
fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.
