D-Link AC3150 User manual

Version 1.00 | 2015/09/03
User Manual
DIR-885L
AC3150 Ultra Wi Router

iD-Link DIR-885L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2015 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Preface
Revision Date Description
1.00 July 2, 2015 Initial release
ErP Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network Standby
mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energywhen it is not needed.
Network Standby: 8.73 watts
Switched O: 0.05 watts

iiD-Link DIR-885L User Manual
Table of Contents
Preface................................................................................. i
Product Overview.............................................................. 1
Package Contents.........................................................................1
System Requirements.................................................................2
Introduction ................................................................................... 3
Features............................................................................................4
Antenna Setup...............................................................................5
Hardware Overview..................................................................... 6
Connections ...........................................................................6
LEDs........................................................................................... 7
Installation ......................................................................... 8
Before you Begin...........................................................................8
Wireless Installation Considerations......................................9
Manual Setup...............................................................................10
Getting Started................................................................12
Setup Wizard ................................................................................13
QRS Mobile App..........................................................................18
mydlink SharePort......................................................................23
Using the mydlink SharePort™ app for iPad®,
iPhone®, and iPod touch® ................................................23
mydlink SharePort™ Application Setup ................23
Main Menu .......................................................................28
Documents.......................................................................29
Pictures..............................................................................31
Videos.................................................................................33
Music ..................................................................................35
Folders ...............................................................................38
Favorites............................................................................41
Using the mydlink SharePort™ app for Android™...42
mydlink SharePort™ Application Setup ................42
Main Menu .......................................................................47
Documents.......................................................................48
Pictures..............................................................................50
Videos.................................................................................52
Music ..................................................................................54
Folders ...............................................................................57
Favorites............................................................................61
Conguration...................................................................62
Home ..............................................................................................63
Internet...................................................................................63
DIR-885L.................................................................................64
Connected Clients..............................................................65
USB Device............................................................................66
Settings ..........................................................................................67
Wizard.....................................................................................67
Internet...................................................................................67
IPv6 .....................................................................................76
Wireless ..................................................................................91
Guest Zone.......................................................................93
Network..................................................................................94
SharePort ...............................................................................96
Table of Contents

iiiD-Link DIR-885L User Manual
Table of Contents
Create User.......................................................................97
mydlink...................................................................................98
Features..........................................................................................99
QoS Engine............................................................................99
Firewall Settings............................................................... 100
IPv4/IPv6 Rules ............................................................ 102
Port Forwarding ............................................................... 103
Virtual Server................................................................ 104
Website Filter..................................................................... 105
Static Routes...................................................................... 106
IPv6 .................................................................................. 107
Dynamic DNS .................................................................... 108
IPv6 Host........................................................................ 109
Management............................................................................. 110
Time & Schedule .............................................................. 110
Time................................................................................. 110
Schedule ........................................................................ 111
System Log......................................................................... 112
Admin .................................................................................. 113
System ............................................................................ 114
Upgrade .............................................................................. 115
Statistics.............................................................................. 116
Connect a Wireless Client to your Router ....................117
WPS Button................................................................................ 117
Windows® 8................................................................................ 118
WPA/WPA2 ......................................................................... 118
Windows® 7................................................................................ 120
WPA/WPA2 ......................................................................... 120
WPS....................................................................................... 123
Windows Vista®......................................................................... 127
WPA/WPA2 ......................................................................... 128
Windows® XP............................................................................. 130
WPA/WPA2 ......................................................................... 131
Troubleshooting ............................................................133
Wireless Basics ...............................................................137
What is Wireless?...................................................................... 138
Tips................................................................................................ 140
Wireless Modes......................................................................... 141
Networking Basics.........................................................142
Check your IP address............................................................ 142
Statically Assign an IP address............................................ 143
Wireless Security ......................................................... 144
What is WPA? ................................................................ 144
Technical Specications ................................................145
Regulatory Information ................................................146

1D-Link DIR-885L User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-885L will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-885L
Ethernet Cable
Power Adapter
Wi-Fi Conguration Card
Quick Installation Guide
Wi-Fi Conguration Note

2D-Link DIR-885L User Manual
Section 1 - Product Overview
Network Requirements • An Ethernet-based cable or DSL modem
• 802.11ac, n, g, b, or a wireless or Ethernet port
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 9 or higher
• Firefox 20 or higher
• Safari 5.1 or higher
• Chrome 25 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
mydlink Requirements
• iPhone/iPad/iPod touch (iOS 6.0 or higher)
• Android device (2.3 or higher)
• Computer with the following browser requirements:
• Internet Explorer 9 or higher
• Firefox 20 or higher
• Safari 5.1 or higher
• Chrome 25 or higher
iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.
System Requirements

3D-Link DIR-885L User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-885L AC3150 UltraWi Router uses advanced AC beamforming technology to maximize the speed and range of
your wireless signal to signicantly outperform 802.11n and other 802.11ac devices. It also comes equipped with four Gigabit
Ethernet ports to provide speeds up to 10x faster than standard 10/100 ports.With the addition of Advanced Quality of Service
(QoS), data streams are separated, which helps organize and prioritize your network trac so your video streaming, gaming,
and VoIP calls run smoother over both your wired and wireless network.
The DIR-885L supports a host of cloud features including QRS Mobile, which allows you to quickly set up and congure the
router using a mobile application. You can set up your router right from your sofa, without the need for a PC.
The DIR-885L is also mydlink-enabled, which gives you access to your home network no matter where you go. Now you can
monitor and manage your home network right from your laptop, iPhone®, iPad®, or Android™ device. mydlink-enabled routers
can be congured to send an email to keep you informed anywhere, anytime when new devices are connecting to your network
or unwanted access is detected. Monitor in real-time websites that are being visited with recent browser history displayed on
the mydlink™ Lite app – which is great for parents.
SharePort technology lets you take advantage of the USB 3.0 port found on the back of your DIR-885L. Plug in a USB storage
device and you can use the mydlink SharePort™ app for iPad®, iPhone®, iPod touch®, and Android™ device to access les, stream
videos, view photos, or listen to music on your laptop or mobile devices.
The DIR-885L AC3150 Ultra Wi Router provides incredible speeds, smart antenna technology, fast ports, cloud features, and
advanced security features. It also features an innovative design and easy installation options.

4D-Link DIR-885L User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DIR-885L introduces Smart Connect, a new D-Link feature which when
combined with an additional 5 Ghz antenna can provide up to a full 3150 Mbps*wireless connection with
concurrent 801.11ac and 802.11n wireless clients . It also operates on both the 2.4 GHz and 5 GHz bands to
allow separation of trac so users can participate in high-bandwidth activities, such as video streaming, online
gaming, and real-time audio, without aecting low-priority trac like email and web surng.
• Cloud Features - The DIR-885L support the QRS Mobile app to setup the router using a mobile device. It is also
mydlink-enabled so you can remotely access and mange your DIR-885L from a mobile device using the mydlink
Lite app. The mydlink SharePort™ app can be used to share les, stream videos, view photos, and play music.
SharePort Plus lets you share a printer.
• Compatible with 802.11n/g/b/a Devices -The DIR-885L is still fully compatible with the 802.11n, IEEE 802.11g
and 802.11a standards so it can connect with existing networking devices as well as PCI, USB, and CardBus
network adapters.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC address, URL, and/or domain name.
• Scheduling - The Firewall, wireless, and port forwarding features can be scheduled to be active on
certain days, or for a duration of a set number of hours.
• Secure Multiple/Concurrent Sessions - The DIR-885L supports VPN pass-through, allowing users
behind the DIR-885L to securely access corporate networks via multiple and concurrent IPSec and
PPTP sessions.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DIR-885L lets you control
what information is accessible to those on the wireless network, whether from the Internet, or from your
company’s server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features

5D-Link DIR-885L User Manual
Section 1 - Product Overview

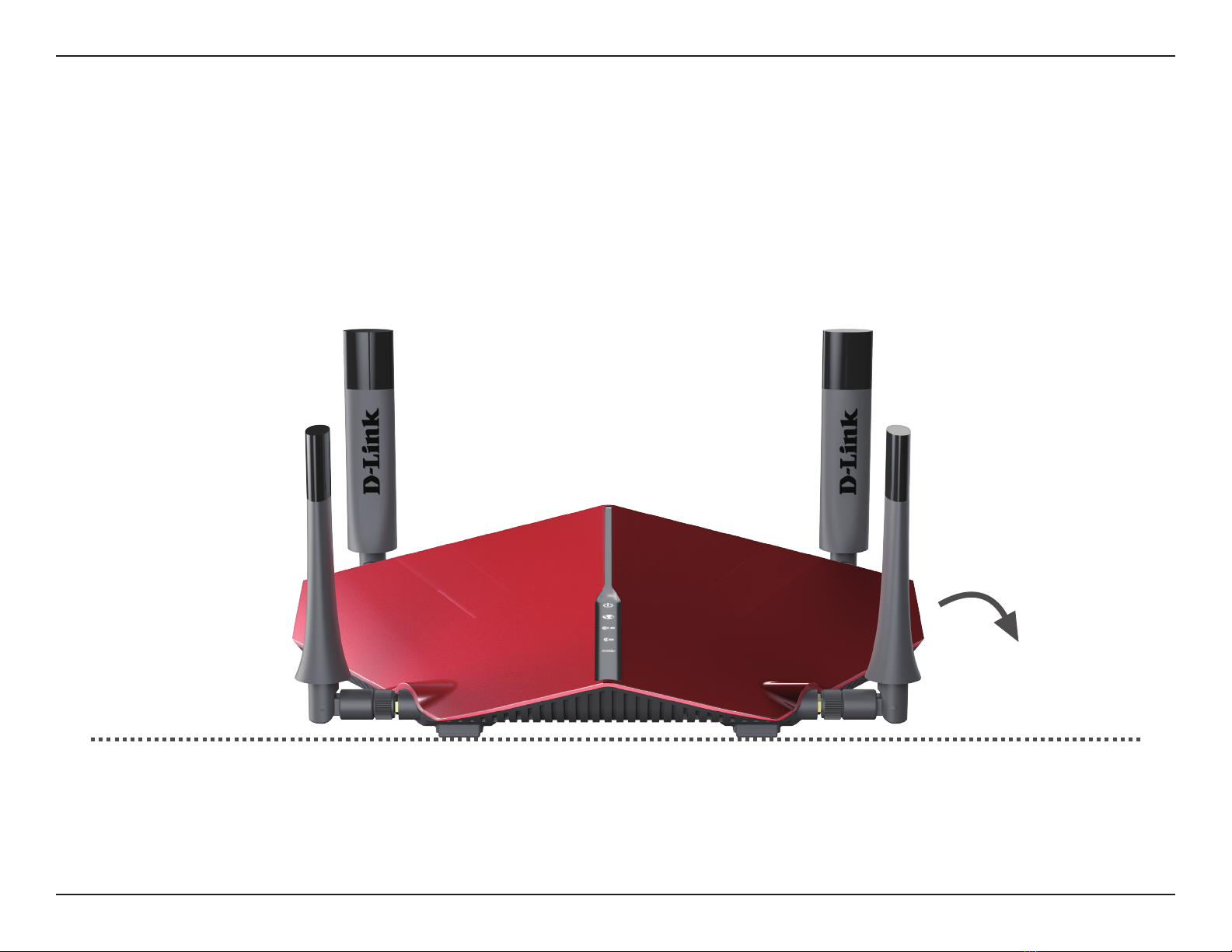

Antenna Setup
The DIR-885L is designed to give you the fastest, most stable network connection possible. In order to maximize performance,
orient the antennas at an angle, pointing outward and away from the base unit.
NOTE: Attach the antennas to the router before powering it on.
45°

6D-Link DIR-885L User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1
1 Mode Switch Select between Router and Extender modes. To change modes, move the switch to the desired position and
after 5 seconds the router will reboot into the desired mode. Router is the default mode.
2 Reset Button Press the button and hold for at least 10 seconds to reset the router to the factory default settings.
3 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
4 USB 3.0 Port Connect a USB ash drive to share content , or connect it to a USB printer to share it on your network.
5 Gigabit LAN Ports (1-4) Connect Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
6 Gigabit Internet Port Using an Ethernet cable, connect your broadband modem to this port.
7 Power Button Press the power button to power on and o.
8 Power Connector Connector for the supplied power adapter.
2 3 4 5 6 7 8

7D-Link DIR-885L User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1 Power LED A solid white light indicates a proper connection to the power supply. The light will be a solid orange
during boot up.
2 Internet LED A solid light indicates connection on the Internet port. If the LED is orange, the connection is good but
the router cannot connect to the Internet.
3 Wireless (2.4 GHz) LED A solid white light indicates that the 2.4 GHz wireless band is enabled.
4 Wireless (5 GHz) LED A solid white light indicates that the 5 GHz wireless band is enabled.
5 USB 3.0 LED A solid white light indicates that a USB device detected in the USB 3.0 port.
1 2 4 5 3

8D-Link DIR-885L User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in an attic or garage.
• Please congure the router with the computer that was last connected directly to your ISP's equipment; typically a
modem.
• This router only supports Internet connectivity though the wired Internet Ethernet port. If you were using a USB
connection on your computer to access the Internet before using the router, then you must turn o your modem,
disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn the modem
back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such asWinPoET,
BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.

9D-Link DIR-885L User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating
range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the
wireless signals must pass through may limit the range.Typical ranges vary depending on the types of materials and background
RF (Radio Frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.

10D-Link DIR-885L User Manual
Section 2 - Installation

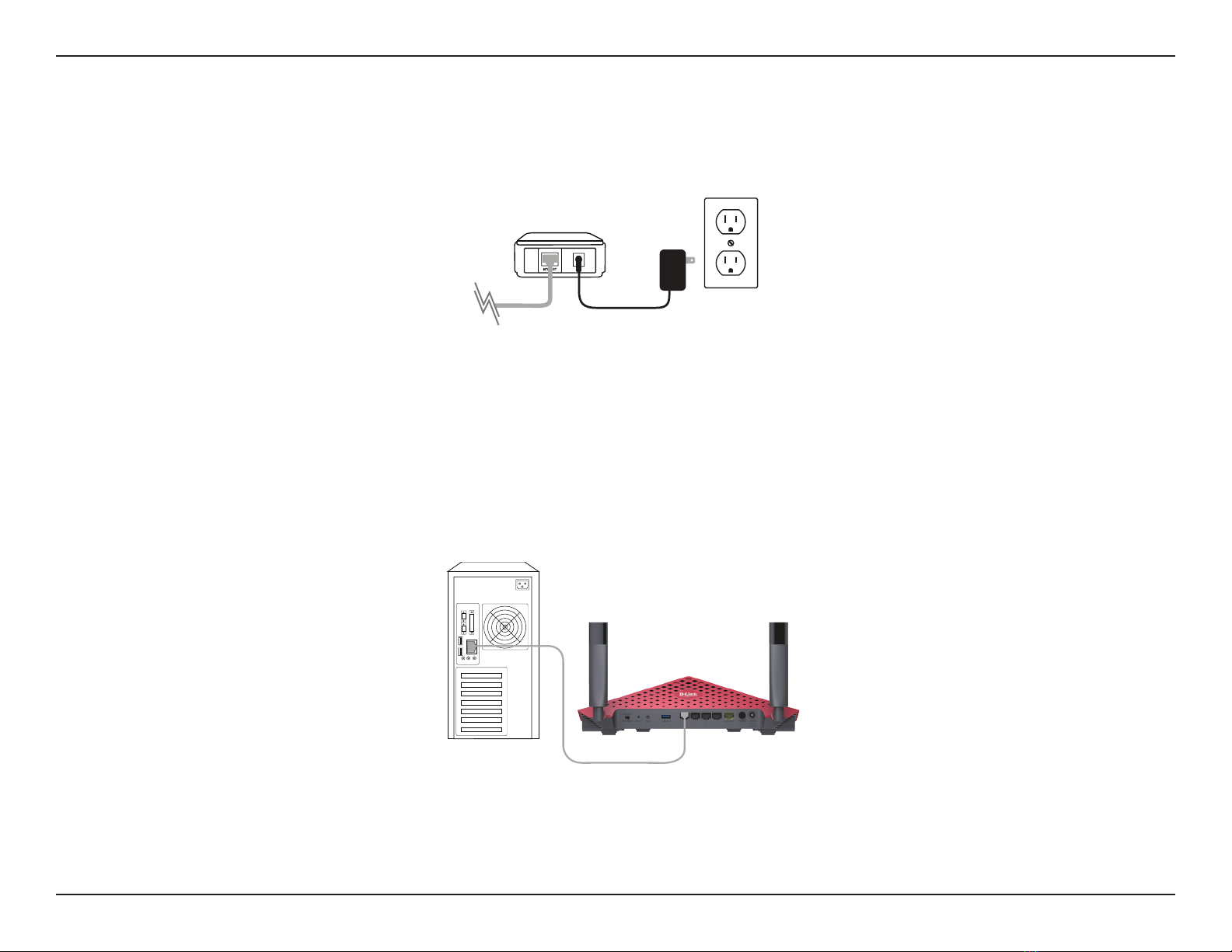

1. Turn o and unplug your cable or DSL broadband modem. This is required.
Manual Setup
2. Position your router close to your modem and a computer. Place the router in an open area of your intended
work area for better wireless coverage.
3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer.
Plug it into the LAN port labeled 1on the back of your router. The router is now connected to your computer.
Modem
4
DIR-885L
Computer

11D-Link DIR-885L User Manual
Section 2 - Installation

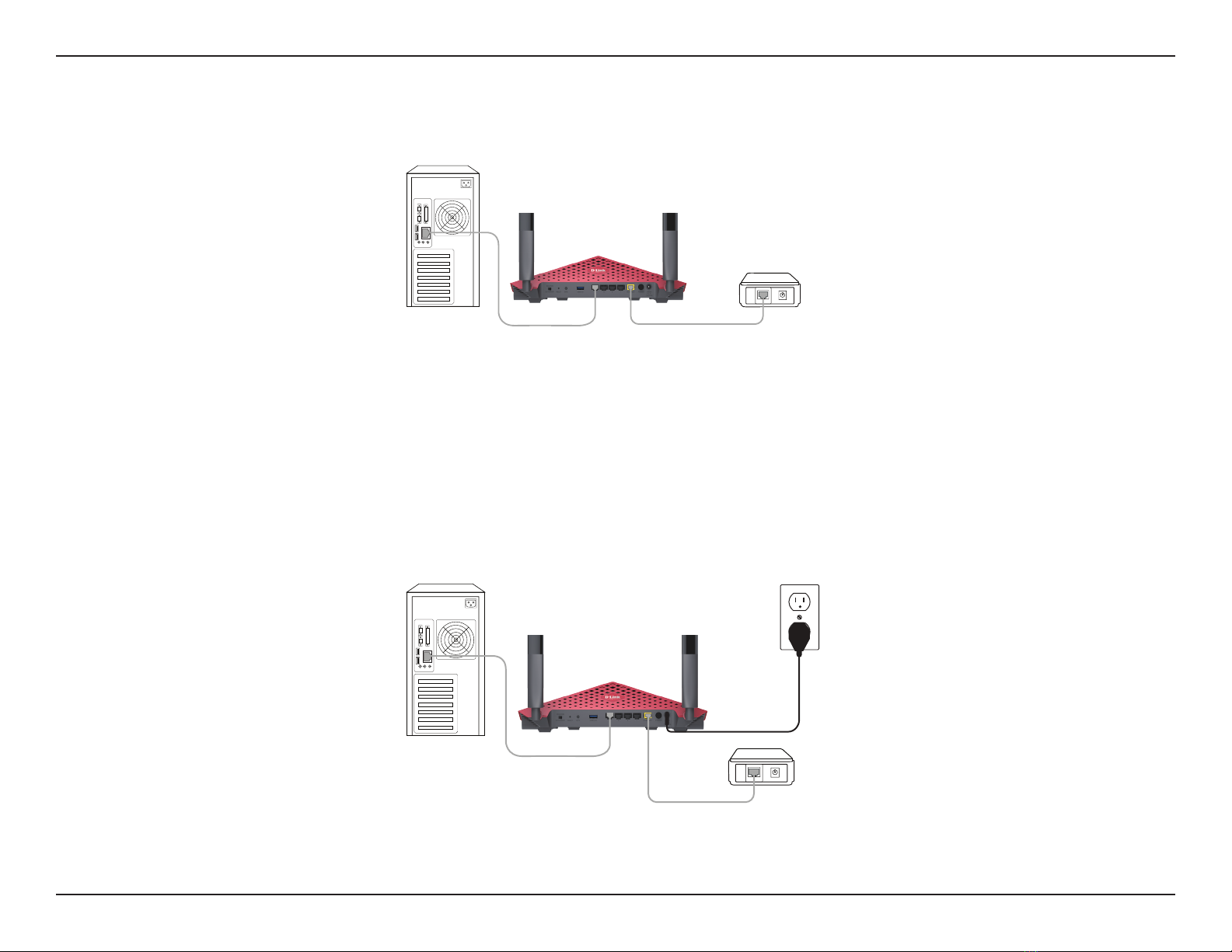

4. Plug one end of the included Ethernet cable that came with your router into the yellow port labeled INTERNET
on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adapter into the power receptor on the back of the router and then plug it into a
power outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for
the router to boot up.
Note: This unit is to be used with power supply model WA-36A12R.
7. If you are connecting to a broadband service, you may be online already and further conguration will be optional.
4
INTERNET
4
INTERNET
DIR-885L
DIR-885L
Modem
Computer
Modem
Computer

12D-Link DIR-885L User Manual
Section 3 - Getting Started
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page 13.
• QRS Mobile App - Use your iPhone, iPad, or iPod touch to congure your router. Refer to page 18.
• Manual Setup - Log into the router and manually congure your router. Refer to page 62
Getting Started

13D-Link DIR-885L User Manual
Section 3 - Getting Started

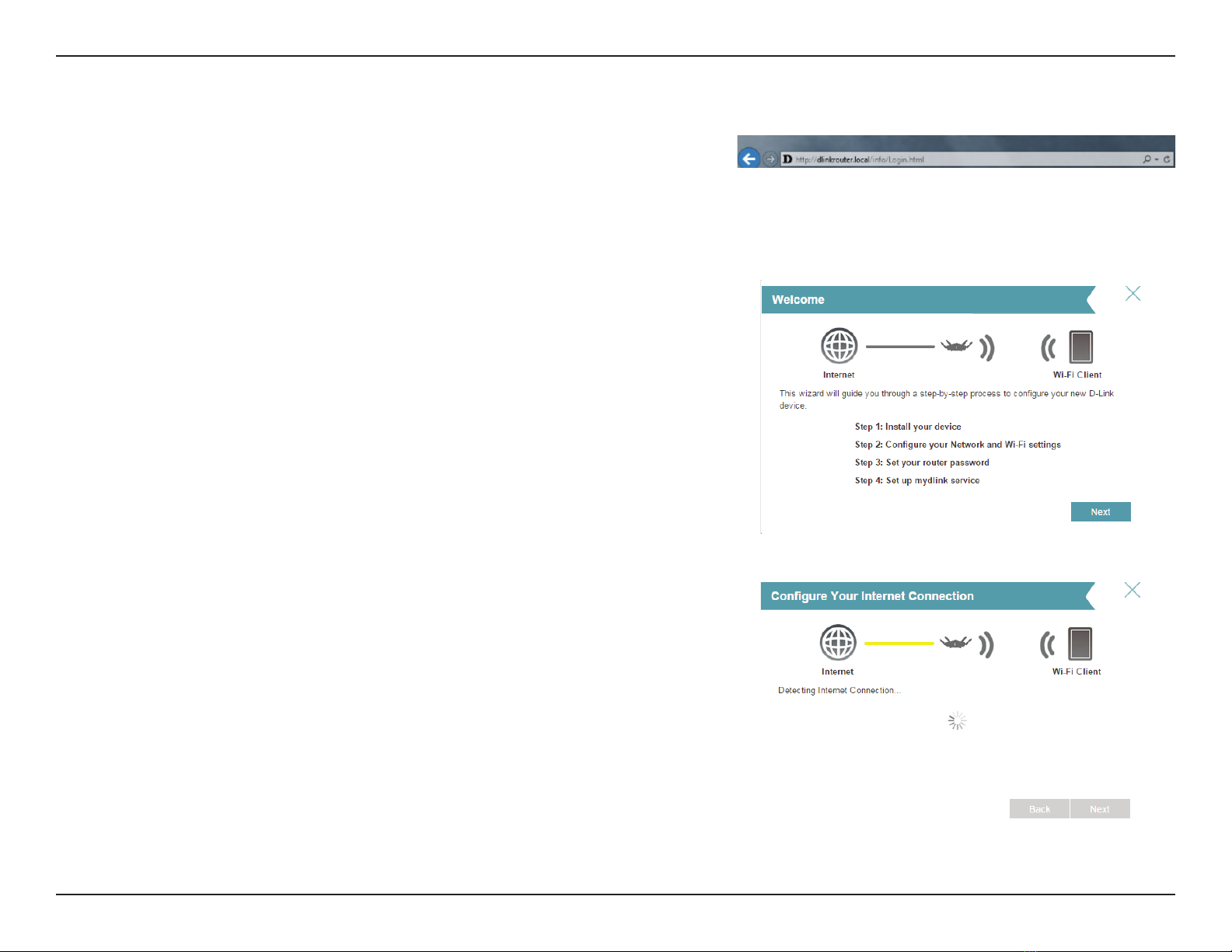

The wizard is designed to guide you through a step-by-step process to
congure your new D-Link router and connect to the Internet.
Click Next to continue.
Setup Wizard
If this is your rst time installing the router, open your web browser and
enter http://dlinkrouter.local./ in the address bar. Alternatively, enter
the IP address of the router (default: http://192.168.0.1). Please refer
to page 62.
Please wait while your router detects your Internet connection type. If
the router detects your Internet connection, you may need to enter your
ISP information such as username and password.
DIR-885L
DIR-885L

14D-Link DIR-885L User Manual
Section 3 - Getting Started

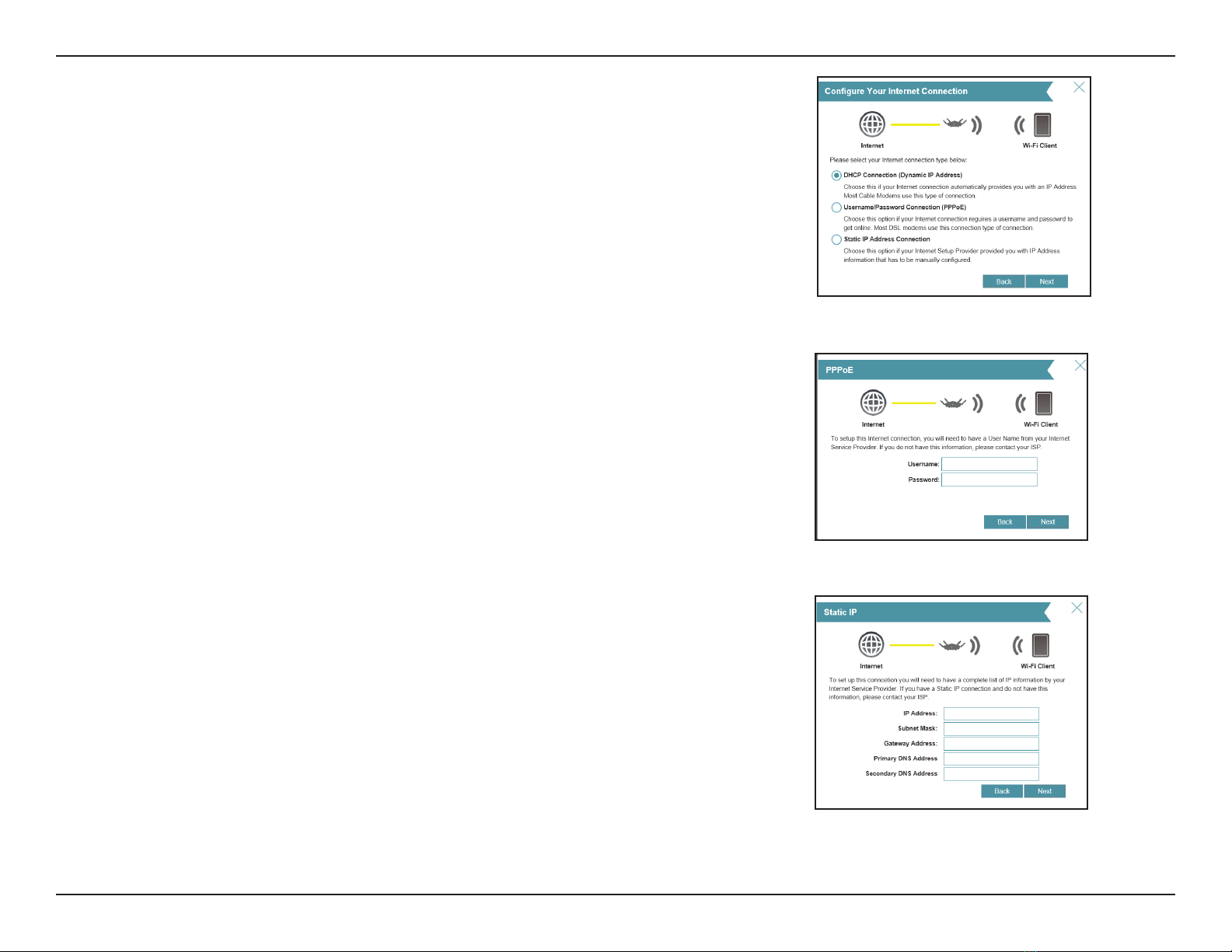

If the router does not detect a valid Internet connection, a list of
connection types to choose from will be displayed.
Select your Internet connection type (this information can be obtained
from your Internet service provider) and click Next to continue.
If the router detected or you selected PPPoE, enter your PPPoE username
and password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.
If the router detected or you selected Static, enter the IP and DNS settings
supplied by your ISP. Click Next to continue.
DIR-885L
DIR-885L
DIR-885L

15D-Link DIR-885L User Manual
Section 3 - Getting Started

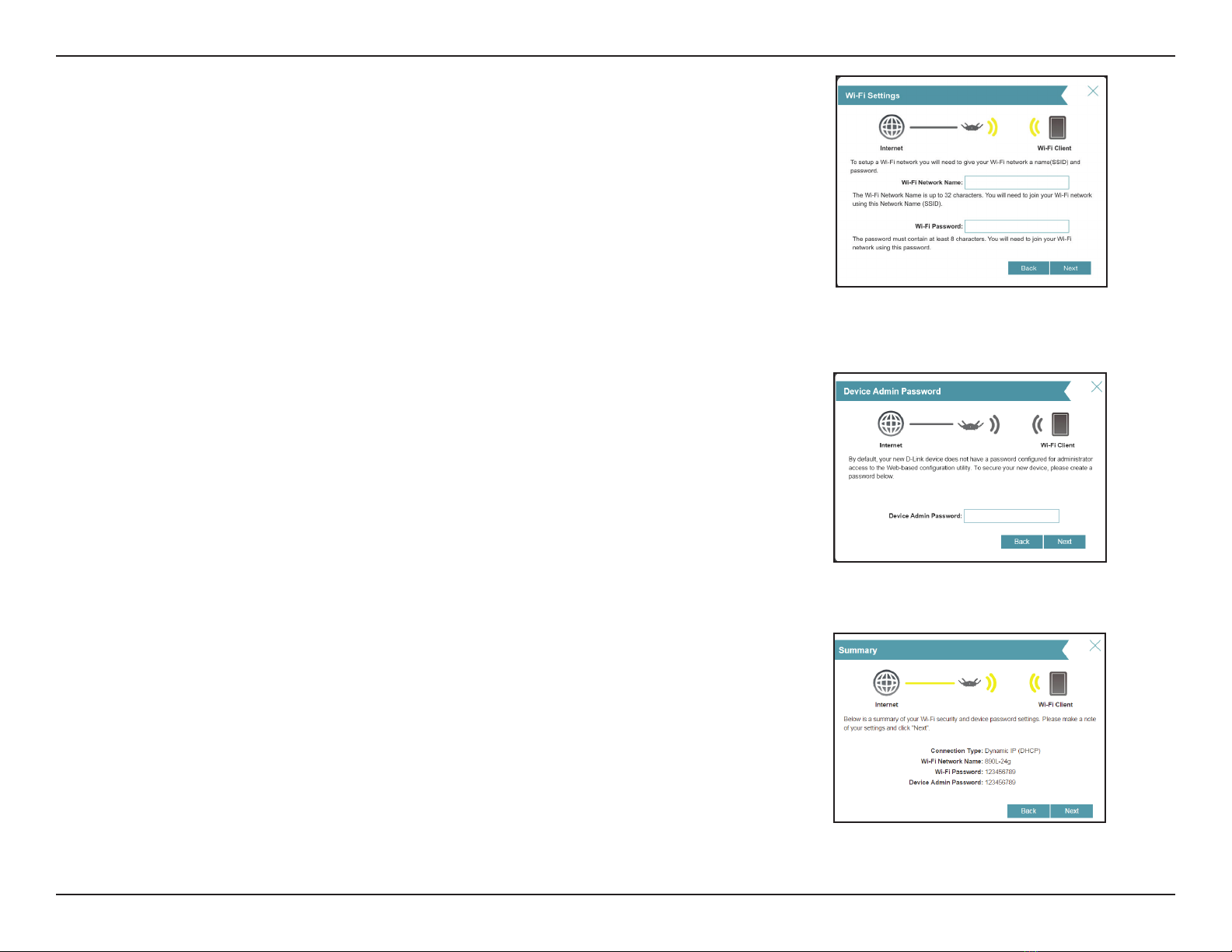

Create a Wi-Fi password (between 8-63 characters). Your wireless clients
will need to have this passphrase or key entered to be able to connect
to your wireless network.
Click Next to continue.
In order to secure the router, please enter a new password. You will be
prompted for this password every time you want to use the router’s web
conguration utility. Click Next to continue.
The Summary window will display your settings. Click Next if you are
satised, or click Back to make changes to them.
DIR-885L
DIR-885L
DIR-885L

16D-Link DIR-885L User Manual
Section 3 - Getting Started

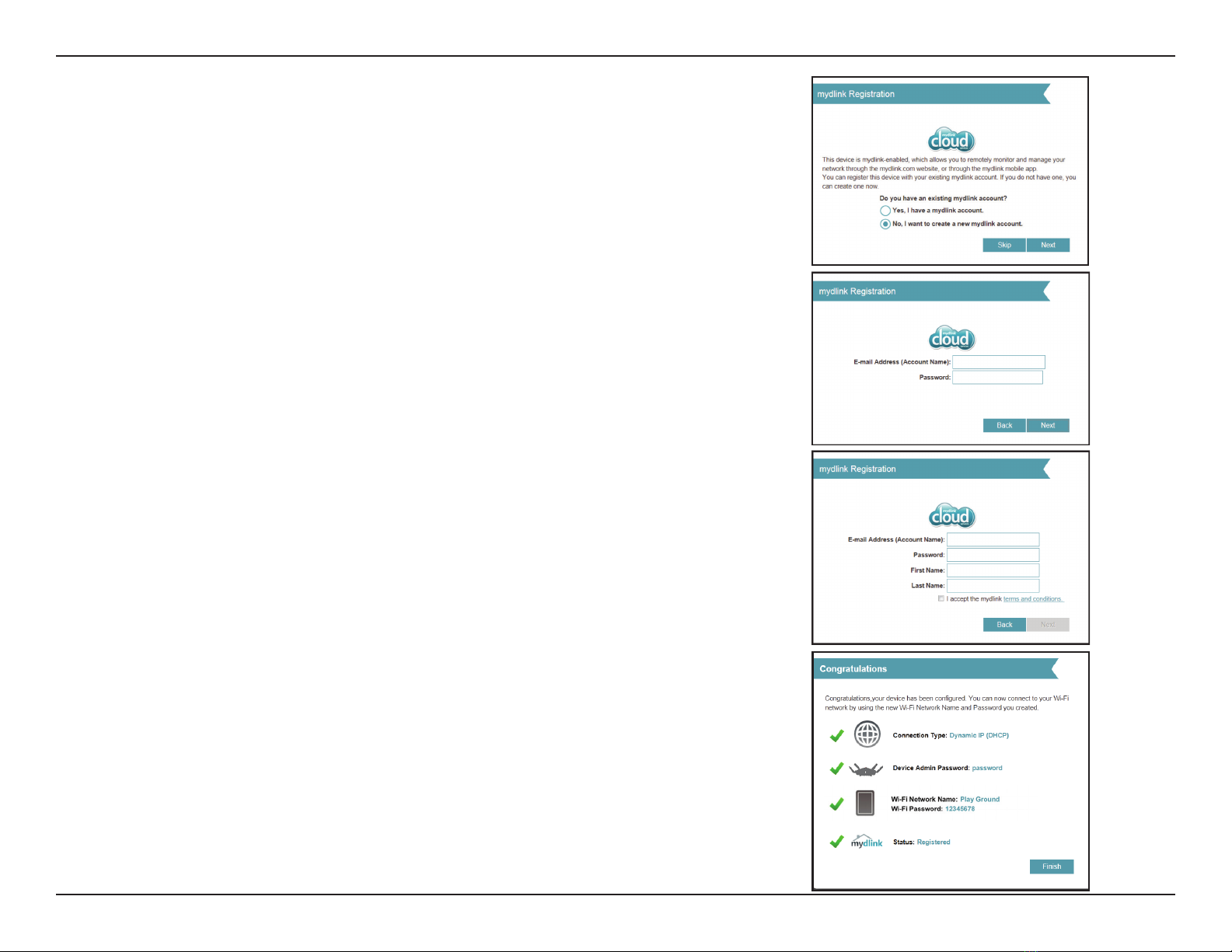

To use the mydlink service (mydlink.com or the mydlink Lite app), you
must have an account. Select Ye s if you have a mydlink account already,
or No if you want to create one. Click Next to continue.
If you do not want to register at this time, click Skip.
If you clicked Yes , enter your mydlink account name (email address) and
password. Click Next to register your mydlink account with the router.
If you clicked No, ll out the requested information and click Next to
create your mydlink account.
At the end of the wizard, you will be presented with a nal summary of
your settings. Click Finish to close the wizard.
