NetComm NF10WV User manual
QUICK START GUIDE
NetCommWireless
NF10WV
VDSL / ADSL N300 WiFi
Modem Router with VoIP
WELCOME
Thank you for choosing a NetComm Wireless VDSL / ADSL N300 WiFi Modem Router with
VoIP (NF10WV). This guide will help you set up, connect and congure your device quickly
and easily.

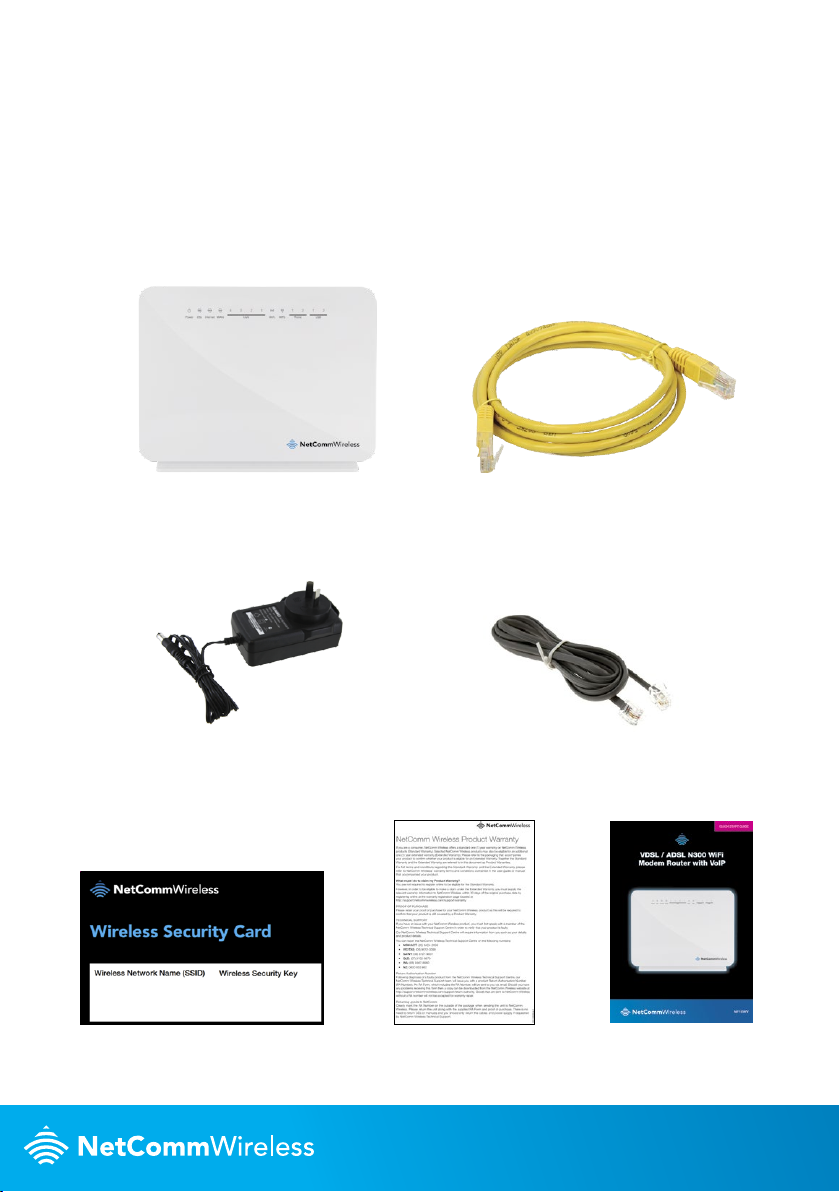

PACKAGE CONTENTS
This package includes:
2.4GHz - 2.4GHz -
VDSL/ADSL N300 WiFi
Modem Router with VoIP
(NF10WV)
WiFi security card
RJ45
Ethernet cable
Power supply (12V/2A)
Warranty card Quick Start Guide
RJ11 Telephone cable
VDSL / ADSL N300 WiFi Modem Router with VoIP - NF10WV
PRE-REQUISITES
If you are using a voice service on the same line as your DSL service, you will need a DSL line
lter for each handset on the line. If you have a Naked DSL service, line lters are not required.
INSTALLING THE DEVICE
1. Connect the supplied RJ11 cable to the “modem” port of your DSL line lter and then
connect the other end to the DSL port on the back of the NF10WV. Connect the DSL line
lter (not included) to the wall socket and then connect your handset to the “phone” port
of the lter. If you have a Naked DSL service, simply connect the included RJ11 cable
from the DSL port of the NF10WV to the wall socket. If you have a VoIP service, connect
your handset to one of the Tel ports on the back of the router.
2. Connect the supplied RJ45 Ethernet cable from one of the yellow Ethernet ports (1-4) on
the back of the NF10WV to your computer.
3. Connect the included power adapter to the Power jack of the NF10WV and then plug it into
an available wall socket. Press the ON/OFF button to power the router on. The Power light
illuminates in red. When the NF10WV has nished booting up, the Power light turns green.
LOGGING IN TO THE WEB INTERFACE
1. Open a web browser (such as Internet Explorer®, Mozilla Firefox® or Google Chrome™),
type http://192.168.20.1 into the address bar and press Enter.
2. At the login screen, type admin into both the Username and the Password elds and
click OK.
CONFIGURING THE DEVICE FOR USE WITH AN
INTERNET SERVICE
Click on the Basic Setup menu item on the left side of the screen.
ADSL
a. Select ADSL and click the Next button.
b. Select either the PPPoE or PPPoA for your internet connection as specied by your
Internet Service Provider (ISP). Click the Next button.
VDSL / ADSL N300 WiFi Modem Router with VoIP - NF10WV
c. In the User ID and Password elds, enter the username and password assigned to you
by your Internet Service Provider (ISP). Click the Finish button.
The account settings are saved and the NF10WV connects to the internet.
VDSL
a. Select VDSL and click the Next button.
b. Select the WAN mode for your internet connection as specied by your Internet Service
Provider (ISP). Click the Next button.
For New Zealand customers, the requirement for VDSL is VLAN tag 10, if you are not sure of
the tagging requirement for your connection, please contact your ISP.
In the User ID and Password elds, enter the username and password assigned to you by
your Internet Service Provider (ISP).
Click the Finish button when you have entered the required details.
Ethernet WAN
a. Connect an RJ45 Ethernet cable to the WAN port on the NF10WV. Connect the other end
of the cable to your WAN service.
b. Select Ethernet WAN then click the Next button.
c. Select the WAN mode for your internet connection as specied by your Internet Service
Provider (ISP). Click the Next button.
PPP over Ethernet (PPPoE)
In the User ID and Password elds, enter the username and password assigned to you
by your Internet Service Provider (ISP). Click the Finish button when you have entered the
required details.
VDSL / ADSL N300 WiFi Modem Router with VoIP - NF10WV
IP over Ethernet (IPoE)
If your ISP has supplied a static IP address, select Use the following Static IP address
and enter the details, otherwise select Obtain an IP address automatically. Click the Next
button.
The settings are displayed in a summary. Click Apply/Save to save them.
CONNECTING WIRELESS DEVICES
The default settings of the router have the wireless function enabled so there is no
conguration necessary in order to use the wireless function, simply connect to the SSID
(network name) listed on the WiFi security card. When prompted, enter the password that
is also printed on the card.
2.4GHz - 2.4GHz -
QSG-00084 rev1

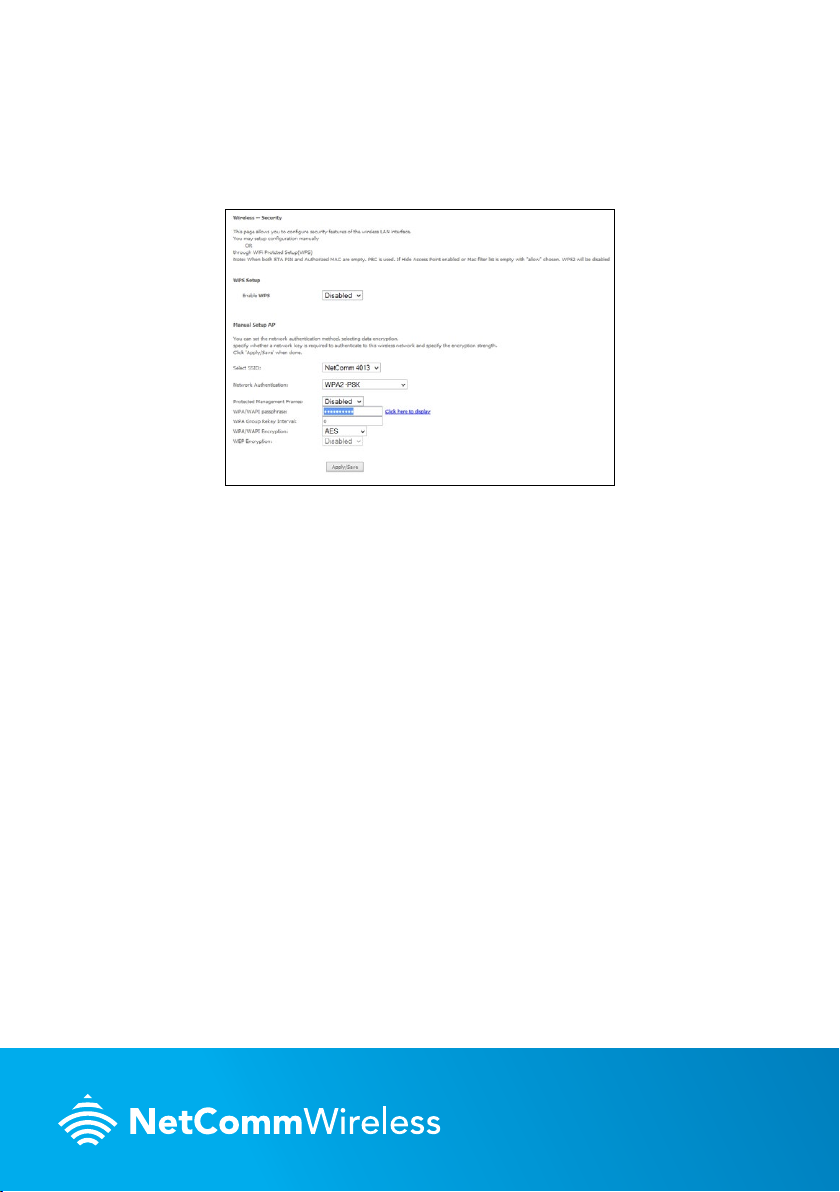

CHANGING THE WIRELESS PASSWORD
If you would like to change the wireless password to something easier to remember, follow
these steps.
1. Select the Wireless menu from the left side of the screen, then select the Security option
below it. The Wireless Security page is displayed.
2. In the WPA/WAPI passphrase eld, enter the desired password to use for the wireless
network. When choosing a password, try to ensure that it
• is unique;
• is sufciently long (at least 8 characters in length);
• uses a mix of letters, numbers and symbols;
• does not contain any personal information or common words.
3. Click the Apply/Save button.
