D-Link AirPlus DI-614+ User manual

1
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.
DI-614+
2.4GHz Wireless Router
5V DC Power Adapter
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DI-614+. 03192003
Before You Begin
1. If you purchased this router to share your high-speed Internet connection with other
computers, you must have either an Ethernet-based Cable or DSL modem with an
established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for configuring
the DI-614+ Wireless Router. The DI-614+ acts as a DHCP server and will assign
all the necessary IP address information on your network. See Appendix at the
end of this Quick Installation Guide or the Manual on the CD-ROM for setting
each network adapter to automatically obtain an IP address.
Check Your Package Contents
DI-614+ 2.4GHz Wireless Router
CD-ROM (containing Manual and Warranty)
Ethernet (CAT5 UTP/Straight Through) Cable
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.
If any of the above items are missing, please contact your reseller.
Part No. IG-BDI614+

2

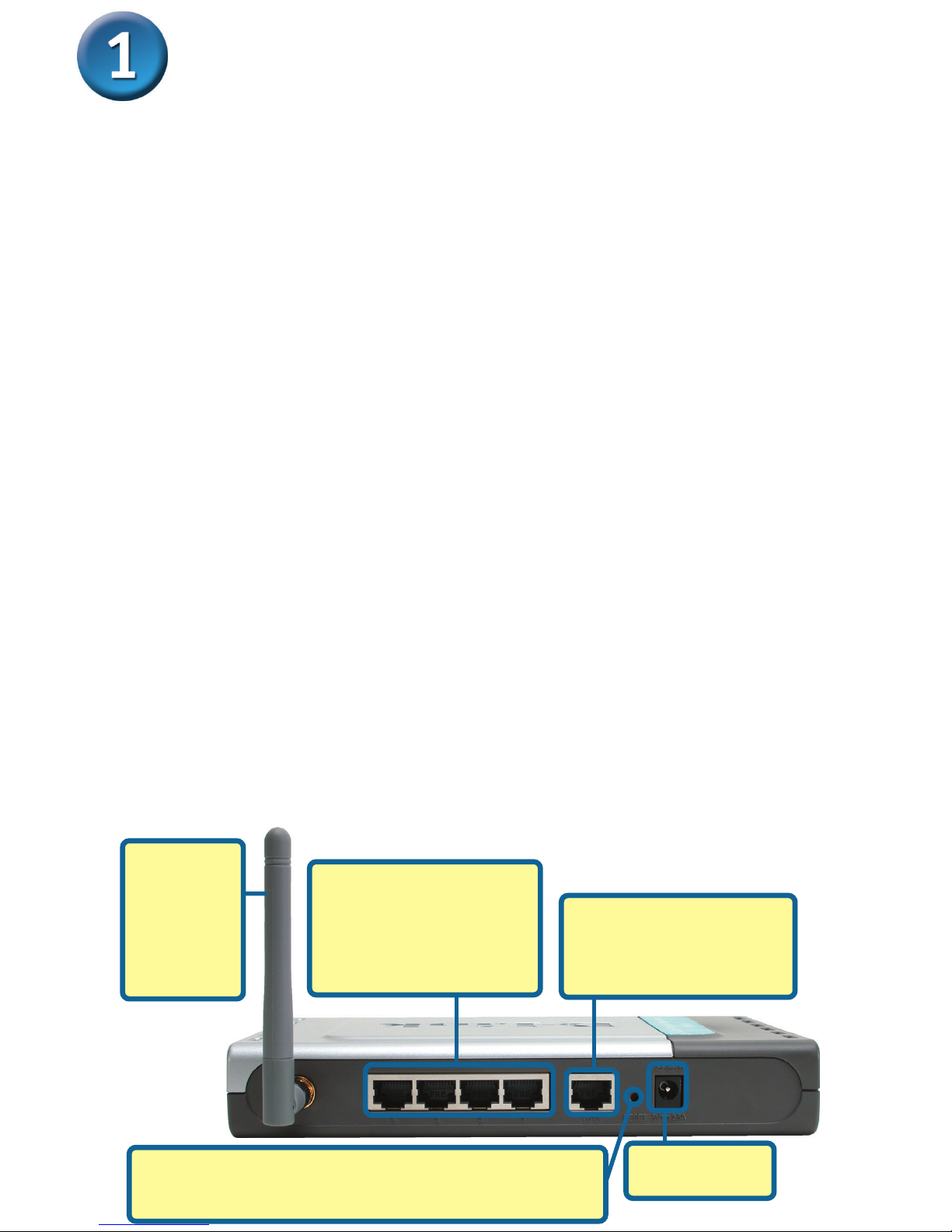

Connecting The DI-614+ Wireless Router
To Your Network
A. First, connect the power adapter to the receptor at the back panel of the
DI-614+ and then plug the other end of the power adapter to a wall outlet or
power strip. The Power LED will turn ON to indicate proper operation.
B. 1. Power off your Cable or DSL modem; some devices may not have a on/off
switch and will require you to unplug the power adapter. Now, the DI-614+
should be powered on and the Cable / DSL modem should be turned off.
2. Cable / DSL modem (Power Off) – DI-614+ (Power On)
Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL
modem. After the Ethernet cable is securely connected, power on the Cable /
DSL modem by turning on the unit or plugging in the power adapter.
3. Cable / DSL modem (Power On) – DI-614+ (Power On)
Insert the other end of the Ethernet cable to the WAN PORT on the back panel
of the DI-614+. The WAN LED light will illuminate to indicate proper connection.
If the WAN LED is not illuminated, please go back to step B1 and repeat the
instructions.
C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-614+ and an
available Ethernet port on the network adapter in the computer you will use to
configure the DI-614+. The LED light for LAN Port 1 will illuminate to indicate
proper connection. (Note: The LAN Ports on the DI-614+ are Auto-MDI/MDIX.
Meaning you can use a straight-through or crossover-Ethernet cable to the LAN
Ports.)
D. Computers equipped with 802.11b wireless adapters will be able to connect to
the DI-614+. The DWL-650+ AirPlus Wireless Cardbus Adapter and the DWL-
520+ AirPlus Wireless PCI Adapter will be able to connect out of the box with
the router using their default wireless settings.
B. WAN PORT
This is for the connection
of an Ethernet cable to the
Cable or DSL modem
D. Antennas
Used to
wirelessly
connect to
802.11b
adapters.
C. LAN PORTS
These are the
connections for Ethernet
cables to Ethernet
enabled computers.
A. Receptor for
Power Adapter.
Reset Button
Pressing this button restores the Router to its original
factory default settings.

3

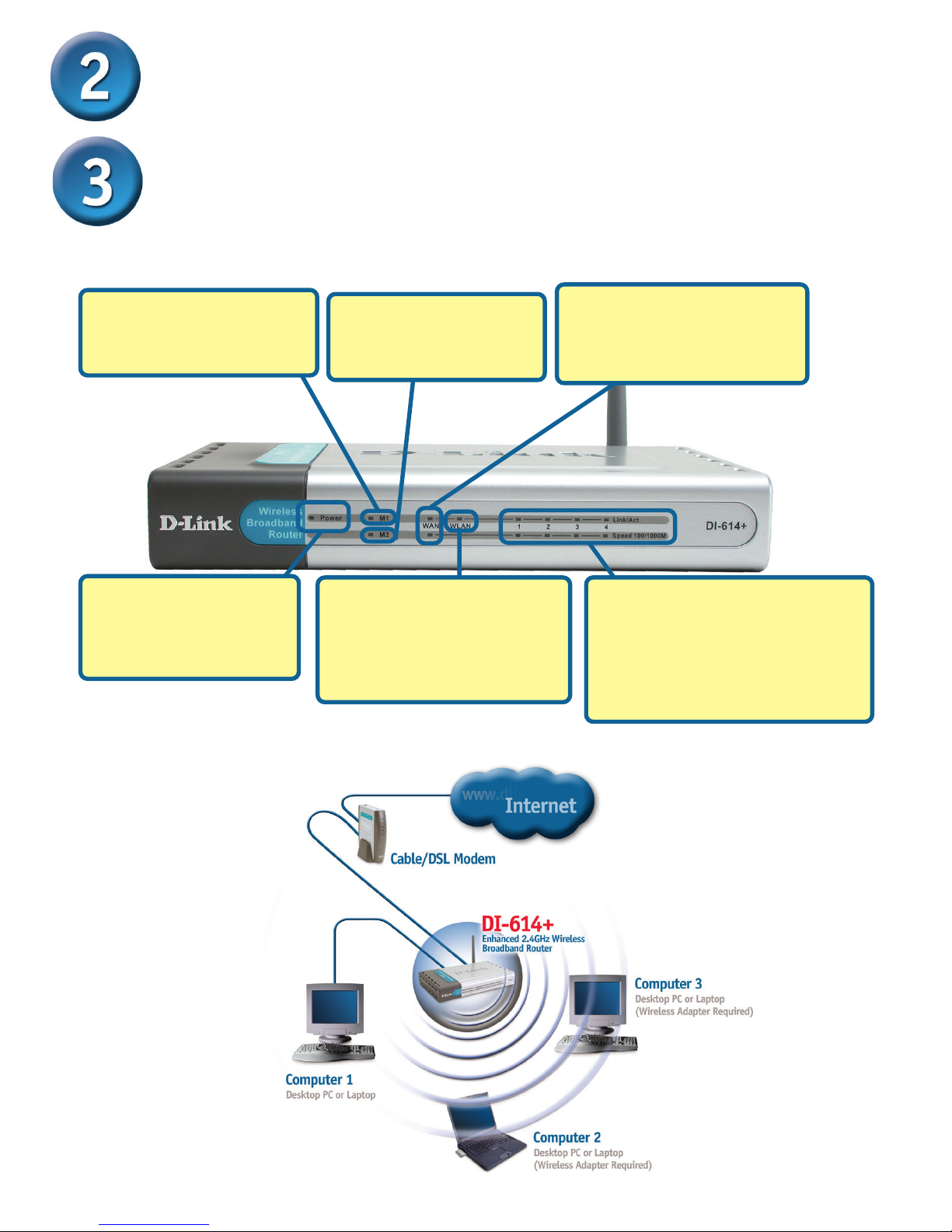

Restart Your Computer
Connecting Additional Computers
To The DI-614+
WAN LED – a solid light
indicates connection on the
WAN port. This LED blinks
during data transmission.
LOCAL NETWORK LEDs – a
solid light on the port indicates
a connection to an Ethernet
enabled computer on ports 1-4.
This LED blinks during data
transmission.
POWER LED – a solid
light indicates a proper
connection to the power
supply.
WLAN LED – a solid light
indicates that the wireless
segment is ready. This LED
blinks during wireless data
transmission.
M1 LED – a solid light
indicates that the DI-614+
is ready.
M2 LED – A solid light
indicates that the unit is
defective.
When you have completed the steps in this Quick Installation Guide, your connected
network should look similar to this:
Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped
computers to the remaining Ethernet LAN ports on the back panel of the DI-614+

4

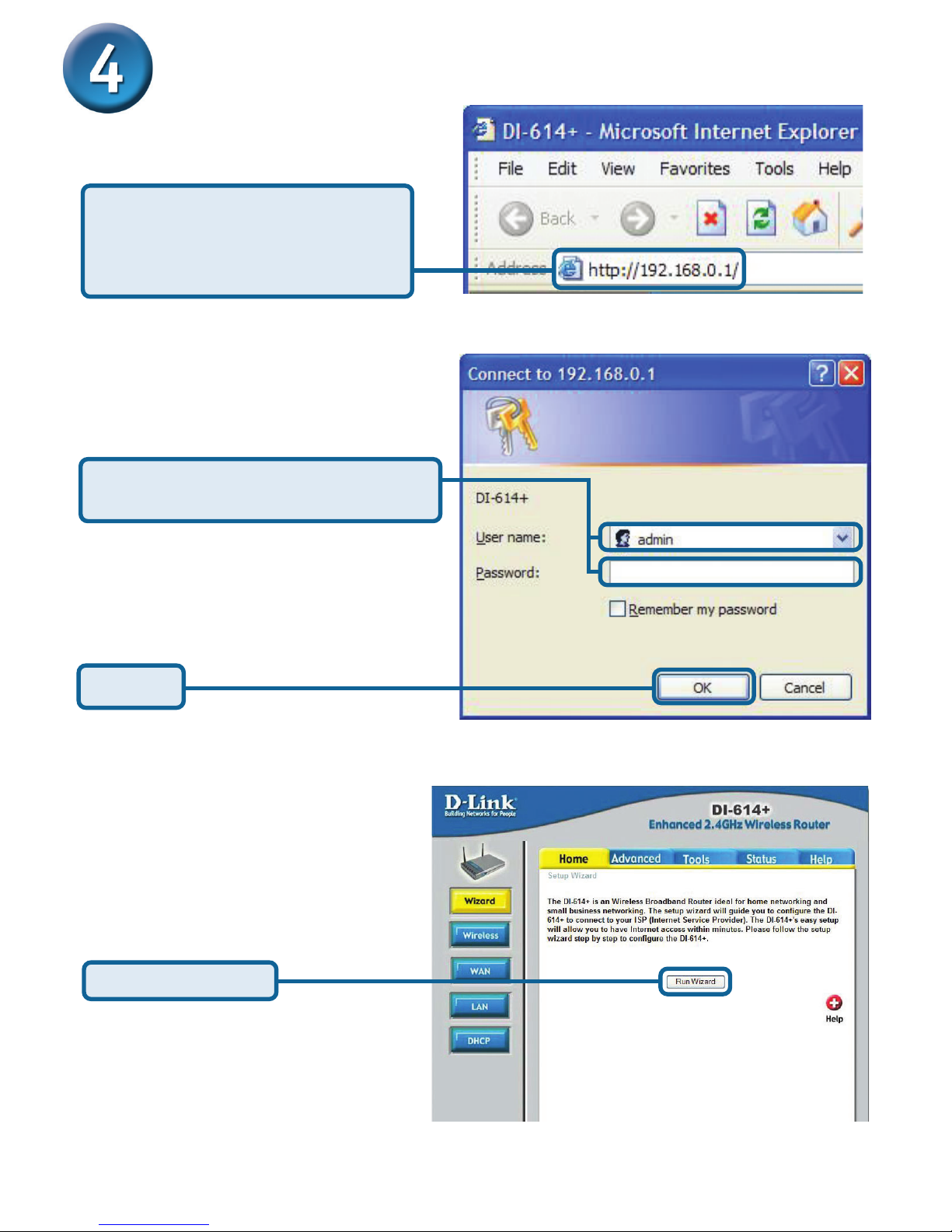

Once you have logged in, the Home
screen will appear.
Click Run Wizard
Using The Setup Wizard
The logon pop-up screen will appear.
Open your Web browser and
type “http://192.168.0.1” into the
URL address box. Then press the
Enter or Return key.
Type “admin” for the username and
leave the password field blank.
Click OK

5

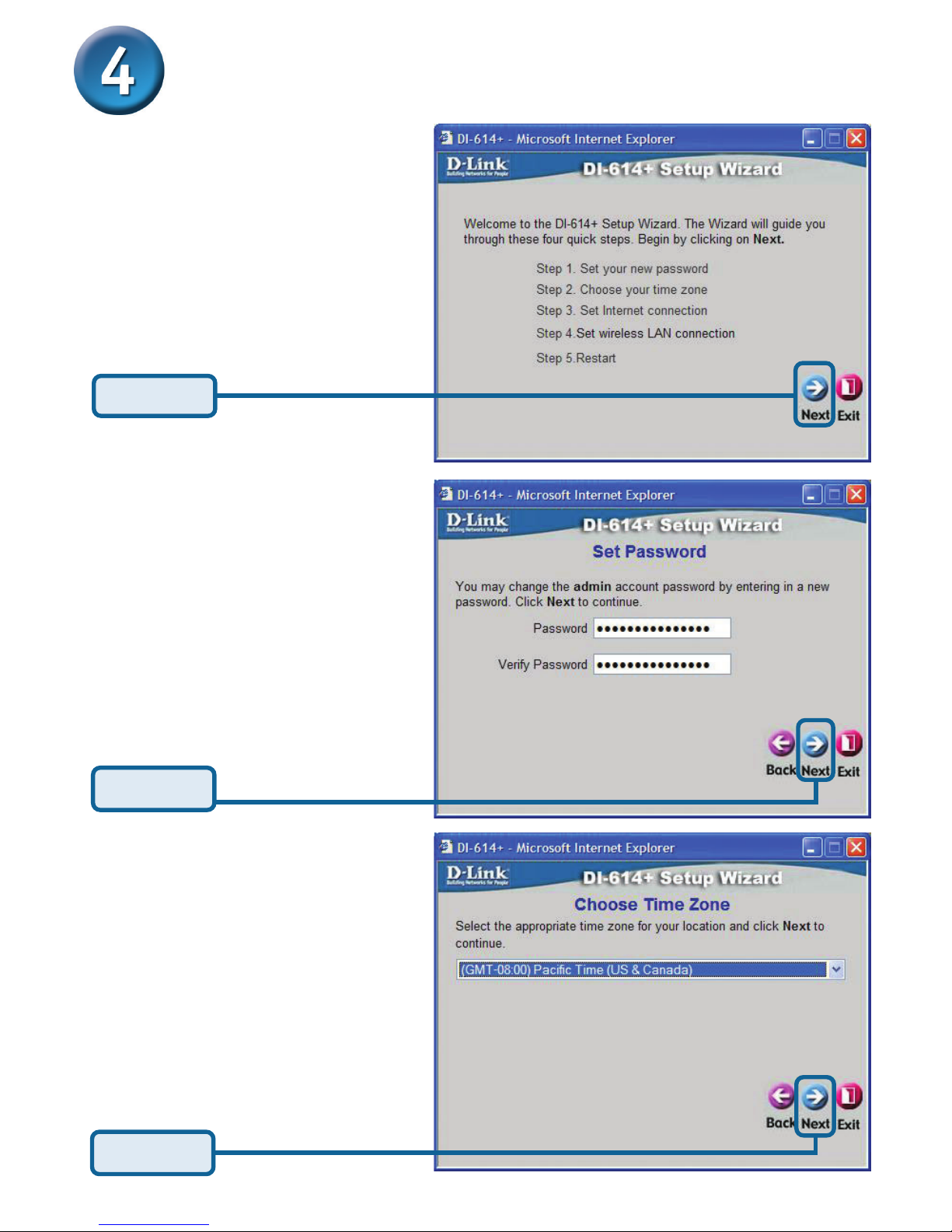

The Setup Wizard (continued)
You will see the following screens
Set up your new password.
You have the option to
establish a password.
Click Next
Click Next
Choose your time zone from
the drop down list.
Click Next

6

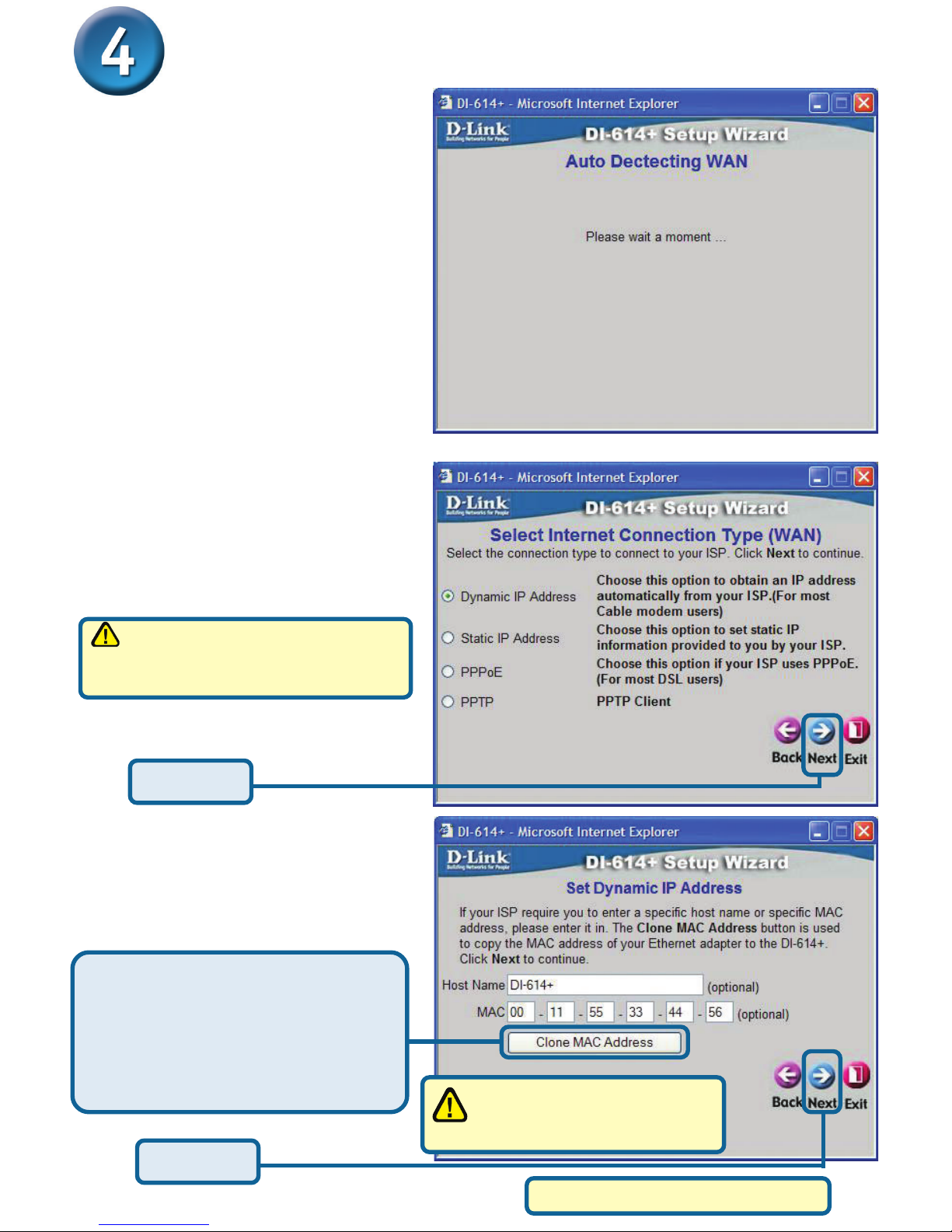

If you selected Dynamic IP
Address, this screen will
appear: (Used mainly for
Cable Internet service.)
Click the “Clone MAC Address”
button to automatically copy the
MAC address of the network
adapter in your computer. You can
also manually type in the MAC
address.
The Setup Wizard (continued)
Select your Internet Connection.
You will be prompted to select the
type of Internet connection for your
router.
If you are unsure of which setting
to select, please contact your
Internet Service Provider.
Click Next
Click Next
This setup should be done on
the computer that is registered
on the ISP’s network.
Please continue to Wireless Setup.
A this point, the setup wizard
will try to auto-detect your
Internet connection type. If
you have a Dynamic or PPPoE
connection, you will be brought
to the corresponding page.
Otherwise, you will see the following screen:

7
The Setup Wizard (continued)

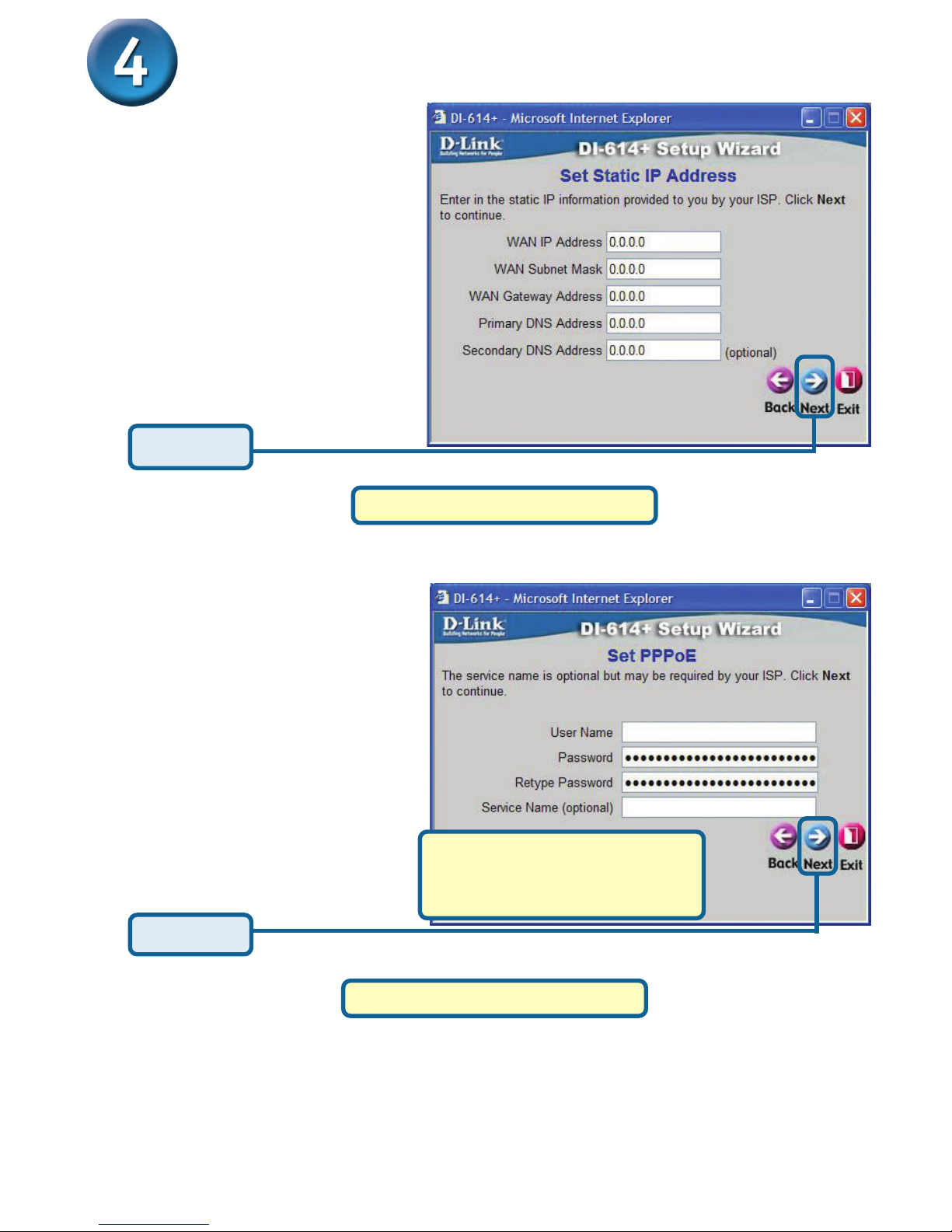

If your ISP requires a Static
IP Address, and this option
is selected, then this
screen will appear:
Enter the IP address informa-
tion originally provided to you
by your ISP. You will need to
complete all the required
fields.
Click Next
Please continue to Wireless Setup.
If your ISP uses PPPoE
(Point-to-Point Protocol over
Ethernet), and this option is
selected, then this screen will
appear: (Used mainly for DSL
Internet service.)
Please be sure to remove any
existing PPPoE client software
installed on your computers.
Enter in the username and
password provided to you by
your ISP.
Click Next
Please continue to Wireless Setup.

8

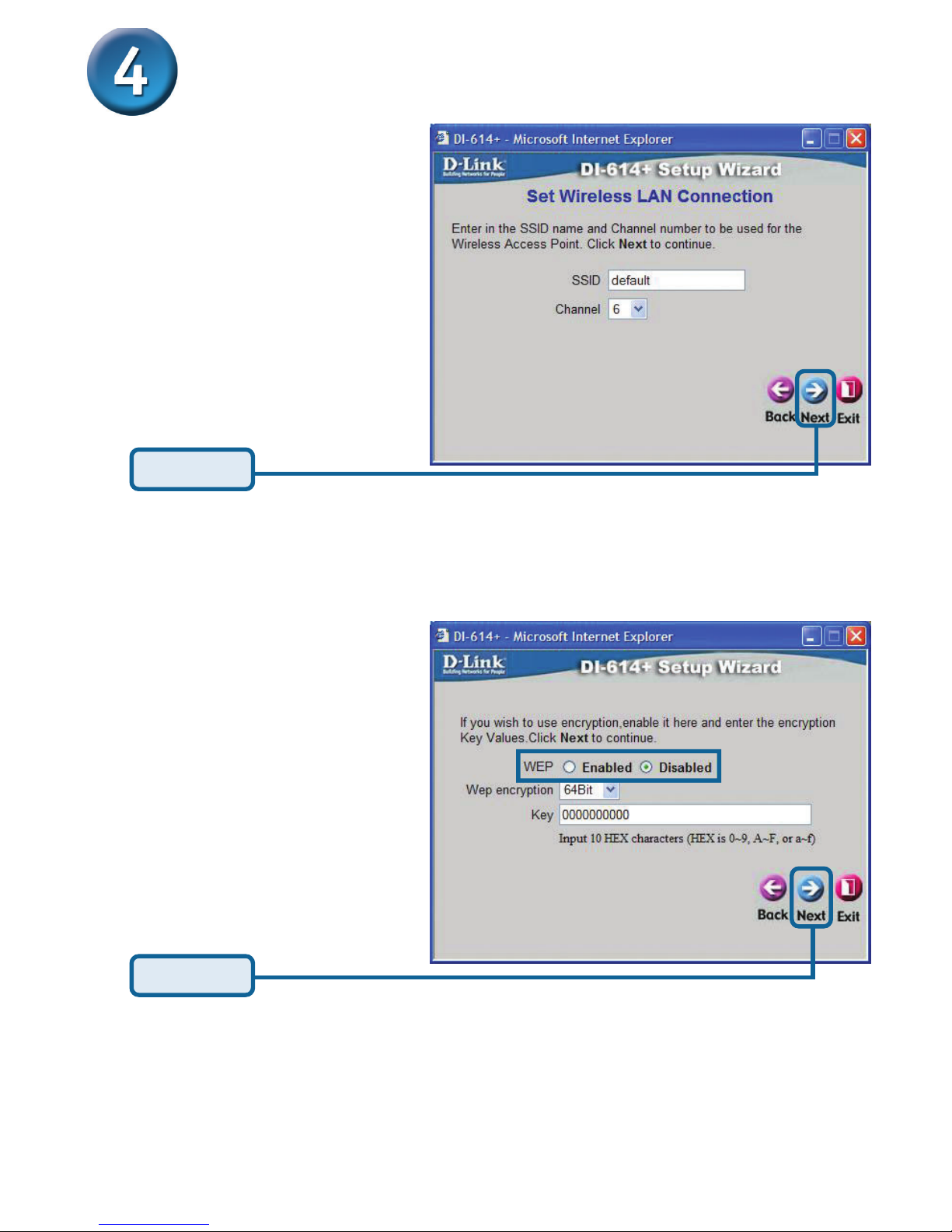

If you wish to use encryption
for your 802.11b network, the
DI-614+ is capable of three
levels of wireless encryption -
64-bit, 128-bit, and 256-bit. By
default the encryption is
disabled. You can change
the encryption settings for
more secure wireless commu-
nication.
The Setup Wizard (continued)
The default wireless settings
for your 802.11b wireless
network are:
SSID = default
Channel = 6
You can change these settings
to match an existing wireless
network.
Click Next
Wireless Setup
Click Next

9

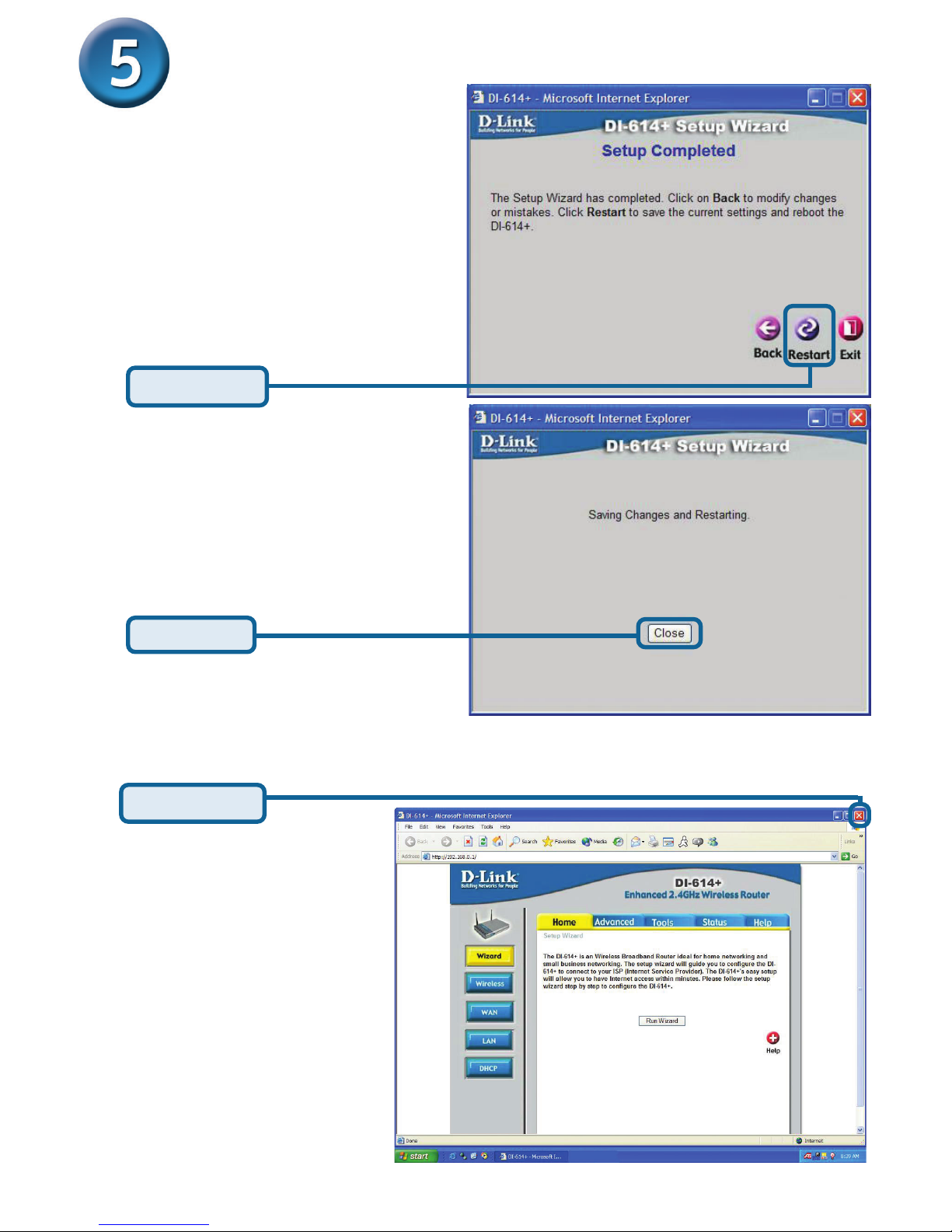

Your Setup is Complete!
Click Restart
Click Close
Test Internet Connection.
You will be returned to the Home tab.
For additional settings or
information, refer to the
Advanced, Tools, or
Status tabs on the web-
management interface; or
to the Manual located on
the CD.
Then relaunch your Web
browser (i.e., Internet
Explorer or Netscape
Navigator), to link to your
favorite Web site to test
your Internet connection.
Click to Exit

10
To connect to the network, make sure
the network adapter in your computer
is configured properly. Here’s how to
configure the network adapter to obtain
an IP address automatically for the
DI-614+ Broadband Router.
For Microsoft Windows XP:
Go to Start > right click on
My Network Places >
select Properties > Double-click on
the Network Connection associated
with the Ethernet adapter (i.e.,
D-Link DFE-530TX+).
APPENDIX (continued)
Restart your computer
(if necessary)
Click OK
Select Obtain an IP address
automatically
Click Internet Protocol (TCP/IP)
Click Properties

11

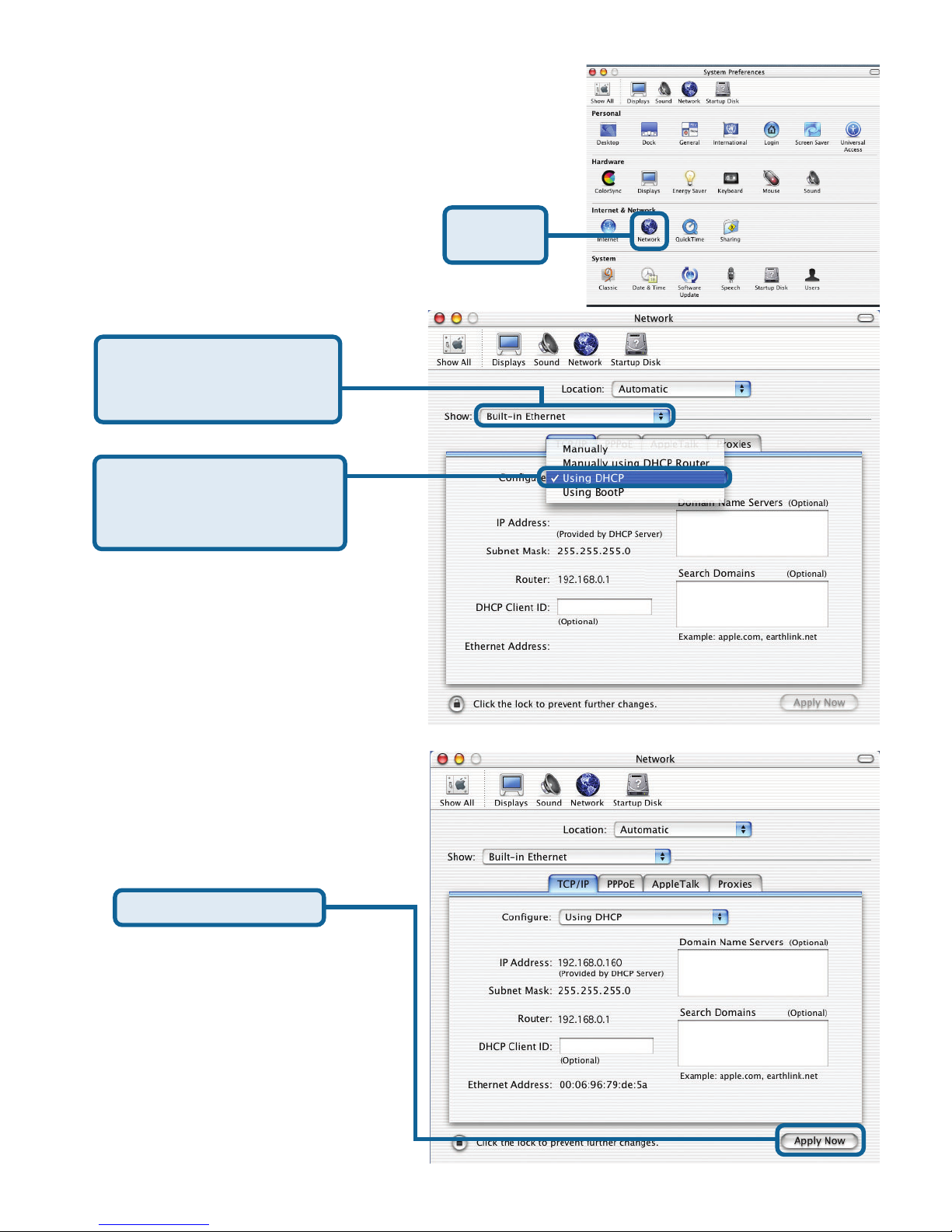

For Apple Macintosh OS X:
Go to the Apple Menu
Click on Network
and Select System
Preferences
The IP address information,
the Subnet Mask, the Router’s
IP address and the Ethernet
adapter address will appear
Select Built-in Ethernet
in the Show pull down
menu
Click on
Network
Click on Apply Now
Select Using DHCP in
the Configure pull down
menu

12
Technical Support
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:[email protected]
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
[phone]
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:[email protected]
