Package Contents
Minimum System Requirements
Note: Using a power supply with a different voltage than the one included with the
DWL-7700AP will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
 Computers with Windows®, Macintosh, or Linux-based operating systems with
an installed Ethernet Adapter
 Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above

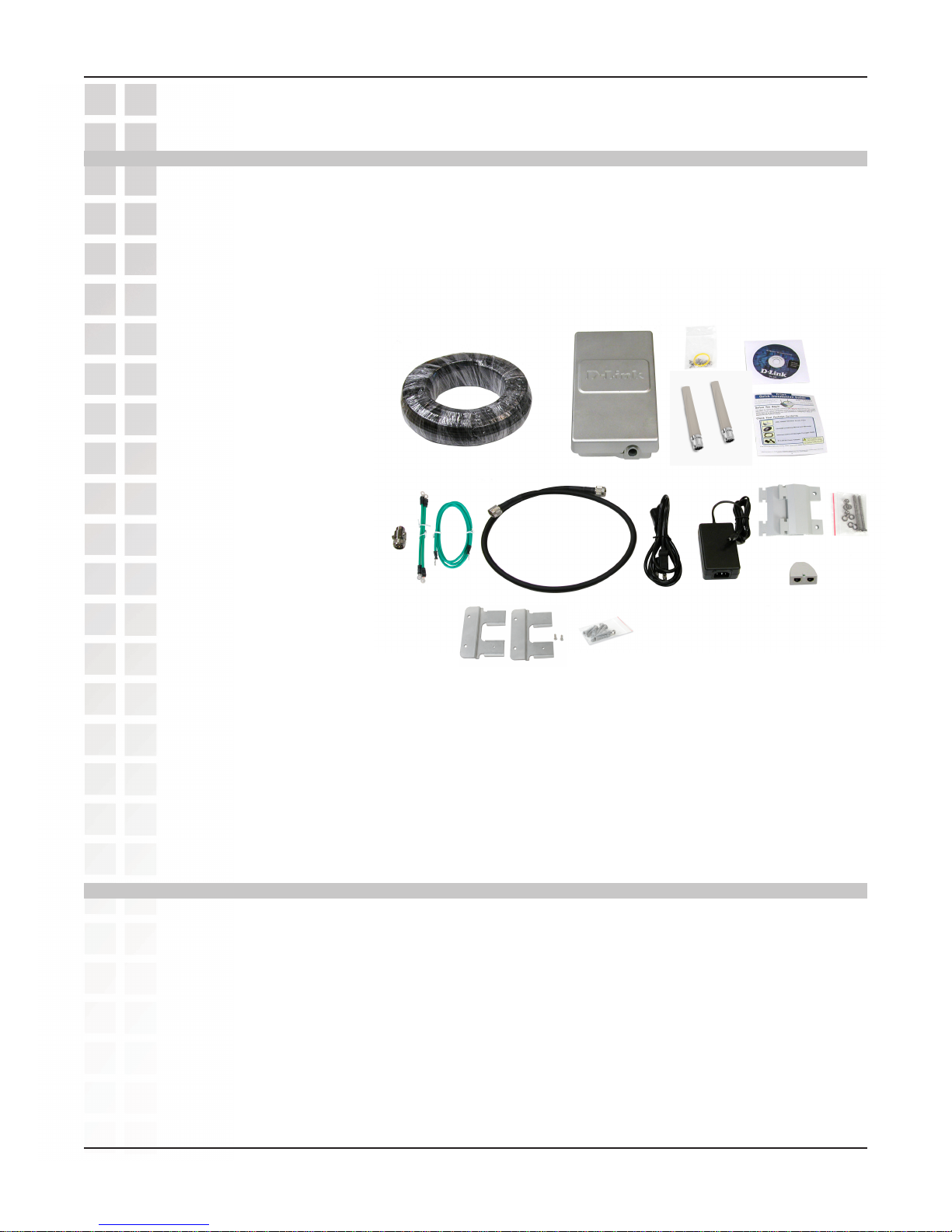

Package Contents
 D-Link AirPremierTM DWL-7700AP
Wireless AG Outdoor AP/Bridge
 Eight screws & one rubber ring
 Two rubber dipole antennas
 Manual on CD
 Quick Installation Guide
 2 Mounting Kits
 PoE base unit
 Power adapter
 Power cord
 RF jumper cable
 Grounding wire
 Surge arrestor
 30m Ethernet cable

5
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Introduction
Introduction
At up to fifteen times the speed* of previous wireless devices you can work faster and
more efficiently, increasing productivity. With the DWL-7700AP, bandwidth-intensive
applications like graphics or multimedia will benefit significantly because large files are
able to move across the network quickly.
Inclusion of all three standards (802.11a; 802.11b; 802.11g) means that the
DWL-7700AP is versatile enough to allow connection to almost any 802.11 network
or device.

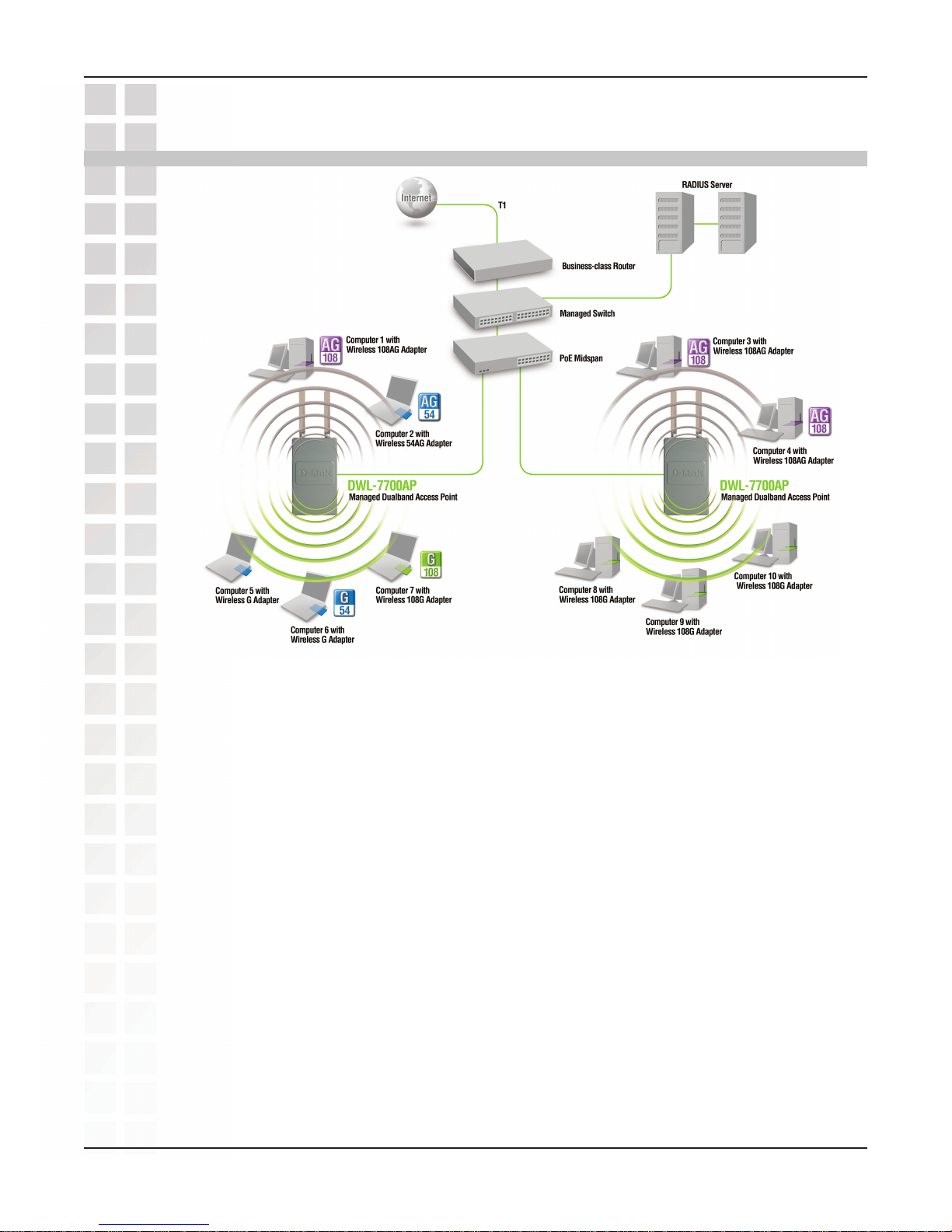

The DWL-7700AP is capable of operating in one of 3 different modes to meet your
wireless networking needs. The DWL-7700AP can operate as an access point, or in
WDS (Wireless Distribution System) with AP , or in WDS mode.
Use less wiring, enjoy increased flexibility, save time and money with PoE (Power over
Ethernet). With PoE, the DWL-7700AP shares power and data over the CAT5 cable,
making the setup of your network less expensive and more convenient.
An ideal solution for quickly creating and extending a wireless local area network
(WLAN) in offices or other workplaces, trade shows and special events, the DWL-7700AP
provides data transfers at up to 54Mbps* when used with other D-Link Air Premier®
or Air Premier AG® products (The 802.11g standard is backwards compatible with
802.11b devices).
WPA is offered in two flavors: EAP (used for corporations), and PSK (used for home
users).
WPA-PSK and WPA2-PSK is directed at home users who do not have the server based
equipment required for user authentication. The method of authentication is similar to
WEP because you define a “Pre-Shared Key” on the wireless router/AP. Once the pre-
shared key is confirmed and satisfied on both the client and access point, then access
is granted. The encryption method used is referred to as the Temporal Key Integrity
Protocol (TKIP), which offers per-packet dynamic hashing. It also includes an integrity
checking feature which ensures that the packets were not tampered with during wireless
transmission. WPA2-PSK is far superior to WPA-PSK, because the encryption of data
is upgraded with the Advanced Encryption Standard (AES).
*Maximum wireless signal rate derived from IEEE Standard 802.11a and 802.11g specifications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network
overhead lower actual data throughput rate.

6
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Introduction (continued)
Introduction
WPA-EAP and WPA2-EAP is ideal for businesses that have existing security
infrastructures in place. Management and security implementation can now be
centralized on a server participating on the network. Utilizing 802.1x with a RADIUS
(Remote Authentication Dial-in User Service) server, a network adminstrator can define
a list of authorized users who can access the wireless LAN. When attempting to access
a wireless LAN with either WPA-EAP or WPA2-EAP configured, the new client will
be challenged with a username and password. If the new client is authorized by the
administration, and enters the correct username and password, then access is granted.
In a scenario where an employee leaves the company, the network administrator can
remove the employee from the authorized list and not have to worry about the network
being compromised by a former employee. WPA2-EAP is far superior to WPA-EAP,
because the encryption of data is upgraded with the Advanced Encryption Standard
(AES).
802.1x: Authentication which is a first line of defense against intrusion. In the
authentication process, the Authentication Server verifies the identity of the client
attempting to connect to the network. Unfamiliar clients would be denied access.
EAP (Extensible Authentication Protocol) is available through the Windows XP
Operating System. You will need to use the same type of EAP protocol on all the devices
in your network when using the 802.1x feature.

7
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Features and Benefits
Features and Benefits
 3 Different Operation modes - Capable of operating in one of three different
operation modes to meet your wireless networking requirements: Access Point;
WDS with AP; or WDS.
 Easy Installation with PoE (Power over Ethernet).
 Faster wireless networking speeds up to 54Mbps*.
 Compatible with 802.11a, 802.11b and 802.11g Devices that is fully compatible
with the IEEE 802.11a, 802.11b and 802.11g standards, the DWL-7700AP can
connect with existing 802.11b-, 802.11g- or 802.11a-compliant wireless network
adapter cards.
 Compatible with the 802.11b standard to provide a wireless data rate of up to
11Mbps - that means you can migrate your system to the 802.11g standard on
your own schedule without sacrificing connectivity.
 Better security with WPA - The DWL-7700AP can securely connect wireless clients
on the network using WPA (Wi-Fi Protected Access) providing a much higher level
of security for your data and communications than has previously been available.
 AP Manager Setup Wizard - The new Setup Wizard makes network configuration
quick and simple.
 SNMP for Management - The DWL-7700AP is not just fast but it also supports
SNMP v.3 for a better network management. Superior wireless AP manager
software is bundled with the DWL-7700AP for network configuration and firmware
upgrade. Systems administrators can also setup the DWL-7700AP easily with
the Web-based configuration. A D-Link D-View module will be downloadable
for network administration and real-time network traffic monitoring with D-Link
D-View software.
 Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).
 Operates in the 2.437GHz frequency range for an 802.11a network, and in the
5.26GHz frequency range for an 802.11b and 802.11g network.
 Web-based interface for managing and configuring.
*Maximum wireless signal rate derived from IEEE Standard 802.11a and 802.11g specifications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network
overhead lower actual data throughput rate.

8
DWL-7700AP User’s Manual
D-Link Systems, Inc.
D-Link wireless products are based on industry standards to provide easy-to-use and
compatible high-speed wireless connectivity within your home, business or public
access wireless networks. D-Link wireless products will allow you to access the data you
want, when and where you want it. You will be able to enjoy the freedom that wireless
networking brings.
A Wireless Local Area Network (WLAN) is a computer network that transmits and
receives data with radio signals instead of wires. WLANs are used increasingly in both
home and office environments, and public areas such as airports, coffee shops and
universities. Innovative ways to utilize WLAN technology are helping people to work
and communicate more efficiently. Increased mobility and the absence of cabling and
other fixed infrastructure have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network. Wireless
adapter cards used on laptop and desktop systems support the same protocols as
Ethernet adapter cards.
People use WLAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any location
within the operating range of the WLAN. Management decisions based on real-time
information can significantly improve worker efficiency.
Low Implementation Costs - WLANs are easy to set up, manage, change and relocate.
Networks that frequently change can benefit from WLANs ease of implementation.
WLANs can operate in locations where installation of wiring may be impractical.
Installation and Network Expansion - Installing a WLAN system can be fast and easy
and can eliminate the need to pull cable through walls and ceilings. Wireless technology
allows the network to go where wires cannot go - even outside the home or office.
Inexpensive Solution - Wireless network devices are as competitively priced as
conventional Ethernet network devices. The DWL-7700AP saves money by providing
multi-functionality, configurable in one of three different modes.
Scalability - WLANs can be configured in a variety of ways to meet the needs of
specific applications and installations. Configurations are easily changed and range
from Peer-to-Peer networks suitable for a small number of users to larger Infrastructure
networks to accommodate hundreds or thousands of users, depending on the number
of wireless devices deployed.
Wireless Basics
Wireless Basics

9
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Wireless Basics (continued)
Standards-based Technology
The DWL-7700AP Wireless Access Point utilizes the 802.11a, 802.11b and the 802.11g
standards.
The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the
maximum wireless signal rate of up to 54Mbps* within the 2.4GHz band, utilizing OFDM
technology.
This means that in most environments, within the specified range of this device, you will
be able to transfer large files quickly or even watch a movie in MPEG format over your
network without noticeable delays. This technology works by transmitting high-speed
digital data over a radio wave utilizing OFDM (Orthogonal Frequency Division Multiplexing)
technology. OFDM works by splitting the radio signal into multiple smaller sub-signals
that are then transmitted simultaneously at different frequencies to the receiver. OFDM
reduces the amount of crosstalk (interference) in signal transmissions.
The D-Link DWL-7700AP will automatically sense the best possible connection speed
to ensure the greatest speed and range possible.
The DWL-7700AP offers the most advanced network security features available today,
including WPA and WPA2.
In addition to its compatibility with 802.11g and 802.11a devices, the DWL-7700AP
is compatible with 802.11b devices. This means that if you have an existing 802.11b
network, or a network with a mixture of 802.11g, 802.11a and 802.11b, the devices in
that network will be compatible with the DWL-7700AP.
*Maximum wireless signal rate derived from IEEE Standard 802.11a and 802.11g specifications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network
overhead lower actual data throughput rate.
Wireless Basics

10
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Wireless Basics (continued)
The D-Link Air Premier® DWL-7700AP lets you access your network, using a wireless
connection, from virtually anywhere within its operating range. Keep in mind, however,
that the number, thickness and location of walls, ceilings, or other objects that the
wireless signals must pass through, may limit the range. Typical ranges vary depending
on the types of materials and background RF (radio frequency) noise in your home or
business. The key to maximizing wireless range is to follow these basic guidelines:
Installation Considerations
1 Keep the number of walls and ceilings between the DWL-7700AP and other network
devices to a minimum - each wall or ceiling can reduce your DWL-7700AP’s range
from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or
ceilings is minimized.
2 Be aware of the direct line between network devices. A wall that is 1.5 feet thick
(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a
2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the
signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3 Building materials can impede the wireless signal - a solid metal door or aluminum
studs may have a negative effect on range. Try to position wireless devices and
computers with wireless adapters so that the signal passes through drywall or open
doorways and not other materials.
4 Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or
appliances that generate RF noise.
Wireless Basics

11
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Three Operational Modes
Operational Modes

12
DWL-7700AP User’s Manual
D-Link Systems, Inc.
1 You will need broadband Internet access.
2 Consult with your Cable or DSL provider for proper installation of the modem.
3 Connect the Cable or DSL modem to a Router.
(See the printed Quick Installation Guide included with your router.)
4 Connect the Ethernet Broadband Router to the PoE base unit.
(See the printed Quick Installation Guide included with the DWL-7700AP.)
5 Connect the DWL-7700AP to the PoE base unit.
(See the printed Quick Installation Guide included with the DWL-7700AP.)
6 If you are connecting a desktop computer to your network, install the D-Link
DWL-AG530 wireless PCI adapter into an available PCI slot on your desktop
computer.
(See the printed Quick Installation Guide included with the DWL-AG530.)
7 Install the drivers for the D-Link DWL-AG660 wireless Cardbus adapter into a
laptop computer.
(See the printed Quick Installation Guide included with the DWL-AG660.)
Getting Started
Getting Started

13
DWL-7700AP User’s Manual
D-Link Systems, Inc.

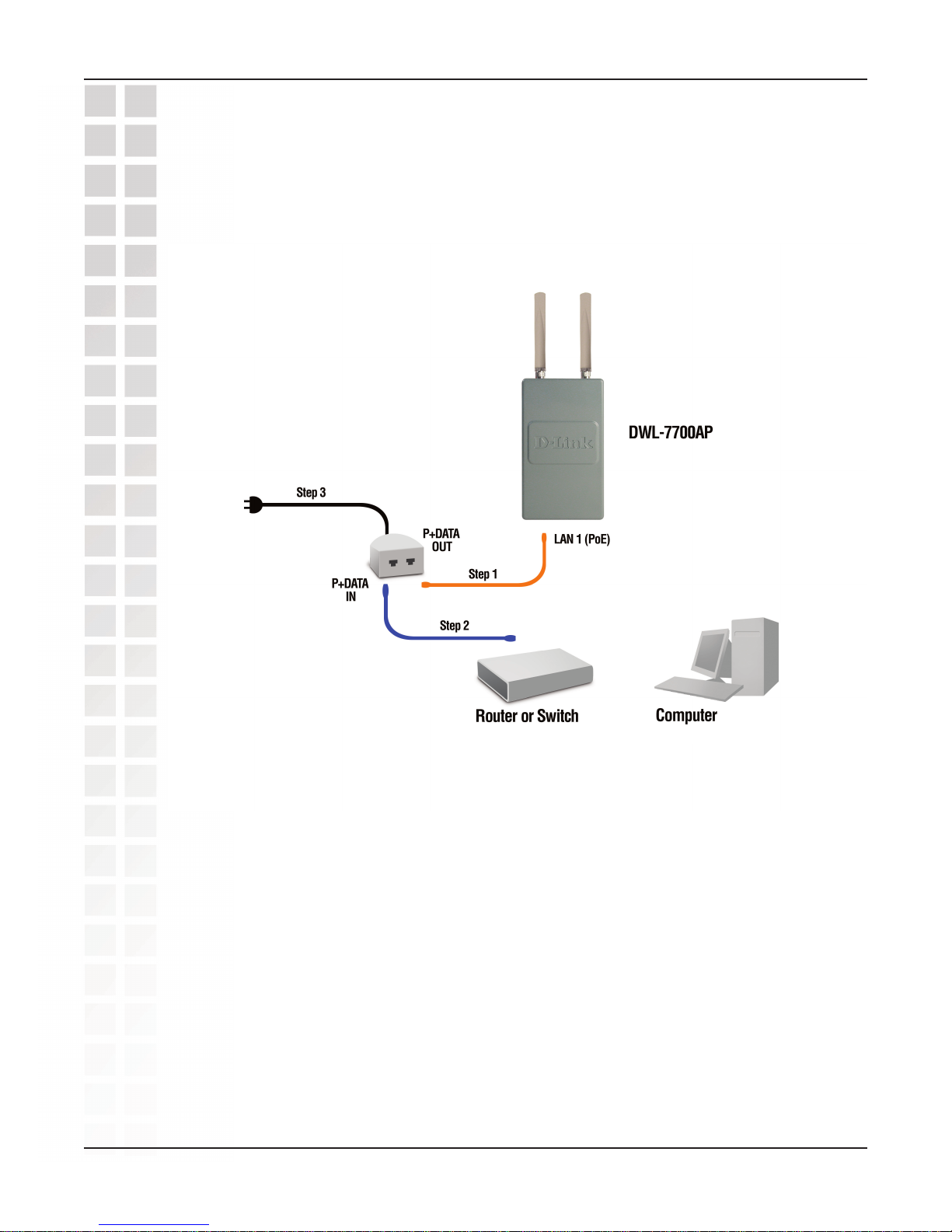

Connecting PoE (Power over Ethernet)
Connect one end of an Ethernet cable (included with your package) to the
LAN port on the DWL-7700AP and the other end of the Ethernet cable to
the port labeled P+DATA OUT on the PoE base unit.
Connect another Ethernet cable from the P+DATA IN port on the PoE base
unit to your router/switch or to a PC.
Attach the power adapter to the connector on the PoE base unit. Attach the
power cord to the power adapter and into an electrical outlet.
Step 1
Step 2
Step 3
Getting Started (continued)
Getting Started

14
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu
Using the Configuration Menu
To configure the DWL-7700AP, use a computer which is connected to the DWL-7700AP
with an Ethernet cable (see the Network Layout diagram).
First, disable the Access the Internet using a proxy server function. To disable this
function, go to Control Panel > Internet Options > Connections > LAN Settings
and uncheck the enable box.

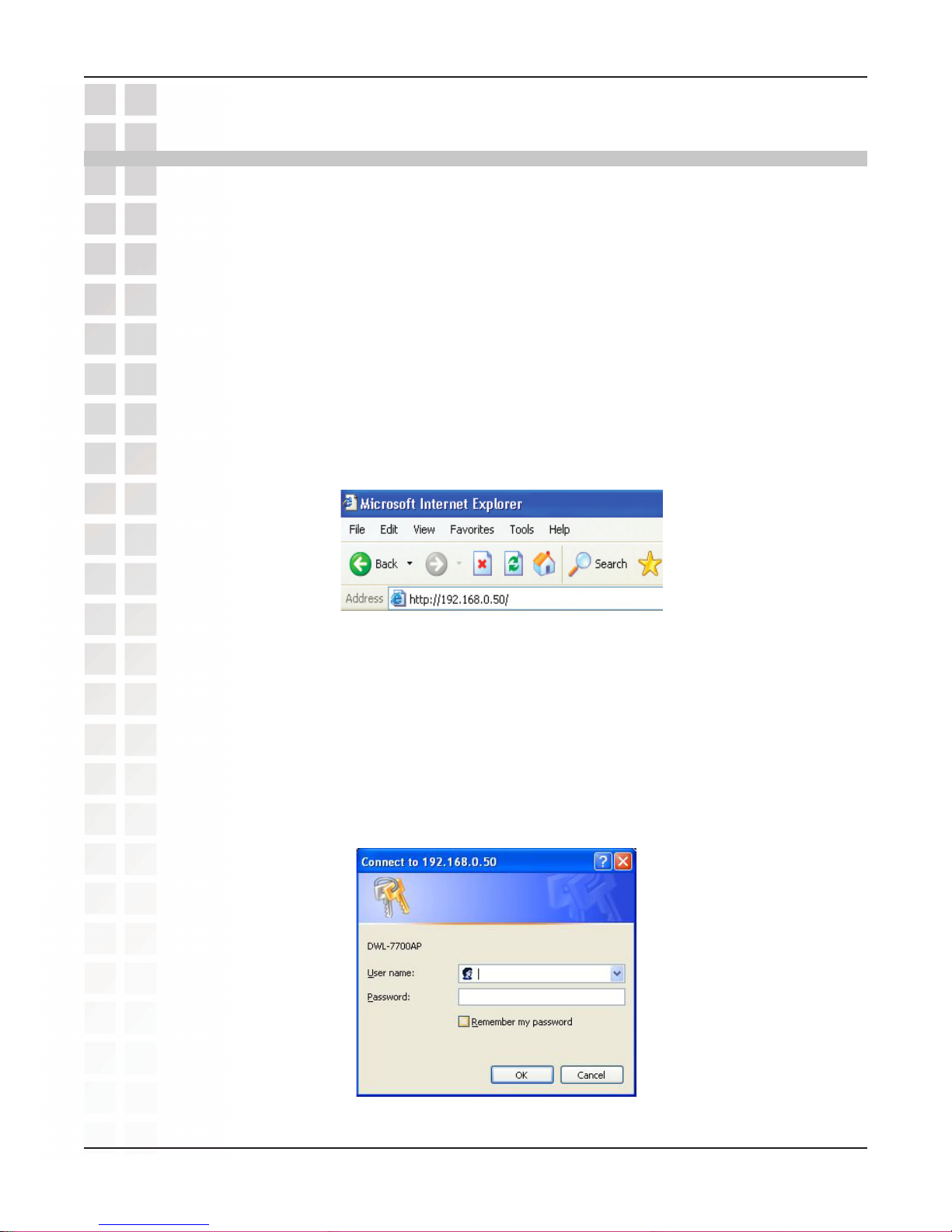

Start your web browser program (Internet Explorer, Netscape Navigator).
Type the IP address and http port of the DWL-7700AP in the address field
(http://192.168.0.50) and press Enter. Make sure that the IP addresses of the
DWL-7700AP and your computer are in the same subnet.
After the connection is established, you will see the user identification window as
shown.
Note: If you have changed the default IP address assigned to the DWL-7700AP, make sure to enter
the correct IP address.



Type admin in the User Name field
Leave the Password field blank
Click OK
Note: If you have changed the password, make sure to enter the correct password.

15
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu

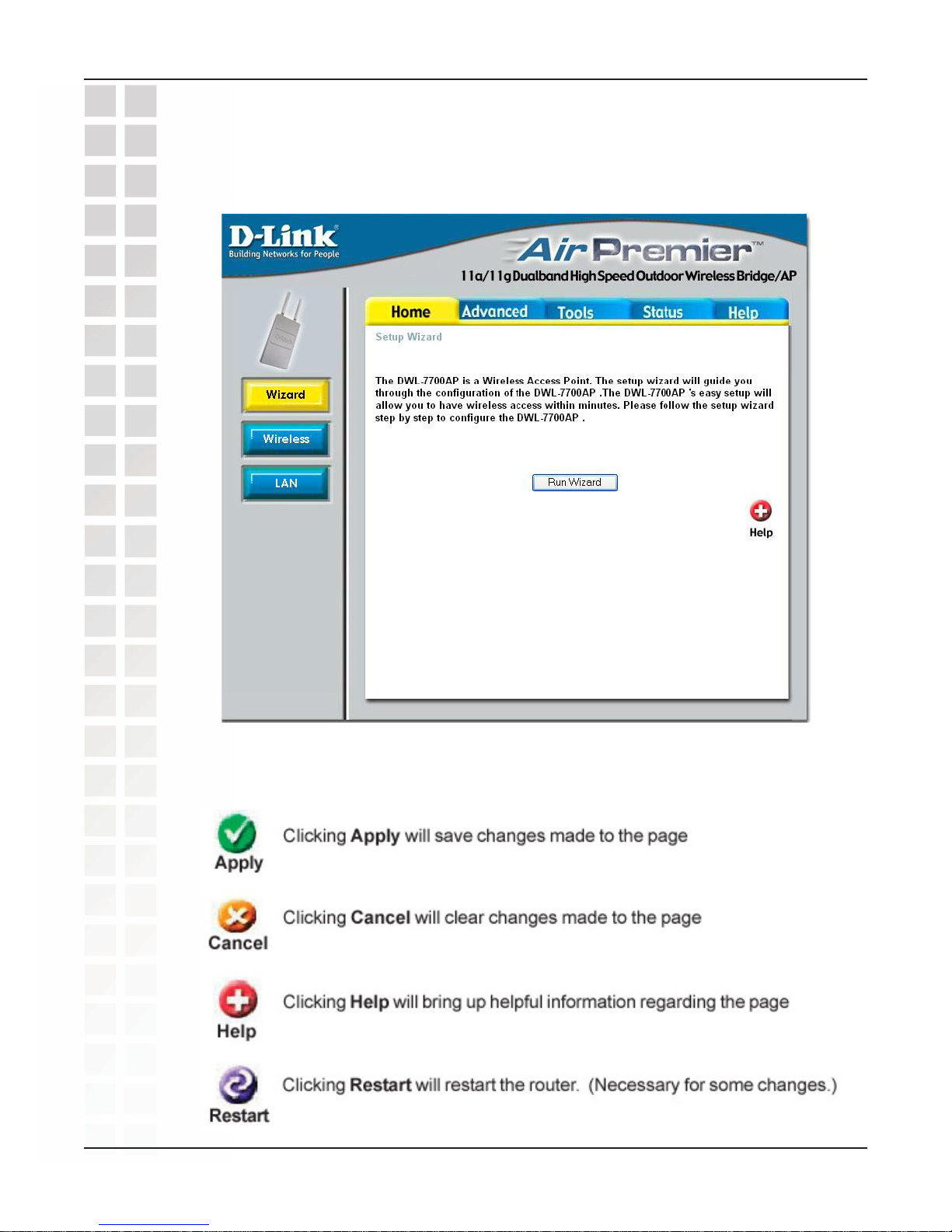

The Home > Wizard screen will appear. Please refer to the Quick Installation Guide for
more information regarding the Setup Wizard.
These buttons appear on most of the configuration screens in this section. Please
click on the appropriate button at the bottom of each screen after you have made a
configuration change.
Home > Wizard

16
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu
Home > Wireless > Access Point
Access Point is selected from the drop-down menu.
Service Set Identifier (SSID) is the name designated for a specific
wireless local area network (WLAN). The SSID’s factory default
setting is default. The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.
Enable or Disable SSID broadcast. Enabling this feature broadcasts
the SSID across the network.
52 is the default channel for 802.11a (6 for 802.11g). All devices on
the network must share the same channel.
The radio frequency will vary depending on the wireless channel
that is chosen. The frequency in channel 52 is 5.26GHz.
Mode:
SSID:
SSID Broadcast:
Channel:
Radio Frequency:
Wireless Band: Select either 802.11a or 802.11g.

17
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu
Home > Wireless > Access Point (continued)
Select Enable or Disable. Enable this feature to auto-select the
channel for best wireless performance.
Select Open System to communicate the key across the
network.
Select Shared Key to limit communication to only those devices
that share the same WEP settings.
Select Open System/Shared Key to allow either form of data
encryption.

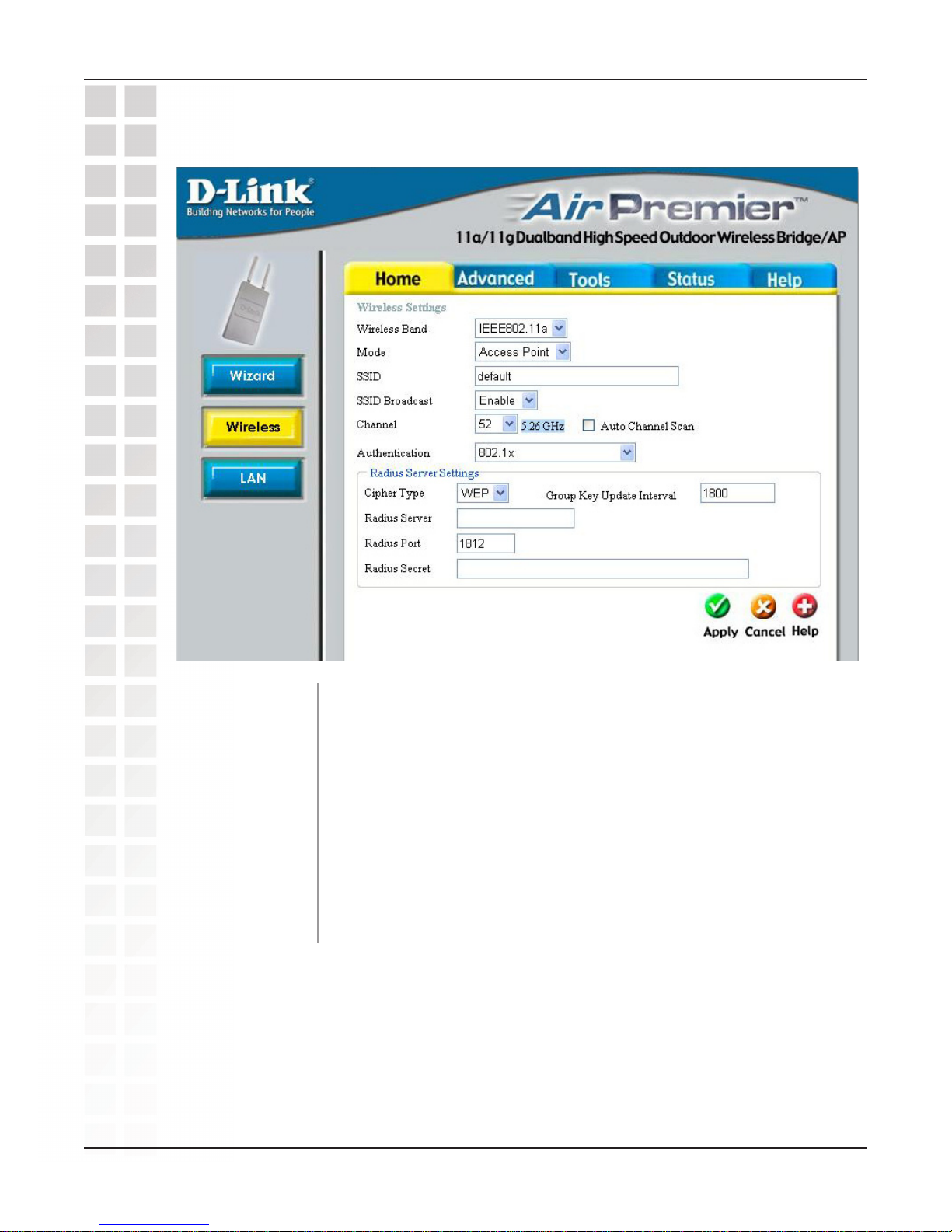

Select 802.1x to verify the identity of would-be clients in conjunction
with a RADIUS server.

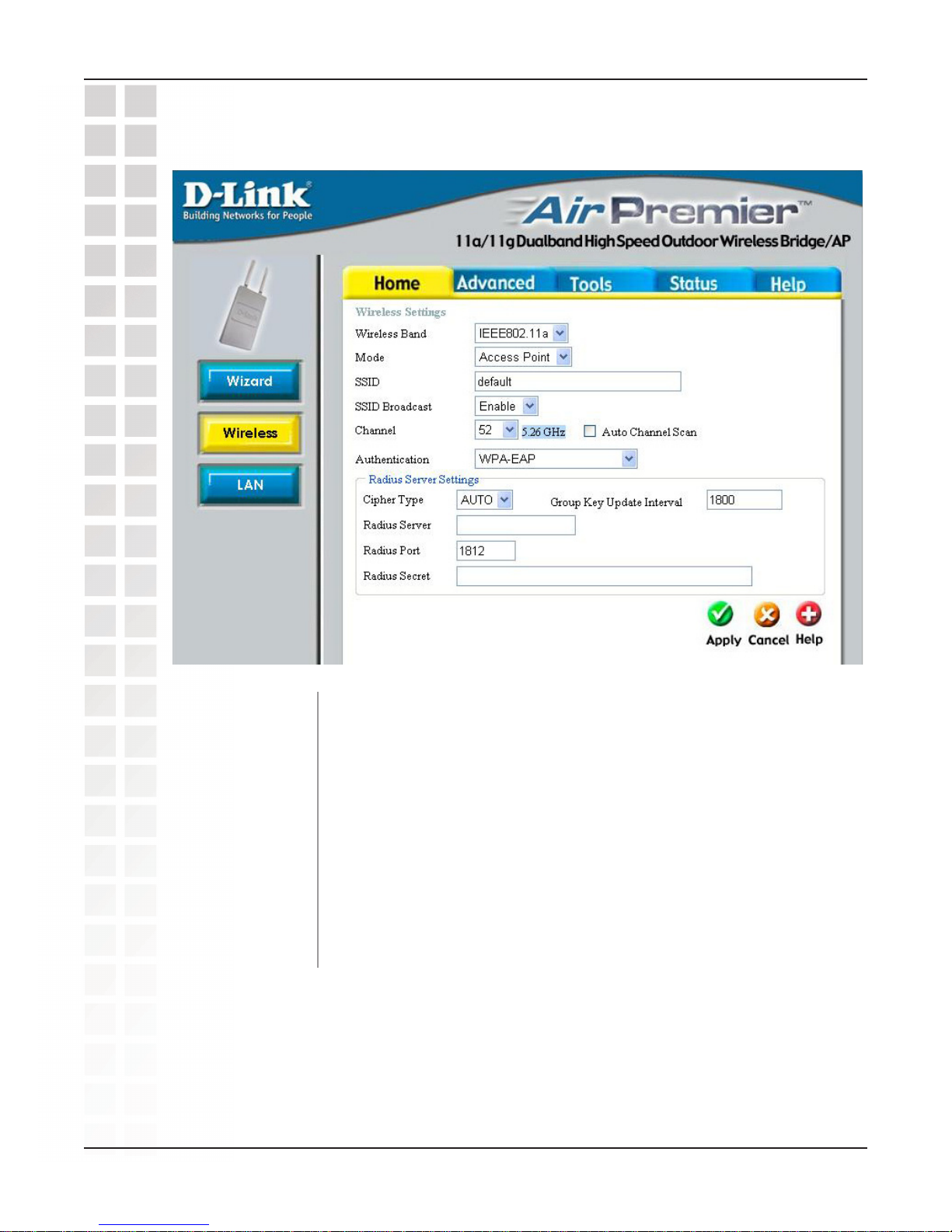

Select WPA-EAP to secure your network with the inclusion of a
RADIUS server.
Select WPA-PSK to secure your network using a password and
dynamic key changes (No RADIUS server required).
Select WPA2-EAP to secure your network with the inclusion of
a RADIUS server and upgrade the encryption of data with the
Advanced Encryption Standard (AES).
Select WPA2-PSK to secure your network using a password and
dynamic key changes. No RADIUS server required and encryption
of data is upgraded with the Advanced Encryption Standard
(AES).
Select WPA-Auto-EAP to allow the client to either use WPA-EAP
or WPA2-EAP.
Select WPA-Auto-EAP to allow the client to either use WPA-PSK
or WPA2-PSK.
Auto Channel
Scan:
Authentication:

18
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu

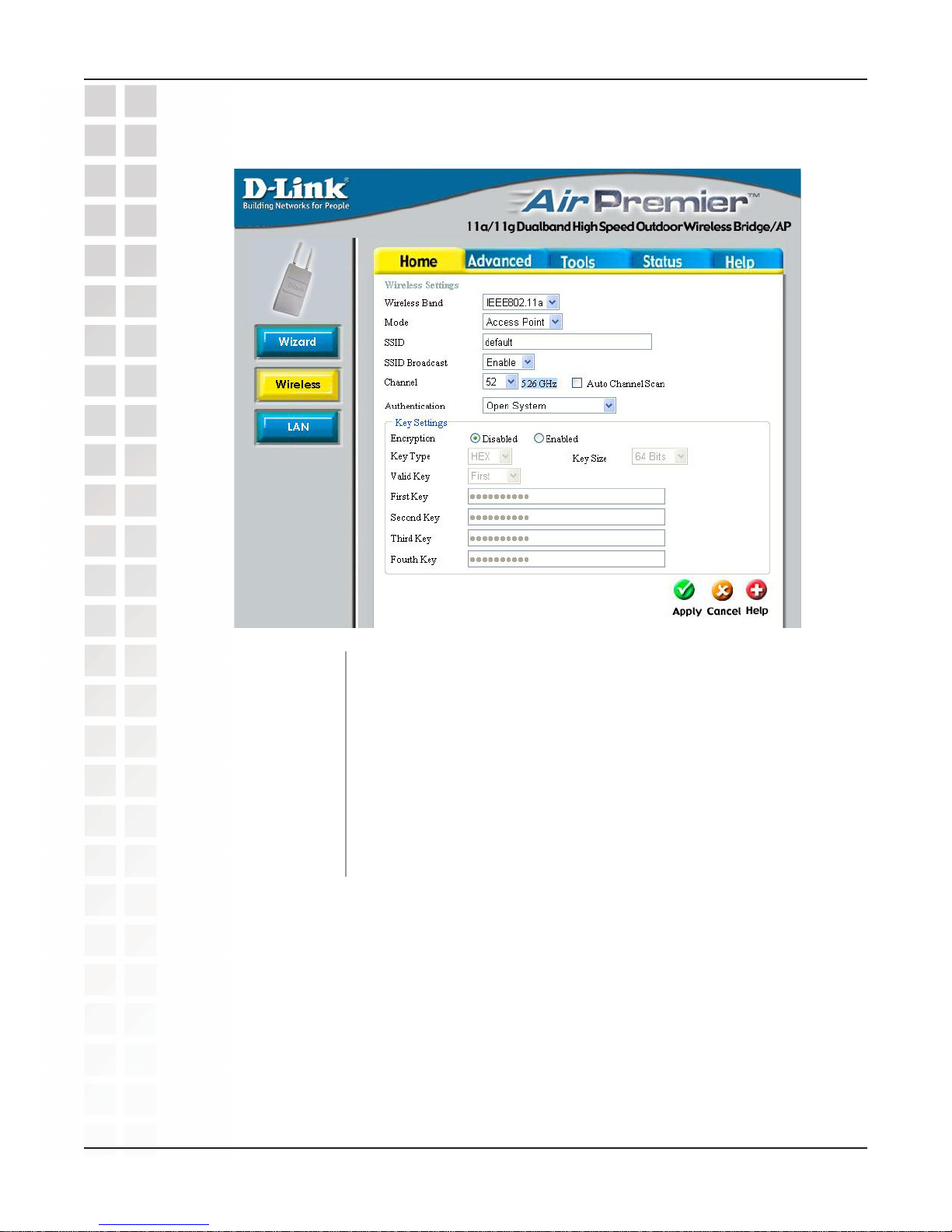

Home > Wireless > Access Point (WEP)
Select Disabled or Enabled. (Disabled is selected here).
Select HEX or ASCII.
Select 64-bit, 128-bit, or 152-bit.
Select the 1st through the 4th key to be the active key.
Input up to four keys for encryption. You will select one of these
keys in the valid key field.
Encryption:
Key Type:
Key Size:
Valid Key:
First through Fourth
keys:
* Hexadecimal digits consist of the numbers 0-9 and the letters A-F.
ASCII (American Standard Code for Information Interchange) is a code for representing English letters as numbers 0-127.

19
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu
Home > Wireless > Access Point (802.1x)
WEP is selected.
Select the interval during which the group key will be valid. 1800
is the recommended value. A lower interval may reduce transfer
data rate.
Enter the IP address of the Radius server.
Enter the Radius port.
Enter the Radius secret.
Cipher Type:
Group Key Update
Interval:
Radius Server:
Radius Port:
Radius Secret:

20
DWL-7700AP User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu
Home > Wireless > Access Point (WPA-EAP/WPA2-EAP)
When you select WPA-EAP, WPA2-EAP or WPA-Auto-EAP ,
you must select AES, AUTO, or TKIP from the pull-down menu.
Select the interval during which the group key will be valid. 1800
is the recommended value. A lower interval may reduce transfer
data rate.
Enter the IP address of the Radius server.
Enter the Radius port.
Enter the Radius secret.
Cipher Type:
Group Key Update
Interval:
Radius Server:
Radius Port:
Radius Secret:
