D'Vontz DV262DL-PC User manual

Cautions, Care and Maintenance:
The plumber should read and review the general and specific care and maintenance of the products to ensure years of beauty and dependable service.
The use of Plumber’s Putty will void finish warranties. The use of any caustic material may harm the finish or interfere with the proper functioning of the
product.
A high level of care and cleanliness should be taken throughout the installation. After installation remove the aerators and flush sediment, metal and other
materials that may cause the product to malfunction.
Improper care and cleaning will void the warranty. Proof of purchase (original sales receipt) must be provided with all warranty claims.
This warranty is extensive in that it covers replacement of all defective parts and even finish, but these are the only two things that are covered. LABOR
CHARGES AND/OR DAMAGE INCURRED IN INSTALLATION, REPAIR, OR REPLACEMENT, AS WELL AS ANY OTHER KIND OF LOSS
OR DAMAGE ARE EXCLUDED.
DO NOT OVER TIGHTEN THE MOUNTING NUT, WHICH COULD DAMAGE THE NUT AND FAUCET.
After every use, it is always best to wipe dry with a soft cloth to prevent water spotting and mineral build-up. We recommend that you clean and wax
regularly. Avoid industrial cleaners and abrasive cleaners, such as those used for toilet bowls and green Scotch-Brite® heavy-duty scrub sponges. Please
read the cleaning product's instructions, contents and cautions on any new cleaner before using it. Avoid bleach, products that state on the label that they
remove tarnish and rust, and those containing hydrofluoric, hydrochloric and/or phosphoric acids or caustic agents.
Thank You For Choosing Our D’Vontz Faucet
We appreciate your commitment to D’Vontz quality. Please take a few minutes to review
this manual before starting your installation. If you encounter any installation or
performance
problems, please don’t hesitate to contact us. Thanks again for choosing D’Vontz.
For expert faucet installation, you should contact a licensed
professional plumbing contractor in your area.
Before You Begin
CAUTION: Risk of restricted water flow and product damage.
- Observe all local plumbing and building codes.
-Shut off the water supply to your home at the meter.
-Before installation, unpack the new faucet and inspect it for damage or missing pieces.
(if any damage is present, promptly contact us for return/replacement options. No
return/refund will be honored to any D’Vontz product post installation)
-Return the faucet to the carton until you are ready to install it.
-Carefully inspect your homes waste and supply lines, stops or shut off valves for any
sign of damage. Replace if necessary. NOW is the time to replace them before the
installation of your new faucet.
Tools you may need
-Basin wrench
-Adjustable wrench
-Channel Lock pliers
-Screwdriver (Phillips and Slotted)
-Teflon Tape
-100% Clear Silicone (Plumbers Putty is NOT recommended as it may void warranties)
-Flashlight
You are ready to begin your faucet installation by following the
step-by- step instruction sheets.
MODEL # DV262DL-PC

Faucet Installation Guide:

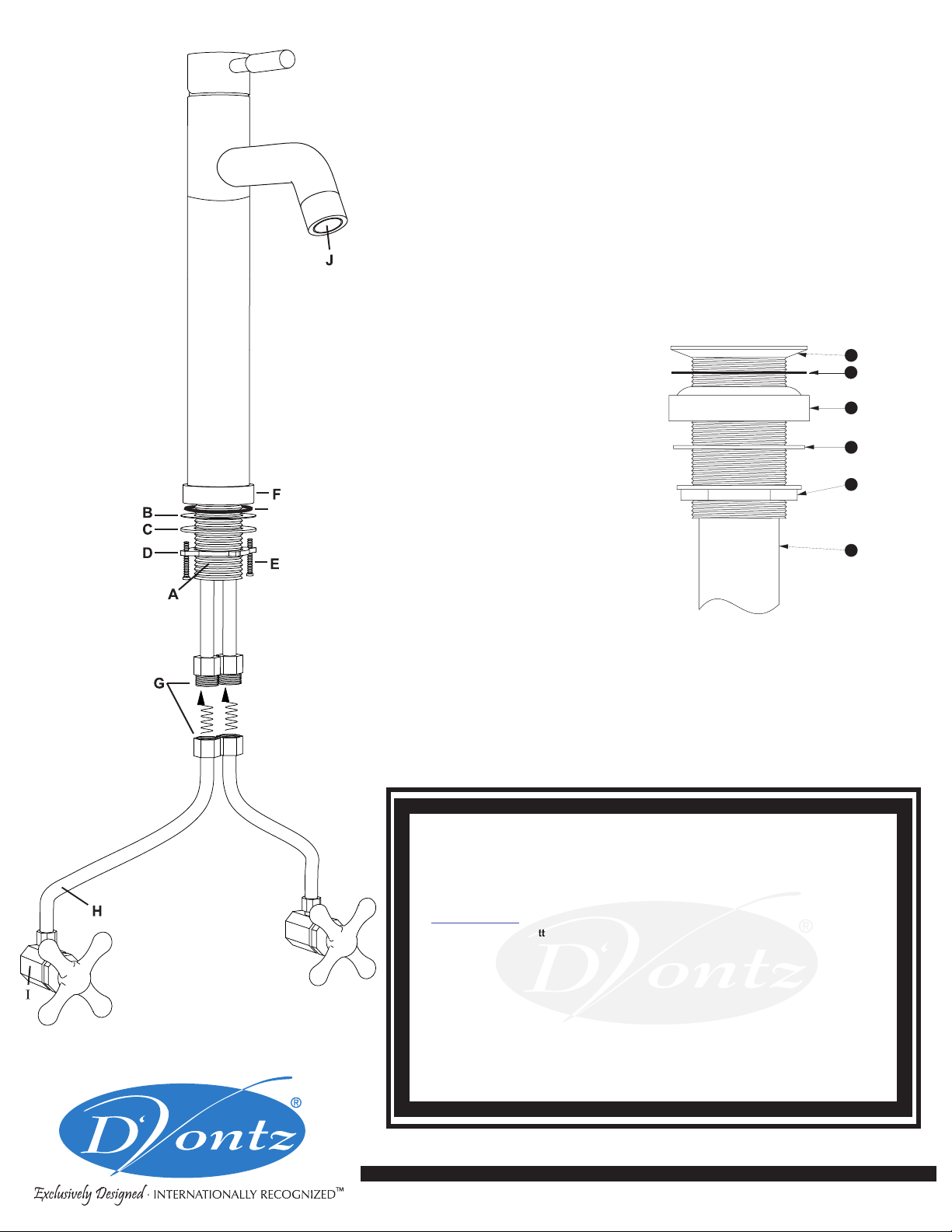

1. Remove retaining nut and washers (B,C,D) from the threaded retaining post (A).
2. With the retaining post (A) screwed into the faucet ring (F), insert the stainless steel
supply lines (G) and retaining post (A) through the faucet hole in your counter top.
3. While supporting the faucet, reinstall the rubber washer (B), metal washer (C) and
retaing nut (D). Screw the locking screws (E) out of the retaining nut until they
become flush with the bottom of the retaining nut (D).
4. Tighten the retaining nut (D) until it contacts the metal washer (C) on the underside
of the counter top and snug the locking screws using a phillips head screwdriver
being sure not to over tighten.
5. Connect the water supply lines (G) to the shut-off valves (I) via the attached
compression fitting (H) with an adjustable wrench being sure not to over tighten.
6. Remove the faucet aerator end (J) before turning the water supply on to ensure
debris in the lines passes through easily being sure to flush both the hot and cold
lines before reinstalling the aerator.
M
Drain Installation Guide:
1. Unscrew drain tube (#6)
from drain body and wrap
tephlon tape around
threaded end of drain tube (#6).
2. Unscrew lock nut (#5) from
drain body. Remove gasket
(#3), and washer (#4) from
drain body. Screw the drain
tube (#6) back into d rain body.
3. Put a bead of 100% Silicone
USE OF PLUMBERS PUTTY VOIDS WARRANTY
USE OF PLUMBERS PUTTY VOIDS WARRANTY
sealer under flange (#1), or
use flange gasket (#2) and
insert threaded end of drain
bo dy down through drain hole.
4. Replace gasket (#3) beveled
side up, then the washer (#4) and
thread up lock nut (#5) from the underside of the lavatory sink until the black rubber (#3) gasket is seated
securely inside the opening of the drain hole in the counter top. Tighten lock nut (#5) carefully, wiping
excess silicone from around the edge of the flange (#1). Ideally, it is best to wait 24 hours and tighten
further to allow for a solid silicone seal. Over tightening can squeaze out too
much silicone possibly
preventing a proper seal. Allow 24 hours for sealant to set.
DO NOT OVERTIGHTEN OR
DAMAGE WILL OCCUR!
DO NOT OVERTIGHTEN OR
DAMAGE WILL OCCUR!
5. Install drain t rap assembly and leak test all connections.
6
4
3
1
5
MAXIMUM
COUNTERTOP
THICKNESS = 2-1/2"
2
D’VONTZ • 7208 EAST 38th STREET • TULSA, OKLAHOMA 74145
918.622.3600 • FAX [phone] • WWW.DVONTZ.COM
If you have any trouble during the installation of your D’Vontz drain, please call our Customer Service
department at 918-622-3600.
Congratulations on the successful installation of your D’Vontz faucet!
LIMITED WARRANTY
•Use of any cleaning products other than those suggested by D’Vontz will void warranty. See
care and installation instructions included with product or available on the web at
www.dvontz.com.
•Use of “plumber’s pu y” on any product will void all warranties!
•All D’Vontz products are warranted to the original purchaser to be free of defects in material
and workmanship for one year from the purchase date.
•This limited warranty only applies to the original purchaser of our product. Proof of Purchase
in the form of the original sales receipt will be required for any warranty claim.
•This limited warranty does not cover any costs associated with a product’s removal and/or
reinstallation, including labor, materials or damage to surrounding products or goods.
•There is no warranty on copper sink or tub patinas. Please refer to the care instructions
included with these products.
D’Von L.L.C.
7208 E. 38th St., Tulsa, Oklahoma 74145
800-322-3600 ph 918-622-3649 fax
