DAB NOVA UP 180MA-MNA Operating and maintenance manual

ISTRUZIONI PER L’INSTALLAZIONE E LA MANUTENZIONE
INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
INSTRUCTIONS POUR L’INSTALLATION ET LA MAINTENANCE
INSTALLATIONS - UND WARTUNGSANLEITUNGEN
INSTRUCCIONES DE INSTALACIÓN Y MANTENIMIENTO
GEBRUIKS - EN ONDERHOUDSAANWIJZINGEN
INSTALLATIONS - OCH UNDERHÅLLSANVISNING
,16758&ğ,81,3(1758,167$/$5(ù,Ì175(ğ,1(5(
1È92'1$,1â7$/È&,8$Ò'5ä%8
Ʋ5(1*,02,535,(ä,Nj526,16758.&,-26
ȅǻǾīǿǼȈīǿǹȉǾȃǼīȀǹȉǹȈȉǹȈǾȀǹǿȈȊȃȉǾȇǾȈǾ
ɊɍɄɈȼɈȾɋɌȼɈɉɈɆɈɇɌȺɀɍɂɌȿɏɇɂɑȿɋɄɈɆɍɈȻɋɅɍɀɂȼȺɇɂɘ
.850$9(%$.,0%ø/*ø/(5ø
,16758.&-$0217$ĩ8,.216(5:$&-,
NOVA UP
ΔϧΎϳλϟ΍ϭΏϳϛέΗϟ΍ΔϳϠϣϋϲϓΔλΎΧΕ΍ΩΎηέ·

IT - ITALIANO pag 01
GB - ENGLISH page 13
FR - FRANÇAIS page 25
DE - DEUTSCH Seite 37
ES - ESPAÑOL pág. 49
NL - NEDERLANDS pag. 61
SE - SVENSKA sid. 73
52520Æ1Ă pag 85
SK - SLOVENSKO stran 97
/7±/,(789,Ǐ 109 psl.
*5ǼȁȁǾȃǿȀǹ ıİȜȓįĮ
58ɊɍɋɋɄɂɃ  ɫɬɪ
TR - TÜRKÇE sf. 145
PL - POLSKI strona 169
157ΔΣϔλϲΑέϋ
NOVA UP 180MA - MNA
NOVA UP 300MA - MNA
NOVA UP 600MA - MNA
NOVA UP 300MNA “X”
NOVA UP 600MNA “X”

ENGLISH GB
13
INDEX
Key 14
Warnings 14
Responsibility 15
1. Applications 15
2. Pumped liquids 15
3. Technical data and limitations of use 15
4. Management 16
4.1 Storage 16
4.2 Transport 16
4.3 Weight 16
5. Warnings 16
6. Installation 18
6.1 “Zero” Suction 18
7. Electrical connection 19
8. Start-up 20
a) MA 21
b) MNA - MNA-X 21
9. Precautions 21
10.Maintenance and cleaning 22
10.1 Cleaning the suction grid 22

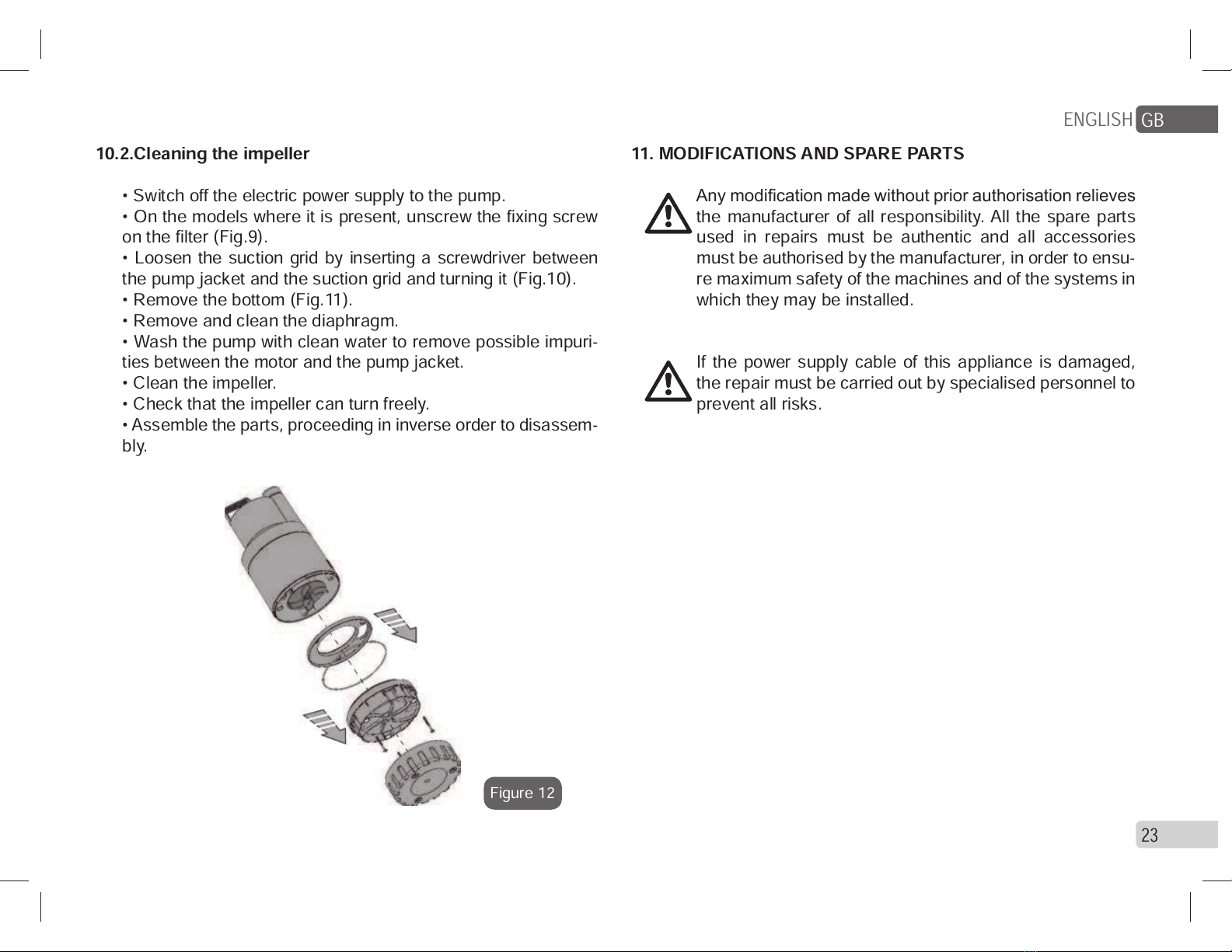

10.2 Cleaning the impeller 23
11. 0RGL¿FDWLRQVDQGVSDUHSDUWV 23

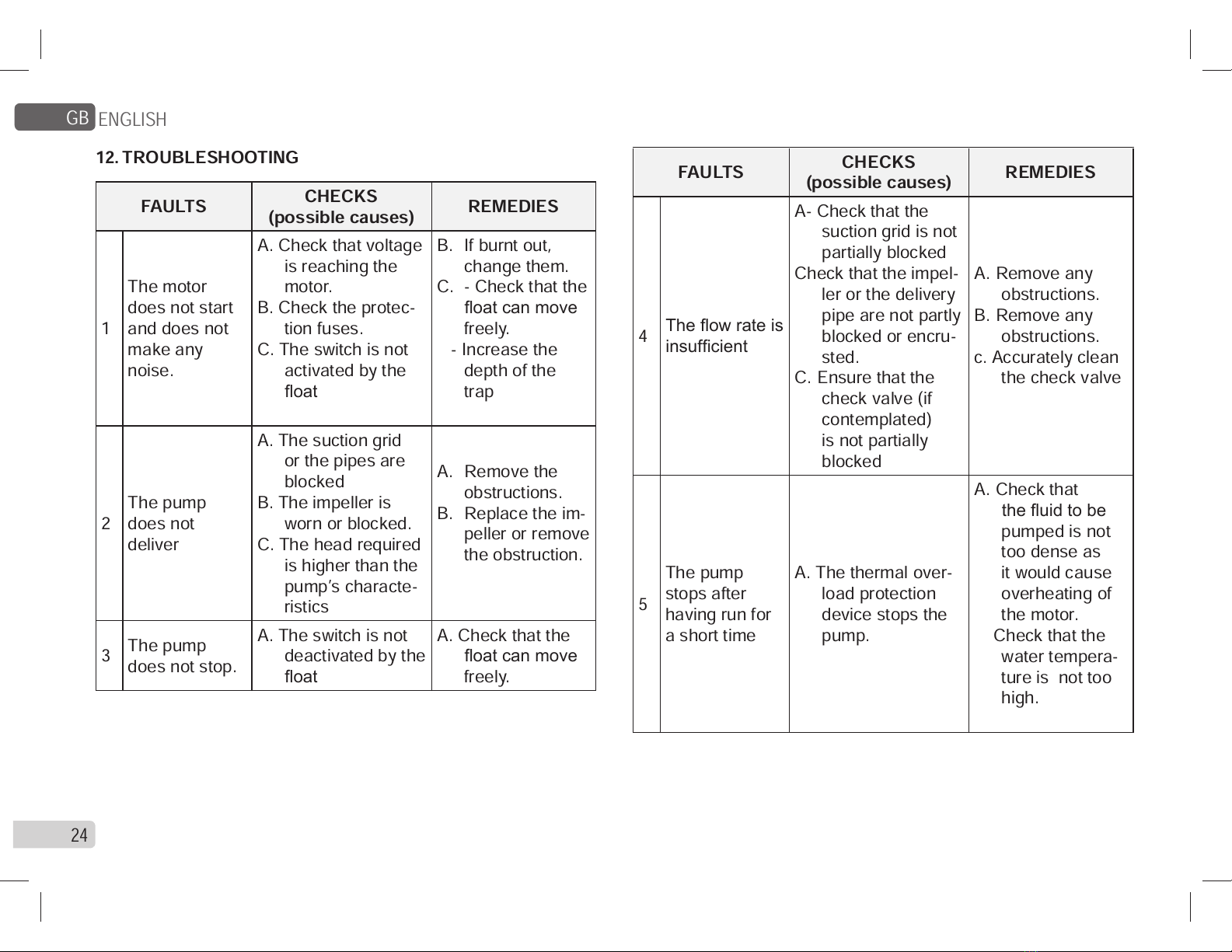

12. Troubleshooting 24

ENGLISH
GB
14
'H¿QLWLRQIRUWHFKQLFDOSHUVRQQHO,(&
The appliance is not intended to be used by persons
(including children) with reduced physical, sensory or
mental capacities, or who lack experience or knowledge,
unless, through the mediation of a person responsible
IRUWKHLUVDIHW\WKH\KDYHKDGWKHEHQH¿WRIVXSHUYLVLRQ
or of instructions on the use of the appliance. Children
must be supervised to ensure that they do not play with
the appliance.
Safety
Use is allowed only if the electric system is in posses-
sion of safety precautions in accordance with the
regulations in force in the country where the product is
installed.(for Italy CEI 64/2)
The power supply cable must never be used to carry or
shift the pump.
Never pull on the cable to detach the plug from the
socket.
If the power cable is damaged, it must be replaced by
the manufacturer or by their authorised technical
assistance service, so as to avoid any risk.
Failure to observe the warnings may create situations of risk for
persons or property and will void the product guarantee.
KEY
The following symbols have been used in the discussion:
Situation of general danger. Failure to respect the
instructions that follow may cause harm to persons and
property.
WARNINGS
Read this documentation carefully before installation.
Installation and operation must comply with the local
safety regulations in force in the country in which the
product is installed. Everything must be done in a work-
manlike manner.
Failure to respect the safety regulations not only causes
risk to personal safety and damage to the equipment,
but invalidates every right to assistance under guaran-
tee.
Skilled personnel
It is advisable that installation be carried out by compe-
tent, skilled personnel in possession of the technical
TXDOL¿FDWLRQVUHTXLUHGE\WKHVSHFL¿FOHJLVODWLRQLQIRUFH
The term skilled personnel means persons whose train-
ing, experience and instruction, as well as their knowl-
edge of the respective standards and requirements for
accident prevention and working conditions, have been
approved by the person in charge of plant safety, autho-
rizing them to perform all the necessary activities, during
which they are able to recognize and avoid all dangers.

ENGLISH GB
15
RESPONSIBILITY
The Manufacturer does not vouch for correct
operation of the electropumps or answer for any
damage that they may cause if they have been
WDPSHUHGZLWKPRGL¿HGDQGRUUXQRXWVLGHWKH
recommended work range or in contrast with other
indications given in this manual.
The Manufacturer declines all responsibility for
possible errors in this instructions manual, if due
to misprints or errors in copying. The Manufacturer
UHVHUYHVWKHULJKWWRPDNHDQ\PRGL¿FDWLRQVWR
products that it may consider necessary or useful,
without affecting their essential characteristics
1. APPLICATIONS
The pumps in the NOVA UP series are of the submersible type,
GHVLJQHGDQGPDGHIRUSXPSLQJFORXG\ZDWHUZLWKRXW¿EUHVSUH -
YDOHQWO\IRUGRPHVWLFXVHVRI¿[HGDSSOLFDWLRQVZLWKPDQXDORU
automatic operation, for drying basements and garages subject
WRÀRRGLQJIRUSXPSLQJGUDLQDJHZHOOVSXPSLQJUDLQZDWHUFRO -
OHFWLQJWUDSVRULQ¿OWUDWLRQVIURPURRIJXWWHUVHWF
Thanks to their compact and handy shape, they are also used
for particular applications as portable pumps for emergency
situations such as for drawing water from tanks or rivers, draining
swimming pools and fountains, excavations or underpasses. Also
suitable for gardening and general hobby activity.
These pumps cannot be used in swimming pools,
ponds or basins where people are present, or for
pumping hydrocarbons (petrol, diesel fuel, combusti-
ble oils, solvents, etc.) in accordance with the acci-
dent-prevention regulations in force.
2. PUMPED LIQUIDS
NOVA UP
Fresh water: Ɣ
Rainwater: Ɣ
Clear waste water: Ɣ
Sewage:
Foul waste water containing solid bodies with long
¿EUHV
Fountain water: Ɣ
River or lake water: Ɣ
3. TECHNICAL DATA AND LIMITATIONS OF USE
• Supply voltage: see electrical data plate
• Delayed line fuses (220-240v version): indicative values
(Ampere)
Model Line fuses 220-240V 50Hz
NOVA UP 600MA/MNA 4
NOVA UP 300MA/MNA 2
• Grade of motor protection: IP68
• Protection rating: F
• Storage temperature: -10°C +40°C
• Range of temperature of the fluid: from 0°C to 35°C

ENGLISH
GB
16
according to EN 60335-2-41 for domestic use
• Max. granulometry: 10 mm
Model Hz Volt
(V) P1 (W) Amp (A) Hmax (m) Flow max PK
Max
Immersion
(m)
180
MA-MNA
50 220-
240 260 1,2 5 7,5 7
300
MA-MNA
50 220-
240 380 1,5 7 9,9 7
60 115 380 2,8 7 8,7 5
60 230 380 1,2 7 9 7
600
MA-MNA
50 220-
240 770 3,5 9,5 13,8 7
60 115 780 5,6 9,2 13,8 5
60 230 700 2,5 9,2 13,8 7
300
MNA “X”
50 220-
240 380 1,5 7 8,4 7
600
MNA “X”
50 220-
240 770 3,5 9,5 11,7 7
Model Minimum draught
depth Max. Granulo- metry
NOVA UP 180MA - MNA
60 mm
PPZLWKRXW¿OWHU
10 mm
NOVA UP 300MA - MNA
NOVA UP 600MA - MNA
70 mm
PPZLWKRXW¿OWHU
NOVA UP 300MNA “X” 70 mm
NOVA UP 600MNA “X” 80 mm
The pump which does not stand on a base cannot
support the weight of the pipes, which must be sup-
ported in some other way.
4. MANAGEMENT
4.1 Storage
All the pumps must be stored in a dry covered place, with possible
constant air humidity, free from vibrations and dust.
They are supplied in their original pack in which they must remain
until the time of installation.
4.2 Transport
Avoid subjecting the products to needless impacts and collisions.
4.3 Weight
The adhesive plate on the packaging indicates the total weight of
the pump

ENGLISH GB
17
The pumps must never be carried, lifted or allowed to
operate suspended from the power cable.
• If the power supply cable is damaged in any way it must be
replaced and not repaired. Skilled personnel must therefore
be employed, in possession of the technical qualifications re-
quired by the Regulations in force.
• Qualified personnel must be employed also for electrical re-
pairs which, if badly carried out, could cause damage and ac-
cidents.
• The pump must never be allowed to run when dry.
• The Manufacturer does not vouch for the correct operation of
the pump if it has been tampered with or modified.
• On the body there is a venting hole to avoid phenomena of
cavitation when starting the pump. It is therefore normal for a
small amount of water to come out of the pump during opera-
tion.
5. WARNINGS
• Use in cellars, basements, etc. is allowed only if the electric sy-
stem is in possession of safety precautions in accordance with the
regulations in force.
• The pump is provided with a carrying handle which can also be
used to lower it into wells or deep excavations by means of a rope.
NO OK OK
Figure 1
Figure 2

ENGLISH
GB
18
• The sealing device contains lubricant which is non-toxic but
which may alter the characteristics of the water, in the case of
pure water, if the pump were to have any leaks.
6. INSTALLATION
• If the bottom of the trap where the pump is to work is particu-
larly dirty, a support should be provided on which to place the
pump so as to avoid blocking of the suction grid.
Figure 3
• It is advisable to use pipes having an internal diameter of
30 mm, to avoid the decrease of pump performance and the
possibility of blocking.
• Totally immerse the pump in the water.
• Ensure that the minimum dimensions of the trap in which it is
housed are as in the following table:
Base dimensions
(mm) Height (mm)
NOVA UP 180 - 300 400x400 560
NOVA UP 600 400x400 600
• The dimensions of the trap must always be in relation to the
quantity of water arriving and to the flow of the pump, so as not
to subject the motor to excessive starts
The pump must be installed in vertical position!
6.1 “Zero” Suction
In models where it is allowed, it is possible to reduce the minimum
VXFWLRQOHYHOVHHFKDSUHPRYLQJWKH¿OWHUDVLQGLFDWHGLQWKH
¿JXUH

ENGLISH GB
19
The “Zero” suction function is allowed only in models
ZKHUHWKHUHLVQR¿[LQJVFUHZRQWKH¿OWHU
7. ELECTRICAL CONNECTION
Always respect the safety regulations!
Ensure that the mains voltage corresponds to the
value indicated on the data plate and THAT IT IS
POSSIBLE TO MAKE A GOOD EARTH CONNECTION.
NO
OK
Figure 2
Figure 5

ENGLISH
GB
20
The length of the power cable on the pump limits the
maximum depth of immersion in use of the pump.
8. START-UP
7KHPRGHOVZLWKDÀRDWVZLWFKDUHVWDUWHGDXWRPDWLFDOO\ZKHQWKH
water level rises (a) .
3XPSVZLWKRXWDÀRDWDUHVWDUWHGPDQXDOO\E\DVZLWFKXSVWUHDP
from the socket (not supplied) (b) .
• It is recommended to equip fixed pumping stations with a
device with a differential trip current lower than 30 mA (for the
version 220-240V version).
• The single-phase motors are equipped with built-in ther-
mal overload protection and can be connected directly to the
mains. NB: if the motor is overloaded it stops automatically.
Once it has cooled it starts again automatically without requi-
ring any manual intervention.
• Do not damage or cut the power supply cable. If this should
occur, have the repair or replacement carried out by speciali-
sed, qualified personnel
Figure 6

ENGLISH GB
21
b) MNA - MNA-X
9. PRECAUTIONS
• RISK OF FROST: when the pump remains inactive at a tempe-
rature lower than 0°C, it is necessary to ensure that there is no
water residue which could freeze, causing cracks in the plastic
parts.
• If the pump has been used with substances that tend to form
a deposit, rinse it after use with a powerful jet of water in order
to avoid the formation of deposits or encrustations which would
reduce the characteristics of the pump.
• Ensure that the float switch does not touch the walls of the trap
during operation.
• Ensure that the OFF level is not too close to the suction grid,
minimum height below the filter 60/70mm.
a) MA
Level On
(cm)
Level Off
(cm)
Difference
ON-OFF
(cm)
NOVA UP MA
300-180
29 12 17
NOVA UP MA
600
33 16 17
Figure 8
Figure 7

ENGLISH
GB
22
10. MAINTENANCE AND CLEANING
In normal operation the pump does not require any type of main-
tenance. The pump may not be dismantled except by skilled and
TXDOL¿HGSHUVRQQHOLQSRVVHVVLRQRIWKHTXDOL¿FDWLRQVUHTXLUHG
E\WKHVSHFL¿FUHJXODWLRQVRQWKHVXEMHFW,QDQ\FDVHDOOUHSDLU
and maintenance work must be carried out only after having
disconnected the pump from the supply mains.
:KHQUHVWDUWLQJWKHSXPSHQVXUHWKDWWKHVXFWLRQ¿OWHULVDOZD\V
¿WWHGVRDVQRWWRFUHDWHWKHULVNRUSRVVLELOLW\RIDFFLGHQWDOFRQ -
tact with moving parts.
If the pump has been used with substances that tend to form a
deposit, rinse it after use with a powerful jet of water.
10.1 Cleaning the suction grid
• Switch off the electric power supply to the pump.
• Drain the pump.
• On the models where it is present, unscrew the fixing screw
on the filter (Fig.9).
• Loosen the suction grid by inserting a screwdriver between
the pump jacket and the suction grid and turning it (Fig.10).
• Remove the suction grid (Fig.11)
• Clean and reassemble the suction grid.
Figure 9
Figure 10
Figure 11

ENGLISH GB
23
10.2.Cleaning the impeller
• Switch off the electric power supply to the pump.
• On the models where it is present, unscrew the fixing screw
on the filter (Fig.9).
• Loosen the suction grid by inserting a screwdriver between
the pump jacket and the suction grid and turning it (Fig.10).
• Remove the bottom (Fig.11).
• Remove and clean the diaphragm.
• Wash the pump with clean water to remove possible impuri-
ties between the motor and the pump jacket.
• Clean the impeller.
• Check that the impeller can turn freely.
• Assemble the parts, proceeding in inverse order to disassem-
bly.
Figure 12
11. MODIFICATIONS AND SPARE PARTS
$Q\PRGL¿FDWLRQPDGHZLWKRXWSULRUDXWKRULVDWLRQUHOLHYHV
the manufacturer of all responsibility. All the spare parts
used in repairs must be authentic and all accessories
must be authorised by the manufacturer, in order to ensu-
re maximum safety of the machines and of the systems in
which they may be installed.
If the power supply cable of this appliance is damaged,
the repair must be carried out by specialised personnel to
prevent all risks.

ENGLISH
GB
24
12. TROUBLESHOOTING
FAULTS CHECKS
(possible causes) REMEDIES
1
The motor
does not start
and does not
make any
noise.
A. Check that voltage
is reaching the
motor.
B. Check the protec-
tion fuses.
C. The switch is not
activated by the
ÀRDW
B. If burnt out,
change them.
C. - Check that the
ÀRDWFDQPRYH
freely.
- Increase the
depth of the
trap
2The pump does not
deliver
A. The suction grid
or the pipes are
blocked
B. The impeller is
worn or blocked.
C. The head required
is higher than the
pump’s characte-
ristics
A. Remove the
obstructions.
B. Replace the im-
peller or remove
the obstruction.
3The pump
does not stop.
A. The switch is not
deactivated by the
ÀRDW
A. Check that the
ÀRDWFDQPRYH
freely.
FAULTS CHECKS
(possible causes) REMEDIES
4
7KHÀRZUDWHLV
LQVXI¿FLHQW
A- Check that the
suction grid is not
partially blocked
Check that the impel-
ler or the delivery
pipe are not partly
blocked or encru-
sted.
C. Ensure that the
check valve (if
contemplated)
is not partially
blocked
A. Remove any
obstructions.
B. Remove any
obstructions.
c. Accurately clean
the check valve
5
The pump
stops after
having run for
a short time
A. The thermal over-
load protection
device stops the
pump.
A. Check that
WKHÀXLGWREH
pumped is not
too dense as
it would cause
overheating of
the motor.
Check that the
water tempera-
ture is not too
high.
