Dacor CABP3 Technical manual

PLANNING
GUIDE
www.Dacor.com
Phone: [phone]
Specifications are subject to change without notice.
See installation instructions for additional details. 9.1

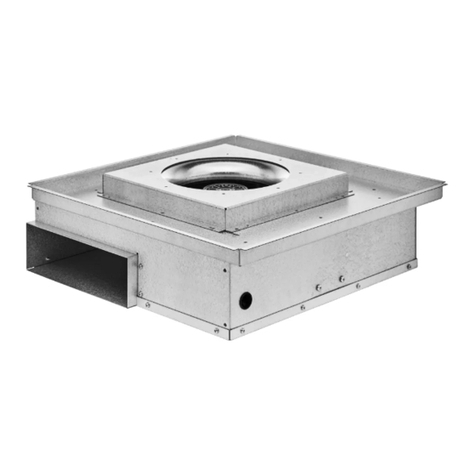

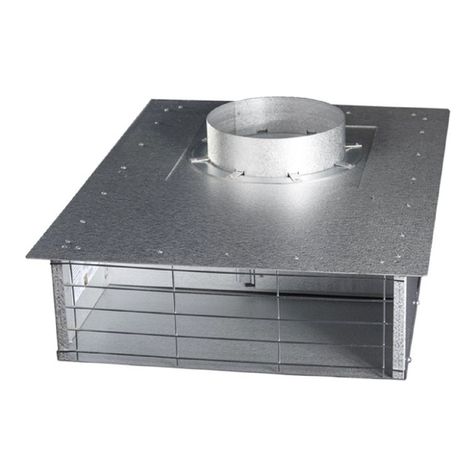

Cabinet Blower
CABP3
Total Connected
Load
Blower Rating*
(CFM)
Approximate
Shipping Weight
4 Amps. @
120Vac, 60 Hz
600 Nominal
585.6 Actual 34 lbs.
* At zero inches static pressure
NOTE: The CABP3 cabinet blower is approved
only for use with Dacor RV series raised vents.
19 3/8"
(492 mm)
18 7/8"
(479 mm)
18 7/8" (479 mm)
18 3/8" (467 mm)
17 7/8" (454 mm)
toP vIEw
5 3/4"
(146 mm)
Ø 7/8" (22mm)
(Grommet Hole)
2" (51 mm)
1/2" (13 mm)
17" (432mm)
3 3/4"
(95 mm)
ELEctrIcAL LocAtIoN SIDE vIEw
9 3/4"
(248 mm)
17"
(432 mm)
3"
(76 mm)
DUct LocAtIoN SIDE vIEw
Electrical Wiring
Access Hole
3/8” (9 mm)
mounting flange
around perimeter
ISomEtrIc vIEw
All tolerances: ±1/16” (±1.6mm) unless otherwise stated
Document # PG09-001 Revised 04/30/09 Page 1/1
WARNING
Observe all governing codes and ordinances during◊
planning and installation. Contact your local building
department for further information.
This appliance must be installed in accordance with the RV◊
series Raised Vent Installation Instructions.
