Haaga 355 User manual

HAAGA 355 USERS MANUAL
• Original operating instructions
• Original Bedienungsanleitung
• Manuel d’utilisation original
• Manual de instrucciones original
Revisionsstand: 1.0 - Mai 2017

2
HAAGA 355
EN Original operating instructions ................................................................................... 3
DE Original Bedienungsanleitung .................................................................................. 16
FR Manuel d’utilisation original ...................................................................................... 29
ES Manual de instrucciones original .............................................................................. 42
SPEEDY SWEEP®1-877-977-3339
JanitorialEquipmentSupply.com

3
Table of Contents
1. General........................................................................................................................... 4
1.1 Address ........................................................................................................................................... 4
1.2 Conventions.................................................................................................................................... 4
1.3 Symbols and labels ........................................................................................................................ 4
1.4 Limitation of Liability...................................................................................................................... 4
1.5 Warranty .......................................................................................................................................... 4
1.6 Copyright......................................................................................................................................... 5
1.7 Target group.................................................................................................................................... 5
2. Safety ............................................................................................................................. 5
2.1 Intended use.................................................................................................................................... 5
2.2 Improper use ................................................................................................................................... 5
2.3 Responsibility of the user.............................................................................................................. 5
2.4 General safety instructions ........................................................................................................... 6
2.5 Hazard notices on the device ........................................................................................................ 6
2.6 Personal Safety Equipment ........................................................................................................... 6
3. Technical data ............................................................................................................... 6
4. Construction and Function .......................................................................................... 7
5. Transport/transporting ................................................................................................. 8
5.1 Delivery............................................................................................................................................ 8
5.2 Scope of supply.............................................................................................................................. 8
5.3 Handling Packaging Materials....................................................................................................... 8
5.4 Storage ............................................................................................................................................ 8
5.5 Carrying the device ........................................................................................................................ 9
5.6 Transporting the device in a vehicle............................................................................................. 9
6. Commissioning ........................................................................................................... 10
6.1 Assemble the telescopic bracket................................................................................................ 10
6.2 Assemble telescopic bracket ...................................................................................................... 10
6.3 Height adjustment of telescopic bracket.................................................................................... 11
7. Operation ......................................................................................................................11
7.1 Before starting work..................................................................................................................... 11
7.2 Operation....................................................................................................................................... 12
7.3 Empty sweeping container .......................................................................................................... 12
8. Troubleshooting .......................................................................................................... 13
8.1 Fault table...................................................................................................................................... 13
9. Maintenance and cleaning ......................................................................................... 14
9.1 Maintenance plan.......................................................................................................................... 14
9.2 Remove blockage ......................................................................................................................... 14
9.3 Align bristles ................................................................................................................................. 15
9.4 Clean the device ........................................................................................................................... 15
10. Decommissioning ....................................................................................................... 15
10.1 Disassemble telescopic bracket ................................................................................................. 15
10.2 Disposal......................................................................................................................................... 15
HAAGA 355

4
1. General
This operating manual is part of the BG355
sweeping machine (year of construction: from
2017) and is exclusively valid for the specied
device.
This operating manual provides important
information for the safe and efcient use of the
machine.
A requirement for safe operation of the machine
is the adherence to all of the safety and operation
instructions provided.
• Read the operating manual carefully before
using the device.
• Read the safety instructions!
• Keep the operating manual safe and
accessible during the lifespan of the device.
• Pass the operating manual onto any
subsequent owner or user of the device
1.1 Address
1.2 Conventions
To be able to work optimally with the operating
manual, please note the following explanations of
the typographical conventions.
Numbering
• The texts shown are rst level numbering
points.
Operating Sequence
1. Step 1 of the operating sequence
2. Step 2 of the operating sequence
3. Step 3 of the operating sequence
The sequence of the work steps must be
observed.
Tip
» Tips and notes (not machine damage) are
shown like this.
1.3 Symbols and labels
All warnings and safety instructions must be
complied with! When working, always act with
caution to prevent accidents, personal injury and
damage to property!
Safety instructions
SIGNAL WORD
Type and source of hazard
Possible consequences
• Measures for avoiding danger
Risk level
Risk level Probability
of occurrence
Consequences
in the event of
noncompliance
DANGER Direct Death, serious injury
WARNING
Possible Death, serious injury
CAUTION
Possible
Slight injury
NOTE Possible material damage
1.4 Limitation of Liability
Bissell Commercial does not accept any liability
for damage and consequential damage caused
by the following points:
• Failure to observe the operating instructions
• Use of nonapproved replacement parts /
wrong spare parts / spare parts that do not
correspond to the manufacturer's specication
• Unauthorized changes, additions to and
modications to the device
1.5 Warranty
The provisions that are described in the general
terms and conditions of Bissell Commercial apply.
General

5
Safety
1.6 Copyright
The operating manual is copyright protected for
Bissell Commercial.
The operating manual includes instructions
and diagrams or diagram sections of a
technical nature, which may not be reproduced
in the entirety or in part, distributed or used
for competition purposes or otherwise
communicated.
Bissell Commercial reserves all rights for the
provision of permission for use for publication
or distribution of copies or information from this
operating manual to third parties.
In case of infringement the manufacture is
entitled to make a claim for damages. Further
claims are reserved.
1.7 Target group
This operating manual is intended for the use of
this sweeping machine.
2. Safety
To avoid incorrect functioning, damage and
health impairments, please observe the following
instructions!
2.1 Intended use
The 355 sweeping machine is intended solely for
the removal of road dirt such as leaves, grass,
gravel, sand and similar contaminants on level
and hard surfaces.
2.2 Improper use
Any use other than that described in the section
“Intended use” is not in compliance with the in-
tended purpose. The operator of the device alone
is liable for any resulting damage.
The sweeping machine may not be used for
sweeping hazardous, ammable or glowing
substances (cigarettes and matches) liquids,
explosive or hazardous
dusts (ex), acids or solvents.
The sweeping machine may also not be used for
sweeping water.
The sweeping machine may not be used in areas
where there is a risk of explosion or as a means
of transport.
2.3 Responsibility of the user
A user is any individual or legal entity, who uses
the machine or has it used by third parties and
is responsible during its use for the safety of the
user or third parties.
• Supervise children who are in the working envi-
ronment, to ensure that they do not play with it.
• Minors may not work with the device. Young
people over the age of 16 years who are being
trained under supervision are excluded.
• Persons, whose reaction times are inuenced
by, e.g. drugs, alcohol or medications, may not
carry out any work with the device.
• Persons who are not allowed to do strenuous
work due to their health status may not work
with the sweeping machine.
• Replace any signs that have become illegible
on the sweeping machine.
General
HAAGA 355

6
2.4 General safety instructions
• Keep the packaging material out of reach of
children. There is a risk of suffocation!
• Do not wear long hair, ties loose clothing or
jewellery including rings.
• When handling the sweeping machine please
note that there is a risk of injury from hanging
or being pulled in.
2.5 Hazard notices on the device
The following pictograms are afxed to the
sweeping machine:
CAUTION
When working on the machine, the safety
instructions described in the operating manual
must be observed.
Operating
Read the operating manual carefully before
using the device.
2.6 Personal Safety Equipment
Personal safety equipment must be worn when
working to minimise health hazards. For that
reason:
• Before starting all work put on each item of
specied safety equipment properly and wear it
during work.
Sturdy footwear
Wear sturdy footwear with well-gripping, non-
slip soles.
Protective gloves
Wear protective gloves.
Dust protection mask
Wear a dust protection mask.
3. Technical data
Basic data of the BG355
Technical data Value
Height (depending on height adjustments of
telescopic bracket)
in inches
45.27”
47.25”
49.21”
Width
in inches
21.65”
Length
in inches
22.83”
Sweeping width
in inches
21.65”
Sweeping capacity
in square metres per hour [y²/h]
1913.58
Capacity of the sweeping container
in litres [l]
5.28
Weight
in pounds
15.87 lbs.
Safety
Technical data

7
4. Construction and Function

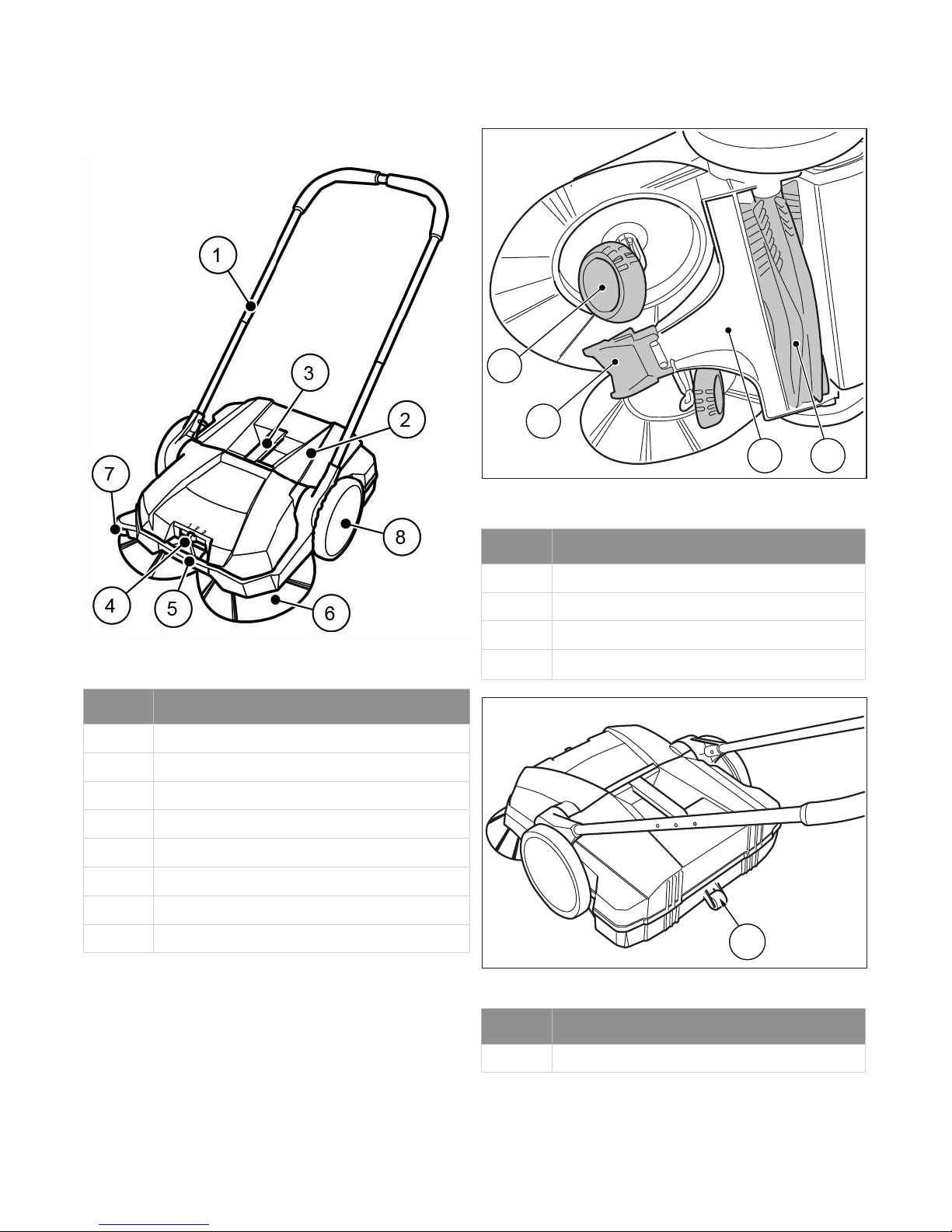

Fig. 1: Component overview 1
Item no. Component
1 Telescopic bracket
2 Sweeping container
3 Handle of sweeping container
4 Plate brooms – height adjustment
5 Carrying handle
6 Plate brooms
7 Lateral guide roller
8 Impeller
The device is moved forward by pushing, via
the telescopic bracket (1). At the same time the
2 plate brooms (6) convey the sweepings in the
direction of the sweeping container (2) with the
aid of the sweeper lip (11). The ne dirt sweeping
roll (9) conveys the rest of the sweepings into the
sweeping container (2).
Fig. 2: Component overview 2
Item no. Component
9 Fine sweeping roll
10 Helical gear
11 Sweeper lip
12 Sweeping plate
Fig. 3: Component overview 3
Item no. Component
13 Multi-roll
12
11
10
9
13
HAAGA 355
Construction and Function

8

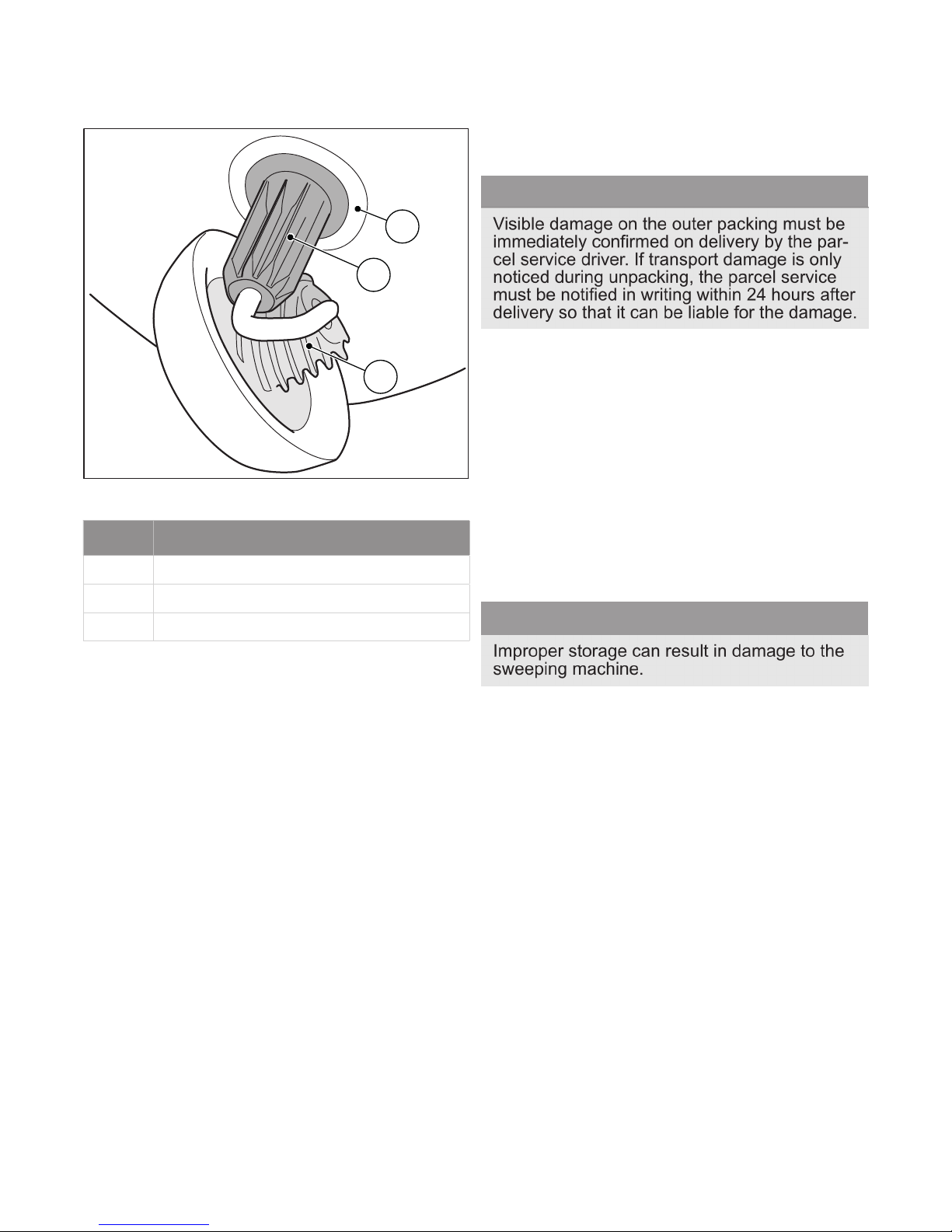

Fig. 4: Detailed view of plate broom
Item no. Component
14 Connection
15 Toothed sleeve
16 Helical gear toothing
5. Transport/transporting
5.1 Delivery
NOTE
Visible damage on the outer packing must be
immediately conrmed on delivery by the par-
cel service driver. If transport damage is only
noticed during unpacking, the parcel service
must be notied in writing within 24 hours after
delivery so that it can be liable for the damage.
5.2 Scope of supply
• Device
• Sliding bracket
• 2 telescopic pipes
• Operating instructions
5.3 Handling Packaging Materials
• Always dispose of packing in an
environmentally responsible manner.
• Observe the local and regional legal provisions
in force.
5.4 Storage
NOTE
Improper storage can result in damage to the
sweeping machine.
• Store the sweeping machine only in cleaned
condition and with an emptied sweeping
container.
» Information on emptying the sweeping
container can be found in Section and on
cleaning in Section of this operating manual.
Construction and Function
Transport/transporting
15
16
14

9
Transport/transporting
Fig. 5: Storage position
• Place the device in such a way that the bristles
cannot be kinked or bent.
• Secure the device including telescopic sliding
brackets against tipping over, slipping and thus
against damage.
• Do not store the device outdoors or in damp
environments.
5.5 Carrying the device
CAUTION
Risk of injury through tipping over of the
telescopic bracket!
Tipping over of the telescopic bracket may
lead to slight injuries, such as jamming of
the nger or haematomas in users or other
persons.
• When carrying the device, hold it so that the
telescopic bracket cannot tip over.
Fig. 6: Carrying the device
1. Swing the telescopic bracket (1) at towards
the front.
2. Grasp the device on the carrying handle (2).
3. Carry the device in such a manner that the
plate brooms face away from the body.
5.6 Transporting the device in a vehicle
CAUTION
Risk of injury through improper transport
of the sweeping machine!
A wandering, skidding or tipping of a device
can result in the driver or other persons being
injured.
• Secure the device with a strap to prevent it
from slipping and moving around.
1. Place the device in a suitable location in the
vehicle.
2. Secure the device with a strap.
NOTE
Improper transport can result in damage to the
sweeping machine.
2
1
HAAGA 355

10
6. Commissioning
6.1 Assemble the telescopic bracket
Fig. 7: Assembly of the telescopic bracket
On delivery, the 2 telescopic pipes (1) and the
sliding brackets (2) or individual parts.
1. Press the locking springs (3) inwards on both
sides of the telescopic pipes.
2. Push the telescopic pipe (1) into the sliding
bracket (2).
3. Push the telescopic tube into the sliding
brackets until the locking springs on both
sides lock in.
» Make sure that the locking springs lock in at
the same height on both sides.
6.2 Assemble telescopic bracket
CAUTION
Risk of injury through tipping over of the
telescopic bracket!
Tipping over of the telescopic bracket may
lead to slight injuries, such as jamming of
the nger or haematomas in users or other
persons.
• When carrying the device, hold it so that the
telescopic bracket cannot tip over.
Fig. 8: Assembly of the telescopic bracket
1. Turn the handles (1) into the vertical position.
2. Press the locking springs (2) inwards on both
sides of the telescopic sliding bracket.
3. Push the telescopic sliding bracket (3) into
both handles simultaneously.
4. Push the telescopic sliding bracket into the
handles until the locking springs lock in.
Commissioning
1
2
32
123
3
1
SPEEDY SWEEP®1-877-977-3339
JanitorialEquipmentSupply.com

11
Commissioning
6.3 Height adjustment of telescopic bracket
The telescopic sliding bracket (1) can be adjusted
to the height of the user in three levels.
Fig. 9: Height adjustment of telescopic
bracket
1. Press the locking springs (2) inwards on both
sides of the telescopic sliding bracket.
2. Adjust the telescopic sliding brackets
according to your height.
» The locking springs (2) must lock into the
desired position audibly and visibly.
7. Operation
WARNING
Risk of cutting due to broken glass, metal or
other sharp edged materials!
When emptying the sweeping container,
cutting injuries may occur due to broken glass,
metal or other sharp edged materials.
• Wear the prescribed personal protective
equipment!
CAUTION
Health impairments caused by dust
resulting from sweeping!
The inhalation of dusts can endanger the
health.
• Wear the prescribed personal protective
equipment!
7.1 Before starting work
• Check the device to make sure that it is functioning
before starting work.
• Check the telescopic sliding bracket to make sure
that it is rmly xed in the handles.
• Check the sweeping container to make sure it is
rmly xed and in good condition.
• Check the plate brooms and the ne dust sweeping
roller for rolled up threads and cords. Remove these
if necessary.
• Check the plate brooms and the ne dust sweeping
roller for jammed items or contamination.
• Check the handle for contamination and clean its if
necessary.
Height adjustment of the plate brooms
The heights of the brooms is adjusted in the middle
of the front part. The height adjustment sets the plate
brooms to the surface to be swept. The levels are
based on empirical values and must therefore be con-
sidered as the levels are based on empirical values
and must therefore be regarded as reference values.
As a result, during sweeping, adaptations of the levels
may need to be made depending on the surface.
• Level 1: for all level, hard surfaces
(e.g. asphalt, concrete, slabs…)
• Level 2: for damp leaves, sand, and uneven
surfaces (e.g. washed concrete slabs)
• Level 3: for heavy soiling and severely uneven
surfaces
Operation
2
1

12
NOTE
Do not press the plate brooms too rmly on
the ground. A too high pressure does not
achieve a better cleaning result, but rather
leads to an increase in the pushing resistance
and the wear of the device.

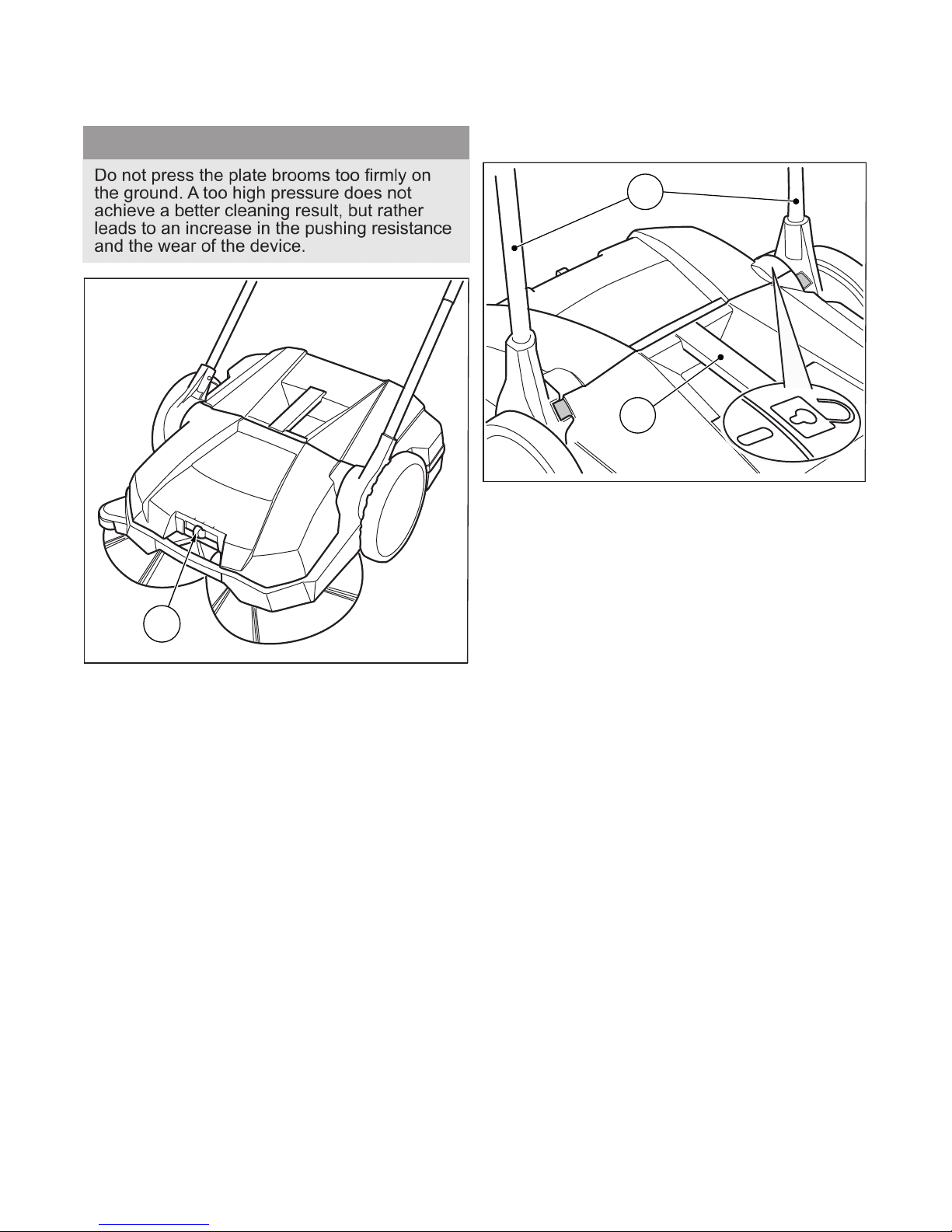

Fig. 10: Height adjustment of the plate
brooms
• Set the required level:
• Push the lever (1) into the desired position
(Level 1-3) to the left or right.
» Lift the machine slightly by the handle. This
will make it easier to adjust the height.
7.2 Operation
• Operate the device via the telescopic bracket
with both hands.
• Push the device forward at normal walking
speed.
• Remove the sweeping container as needed,
see section “Empty sweeping container” in
Section of this operating manual.
7.3 Empty sweeping container
Fig. 11: Release position of the sweeping
container
• Empty the sweeping container after each use.
• Empty the sweeping container at regular
intervals to achieve a proper sweeping result.
1. Bring the telescopic sliding bracket (1) into
the vertical position.
» In this position, the sweeping container is
released for removal from the device. This is
also indicated by the symbol “Lock unlocked”.
2. Pull the sweeping container upwards by the
handle (2).
3. Empty the sweeping container completely.
» Make sure that the enclosure sides are free
of dirt.
4. Place the empty sweeping container on
the device and bring the telescopic sliding
bracket back into the operating position.
» In the operating position of a telescopic
sliding bracket, the sweeping container is
locked.
Operation
123
1
1
2

13
Troubleshooting
8. Troubleshooting
WARNING
Risk of cutting due to broken glass, metal
or other sharp edged materials!
When emptying the sweeping container,
cutting injuries may occur due to broken glass,
metal or other sharp edged materials.
• Wear the prescribed personal protective
equipment!
CAUTION
Health impairments caused by dust
resulting from sweeping!
The inhalation of dusts can endanger the
health.
• Wear the prescribed personal protective
equipment!
CAUTION
Risk of injury through tipping over of the
telescopic bracket!
Tipping over of the telescopic bracket may
lead to slight injuries, such as jamming of
the nger or haematomas in users or other
persons.
• When carrying the device, hold it so that the
telescopic bracket cannot tip over.
Even if the prescribed maintenance work and
checks of the device before use are complied
with, faults may occur. Possible faults are listed
in the table below, with specication of the cause
and remedy.
8.1 Fault table
Fault Cause Remedy
Device is
running with
difculty or
roughly
Device is
contaminated
Clean device, see
Section
Broom blocked Remove blockage see
Section “Remove
blockage”
Contaminated
broom drives
Clean broom drives, see
Section “Clean device”
Height
adjustment
is set too
low, contact
pressure of the
plate brooms
too high
Set height adjustment,
see Section in the
section “Adjust height
setting”
Plate brooms do
not rotate
Contact Service
Bristles are
bent
Improper
storage
Align the bristles, see
Section in the section
“Align bristles”
Sweeping
result is
insufcient
Sweeping lip is
missing, loose
or worn
Replace sweeping lip

14
9. Maintenance and cleaning
WARNING
Risk of cutting due to broken glass, metal
or other sharp edged materials!
When emptying the sweeping container,
cutting injuries may occur due to broken glass,
metal or other sharp edged materials.
• Wear the prescribed personal protective
equipment!
CAUTION
Health impairments caused by dust
resulting from sweeping!
The inhalation of dusts can endanger the
health.
• Wear the prescribed personal protective
equipment!
CAUTION
Risk of injury through tipping over of the
telescopic bracket!
Tipping over of the telescopic bracket may
lead to slight injuries, such as jamming of
the nger or haematomas in users or other
persons.
• When carrying the device, hold it so that the
telescopic bracket cannot tip over.
CAUTION
Hazard due to cleaning materials!
The agents can contain harmful ingredients
and can thereby cause irritation of the
respiratory tract and the skin.
• Observe the manufacturer's safety data
sheet.
• Avoid spillage and the formation of fog.
• Do not eat, drink or smoke while working.
• Avoid contact with skin and eyes.
In the following sections the maintenance and
cleaning work required for optimal and fault-free
operation is described.
The conduct of the specied work depends
in some cases on time and/or load. For the
maintenance interval information shown both in
deadlines and service hours, the one that occurs
rst applies.
In case of questions on the maintenance work
and intervals contact the manufacturer.
9.1 Maintenance plan
Maintenance
interval
Maintenance work
Before
starting
work
Check the device to make sure that it
is functioning before starting work. If
necessary, contact the Service.
Check the telescopic sliding bracket to make
sure that it is rmly xed in the handles.
Check the sweeping container to make sure
it is rmly xed and in good condition.
Check the plate brooms and the ne dust
sweeping roller for rolled up threads and
cords. Remove these if necessary.
Check the plate brooms and the ne dust
sweeping roller for jammed items or contami-
nation.
Check the handle for contamination and
clean its if necessary.
Check that the height adjustment is at the
correct height.
Check the sweeping pressure setting. Adapt
this to the surface to be swept, if necessary.
After nishing
work
Empty the sweeping container.
Clean the device.
8 Bh Clean broom drives.
9.2 Remove blockage
• Remove wound-up material (e.g. cords,
threads, etc.) from the brooms and axes.
• Remove jammed material (e.g. stones, twigs,
leaves etc.).
Maintenance and cleaning

15
Maintenance and cleaning
9.3 Align bristles
WARNING
Fire hazard due to improper handling of a
fan or the use of an unsuitable fan!
When aligning the bristles, there is a risk of re
if they are heated to too high temperatures.
• Do not use open ames or furnace to heat
the bristles!
• Do not use a hot air blower. If the air is too
hot, the bristles may melt.
Bent bristles can be straightened out again
with heating by means of a warm air fan (e.g.
hairdryer).
• Point the switched-on warm air fan towards the
bent bristles.
» If the heating is sufcient, the bristles will
straighten out again by themselves.
9.4 Clean the device
• Do not use a degreasing agent.
• Do not use any aggressive cleaning agents.
• Do not clean the device with a high-pressure
cleaner or under running water. The device
may not be immersed in water or cleaned with
water.
• Protect the bearings against moisture.
• Do not clean the plate brooms and the ne dirt
sweeping roll with compressed air.
» The strong air jet can damage the bristles.
1. Clean the plate brooms, the ne dirt sweeping
roll and the drives with a wet cloth.
2. Clean all plastic parts with a damp cloth.
10. Decommissioning
10.1 Disassemble telescopic bracket
CAUTION
Risk of injury through tipping over of the
telescopic bracket!
Tipping over of the telescopic bracket may
lead to slight injuries, such as jamming of
the nger or haematomas in users or other
persons.
• When carrying the device, hold it so that the
telescopic bracket cannot tip over.
Fig. 12: Removal of the telescopic bracket
1. Press the lock springs (1) inwards on both
sides, so that the telescopic bracket (2) is
released for removal.
2. Pull the telescopic sliding bracket (2) out of
both handles (3) simultaneously.
10.2 Disposal
• Dispose of the device in an environmentally
friendly manner in accordance with the
applicable regional regulations.
Decommissioning
123
2
31

16
Table of Contents
1. Allgemeines................................................................................................................. 17
1.1 Adresse.......................................................................................................................................... 17
1.2 Konventionen................................................................................................................................ 17
1.3 Symbole und Kennzeichnungen ................................................................................................. 17
1.4 Haftungsbeschränkung................................................................................................................ 17
1.5 Gewährleistung............................................................................................................................. 17
1.6 Urheberschutz............................................................................................................................... 18
1.7 Zielgruppe ..................................................................................................................................... 18
2. Sicherheit..................................................................................................................... 18
2.1 Bestimmungsgemäße Verwendung............................................................................................ 18
2.2 Nichtbestimmungsgemäße Verwendung ................................................................................... 18
2.3 Verantwortung des Benutzers ..................................................................................................... 18
2.4 Allgemeine Sicherheitshinweise ................................................................................................. 19
2.5 Gefahrenhinweise am Gerät ........................................................................................................ 19
2.6 Persönliche Schutzausrüstung ................................................................................................... 19
3. Technische Daten........................................................................................................ 19
4. Aufbau und Funktion.................................................................................................. 20
5. Transport/Transportieren ........................................................................................... 21
5.1 Anlieferung.................................................................................................................................... 21
5.2 Lieferumfang................................................................................................................................. 21
5.3 Umgang mit Verpackungsmaterialien......................................................................................... 21
5.4 Lagerung/Aufbewahrung ............................................................................................................. 21
5.5 Gerät tragen .................................................................................................................................. 22
5.6 Gerät im Fahrzeug transportieren............................................................................................... 22
6. Inbetriebnahme ........................................................................................................... 23
6.1 Teleskop-Schiebebügel zusammenbauen.................................................................................. 23
6.2 Teleskop-Schiebebügel montieren ............................................................................................. 23
6.3 Höheneinstellung Teleskop-Schiebebügel................................................................................. 24
7. Bedienung.................................................................................................................... 24
7.1 Vor Arbeitsbeginn......................................................................................................................... 24
7.2 Betrieb ........................................................................................................................................... 25
7.3 Kehrgutbehälter entleeren........................................................................................................... 25
8. Fehlerbehebung .......................................................................................................... 26
8.1 Störungstabelle............................................................................................................................. 26
9. Wartung und Reinigung.............................................................................................. 27
9.1 Wartungsplan................................................................................................................................ 27
9.2 Blockierung beseitigen ................................................................................................................ 27
9.3 Borsten ausrichten....................................................................................................................... 28
9.4 Gerät reinigen ............................................................................................................................... 28
10. Außerbetriebnahme .................................................................................................... 28
10.1 Teleskop-Schiebebügel demontieren ......................................................................................... 28
10.2 Entsorgung.................................................................................................................................... 28

17
1. Allgemeines
Diese Bedienungsanleitung ist Teil des Gerätes
Kehrmaschine BG355 (Baujahr: ab 2017) und
ausschließlich für das genannte Gerät gültig.
Die Bedienungsanleitung vermittelt wichtige
Hinweise für den sicheren und efzienten
Umgang mit dem Gerät.
Voraussetzung für sicheres Arbeiten am
Gerät ist die Einhaltung aller angegebenen
Sicherheitshinweise und Handlungsanweisungen.
• Lesen Sie die Bedienungsanleitung vor der
Verwendung des Gerätes aufmerksam durch.
• Lesen Sie die Sicherheitshinweise!
• Bewahren Sie die Bedienungsanleitung
während der Lebensdauer des Gerätes sicher
und zugänglich auf.
• Geben Sie die Bedienungsanleitung an jeden
nachfolgenden Besitzer oder Benutzer des
Gerätes weiter.
1.1 Adresse
Bissell BigGreen Commercial
100 Armstrong Road
Suite 101
Plymouth, MA 02360
Tel.: [phone]
Fax: [phone]
www.bissellcommercial.com
1.2 Konventionen
Um mit der Bedienungsanleitung optimal arbeiten
zu können, sind folgende Erklärungen zu den
typograschen Konventionen zu beachten.
Aufzählung
• So dargestellte Texte sind Aufzählungspunkte.
Arbeitsfolge
1. Schritt 1 der Arbeitsfolge
2. Schritt 2 der Arbeitsfolge
3. Schritt 3 der Arbeitsfolge
Die Reihenfolge der Arbeitsschritte ist
einzuhalten.
Tipp
» Tipps, Hinweise (nicht Maschinenschaden)
werden so dargestellt.
1.3 Symbole und Kennzeichnungen
Alle Warn- und Sicherheitshinweise unbedingt
einhalten! Beim Arbeiten stets umsichtig handeln,
um Unfälle, Personen- und Sachschäden zu
vermeiden!
Aufbau der Sicherheitshinweise
SIGNALWORT
Art und Quelle der Gefahr
Mögliche Folgen
• Maßnahme zur Vermeidung der Gefahr
Gefahrenstufe
Gefahrenstufe Eintrittswahr-
scheinlichkeit
Folgen bei
Nichtbeachtung
GEFAHR Unmittelbar Tod, schwere
Körperverletzung
WARNUNG
Möglich Tod, schwere
Körperverletzung
VORSICHT
Möglich
Leichte
Körperverletzung
HINWEIS Möglich Sachschaden
1.4 Haftungsbeschränkung
Für Schäden und Folgeschäden, die durch die
nachfolgend aufgeführten Punkte entstehen,
übernimmt Bissell Commercial keinerlei Haftung:
• Nichtbeachtung der Bedienungsanleitung
• Verwendung nicht zugelassener Ersatzteile /
falscher Ersatzteile / Ersatzteile, die nicht der
Herstellerspezikation entsprechen
• Eigenmächtige Änderungen, An- und
Umbauten am Gerät
1.5 Gewährleistung
Es gelten die Regelungen, die in den
Allgemeinen Geschäftsbedingungen von Bissell
Commercial beschrieben sind.
Allgemeines

18
Sicherheit
1.6 Urheberschutz
Die Bedienungsanleitung ist urheberrechtlich für
Bissell Commercial geschützt.
Die Bedienungsanleitung enthält Vorschriften
und Zeichnungen bzw. Zeichnungsausschnitte
technischer Art, die weder vollständig noch
teilweise vervielfältigt, verbreitet oder zu Zwecken
des Wettbewerbs unbefugt verwertet oder
anderen mitgeteilt werden dürfen.
Eine Erlaubnisgenehmigung zur Verwendung für
Publikationen oder Weitergabe von Kopien oder
Informationen aus dieser Bedienungsanleitung an
Dritte behält sich Bissell Commercial vor.
Aus Zuwiderhandlungen entsteht ein
Schadenersatzanspruch des Herstellers. Weitere
Ansprüche bleiben vorbehalten.
1.7 Zielgruppe
Diese Bedienungsanleitung richtet sich an den
Benutzer dieser Kehrmaschine.
2. Sicherheit
Beachten Sie zur Vermeidung von Fehlfunktio-
nen, Schäden und gesundheitlichen Beeinträch-
tigungen folgende Hinweise!
2.1 Bestimmungsgemäße Verwendung
Die Kehrmaschine 355 ist ausschließlich
zum Entfernen von Straßenschmutz wie
z. B. Laub, Gras, Split, Sand und ähnlichen
Verunreinigungen auf ebenen und harten Flächen
vorgesehen.
2.2 Nichtbestimmungsgemäße Verwen-
dung
Jeder andere als der im Abschnitt „Bestimmungs-
gemäße Verwendung“ beschriebene Gebrauch
gilt als nicht bestimmungsgemäß. Für hieraus
resultierende Schäden haftet allein der Benutzer
des Gerätes.
Die Kehrmaschine darf nicht zum Kehren
von gesundheitsgefährdenden, brennbaren
oder glühenden Stoffen (Zigaretten und
Streichhölzern), Flüssigkeiten, explosiven
oder gefährlichen Stäuben (Ex), Säuren oder
Lösungsmitteln genutzt werden.
Die Kehrmaschine darf ebenfalls nicht zum
Kehren von Wasser verwendet werden.
Die Kehrmaschine darf nicht in
explosionsgefährdeten Bereichen oder als
Transportmittel verwendet werden.
2.3 Verantwortung des Benutzers
Ein Benutzer ist jede natürliche oder juristische
Person, die die Kehrmaschine nutzt oder Dritten
zur Anwendung überlässt und während der
Nutzung für die Sicherheit des Benutzers oder
Dritter verantwortlich ist.
• Beaufsichtigen Sie Kinder, die sich im Arbeits-
umfeld benden, um sicherzustellen, dass sie
nicht damit spielen.
• Minderjährige dürfen nicht mit dem Gerät arbei-
ten. Ausgenommen sind Jugendliche über 16
Jahre, die unter Aufsicht ausgebildet werden.
• Personen, deren Reaktionsfähigkeit beeinusst
ist, z. B. durch Drogen, Alkohol oder Medika-
mente, dürfen keine Arbeiten mit dem Gerät
ausführen.
• Personen, die sich aufgrund ihres gesund-
heitlichen Zustands nicht anstrengen dürfen,
dürfen keine Arbeiten mit der Kehrmaschine
ausführen.
• Ersetzen Sie unleserlich gewordene
Beschilderung an der Kehrmaschine.
Allgemeines

19
2.4 Allgemeine Sicherheitshinweise
• Machen Sie Verpackungsmaterial Kindern
unzugänglich. Es besteht Erstickungsgefahr!
• Tragen Sie weder offene, lange Haare,
Krawatte, lose Kleidung noch Schmuck
einschließlich Ringe.
• Achten Sie im Umgang mit der Kehrmaschine
darauf, dass Verletzungsgefahr durch
Hängenbleiben und Einziehen bestehen kann.
2.5 Gefahrenhinweise am Gerät
An der Kehrmaschine sind folgende Piktogramme
angebracht:
VORSICHT
Achten Sie beim Arbeiten darauf, die in
der Bedienungsanleitung beschriebenen
Sicherheitshinweise einzuhalten.
Betriebsanleitung
Lesen Sie die Bedienungsanleitung vor der
Verwendung des Gerätes aufmerksam durch.
2.6 Persönliche Schutzausrüstung
Bei der Arbeit ist das Tragen persönlicher
Schutzausrüstung erforderlich, um
Gesundheitsgefahren zu minimieren. Deshalb:
• Vor Beginn aller Arbeiten die jeweils benannte
Schutzausrüstung ordnungsgemäß anlegen
und während der Arbeit tragen.
Festes Schuhwerk
Tragen Sie festes Schuhwerk mit grifger,
rutschfester Sohle.
Feste Schutzhandschuhe
Tragen Sie feste Schutzhandschuhe.
Staubschutzmaske
Tragen Sie eine Staubschutzmaske.
3. Technische Daten
Grunddaten der BG355
Technische Daten Wert
Höhe (in Abhängigkeit Höheneinstellung
Teleskop-Schiebebügel)
in Millimeter [mm]
1150 /
1200 /
1250
Breite
in Millimeter [mm]
550
Länge
in Millimeter [mm]
580
Kehrbreite
in Millimeter [mm]
550
Kehrleistung
in Quadratmeter pro Stunde [m²/h]
1600
Fassungsvermögen des Kehrgutbehälters
in Liter [l]
20
Gewicht
in Kilogramm [kg]
7,2
Sicherheit
Technische Daten

20
Aufbau und Funktion
4. Aufbau und Funktion
Abb. 1: Komponentenübersicht 1
Pos.-Nr. Bauteil
1 Teleskop-Schiebebügel
2 Kehrgutbehälter
3 Handgriff Kehrgutbehälter
4 Tellerbesen-Höhenverstellung
5 Tragegriff
6 Tellerbesen
7 Seitliche Führungsrolle
8 Laufrad
Das Gerät wird durch Schieben, über den
Teleskop-Schiebebügel (1), vorwärts bewegt.
Dabei befördern die beiden Tellerbesen (6)
mit Hilfe der Kehrlippe (11) das Kehrgut in
Richtung Kehrgutbehälter (2). Die Feinschmutz-
Kehrwalze (9) befördert das restliche Kehrgut in
den Kehrgutbehälter (2).
12
11
10
9
Abb. 2: Komponentenübersicht 2
Pos.-Nr. Bauteil
9 Feinschmutz-Kehrwalze
10 Schrägrad
11 Kehrlippe
12 Kehrplatte
13
Abb. 3: Komponentenübersicht 3
Pos.-Nr. Bauteil
13 Multirolle
