Dacor In-A-Drawer MMDV30 Technical manual

MMD24, MMD30 & MMDV30
1/1
Model No. Dedicated Circuit Required Total Connected Load
Approximate
Shipping Weight
All Models 120 Vac, 60 Hz, 15 Amp
(Breaker) 1.56 kW (13 Amp) 128 lbs.
4"
5"
electrical outlet location
2x4 Anti-
Tip block
(6")
ELECTRICAL UTILITY LOCATION
4"
5"
electrical outlet location
Anti-Tip
block
(6")
ANTI-TIP BLOCK LOCATION
24”, 30” Microwave In-A-Drawer
™
CUTOUT DIMENsIONs
Revised
06/19/08
NOTES:
1. All tolerances: +1/16”, -0, (+1.6mm, -0), unless
otherwise stated.
2. Spacing between appliances and doors/drawers
is minimum required to allow for ventilation and
to prevent scrapping. Additional space may be
required for appearance.
ELECTRICAL sPECIfICATIONs
PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details. 12.7
OVERALL DIMENsIONs
A. 6"
B. Electrical outlet location
C. Anti-Tip block
D. 5 "
E. 3 1/2"
F. 4"
G. 22 1/4" opening
K. Allow 3/16" minimum overlap
H. 14 3/16" to bottom of Anti-Tip
block
I. Allow 7/8" minimum overlap
J. 23 1/2" minimum depth
Q. 15 3/16" ± 1/16" opening
L. 36" nominal countertop height
M. Allow 7/16" minimum overlap
N. Floor must support 100 lbs.
minimum
O. 19" to top of oor (recommended)
P. 30" cabinet minimum
A
BC
DE
F
GH
I
I
J
K
LM
N
O
P
Q
G
48" (1219mm)
3-prong
120 Vac power cord
A
B
C
F
I
D
H
E
NOTE: Open Top Cabinet illustrated
MMD24
A. 6"
B. Electrical outlet location
C. Anti-Tip block
D. 5 "
E. 3 1/2"
F. 4"
G. 28 1/2" opening
K. Allow 1/4" minimum overlap
H. 14 3/4" to bottom of Anti-Tip
block
I. Allow 3/4" minimum overlap
J. 23 1/2" minimum depth
Q. 15 3/16" ± 1/16" opening
L. 36" countertop height
M. Allow 7/16" minimum overlap
N. Floor must support 100 lbs.
minimum
O. 19" to top of oor (recommended)
P. 30" cabinet minimum
MMD30, MMDV30
A. 21 19/32"
B. 4 11/16"
C. 1 23/32"
G. 15 1/16"
H. 1" door thickness
I. 15" auto drawer opening
D. 23 3/8"
E. 23 13/16"
F. 15 5/8"
Power cord length: 48”
MMD30, MMDV30
A. 28 5/16"
B. 4 11/16"
C. 2"
G. 15 1/16"
H. 1 1/4" door thickness
I. 15 1/4" auto drawer opening
D. 23 3/8"
E. 30"
F. 15 5/8"
MMD24
A. 6"
B. Electrical outlet location
C. Anti-Tip block
D. 5 "
E. 3 1/2"
F. 4"
G. 22 1/4" opening
K. Allow 3/16" minimum overlap
H. 14 3/16" to bottom of Anti-Tip
block
I. Allow 7/8" minimum overlap
J. 23 1/2" minimum depth
Q. 15 3/16" ± 1/16" opening
L. 36" nominal countertop height
M. Allow 7/16" minimum overlap
N. Floor must support 100 lbs.
minimum
O. 19" to top of oor (recommended)
P. 30" cabinet minimum
A
BC
DE
F
GH
I
I
J
K
LM
N
O
P
Q
G
48" (1219mm)
3-prong
120 Vac power cord
A
B
C
F
I
D
H
E
NOTE: Open Top Cabinet illustrated
MMD24
A. 6"
B. Electrical outlet location
C. Anti-Tip block
D. 5 "
E. 3 1/2"
F. 4"
G. 28 1/2" opening
K. Allow 1/4" minimum overlap
H. 14 3/4" to bottom of Anti-Tip
block
I. Allow 3/4" minimum overlap
J. 23 1/2" minimum depth
Q. 15 3/16" ± 1/16" opening
L. 36" countertop height
M. Allow 7/16" minimum overlap
N. Floor must support 100 lbs.
minimum
O. 19" to top of oor (recommended)
P. 30" cabinet minimum
MMD30, MMDV30
A. 21 19/32"
B. 4 11/16"
C. 1 23/32"
G. 15 1/16"
H. 1" door thickness
I. 15" auto drawer opening
D. 23 3/8"
E. 23 13/16"
F. 15 5/8"
Power cord length: 48”
MMD30, MMDV30
A. 28 5/16"
B. 4 11/16"
C. 2"
G. 15 1/16"
H. 1 1/4" door thickness
I. 15 1/4" auto drawer opening
D. 23 3/8"
E. 30"
F. 15 5/8"
MMD24

This manual suits for next models

2

Other Dacor Microwave Oven manuals

Dacor MMDH30S User manual

Dacor

Dacor MMDH30S User manual

Dacor DMT2420 Technical manual

Dacor

Dacor DMT2420 Technical manual

Dacor DOC30 977D Series User manual

Dacor

Dacor DOC30 977D Series User manual

Dacor DOC30M977D Series User manual

Dacor

Dacor DOC30M977D Series User manual

Dacor In-A-Drawer MMD24 User manual

Dacor

Dacor In-A-Drawer MMD24 User manual

Dacor DMT2420B Installation guide

Dacor

Dacor DMT2420B Installation guide

Dacor PMOR3021S Installation guide

Dacor

Dacor PMOR3021S Installation guide

Dacor DOC30M977DS/DA User manual

Dacor

Dacor DOC30M977DS/DA User manual

Dacor DMT2420 Installation guide

Dacor

Dacor DMT2420 Installation guide

Dacor PMOR3021 Instruction Manual

Dacor

Dacor PMOR3021 Instruction Manual

Dacor PCOR30S User manual

Dacor

Dacor PCOR30S User manual

Dacor RNMD30B User manual

Dacor

Dacor RNMD30B User manual

Dacor PCOR30 Technical manual

Dacor

Dacor PCOR30 Technical manual

Dacor Distinctive DMW2420S User manual

Dacor

Dacor Distinctive DMW2420S User manual

Dacor Modernist Microwave In-A-Drawer DMR30M977WM User manual

Dacor

Dacor Modernist Microwave In-A-Drawer DMR30M977WM User manual

Dacor DOC30P977D Series User manual

Dacor

Dacor DOC30P977D Series User manual

Dacor RNMD30S User manual

Dacor

Dacor RNMD30S User manual

Dacor DOC30T977DS/DA User manual

Dacor

Dacor DOC30T977DS/DA User manual

Dacor PMOR30 User manual

Dacor

Dacor PMOR30 User manual

Dacor DOC30P977D Series User manual

Dacor

Dacor DOC30P977D Series User manual

Dacor RNMD24B User manual

Dacor

Dacor RNMD24B User manual

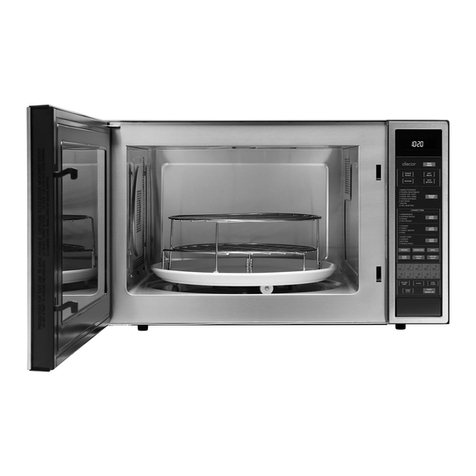

Dacor DCM24 User manual
