Installation Instructions
Modernist Microwave In-A-Drawer™
DMR24M977WM, DMR24M977WM
DMR30M977WM, DMR30M977WM
Part No. 112242 Rev B

2
Contents
Before You Begin… 3
Important 3
Customer-Service Information 4
If You Need Help… 4
Model and Serial Numbers 4
Before You Call for Service… 4
Important Safety Precautions 5
Related Equipment Safety 5
Grounding the Microwave In-A-Drawer™ 5
Installation Requirements 7
Checklist 7
Design Specications 8
Clearances and Dimensions 8
Installation 11
Preparing to Install the Microwave In-A-Drawer™ 11
Provided Material 11
Unpacking the Microwave In-A-Drawer™ 11
About the Electrical Outlet 12
Installing the Anti-Tip Block 12
Installing the Microwave In-A-Drawer™ 12

3
Important
Installer
• For safety and to minimize problems, read this manual thoroughly before starting the instal-
lation.
• The installer shall ensure proper installation; the warranty does NOT cover product failure due
to improper installation.
• Remove all packing material before connecting the electrical supply.
• Observe all local codes in installing the oven.
• Leave this manual with the owner.
• Write the oven’s model/serial numbers in this manual for service/maintenance reference.
Owner
• Keep this manual for personal reference and for that of inspectors, service personnel, etc.
Before You Begin…

4
Customer-Service Information
If You Need Help…
If you have questions or issues with installation, contact your Dacor® dealer or the Dacor cus-
tomer-service team. If your Dacor microwave is under warranty, call Dacor Customer Assurance.
Have the microwave’s model/serial numbers available when you call.

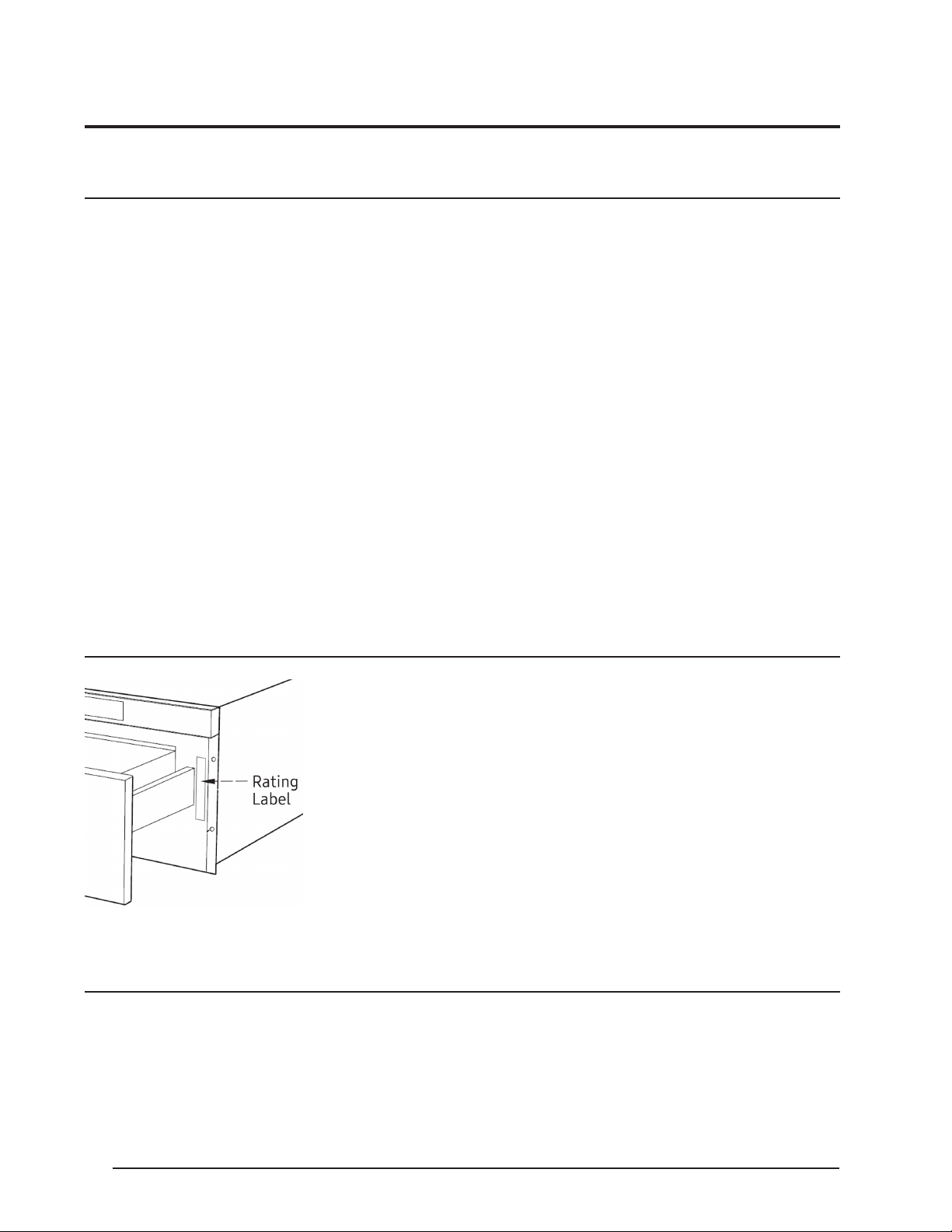

These numbers are on the rating label, which is on the right-hand side of the chassis face. To
view the label: On the control panel, press Open. The drawer opens to reveal the label.
Dacor Customer Assurance
Phone: [phone] x2813 (USA, Canada)
Mon – Fri, 5:00 a.m. – 5:00 p.m. pacic time
Website
www.dacor.com/customer-care/contact-us
All specications may change without notice. Dacor assumes no liability for such changes.
© 2017 Dacor. All rights reserved.
Before You Call For Service…
Read the BEFORE YOU CALL and operating instruction sections in the User Manual. It may save
you time and money. The list includes common issues that are not caused by defective work-
manship or material.
See the warranty information in your Use Manual for Dacor’s toll-free service number and ad-
dress. Use the contact information if need to speak to a Dacor representative about warranty
and mechanical issues and to order parts.

5
Important Safety Precautions
Related Equipment Safety
Remove all tape and packaging before using the microwave. Dispose of the packaging after
unpacking the oven. Do not let children play with the packing material. Do not modify the oven
(e.g., remove panels, wire covers, screws).
Grounding the Microwave In-A-Drawer™
The microwave has a 3-prong grounding plug that must be plugged into a grounded outlet.
If only a 2-prong wall outlet is available, the customer shall have it replaced with a properly
grounded 3-prong outlet.
• Do not remove the third (ground) prong from the power cord.
• Do not use an adapter plug.
• Do not use an extension cord. (If the power cord is too short, have a qualied electrician or
serviceman install an outlet near the appliance.)
• Do not use a Ground Fault Circuit Interrupter.
DANGER—ELECTRIC-SHOCK HAZARD
• To avoid risk of electrical shock, personal injury, or death; verify your appliance is grounded
according to local codes, or in their absence, with the National Electrical Code (NEC). ANSI/
NFPA 70-latest edition.
• To avoid severe personal injury and possibly death, the electricity must be off while the elec-
trical connections are made.
WARNING—MOVING HAZARD
To avoid risk of severe personal injury; this appliance requires two or more people while han-
dling and moving. Use of appliance moving devices is recommended.
WARNING
Never let anyone climb, sit, stand, hang, or put any kind of weight on the open oven drawer. Such
activity could result in property damage and personal injury.

6
Important Safety Precautions
WARNING
• Follow the information in this manual exactly to avoid re or electrical shock that may cause
property damage, personal injury, or death.
• Ensure the microwave is properly installed and grounded by a qualied technician.
• New branch-circuit installations (1996 NEC), mobile homes, RVs, or installations where local
codes prohibit grounding through the neutral conductor, require a 4-wire branch-circuit con-
nection.
• Improper connection of aluminum house wiring to copper leads can cause an electrical hazard
or re. Use only connectors designed for joining copper to aluminum, and follow the manufac-
turer’s recommended procedure closely.
• Electricity must be off while the electrical connections are made. Failure to do so can
result in severe personal injury or death.
Follow these precautions with exactness to avoid re or electrical shock that may cause property
damage, personal injury, or death.

7
Installation Requirements
Checklist
Use this checklist to ensure you complete the installation process properly and verify the oven’s
proper function:
• Before installing the oven, verify the cabinet dimensions are correct and the required electri-
cal connections are present.
• See this manual’s content regarding Safety, Cabinet Dimensions, Removing Packaging, Elec-
trical Installation, Testing the Installation and Customer Service.
• Team-lift the unit directly into the cabinet cutout.
• Ensure the electrical conduit reaches to the connection point properly.
• Slide the unit fully into place, while routing the electrical conduit correctly.
• With a Phillips screwdriver and supplied screws, anchor the oven to the cabinetry opening.
• Consult the complete installation instructions, and follow the other procedures listed, includ-
ing verifying proper oven function.
• All product literature and accessories are supplied (may be wrapped or boxed) with the oven.

8
Design Specications
Clearances and Dimensions
• The dimensions shown in Figures 2, 4, and 5 are minimums and must be used.
• The contact surface must be of solid, level, plywood construction strong enough to support
the oven’s weight (about 100 lbs).
• Locate the unit within easy access of the proper electrical outlet, or locate a new outlet. (See
About the Electrical Outlet, pg. 12.)
• The oven can be built into a cabinet orwall by itself or under any gas or electric wall oven.
• The clearance between the microwave drawer and a wall oven must be at least 2 in.
• The microwave drawer easily accommodates a 9” x 13” dish or bag of microwave popcorn.
• The microwave can be ush-mounted. (See the instructions included with the ush-mount
deector vent.)
24” Drawer Dimensions
Dim. Inches Description
A21 5/8 Overall chassis width
B4 11/16 Width of chassis notch
C1 3/4 Height of chassis notch
D21 7/8 Chassis depth
E23 7/8 Microwave face width
F15 7/8 Microwave face height
G14 19/32 Chassis height
H1 9/64 Door face thickness
I15 Automatic drawer-open depth
J 4 Chassis notch width

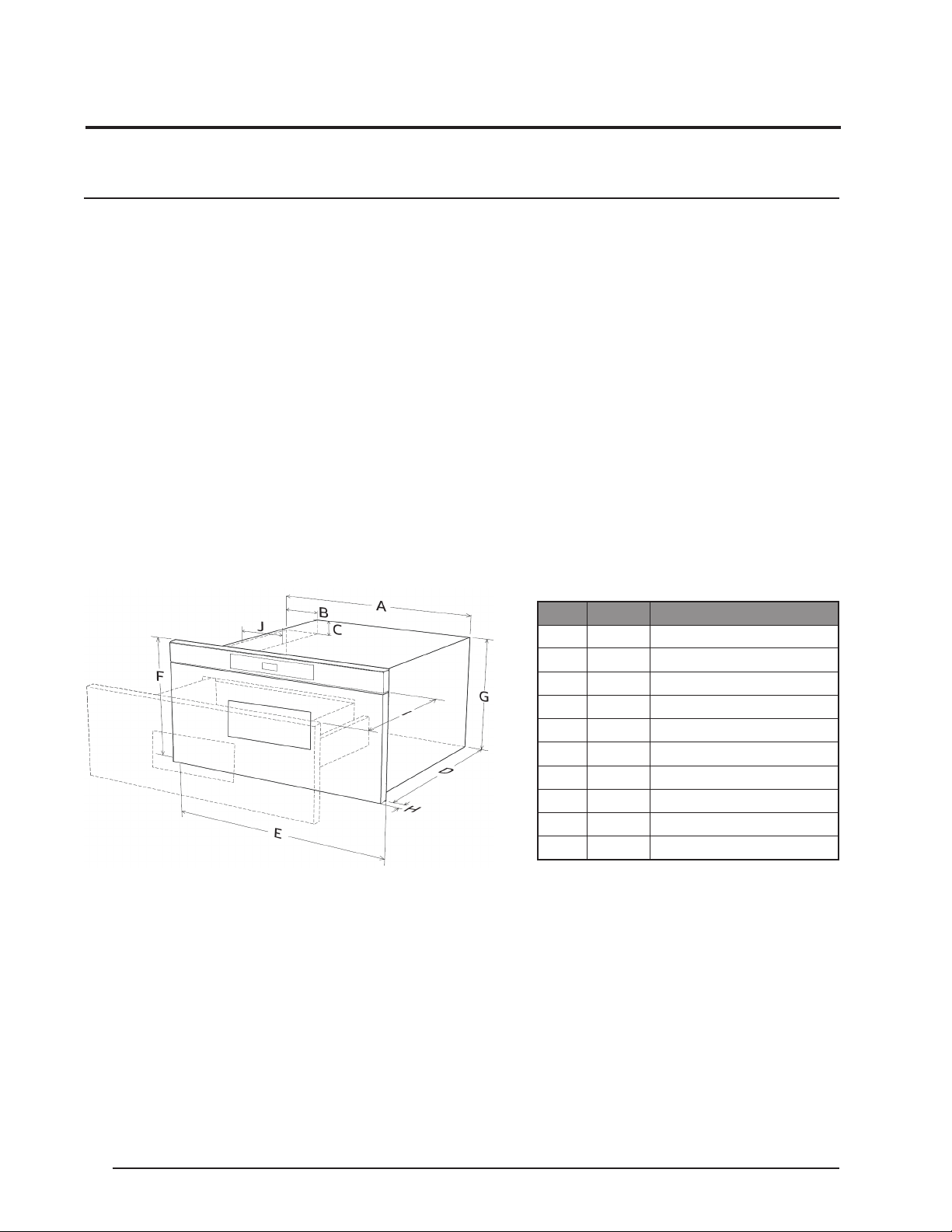

Figures 1 and 2 contain appliance dimensions that will help plan the drawer’s location.

9
24” Drawer Dimensions, cont.
Dim. Inches Description
A6 Anti-tip block length
B— Electrical outlet location
C— Anti-tip block
D5 Outlet location height
E3 1/2 Anti-tip block width
F4Outlet location width
G22 1/8 Cutout width
H14 13/16 Cutout oor to block bottom
I7/8 Minimum overlap allowance (sides)
J23 1/2 Minimum cutout depth
K3/16 Minimum overlap allowance (top)
L36 Nominal countertop height
M1/8 Minimum overlap allowance (bottom)
N24 Minimum cabinet width
O15 9/16 Cutout height

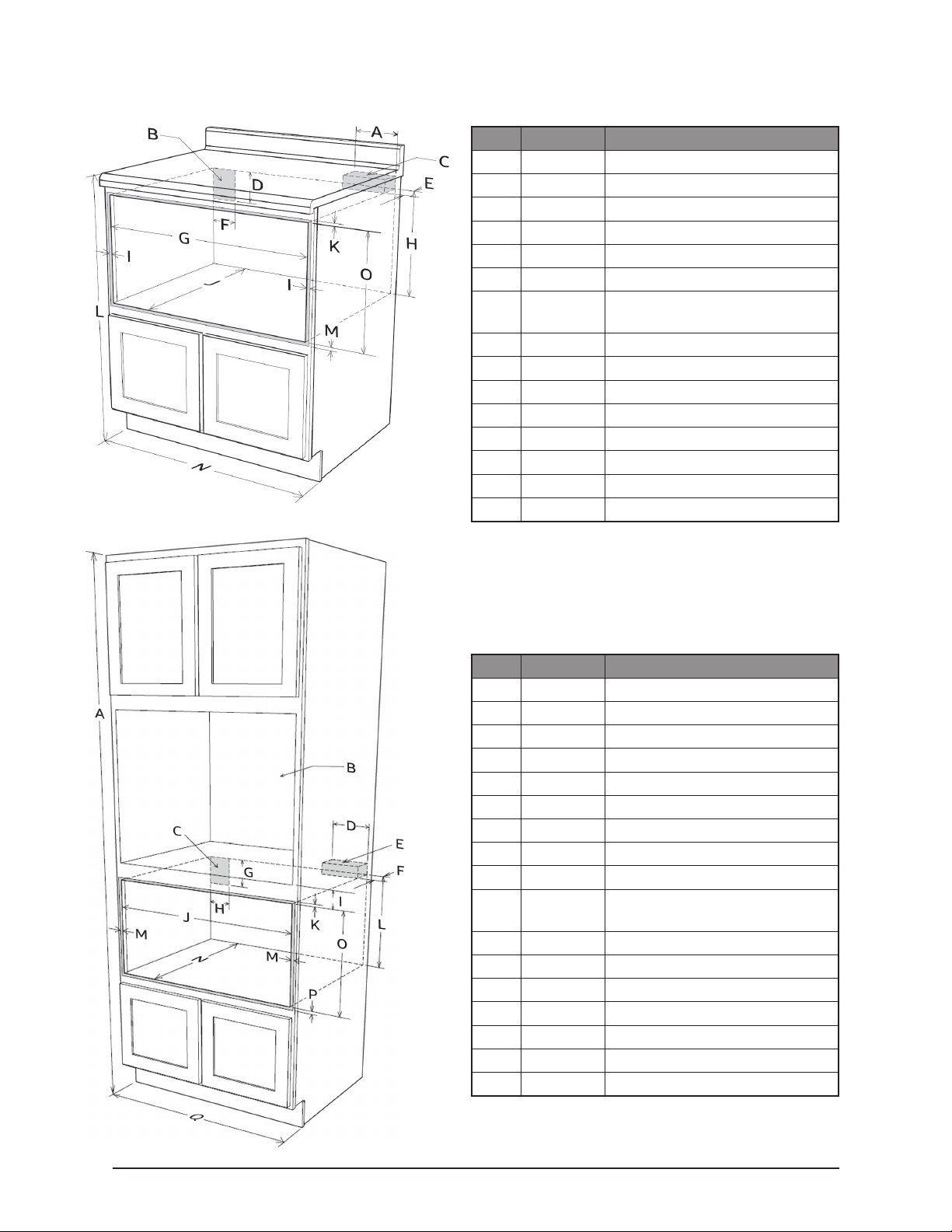

30” Drawer Dimensions
Dim. Inches Description
A21 5/8 Overall chassis width
B4 11/16 Width of chassis notch
C1 3/4 Height of chassis notch
D21 7/8 Chassis depth
E30 Microwave face width
F15 7/8 Microwave face height
G14 19/32 Chassis height
H1 9/64 Door face thickness
I15 Automatic drawer-open depth
J 4 Chassis notch width
Figures 3 and 4 contain appliance dimensions that will help plan the drawer’s location.

10
30” Drawer Dimensions, cont.
Dim. Inches Description
A6 Anti-tip block length
B— Electrical outlet location
C— Anti-tip block
D5 Outlet location height
E3 1/2 Anti-tip block width
F4Outlet location width
G22 1/8 min.
28 7/16 max. Cutout-opening width range
H14 13/16 Cutout oor to block bottom
I23/32 Minimum overlap allowance (sides)
J23 1/2 Minimum cutout depth
K3/16 Minimum overlap allowance (top)
L36 Nominal countertop height
M1/8 Minimum overlap allowance (bottom)
N30 Minimum cabinet width
O15 9/16 Cutout height
Dim. Inches Description
A84 Nominal wall-cabinet height
B—Optional wall-oven cutout
C— Electrical outlet location
D6 Anti-tip-block length
E— Anti-tip block
F3 1/2 Anti-tip-block width
G5 Outlet location height
H4Outlet location width
I2 Min. distance between cutout openings
J22 1/8 min.
28 7/16 max. Cutout-opening width range
K3/16 Minimum overlap allowance (top)
L14 13/16 Cutout oor to block bottom
M23/32 Minimum overlap allowance (sides)
N23 1/2 Minimum cutout depth
O15 9/16 Cutout height
P1/8 Minimum overlap allowance (bottom)
Q30 Minimum cabinet width

11
Installation

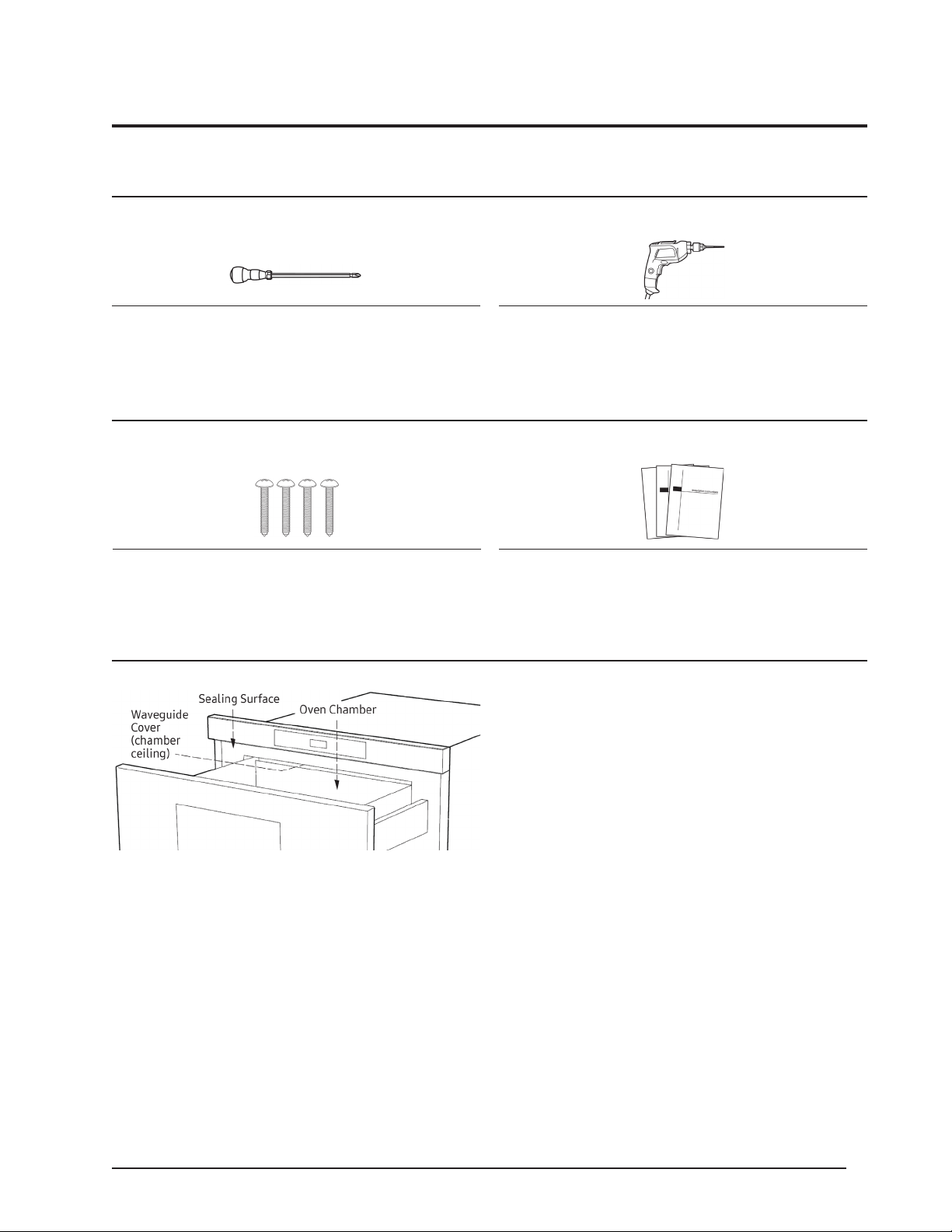

Unpacking the Microwave In-A-Drawer™
Preparing to Install the Microwave In-A-Drawer™
Phillips Screwdriver Drill
Panhead Screws (4) Literature Kit
• Remove packing material from the drawer
(Do not remove the waveguide cover, which
is on the oven-chamber ceiling.)
• Remove the “features” sticker.
• Check for damage (e.g., loose/bent/mis-
aligned components, damaged drawer seal,
dented surfaces).
• Report damage to your dealer or a Dacor
Authorized Servicer. Do not install/operate
a damaged appliance.
Provided Material

12
Installation
Installing the Anti-Tip Block
This block keeps the oven from tipping forward
and possibly spilling hot foods and liquids.
It must be installed so its bottom is 14 13/16”
above the cutout oor.
The installer shall provide the anti-tip block.
(See pgs. 9 and 10 for specic placements.)
If the drawer is relocated, relocate the block
with it.
Installing the Microwave In-A-Drawer™
1. Place the drawer in front of its cutout.
2. Plug in the power cord, and slide the unit
into the cutout until the mounting ange
meets the cabinet face. (Do not pinch the
cord between the chassis and the wall.)
3. On the control panel, press Open. The draw-
er opens, exposing the four anchor-screw
holes. (See the graphic at left.)
4. Using the 4 holes as a template, predrill
the cabinet with a 1/16” bit, then anchor the
drawer with the 4 provided screws.
About the Electrical Outlet
A 120 volt 60 Hz, AC only, 15 amp. or more pro-
tected electrical supply is required. It is prefer-
able that the oven be on its own circuit.
The drawer has a 3-prong grounding plug that
must be plugged into a properly installed and
grounded outlet. If only a 2-prong outlet is
available, have a qualied electrician install a
proper outlet.
NOTE: Address any questions to a qualied
electrician or service technician.

Instructions D’installation
Modernist Micro-Onde Tiroir™
DMR24M977WM, DMR24M977WM
DMR30M977WM, DMR30M977WM

14
Table des Matières
Avant de Commencer… 3
Important 3
Information Pour le Service à la Clientèle 4
Pour Obtener de L’aide… 4
Nombre de modèles et de séries 4
Before You Call for Service… 4
Important Précautions de Sécurité 5
Related Equipment Safety 5
Grounding the Microwave In-A-Drawer™ 5
Conditions D’installation 7
Liste de Contrôle 7
Les Spécications de Conception 8
Clearances and Dimensions 8
Installation 11
Preparing to Install the Microwave In-A-Drawer™ 11
Provided Material 11
Unpacking the Microwave In-A-Drawer™ 11
About the Electrical Outlet 12
Installing the Anti-Tip Block 12
Installing the Microwave In-A-Drawer™ 12

15
Important
Installer
• For safety and to minimize problems, read this manual thoroughly before starting the instal-
lation.
• The installer shall ensure proper installation; the warranty does NOT cover product failure due
to improper installation.
• Remove all packing material before connecting the electrical supply.
• Observe all local codes in installing the oven.
• Leave this manual with the owner.
• Write the oven’s model/serial numbers in this manual for service/maintenance reference.
Owner
• Keep this manual for personal reference and for that of inspectors, service personnel, etc.
Before You Begin…

16
Customer-Service Information
If You Need Help…
If you have questions or issues with installation, contact your Dacor® dealer or the Dacor custom-
er-service team. If your Dacor microwave is under warranty, call Dacor Distinctive Service. Have
the microwave’s model/serial numbers available when you call.
Dacor Modernist Service (under-warranty repairs only)
Phone: [phone] x2822 (USA and Canada)
Mon – Fri, 6:00 a.m. – 5:00 p.m. pacic time
Dacor Customer Service
Phone: [phone] x2813 (USA and Canada)
Mon – Fri, 6:00 a.m. – 5:00 p.m. pacic time
Website
www.dacor.com
All specications may change without notice. Dacor assumes no liability for such changes.
© 2017 Dacor. All rights reserved.
Before You Call For Service…
Read the BEFORE YOU CALL and operating instruction sections in your User Manual. It may save
you time and money. The list includes common issues that are not caused by defective work-
manship or material.
See the warranty information in your Use Manual for Dacor’s toll-free service number and ad-
dress. Use the contact information if need to speak to a Dacor representative about warranty
and mechanical issues and to order parts.
Model and Serial Numbers
The model and serial numbers are on the rat-
ing label, which is on the right-hand side of the
chassis face. (See the graphic at left.)
To view the label:
On the control panel, press Open. The drawer
opens to reveal the label.

17
Important Safety Precautions
Related Equipment Safety
Remove all tape and packaging before using the microwave. Dispose of the packaging after
unpacking the oven. Do not let children play with the packing material. Do not modify the oven
(e.g., remove panels, wire covers, screws).
Grounding the Microwave In-A-Drawer™
The microwave has a 3-prong grounding plug that must be plugged into a grounded outlet.
If only a 2-prong wall outlet is available, the customer shall have it replaced with a properly
grounded 3-prong outlet.
• Do not remove the third (ground) prong from the power cord.
• Do not use an adapter plug.
• Do not use an extension cord. (If the power cord is too short, have a qualied electrician or
serviceman install an outlet near the appliance.)
• Do not use a Ground Fault Circuit Interrupter.
DANGER—ELECTRIC-SHOCK HAZARD
• To avoid risk of electrical shock, personal injury, or death; verify your appliance is grounded
according to local codes, or in their absence, with the National Electrical Code (NEC). ANSI/
NFPA 70-latest edition.
• To avoid severe personal injury and possibly death, the electricity must be off while the elec-
trical connections are made.
WARNING—MOVING HAZARD
To avoid risk of severe personal injury; this appliance requires two or more people while han-
dling and moving. Use of appliance moving devices is recommended.
WARNING
Never let anyone climb, sit, stand, hang, or put any kind of weight on the open oven drawer. Such
activity could result in property damage and personal injury.

18
Important Safety Precautions
WARNING
• Follow the information in this manual exactly to avoid re or electrical shock that may cause
property damage, personal injury, or death.
• Ensure the microwave is properly installed and grounded by a qualied technician.
• New branch-circuit installations (1996 NEC), mobile homes, RVs, or installations where local
codes prohibit grounding through the neutral conductor, require a 4-wire branch-circuit con-
nection.
• Improper connection of aluminum house wiring to copper leads can cause an electrical hazard
or re. Use only connectors designed for joining copper to aluminum, and follow the manufac-
turer’s recommended procedure closely.
• Electricity must be off while the electrical connections are made. Failure to do so can
result in severe personal injury or death.
Follow these precautions with exactness to avoid re or electrical shock that may cause property
damage, personal injury, or death.

19
Installation Requirements
Checklist
Use this checklist to ensure you complete the installation process properly and verify the oven’s
proper function:
• Before installing the oven, verify the cabinet dimensions are correct and the required electri-
cal connections are present.
• See this manual’s content regarding Safety, Cabinet Dimensions, Removing Packaging, Elec-
trical Installation, Testing the Installation and Customer Service.
• Team-lift the unit directly into the cabinet cutout.
• Ensure the electrical conduit reaches to the connection point properly.
• Slide the unit fully into place, while routing the electrical conduit correctly.
• With a Phillips screwdriver and supplied screws, anchor the oven to the cabinetry opening.
• Consult the complete installation instructions, and follow the other procedures listed, includ-
ing verifying proper oven function.
• All product literature and accessories are supplied (may be wrapped or boxed) with the oven.

20
Design Specications
Clearances and Dimensions
• The dimensions shown in Figures 2, 4, and 5 are minimums and must be used.
• The contact surface must be of solid, level, plywood construction strong enough to support
the oven’s weight (about 100 lbs).
• Locate the unit within easy access of the proper electrical outlet, or locate a new outlet. (See
About the Electrical Outlet, pg. 11.)
• The oven can be built into a cabinet orwall by itself or under any gas or electric wall oven.
• The clearance between the microwave drawer and a wall oven must be at least 2 in.
• The microwave drawer easily accommodates a 9” x 13” dish or bag of microwave popcorn.
• The microwave can be ush-mounted. (See the instructions included with the ush-mount
deector vent.)
24” Drawer Dimensions
Dim. Inches Description
A21 5/8 Overall chassis width
B4 11/16 Width of chassis notch
C1 3/4 Height of chassis notch
D21 7/8 Chassis depth
E23 7/8 Microwave face width
F15 7/8 Microwave face height
G14 19/32 Chassis height
H1 9/64 Door face thickness
I15 Automatic drawer-open depth
J 4 Chassis notch width
Figures 1 and 2 contain appliance dimensions that will help plan the drawer’s location.
