Dacor DOC30M977D Series User manual

Installation Instructions
Modernist Built-In Microwave Combination Oven
DOC30M977D*
Part No. 112191 Rev A

English2
Contents
Contents
Before you begin... 3
Important 3
Customer-service information 4
If You Need Help... 4
Important safety instructions 5
Related equipment safety 5
Transport 5
Installation requirements 8
Checklist 8
Prepare to install the oven 9
Location requirements 10
Product dimensions - Combi. ovens 11
Cabinet dimensions - Combi. ovens 12
Electrical Connection 16
Installation instructions 18
Prepare built-in oven 18
Remove and replace oven door 19
Electrical connection 23
Install oven 27
Temp sensor & Heater check 29
Troubleshooting 30
Information codes 30

English 3
Before you begin...
Before you begin...
Important
•The overall design and/or accessories may
differ with the model.
Installer
•To promote safety and minimize
problems, read this manual thoroughly
before starting the installation. Leave
this manual with the user.
•Write the appliance’s model/serial
numbers in this manual for service/
maintenance reference.
User
•Keep this manual for personal
reference and for that of inspectors,
service personnel, etc.

English4
Customer-service information
Customer-service information
If You Need Help...
If you have questions or problems with installation, contact your Dacor® dealer or the
Dacor Customer-Service team. If your Dacor appliance is under warranty, call Dacor
Distinctive Service. Have the appliance’s model/serial numbers available when you call.
Dacor Distinctive Service (repairs under warranty only)
Phone: [phone] ex. 2822 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 4:00 p.m. Pacific Time
Dacor Customer Service
Phone: [phone] ex. 2813 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time
Web site: www.dacor.com
All specifications are subject to change without notice. Dacor assumes no liability for
changes to specifications.
© 2017 Dacor, all rights reserved.

English 5
Important safety instructions
Important safety instructions
Related equipment safety
Remove all tape and packaging before using the appliance. Dispose of the packaging
after unpacking the appliance. Never let children play with packaging material. Never
modify the oven (e.g., do not remove panels, wire covers, or screws).
Transport
To avoid damage to the oven vent, use the transport method shown in the picture below.
Front
Pallet
DANGER
ELECTRICAL SHOCK HAZARD
To avoid risk of electrical shock, personal injury, or death; verify your appliance is
grounded according to local codes or in their absence, with the National Electrical Code
(NEC). ANSI/NFPA 70-latest edition.
WARNING
MOVING HAZARD
To avoid risk of severe personal injury; this appliance requires two or more people while
handling and moving. Use of appliance moving devices is recommended.
Support the bottom of the oven from
either side when moving it to the
installation site. Leave the unit attached
to the pallet until it is in front of the
cabinet opening and ready to be lifted
into place.

Important safety instructions
English6
Important safety instructions
WARNING
•The information in this manual should be followed exactly to avoid fire or electrical
shock that may cause property damage, personal injury, or death.
•Save this manual for local electrical inspector’s use.
•Ensure your appliance is properly installed and grounded by a qualified technician.
•New branch-circuit installations (1996 NEC), mobile homes, RVs, or installations
where local codes prohibit grounding through the neutral conductor require 4-wire
branch-circuit connection.
•Improper connection of aluminum house wiring to copper leads can cause an
electrical hazard or fire. Use only connectors designed for joining copper to
aluminum and follow the manufacturer’s recommended procedure closely.
•Mounting screws must be used. Failure to do so can result in the oven falling out of
the cabinet causing serious injury.
CAUTION
•The cabinets and wall coverings around the oven must be able to withstand the heat
(up to 194 °F [90 °C]) generated by the oven; otherwise, discoloration, delamination,
or melting may occur.
•DO NOT remove spacers on the side walls of the built-in oven. The spacers center the
oven in the space provided. The oven must be centered to prevent excess heat
buildup that may result in heat damage or fire.

English 7
Important safety instructions
WARNING
Follow the information in this manual exactly; otherwise, fire or electrical shock may
result causing property damage, personal injury, or death.
IMPORTANT NOTE
The installer shall ensure proper installation. Product failure due to improper installation is
NOT covered under warranty.
WARNING
DO NOT put weight on the oven door. Never let anyone to climb, sit, stand, or hang on
the oven door. The oven could tip, causing personal injury and property damage.
WARNING
Electricity must be off while the electrical connections are made. Failure to do so can
result in severe personal injury or death.
IMPORTANT NOTE
•Observe all governing ordinances.
•The oven must be properly grounded.
•Do not block oven vents (bottom-front of the oven) or leave combustible or heat-
sensitive items in front of them.

English8
Installation requirements
Installation requirements
Checklist
Use this checklist to verify that you have completed each step of the installation process:
1. Before installing the oven, verify the cabinet dimensions are correct and the
required electrical connections are present.
2. See this manual's content regarding Safety, Cabinet Dimensions, Removing
Packaging, Electrical Installation, Testing the Installation and Customer Service.
3. To lift the oven, hang the install handle onto the side hook of the unit.
4. Move the oven unit into place in front of the cabinet opening, leaving the bottom
packaging on the unit to avoid damaging flooring.
5. Team-lift the unit directly into the cabinet cutout, avoiding personal injury.
6. Ensure the electrical conduit reaches to the connection point properly.
7. Slide the unit fully into place, while routing the electrical conduit correctly.
8. With a Phillips screwdriver and supplied screws, anchor the oven to the cabinetry
opening.
9. Consult the complete installation instructions, and follow the other procedures
listed, including verifying proper oven function.
10. All product literature and accessories are supplied (may be wrapped or boxed)
with the oven.

English 9
Installation requirements
Prepare to install the oven

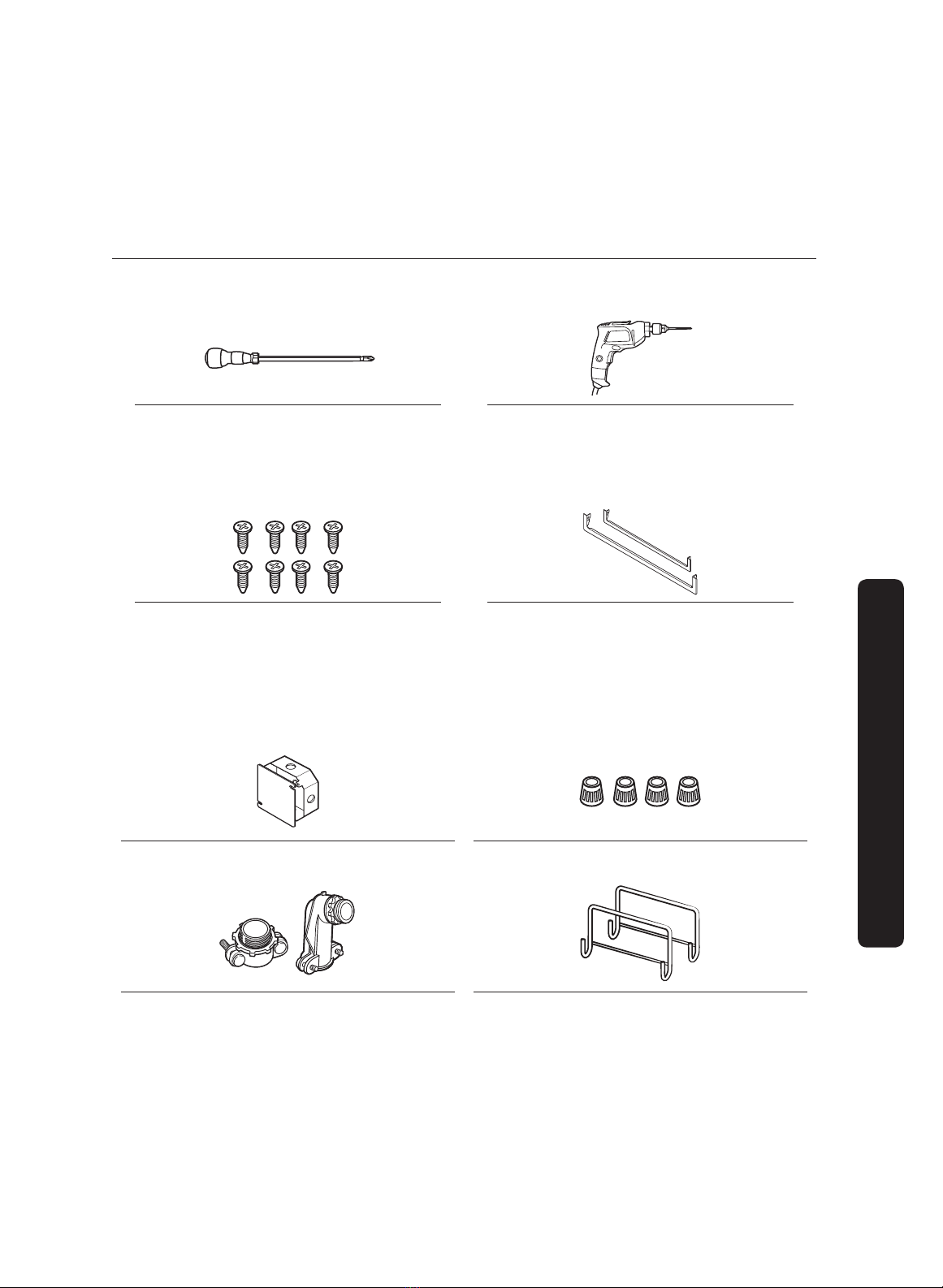

Tools you will need
Phillips Screwdriver Drill
Parts included
8 screws (M4 L16)
8 Wood Screws For Mounting (6 screws
needed for installation and 2 extra’s)
30” (76.2 cm)
Metal Bottom Trim
Tools you will need
Junction Box Wire Nuts
3/4” Conduit Connector Install Handle

English10
Installation requirements
Installation requirements
Location requirements
IMPORTANT: Observe all governing ordinances.
•Specified cabinet-opening dimensions are minimums and must be followed.
•Cabinet recess must completely enclose all but the oven face.
•Grounded electrical supply is required. (See Electrical connection.)
•Locate the junction box no more than 3” (7.6 cm) below the support platform. A
1” (2.5 cm) minimum diameter hole should be drilled in the right or left rear corner
of the platform so the oven's power plug can access the junction box.
•The support platform must be solid, level, flush with bottom of cabinet cutout, and
able to support 287 lb (130 kg).
•Install the oven at least 12” (30 cm) away from other appliances.
IMPORTANT: Check with your builder or cabinet supplier to ensure the materials used
will not discolor, delaminate, or not be otherwise damaged. This oven is designed
according to the requirements of UL and CSA International and complies with the
maximum allowable wood cabinet temperatures of 194 °F (90 °C).

English 11
Installation requirements
Product dimensions - Combi. ovens
BF
G
G
ED
C
H
A
DIMENSION
A433/8” (110.2 cm) Overall height
B281/2” (72.4 cm) Recessed width
C42” (106.7 cm) Recessed height
D231/8” (58.7 cm) Recessed depth
E293/4” (75.6 cm) Door Width
F67” (170 cm) Conduit length
G30” (75.7 cm) Overall width (Handle width)
H21/4” (5.6 cm) Handle Depth

English12
Installation requirements
Installation requirements
Cabinet dimensions - Combi. ovens

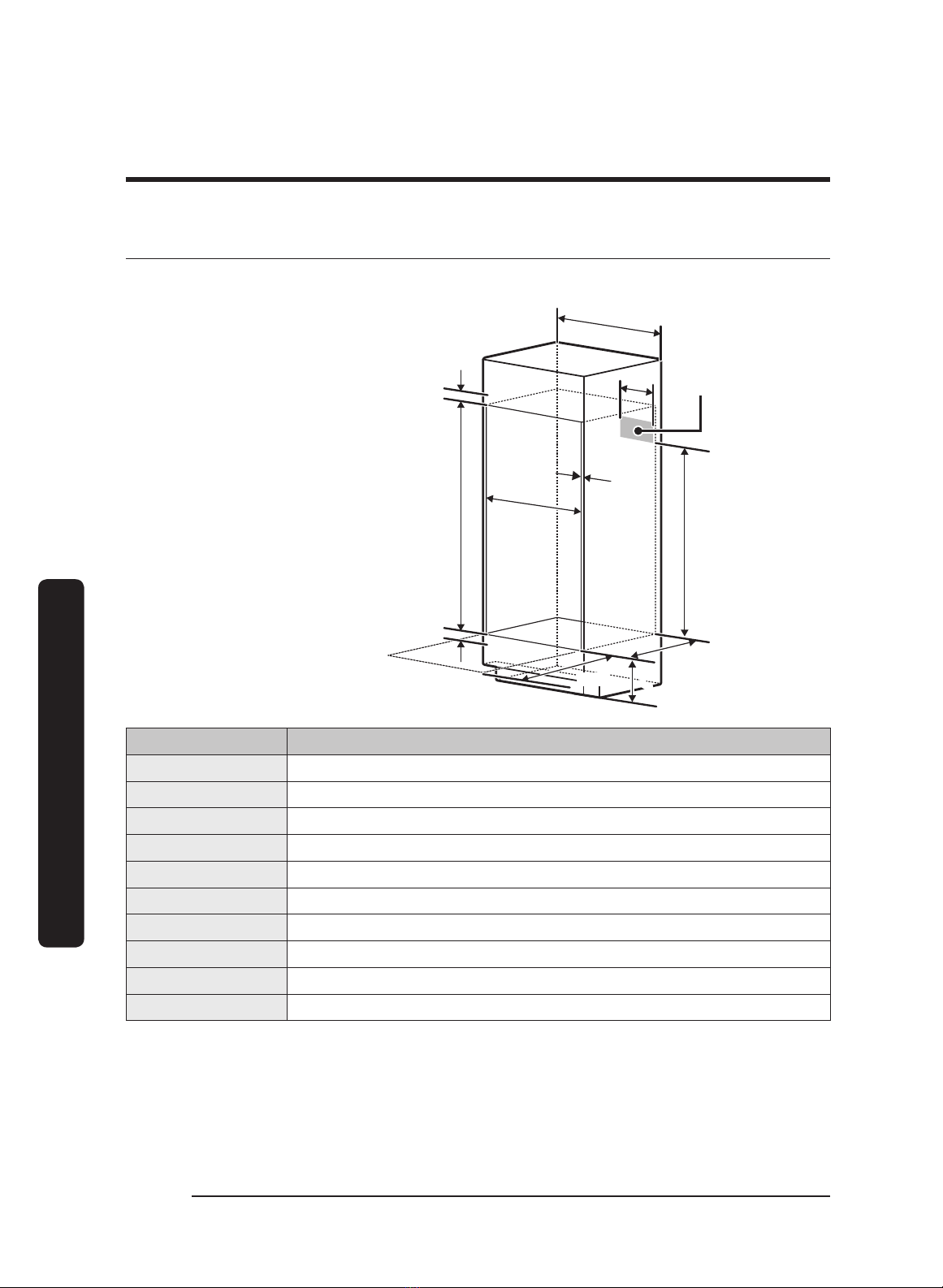

Combi Ovens Installed in Cabinet (Standard)
A
E
B
G
F
H
I
22”
D
C
J
Junction Box
Allow a minimum of 22”
for clearance to adjacent
corners, drawers, walls,
etc. when door is open
CABINET DIMENSION
A30” (76.2 cm)
BMin 13/16” (3.0 cm)
C12” (30.5 cm)
DMin 285/8” / Max 283/4” (Min 72.7 cm / Max 73.0 cm)
EMin 1” / Max 11/4” (Min 2.5 cm / Max 3.2 cm)
F421/4” (107.3 cm)
GMin 231/2” (Min 59.7 cm)
HMin 301/2” (Min 77.5 cm)
IMax. 91/2” (Max. 24.1 cm) – Junction Box
JMin. 11/16” (1.75 cm) – Wooden cabinet thickness

English 13
Installation requirements

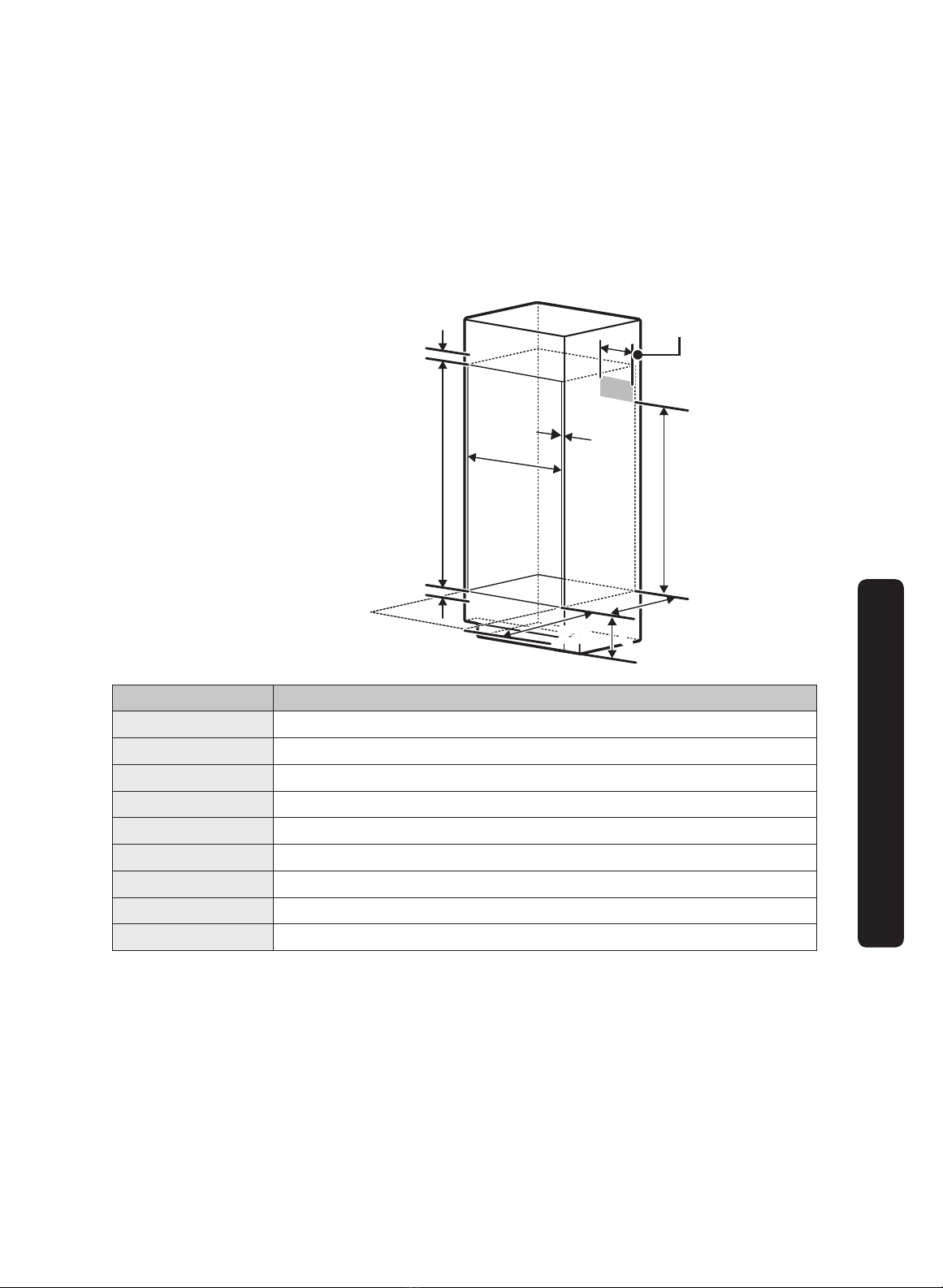

Combi Ovens Installed in Cabinet (Flush)
D
B
F
E
G
H
22”
A
C
I
Junction Box
Allow a minimum of 22”
for clearance to adjacent
corners, drawers, walls,
etc. when door is open
CABINET DIMENSION
AMin 303/16” / Max 305/16” (Min 76.7 cm / Max 77.0 cm)
BMin 13/16” (3.0 cm)
C12” (30.5 cm)
DMin 1” / Max 11/4” (Min 2.5 cm / Max 3.2 cm)
E4311/16” (110.9 cm)
FMin 2413/16” (Min 63.0 cm)
GMin 301/2” (Min 77.5 cm)
HMax. 91/2” (Max. 24.1 cm) – Junction Box
IMin. 11/16” (1.75 cm) – Wooden cabinet thickness

English14
Installation requirements
Installation requirements
B
DF
E
A C

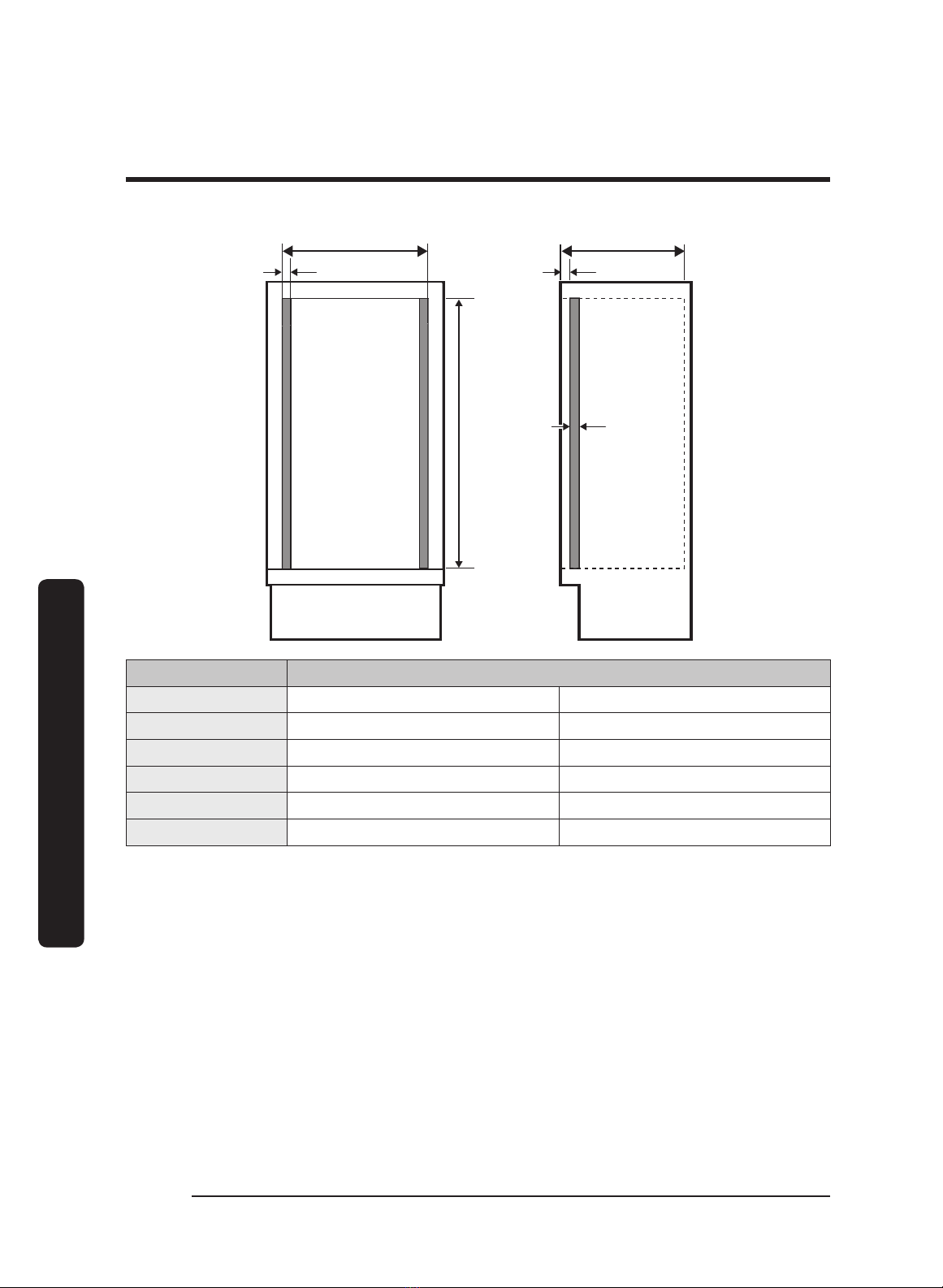

CABINET DIMENSION
A301/4” (76.8 cm) Width
B4311/16” (110.9 cm) Height
C2413/16” (63.02 cm) Depth
D13/16” (2.06 cm) Cleat Width
E11/16” (1.75 cm) Cleat Depth
F15/16” (3.3 cm) Cleat Position

English 15
Installation requirements
If codes permit and a separate ground wire is used, a qualified electrical installer should
confirm that the ground path and wire gauge comply with local codes. Check with a
qualified electrical installer if you are unsure the oven is properly grounded.
The oven must be connected to a grounded-metal, permanent wiring system.
Ensure the electrical connection and wire size are adequate and comply with the
National Electrical Code, ANSI/NFPA 70-latest edition or CSA Standards C22.
1-94, Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and all local
codes. A copy of these code standards can be obtained from:
•National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
•CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575

English16
Installation requirements
Installation requirements
Electrical Connection
To properly install your oven, you must determine the type of electrical connection you
will be using and follow the instructions provided in this manual.
Model/serial/
rating plate
The oven must be connected to the
electrical voltage and frequency
specified on the model/serial/rating
plate. (See left the graphic for location.)
•A circuit breaker is recommended.
•Use this chart to decide the minimum recommended dedicated circuit protection:
KW Rating (240 V) KW Rating (208 V) Recommended Circuit Size
(Dedicated)
≤4.8 KW ≤4.1 KW 20 Amp
4.9 KW - 7.5 KW 4.3 KW - 6.2 KW 30 Amp
7.3 KW - 9.6 KW 6.3 KW - 8.3 KW 40 Amp
9.7 KW - 12.0 KW 8.4 KW - 10.4 KW 50 Amp

English 17
Installation requirements
•Connect directly to the circuit-breaker box (or fused disconnect) through the
flexible, armored or nonmetallic sheathed, copper cable with grounding wire. (See
Electrical connection.)
•Flexible conduit from the oven should be connected directly to the junction box.
•Fuse both sides of the line.
•Do not cut the conduit. The conduit length lets the oven be pulled out for service.
•A UL-listed or CSA-approved conduit connector must be provided.
•If the house has aluminum wiring:
– connect a section of solid copper wire to the ends of the flexible conduit leads.
– connect the aluminum wiring to the added section of copper wire using special
connectors/tools designed and UL-listed for joining copper to aluminum.
•Follow the electrical connector manufacturer’s recommended procedure.
Aluminum/copper connection must comply with local codes and industry-accepted
wiring practices.
For power requirement for model DOC30M977D refer to the following table.
Model 240 VAC 208 VAC
DOC30M977D* 8.9 kW 6.7 kW

English18
Installation instructions
Installation instructions
Prepare built-in oven
WARNING
Excessive Weight Hazard
To avoid personal injury and property damage, at least two people should move and
install an oven.
1. Avoid drilling or cutting into house wiring during installation.
2. To avoid floor damage, set the oven on a cardboard pad. Do not lift by any part of
the frame or handle.
3. Remove the shipping material and tape. Keep the packing material needed for
installation.
4. Remove the hardware package from the bag containing literature.
5. Remove racks, etc. from the oven chamber.
6. Move oven and cardboard close to the installation site.

English 19
Installation instructions
Remove and replace oven door
IMPORTANT: Use two hands to remove the lower oven door. (The microwave-oven door
is not removable.)
Before removing the oven door, lay out a soft blanket or packaging material on a flat,
sturdy surface where you can lay the door.
Disconnect LED light wire harness
Wire Harness
Locate the LED wire harness and
disconnect it before removing the door.
1. Carefully pull the wire to reveal the
connector.
2. Disconnect the connector.
NOTE
When installing the unit, install the
bottom trim before reinstalling the door.
(See Install oven.)

English20
Installation instructions
Installation instructions
Remove the lower oven door
Locked
1. Open the oven door.
2. Find the door hinge locks in the
bottom corners of the door, and flip
the hinge locks out-down to the
unlocked position (see left). If the
locks are not fully out, the door will
not remove properly.
3. Partially close the door to engage the
hinge locks.
The door will stop at this point.
4. Grasp both sides of the door below
the handle; pull the door up and away
from the oven. (Gently rock the door
side to side as needed.)
5. Set the door, handle down, on the
covered surface you prepared.
6. Go to Electric connection.
Unlocked
