Daewoo KOR-8605 User manual

Before operating this oven, please read these instructions completely.
OPERATING
INSTRUCTIONS
MICROWAVE OVEN
KOR-8605

1
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result in
harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
(c) WARNING : If the door or door seals are damaged, the oven must not be operated until it has been
repaired by a trained person : (1) door (bent), (2) hinges and latches(broken or loosened), (3) door
seals and sealing surfaces.
(d) WARNING : It is hazardous for anyone other than a trained person to carry out any service or repair
operation which involves the removal of any cover which gives protection against exposure to
microwave energy.
(e) WARNING : Liquids or other foods must not be heated in sealed containers since they are liable to
explode.
(f) WARNING : Only allow children to use the oven without supervision when adequate instructions have
been given so that the child is able to use the oven in a safe way and understands the hazards of
improper use.
TABLE OF CONTENTS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY................................................................................................................. 1
TABLE OF CONTENTS....................................................................................................................................... 1
EARTHING INSTRUCTIONS............................................................................................................................... 2
INSTALLATION.................................................................................................................................................... 2
IMPORTANT SAFETY INSTRUCTION................................................................................................................ 3
FEATURES DIAGRAM ........................................................................................................................................ 4
OPERATION ....................................................................................................................................................... 5
COOKING UTENSILS.......................................................................................................................................... 5
CARE AND CLEANING ....................................................................................................................................... 6
BEFORE YOU CALL FOR SERVICE .................................................................................................................. 6
QUESTIONS AND ANSWERS ............................................................................................................................ 6
SPECIFICATIONS ............................................................................................................................................... 7
IMPORTANT........................................................................................................................................................ 7

2
EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric
shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a
earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and
earthed.
WARNING: Improper use of the earthing plug can result in a risk of electric shock. Consult a qualified
electrician or serviceman if the earthing instructions are not completely understood, or if doubt
exists as to whether the appliance is properly earthed. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade earthing plug, and a 3-slot receptacle that
will accept the plug on the appliance. The marked rating of the extension cord should be equal to
or greater than the electrical rating of the appliance.
INSTALLATION
Steady, flat location
This oven should be set on a steady, flat surface. This oven is designed for counter top use only.
Leave space behind and side
All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat
and, eventually, oven failure.
Away from radio and TV sets
Poor television reception and radio interference may result if the oven is located close to a TV, Radio
antenna, feeder and so on.
Position the oven as far from them as possible.
Away from heating appliance and water taps
Keep the oven away from hot air, steam or splash when choosing a place to position it, or the insulation
might be adversely affected and breakdowns occur.
Power supply
• Check your local power source. This oven requires a current of approximately 6 amperes, 230V 50Hz.
• Power supply cord is about 0.8 meters long.
• The voltage used must be the same as specified on this oven. Using a higher voltage may result in a fire
or other accident causing oven damage. Using low voltage will cause slow cooking. We are not
responsible for damage resulting from use of this oven with a voltage of ampere fuse other than those
specified.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
Examine the oven after unpacking for any damage such as:
A misaligned door, Broken door, A dent in cavity. If any of the above are visible, DO NOT INSTALL, and
notify dealer immediately.
Do not operate the oven if it is colder than room termperature.
(This may occur during delivery in cold weather.) Allow the oven to become room temperature before
operating.
The minimum height of free space necessary above the top surface of the oven is 100mm.
1
2
3
4
5
6
7
8

3
IMPORTANT SAFETY INSTRUCTIONS
WARNING:To prevent fire, burns, electric shock and other warnings:
Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance
from this oven:
1. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other
nonfood items or for sterilizing purposes.
2. Do not use the oven when empty, this could damage the oven.
3. Do not use the oven cavity for any type of storage, such as papers, cookbook, cookware, etc.
4. Do not operate the oven without the glass tray in place. Be sure it is properly sitting on the rotating base.
5. Make sure you remove caps or lids prior to cooking when you cook food sealed in bottles.
6. Do not put foreign material between the oven surface and door. It could result in excessive leakage of microwave
energy.
7. Do not use recycled paper products for cooking. They may contain impurities which could cause sparks and/or fires
when used during cooking.
8. Do not pop popcorn unless popped in a microwave approved popcorn popper or unless it's commercially packaged
and recommended especially for microwave ovens.
Microwave popped corn produces a lower yield than conventional popping; there will be a number of unpopped
kernels. Do not use oil unless specified by the manufacturer.
9. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc., without first
piercing them several times with a fork.
10. Do not pop popcorn longer than the manufacturer's directions. (popping time is generally below 3 minutes).
Longer cooking does not yield more popped corn, it can cause scorchings and fire.
Also, the cooking tray can become too hot to handle or may break.
11. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
12. When heating food in plastic or paper containers, check the oven frequently due to the possibility of ignition.
13. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked
before consumption, in order to avoid burns.
14. Always test the temperature of food or drink which has been heated in a microwave oven before you give it to
somebody, especially to children or elderly people. This is important because things which have been heated in a
microwave oven carry on getting hotter even though the microwave oven cooking has stopped.
15. Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave ovens since they may explode.
16. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you
leave grease or fat anywhere in the cavity it may overheat. Smoke or even catch fire when next using the oven.
17. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating
and fire.
18. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when
handling the container.

4

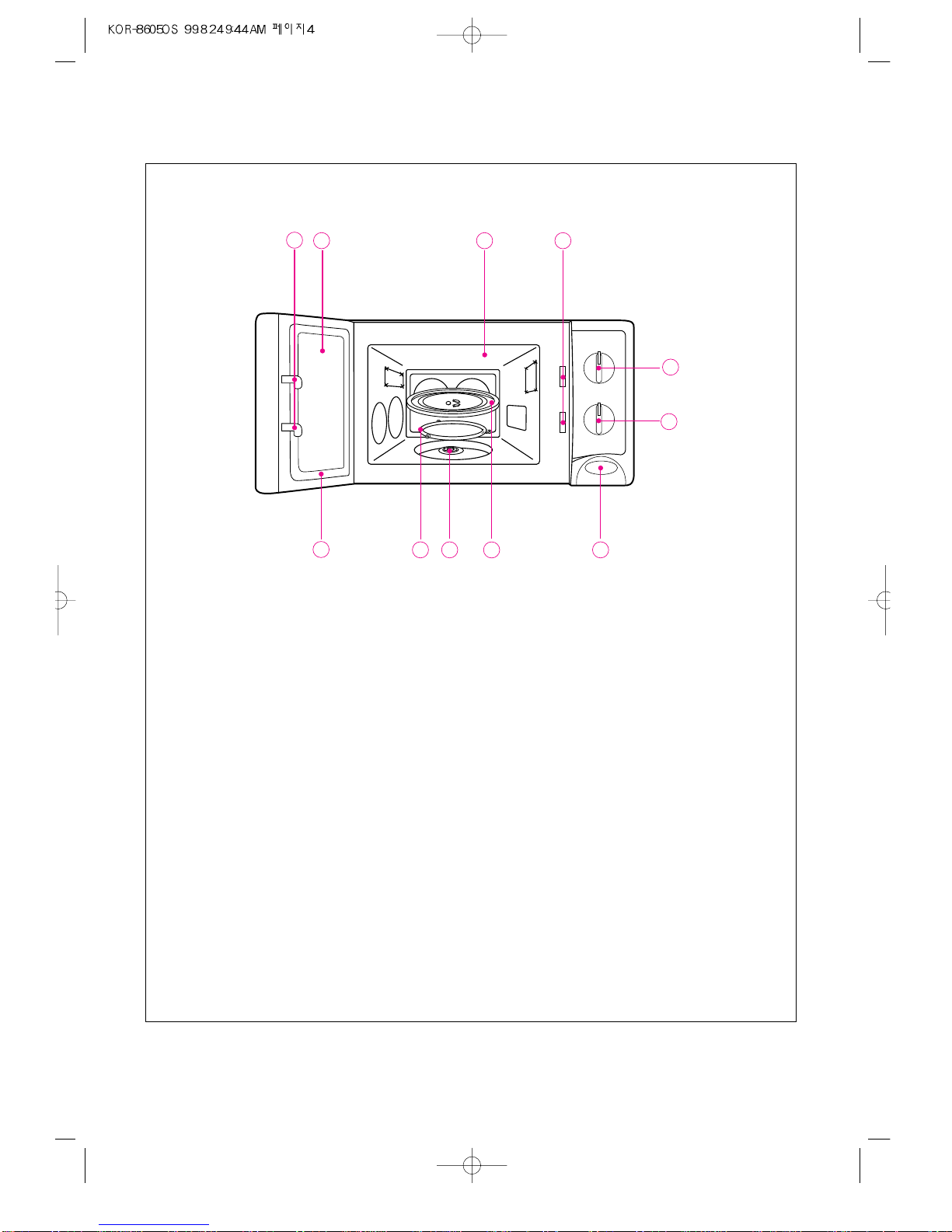

FEATURES DIAGRAM
11Safety Interlock System.
22Door Viewing Screen - Allows viewing of food. The screen is designed so that light can
pass through, but not the microwave.
33Door Hook - When door is closed, it will automatically shut off. If the door is opened
while the oven is operating, magnetron will automatically shut off.
44Oven Cavity.
55Door Seal - Door seal maintains the microwave energy within the oven cavity and
prevents microwave leakage.
66Glass Cooking Tray - Made of special heat resistant glass. Food in a proper receptacle
is placed on this tray for cooking.
77Roller guide - This must always be used for cooking together with the glass cooking tray.
88Coupler - This fits over the shaft in the center of the oven's cavity floor. This is to remain
in the oven for all cooking.
99Knob V.P.C - Used to select a microwave power level.
00Knob timer - Used in setting cooking time for all functions.
qqDoor Release Button - By pushing this button the latch system cuts off all circuits and
stops the oven before the door is opened.
2
5
3
8
9
10
14
7611

5
OPERATION
Connect the mains lead to an electrical outlet.
After placing the food in a suitable utensil, open the oven door and put it on the glass tray. Glass tray must
always be in place during cooking.
Shut the door.
Make sure that it is firmly closed.
Set the variable power selector to the desired power level.
Set the time control by turning the timer knob and then microwave cooking starts.
• If turning the timer knob for less than 2 minutes, turn it past 2 minutes and then back to the desired time.
• During the same time, the rotating angle of the timer knob of the period from 35 to 10 minute is smaller
than that of the period from 10 to 0 minute owing to the dual speed of the timer motor.
Microwave energy will be turned off automatically when the timer point to “OFF”.
Then take out foods.
• To prevent the oven operating with the door open, your microwave oven is fitted with safety door interlock
switches. If you wish to inspect the food during the cooking time, simply open the door. The oven will
automatically stop the cooking.
• To continue cooking, you simply close the door.
• If you wish to stop the cooking during the cooking simply turn the timer knob the point “OFF”. Cooking
can be reset at any time during the cooking cycle by only turning the timer knob.
• Do not let the timer continue to operate after removing food.
COOKING UTENSILS
Utensils should be checked to ensure that they are suitable for use in microwave ovens.
Microwave energy is produced by high frequency radio waves. They are reflected from metal, but will pass
through most cooking utensils without heating them.
As the waves come into contact with the food, they are converted into heat energy. Listed below are the
suggested cooking utensils for this microwave oven and when to use them.
1. Dishes with metal trim of any type-should not be used. This will cause sparking.
2. Glass or ceramic heat proof dishes-excellent for microwave cooking.
3. China dishes and plates-without metal trim may be used to cook and heat individual portions of food.
4. Wood or straw-use only for short period, wood contains some moisture and the microwave energy may
cause the wood to dry out and crack.
5. Aluminum foil-may be used in very small pieces for shielding only.
Any aluminum foil used should never be closer than 2.5 cm from side walls of oven.
6. Plastic-most heat resistant plastic dinnerwave may be used for heating food. However polyethylene,
melamine, phenol are unsuitable for use in the oven. They become hot in the microwave.
7. Wax paper-use as a cover to avoid spatters.
8. Metal-In general, metal utensils should not be used in microwave oven.
1
2
3
4
5
6
SYMBOL POWER LEVEL OUTPUT POWER
150W WARM 17%
DEFROST 33%
500W MEDIUM 55%
700W MED. HIGH 77%
MAX HIGH 100%

6
CARE AND CLEANING
Although your oven is provided with safety features, it is important to observe the following:
1. It is important not to defeat or tamper with safety interlocks.
2. Do not place any object between the oven front face and the door or allow residue to accumulate on sealing
surfaces. Wipe the sealing area frequently with a mild detergent, rinse and wipe dry. Never use abrasive
powders or pads.
3. When opened, the door must not be subjected to strain, for example, a child hanging on an opened door or
any load could cause the oven to fall forward to cause injury and also damaged to the door. Do not operate
the oven if it is damaged, until it has been repaired by a trained service technician.
It is particularly important that the oven closes properly and that there is no damage to the:
i) Door (bent)
ii) Hinges and Hookes (broken or loosened)
iii) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except a properly trained service technician.
BEFORE YOU CALL FOR SERVICE
Refer to following checklist, you may prevent an unnecessary service call.
* The oven doesn't work;
1. Check that the power cord is securely plugged in.
2. Check that the door firmly closed.
3. Check that the cooking time is set.
4. Check for a blown circuit fuse or tripped main circuit breaker in your house.
* Sparking in the cavity;
1. Check that utensils are metal containers or dishes with metal trim.
2. Check that metal skewers touch the interior walls.
If there is still a problem, contact the service station.
QUESTIONS AND ANSWERS
* Q : I accidentally ran my microwave oven without any food in it. Is it damaged?
A : Running the oven empty for a short time will not damage the oven. However, it is not recommended.
* Q : Can the oven be used with the glass tray or roller guide removed?
A : No. Both the glass tray and roller guide must always be used in the oven before cooking.
* Q : Can I open the door when the oven is operating?
A : The door can be opened anytime during the cooking operation. Then microwave energy will be instantly
switched off and the time setting will maintain until the door is closed.
* Q : Why do I have moisture in my microwave oven after cooking?
A : The moisture on the side of your microwave oven is normal. It is caused by steam from cooking food
hitting the cool oven surface.
* Q : Does microwave energy pass through the viewing screen in the door?
A : No. The metal screen bounces back the energy to the oven cavity. The holes are made to allow light to
pass through. They do not let microwave energy pass through.

7
* Specifications are subject to change without notice.
POWER SUPPLY 230V~50Hz, SINGLE PHASE WITH EARTHING
MICROWAVE POWER CONSUMPTION 1350 W
OUTPUT POWER 900 W
FREQUENCY 2450 MHz
OUTSIDE DIMENSIONS (W X H X D) 495 X 294 X 388 mm
CAVITY DIMENSIONS (W X H X D) 320 X 244 X 338 mm
NET WEIGHT APPROX. 15 Kg
TIMER 35 min. DUAL SPEED
POWER SELECTIONS 5 LEVELS
SPECIFICATIONS
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code.
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked
with the letter ‘E’ or by the earth symbol or green-and-yellow. The wire which is coloured blue must be
connected to the terminal which is marked with the letter 'N' or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or
coloured red.
WARNING: This appliance must be earthed.
