Table of Contents
Page
1. General
1.1 Precautions Before Use ............................................................................ 4
1.2 Product Introduction ................................................................................ 5
1.3 Product Configuration .............................................................................. 6
2. Installation
2.1 Product Installation .................................................................................. 7
2.2 Smart-Lab WiReTM Service installation....................................................... 9
2.3 Product Specifications ............................................................................ 15
3. Product Usage
3.1 Precautions for Use ................................................................................. 16
3.2 Names of Each Part ................................................................................. 19
3.3 Operation Instructions ............................................................................. 22
4. Products Management Methods
4.1 Maintenance .......................................................................................... 36
4.2 Troubleshooting and solution ................................................................... 38
4.3 Accessories ............................................................................................ 39
5. Product Assurance
5.1 Quality Assurance ................................................................................... 40

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 4/80
1
I
N
1. General
1.1 Precautions Before Use
Thank you for purchasing the Forced Convection type Smart Oven.
This manual describes the performance and usage instructions of the product, and the
precautions in the handling. Please carefully read this manual, before using the product. The
following warnings should be strictly adhered to: (The following warning sign is marked in the
part that is required user attention, so please safely use the product after being well-acquainted
with the meaning.)
Warning
Failure to follow the instructions may result in injury.
Caution
Failure to follow the instructions may result in product failure.
Proximity Caution
Keep clear of the product during use.
Notification
Do not disassemble or modify the product or use it for purpose other than its
intended function.
Caution: High Temperature
High-temperature heating, pose a risk of burns.
Danger of Explosion
If volatile, explosive chemicals are used, there is a danger of explosion.
This symbol indicates Protective earth (ground).
This symbol indicates power “OFF” on the power on/off switch.
This symbol indicates power “ON” on the power on/off switch.
This symbol indicates the connection point of the neutral conductor on the
installed unit.
This symbol indicates alternating current Voltage.
1

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 5/80
1. General
1.2 Product introduction
This product is equipped with the Forced convection air circulation system, and realize
The Best Temp. Uniformity & Accuracy by 3-Side Pre Heating Zone which the heating
elements wrap the three sides of the chamber.
In addition, it remotely controls the experimental equipment by building Smart-LabTM
System through WiReTM App & web Service, and it is implemented so that anytime,
anywhere can be monitored.
This product was developed and manufactured considering the best possible ease for
use and safety, and has the following features.
1. This product is equipped with the high performance Heating Mechanism - Pre Heating Zone
which realizes the best temperature uniformity and accuracy.
2. It minimizes the heating time and the temperature recovery time after open/close of door
through the optimization of the high-precision Fuzzy-PID controller.
3. The actions of various menus have been simplified through 4 inches Full-Touch Screen by
applying Smart-LabTM Controller.
4. It sends the unusual condition in real time by the self-testing system of the experimental
equipment through WiReTM App & Web Service support over the user and the service center,
and the remote monitoring and control are possible.
5. The insulating and thermal efficiency are maximized by putting the Air-Flow Layer between
the advanced insulator and the enclosure.
6. The Chamber and inner shelf prevents corrosion by using Stainless Steel material.
7. This product minimizes the heat loss by being strongly adhered the door by up and down
dual latch structure.
8. The safety device for overheating prevention, and over current and short circuit prevention
circuitry that preferentially consider the user’s safety are mounted.
9. The models that the observation of the inside is easy are supported through the Built
Viewing Window. (Only in " ThermoStableTM SOF-W105", " ThermoStableTM SOF-W155")
10. The pollution prevention and the simple and convenient washing operation are possible
because the seamless rubber packing is finished in the curved surface on the inside corners.
11. The Heating is stopped in the case of the Door Open during operating, the error in use is
minimized because the alarm rings if the certain time elapses.
12. CE Certified Products.
13. PL(Product Liability) Insurance

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 6/80
1. General
1.3 Product Configuration

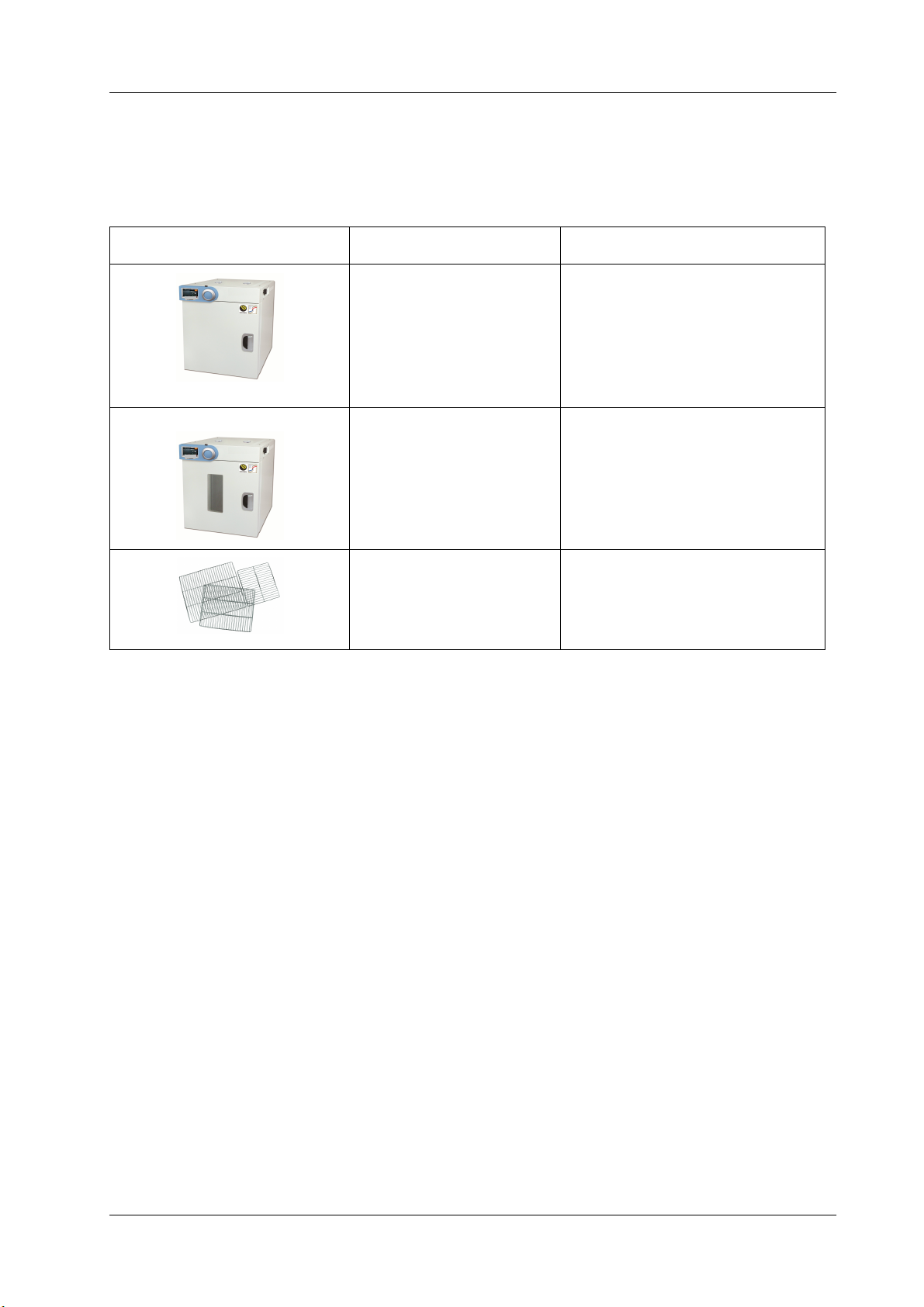

Component Photo Component Name No. of Configuration
ThermoStableTM
SOF- 50, 105, 155 1 unit
ThermoStableTM
SOF- W105, W155 1 unit
Stainless Steel Shelves 2 ea
- Including a copy of the Operation Manual
* Model.
- ThermoStable SOF-50 : Smart Forced-air Oven, without Window, 50Liter.
- ThermoStable SOF-105 : Smart Forced-air Oven, without Window, 105Liter.
- ThermoStable SOF-155 Smart Forced-air Oven, without Window, 155Liter.
- ThermoStable SOF-W105 : Smart Forced-air Oven, Built-in Viewing Window, 105Liter.
- ThermoStable SOF-W155 : Smart Forced-air Oven, Built-in Viewing Window, 155Liter.
- ThermoStable SON-32 : Smart Gravity-air Oven, without Window, 32Liter.
- ThermoStable SON-50 : Smart Gravity-air Oven, without Window, 50Liter.
- ThermoStable SON-105 : Smart Gravity -air Oven, without Window, 105Liter.
- ThermoStable SON-155 : Smart Gravity -air Oven, without Window, 155Liter.
- ThermoStable SON-W105 : Smart Gravity-air Oven, Built-in Viewing Window, 105Liter.
- ThermoStable SON-W155 : Smart Gravity -air Oven, Built-in Viewing Window, 155Liter.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 7/80
2. Installation
2.1 Product Installation
* Caution of Installation
1. The product is heavy. Be aware when moving the product.
2. Do not lay the product or allow sudden impacts. It may cause damage to the inside.
3. Install the product on a hard, flat surface and ensure to use in a stable location.
4. Do not install in dangerous locations or in where exposed to direct sun-light.
5. If moisture or organic solvent is allowed into the body or adjuster part, it may cause a short
circuit. Avoid those locations.
6. Ensure to check the voltage before the product installation for it is manufactured to operate
at rated voltage.
7. Make sure to use POWER CORD shipped with the product when installing or operating the
product.
8. Do not install the product in environments where inflammable gas may leak or may explode
due to organic vapor gas.
9. Make sure to prevent moisture, organic solvent, dirt, corrosive gases from the product.
10. Do not expose the product to direct heat sources.
* Installation Process
1. After receiving the unit and locating it in the specified location, remove the packaging.
2. Check the unit for any transport damages. If any such damages are found, please contact
the deliverer of the product.
3. This Product is not equipped with casters. Units should be moved using a cart. Ensure that
no damage is sustained by the units during transport. It is recommended that units are

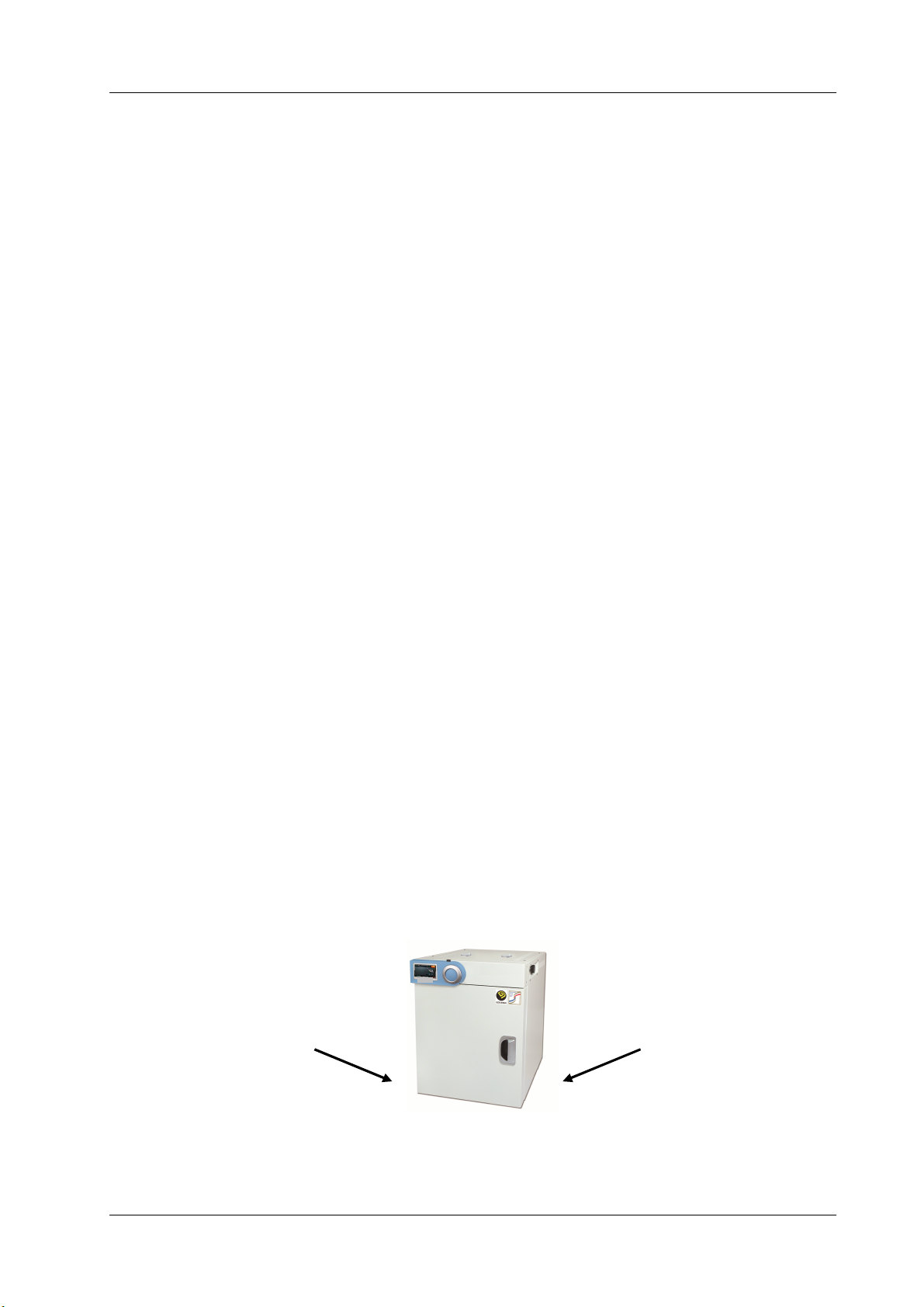

moved by at least 2 people and by lifting units up holding the indicated positions in the
figure below.
4. The product should be positioned in a location where it has enough space for ventilation
and prevention from fire. The recommended distance of each side is minimum 20cm from
2

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 8/80
the back wall, 100cm from the side walls and ceiling respectively.
5. Place the device on a level, horizontal surface to support the capacity of the device without
vibration.
6. Once the unit is placed in its installation location, let the unit stand for 15-30 minutes so
that all the internal parts of the unit stabilize.
7. Connect the power cord to the wall socket.
8. When installing the device, insure the wall socket is easily accessible.
9. Do not earth to gas pipe, plastic tap water pipe or phone line. It may cause an electrical
shock, a fire, breakdown or explosion of the unit.
* Safety Symbols on a product
- Safety symbols stickers Attached to side of product. For meaning of each symbol, please
refer to Precautions Before Use, Safety Instructions.
 Product Liability (PL) Insurance Admission
DAIHAN Scientific (Co., Ltd.) is a member of Product Liability Insurance (PL
Insurance), so that its customers can trust our products, (believe and use its
products,) by preparing against the accident which can be occurred during using the
products by self-production.
[Contents] ………………………………………………………………………………………
Insurance Type: Product Liability Insurance
Publishing Office: Machinery Insurance Cooperative
Limit of Indemnity: 100 million won for Persons and Objects
Secured Area: Worldwide (excluding North America)
Emergency Contact: DAIHAN Scientific (Co., Ltd.) (TEL: [phone], FAX: [phone])
(TEL: [phone], FAX: [phone])
Safety symbols on units, for further
description of each symbol, please
refer to 3.1 Precautions for Use

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 9/80
<Fig.2.2.1> Product adjuster
<Fig.2.2.2> Screen in opeation <Fig.2.2.3> Screen when opeation is stopped
2. Installation
2.2 Smart-Lab WiReTM Service installation
- Those who use WiReTM Service, make sure to connect WiReTM Service before using after
installing the product to a static location.
- Proceed with the installation from the Touch Screen in the front.
- Locate a wireless LAN for internet from the factory-shipped unit for it is not installed when
shipped.
- This describes how to install WiReTM Service.
It only describes items that must be installed to use WiReTM Service. Please refer to “How to
use” page for more product operation details.
- It is described the procedure how to set WiReTM Service in order in installation. Please follow
the steps in order as described.
- Proceed to connect WiReTM Service in “SETTING” menu on the top left of main screen.
- “SETTING” menu is disabled during operation. Stop operating it by touching “STOP” button
on the top right and check if the SETTING menu is activated.
- “System”, “WiRe”, “WiRe Users” are specific menu items to connect WiReTM Service in
“SETTING”. Proceed in order of description numbers as shown below.
Install wireless LAN

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 10/80

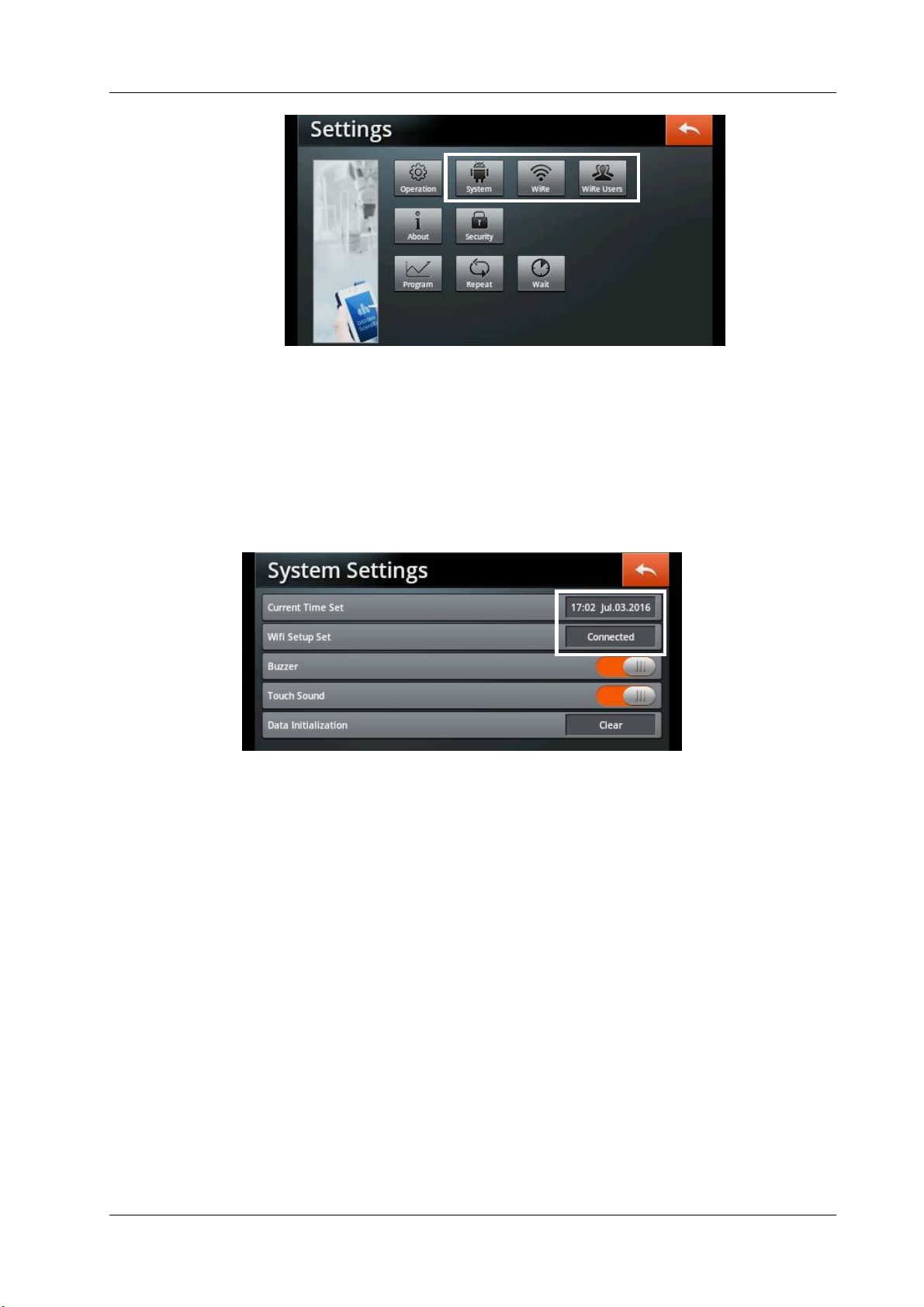

<Fig.2.2.4> Settings menu details
<Fig.2.2.5> System Settings
- Proceed to set the system after pressing “System”. When you touch the return button on
the top right of screen in all menu screen, it switches to the previous screen.
① System Settings
(1) Current Time Set
- Set the current time to enter the exact time of test by users. Touch the date time box on
the right.
- If you randomly change the current time since supplied from the factory, please be sure to
use after re-applying power to the equipment. If you have changed the time of product
behavior it may also cause problems with some functions. Therefore if the current time
changed be sure to use the device again after turning it off.
- Please use "Automatic" only with the Check Box is unchecked and disabled.
- “Select time zone” synchronizes to the time of a country if WiReTM Service is used as a
Mobile App that is using the device. Make sure to enter the country wherein a device is
being used.
① ② ③
①
②

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 11/80
<Fig.2.2.7> WIFI SET

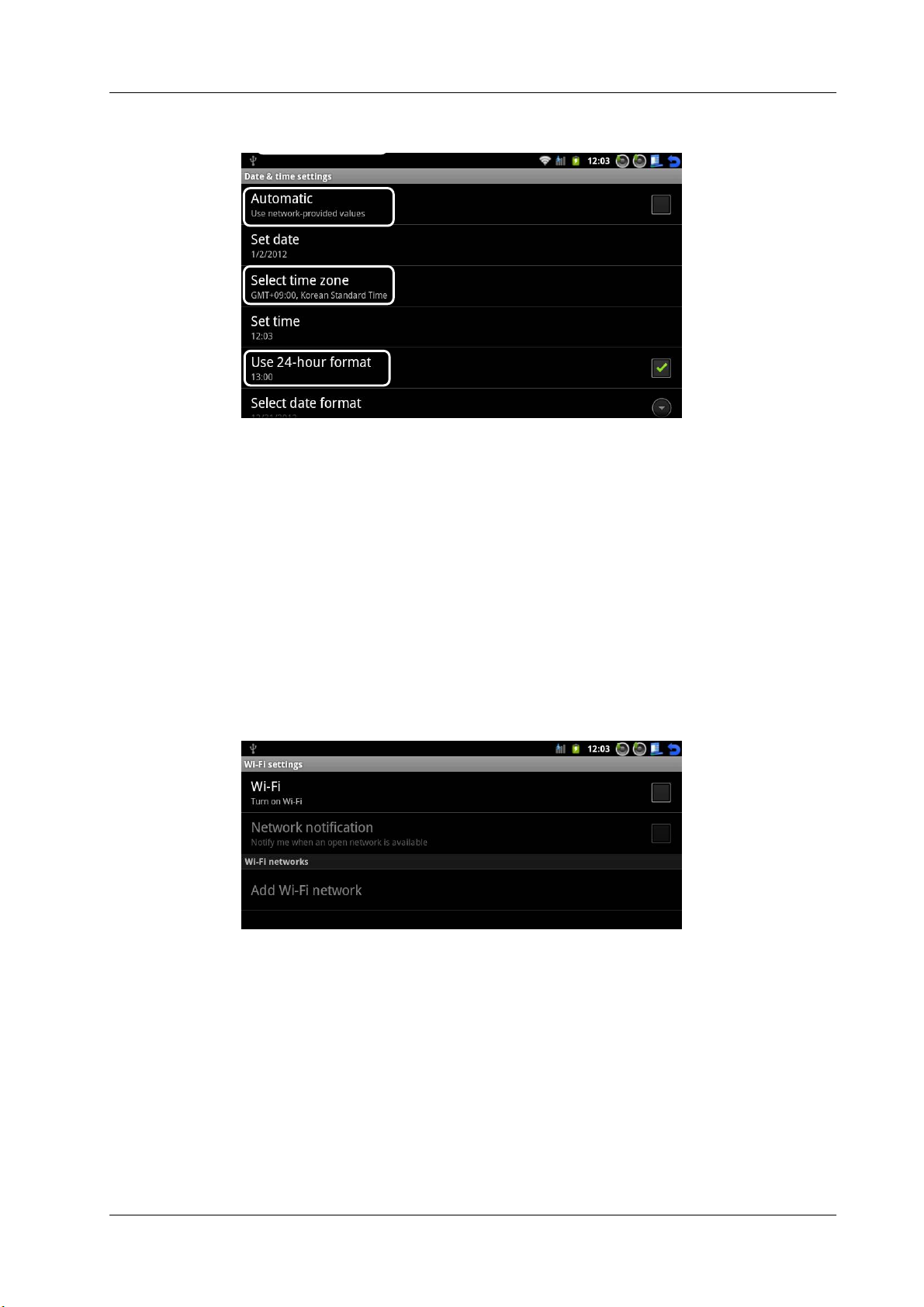

<Fig.2.2.6> Current Time Setup
- For “Use 24-hour format”, make sure if it is checked as shown on the right for the precise
operation of device and never change it.
- After setting, it switches back to the previous page if the blue return icon on the top right is
clicked.
(2) Wifi Setup Set
- WiReTM Service is possible to use only if connected to internet. Be sure to connect to a
wireless LAN.
- Connect to WiFi by clicking Check Box on Wi-Fi window, and enter password if it requires.
Be sure to check if USB dongle is properly installed if WiFi signal is not available. (check
flashing LED light)
- After connecting to WiFi, it switches back to the previous page if the blue return icon on the
top right is clicked.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 12/80
<Fig.2.2.8> WiRe Settings
<Fig.2.2.9> WiRe Users
<Fig.2.2.10> Existing UserID registration
② WiRe Settings
- If WiRe Mode button is set to the right, WiReTM Service is connected. It is possible only if
WiFi connection is stable.
- WiRe Mode is not possible if WiFi is not connected or network is unstable. Make sure the
network is stable.
- It is possible to check Serial Number, Model, and Organization Name at below after
connecting it.
③ WiRe Users
(1) Adding users
- If a user is registered in the existing Smart-Lab device, this device will register the existing
user IDs. In such cases, a single user can check several devices for the list of registered
devices emerges when logged in with a single ID from a mobile App.
②
①
③
④

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 13/80
<Fig.2.2.11> Delete users from the list
<Fig.2.2.12> Enter new usser information <Fig.2.2.13> ID, Password error message
(2) Deleting users
- Users are deleted when the button is touched after selecting users to delete from the user
list.
(3) Registering new users
- First-time users for Smart-Lab and WiRe Service must register user information. Enter ID,
Password and Name.
- ID must be entered in at least more than 6 and less than 20 lowercase alphabetic
characters and digits. In cases of duplicate ID or less than 6 or more than 20 places other
than lowercase, uppercase alphabets or numbers are entered, a pop up message will be
shown alerting the ID setting is not allowed.
- Password must be entered in at least more than 6 and less than 20 capital, lowercase
alphabetic characters, special symbols. If not at least more than 6 and less than 20 capital,
lowercase alphabetic characters, special symbols are entered, a pop up message not
allowing registering will appear.
- ID, Password, Name once entered is not possible to change.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 14/80
<Fig.2.2.14> Setting authority <Fig.2.2.15> communication error
(4) Authority settings
- Set a registered user as an administrator or end user. Admin (administrator) controls
Remote Control System as a single administrator. Up to 100 User (general user) can be
registered and can monitor the status of device. (User can not remotely control)
- After selecting an ID that wants to change authority from the registered user list, set and
select from Admin or User.
- Since only one Admin is allowed, Admin ID other than the latest ID will be changed to User.
- If a message that it cannot load registered user information pops up, check if WiFi
connection is weak and reenter in WiRe Users menu.
- After proceeding to the steps above, WiReTM Service is ready to use for it is connected to a
Mobile App. Please refer user’s manual for setting device functions.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 15/80
2. Installation
2.3 Product Specifications
Model
Standard Model, without Window
ThermoStableTM
SOF-50
ThermoSt
able
TM
SOF-105
ThermoStable
TM
SOF-155
Built
-
in Viewing Window Model
ThermoStable
TM
SOF-W105
ThermoStable
TM
SOF-W155
Capacity
50Lit
105Lit
155Lit
Dimension
(w x d x h)
Interior(mm)
370X345
X420
485X415
X535
550X48
0X600
Exterior(mm)
518X647
X72
4
6
53X712
X8
82
718X777
X94
7
Heater Power
650W
1.4kW
1.6kW
Temp.
Range
Ambient Te
mperature +5
℃
to 250
℃
Fluctuation
±
0.3
℃
at 100
℃
,
±
0.5
℃
at 150
℃
Variation
±
1
℃
at 100
℃
,
±
1.8
℃
at 150
℃
±
1
℃
at 100
℃
,
±
2
℃
at 150
℃
Sensor
PT 100
Control Resolution
±
0.1
℃
Heat
-
up Time
25min. to 100
℃
43min. to 150℃
25min. to 100
℃
40min. to 150℃
Recovery T
ime
(Door open 30sec)
8min. to 100
℃
8min. to 150℃
6min. to 100
℃
6min. to 150℃
Controller
Smart
-
Lab
TM
Controller
RS232 Port
Available to connect with PC
Display
4"Full Touch Screen TFT LCD
Timer
99hr 59min (delay/continuous function)
Material
Internal
Stainless Steel(#304)
External
Powder Coated Steel
Insulation
Glass Wool
Shelves
Stainless steel shelves included
2ea
Ventilation
Ventilation hole with Stainless Steel Cap, Hole Diameter 40mm
1ea
2ea
Circulation
Forced Air Convection Type
Safe
ty device
Over Temp. and Over Current Protector, Sensor Error Detector
Others
UL / CUL Certified
Storage Function (Temp. and Time)
Locking Mode (Jog-Dial Input Disabled)
Alarm (Error Status and Timer-end)
Net Weight (kg)
44
69
78
Packing Size (wxdxh)(m
m)
622X754X807
743X819X1,068
808X884X1,133
Shipping Weight(kg)
59
79
92
Power Consumption
674 W
1390 W
1566 W
Energy Consumption, at 100
℃
, at 150℃
117 Wh
187 Wh
204 Wh
230 Wh
337 Wh
398 Wh
Power Supply
120V, 60Hz or 230V, 50/60Hz

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 16/80
3. Product Usage
3.1 Precautions for Use
Please be familiar with the user manual before using this product, and operation
should be performed only by qualified personnel
This product should be connected to a appropriate power source that it is
generally used. Please use a lower power source than the regulation load
permitted (AC 120, 60Hz or AC 230V, 50/60Hz, Single-phase).
Place the product on a level, horizontal surface to support the weight of the
product without vibration. Install the product in a place where the floor is hard
and flat. Failure to do so can cause accidents. by negligence.
 Warnings
- Please observe the following precautions.
This product should be operated in a room with temperature maintain between
5℃ and 40℃. Long-term use in an environment that exceeds the allowable range
may cause a malfunction.
Please do not damage or distress the power cord. (Please do not hurt on the
power cord, or process it, or force bend it, or pull it, and tie it.) Also, if heavy
objects are placed over the power cord, or the power cord is inserted in between
objects, the power cord can be damaged and may cause fire or electric shock.
Please do not directly spray water on the product or wash it with water, to avoid
short circuits or electric shock.
Please do not touch or manipulate the electrical parts such as the power plug with
wet hands electric shock.
Please do not operate the product by manipulation of the plug to avoid electric
shock or short circuits
Do not install the product where it can get damp or in a dusty environment. It
may cause overheating or short circuit. – Pollution Degree 2
Do not install the product in a location at an altitude of over 2,000 meters (6,562
feet).
Please do not use any kind of plastic container or the goods for dry purpose. The
temperature around the heater mounted on the floor of the chamber is higher
than the operating temperature, and if the internal temperature is rapidly risen
due to the malfunction of user, there may present a fire risk.
3

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 17/80
The internal temperature rises up to 250℃, so please be careful when opening or
closing Air Duct or Door.
The inner chamber is hot during an operation, do not touch the inner chamber
without proper hand protection during operation as burns may occur.
Do not operate this product near a heater or an air-conditioner.
Clean the bottom of inner chamber and install the shelves properly before use.
Do not close your face, hands or body into a chamber. It may cause an injury or
burn by high temperature.
Only operate unit after checking the safety of the unit.
The temperature of the regulator SAFETY should be set up 30 ~ 40C higher than
the operating temperature.
If the regulator SAFETY is set to 0, the heater does not operate.
If unexpected sound, smell or smog is generated, pull the main plug out from the
wall socket and contact the technical assets of DAIHAN Scientific
If irradiated or contaminated samples are placed in the chamber, the warranty is
voided. Do not use this product to sterilize or disinfect objects or samples.
Do not use outdoors avoid overheating or electrical faults. The use in the place
where the sun continuously shines and can get rained on it is prohibited. It may
cause overheating or electrical fault of the product.
Please do not use flammable or volatile products in the vicinity of the product to
minimize the risk of firer. Please do not use the flammable spray such as lacquers
and paint, or volatile, flammable chemicals and its similar product, in the
proximity of the product. They may cause the ignition due to the spark of switch.
Please avoid the disassembly or modification of this product by a non-authorized
person to avoid serious electrical problems and to retain the warranty service of
DAIHAN Scientific Co., Ltd.
This product must be connected to a properly grounded power supply.
Please regularly check whether dust or dirt are on the power plug and completely
connect the plug. If the plug is covered with dust, or the connection is not
complete, it will cause an electrical shock or fire.
Please separate the power plug from the outlet for safety when the product is
unused for long periods of time to avoid overheating or ignition due to dust.
When disconnecting the power plug, it must be grasped by the hands and then
pulled. Grasping only the cord and then disconnecting it may cause overheating or
ignition because of internal lines being disconnected.
Insert the plug securely into an appropriate wall socket.
Loose connections result in excessive heat generation to the device and may
cause arcing to occur at the connection.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 18/80
If unusual noise or signs of abnormal behavior are found during use of this
product, please immediately contact the supplier or DAIHAN Scientific (Co., Ltd.)
after turning off the power supply and disconnecting the power line.
When moving the product, please move it so that the power cord and the product
are not damaged after disconnecting the power plug from the electrical outlet, in
order to avoid the electrical shock or the ignition due to the damage to the cord.
Please maintain the clean condition of this product by removing the foreign
matter while gently wiping with the neutral detergent and a dry cloth after
checking whether the foreign matter present or not, before and after using this
product.
The fluctuation of main power voltage should be lower than +/-10% of the
nominal voltage..
The maximum relative humidity is 80% at 31C and 50% at 40C .
If a product was transported or stored in high humidity condition, please check
packaging condition before use. If the carton or wooden box is waterlogged,
please contact the deliverer or our technical service engineer. Do not operate the
unit before checking with an engineer, otherwise it may cause an electrical shock
or a fire.
The Sound Level of the buzzer is maximum 60dB in 1 meter distance when an
error is detected.
The device should be set at a well ventilated place. Be sure the holes on the side
or rear surface of the body are blocked by a wall or an object. And do not operate
the device at a poor ventilated place or use closed. It may cause a fire or damage
of the device as not to release heat or insufficient ventilation may result.
This Symbol indicates that this product is to be collected separately.
The following apply only to users in European countries:
 This product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
This product is required to comply with the European Union’s Waste Electrical &
Electronic Equipment(WEEE) Directive 2002/96/EC
※ All of the circuits, electrical or mechanical parts and configurations used in this
product are the technical assets of DAIHAN Scientific (Co., Ltd.). Only technicians of
the technical support team at DAIHAN Scientific (Co., Ltd.) or technicians approved
through the education from DAIHAN Scientific should be allowed to repair this
product.

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 19/80
3. Product Usage
3.2 Names of Each Part
 Outside
NO Names Description
① Power Connection
Power Cord Apply
② Air Duct
Ventilation of
Chamber
ThermoStableTM SOF-50 1ea
ThermoStableTM SOF-105/-155/-W105/-W155 2ea
③ Controller Set and Check operation
④ Window Safety Double
⑤ Door Handle Door open and close
<Fig.3.2.3>
B
ack of
" ThermoStableTM SOF-105, 155"
" ThermoStableTM SOF-W105, W155"
<Fig.3.2.1>
Built Viewing Window
Oven,
" ThermoStableTM SOF-W105"
<Fig.3.2.2> Back of " ThermoStableTM SOF-50"
①
①
<Fig.3.2.4> Inner chamber of Oven
Heater is equipped in the bottom and two
sides of the chamber.
Do not put any object on the bottom.
<Table.3.2.1> Names of each part and description
③
⑤
④
②

DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
DAIHAN Scientific, Forced Convection type Smart Oven 20/80
NO Names Description
⑥ Power Switch Power ON/OFF
⑦ Fuse Protect unit from High Current
⑧ Safety Switch Prevent overheat
<Fig.3.2.5> Standard Model,
"ThermoStableTM SOF-105"
<Fig.3.2.6> Side of " ThermoStableTM SOF"
⑥ ⑦ ⑧
ThermoStable SOF-50 (120V) : 250V F 10AH
ThermoStable SOF-105, -155 (120V) : 250V F 20AH
ThermoStable
S
O
F
-
50,
-
105,
-
155
(
230V
)
:
250V F 10
AH
<Table.3.2.2> Names of each part and description
