Daikin ARM09MV2S User manual

REMOVAL
PROCEDURE
SERVICE MANUAL
2.5 kW Class
9000 Btu/h Class
Outdoor Unit
Non-Inverter
Pair Type
Si011356EA

Service Manual
Removal Procedure
Outdoor Unit
zCooling Only
ARM09MV2S
RM09NV2S
RM25JV14
RM25KV1V
RN25JV1G

Si011356EA
Removal Procedure 1
Table of Contents
1. Outer Panels ...........................................................................................2
2. Outdoor Fan / Fan Motor.........................................................................4
3. Electrical Components ............................................................................6
4. Sound Blankets .....................................................................................10
5. Capillary Tube .......................................................................................11
6. Compressor ASSY ................................................................................12
Note: The illustrations may be slightly different depending on the model.

Outer Panels Si011356EA
2Removal Procedure
1. Outer Panels
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1Remove the screw and
remove the stop valve
cover.
The stop valve cover is
united with the shield plate.
When reassembling, make
sure to fit the 3 hooks.
2
3
Remove the 3 screws
(left: 2 screws, right: 1
screw) and remove the
top panel.
Remove the 6 screws
of the front panel.
(R16329)
Stop valve
cover
(R16330)
Shield plate
Hook
Top panel
Front panel (R16331)

Si011356EA Outer Panels
Removal Procedure 3

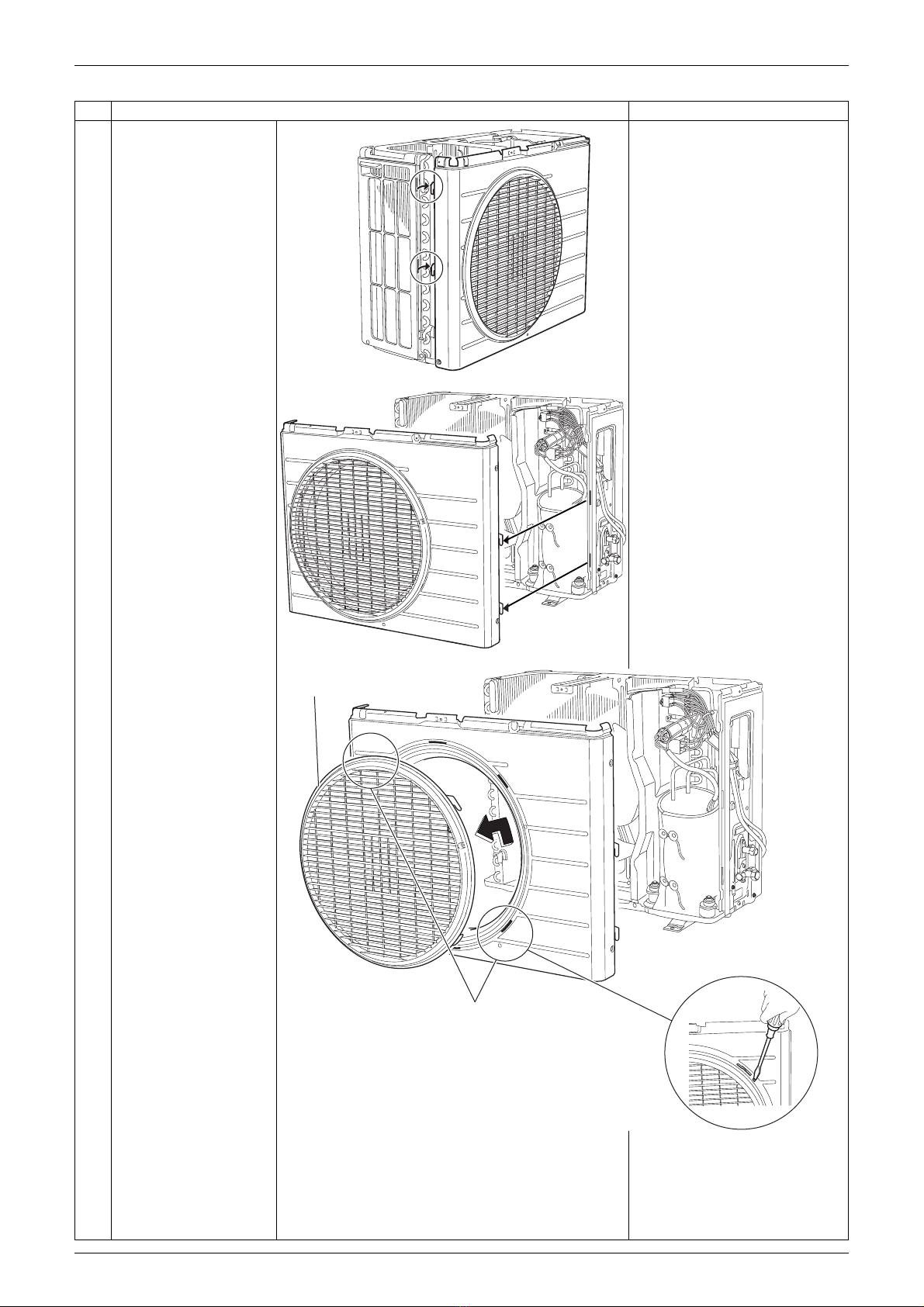

4Lift up the left side and
unfasten the hooks.
5Release the right side
hooks and remove the
front panel.
6Press the 2 projections
from the rear side and
rotate the discharge
grille to remove it.
Step Procedure Points
(R20743)
(R20744)
Projection (rear side)
(R16323)
Discharge grille

Outdoor Fan / Fan Motor Si011356EA
4Removal Procedure
2. Outdoor Fan / Fan Motor
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
Remove the nut of the
outdoor fan.
Remove the outdoor
fan.
Nut size: M6
When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
3
4

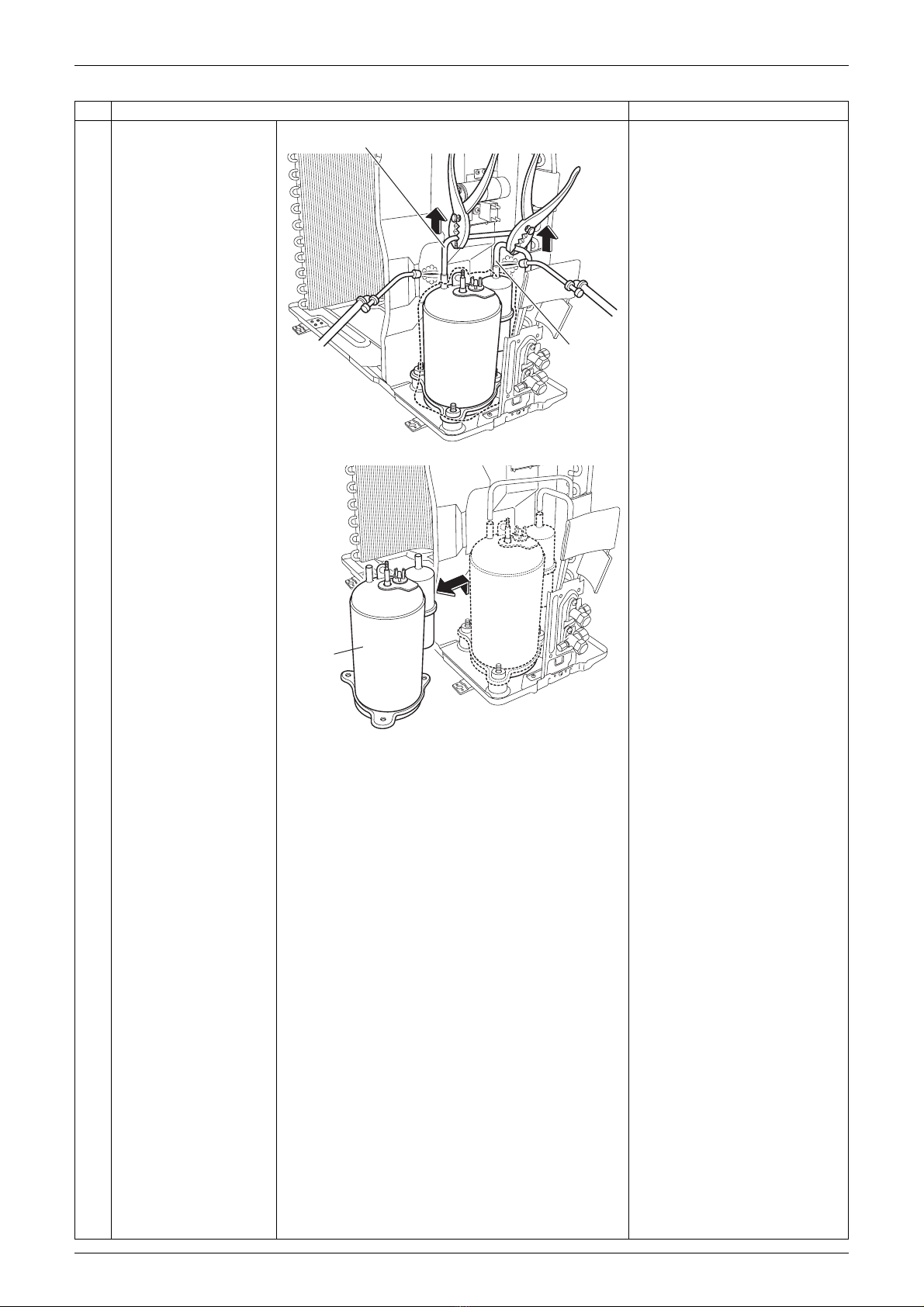

5
6
Release the fan motor
lead wire from the
groove.
Pull out the terminal
(black) from the
magnetic contactor
K1M (6).
Pull out the terminal
(white) from the
compressor capacitor
(C1R).
Pull out the relay
connector (red) to the
fan motor.
7Remove the screw to
detach the fan motor
fixing frame.
Put the lead wire through the
back of the motor when
reassembling so as not to be
entangled with the outdoor
fan.
(R19244)
D-cut
Shaft
Outdoor fan
10 mm
(0.39 inch)
(R18954)
Fan motor lead wire
Groove
(R19250)
to fan motor:
black
K1M
(R19251)
to fan motor:
white
C1R (R20771)
to fan motor:
red
(R16525)
Fan motor fixing frame
(R3249)
Lead wire Outdoor fan

Si011356EA Outdoor Fan / Fan Motor
Removal Procedure 5
8Remove the fan motor
fixing frame.
When reassembling, fit the
lower hooks into the bottom
frame.
9Remove the 3 screws
and remove the fan
motor.
Screw size: M4 × 16
10 Release the harness
from the hooks.
11 Remove the fan motor.
Step Procedure Points
(R19245)
(R10460)
(R10461)
Fan motor
(R15207)
(R15208)

Electrical Components Si011356EA
6Removal Procedure
3. Electrical Components
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
Remove the 7 screws
on the terminal board
and disconnect the
connecting wire and the
power supply wire.
Remove the screw and
remove the wire fixture.
3Remove the screw on
the rear side.
4Remove the 4 screws
on the right side.
Terminal board
(R19328)
Wire fixture
Connecting wire
Power supply wire
(R15219)
(R20745)

Si011356EA Electrical Components
Removal Procedure 7
5Unfasten the upper
hook.
When reassembling, make
sure to fit the hook.
6Unfasten the hook and
remove the right side
panel.
When reassembling, make
sure to fit the hook.
7Remove the screw of
the terminal board
(X1M).
Step Procedure Points
(R10467)
Right side panel
(R19329)
Hook
(R19246)
Terminal board

Electrical Components Si011356EA
8Removal Procedure
8Detach the fixing plate.
9Remove the screw of
the earth / ground wire.
Parts layout
Step Procedure Points
Fixing plate
(R19247)
(R19248)
Earth /
ground
wire
K1M
C1R
(R19253)

Si011356EA Electrical Components
Removal Procedure 9

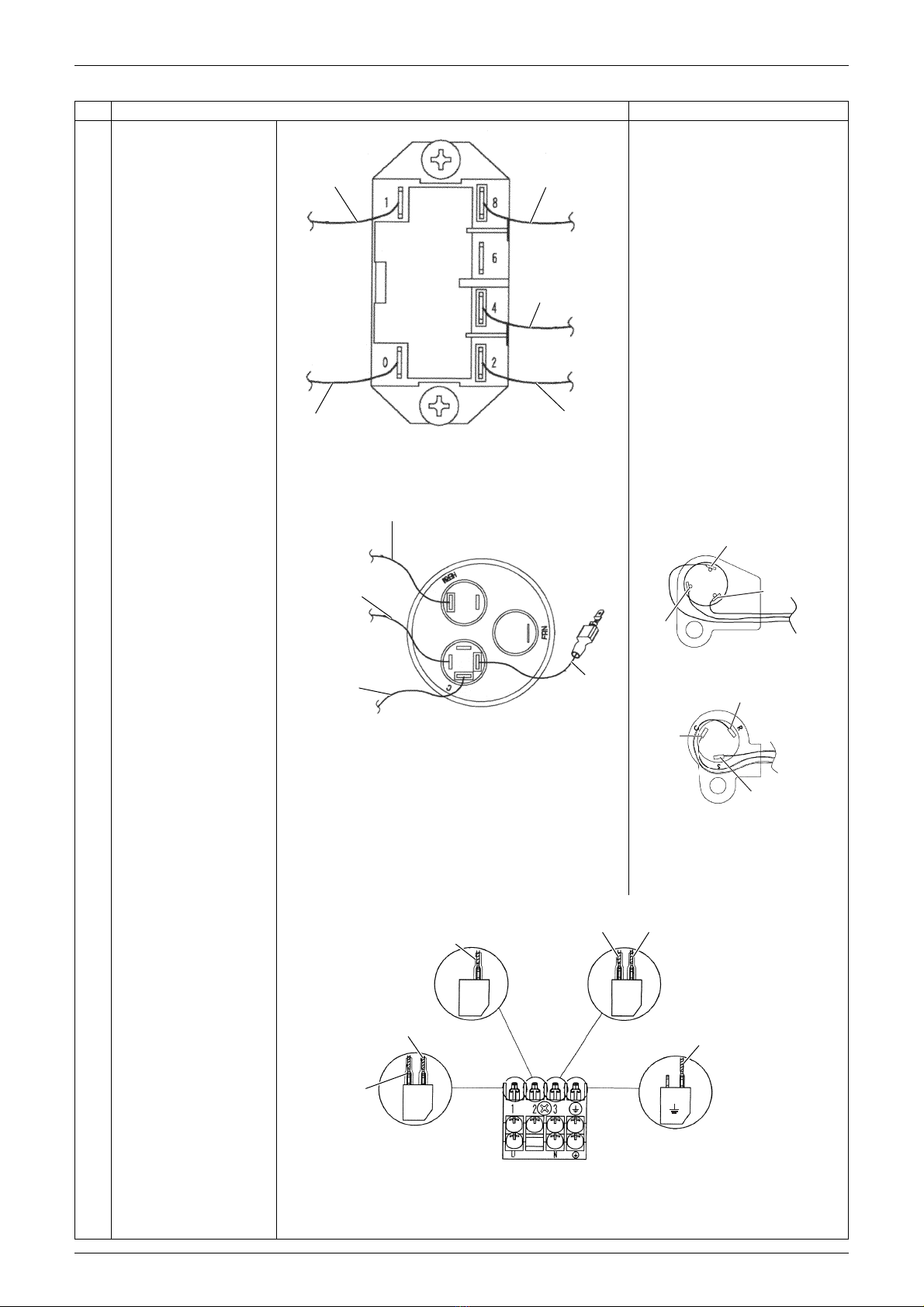

10
11
Pull out the terminals
from the magnetic
contactor (K1M).
Remove the 2 screws
and remove the
magnetic contactor
(K1M).
12
13
Pull out the terminals
from the compressor
capacitor (C1R).
Remove the 2 screws
to loosen the capacitor
fixing band and remove
the compressor
capacitor (C1R).
Compressor lead wire
For R-410A models
For R-32 models
S (W): yellow
C (U): blue
R (V): red
14 Pull out the harnesses
from the terminal board
(X1M).
Step Procedure Points
to X1M (3)
: white
to X1M (1)
: red (fuse)
to X1M (1)
: red
to compressor
(C terminal)
: blue
to X1M (2)
: white K1M
(R20772)
to compressor (S terminal)
: yellow
to compressor
(R terminal)
: red
to X1M (3)
: black
C1R
red
(R20746)
(R15375)
C (U)
R (V)
S (W)
C (U)
R (V)
S (W)(R20742)
to earth / ground wire
: green / yellow
to K1M (1): white
to K1M (0): white
to K1M (4): red
to K1M (8)
: red (fuse)
to C1R: black
(R20741)
X1M
(2)
X1M
(1)
X1M
(3)
X1M

Sound Blankets Si011356EA
10 Removal Procedure
4. Sound Blankets
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
Remove the sound
blanket (top).
Untie the 2 strings and
open the sound blanket
(body).
Since the piping ports on the
sound blanket are torn
easily, remove the sound
blanket carefully.
The design of the sound
blankets varies depending
on the model.
3Remove the sound
blanket (body).
(R16533)
Sound blanket
(body)
Sound blanket
(top)
(R16534)
(R10481)

Si011356EA Capillary Tube
Removal Procedure 11
5. Capillary Tube
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Be careful not to get yourself burnt with the pipes and other parts that are heated by
the gas brazing machine.
If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is
exposed to flames, toxic gas may be generated.)
Caution From the viewpoint of global environment protection, do not discharge the refrigerant
gas in the atmosphere. Make sure to collect all the refrigerant gas.
Restore the piping by non-oxidation brazing.
Note Before working, make sure that the refrigerant gas is empty in the circuit.
Be sure to apply nitrogen replacement when heating up the brazed part.
Do not use a metal saw for cutting pipes by all means because the sawdust comes into
the circuit.
When withdrawing the pipes, be careful not to pinch them firmly with pliers. The pipes
may get deformed.
Provide a protective sheet or a steel plate so that the brazing flame cannot influence
peripheries.
Be careful so as not to burn the compressor terminals, the name plate, the outdoor
heat exchanger fin.
In case of difficulty with gas brazing machine
1. Disconnect the brazed part where is easy to disconnect and restore.
2. Cut pipes on the main unit with a tube cutter in order to make it easy to disconnect.
Step Procedure Points
1Remove the putty. Heat
up the 2 brazed parts
and remove the
capillary tube.
The shape of the capillary
tube varies depending on the
model.
Brazed part
Brazed part
Capillary tube
(R20747)
(R19257)

Compressor ASSY Si011356EA
12 Removal Procedure
6. Compressor ASSY
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Be careful not to get yourself burnt with the pipes and other parts that are heated by
the gas brazing machine.
If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is
exposed to flames, toxic gas may be generated.)
Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet
cloth so as to extinguish fire immediately.
Caution From the viewpoint of global environment protection, do not discharge the refrigerant
gas in the atmosphere. Make sure to collect all the refrigerant gas.
Restore the piping by non-oxidation brazing.
Note Before working, make sure that the refrigerant gas is empty in the circuit.
Be sure to apply nitrogen replacement when heating up the brazed part.
Do not use a metal saw for cutting pipes by all means because the sawdust comes into
the circuit.
When withdrawing the pipes, be careful not to pinch them firmly with pliers. The pipes
may get deformed.
Provide a protective sheet or a steel plate so that the brazing flame cannot influence
peripheries.
Be careful so as not to burn the compressor terminals, the name plate, the outdoor
heat exchanger fin.
In case of difficulty with gas brazing machine
1. Disconnect the brazed part where is easy to disconnect and restore.
2. Cut pipes on the main unit with a tube cutter in order to make it easy to disconnect.
Step Procedure Points
1Remove the nut on the
terminal cover.
The shape of the terminal
cover varies depending on
the model.
(R20748)
Terminal
cover

Si011356EA Compressor ASSY
Removal Procedure 13
2Remove the terminal
cover.
3Disconnect the
compressor lead wires.
Compressor lead wire
For R-410A models
For R-32 models
S (W): yellow
C (U): blue
R (V): red
4Remove the 3 nuts of
the compressor.
Step Procedure Points
(R20749)
(R10484)
(R15375)
C (U)
R (V)
S (W)
C (U)
R (V)
S (W)(R20742)
(R10485)

Compressor ASSY Si011356EA
14 Removal Procedure
5
6
Heat up the brazed part
of the discharge side
pipe and disconnect it.
Heat up the brazed part
of the suction side pipe
and disconnect it.
7Lift the compressor
ASSY up and remove it.
Step Procedure Points
(R20750)
Suction
side pipe
Discharge side pipe
Compressor
ASSY
(R19335)

Revision History
Month / Year Version Revised contents
08 / 2013 Si011356E First edition
09 / 2014 Si011356EA Model addition: ARM09MV2S, RM09NV2S, RM25JV14, RM25KV1V

Head Office:
Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,
Kita-ku, Osaka, 530-8323 Japan
Tokyo Office:
JR Shinagawa East Bldg., 2-18-1, Konan,
Minato-ku, Tokyo, 108-0075 Japan
http://www.daikin.com/products/ac/
All rights reserved
c
Warning
zDaikin products are manufactured for export to numerous countries throughout the world. Prior to
purchase, please confirm with your local authorised importer, distributor and/or retailer whether this
product conforms to the applicable standards, and is suitable for use, in the region where the product
will be used. This statement does not purport to exclude, restrict or modify the application of any local
legislation.
zAsk a qualified installer or contractor to install this product. Do not try to install the product yourself.
Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion.
zUse only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or
contractor to install those parts and accessories. Use of unauthorised parts and accessories or
improper installation of parts and accessories can result in water or refrigerant leakage, electrical
shock, fire or explosion.
zRead the user's manual carefully before using this product. The user's manual provides important
safety instructions and warnings. Be sure to follow these instructions and warnings.
If you have any enquiries, please contact your local importer, distributor and/or retailer.
Cautions on product corrosion
1. Air conditioners should not be installed in areas where corrosive gases, such as acid gas or alkaline gas, are produced.
2. If the outdoor unit is to be installed close to the sea shore, direct exposure to the sea breeze should be avoided. If you need to install
the outdoor unit close to the sea shore, contact your local distributor.
Dealer
zSpecifications, designs and other content appearing in this brochure are current as of September 2014 but subject to change without notice. Si011356EA
09/2014 AK.B
